一、数据库表设计
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for sys_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_permission`;
CREATE TABLE `sys_permission` (
`id` varchar(255) NOT NULL DEFAULT '',
`description` varchar(255) DEFAULT '' COMMENT '权限描述',
`name` varchar(255) DEFAULT '' COMMENT '权限名称',
`pid` varchar(255) DEFAULT '' COMMENT '父节点',
`url` varchar(255) DEFAULT '' COMMENT '授权链接',
`create_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',
`update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`) USING BTREE
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='权限表';
-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role` (
`id` varchar(255) NOT NULL DEFAULT '',
`descprtion` varchar(255) DEFAULT '' COMMENT '角色描述',
`name` varchar(255) DEFAULT '' COMMENT '角色名',
`create_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',
`update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`) USING BTREE
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='角色表';
-- ----------------------------
-- Table structure for sys_role_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_role_permission`;
CREATE TABLE `sys_role_permission` (
`permission_id` varchar(255) NOT NULL,
`role_id` varchar(255) NOT NULL DEFAULT '',
KEY `FKa6jx8n8xkesmjmv6jqug6bg68` (`role_id`),
KEY `FKf8yllw1ecvwqy3ehyxawqa1qp` (`permission_id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='角色权限关联表';
-- ----------------------------
-- Table structure for sys_uer_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_uer_role`;
CREATE TABLE `sys_uer_role` (
`uid` varchar(255) NOT NULL,
`role_id` varchar(255) NOT NULL DEFAULT '',
KEY `FKdpira1rf7d4dg92yp4fg2ltij` (`role_id`),
KEY `FKdb9d5h4r2iy9rld4fcvbdp7ab` (`uid`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='用户角色关联表';
-- ----------------------------
-- Table structure for sys_user_info
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_info`;
CREATE TABLE `sys_user_info` (
`id` varchar(255) NOT NULL DEFAULT '' COMMENT '主键',
`password` varchar(255) DEFAULT NULL COMMENT '密码',
`username` varchar(255) DEFAULT NULL COMMENT '用户名',
`create_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',
`update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='用户表';
SET FOREIGN_KEY_CHECKS = 1;
二、新建项目：初始化一个 Spring Boot 工程。
1、添加依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.8.RELEASE</version>
<relativePath/>
</parent>
<groupId>com.xiao</groupId>
<artifactId>permission_system</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>permission_system</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-test</artifactId>
<scope>test</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/com.baomidou/mybatis-plus -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.1.2</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.2.0</version>
</dependency>
<!-- Beetl 代码生成使用-->
<dependency>
<groupId>com.ibeetl</groupId>
<artifactId>beetl</artifactId>
<version>2.9.10</version>
</dependency>
<dependency>
<groupId>io.swagger</groupId>
<artifactId>swagger-annotations</artifactId>
<version>1.5.20</version>
<scope>compile</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2、在appliction.yml中添加数据库相关配置
#数据库配置
spring.datasource.url=jdbc:mysql://localhost:3306/permission_system
spring.datasource.username=root
spring.datasource.password=000000
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

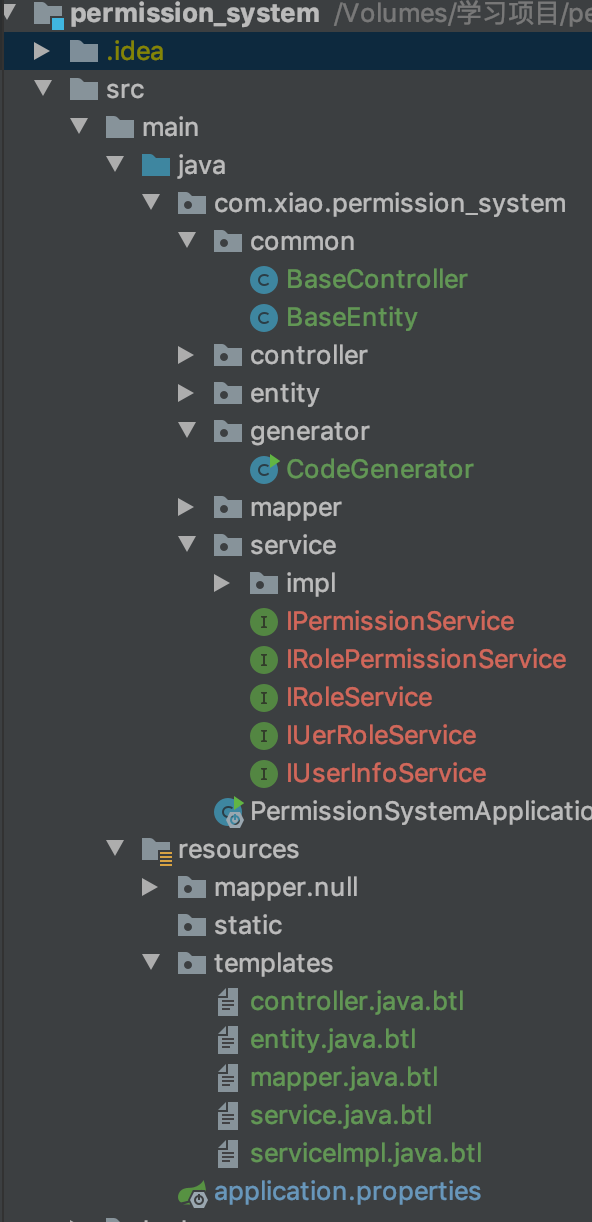

三、项目文件结构设计
