Flutter之CustomPainter时钟绘制

无意间在网上看到下图的绘制效果，便想着画一个时钟，正好学习一下，先上图。

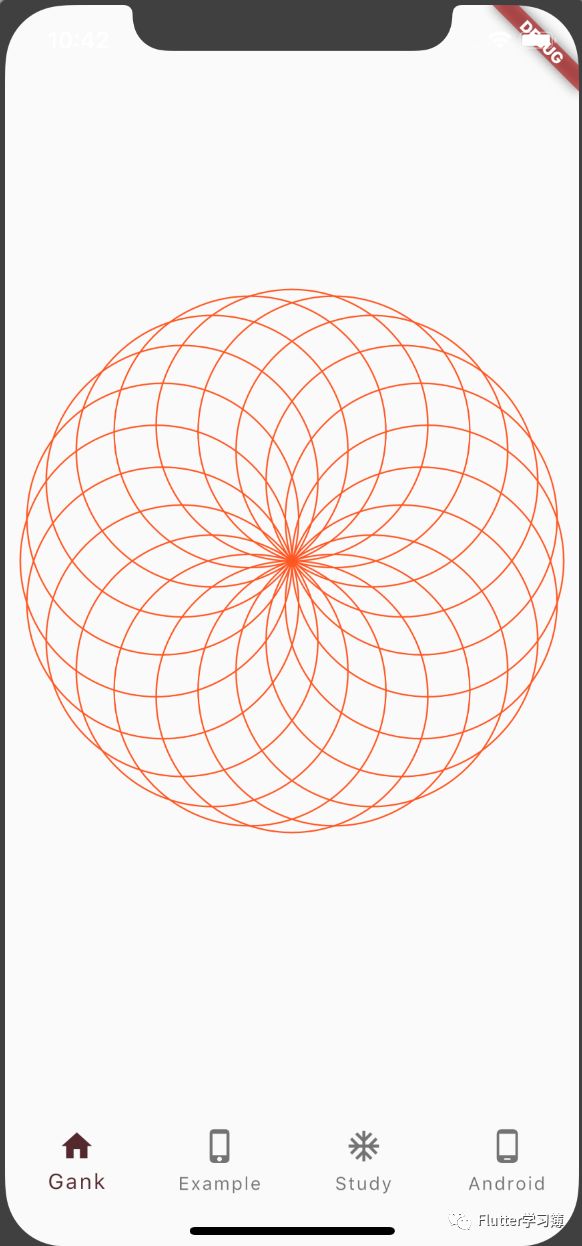

环形圆

时钟

请大家忽略那个可恶的数字“0”。。。

环形圆关键代码




   @override



    void paint(Canvas canvas, Size size) {



    int n = 20;



    var range = List<int>.generate(n, (i) => i + 1);



    for (int i in range) {



    double x = 2 * math.pi / n;



    double dx = radius * math.sin(i * x);



    double dy = radius * math.cos(i * x);



    print("dx${i.toString()}=>${dx.toString()}");



    print("dy${i.toString()}=>${dy.toString()}");



    canvas.drawCircle(Offset(dx, dy), radius, myPaint);



    }



    }

时钟完整代码




  class TimeClockWidget extends StatefulWidget {



    @override



    _TimeClockWidgetState createState() => _TimeClockWidgetState();



   }








   class _TimeClockWidgetState extends State<TimeClockWidget> {



    Timer timer;








    @override



    void initState() {



    // TODO: implement initState



    super.initState();



    timer = Timer.periodic(Duration(seconds: 1), (timer) {



    setState(() {});



    });



    }








    @override



    void dispose() {



    // TODO: implement dispose



    super.dispose();



    timer.cancel();



    }








    @override



    Widget build(BuildContext context) {



    return Center(child: CustomPaint(painter: CustomTimeClock()));



    }



   }








   class CustomTimeClock extends CustomPainter {



    //大外圆



    Paint _bigCirclePaint = Paint()



    ..style = PaintingStyle.stroke



    ..isAntiAlias = true



    ..color = Colors.deepOrange



    ..strokeWidth = 4;








    //粗刻度线



    Paint _linePaint = Paint()



    ..style = PaintingStyle.fill



    ..isAntiAlias = true



    ..color = Colors.deepOrange



    ..strokeWidth = 4;








    //圆心



    Offset _centerOffset = Offset(0, 0);








    //圆半径



    double _bigRadius =



    math.min(Screen.screenHeightDp / 3, Screen.screenWidthDp / 3);








    final int lineHeight = 10;








    List<TextPainter> _textPaint = [



    _getTextPainter("12"),



    _getTextPainter("3"),



    _getTextPainter("6"),



    _getTextPainter("9"),



    ];








    //文字画笔



    TextPainter _textPainter = new TextPainter(



    textAlign: TextAlign.left, textDirection: TextDirection.ltr);








    @override



    void paint(Canvas canvas, Size size) {



    // TODO: implement paint



    print('_bigRadius: ${_bigRadius}');



    //绘制大圆



    canvas.drawCircle(_centerOffset, _bigRadius, _bigCirclePaint);



    //绘制圆心



    _bigCirclePaint.style = PaintingStyle.fill;



    canvas.drawCircle(_centerOffset, _bigRadius / 20, _bigCirclePaint);



    //绘制刻度,秒针转一圈需要跳60下,这里只画6点整的刻度线，但是由于每画一条刻度线之后，画布都会旋转60°(转为弧度2*pi/60)，所以画出60条刻度线



    for (int i = 0; i < 60; i++) {



    _linePaint.strokeWidth = i % 5 == 0 ? (i % 3 == 0 ? 10 : 4) : 1; //设置线的粗细



    canvas.drawLine(Offset(0, _bigRadius - lineHeight), Offset(0, _bigRadius),



    _linePaint);



    canvas.rotate(math.pi / 30); //2*math.pi/60



    }



    //方法一:绘制数字,此处暂时没想到更好的方法,TextPainter的绘制间距老有问题,不好控制



    /* _textPaint[0].layout();



    _textPaint[0].paint(canvas, new Offset(-12, -_bigRadius+20));



    _textPaint[1].layout();



    _textPaint[1].paint(canvas, new Offset(_bigRadius-30,-12));



    _textPaint[2].layout();



    _textPaint[2].paint(canvas, new Offset(-6,_bigRadius-40));



    _textPaint[3].layout();



    _textPaint[3].paint(canvas, new Offset(-_bigRadius+20,-12));*/








    //方法二:绘制数字,



    for (int i = 0; i < 12; i++) {



    canvas.save();//与restore配合使用保存当前画布



    canvas.translate(0.0, -_bigRadius+30);//平移画布画点于时钟的12点位置，+30为了调整数字与刻度的间隔



    _textPainter.text = TextSpan(



    style: new TextStyle(color: Colors.deepOrange, fontSize: 22),



    text: i.toString());



    canvas.rotate(-deg2Rad(30) * i);//保持画数字的时候竖直显示。



    _textPainter.layout();



    _textPainter.paint(



    canvas, Offset(-_textPainter.width / 2, -_textPainter.height / 2));



    canvas.restore();//画布重置,恢复到控件中心



    canvas.rotate(deg2Rad(30));//画布旋转一个小时的刻度，把数字和刻度对应起来



    }



    //绘制指针,这个也好理解



    int hours = DateTime.now().hour;



    int minutes = DateTime.now().minute;



    int seconds = DateTime.now().second;



    print("时: ${hours} 分：${minutes} 秒: ${seconds}");



    //时针角度//以下都是以12点为0°参照



    //12小时转360°所以一小时30°



    double hoursAngle = (minutes / 60 + hours - 12) * math.pi / 6;//把分钟转小时之后*（2*pi/360*30）



    //分针走过的角度,同理,一分钟6°



    double minutesAngle = (minutes + seconds / 60) * math.pi / 30;//(2*pi/360*6)



    //秒针走过的角度,同理,一秒钟6°



    double secondsAngle = seconds * math.pi / 30;



    //画时针



    _linePaint.strokeWidth = 4;



    canvas.rotate(hoursAngle);



    canvas.drawLine(Offset(0, 0), new Offset(0, -_bigRadius + 80), _linePaint);



    //画分针



    _linePaint.strokeWidth = 2;



    canvas.rotate(-hoursAngle);//先把之前画时针的角度还原。



    canvas.rotate(minutesAngle);



    canvas.drawLine(Offset(0, 0), new Offset(0, -_bigRadius + 60), _linePaint);



    //画秒针



    _linePaint.strokeWidth = 1;



    canvas.rotate(-minutesAngle);//同理



    canvas.rotate(secondsAngle);



    canvas.drawLine(Offset(0, 0), new Offset(0, -_bigRadius + 30), _linePaint);



    }








    @override



    bool shouldRepaint(CustomPainter oldDelegate) {



    // TODO: implement shouldRepaint



    return true;



    }








    static TextPainter _getTextPainter(String msg) {



    return new TextPainter(



    text: TextSpan(



    style: new TextStyle(color: Colors.deepOrange, fontSize: 22),



    text: msg),



    textAlign: TextAlign.center,



    textDirection: TextDirection.ltr);



    }








    //角度转弧度



    num deg2Rad(num deg) => deg * (math.pi / 180.0);



   }

Screen代码

Screen参考screenutil改的. https://github.com/OpenFlutter/flutter_ScreenUtil Screen.init()程序启动的时候调用就行。。。




  import 'package:flutter/material.dart';



   import 'dart:ui' as ui;








   class Screen {



    //一些固定的配置参数



    static final double width = 1080;//px



    static final double height = 1920;//px



    static final bool allowFontScaling = false;













    ///当前设备宽度 dp



    static double _screenWidthDp;



    ///当前设备高度 dp



    static double _screenHeightDp;



    ///设备的像素密度



    static double _screenPixelRatio;








    ///状态栏高度 dp 刘海屏会更高



    static double _topSafeHeight;



    ///底部安全区距离 dp



    static double _bottomSafeHeight;








    ///每个逻辑像素的字体像素数，字体的缩放比例



    static double _textScaleFactory;








    static void init(){



    MediaQueryData mediaQueryData = MediaQueryData.fromWindow(ui.window);



    _screenWidthDp=mediaQueryData.size.width;



    _screenHeightDp=mediaQueryData.size.height;



    _screenPixelRatio=mediaQueryData.devicePixelRatio;



    _topSafeHeight=mediaQueryData.padding.top;



    _bottomSafeHeight=mediaQueryData.padding.bottom;



    _textScaleFactory=mediaQueryData.textScaleFactor;



    }








    ///当前设备宽度 dp



    static double get screenWidthDp =>_screenWidthDp;








    ///当前设备高度 dp



    static double get screenHeightDp =>_screenHeightDp;








    ///当前设备宽度 px



    static double get screenWidth => _screenWidthDp * _screenPixelRatio;








    ///当前设备高度 px



    static double get screenHeight => _screenHeightDp * _screenPixelRatio;








    ///设备的像素密度



    static double get screenPixelRatio =>_screenPixelRatio;








    ///状态栏高度 dp 刘海屏会更高



    static double get topSafeHeight=>_topSafeHeight;








    ///底部安全区距离 dp



    static double get bottomSafeHeight =>_bottomSafeHeight;








    ///每个逻辑像素的字体像素数，字体的缩放比例



    static double get textScaleFactory =>_textScaleFactory;








    ///ToolBarHeight +status高度



    static double get navigationBarHeight =>_topSafeHeight+toolBarHeight;








    ///TooBar高度



    static double get toolBarHeight =>kToolbarHeight;













    ///实际的dp与设计稿px 的比例








    static get scaleWidth => screenWidthDp / width;








    static get scaleHeight => screenHeightDp / height;








    ///根据设计稿的设备宽度适配



    ///高度也根据这个来做适配可以保证不变形



    static setWidth(double width) => width * scaleWidth;








    /// 根据设计稿的设备高度适配



    /// 当发现设计稿中的一屏显示的与当前样式效果不符合时,



    /// 或者形状有差异时,高度适配建议使用此方法



    /// 高度适配主要针对想根据设计稿的一屏展示一样的效果



    static setHeight(double height) => height * scaleHeight;



    ///字体大小适配方法



    ///@param fontSize 传入设计稿上字体的px ,



    ///@param allowFontScaling 控制字体是否要根据系统的“字体大小”辅助选项来进行缩放。默认值为false。



    ///@param allowFontScaling Specifies whether fonts should scale to respect Text Size accessibility settings. The default is false.



    static setSp(double fontSize) => allowFontScaling



    ? setWidth(fontSize)



    : setWidth(fontSize) / textScaleFactory;



   }
