1、安装jdk并配置JAVA_HOME
vi ~/.bash_profile
export JAVA_HOME=/Library/Java/JavaVirtualMachines/jdk1.8.0_151.jdk/Contents/Home
source ~/.bash_profile
2、安装Tomcat
3、下载jenkins.war，部署到tomcat中
4、配置.bash_profile
export JENKINS_HOME=/Users/Shared/Jenkins/Home
5、安装jenkins相关插件：系统管理-->插件管理
Subversion Plug-in 版本控制
Xcode integration xcode打包命令
Keychains and Provisioning Profiles Management管理证书和授权文件

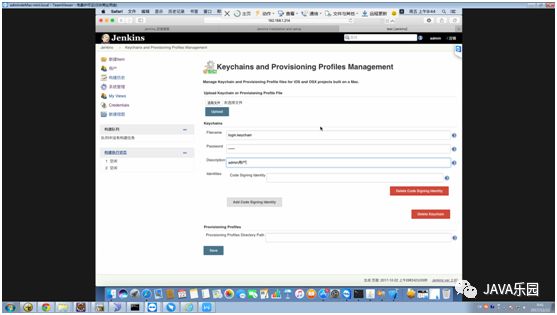

6、配置证书及pfofile：系统管理-->Keychainsand Provisioning Profiles Management
Keychians配置：

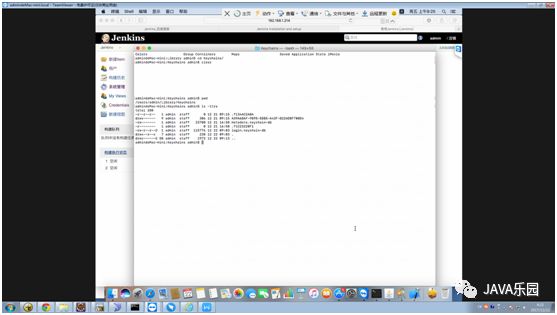

打开终端窗口输入命令行
open /Users/管理员用户名/Library/Keychains
例如：open /Users/admin/Library/Keychains
Mac系统10.12版本以后找到 login.keychain-db文件（Mac系统10.12版本之前找到login.keychain文件）(PS:若版本对应的文件没有，选择其中一个文件复制到桌面改名)? ? 将其复制到桌面，回到Jenkins网页，选择文件（桌面的login.keychain-db 或 login.keychain）点击Upload login.keychain-db需要重命名为login.keychain
上传login.keychain文件（管理员用户也就是苹果电脑的登录用户）

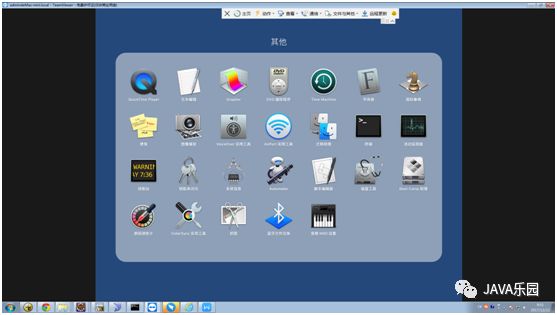

配置Code Signing Identity（所使用的签名），开发苹果APP有一个p12的证书。把该证书上传到苹果电脑；双击安装该证书（http://blog.csdn.net/phunxm/article/details/42685597），安装后打开Launchpad，找到钥匙串访问

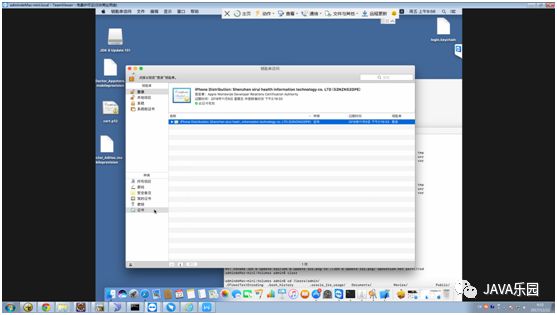

打开钥匙串访问可以找到Code Signing Identity（所使用的签名）
备注：如果不知道具体填什么可以到钥匙串访问中寻找 iPhoneDistribution：开头的所使用的证书，然后选中后点击右键选择显示简介，在弹出的窗口中找到常用名称，将其复制填入即可；或者可以在命令行中输入security find-identity -p codesigning -v来查找iPhoneDistribution：开头的签名即可，找到后将双引号中的内容复制。

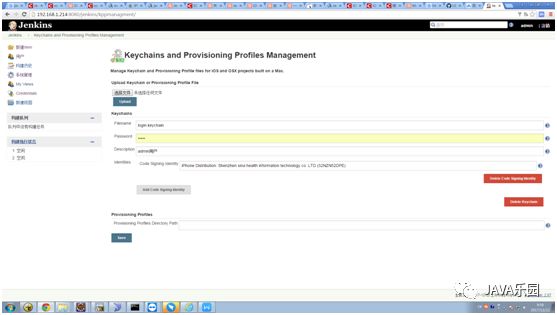

填写完毕如下图：

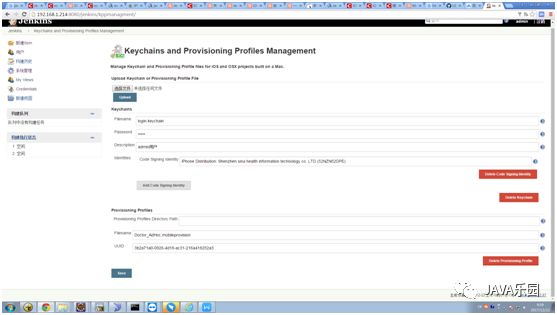

Provisioning Profiles配置：
找到Provisioning Profiles 文件点击上传
设置 Provisioning ProfilesDirectory Path Provisioning 文件的存放目录；例如把mobileprovision存放在苹果电脑的如下目录
安装xcode和Command Line Tools
Xcode文件很大请自行安装
运行/usr/bin/xcodebuild出现如下错误：
xcode-select:error: tool 'xcodebuild' requires Xcode, but active developer directory'/Library/Developer/CommandLineTools' is a command linetools instance
以上错误是因为安装了 xcode , 但并不是系统默认的位置, 所以可以使用以下命令把 xcode 的路径修改为你安装的位置即可
sudo xcode-select --switch /Applications/Xcode.app/Contents/Developer
红色部分就是你安装的 xcode 的自定义路径。
在终端中输入以下命令安装Command Line Tools：
xcode-select--install

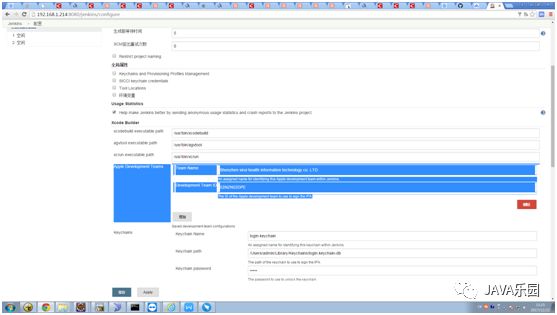

配置Apple Development Teams：系统管理-->系统配置
7、创建苹果App构建

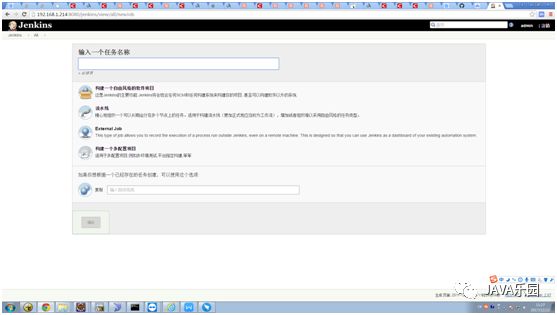

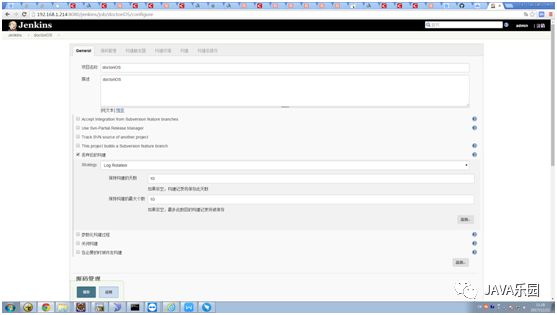

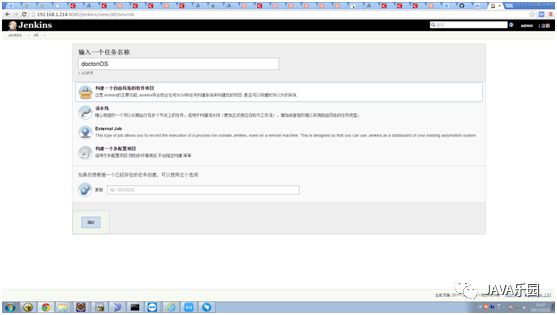

新建Item

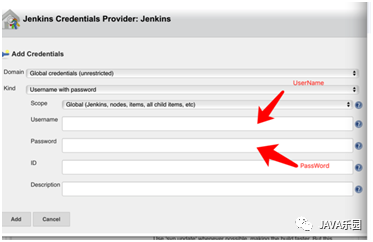

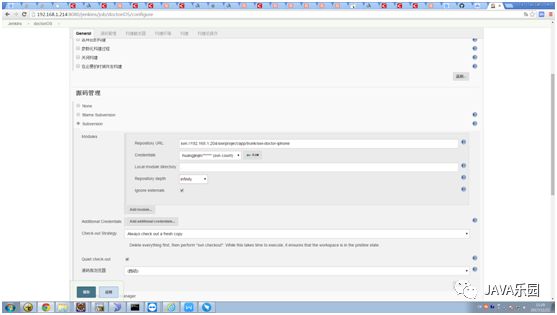

配置svn

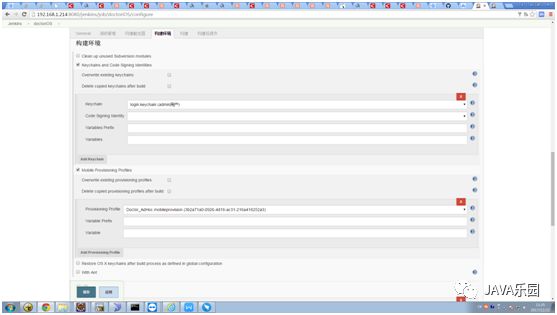

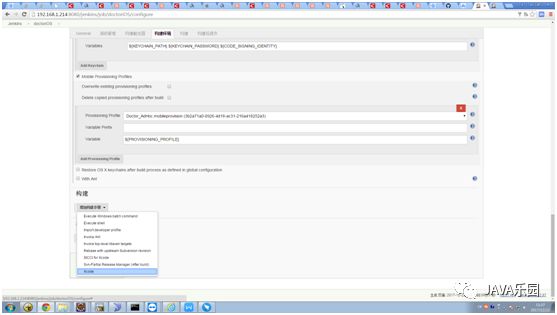

设置Keychainsand Code Signing Identities和Mobile Provisioning Profiles
构建
有两种方式打包，一是用Xcode插件打包，二是用Shell脚本打包。
方式一用Xcode插件打包：
添加构建步骤-> Xcode基本信息
这里Target请于Xcode项目中Target的名字对应

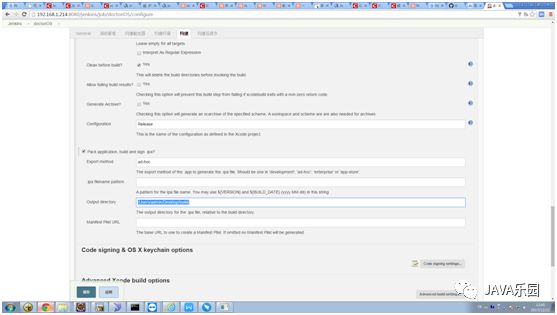

Clean before build设置为YES
Configuration我选择了Release（在Release的时候Archive）
Output directory为.ipa的输出路径，我这里设置为/Users/Shared/Jenkins/Home

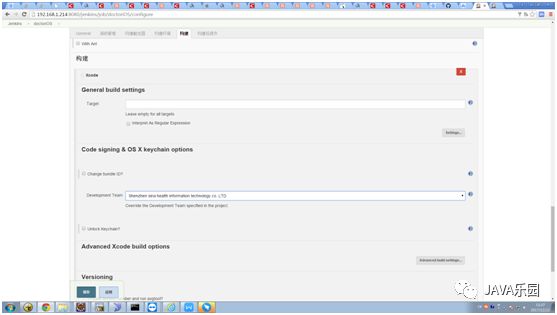

General build settings
Target：就是我们在项目中建立的Target
如果不清楚有哪些Target的情况下可以到xcodeproj或xcworkspace的目录下运行如下命令 xcodebuild -list 即可看到Targets，其中是所有可以用的target。
Pack application, build andsign .ipa?

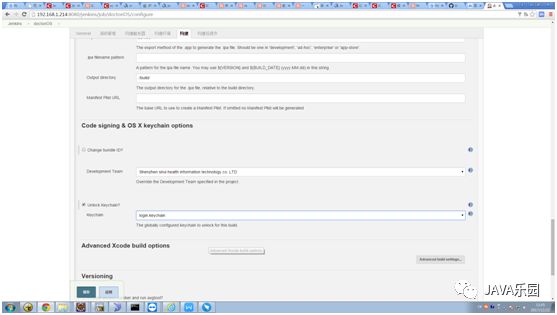

Code signing & OS X keychain options
设置Development Team

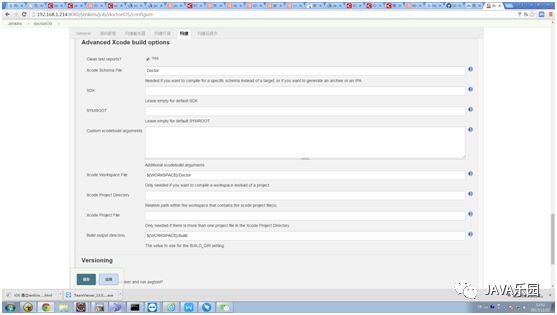

设置Advanced Xcode build options
注解：Xcode SchemaFile构建环境(项目target名称)、Xcode Workspace File：（如果有使用Cooapods管理三方库才填Xcode Workspace File，若没有三方管理库就填Xcode Project File，二者选一）${WORKSPACE}/工程名、Build output directory第三方库存放打包的地方
其他可用查看链接
http://www.jianshu.com/p/5cad74906159
http://www.jianshu.com/p/ce36997919b4
http://www.jianshu.com/p/91e8f571fc2b
http://blog.csdn.net/youtk21ai/article/details/48719807
http://blog.csdn.net/qq_30513483/article/details/51098657
http://www.jianshu.com/p/54c7daae6c94
http://www.jianshu.com/p/371595ef08fe
http://www.jianshu.com/p/382596b1f120
http://www.jianshu.com/p/7a2efc7c69fe
http://www.jianshu.com/p/c69deb29720d
http://blog.csdn.net/zhonggaorong/article/details/51436275
http://blog.csdn.net/think12/article/details/76130200
http://blog.csdn.net/u013602835/article/details/54632843
遇到的问题
https://www.cnblogs.com/qingjoin/p/3929493.html
JenkinsXcode 证书设置错误 Code Signerror: No matching codesigning identity found: No codesigning identities
Jenkins集成Xcode项目的时候在证书上遇到了问题。实际上如果在本地的话。只要Xcode工程里选择了项目就不需要重新设置证书了。jenkins会自动找到这个证书，只要在build setting 里设置的是正常的。
并且在xcode 里能正常编译。
Check dependencies
CodeSign error: No codesigning identities found: No codesigning identities (i.e.certificate and private key pairs) that match the provisioning profilespecified in your build settings (“qingyunDeveloper”) were found.
如果遇到类似的错误 解决办法：
首先打开keychain keys 找到apple 的开发者证书。然后复制。再选择左边的系统（system）把刚复制的证书放进去。
如果这个还没有解决。
接下来第二步：
找到你用户下的Provisioning Profiles 文件。目录为 /Users/xxx/Library/MobileDevice/Provisioning Profiles xxx表示你自己的用户名
把这里面所有的证书复制到/Users/Shared/Jenkins/Library/MobileDevice/Provisioning Profile 这个文件。
最后提示
iPhone.build/ProjectCos.xcent/Users/chenqing/Sqy/iOSProject/cyou/Svn/Cos/CosXCode_lxh/build/ProjectCos.app
**BUILD SUCCEEDED **
Finished:SUCCESS
参考资料：
http://code-dojo.blogspot.co.uk/2012/09/fix-ios-code-signing-issue-when-using.html
Fixthe iOS code signing issue when using Jenkins
Thisweek I setup the Jenkins on my Mac and try to build iOS applications.unfortunately I got the code signing issues, either I use xcode plugin or xcodecommand line tool. Through a couple days of googling and I could not find anysolution that works for me, but I finally solve this issue by myself throughdifferent try out, and the solution is such an easy, now I would like to sharewith my solution.
The core reason is Jenkins is running as daemon mode in Mac, just assume it isa different user - "Jenkins", so it will not have access to thekeychain or provision profile as a you login using your credentials, whichcause the code signing issue.
I found I have following 2 errors
1. "Code Sign error: There are no valid certificate/private key pairs inthe default keychain"
Solution: Copy your iPhone developer certificate from "login"keychain to "System" keychain.
Detailed steps:
open the "Keychain Access" application, click the login tab,right click the certificate like "iPhone Developer: your_name(XXXXXXX)", choose copy, then click the "System" tab, rightclick mouse, choose "Paste 2 items"; you might need to do the samething with the certificate like "iPhone Distribution: your_name".
After doing this, you will get the second error.
2. "Code Sign error: Provisioning profile 'xxxxx-xxxx-xxxx-xxxxx' can't befound"
Solution: Copy the provision profile to Jenkins user folder.
The provision profile is under in the folder
/YourUserName/Library/MobileDevice/Provisioning Profiles,
for example in my machine, the provision profile files are under/Users/steve/Library/MobileDevice/Provisioning Profiles
In the mac, the Jenkins will be in /Users/Shared/Jenkins, create the followingfolder:
/Users/Shared/Jenkins/Library/MobileDevice/Provisioning Profile, thencopy the .mobileprovision file to this folder.
After doing this, the code signing issues will be fixed. Hope my finding willbe helpful to other Jenkins users.
http://www.jianshu.com/p/5591fe0c6770
http://www.jianshu.com/p/62fa8083b45c
Checkdependencies
Noprofile matching 'XC iOS: com.ios.demo' found:Xcode couldn't find a profilematching 'XC iOS: com.ios.demo'. Install the profile (by dragging and droppingit onto Xcode's dock item) or select a different one in the General tab of thetarget editor.
Codesigning is required for product type 'Application' in SDK 'iOS 10.2'
解决方法：
/Users/【当前登陆用户的用户名】/Library/MobileDevice/的整个文件夹Provisioning Profiles拷贝到/Users/Shared/Jenkins/Library/MobileDevice下面
一定要把Provisioning Profiles整个文件夹放到MobileDevice下面
Jenkins.pkg安装注意步骤：
cat /Users/Shared/Jenkins/Home/secrets/initialAdminPassword 提示权限[Permission Denied]
sudo cat /Users/Shared/Jenkins/Home/secrets/initialAdminPassword
使用root权限打开，否则密码不可见
启动
sudo launchctl load/Library/LaunchDaemons/org.jenkins-ci.plist
停止
sudo launchctl unload/Library/LaunchDaemons/org.jenkins-ci.plist
http://debugtalk.com/post/iOS-Android-Packing-with-Jenkins/
http://debugtalk.com/post/iOS-Android-Packing-with-Jenkins-details/
