K8S搭建及部署Hadoop集群

K8s服务器配置

服务器节点

cat >> /etc/hosts << EOF
192.168.207.133 k8s-master
192.168.207.134 k8s-node1
192.168.207.135 k8s-node2
EOF

kubeadm 初始化

kubeadm init \
      --apiserver-advertise-address=192.168.207.133 \
      --image-repository registry.aliyuncs.com/google_containers \
      --kubernetes-version v1.19.0 \
      --service-cidr=10.96.0.0/12 \
      --pod-network-cidr=10.244.0.0/16 \
      --ignore-preflight-errors=all

搭建Hadoop集群

编写hadoop.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: kube-hadoop-conf
data:
  HDFS_MASTER_SERVICE: hadoop-hdfs-master
  HDOOP_YARN_MASTER: hadoop-yarn-master
---
apiVersion: v1
kind: Service
metadata:
  name: hadoop-hdfs-master
spec:
  type: NodePort
  selector:
    name: hdfs-master
  ports:
    - name: rpc
      port: 9000
      targetPort: 9000
    - name: http
      port: 50070
      targetPort: 50070
      nodePort: 32007
---
apiVersion: v1
kind: ReplicationController
metadata:
  name: hdfs-master
  labels:
    name: hdfs-master
spec:
  replicas: 1
  selector:
    name: hdfs-master
  template:
    metadata:
      labels:
        name: hdfs-master
    spec:
      containers:
        - name: hdfs-master
          image: kubeguide/hadoop:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 9000
            - containerPort: 50070
          env:
            - name: HADOOP_NODE_TYPE
              value: namenode
            - name: HDFS_MASTER_SERVICE
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDFS_MASTER_SERVICE
            - name: HDOOP_YARN_MASTER
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDOOP_YARN_MASTER
      restartPolicy: Always
---
apiVersion: v1
kind: ReplicationController
metadata:
  name: hadoop-datanode
  labels:
    app: hadoop-datanode
spec:
  replicas: 3
  selector:
    name: hadoop-datanode
  template:
    metadata:
      labels:
        name: hadoop-datanode
    spec:
      containers:
        - name: hadoop-datanode
          image: kubeguide/hadoop:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 9000
            - containerPort: 50070
          env:
            - name: HADOOP_NODE_TYPE
              value: datanode
            - name: HDFS_MASTER_SERVICE
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDFS_MASTER_SERVICE
            - name: HDOOP_YARN_MASTER
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDOOP_YARN_MASTER
      restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
  name: hadoop-yarn-master
spec:
  type: NodePort
  selector:
    name: yarn-master
  ports:
     - name: "8030"
       port: 8030
     - name: "8031"
       port: 8031
     - name: "8032"
       port: 8032
     - name: http
       port: 8088
       targetPort: 8088
       nodePort: 32088
---
apiVersion: v1
kind: ReplicationController
metadata:
  name: yarn-master
  labels:
    name: yarn-master
spec:
  replicas: 1
  selector:
    name: yarn-master
  template:
    metadata:
      labels:
        name: yarn-master
    spec:
      containers:
        - name: yarn-master
          image: kubeguide/hadoop:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 9000
            - containerPort: 50070
          env:
            - name: HADOOP_NODE_TYPE
              value: resourceman
            - name: HDFS_MASTER_SERVICE
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDFS_MASTER_SERVICE
            - name: HDOOP_YARN_MASTER
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDOOP_YARN_MASTER
      restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
  name: yarn-node
spec:
  clusterIP: None
  selector:
    name: yarn-node
  ports:
     - port: 8040
---
apiVersion: v1
kind: ReplicationController
metadata:
  name: yarn-node
  labels:
    name: yarn-node
spec:
  replicas: 3
  selector:
    name: yarn-node
  template:
    metadata:
      labels:
        name: yarn-node
    spec:
      containers:
        - name: yarn-node
          image: kubeguide/hadoop:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8040
            - containerPort: 8041
            - containerPort: 8042
          env:
            - name: HADOOP_NODE_TYPE
              value: yarnnode
            - name: HDFS_MASTER_SERVICE
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDFS_MASTER_SERVICE
            - name: HDOOP_YARN_MASTER
              valueFrom:
                configMapKeyRef:
                  name: kube-hadoop-conf
                  key: HDOOP_YARN_MASTER
      restartPolicy: Always

创建hadoop集群

kubectl create -f hadoop.yaml

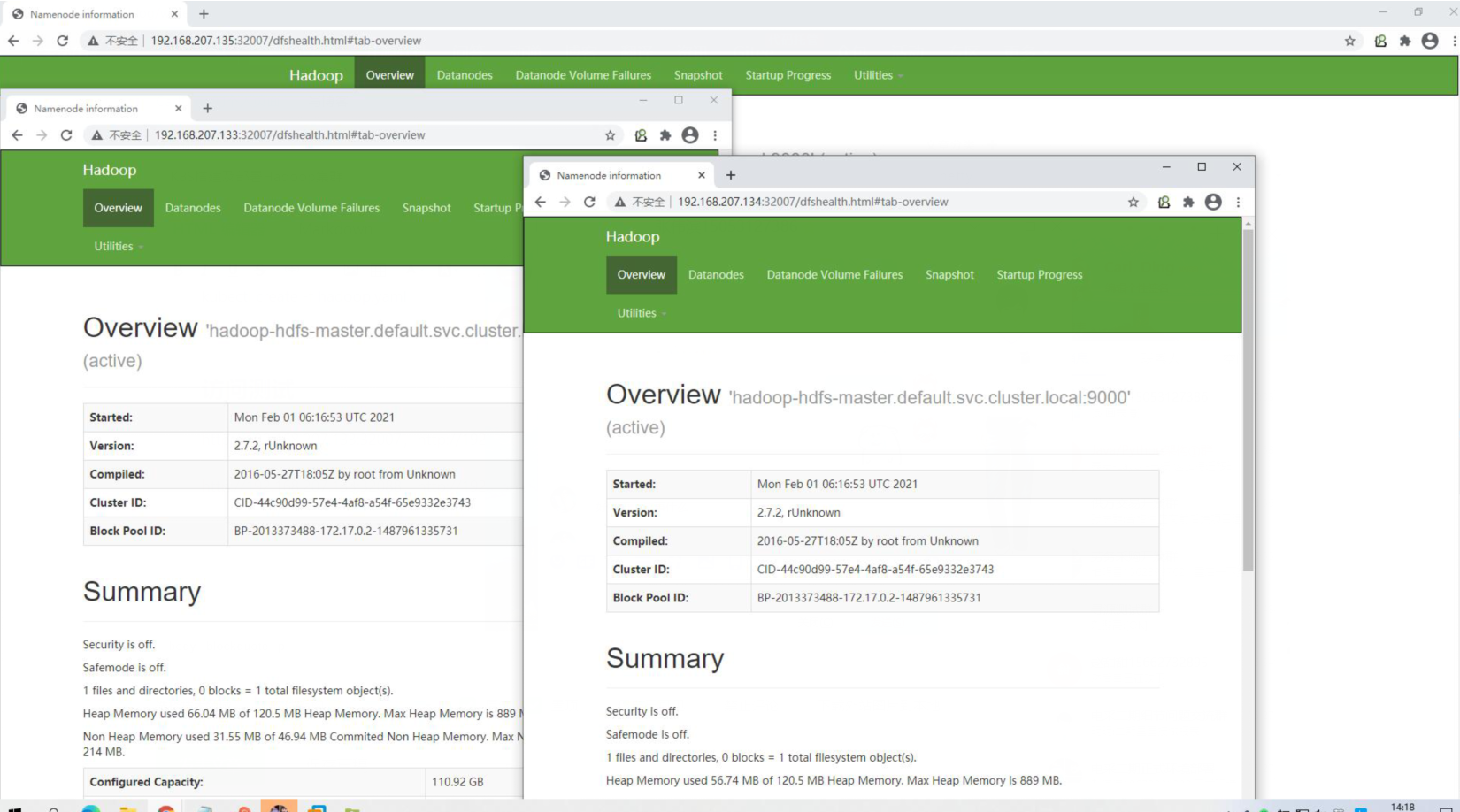

访问测试

http://192.168.207.133:32007，http://192.168.207.134:32007，http://192.168.207.135:32007

http://192.168.207.133:32088，http://192.168.207.133:32088，http://192.168.207.133:32088
