Docker 安装单机 Canal

一、 Docker安装

略

二、修改MySQL配置

2.1 修改my.cnf配置

对于自建 MySQL , 需要先开启 Binlog 写入功能，配置 binlog-format 为 ROW 模式，my.cnf 中配置如下

log-bin=mysql-bin 	# 开启 binlog
binlog-format=ROW 	# 选择 ROW 模式
server_id=1 		# 配置 MySQL replaction 需要定义，不要和 canal 的 slaveId 重复

记得重启MySQL

2.2 新建MySQL用户

授权 canal 链接 MySQL 账号具有作为 MySQL slave 的权限, 如果已有账户可直接 grant

-- 新建用户
CREATE USER canal IDENTIFIED BY 'canal';

-- GRANT ALL PRIVILEGES ON *.* TO 'canal'@'%' ;
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';

-- 刷新权限
FLUSH PRIVILEGES;

三、 Canal Admin部署

2.1 下载镜像

docker hub

#拉取 canal Admin镜像
$ docker pull canal/canal-admin:v1.1.4

2.2 启动容器

#拉取启动脚本
wget https://raw.githubusercontent.com/alibaba/canal/master/docker/run_admin.sh

#运行脚本
sh  run_admin.sh -e server.port=8089 \
         -e canal.adminUser=admin \
         -e canal.adminPasswd=admin

#查看启动日志
$ docker logs canal-admin

DOCKER_DEPLOY_TYPE=VM
==> INIT /alidata/init/02init-sshd.sh
==> EXIT CODE: 0
==> INIT /alidata/init/fix-hosts.py
==> EXIT CODE: 0
==> INIT DEFAULT
Generating SSH1 RSA host key:                              [  OK  ]
Starting sshd:                                             [  OK  ]
Starting crond:                                            [  OK  ]
==> INIT DONE
==> RUN /home/admin/app.sh
==> START ...
start mysql ...
Starting mysqld:                                           [  OK  ]
start mysql successful
start admin ...
start canal successful
==> START SUCCESSFUL ...

2.3 查看Canal Admin UI页面

四、部署 Canal Server

docker hub

3.1 拉取镜像

$ docker pull canal/canal-server:v1.1.4

3.2 启动容器

#拉取启动脚本
wget https://raw.githubusercontent.com/alibaba/canal/master/docker/run.sh

#运行脚本
sh run.sh -e canal.admin.manager=192.168.25.142:8089 \
          -e canal.admin.port=11110 \
          -e canal.admin.user=admin \
          -e canal.admin.passwd=4ACFE3202A5FF5CF467898FC58AAB1D615029441

#查看容器日志
$ docker logs canal-server

DOCKER_DEPLOY_TYPE=VM
==> INIT /alidata/init/02init-sshd.sh
==> EXIT CODE: 0
==> INIT /alidata/init/fix-hosts.py
==> EXIT CODE: 0
==> INIT DEFAULT
Generating SSH1 RSA host key:                              [  OK  ]
Starting sshd:                                             [  OK  ]
Starting crond:                                            [  OK  ]
==> INIT DONE
==> RUN /home/admin/app.sh
==> START ...
start canal ...
start canal successful
==> START SUCCESSFUL ...

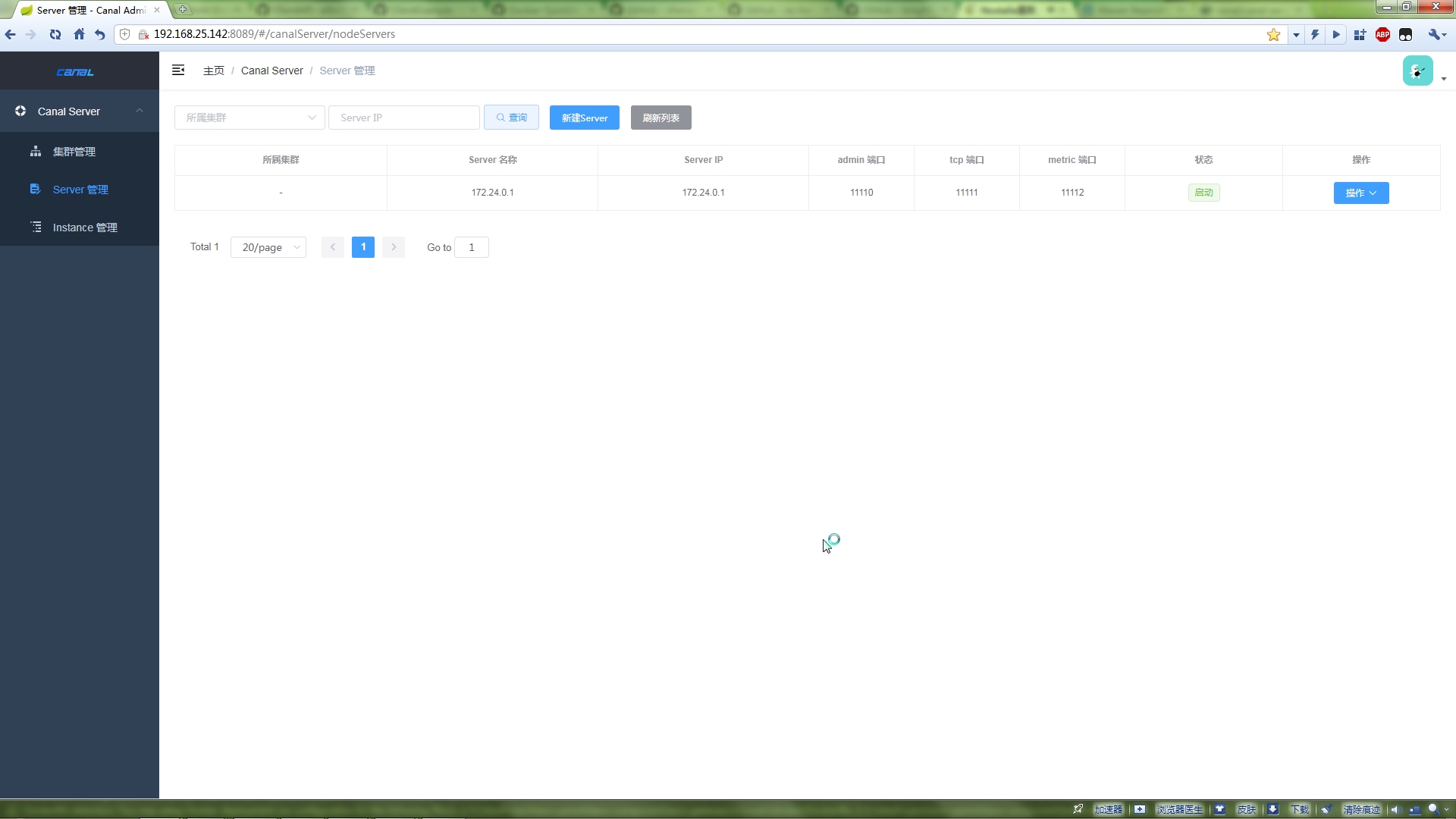

3.3 查看Canal Admin

五、新增instance实例

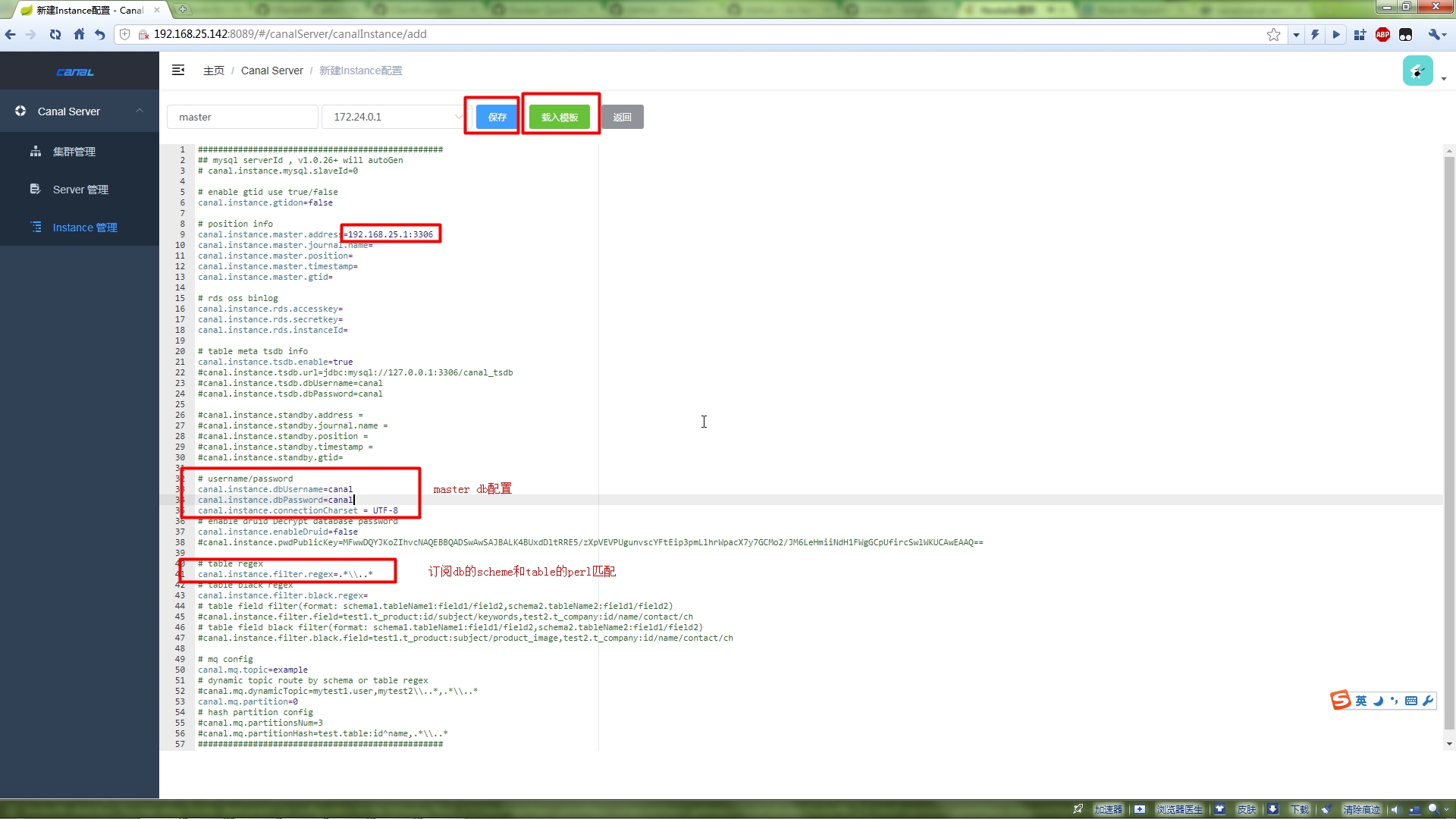

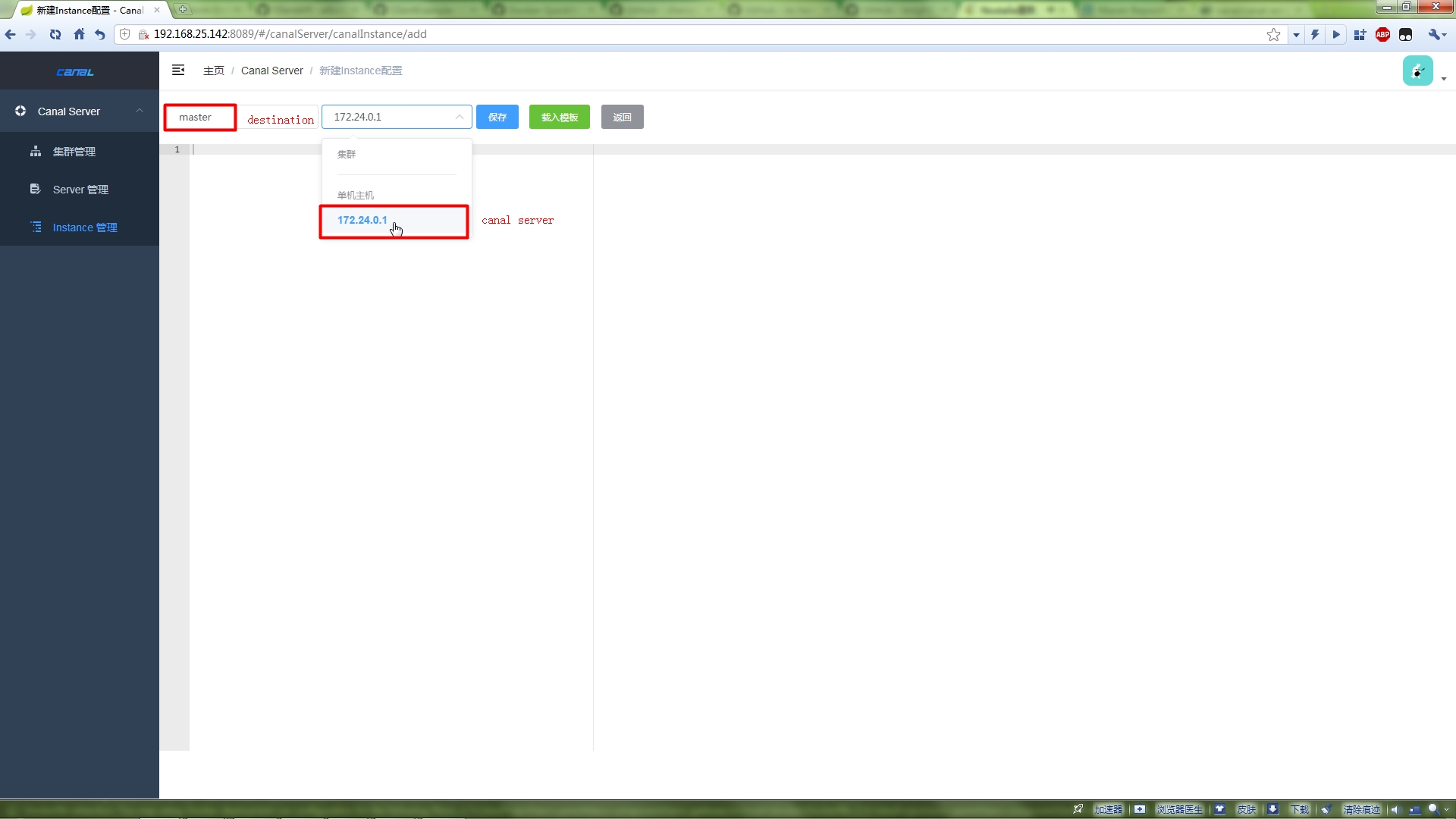

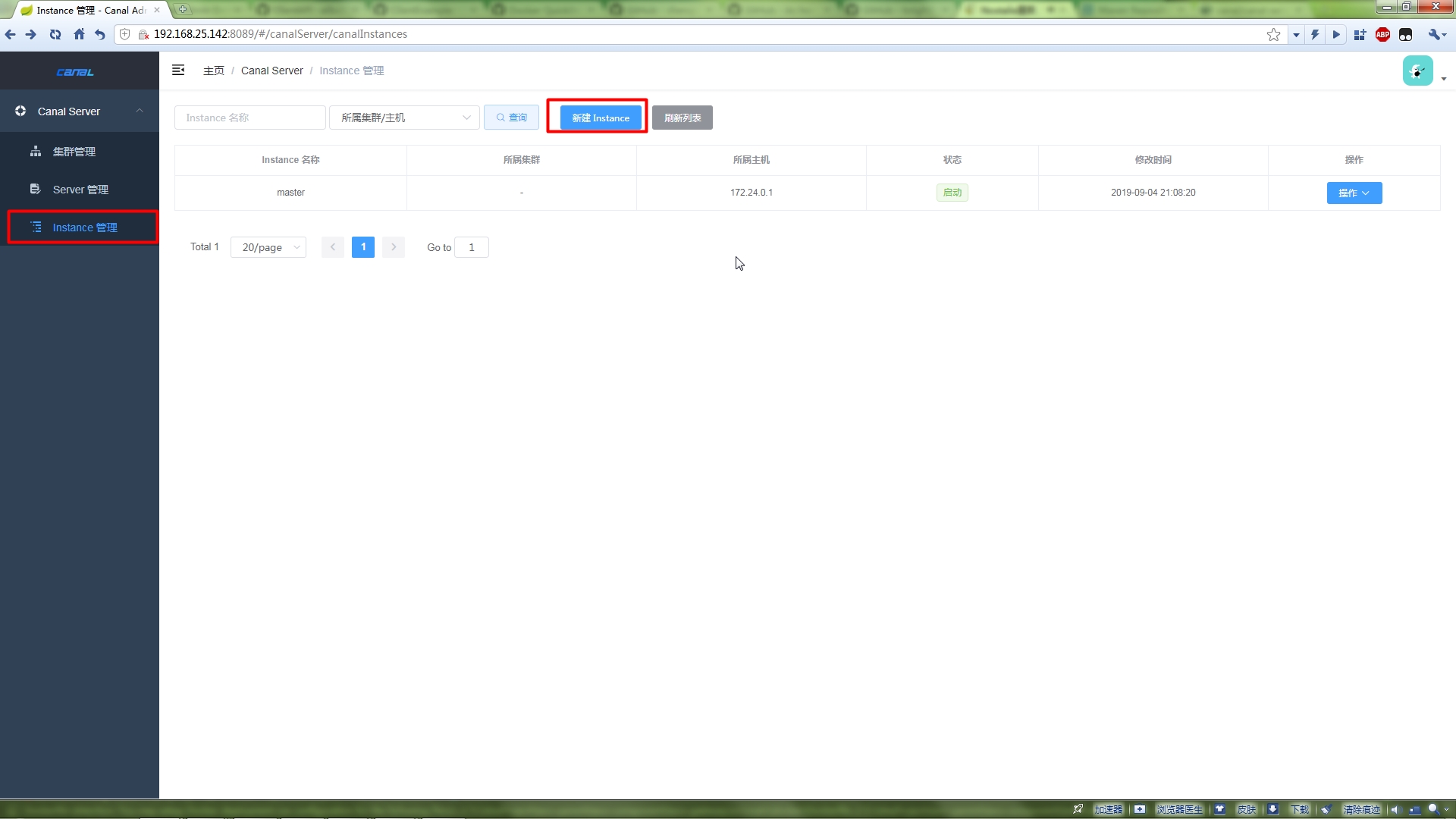

4.1 新增实例

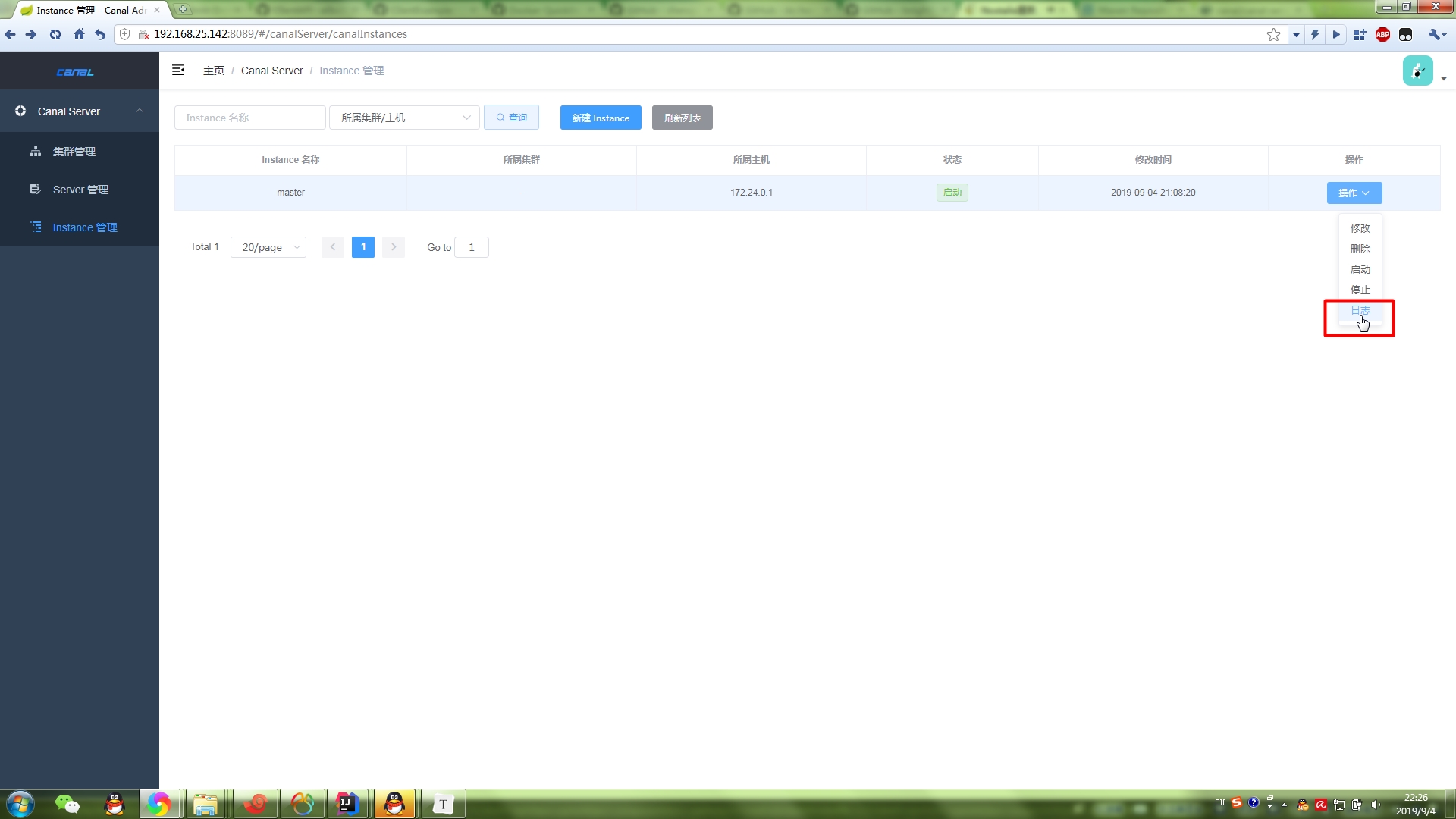

4.2查看日志

注意查看有没有异常，状态为启动说明成功

六、 Canal Client订阅消费

5.1 拉取Git代码

$ git clone https://github.com/alibaba/canal.git

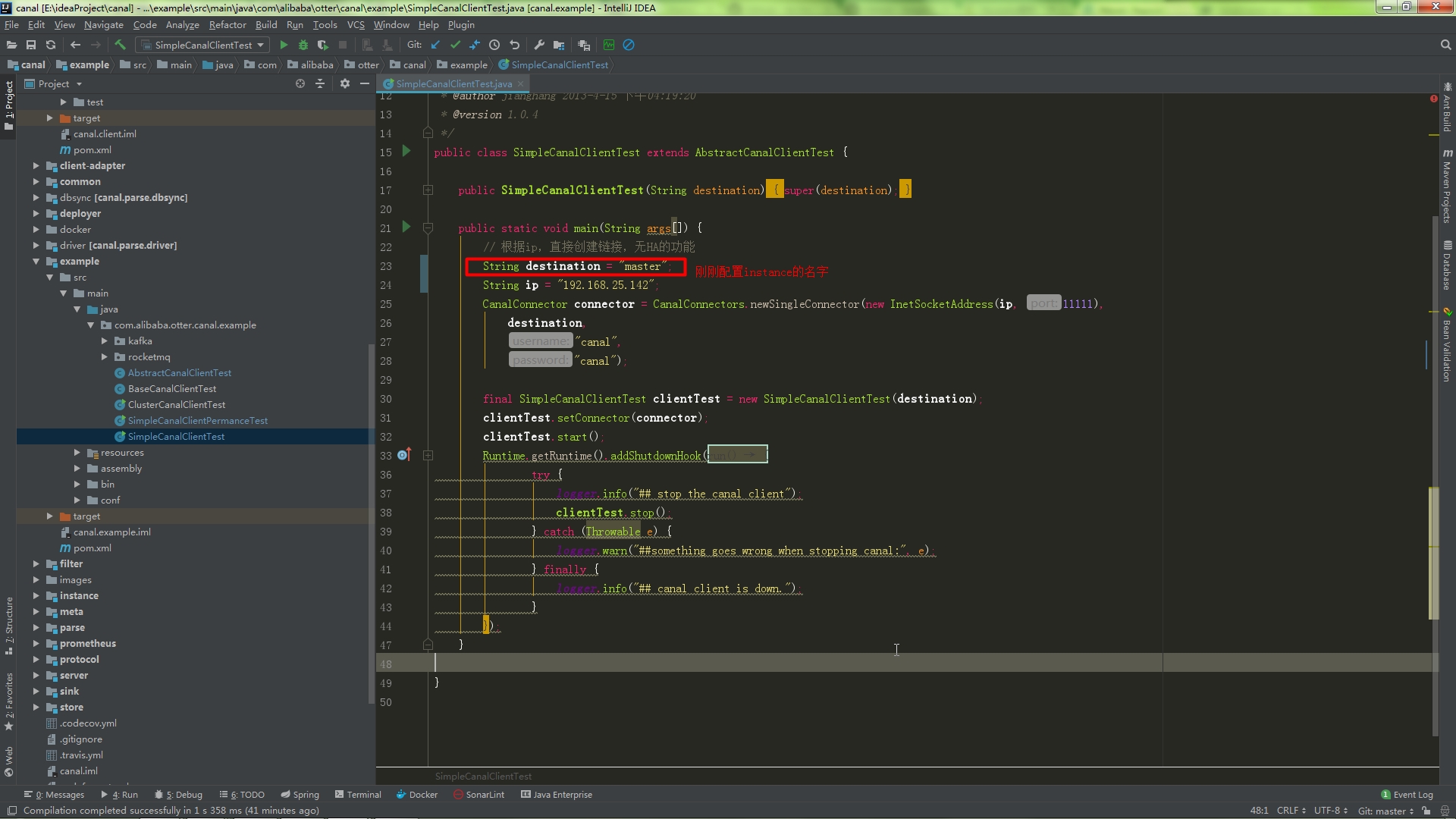

5.2 启动Clinet消费服务

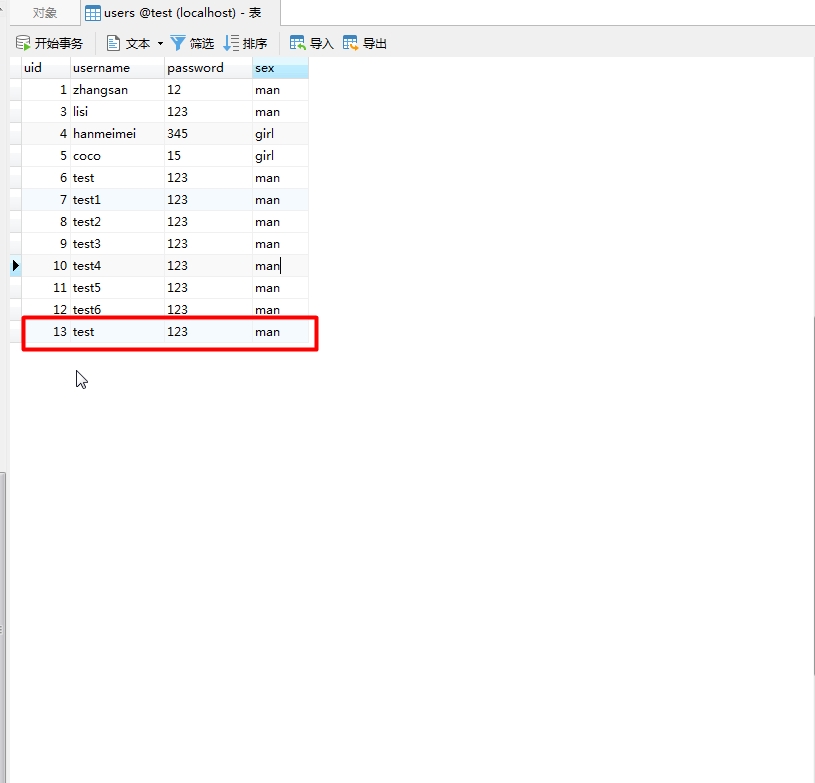

5.3 插入数据

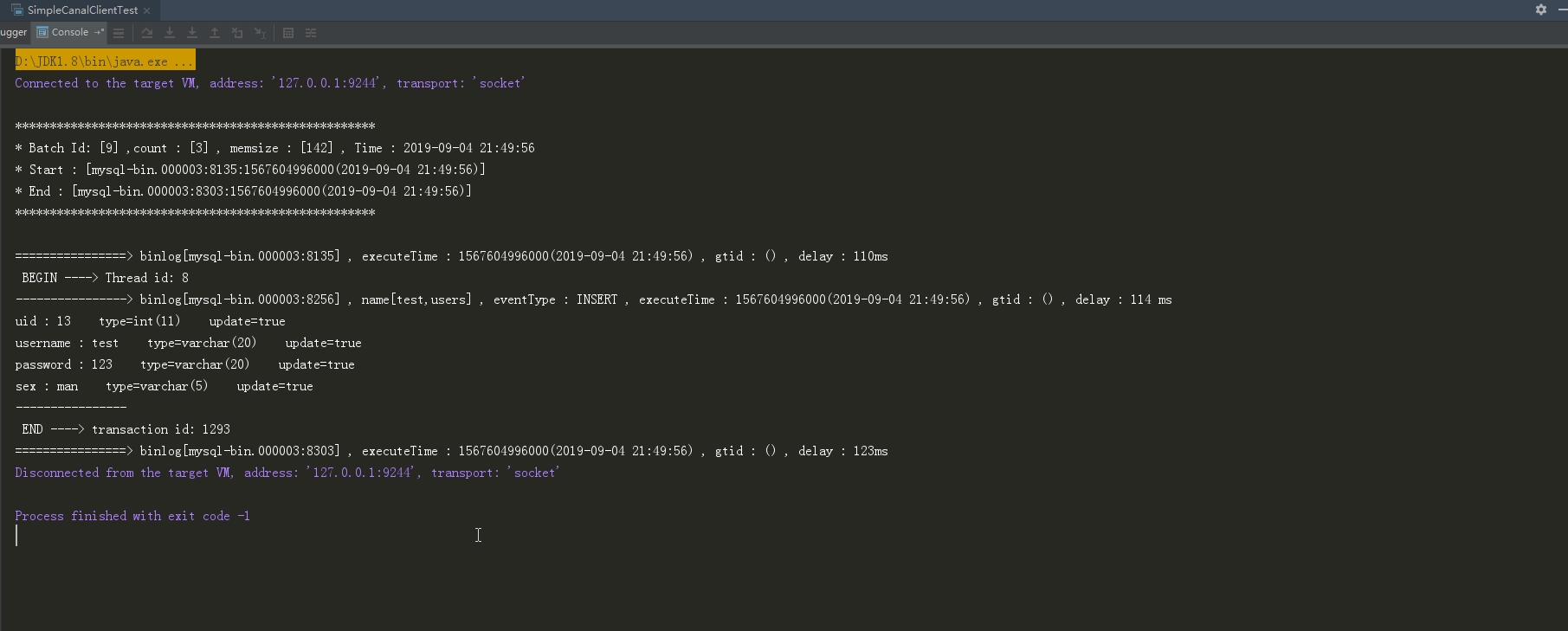

5.4 查看控制台日志
