看这篇文章之前可以先了解之前的跟踪流程，https://www.jianshu.com/p/4934233f0ead
代码过宽，可以shift + 鼠标滚轮 左右滑动查看
这篇文章主要跟踪spring配置文件中component-scan标签，查看它是怎样被解析扫描生成对应的beanDefinition。
在applicationContext.xml中做以下配置：
<!-- 启动组件扫描，排除@Controller组件，该组件由SpringMVC配置文件扫描 -->
<context:component-scan base-package="cn.mrdear">
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" />
<context:exclude-filter type="annotation" expression="org.springframework.web.bind.annotation.RestController" />
</context:component-scan>
以DefaultBeanDefinitionDocumentReader类中的parseBeanDefinitions方法作为开始，向下跟踪。
/**
* Parse the elements at the root level in the document:
* "import", "alias", "bean".
*
* 解析在文档中根层级的元素："import", "alias", "bean".
*/
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
//默认名称空间是"http://www.springframework.org/schema/beans"
//进入条件
if (delegate.isDefaultNamespace(root)) {
//获取根元素下的子Node，注意，Node不一定是子标签，可能是回车，可能是注释
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
//拿到了<beans>下的子标签
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
//如果该标签属于beans的名称空间，则进入这个方法
//xmlns="http://www.springframework.org/schema/beans"
parseDefaultElement(ele, delegate);
}
else {
//如果该标签属于其他的名称空间比如：context,aop等
//xmlns:aop="http://www.springframework.org/schema/aop"
//xmlns:context="http://www.springframework.org/schema/context"
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
对以上方法不太了解的可以先看下这篇文章：
https://www.jianshu.com/p/a0cfaedf3fc5
因为component-scan标签属于context名称空间，所以走这个方法。
delegate.parseCustomElement(ele);
这个方法的实现在BeanDefinitionParserDelegate类中
public BeanDefinition parseCustomElement(Element ele) {
return parseCustomElement(ele, null);
}
//containingBd入参传递为null
public BeanDefinition parseCustomElement(Element ele, BeanDefinition containingBd) {
//获取标签所属的名称空间
//http://www.springframework.org/schema/context
String namespaceUri = getNamespaceURI(ele);
//每个名称空间对应一个处理器，拿到对应context的处理器
NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
if (handler == null) {
error("Unable to locate Spring NamespaceHandler for XML schema namespace [" + namespaceUri + "]", ele);
return null;
}
//进入这个方法
return handler.parse(ele, new ParserContext(this.readerContext, this, containingBd));
}
虽然context对应的处理器是ContextNamespaceHandler，但实际上是调用其父类NamespaceHandlerSupport类中的parse方法。
/**
* Parses the supplied {@link Element} by delegating to the {@link BeanDefinitionParser} that is
* registered for that {@link Element}.
*
* 通过委派给BeanDefinitionParser来解析元素，并为该元素注册
*/
@Override
public BeanDefinition parse(Element element, ParserContext parserContext) {
return findParserForElement(element, parserContext).parse(element, parserContext);
}
先查看findParserForElement方法，此方法还是在NamespaceHandlerSupport类中。
/**
* Locates the {@link BeanDefinitionParser} from the register implementations using
* the local name of the supplied {@link Element}.
*
* 通过元素的部分名称，去从注册器实现中定位BeanDefinitionParser
*/
private BeanDefinitionParser findParserForElement(Element element, ParserContext parserContext) {
//拿到标签的名称（不包含名称空间）
//component-scan
String localName = parserContext.getDelegate().getLocalName(element);
//parsers是一个HashMap，
//在生成处理器的时候，会初始化一系列解析器，每一个解析器对应着一个标签名称
//以名称做key，解析器作为value，放入到parsers属性中
//这里可以通过标签名称拿到对应的解析器
BeanDefinitionParser parser = this.parsers.get(localName);
if (parser == null) {
parserContext.getReaderContext().fatal(
"Cannot locate BeanDefinitionParser for element [" + localName + "]", element);
}
return parser;
}
找到解析器后，调用解析器的parse方法。
parse(零)
这里的解析器是ComponentScanBeanDefinitionParser类，进入parse方法查看
/**
* 解析指定的Element，然后注册结果BeanDefinition到内嵌在ParserContext里的bean factory中。
*/
@Override
public BeanDefinition parse(Element element, ParserContext parserContext) {
//获取component-scan标签的base-package属性值
//cn.mrdear
String basePackage = element.getAttribute(BASE_PACKAGE_ATTRIBUTE);
//如果有占位符，则解析所有的占位符
basePackage = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(basePackage);
//字符串中有" ,;\n\t"等符号就看做分隔符,分割成数组
String[] basePackages = StringUtils.tokenizeToStringArray(basePackage,
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
// Actually scan for bean definitions and register them.
// 扫描bean definition 并注册它们
// 1.配置扫描器
ClassPathBeanDefinitionScanner scanner = configureScanner(parserContext, element);
// 2.利用扫描器扫描包，并注册bean definition
Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
// 3. 注册组件
registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
return null;
}
1.configureScanner
跟踪标记1的方法
此方法在ComponentScanBeanDefinitionParser类中实现
// 1.配置扫描器
ClassPathBeanDefinitionScanner scanner = configureScanner(parserContext, element);
//进入方法
protected ClassPathBeanDefinitionScanner configureScanner(ParserContext parserContext, Element element) {
boolean useDefaultFilters = true;
//拿到component-scan标签的use-default-filters属性，没有配置则为true
if (element.hasAttribute(USE_DEFAULT_FILTERS_ATTRIBUTE)) {
useDefaultFilters = Boolean.valueOf(element.getAttribute(USE_DEFAULT_FILTERS_ATTRIBUTE));
}
// Delegate bean definition registration to scanner class.
// 1.1将bean definition的工厂委派给scanner类
ClassPathBeanDefinitionScanner scanner = createScanner(parserContext.getReaderContext(), useDefaultFilters);
//这里将阅读器上下文中拿到的根web应用上下文作为scanner的ResourceLoader，
//根web应用上下文默认实现为XmlWebApplicationContext，实现了ResourceLoader接口，
//所以可以作为ResourceLoader
scanner.setResourceLoader(parserContext.getReaderContext().getResourceLoader());
//初始化scanner时使用默认的StandardEnvironment作为environment，
//这里拿到了阅读器上下文中的environment，StandardServletEnvironment
//其实阅读器中的environment拿的是XmlWebApplicationContext的environment
scanner.setEnvironment(parserContext.getReaderContext().getEnvironment());
//获取代理类的defaults属性中，对标签属性的一些默认设置
scanner.setBeanDefinitionDefaults(parserContext.getDelegate().getBeanDefinitionDefaults());
//这里为null
scanner.setAutowireCandidatePatterns(parserContext.getDelegate().getAutowireCandidatePatterns());
//拿到component-scan标签的resource-pattern属性，这里没有设置
if (element.hasAttribute(RESOURCE_PATTERN_ATTRIBUTE)) {
scanner.setResourcePattern(element.getAttribute(RESOURCE_PATTERN_ATTRIBUTE));
}
try {
//1.2解析name-generator属性
parseBeanNameGenerator(element, scanner);
}
catch (Exception ex) {
parserContext.getReaderContext().error(ex.getMessage(), parserContext.extractSource(element), ex.getCause());
}
try {
//1.3解析Scope
parseScope(element, scanner);
}
catch (Exception ex) {
parserContext.getReaderContext().error(ex.getMessage(), parserContext.extractSource(element), ex.getCause());
}
//1.4解析类过滤器
parseTypeFilters(element, scanner, parserContext);
return scanner;
}
1.1 createScanner
跟踪标记1.1的方法
此方法在ComponentScanBeanDefinitionParser类中实现
// 1.1将bean definition的注册委派给scanner类
ClassPathBeanDefinitionScanner scanner = createScanner(parserContext.getReaderContext(), useDefaultFilters);
//入参传递了bean工厂，useDefaultFilters为true
protected ClassPathBeanDefinitionScanner createScanner(XmlReaderContext readerContext, boolean useDefaultFilters) {
return new ClassPathBeanDefinitionScanner(readerContext.getRegistry(), useDefaultFilters);
}
看下ClassPathBeanDefinitionScanner类的构造实现
//因为默认的工厂DefaultListableBeanFactory没有实现EnvironmentCapable接口
//所以重新创建了一个environment，与上下文的StandardServletEnvironment不同，
//这个environment是StandardEnvironment类型，在environment初始化的同时，会将
//systemProperties和systemEnvironment读取到environment内部
public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters) {
this(registry, useDefaultFilters, getOrCreateEnvironment(registry));
}
public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters, Environment environment) {
//调用了父类的构造
super(useDefaultFilters, environment);
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
//拿到bean工厂的引用
this.registry = registry;
// Determine ResourceLoader to use.
// 默认bean工厂没有实现ResourceLoader接口，这里默认使用PathMatchingResourcePatternResolver
// 作为ResourceLoader
if (this.registry instanceof ResourceLoader) {
setResourceLoader((ResourceLoader) this.registry);
}
}
再进入父类构造中查看初始化了哪些属性
进入ClassPathScanningCandidateComponentProvider类中，查看对应的构造方法
public ClassPathScanningCandidateComponentProvider(boolean useDefaultFilters, Environment environment) {
//因为useDefaultFilters设置为了true，所以下面的方法会被调用
if (useDefaultFilters) {
registerDefaultFilters();
}
Assert.notNull(environment, "Environment must not be null");
//拿到先前新建的StandardEnvironment引用
this.environment = environment;
}
/**
* Register the default filter for {@link Component @Component}.
* <p>This will implicitly register all annotations that have the
* {@link Component @Component} meta-annotation including the
* {@link Repository @Repository}, {@link Service @Service}, and
* {@link Controller @Controller} stereotype annotations.
* <p>Also supports Java EE 6's {@link javax.annotation.ManagedBean} and
* JSR-330's {@link javax.inject.Named} annotations, if available.
*
* 为@Component注解注册默认的过滤器。
* 隐式的注册所有包含@Component元注解的注解，包括@Repository、@Service、@Controller
* 等老旧的注解。
* 也支持Java EE 6的javax.annotation.ManagedBean和JSR-330的javax.inject.Named注解
*/
@SuppressWarnings("unchecked")
protected void registerDefaultFilters() {
//includeFilters是一个LinkedList，存放注解类型过滤器，
//只有符合过滤器的注解类型才能生成bean definition
//1.1.1了解下AnnotationTypeFilter的构造实现，注解类型为Component
this.includeFilters.add(new AnnotationTypeFilter(Component.class));
//拿到该类的类加载器
ClassLoader cl = ClassPathScanningCandidateComponentProvider.class.getClassLoader();
try {
//1.1.2查看注解类型为ManagedBean的AnnotationTypeFilter构造实现
this.includeFilters.add(new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.annotation.ManagedBean", cl)), false));
logger.debug("JSR-250 'javax.annotation.ManagedBean' found and supported for component scanning");
}
catch (ClassNotFoundException ex) {
// JSR-250 1.1 API (as included in Java EE 6) not available - simply skip.
}
try {
//Named注解同1.1.2，
//但是这里没有相关jar包，所以没有javax.inject.Named这个类，抛出异常，空捕获跳出
this.includeFilters.add(new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.inject.Named", cl)), false));
logger.debug("JSR-330 'javax.inject.Named' annotation found and supported for component scanning");
}
catch (ClassNotFoundException ex) {
// JSR-330 API not available - simply skip.
}
}
1.1.1 AnnotationTypeFilter
跟踪标记1.1.1的方法
//1.1.1了解下AnnotationTypeFilter的构造实现
new AnnotationTypeFilter(Component.class)
/**
* Create a new AnnotationTypeFilter for the given annotation type.
* This filter will also match meta-annotations. To disable the
* meta-annotation matching, use the constructor that accepts a
* '{@code considerMetaAnnotations}' argument. The filter will
* not match interfaces.
*
* 通过给定的注解类型创建一个新的注解类型过滤器
* 这个过滤器还会匹配元注解
* 如果要禁用元注解匹配，可以使用接受considerMetaAnnotations参数的构造方法。
* 这个过滤器不会匹配接口
*/
public AnnotationTypeFilter(Class<? extends Annotation> annotationType) {
this(annotationType, true, false);
}
/**
* 注意上一层调用构造时的入参，默认considerMetaAnnotations为true，considerInterfaces为false
* 这说明注解中如果它的元注解匹配过滤器，那么也算是匹配。
* 过滤的时候不考虑是接口的情况
*/
public AnnotationTypeFilter(Class<? extends Annotation> annotationType, boolean considerMetaAnnotations, boolean considerInterfaces) {
//isAnnotationPresent方法是用来查看annotationType上是否有Inherited注解

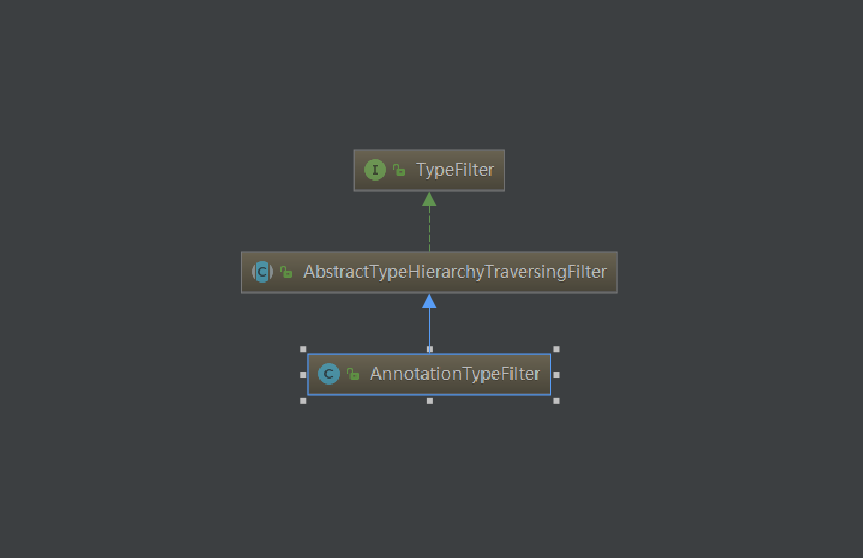

//其boolean值赋值给父类AbstractTypeHierarchyTraversingFilter的属性considerInherited中
super(annotationType.isAnnotationPresent(Inherited.class), considerInterfaces);
this.annotationType = annotationType;
this.considerMetaAnnotations = considerMetaAnnotations;
}
1.1.2 AnnotationTypeFilter
跟踪标记1.1.2的方法
//1.1.2查看注解类型为ManagedBean的AnnotationTypeFilter构造实现
new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.annotation.ManagedBean", cl)), false);
首先通过forName方法，拿到字符串javax.annotation.ManagedBean对应的Class，然后调用AnnotationTypeFilter的构造。
/**
* 上一层传参时considerMetaAnnotations为false，说明不用考虑注解上的元注解，这个注解不匹配过滤器就过滤掉
*/
public AnnotationTypeFilter(Class<? extends Annotation> annotationType, boolean considerMetaAnnotations) {
this(annotationType, considerMetaAnnotations, false);
}
//considerInterfaces依然为false
public AnnotationTypeFilter(Class<? extends Annotation> annotationType, boolean considerMetaAnnotations, boolean considerInterfaces) {
//ManagedBean的元注解上依然没有Inherited，所以considerInherited为false
super(annotationType.isAnnotationPresent(Inherited.class), considerInterfaces);
this.annotationType = annotationType;
this.considerMetaAnnotations = considerMetaAnnotations;
}
1.2 parseBeanNameGenerator
跟踪标记1.2的方法
在ComponentScanBeanDefinitionParser类中实现
//1.2解析name-generator属性
parseBeanNameGenerator(element, scanner);
protected void parseBeanNameGenerator(Element element, ClassPathBeanDefinitionScanner scanner) {
//component-scan标签的name-generator属性,这里没有设置，跳过
if (element.hasAttribute(NAME_GENERATOR_ATTRIBUTE)) {
BeanNameGenerator beanNameGenerator = (BeanNameGenerator) instantiateUserDefinedStrategy(
element.getAttribute(NAME_GENERATOR_ATTRIBUTE), BeanNameGenerator.class,
scanner.getResourceLoader().getClassLoader());
scanner.setBeanNameGenerator(beanNameGenerator);
}
}
1.3 parseScope
跟踪标记1.3的方法
在ComponentScanBeanDefinitionParser类中实现
//1.3 解析Scope
parseScope(element, scanner);
protected void parseScope(Element element, ClassPathBeanDefinitionScanner scanner) {
// Register ScopeMetadataResolver if class name provided.
// 如果类名被提供，则注册ScopeMetadataResolver
// 标签上有无scope-resolver属性
if (element.hasAttribute(SCOPE_RESOLVER_ATTRIBUTE)) {
// 如果还同时添加了scoped-proxy属性则报错
if (element.hasAttribute(SCOPED_PROXY_ATTRIBUTE)) {
throw new IllegalArgumentException(
"Cannot define both 'scope-resolver' and 'scoped-proxy' on <component-scan> tag");
}
ScopeMetadataResolver scopeMetadataResolver = (ScopeMetadataResolver) instantiateUserDefinedStrategy(
element.getAttribute(SCOPE_RESOLVER_ATTRIBUTE), ScopeMetadataResolver.class,
scanner.getResourceLoader().getClassLoader());
scanner.setScopeMetadataResolver(scopeMetadataResolver);
}
// 标签上有无scoped-proxy属性
if (element.hasAttribute(SCOPED_PROXY_ATTRIBUTE)) {
String mode = element.getAttribute(SCOPED_PROXY_ATTRIBUTE);
if ("targetClass".equals(mode)) {
scanner.setScopedProxyMode(ScopedProxyMode.TARGET_CLASS);
}
else if ("interfaces".equals(mode)) {
scanner.setScopedProxyMode(ScopedProxyMode.INTERFACES);
}
else if ("no".equals(mode)) {
scanner.setScopedProxyMode(ScopedProxyMode.NO);
}
else {
throw new IllegalArgumentException("scoped-proxy only supports 'no', 'interfaces' and 'targetClass'");
}
}
}
1.4 parseTypeFilters
跟踪标记1.4的方法
在ComponentScanBeanDefinitionParser类中实现
//1.4解析类过滤器
parseTypeFilters(element, scanner, parserContext);
protected void parseTypeFilters(Element element, ClassPathBeanDefinitionScanner scanner, ParserContext parserContext) {
// Parse exclude and include filter elements.
// 解析包含和不包含过滤器元素
//拿到根应用上下文的类加载器
ClassLoader classLoader = scanner.getResourceLoader().getClassLoader();
//拿到所有的子节点
NodeList nodeList = element.getChildNodes();
for (int i = 0; i < nodeList.getLength(); i++) {
Node node = nodeList.item(i);
//拿到的子节点是不是子标签
if (node.getNodeType() == Node.ELEMENT_NODE) {
//获取子标签的部分名称（不包含名称空间）
String localName = parserContext.getDelegate().getLocalName(node);
try {
//是include-filter标签的情况，上下两个调用的同一个方法，跟踪其中一个
if (INCLUDE_FILTER_ELEMENT.equals(localName)) {
TypeFilter typeFilter = createTypeFilter((Element) node, classLoader, parserContext);
scanner.addIncludeFilter(typeFilter);
}
//是exclude-filter标签的情况
else if (EXCLUDE_FILTER_ELEMENT.equals(localName)) {
TypeFilter typeFilter = createTypeFilter((Element) node, classLoader, parserContext);
scanner.addExcludeFilter(typeFilter);
}
}
catch (Exception ex) {
parserContext.getReaderContext().error(
ex.getMessage(), parserContext.extractSource(element), ex.getCause());
}
}
}
}
跟踪createTypeFilter方法
protected TypeFilter createTypeFilter(Element element, ClassLoader classLoader, ParserContext parserContext) {
//获取标签上的type属性和expression属性对应的值
String filterType = element.getAttribute(FILTER_TYPE_ATTRIBUTE);
String expression = element.getAttribute(FILTER_EXPRESSION_ATTRIBUTE);
//expression可能带有占位符，如果有则解析占位符
expression = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(expression);
try {
//xml文件中type填写的是annotation，所以走这个方法
if ("annotation".equals(filterType)) {
//将xml中的"org.springframework.stereotype.Controller"字符串解析为Class
//构造已经看过，默认considerMetaAnnotations为true，considerInterfaces为false
return new AnnotationTypeFilter((Class<Annotation>) classLoader.loadClass(expression));
}
else if ("assignable".equals(filterType)) {
return new AssignableTypeFilter(classLoader.loadClass(expression));
}
else if ("aspectj".equals(filterType)) {
return new AspectJTypeFilter(expression, classLoader);
}
else if ("regex".equals(filterType)) {
return new RegexPatternTypeFilter(Pattern.compile(expression));
}
else if ("custom".equals(filterType)) {
Class<?> filterClass = classLoader.loadClass(expression);
if (!TypeFilter.class.isAssignableFrom(filterClass)) {
throw new IllegalArgumentException(
"Class is not assignable to [" + TypeFilter.class.getName() + "]: " + expression);
}
return (TypeFilter) BeanUtils.instantiateClass(filterClass);
}
else {
throw new IllegalArgumentException("Unsupported filter type: " + filterType);
}
}
catch (ClassNotFoundException ex) {
throw new FatalBeanException("Type filter class not found: " + expression, ex);
}
}
最后scanner的includeFilters属性中，默认添加了org.springframework.stereotype.Component的注解过滤器和javax.annotation.ManagedBean的注解过滤器。
scanner的excludeFilters属性中，自定义添加了xml配置文件中的org.springframework.stereotype.Controller注解过滤器和org.springframework.web.bind.annotation.RestController注解过滤器。
2.doScan
跟踪标记2的方法
此方法在ClassPathBeanDefinitionScanner类中实现
// 2.利用扫描器扫描包，并注册bean definition
Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
/**
* Perform a scan within the specified base packages,
* returning the registered bean definitions.
* <p>This method does <i>not</i> register an annotation config processor
* but rather leaves this up to the caller.
*
* 扫描指定包，返回被注册的bean definitions
* 这个方法不会注册annotation config processor，交由调用者处理
*/
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<BeanDefinitionHolder>();
//根据配置，这里就只有一个"cn.mrdear"
for (String basePackage : basePackages) {
//2.1扫描候选者的class path
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
//2.2解析@scope注解
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
//2.3AnnotatedBeanDefinition的默认名称生成规则
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
if (candidate instanceof AbstractBeanDefinition) {
//2.4给beanDefinition设置默认值、自动注入的候选者
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
//2.5拿到类上其他的context名称空间的注解，如果有的话，获取其value属性
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
//2.6检查beanName是否正确匹配对应的bean Definition,该名称是否已经被注册
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
//应用Scope代理模式
definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
//注册bean definition
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}
2.1 findCandidateComponents
跟踪标记2.1的方法
在ClassPathScanningCandidateComponentProvider类中实现
ClassPathScanningCandidateComponentProvider是ClassPathBeanDefinitionScanner的父类
//2.1扫描候选者的class path
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
public Set<BeanDefinition> findCandidateComponents(String basePackage) {
Set<BeanDefinition> candidates = new LinkedHashSet<BeanDefinition>();
try {
//给包名添加上"classpath*:"的前缀和"**/*.class"的后缀
//最后结果：classpath*:cn/mrdear/**/*.class
String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
resolveBasePackage(basePackage) + "/" + this.resourcePattern;
//将包下的所有class文件用Resource的方式描述
//Resource--资源描述符
//里面的实现非常大，有兴趣可以自己看看。
//主要是将packageSearchPath分成classpath，包名，后缀名三部分进行处理，又根据有无*或者？
//等表达式，处理方式有所不同
Resource[] resources = this.resourcePatternResolver.getResources(packageSearchPath);
boolean traceEnabled = logger.isTraceEnabled();
boolean debugEnabled = logger.isDebugEnabled();
//对每个class进行处理
for (Resource resource : resources) {
if (traceEnabled) {
logger.trace("Scanning " + resource);
}
//是否非目录，可读
if (resource.isReadable()) {
try {
//这个metadataReader包含class文件中，类上的注解
//方法的注解，所使用注解的元注解等描述
//在获取metadataReader的同时，在CachingMetadataReaderFactory类的
//metadataReaderCache属性中存放了一份。此属性是LinkedHashMap
MetadataReader metadataReader = this.metadataReaderFactory.getMetadataReader(resource);
//2.1.1判断metadataReader能否通过注解类型过滤器过滤
if (isCandidateComponent(metadataReader)) {
//创建bean definition，拿到metadataReader的beanClass
//保存metadataReader的annotationMetadata的引用
ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
//取得资源描述符的引用
sbd.setResource(resource);
sbd.setSource(resource);
//2.1.2查看类是否具体且独立
if (isCandidateComponent(sbd)) {
if (debugEnabled) {
//确定候选组件class
logger.debug("Identified candidate component class: " + resource);
}
candidates.add(sbd);
}
else {
if (debugEnabled) {
//被忽略，不是一个具体的顶层class
logger.debug("Ignored because not a concrete top-level class: " + resource);
}
}
}
else {
if (traceEnabled) {
//被忽略，不匹配任何过滤器
logger.trace("Ignored because not matching any filter: " + resource);
}
}
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
//失败读取候选组件
"Failed to read candidate component class: " + resource, ex);
}
}
else {
if (traceEnabled) {
//不可读，忽略
logger.trace("Ignored because not readable: " + resource);
}
}
}
}
catch (IOException ex) {
//扫描类路径时IO异常
throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
}
//最后返回候选的bean definition
return candidates;
}
我这里返回的就只有两个类，加了@ControllerAdvice的GlobalException、加了@Service的BookServiceImpl。

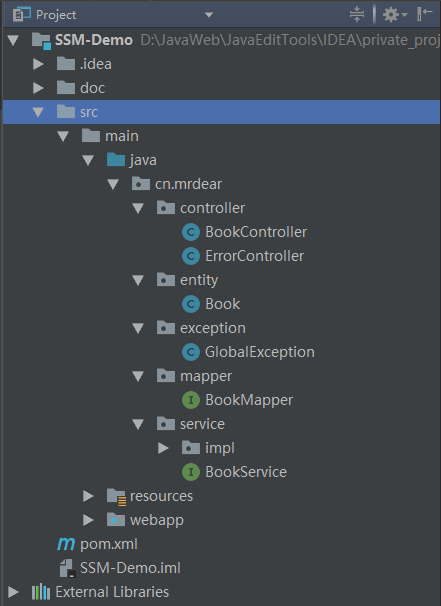

其余的要么是接口，要么没被扫描，要么被过滤器过滤了，以下是我项目中所有class：
2.1.1 isCandidateComponent
跟踪标记2.1.1的方法
在ClassPathScanningCandidateComponentProvider类中实现
//2.1.1判断metadataReader能否通过注解类型过滤器过滤
isCandidateComponent(metadataReader)
/**
* Determine whether the given class does not match any exclude filter
* and does match at least one include filter.
*
* 不匹配任何exclude filter，至少匹配一个include filter.
* 才能确定其为候选人
*/
protected boolean isCandidateComponent(MetadataReader metadataReader) throws IOException {
for (TypeFilter tf : this.excludeFilters) {
//2.1.1.1跟踪match方法
//如果metadataReader中有注解匹配exclude过滤器的注解，则返回false
if (tf.match(metadataReader, this.metadataReaderFactory)) {
return false;
}
}
for (TypeFilter tf : this.includeFilters) {
//如果metadataReader中有注解匹配include过滤器的注解，则进入条件
if (tf.match(metadataReader, this.metadataReaderFactory)) {
//2.1.1.2是否有@Conditional注解，进行相关处理
return isConditionMatch(metadataReader);
}
}
return false;
}
过滤器中存放的都是AnnotationTypeFilter类型
TypeFilter是其顶层接口
match方法主要是在AbstractTypeHierarchyTraversingFilter抽象类中实现
2.1.1.1 match
跟踪标记2.1.1.1的方法
在AbstractTypeHierarchyTraversingFilter类中实现
//2.1.1.1跟踪match方法
tf.match(metadataReader, this.metadataReaderFactory)
@Override
public boolean match(MetadataReader metadataReader, MetadataReaderFactory metadataReaderFactory)
throws IOException {
// This method optimizes avoiding unnecessary creation of ClassReaders
// as well as visiting over those readers.
// 此方法做了优化，避免不必要的ClassReaders创建以及对它们的访问
// matchSelf方法判断metadataReader中相关class的注解有没有包含这个过滤器的注解
// 如果没有，但是过滤器的considerMetaAnnotations属性设置为true，
// 那么再判断class所有注解的元注解中，有没有包含这个过滤器的注解
// 有就返回true，进入条件
if (matchSelf(metadataReader)) {
return true;
}
ClassMetadata metadata = metadataReader.getClassMetadata();
// 默认返回false，不进入条件
if (matchClassName(metadata.getClassName())) {
return true;
}
//considerInherited这个属性前面跟踪的过滤器中都为false
//和过滤器的注解有关，其元注解包含Inherited，
//那么considerInherited属性就为true
if (this.considerInherited) {
if (metadata.hasSuperClass()) {
// Optimization to avoid creating ClassReader for super class.
Boolean superClassMatch = matchSuperClass(metadata.getSuperClassName());
if (superClassMatch != null) {
if (superClassMatch.booleanValue()) {
return true;
}
}
else {
// Need to read super class to determine a match...
try {
if (match(metadata.getSuperClassName(), metadataReaderFactory)) {
return true;
}
}
catch (IOException ex) {
logger.debug("Could not read super class [" + metadata.getSuperClassName() +
"] of type-filtered class [" + metadata.getClassName() + "]");
}
}
}
}
//considerInterfaces属性在AnnotationTypeFilter构造器中都默认被设置为false
if (this.considerInterfaces) {
for (String ifc : metadata.getInterfaceNames()) {
// Optimization to avoid creating ClassReader for super class
Boolean interfaceMatch = matchInterface(ifc);
if (interfaceMatch != null) {
if (interfaceMatch.booleanValue()) {
return true;
}
}
else {
// Need to read interface to determine a match...
try {
if (match(ifc, metadataReaderFactory)) {
return true;
}
}
catch (IOException ex) {
logger.debug("Could not read interface [" + ifc + "] for type-filtered class [" +
metadata.getClassName() + "]");
}
}
}
}
return false;
}
2.1.1.2 isConditionMatch
跟踪标记2.1.1.2的方法
在ClassPathScanningCandidateComponentProvider类中实现
//2.1.1.2是否有@Conditional注解，进行相关处理
isConditionMatch(metadataReader);
/**
* Determine whether the given class is a candidate component based on any
* {@code @Conditional} annotations.
*
* 确定指定类是否是基于任何@Conditional注解的候选组件
*/
private boolean isConditionMatch(MetadataReader metadataReader) {
if (this.conditionEvaluator == null) {
this.conditionEvaluator = new ConditionEvaluator(getRegistry(), getEnvironment(), getResourceLoader());
}
//跟踪这个方法
return !this.conditionEvaluator.shouldSkip(metadataReader.getAnnotationMetadata());
}
于是进入ConditionEvaluator的shouldSkip方法
/**
* Determine if an item should be skipped based on {@code @Conditional} annotations.
* The {@link ConfigurationPhase} will be deduced from the type of item (i.e. a
* {@code @Configuration} class will be {@link ConfigurationPhase#PARSE_CONFIGURATION})
*
* 根据@Conditional注解确定一个子项是否应该被跳过
* 从子项的类型可以推导ConfigurationPhase，比如@Configuration class就是
* ConfigurationPhase#PARSE_CONFIGURATION--解析配置
*/
public boolean shouldSkip(AnnotatedTypeMetadata metadata) {
return shouldSkip(metadata, null);
}
//这个方法就不跟了，如果要了解condition注解的用法，可以详细了解该方法
public boolean shouldSkip(AnnotatedTypeMetadata metadata, ConfigurationPhase phase) {
//类上注解或者注解上的元注解不包含Conditional注解就返回false
if (metadata == null || !metadata.isAnnotated(Conditional.class.getName())) {
return false;
}
if (phase == null) {
if (metadata instanceof AnnotationMetadata &&
ConfigurationClassUtils.isConfigurationCandidate((AnnotationMetadata) metadata)) {
return shouldSkip(metadata, ConfigurationPhase.PARSE_CONFIGURATION);
}
return shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN);
}
List<Condition> conditions = new ArrayList<Condition>();
for (String[] conditionClasses : getConditionClasses(metadata)) {
for (String conditionClass : conditionClasses) {
Condition condition = getCondition(conditionClass, this.context.getClassLoader());
conditions.add(condition);
}
}
AnnotationAwareOrderComparator.sort(conditions);
for (Condition condition : conditions) {
ConfigurationPhase requiredPhase = null;
if (condition instanceof ConfigurationCondition) {
requiredPhase = ((ConfigurationCondition) condition).getConfigurationPhase();
}
if (requiredPhase == null || requiredPhase == phase) {
if (!condition.matches(this.context, metadata)) {
return true;
}
}
}
return false;
}
2.1.2 isCandidateComponent
跟踪标记2.1.2的方法
在ClassPathScanningCandidateComponentProvider类中实现
//2.1.2查看类是否具体且独立
isCandidateComponent(sbd)
/**
* Determine whether the given bean definition qualifies as candidate.
* <p>The default implementation checks whether the class is concrete
* (i.e. not abstract and not an interface). Can be overridden in subclasses.
*
* 确定bean definition qualifies能否作为候选
* 默认实现会检查class是否具体（不是抽象、不是接口）。可以被子类覆盖
*/
protected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition) {
//看下这两个判断的含义
return (beanDefinition.getMetadata().isConcrete() && beanDefinition.getMetadata().isIndependent());
}
//不能是接口和抽象类
public boolean isConcrete() {
return !(this.isInterface || this.isAbstract);
}
//要么是顶层class，要么是被嵌套的class（静态内部类）,但是被嵌套的class必须能够从
//封闭的class中独立构造，才能说明此class是独立的。
public boolean isIndependent() {
//没有封闭的class或者是独立的内部类
return (this.enclosingClassName == null || this.independentInnerClass);
}
2.2 resolveScopeMetadata
跟踪标记2.2的方法
在AnnotationScopeMetadataResolver类中实现
//2.2解析@scope注解
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
/**
* Resolve the {@link ScopeMetadata} appropriate to the supplied
* bean {@code definition}.
* <p>Implementations can of course use any strategy they like to
* determine the scope metadata, but some implementations that spring
* immediately to mind might be to use source level annotations
* present on {@link BeanDefinition#getBeanClassName() the class} of the
* supplied {@code definition}, or to use metadata present in the
* {@link BeanDefinition#attributeNames()} of the supplied {@code definition}.
*
* 解析适用于BeanDefinition的ScopeMetadata
* 实现当然可以使用任何喜欢的策略去确定scope metadata，但是spring的实现立马
* 想到的是使用source level注解在BeanDefinition对应的class上
* 或者将metadata存放于BeanDefinition的属性中
*/
public ScopeMetadata resolveScopeMetadata(BeanDefinition definition) {
//默认单例，无代理
ScopeMetadata metadata = new ScopeMetadata();
if (definition instanceof AnnotatedBeanDefinition) {
AnnotatedBeanDefinition annDef = (AnnotatedBeanDefinition) definition;
//拿到指定类上的@scope注解的所有属性
AnnotationAttributes attributes = AnnotationConfigUtils.attributesFor(
annDef.getMetadata(), this.scopeAnnotationType);
if (attributes != null) {
metadata.setScopeName(attributes.getString("value"));
ScopedProxyMode proxyMode = attributes.getEnum("proxyMode");
if (proxyMode == null || proxyMode == ScopedProxyMode.DEFAULT) {
proxyMode = this.defaultProxyMode;
}
metadata.setScopedProxyMode(proxyMode);
}
}
return metadata;
}
2.3 generateBeanName
跟踪标记2.3的方法
在AnnotationBeanNameGenerator类中实现
//2.3AnnotatedBeanDefinition的默认名称生成规则
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
public String generateBeanName(BeanDefinition definition, BeanDefinitionRegistry registry) {
if (definition instanceof AnnotatedBeanDefinition) {
//先进入这个方法查看
String beanName = determineBeanNameFromAnnotation((AnnotatedBeanDefinition) definition);
if (StringUtils.hasText(beanName)) {
// Explicit bean name found.
// 发现明确bean Name
return beanName;
}
}
// Fallback: generate a unique default bean name.
// 回退：生成一个唯一的默认beanName
return buildDefaultBeanName(definition, registry);
}
/**
* Derive a bean name from one of the annotations on the class.
*
* 从类上的一个注解中，派生出bean name
*/
protected String determineBeanNameFromAnnotation(AnnotatedBeanDefinition annotatedDef) {
AnnotationMetadata amd = annotatedDef.getMetadata();
//嘉定拿的是org.springframework.web.bind.annotation.ControllerAdvice
Set<String> types = amd.getAnnotationTypes();
String beanName = null;
for (String type : types) {
//拿到@ControllerAdvice上的所有的属性
AnnotationAttributes attributes = AnnotationConfigUtils.attributesFor(amd, type);
//将@ControllerAdvice注解名，@ControllerAdvice的元注解，@ControllerAdvice上的属性
//当做参数传递
//进入这个方法
if (isStereotypeWithNameValue(type, amd.getMetaAnnotationTypes(type), attributes)) {
//获取注解上的value属性对应的值
Object value = attributes.get("value");
if (value instanceof String) {
String strVal = (String) value;
if (StringUtils.hasLength(strVal)) {
if (beanName != null && !strVal.equals(beanName)) {
throw new IllegalStateException("Stereotype annotations suggest inconsistent " +
"component names: '" + beanName + "' versus '" + strVal + "'");
}
//用value属性对应的值作为beanName
beanName = strVal;
}
}
}
}
return beanName;
}
/**
* Check whether the given annotation is a stereotype that is allowed
* to suggest a component name through its annotation {@code value()}.
*
* 检查注解是不是stereotype类型，如果是的话，可以用注解的value()属性，作为组件名称
*/
protected boolean isStereotypeWithNameValue(String annotationType,
Set<String> metaAnnotationTypes, Map<String, Object> attributes) {
//注解是不是stereotype类型，主要看他是不是component注解、ManagedBean注解或者Named注解
//或者注解的元注解包含component注解
boolean isStereotype = annotationType.equals(COMPONENT_ANNOTATION_CLASSNAME) ||
(metaAnnotationTypes != null && metaAnnotationTypes.contains(COMPONENT_ANNOTATION_CLASSNAME)) ||
annotationType.equals("javax.annotation.ManagedBean") ||
annotationType.equals("javax.inject.Named");
//是stereotype类型，且有value属性的注解，返回true
return (isStereotype && attributes != null && attributes.containsKey("value"));
}
上面看了beanDefinition是AnnotatedBeanDefinition类型情况下，beanName怎样生成。但是如果class上的stereotype注解，没有给value属性赋值，那么又是怎样生成beanName的？
查看其默认的beanName生成方式：
buildDefaultBeanName(definition, registry);
此方法的实现还是在AnnotationBeanNameGenerator类中：
/**
* Derive a default bean name from the given bean definition.
* <p>The default implementation delegates to {@link #buildDefaultBeanName(BeanDefinition)}.
*
* 从给定的bean definition派生一个默认bean Name
*/
protected String buildDefaultBeanName(BeanDefinition definition, BeanDefinitionRegistry registry) {
return buildDefaultBeanName(definition);
}
/**
* Derive a default bean name from the given bean definition.
* <p>The default implementation simply builds a decapitalized version
* of the short class name: e.g. "mypackage.MyJdbcDao" -> "myJdbcDao".
* <p>Note that inner classes will thus have names of the form
* "outerClassName.InnerClassName", which because of the period in the
* name may be an issue if you are autowiring by name.
*
* 默认的实现是构建一个首字母小写（像变量一样的命名方式）的简短类名。
* 注意内部类因此会是这样的格式"outerClassName.InnerClassName"
* 如果通过名称自动注入，中间的点就可能引发问题
*/
protected String buildDefaultBeanName(BeanDefinition definition) {
//cn.mrdear.exception.GlobalException => GlobalException
String shortClassName = ClassUtils.getShortName(definition.getBeanClassName());
//此方法将字符串首字符大写转小写，但是如果第二个字符也是大写就不进行转换，因为他可能是
//这样的格式--> "URL"
return Introspector.decapitalize(shortClassName);
}
2.4 postProcessBeanDefinition
跟踪标记2.4的方法
在ClassPathBeanDefinitionScanner类中实现
//2.4给beanDefinition设置默认值，自动注入的候选者
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
/**
* Apply further settings to the given bean definition,
* beyond the contents retrieved from scanning the component class.
*
* 除从组件class扫描检索的内容外，应用更多的设置到bean definition
*/
protected void postProcessBeanDefinition(AbstractBeanDefinition beanDefinition, String beanName) {
//扫描器中的Defaults应用到beanDefinition中
beanDefinition.applyDefaults(this.beanDefinitionDefaults);
if (this.autowireCandidatePatterns != null) {
//设置自动注入候选者
beanDefinition.setAutowireCandidate(PatternMatchUtils.simpleMatch(this.autowireCandidatePatterns, beanName));
}
}
2.5 processCommonDefinitionAnnotations
跟踪标记2.5的方法
在AnnotationConfigUtils类中实现
//2.5拿到类上其他的context名称空间的注解，如果有的话，获取其value属性
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
public static void processCommonDefinitionAnnotations(AnnotatedBeanDefinition abd) {
processCommonDefinitionAnnotations(abd, abd.getMetadata());
}
static void processCommonDefinitionAnnotations(AnnotatedBeanDefinition abd, AnnotatedTypeMetadata metadata) {
//类上是否有Lazy注解，或者注解的元注解上有Lazy注解
if (metadata.isAnnotated(Lazy.class.getName())) {
//拿到@Lazy注解上的所有属性，获取其value属性的值
abd.setLazyInit(attributesFor(metadata, Lazy.class).getBoolean("value"));
}
//metadata不属于abd的情况
else if (abd.getMetadata() != metadata && abd.getMetadata().isAnnotated(Lazy.class.getName())) {
abd.setLazyInit(attributesFor(abd.getMetadata(), Lazy.class).getBoolean("value"));
}
//类上是否有Primary注解，或者注解的元注解上有Primary注解
if (metadata.isAnnotated(Primary.class.getName())) {
abd.setPrimary(true);
}
//类上是否有DependsOn注解，或者注解的元注解上有DependsOn注解
if (metadata.isAnnotated(DependsOn.class.getName())) {
//拿到@DependsOn注解上的所有属性，获取其value属性的值
abd.setDependsOn(attributesFor(metadata, DependsOn.class).getStringArray("value"));
}
if (abd instanceof AbstractBeanDefinition) {
AbstractBeanDefinition absBd = (AbstractBeanDefinition) abd;
//类上是否有Role注解，或者注解的元注解上有Role注解
if (metadata.isAnnotated(Role.class.getName())) {
//拿到@Role注解上的所有属性，获取其value属性的值
absBd.setRole(attributesFor(metadata, Role.class).getNumber("value").intValue());
}
//类上是否有Description注解，或者注解的元注解上有Role注解
if (metadata.isAnnotated(Description.class.getName())) {
//拿到@Description注解上的所有属性，获取其value属性的值
absBd.setDescription(attributesFor(metadata, Description.class).getString("value"));
}
}
}
2.6 checkCandidate
跟踪标记2.6的方法
在ClassPathBeanDefinitionScanner类中实现
//2.6检查beanName是否正确匹配对应的bean Definition,该名称是否已经被注册
checkCandidate(beanName, candidate)
protected boolean checkCandidate(String beanName, BeanDefinition beanDefinition) throws IllegalStateException {
//工厂中没有注册这个beanName，返回true
if (!this.registry.containsBeanDefinition(beanName)) {
return true;
}
BeanDefinition existingDef = this.registry.getBeanDefinition(beanName);
BeanDefinition originatingDef = existingDef.getOriginatingBeanDefinition();
if (originatingDef != null) {
existingDef = originatingDef;
}
//如果已存在的和入参的beanDefinition能够兼容，就返回false，否则抛出异常
if (isCompatible(beanDefinition, existingDef)) {
return false;
}
throw new ConflictingBeanDefinitionException("Annotation-specified bean name '" + beanName +
"' for bean class [" + beanDefinition.getBeanClassName() + "] conflicts with existing, " +
"non-compatible bean definition of same name and class [" + existingDef.getBeanClassName() + "]");
}
3.registerComponents
跟踪标记3的方法
此方法在ComponentScanBeanDefinitionParser类中实现
// 3. 注册组件
registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
protected void registerComponents(
XmlReaderContext readerContext, Set<BeanDefinitionHolder> beanDefinitions, Element element) {
//这里返回的是null
Object source = readerContext.extractSource(element);
//拿到组合组件定义对象，以完整标签名做为name
CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), source);
for (BeanDefinitionHolder beanDefHolder : beanDefinitions) {
//分两部分看
//3.1bean组件定义的构造初始化
//将创建好的BeanComponentDefinition放入到组合组件定义的nestedComponents中
//nestedComponents是一个LinkedList
compositeDef.addNestedComponent(new BeanComponentDefinition(beanDefHolder));
}
// Register annotation config processors, if necessary.
// 如果必要的话，注册注解配置处理器
boolean annotationConfig = true;
//拿到component-scan标签的annotation-config属性
if (element.hasAttribute(ANNOTATION_CONFIG_ATTRIBUTE)) {
//默认设置为true
annotationConfig = Boolean.valueOf(element.getAttribute(ANNOTATION_CONFIG_ATTRIBUTE));
}
if (annotationConfig) {
//3.2查看怎么注册注解配置处理器
Set<BeanDefinitionHolder> processorDefinitions =
AnnotationConfigUtils.registerAnnotationConfigProcessors(readerContext.getRegistry(), source);
for (BeanDefinitionHolder processorDefinition : processorDefinitions) {
//如果有为被注册的处理器，注册完成后再添加到组合组件定义中
compositeDef.addNestedComponent(new BeanComponentDefinition(processorDefinition));
}
}
//这里空实现
readerContext.fireComponentRegistered(compositeDef);
}
3.1 BeanComponentDefinition
跟踪标记3.1的方法
进入BeanComponentDefinition的构造方法
//3.1bean组件定义的构造初始化
new BeanComponentDefinition(beanDefHolder)
public BeanComponentDefinition(BeanDefinitionHolder holder) {
//先看父类构造做了什么操作
super(holder);
//找到这个class中，属性为注册到工厂中的bean deifiniion或者BeanReference的集合
findInnerBeanDefinitionsAndBeanReferences(holder.getBeanDefinition());
}
/**
* 其实BeanComponentDefinition就是BeanDefinitionHolder的子类
*
* Copy constructor: Create a new BeanDefinitionHolder with the
* same contents as the given BeanDefinitionHolder instance.
* <p>Note: The wrapped BeanDefinition reference is taken as-is;
* it is {@code not} deeply copied.
*
* 复制构造：利用给定的beanDefinitionHolder实例，创建一个新的BeanDefinitionHolder
*/
public BeanDefinitionHolder(BeanDefinitionHolder beanDefinitionHolder) {
Assert.notNull(beanDefinitionHolder, "BeanDefinitionHolder must not be null");
this.beanDefinition = beanDefinitionHolder.getBeanDefinition();
this.beanName = beanDefinitionHolder.getBeanName();
this.aliases = beanDefinitionHolder.getAliases();
}
然后再了解下findInnerBeanDefinitionsAndBeanReferences方法做了什么事情
private void findInnerBeanDefinitionsAndBeanReferences(BeanDefinition beanDefinition) {
List<BeanDefinition> innerBeans = new ArrayList<BeanDefinition>();
List<BeanReference> references = new ArrayList<BeanReference>();
PropertyValues propertyValues = beanDefinition.getPropertyValues();
//拿到类中所有的属性值，如果属性为在bean工厂中注册的bean definition、或者
//有BeanReference--非实体bean只是逻辑上的引用，则放入集合
for (int i = 0; i < propertyValues.getPropertyValues().length; i++) {
PropertyValue propertyValue = propertyValues.getPropertyValues()[i];
Object value = propertyValue.getValue();
if (value instanceof BeanDefinitionHolder) {
innerBeans.add(((BeanDefinitionHolder) value).getBeanDefinition());
}
else if (value instanceof BeanDefinition) {
innerBeans.add((BeanDefinition) value);
}
else if (value instanceof BeanReference) {
references.add((BeanReference) value);
}
}
this.innerBeanDefinitions = innerBeans.toArray(new BeanDefinition[innerBeans.size()]);
this.beanReferences = references.toArray(new BeanReference[references.size()]);
}
3.2 registerAnnotationConfigProcessors
跟踪标记3.2的方法
进入AnnotationConfigUtils的构造方法
//3.2查看怎么注册注解配置处理器
Set<BeanDefinitionHolder> processorDefinitions =
AnnotationConfigUtils.registerAnnotationConfigProcessors(readerContext.getRegistry(), source);
/**
* Register all relevant annotation post processors in the given registry.
*
* 注册所有相关的注解后处理器到指定工厂中
*/
public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
BeanDefinitionRegistry registry, Object source) {
DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
if (beanFactory != null) {
//bean工厂的依赖比较器不是AnnotationAwareOrderComparator的实例，
//就换成AnnotationAwareOrderComparator
if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
}
//bean工厂的自动注入候选解析器不是ContextAnnotationAutowireCandidateResolver的实例，
//就换成ContextAnnotationAutowireCandidateResolver
if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
}
}
Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<BeanDefinitionHolder>(4);
//工厂中没有注册internalConfigurationAnnotationProcessor，则注册
if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
}
//工厂中没有注册internalAutowiredAnnotationProcessor，则注册
if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
}
//工厂中没有注册internalRequiredAnnotationProcessor，则注册
if (!registry.containsBeanDefinition(REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(RequiredAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
// 检查是否支持JSR-250，如果有则添加CommonAnnotationBeanPostProcessor
if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
// 检查JPA支持，如果有则添加PersistenceAnnotationBeanPostProcessor
if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition();
try {
def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
AnnotationConfigUtils.class.getClassLoader()));
}
catch (ClassNotFoundException ex) {
throw new IllegalStateException(
"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
}
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
}
//工厂中没有注册internalEventListenerProcessor，则注册
if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
}
//工厂中没有注册internalEventListenerFactory，则注册
if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
}
return beanDefs;
}
到这里也就跟踪完了。
其实还有很多种情况没有分析，只能先把握整体的脉络，遇到具体的情况再做具体分析。
总结
- 获取标签
context:component-scan上的base-package属性，有占位符的进行解析，并切分为数组形式 - 1.配置扫描器
- 2.利用扫描器扫描包，注册 BeanDefinition
- 3.注册组件
——————————————————————————————————
- 1
- 创建一个扫描器，默认情况下会注册几个过滤器，其实就是在扫描器的 includeFilters 属性中保存几个 AnnotationTypeFilter 类型的过滤器，其中包括注解
Component。 - 解析子标签
context:exclude-filter和context:exclude-filter，根据子标签上的 type 属性创建不同的类型过滤器。并添加到扫描器的 excludeFilters 属性或 includeFilters 属性中。 - 添加其他属性等
——————————————————————————————————
- 2
- 遍历所有的
base-package，通过base-package获取 Resource 对象数组，对符合条件的 Resource 组装成 BeanDefinition ，并将 BeanDefinition 集合返回。条件：不匹配 excludeFilters 中的过滤器，匹配 includeFilters 的过滤器的同时，如果有@Conditional注解需要满足限制。 - 解析
@Scope等注解以及元注解，设置属性 - 包装 BeanDefinition 生成 DefinitionHolder，注册 BeanDefinition 和别名到工厂中，返回 DefinitionHolder 集合
——————————————————————————————————
- 3
- 新建一个扫描组件，添加标签名，并把 DefinitionHolder 集合包装后一一放入到组件中
- 如果有没被注册的后处理器，注册到工厂后再添加到扫描组件中
来源：oschina
链接：https://my.oschina.net/u/4381731/blog/3673342
