最近在电脑上开了三个虚拟机鼓捣了一下 ELK，配置成功之后，关闭虚拟机重新打开总是出现一些奇怪的问题，使得 kibana 处于不健康的状态，真是让人操碎了心。
一、前言
在搭建过程中，本人是依据以下两篇文章进行的，步骤明确，效果清晰。
1、 搭建ELK日志分析平台（上）—— ELK介绍及搭建 Elasticsearch 分布式集群
2、 搭建ELK日志分析平台（下）—— 搭建kibana和logstash服务器
以下记录本人在实现过程中遇到的问题以及最终解决的思路。
二、elasticsearch 集群状态不健康
1、问题描述
elasticsearch （以下简称 es）集群状态处于 yellow 或者 red 状态，2 个数据节点未成功接入主节点，number_of_nodes 数量仍为 1，kibana 界面报错 503。
[root@server ~]# curl '192.168.100.15:9200/_cluster/health?pretty'
{
"cluster_name" : "server-node",
"status" : "red", # 为 green 则代表健康没问题，如果是 yellow 或者 red 则是集群有问题
"timed_out" : false, # 是否有超时
"number_of_nodes" : 1, # 集群中的节点数量
"number_of_data_nodes" : 0, # 集群中data节点的数量
"active_primary_shards" : 0,
"active_shards" : 0,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 12,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 0.0 # 可用性百分比，此处为 0 不可用
}
2、排查思路
1）首先确保 es 主节点最先启动，随后启动数据节点；
2）允许 selinux（非必要），关闭 iptables；
3）确保数据节点的配置文件正确。
3、排查后状态
[root@server ~]# curl '192.168.100.15:9200/_cluster/health?pretty'
{
"cluster_name" : "server-node",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 2,
"active_primary_shards" : 5,
"active_shards" : 10,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
三、索引状态不健康
1、问题描述
es 启动正常，kibana 报错 503，management 页面无显示，点击无反应，查看索引状态为 red。
[root@server ~]# curl '192.168.100.15:9200/_cat/indices?v'
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
red open system-syslog-2018.09 JPDsnK_qSym-sjOiZS9zAw 5 1 548 0 719.6kb 345.3kb
2、排查思路
1）确认 logstash 是否正常启动，端口（9600以及各日志索引配置端口）是否存在；
2）删除不正常索引，重新启动 logstash；
[root@server ~]# curl -XDELETE http://localhost:9200/system-syslog-2018.09
{"acknowledged":true}3）确认 kibana 状态
[root@server ~]# systemctl status kibana
● kibana.service - Kibana
Loaded: loaded (/etc/systemd/system/kibana.service; enabled; vendor preset: disabled)
Active: active (running) since Sat 2018-09-29 09:01:44 CST; 31min ago
Main PID: 646 (node)
CGroup: /system.slice/kibana.service
└─646 /usr/share/kibana/bin/../node/bin/node --no-warnings /usr/share/kibana/bin/../src/cli -c /etc/kibana/kibana.yml...
Sep 29 09:01:44 server systemd[1]: Started Kibana.
Sep 29 09:01:44 server systemd[1]: Starting Kibana...4）重新查看索引状态
3、排查后状态
[root@server ~]# curl '192.168.100.15:9200/_cat/indices?v'
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
green open system-syslog-2018.09 TR_gdOb8RDSRtHj_g4a4_g 5 1 3 0 62.2kb 31.1kb
四、es 的 node 日志报错
1、问题描述
kibana 界面报错，菜单点击无反应，日志信息部分如下。
[2018-09-28T21:23:20,487][DEBUG][o.e.a.s.TransportSearchAction] [server] All shards failed for phase: [query]
[2018-09-28T21:23:20,488][WARN ][r.suppressed ] path: /.kibana/_search, params: {ignore_unavailable=true, index=.kibana, filter_path=aggregations.types.buckets}
org.elasticsearch.action.search.SearchPhaseExecutionException: all shards failed
at org.elasticsearch.action.search.AbstractSearchAsyncAction.onPhaseFailure(AbstractSearchAsyncAction.java:293) ~[elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.action.search.AbstractSearchAsyncAction.executeNextPhase(AbstractSearchAsyncAction.java:133) ~[elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.action.search.AbstractSearchAsyncAction.onPhaseDone(AbstractSearchAsyncAction.java:254) ~[elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.action.search.InitialSearchPhase.onShardFailure(InitialSearchPhase.java:101) ~[elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.action.search.InitialSearchPhase.lambda$performPhaseOnShard$1(InitialSearchPhase.java:210) ~[elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.action.search.InitialSearchPhase$1.doRun(InitialSearchPhase.java:189) [elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.common.util.concurrent.ThreadContext$ContextPreservingAbstractRunnable.doRun(ThreadContext.java:723) [elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.common.util.concurrent.AbstractRunnable.run(AbstractRunnable.java:37) [elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.common.util.concurrent.TimedRunnable.doRun(TimedRunnable.java:41) [elasticsearch-6.4.1.jar:6.4.1]
at org.elasticsearch.common.util.concurrent.AbstractRunnable.run(AbstractRunnable.java:37) [elasticsearch-6.4.1.jar:6.4.1]
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_144]
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_144]
at java.lang.Thread.run(Thread.java:748) [?:1.8.0_144]
[2018-09-28T21:23:20,487][WARN ][r.suppressed ] path: /.kibana/doc/config%3A6.4.1, params: {index=.kibana, id=config:6.4.1, type=doc}
org.elasticsearch.action.NoShardAvailableActionException: No shard available for [get [.kibana][doc][config:6.4.1]: routing [null]]
at org.elasticsearch.action.support.single.shard.TransportSingleShardAction$AsyncSingleAction.perform(TransportSingleShardAction.java:207) ~[elasticsearch-6.4.1.jar:6.4.1]
2、排查思路
1）删除索引
[root@server ~]# curl -XDELETE http://localhost:9200/.kibana

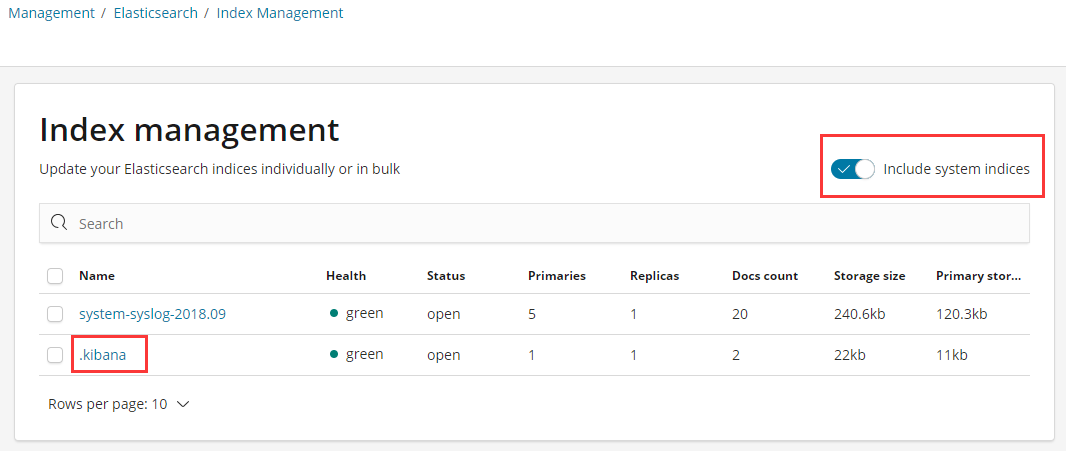

{"acknowledged":true}2）在 kibana 界面开启或关闭
3、排查后状态
[root@server ~]# curl '192.168.100.15:9200/_cat/indices?v'
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
green open system-syslog-2018.09 TR_gdOb8RDSRtHj_g4a4_g 5 1 20 0 240.6kb 120.3kb
green open .kibana GGWwf7gdTwCKMn3BqRaGcQ 1 1 2 0 22kb 11kb
参考资料
3. Elasticsearchallshardsfailed:[unsupported_operation_exception]null
来源：oschina
链接：https://my.oschina.net/u/3314358/blog/2221363
