前言
之前的两篇文章我们介绍了用uni-app实现了实时音视频通话这个功能。没有印象的小伙伴们可以看这两个链接。
更多的消息资讯可以关注 anyRTC开发者官网

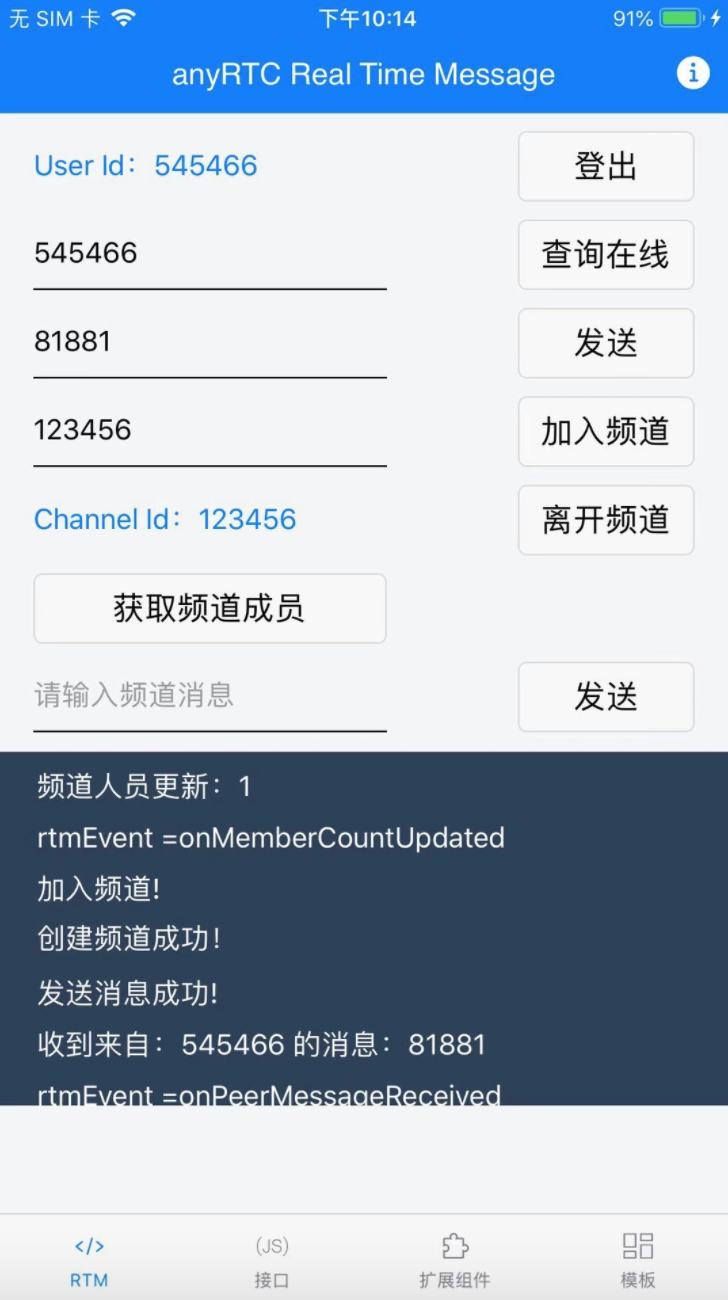

1、效果图
先给大家看一下效果,然后我们再继续讲解。
GitHub下载地址
uni-app-rtm demo:点击下载
扫码下载
2、功能介绍
uni-app跨平台实时消息SDK插件,包含点对点消息、频道消息、呼叫邀请等功能。在同一频道下,用户可以接收和发送消息。从下方的状态栏里面可以到频道内的状态变化,包括人员的更新和消息的更新。
支持平台
- Android
- ios
应用场景
1、在线教育
在线教育场景中,适用于大班课和小班课,同学可以实时发送消息与老师进行沟通。
2、娱乐直播
在直播环境中,观众可以实时发送弹幕与主播进行互动。
3、对讲
在铁路或者运输的场景中,同一公司,同一部门之间各个员工之间可以在相同的频道下进行沟通,大大提高工作效率,减少沟通成本。
4、语音群聊
在语音聊天的环境下同时可以支持消息沟通。
3、项目集成
快速集成

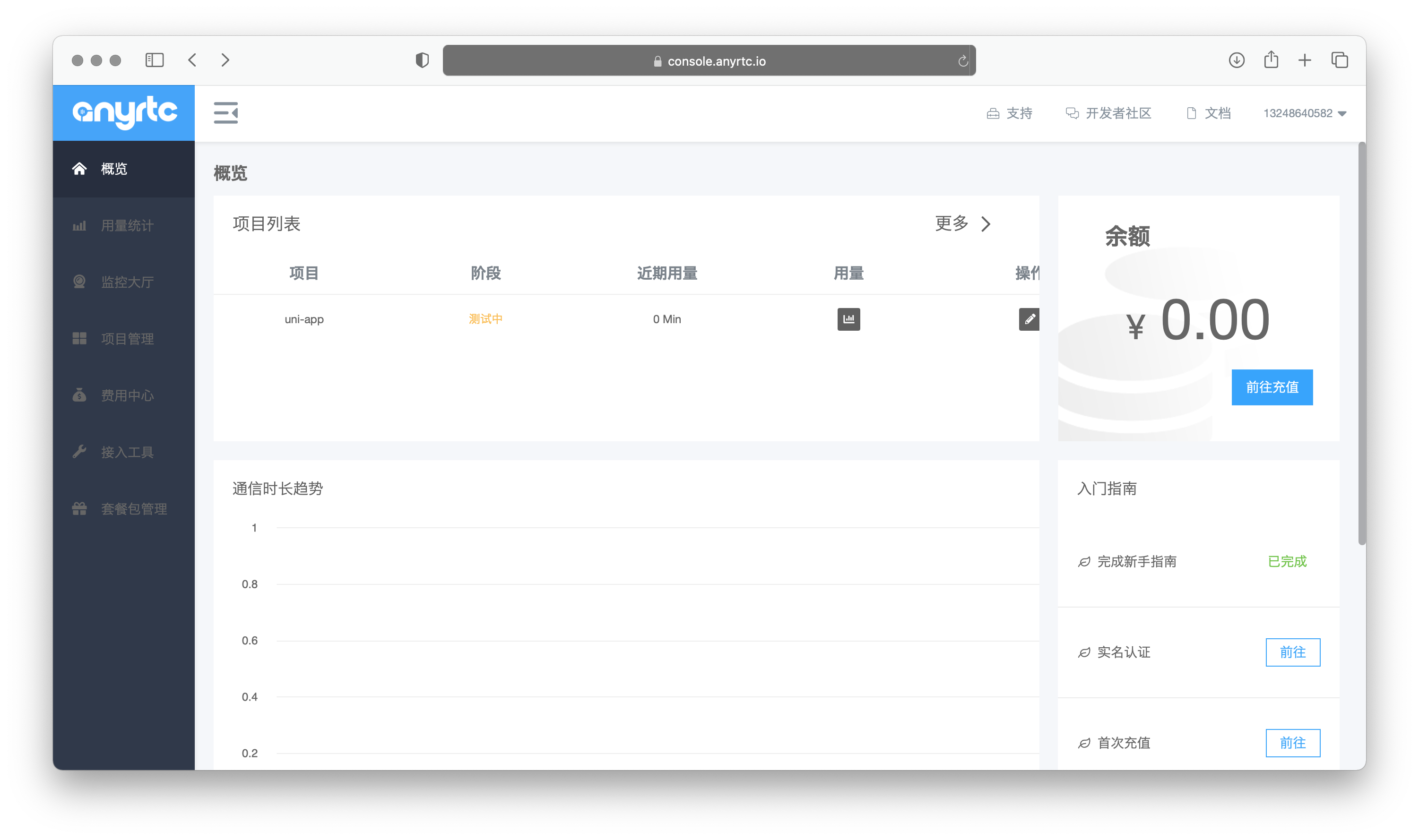

- 下载示例工程,前往anyRTC官网注册账号
- 创建应用,获取应用的App ID。
- 下载插件示例工程,制作自定义基座,主要步骤如图,证书问题,请参照申请证书说明。
- 运行自定义基座
4、方法回调
1、login(登录rtm)
{“code”: 0}
2、logout(登出rtm)
{“code”: 0}
3、queryPeersOnlineStatus(查询指定⽤户的在线状态)
{“peerOnlineStatus”:[{“peerId”:“123”,“state”:1}],“code”:0}
4、subscribePeersOnlineStatus(订阅指定单个或多个⽤户的在线状态)
{“code”: 0}
5、unsubscribePeersOnlineStatus(订阅指定单个或多个用户的在线状态)
{“code”: 0}
6、queryPeersBySubscriptionOption(获取某特定内容被订阅的membersOnSuccess用户列表)
{“peers”:[“123”,“456”],@“code”:0}
peers为订阅用户id数组
7、setLocalUserAttributes(全量设置本地用户的属性)
{“code”: 0}
8、addOrUpdateLocalUserAttributes(添加或更新本地用户的属性)
{“code”: 0}
9、deleteLocalUserAttributesByKeys(删除本地用户的指定属性)
{“code”: 0}
10、clearLocalUserAttributes(清空本地用户的所有属性)
{“code”: 0}
11、getUserAttributes(获取指定用户的全部属性)
{“userAttributesList”:{“age”:23,“name”:“Jerry”},“userId”:“123”, “code”:0}
12、getUserAttributesByKeys(获取指定用户指定属性名的属性)
{“userAttributesList”:{“age”:23,“name”:“Jerry”},“userId”:“123”, “code”:0}
13、setChannelAttributes(全量设置某指定频道的属性)
{“code”: 0}
14、addOrUpdateChannelAttributes(添加或更新某指定频道的属性)
{“code”: 0}
15、deleteChannelAttributesByKeys(删除某指定频道的指定属性)
{“code”: 0}
16、clearChannelAttributes(清空某指定频道的属性)
{“code”: 0}
17、getChannelAttributes(查询某指定频道的全部属性)
{“channelAttributes”:{“age”:23,“name”:“Jerry”}, “code”:0}
18、getChannelAttributesByKeys(查询某指定频道指定属性名的属性)
{“channelAttributes”:{“age”:23,“name”:“Jerry”}, “code”:0}
listDic 例如:{“age":23,“name”:“Jerry”}
19、getChannelMemberCount(查询单个或多个频道的成员人数)
{“memberCounts”:[{“channelId”:“909090”,"count”:2}],“code”:0}
20、join(加入频道)
{“code”: 0}
21、leave(离开频道)
{“code”: 0}
22、sendChannelMessage(发送频道消息)
{“code”: 0}
23、getMembers(获取频道成员列表)
{“members”:[{“channelId”:“909090”,“userId”:“123456”}],“code”:0}
24、sendLocalInvitation、acceptRemoteInvitation、refuseRemoteInvitation、cancelLocalInvitation
5、事件回调
1、RtmClientListener
1、onConnectionStateChanged( SDK 与 anyRTC rtm系统的连接状态发生改变回调 )
{
"rtmEvent":"onConnectionStateChanged","state":0,"reason":0}
2、onPeerMessageReceived( 收到点对点消息回调 )
{
"rtmEvent":"onPeerMessageReceived","serverReceivedTs":0,"text":"message","OfflineMessage":0,"messageType":0,"peerId":"123"}
3、onPeersOnlineStatusChanged( 被订阅用户在线状态改变回调 )
{
"rtmEvent":"onPeersOnlineStatusChanged","peersStatus":[{
"peerId":"123","state":0}]}
2、RtmChannelListener
1.onAttributesUpdated (频道属性更新回调)
{
"rtmEvent":"onAttributesUpdated", "attributeList":[{
"key":"name","value":"Jerry","lastUpdateUid":"123","lastUpdateTs":0}]}
2.onMemberCountUpdated (频道成员人数更新回调)
{
"rtmEvent":"onMemberCountUpdated","memberCount": 0}
3.onMemberJoined (远端用户加入频道回调)
{
"rtmEvent":"onMemberJoined","userId": "123","channelId": "909090"}
4.onMemberLeft (频道成员离开频道回调)
{
"rtmEvent":"onMemberLeft","userId": "123","channelId": "909090"}
5.onChannelMessageReceived (收到频道消息回调)
{
"rtmEvent":"onChannelMessageReceived","type":0,"text":"message","serverReceivedTs":0,"isOfflineMessage":true, "userId": "123","channelId": "909090"}
3、RtmCallEventListener
1.onLocalInvitationAccepted (返回给主叫:被叫已接受呼叫邀请)
{
"rtmEvent":"onLocalInvitationAccepted","calleeId": "123","content": "","channelId": "909090","state": 0,"getResponse": "","response": ""}
2.onLocalInvitationCanceled (返回给主叫:呼叫邀请已被取消)
{
"rtmEvent":"onLocalInvitationCanceled","calleeId":"123","content": "","channelId":"909090","state": 0}
3.onLocalInvitationFailure (返回给主叫:呼叫邀请进程失败)
{
"rtmEvent":"onLocalInvitationFailure","calleeId": "123","content": "","channelId":"909090","state": 0,"code": 0}
4.onLocalInvitationReceivedByPeer (返回给主叫:被叫已收到呼叫邀请)
{
"rtmEvent":"onLocalInvitationReceivedByPeer", "calleeId": "123","content": "","channelId": "909090","state":0}
5.onLocalInvitationRefused (返回给主叫:被叫已拒绝呼叫邀请)
{
"rtmEvent":"onLocalInvitationRefused","calleeId":"123", "content":"","channelId":"909090","state": 0,"getResponse": "","response": ""}
6.onRemoteInvitationAccepted (返回给被叫:接受呼叫邀请成功)
{
"rtmEvent":"onRemoteInvitationAccepted","callerId":"123","content":"","channelId":"909090","state": 0,"response": ""}
7.onRemoteInvitationCanceled (返回给被叫:主叫已取消呼叫邀请)
{
"rtmEvent":"onRemoteInvitationCanceled","callerId": "123", "content": "","channelId":"909090","state": 0}
8.onRemoteInvitationFailure (返回给被叫:来自主叫的呼叫邀请进程失败)
{
"rtmEvent":"onRemoteInvitationFailure","callerId":"123","content":"","channelId":"909090","state":0}
9.onRemoteInvitationReceived (返回给被叫:收到一个呼叫邀请)
{
"rtmEvent":"onRemoteInvitationReceived","callerId":"123","content":"","channelId":"909090","state": 0}
10.onRemoteInvitationRefused(返回给被叫:拒绝呼叫邀请成功)
{
"rtmEvent":"onRemoteInvitationRefused","callerId":"123", "content": "","channelId":"909090","state":0,"response": ""}
6、总结
以上就是大部分重要的接口,基本上都已经介绍完了,欢迎大家下载使用。目前anyRTC已经用uni-app实现了实时视频通话和实时消息送达,如果大家还有什么疑问,可以在评论区留言!
