mac使用frida

安装

https://github.com/frida/frida/releases

根据手机的cpu的版本，选择相应的文件，一般通过手机信息可以看到我这里是frida-server-12.6.7-android-arm64.xz

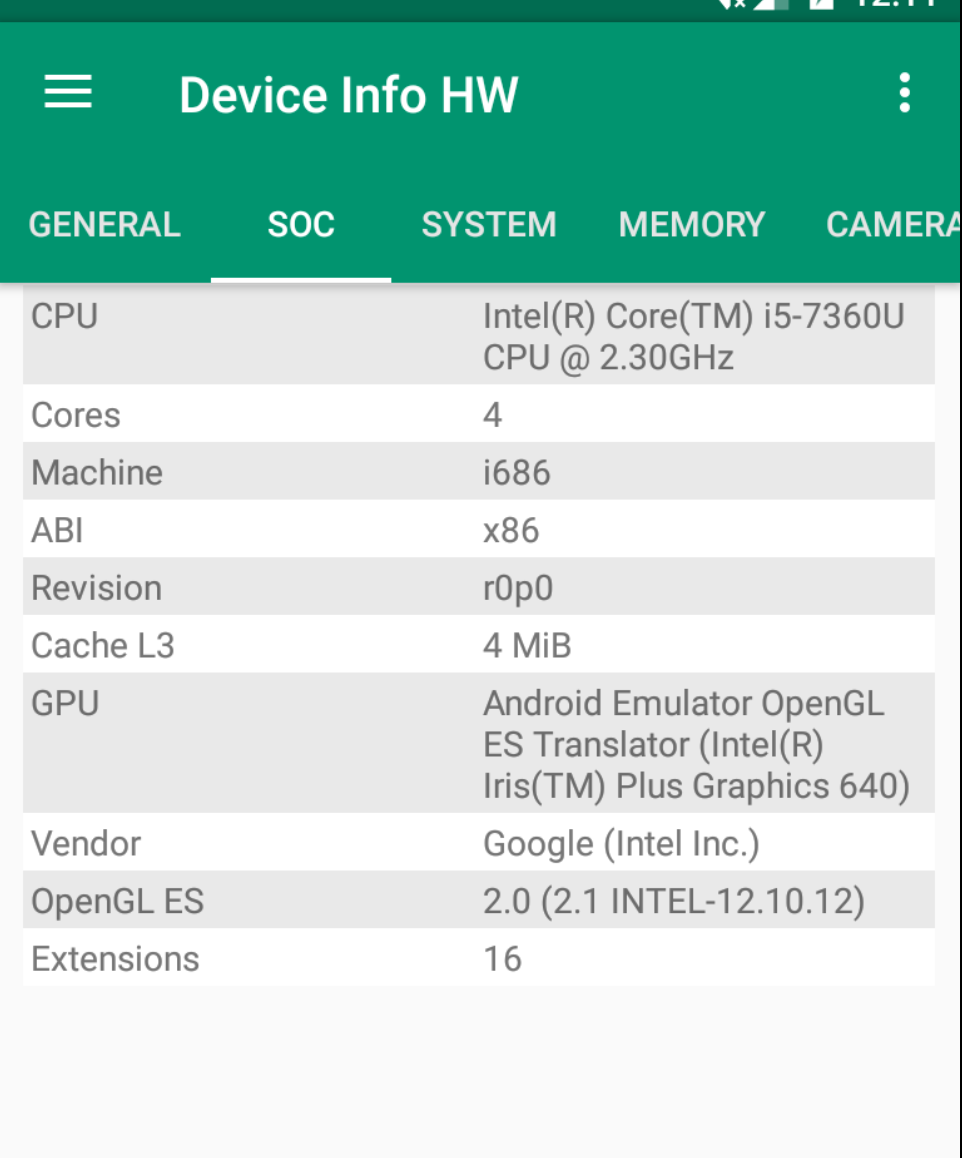

解压frida-server-12.6.7-android-arm64.xz，然后把解压后的文件重命名frida-server 后来我使用genymotion,查看系统为x86。

所以下载了frida-server-12.7.5-android-x86.xz文件，然后解压并重命名为frida-server。执行命令frida-server。依次执行下面命令

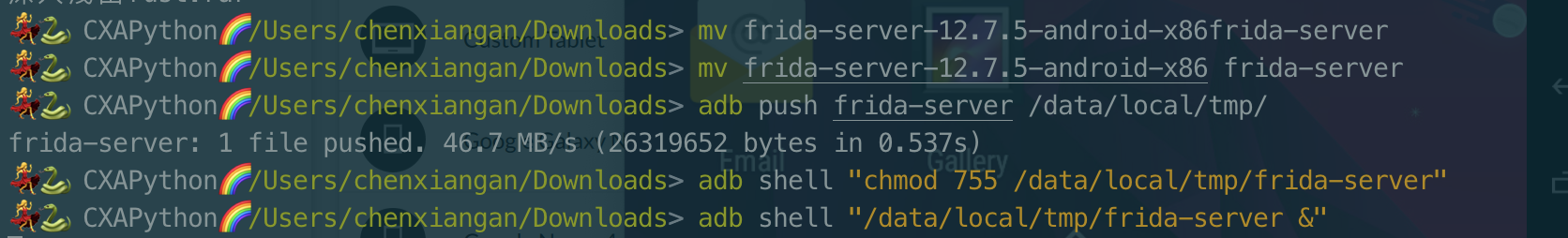

$ adb push frida-server /data/local/tmp/
$ adb shell "chmod 755 /data/local/tmp/frida-server"
$ adb shell "/data/local/tmp/frida-server &"

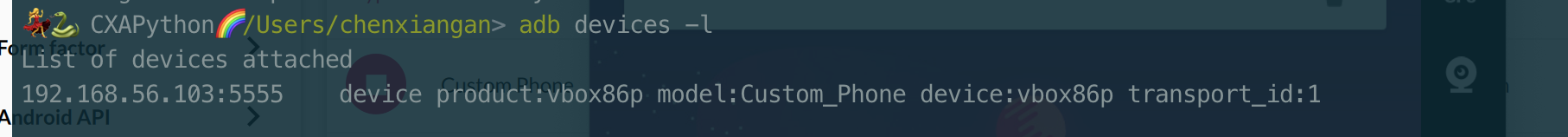

然后在电脑上测试手机是否连通

$ adb devices -l

Frida大致原理是手机端安装一个server程序，然后把手机端的端口转到PC端，PC端写python脚本进行通信，而python脚本中需要hook的代码采用javascript语言。所以这么看来我们首先需要安装开始安装frida了，直接运行命令：

 /Applications/Python\ 3.6/Install\ Certificates.command
python3.6 -m pip install -i https://pypi.tuna.tsinghua.edu.cn/simple/ --trusted-host pypi.tuna.tsinghua.edu.cn frida frida-tools

我这大概要等很长时间才下载完。然后执行命令

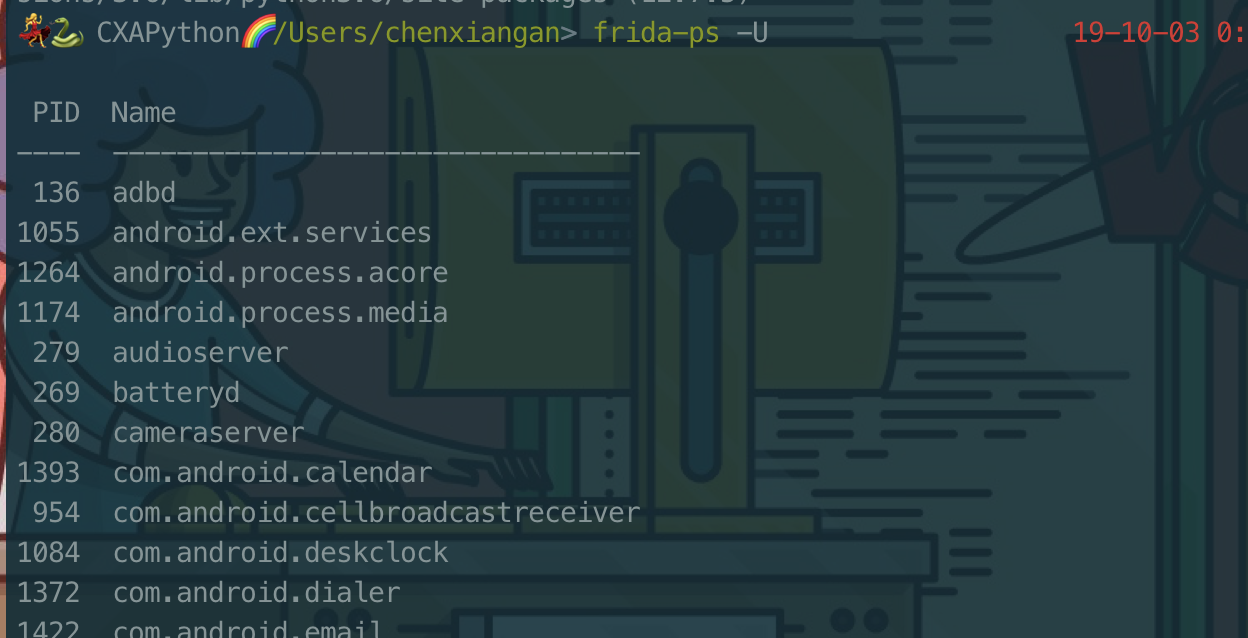

frida-ps -U

看到类似的结果

  PID  Name
-----  -----------------------------------------------------------------
 2681  .dataservices
  835  ATFWD-daemon
12174  adbd
  844  adsprpcd
  845  adsprpcd
  745  android.hardware.audio@2.

即可。 ###插曲okttp3 okhttp3没混淆的hook

try {

    var CertificatePinner = Java.use('okhttp3.CertificatePinner');

    quiet_send('OkHTTP 3.x Found');

    CertificatePinner.check.overload('java.lang.String', 'java.util.List').implementation = function () {

        quiet_send('OkHTTP 3.x check() called. Not throwing an exception.');
    }

}

okhttp3混淆的话改为混淆的名字我这里是d.k.a， Java.use表示使用d包的k类,然后后面CertificatePinner.a.overload 表示hook a方法

/*** okhttp3.x unpinning ***/

// Wrap the logic in a try/catch as not all applications will have
// okhttp as part of the app.
try {
    var CertificatePinner = Java.use('d.k');

    quiet_send('OkHTTP 3.x Found');

    CertificatePinner.a.overload('java.lang.String', 'java.util.List').implementation = function () {

        quiet_send('OkHTTP 3.x check() called. Not throwing an exception.');
    }

} catch (err) {

    // If we dont have a ClassNotFoundException exception, raise the
    // problem encountered.
    if (err.message.indexOf('ClassNotFoundException') === 0) {

        throw new Error(err);
    }
}

application脚本

# -*- coding: utf-8 -*-
import frida, sys, re, sys, os
from subprocess import Popen, PIPE, STDOUT
import codecs, time

if (len(sys.argv) > 1):
    APP_NAME = str(sys.argv[1])
else:
    APP_NAME = "com.loco.example.OkHttp3SSLPinning"

def sbyte2ubyte(byte):
    return (byte % 256)

def print_result(message):
    print ("[!] Received: [%s]" %(message))

def on_message(message, data):
    if 'payload' in message:
        data = message['payload']
        if type(data) is str:
            print_result(data)
        elif type(data) is list:
            a = data[0]
            if type(a) is int:
                hexstr = "".join([("%02X" % (sbyte2ubyte(a))) for a in data])
                print_result(hexstr)
                print_result(hexstr.decode('hex'))
            else:
                print_result(data)
                print_result(hexstr.decode('hex'))
        else:
            print_result(data)
    else:
        if message['type'] == 'error':
            print (message['stack'])
        else:
            print_result(message)


def kill_process():
    cmd = "adb shell pm clear {} 1> /dev/null".format(APP_NAME)
    os.system(cmd)

#kill_process()

try:
    with codecs.open("hooks.js", 'r', encoding='utf8') as f:
        jscode  = f.read()
        device  = frida.get_usb_device(timeout=5)
        #pid     = device.spawn([APP_NAME])
        session = device.attach("com.loco.example.OkHttp3SSLPinning")
        script  = session.create_script(jscode)
        #device.resume(APP_NAME)
        script.on('message', on_message)
        print ("[*] Intercepting on {} ...".format(APP_NAME))
        script.load()
        sys.stdin.read()
except KeyboardInterrupt:
        print ("[!] Killing app...")
        kill_process()
        time.sleep(1)
        kill_process()
