随着边缘计算的快速发展,越来越多的数据需要到网络的边缘侧进行存储、处理和分析,边缘的设备和应用呈爆发式增长。如何高效的管理边缘侧的资源和应用是业界面临的一个主要问题。当前,采用云原生的方法,将云计算的能力下沉到边缘并在云端做统一调度、管控的云边端一体化架构得到了业界的广泛认可。

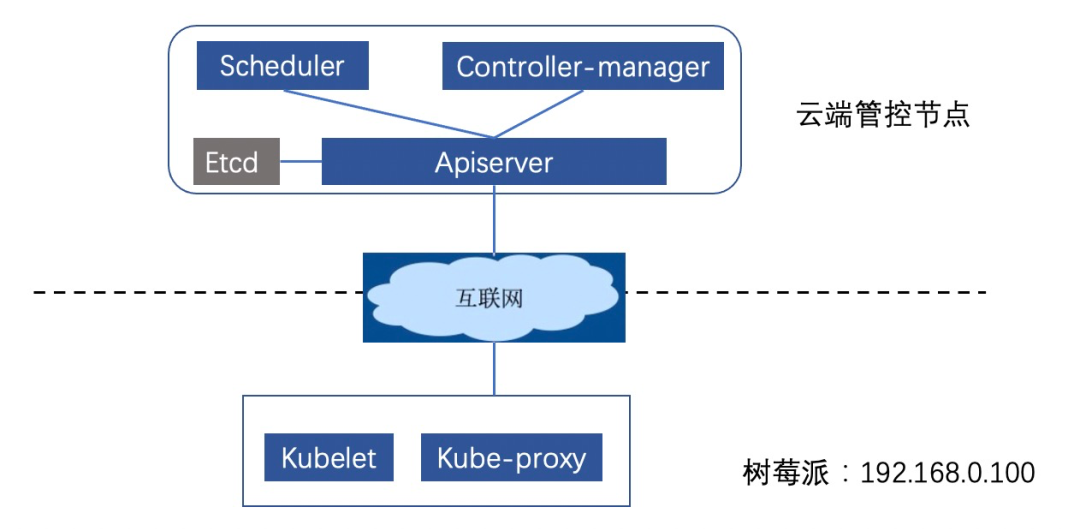

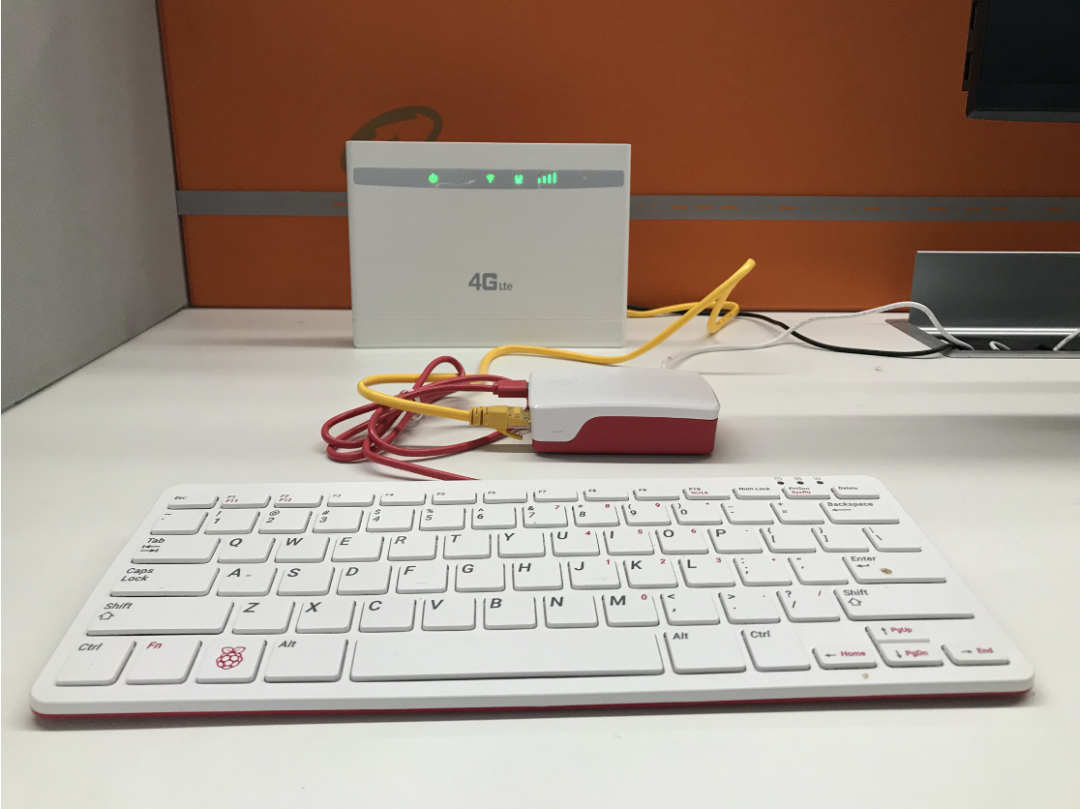

如图 1 所示,本文通过在云端部署 Kubernetes 集群的控制面,并将树莓派接入集群来搭建云管边场景。基于这个环境演示 OpenYurt 的核心能力,带大家快速上手 OpenYurt。
环境准备
1. 基础环境介绍
2. 原生 K8s 集群搭建
在云端节点和树莓派上分别执行如下命令安装 Kubernetes 组件。
curl -s https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | sudo apt-key add -
echo "deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main" > /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update
sudo apt install -y kubelet=1.16.6-00 kubeadm=1.16.6-00 kubectl=1.16.6-00
使用 kubeadm 初始化云端节点(在云端节点上执行如下命令),部署过程中采用阿里云的镜像仓库,为了支持树莓派的接入,该仓库的镜像做了 manifest 列表,能够支持 amd64/arm64 两种不同的 CPU 架构。
# master-node
kubeadm init --image-repository=registry.cn-hangzhou.aliyuncs.com/edge-kubernetes --kubernetes-version=v1.16.6 --pod-network-cidr=10.244.0.0/16
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
树莓派接入云端集群依据第二步中初始化完成以后输出的节点接入信息,在树莓派上执行接入命令。
kubeadm join 183.195.233.42:6443 --token XXXX \
--discovery-token-ca-cert-hash XXXX
添加 cni 配置(云端管控节点和树莓派都需要配置),本文搭建的集群使用主机网络。创建 cni 配置文件 /etc/cni/net.d/0-loopback.conf,并将如下内容拷贝到该文件中。
{
"cniVersion": "0.3.0",
"name": "lo",
"type": "loopback"
}
在 master 节点上查看部署效果。
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
edge-node Ready <none> 74s v1.16.6 192.168.0.100 <none> Ubuntu 18.04.4 LTS 4.19.105-v8-28 docker://19.3.5
master-node Ready master 2m5s v1.16.6 183.195.233.42 <none> Ubuntu 18.04.2 LTS 4.15.0-52-generic docker://19.3.5
删除 CoreDNS(本文 Demo 中 CoreDNS 不需要使用),并将 master 节点的 taints 去掉(方便后续部署 OpenYurt 组件)。
kubectl delete deployment coredns -n kube-system
kubectl taint node master-node node-role.kubernetes.io/master-
原生 K8s 集群在边缘场景中的问题
注意:nodeSelector 选择 edge-node 节点,主机网络配置为 true,并配置 pod 的容忍时间为 5s(默认 5min, 此处配置便于演示 pod 驱逐)。
apiVersion: v1
kind: Pod
metadata:
name: nginx
spec:
tolerations:
key: "node.kubernetes.io/unreachable"
operator: "Exists"
effect: "NoExecute"
tolerationSeconds: 5
key: "node.kubernetes.io/not-ready"
operator: "Exists"
effect: "NoExecute"
tolerationSeconds: 5
nodeSelector:
edge-node :
containers:
name: nginx
image: nginx
hostNetwork: true
root@master-node:~# kubectl get pods -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx 1/1 Running 0 11s 192.168.0.100 edge-node <none> <none>
1. 测试常用的集群运维指令,包括 logs、exec、port-forward。
root@master-node:~# kubectl logs nginx
Error from server: Get https://192.168.0.100:10250/containerLogs/default/nginx/nginx: dial tcp 192.168.0.100:10250: connect: connection refused
root@master-node:~# kubectl exec -it nginx sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Error from server: error dialing backend: dial tcp 192.168.0.100:10250: connect: connection refused
root@master-node:~# kubectl port-forward pod/nginx 8888:80
error: error upgrading connection: error dialing backend: dial tcp 192.168.0.100:10250: connect: connection refused
2. 测试边缘断网时对业务的影响
断网 1 分钟->恢复网络
断网 1 分钟->重启边缘节点->恢复网络
1)断网 1 分钟->恢复网络
rootget nodes -node:~# kubectl
NAME STATUS ROLES AGE VERSION
edge-node NotReady <none> 5m13s v1.16.6
master-node Ready master 6m4s v1.16.6
rootget pods -node:~# kubectl
NAME READY STATUS RESTARTS AGE
nginx 1/1 Terminating 0 3m45s
rootget pods -node:~# kubectl
No resources found in default namespace.
root@master-node:~# kubectl get pods -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx 1/1 Running 0 4s 192.168.0.100 edge-node <none> <none>
2)断网 1 分钟->重启边缘节点->恢复网络
root@edge-node:~# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
9671cbf28ca6 e86f991e5d10 "/docker-entrypoint.…" About a minute ago Up About a minute k8s_nginx_nginx_default_efdf11c6-a41c-4b95-8ac8-45e02c9e1f4d_0
6272a46f93ef registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 2 minutes ago Up About a minute k8s_POD_nginx_default_efdf11c6-a41c-4b95-8ac8-45e02c9e1f4d_0
698bb024c3db f9ea384ddb34 "/usr/local/bin/kube…" 8 minutes ago Up 8 minutes k8s_kube-proxy_kube-proxy-rjws7_kube-system_51576be4-2b6d-434d-b50b-b88e2d436fef_0
31952700c95b registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 8 minutes ago Up 8 minutes k8s_POD_kube-proxy-rjws7_kube-system_51576be4-2b6d-434d-b50b-b88e2d436fef_0
root@edge-node:~# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
root@edge-node:~#
rootget nodes -node:~# kubectl
NAME STATUS ROLES AGE VERSION
edge-node Ready <none> 11m v1.16.6
master-node Ready master 12m v1.16.6
rootget pods -node:~# kubectl
No resources found in default namespace.
root@master-node:~# kubectl get pods -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx 1/1 Running 0 12s 192.168.0.100 edge-node <none> <none>
原生 K8s 集群一键转换为 OpenYurt 集群
yurtctl convert --yurt-controller-manager-image=registry.cn-hangzhou.aliyuncs.com/openyurt/yurt-controller-manager:v0.2.1 --yurt-tunnel-agent-image=registry.cn-hangzhou.aliyuncs.com/openyurt/yurt-tunnel-agent:v0.2.1 --yurt-tunnel-server-image=registry.cn-hangzhou.aliyuncs.com/openyurt/yurt-tunnel-server:v0.2.1 --yurtctl-servant-image=registry.cn-hangzhou.aliyuncs.com/openyurt/yurtctl-servant:v0.2.1 --yurthub-image=registry.cn-hangzhou.aliyuncs.com/openyurt/yurthub:v0.2.1 --cloud-nodes=master-node --deploy-yurttunnel
root@master-node:~# kubectl get pods -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx 1/1 Running 0 2m4s 192.168.0.100 edge-node <none> <none>

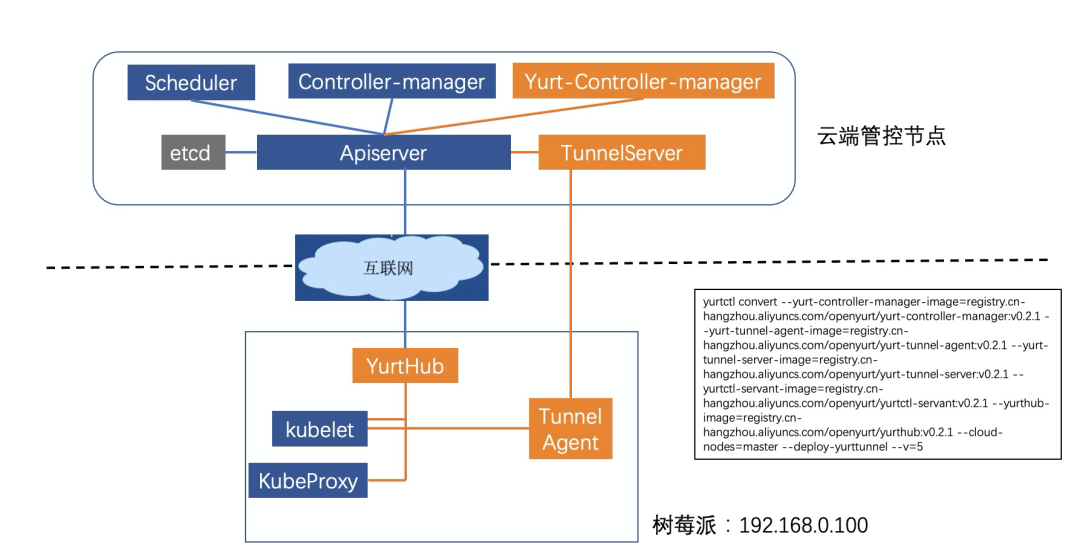

图 3 OpenYurt 集群组件分布图
root@master-node:~# kubectl get pods --all-namespaces -owide | grep master | grep yurt
kube-system yurt-controller-manager-7d9db5bf85-6542h 1/1 Running 0 103s 183.195.233.42 master-node <none> <none>
kube-system yurt-tunnel-server-65784dfdf-pl5bn 1/1 Running 0 103s 183.195.233.42 master-node <none> <none>
root@master-node:~# kubectl get pods --all-namespaces -owide | grep edge | grep yurt
kube-system yurt-hub-edge-node 1/1 Running 0 117s 192.168.0.100 edge-node <none> <none>
kube-system yurt-tunnel-agent-7l8nv 1/1 Running 0 2m 192.168.0.100 edge-node <none> <none>
测试 OpenYurt 集群在边缘场景中的能力
1. 测试 logs/exec/port-forward 等运维指令,查看结果
root@master-node:~
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
root@master-node:~
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
bin dev docker-entrypoint.sh home media opt root sbin sys usr
boot docker-entrypoint.d etc lib mnt proc run srv tmp var
root@master-node:~
Forwarding from 127.0.0.1:8888 -> 80
Handling connection for 8888
2. 测试边缘断网时对业务的影响
roottrue -node:~# kubectl annotate node edge-node node.beta.alibabacloud.com/autonomy=
node/edge-node annotated
1)断网 1 分钟->网络恢复
rootget nodes -node:~# kubectl
NAME STATUS ROLES AGE VERSION
edge-node NotReady <none> 24m v1.16.6
master-node Ready master 25m v1.16.6
rootget pods -node:~# kubectl
NAME READY STATUS RESTARTS AGE
nginx 1/1 Running 0 5m7s
rootget nodes -node:~# kubectl
NAME STATUS ROLES AGE VERSION
edge-node Ready <none> 25m v1.16.6
master-node Ready master 26m v1.16.6
rootget pods -node:~# kubectl
NAME READY STATUS RESTARTS AGE
nginx 1/1 Running 0 6m30s
2)断网 1 分钟->重启边缘节点->恢复网络
root@edge-node:~# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
38727ec9270c 70bf6668c7eb "yurthub --v=2 --ser…" 7 minutes ago Up 7 minutes k8s_yurt-hub_yurt-hub-edge-node_kube-system_d75d122e752b90d436a71af44c0a53be_0
c403ace1d4ff registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 7 minutes ago Up 7 minutes k8s_POD_yurt-hub-edge-node_kube-system_d75d122e752b90d436a71af44c0a53be_0
de0d693e9e74 473ae979be68 "yurt-tunnel-agent -…" 7 minutes ago Up 7 minutes k8s_yurt-tunnel-agent_yurt-tunnel-agent-7l8nv_kube-system_75d28494-f577-43fa-9cac-6681a1215498_0
a0763f143f74 registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 7 minutes ago Up 7 minutes k8s_POD_yurt-tunnel-agent-7l8nv_kube-system_75d28494-f577-43fa-9cac-6681a1215498_0
80c247714402 e86f991e5d10 "/docker-entrypoint.…" 7 minutes ago Up 7 minutes k8s_nginx_nginx_default_b45baaac-eebc-466b-9199-2ca5c1ede9fd_0
01f7770cb0f7 registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 7 minutes ago Up 7 minutes k8s_POD_nginx_default_b45baaac-eebc-466b-9199-2ca5c1ede9fd_0
7e65f83090f6 f9ea384ddb34 "/usr/local/bin/kube…" 17 minutes ago Up 17 minutes k8s_kube-proxy_kube-proxy-rjws7_kube-system_51576be4-2b6d-434d-b50b-b88e2d436fef_1
c1ed142fc75b registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 17 minutes ago Up 17 minutes k8s_POD_kube-proxy-rjws7_kube-system_51576be4-2b6d-434d-b50b-b88e2d436fef_1
root@edge-node:~# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
0c66b87066a0 473ae979be68 "yurt-tunnel-agent -…" 12 seconds ago Up 11 seconds k8s_yurt-tunnel-agent_yurt-tunnel-agent-7l8nv_kube-system_75d28494-f577-43fa-9cac-6681a1215498_2
a4fb3e4e8c8f e86f991e5d10 "/docker-entrypoint.…" 58 seconds ago Up 56 seconds k8s_nginx_nginx_default_b45baaac-eebc-466b-9199-2ca5c1ede9fd_1
fce730d64b32 f9ea384ddb34 "/usr/local/bin/kube…" 58 seconds ago Up 57 seconds k8s_kube-proxy_kube-proxy-rjws7_kube-system_51576be4-2b6d-434d-b50b-b88e2d436fef_2
c78166ea563f registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 59 seconds ago Up 57 seconds k8s_POD_yurt-tunnel-agent-7l8nv_kube-system_75d28494-f577-43fa-9cac-6681a1215498_1
799ad14bcd3b registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 59 seconds ago Up 57 seconds k8s_POD_nginx_default_b45baaac-eebc-466b-9199-2ca5c1ede9fd_1
627673da6a85 registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" 59 seconds ago Up 58 seconds k8s_POD_kube-proxy-rjws7_kube-system_51576be4-2b6d-434d-b50b-b88e2d436fef_2
04da705e4120 70bf6668c7eb "yurthub --v=2 --ser…" About a minute ago Up About a minute k8s_yurt-hub_yurt-hub-edge-node_kube-system_d75d122e752b90d436a71af44c0a53be_1
260057d935ee registry.cn-hangzhou.aliyuncs.com/edge-kubernetes/pause:3.1 "/pause" About a minute ago Up About a minute k8s_POD_yurt-hub-edge-node_kube-system_d75d122e752b90d436a71af44c0a53be_1
root@master-node:~# kubectl get pods -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx 1/1 Running 1 11m 192.168.0.100 edge-node <none> <none>
yurtctl revert --yurtctl-servant-image=registry.cn-hangzhou.aliyuncs.com/openyurt/yurtctl-servant:v0.2.1
