NX二次开发-UFUN工程图导入视图UF_DRAW_import_view

 1 NX9+VS2012
 2
 3 #include <uf.h>
 4 #include <uf_draw.h>
 5 #include <uf_obj.h>
 6 #include <uf_part.h>
 7
 8
 9 UF_initialize();
10
11 //新建工程图(A4图纸)
12 char* DrawingName = "Sheet1";//设置图纸名字
13 UF_DRAW_info_t DrawingInfo;//设置图纸大小、投影视角、视图比例等
14 DrawingInfo.size_state = UF_DRAW_METRIC_SIZE;//设置图纸类型
15 DrawingInfo.size.metric_size_code = UF_DRAW_A4;//设置图纸大小
16 DrawingInfo.drawing_scale = 1.0;//设置比例
17 DrawingInfo.units = UF_PART_METRIC;//设置单位
18 DrawingInfo.projection_angle = UF_DRAW_FIRST_ANGLE_PROJECTION;//设置投影视角
19 tag_t DrawingTag = NULL_TAG;
20 UF_DRAW_create_drawing(DrawingName, &DrawingInfo, &DrawingTag);
21
22 //导入视图(创建Top视图)
23 //找名字获取视图的Tag
24 tag_t TopViewTag = NULL_TAG;
25 UF_OBJ_cycle_by_name_and_type(UF_PART_ask_display_part(), "Top", UF_view_type, false, &TopViewTag);
26
27 UF_DRAW_view_info_t TopViewInfo;
28 UF_DRAW_initialize_view_info(&TopViewInfo);//初始化视图信息
29 double TopDwgPoint[2] = {150.0, 160.0};
30 tag_t TopDrawViewTag = NULL_TAG;
31 UF_DRAW_import_view(DrawingTag, TopViewTag, TopDwgPoint, &TopViewInfo, &TopDrawViewTag);
32
33 //更新视图
34 UF_DRAW_update_one_view(DrawingTag, TopDrawViewTag);
35

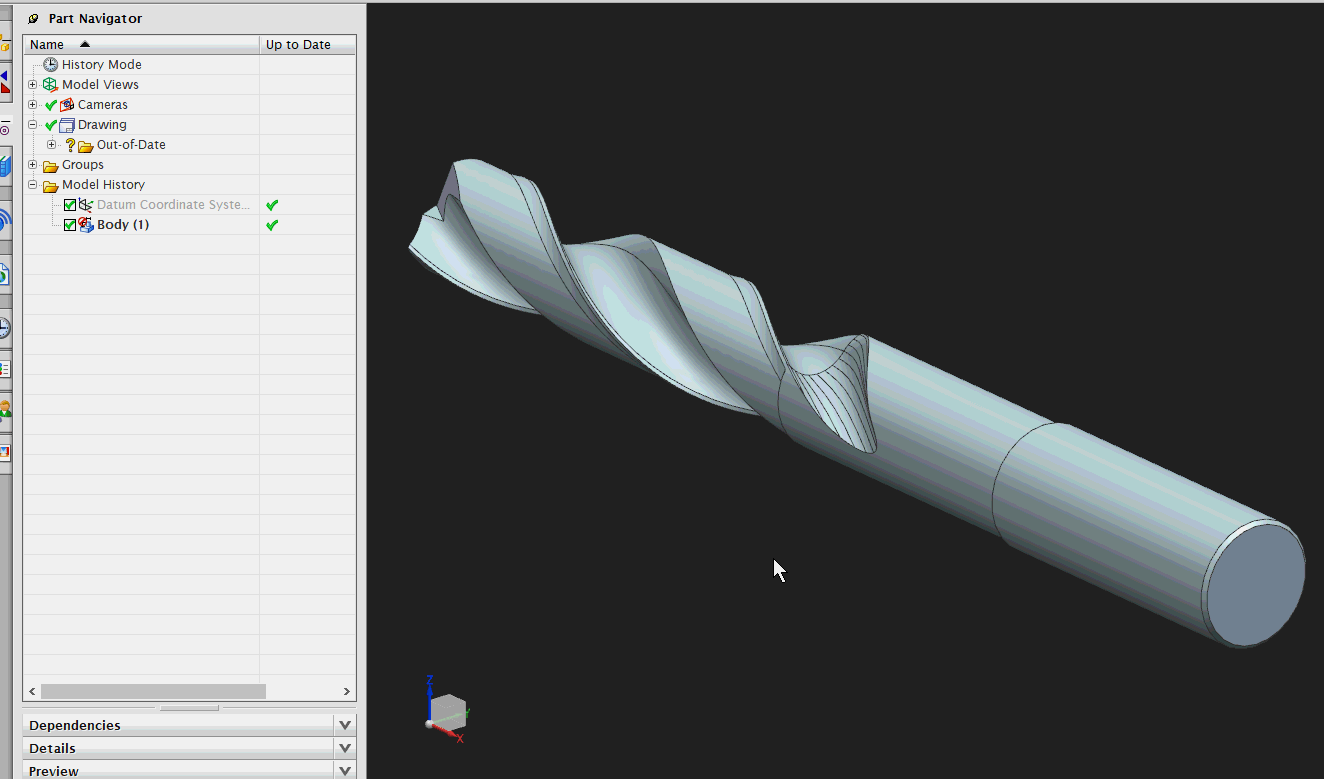

36 UF_terminate();
