18.1 集群介绍

一台机器完成不了的任务我们交给一大群机器去做，集群就好比一个堆叠起来的计算机。

集群根据功能划分两大类：高可用和负载均衡

  1. 高可用集群通常为两台服务器，一台工作，另外一台作为冗余，当提供服务的机器宕机，冗余将接替继续提供服务。（保证服务的可用性）实现高可用的开源软件有：heartbeat、keepalived。heartbeat在centos6上bug比较多，而且不再更新了，更推荐keepalived。
  2. 负载均衡集群，需要有一台服务器作为分发器，它负责把用户的请求分发给后端的服务器处理，在这个集群里，除了分发器外，就是给用户提供服务的服务器了，这些服务器数量至少为2个。实现负载均衡的开源软件有LVS、keepalived、haproxy、nginx，商业的有F5、Netscaler。LVS是非常出名的一款做负载均衡的软件。商业软件的稳定性和应对高访问量是值得肯定的，开源软件的稳定性等就会取决于你的服务器的性能了。



18.2 keepalived介绍

在这里我们使用keepalived来实现高可用集群，因为heartbeat在centos6上有一些问题，影响实验效果。heartbeat在切换主从的时候有延时，做高可用集群的时候还是推荐使用keepalived。

keepalived通过VRRP（Virtual Router Redundancy Protocl，虚拟路由冗余协议）来实现高可用。

在这个协议里会将多台功能相同的路由器（每一个路由器就是一个服务器）组成一个小组，这个小组里会有1个master角色和N（N>=1）个backup角色。
master会通过组播的形式向各个backup发送VRRP协议的数据包，当backup收不到master发来的VRRP数据包时，就会认为master宕机了。此时就需要根据各个backup的优先级来决定谁成为新的mater。
Keepalived要有三个模块，分别是core、check和vrrp。其中core模块为keepalived的核心，负责主进程的启动、维护以及全局配置文件的加载和解析，check模块负责健康检查，vrrp模块是来实现VRRP协议的。


18.3/4/5 用keepalived配置高可用集群

准备两台机器，本文实验室用101和102，101作为master，102作为backup。

两台机器都要yum安装好keepalived。

[root@localhost: ~]# yum install keepalived

那实现高可用肯定是针对某一项服务来说的，我们这里使用nginx做高可用的实验。至于为什么使用nginx，之前讲过nginx是可以做负载均衡的，如果nginx挂掉，即使你的网页服务还能使用，用户也是无法访问的，这个是不能出现单点故障的，是做高可用的一个很典型的需求。

默认安装的keepalived的配置文件在/etc/keepalived/keepalived.conf，

我们使用的是下面的配置，清空默认文件 复制

[root@localhost: ~]# > /etc/keepalived/keepalived.conf
[root@localhost: ~]# vim /etc/keepalived/keepalived.conf

global_defs {  #全局的定义参数
   notification_email {
     aming@aminglinux.com   #出现问题是发邮件
   }
   notification_email_from root@aminglinux.com  #指定发邮件的地址
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
}

vrrp_script chk_nginx {
    script "/usr/local/sbin/check_ng.sh"   #检测一个服务是否正常，脚本附在下方。
    interval 3  #单位 秒
}

vrrp_instance VI_1 {
    state MASTER     #定义角色
    interface ens33
    virtual_router_id 51  #这个id定义路由器的id
    priority 100   #主角色和从角色的权重是不同的
    advert_int 1
    authentication {   #认证
        auth_type PASS  #密码模式
        auth_pass aminglinux>com
    }
    virtual_ipaddress {  #定义公有ip，主和从都要绑定相同的ip，域名解析都是解析到此ip
        192.168.127.100
    }

    track_script {
        chk_nginx
    }

}

主上的检查nginx是否正常的脚本。

#!/bin/bash
#时间变量，用于记录日志
d=`date --date today +%Y%m%d_%H:%M:%S`
#计算nginx进程数量
n=`ps -C nginx --no-heading|wc -l`
#如果进程为0，则启动nginx，并且再次检测nginx进程数量，
#如果还为0，说明nginx无法启动，此时需要关闭keepalived
if [ $n -eq "0" ]; then
        systemctl start nginx
        n2=`ps -C nginx --no-heading|wc -l`
        if [ $n2 -eq "0"  ]; then
                echo "$d nginx down,keepalived will stop" >> /var/log/check_ng.log
                systemctl stop keepalived  #防止脑裂现象
        fi
fi

给脚本755权限。

[root@localhost: ~]# vim /usr/local/sbin/check_ng.sh
[root@localhost: ~]# chmod 755 /usr/local/sbin/check_ng.sh

分别启动nginx和keepalived服务，如果nginx服务没有启动，按照脚本上的信息，keepalived启动后会被杀死。

[root@localhost: ~]# ps aux | grep keep
root      4861  0.0  0.0 112708   980 pts/2    R+   00:47   0:00 grep --color=auto keep
[root@localhost: ~]# ps aux | grep nginx
root      4863  0.0  0.0 112708   976 pts/2    R+   00:47   0:00 grep --color=auto nginx
[root@localhost: ~]# systemctl start nginx.service
[root@localhost: ~]# ps aux | grep nginx
root      4895  0.5  0.0 120792  2232 ?        Ss   00:47   0:00 nginx: master process /usr/sbin/nginx
nginx     4896  0.5  0.0 123260  3548 ?        S    00:47   0:00 nginx: worker process
nginx     4897  0.0  0.0 123260  3548 ?        S    00:47   0:00 nginx: worker process
nginx     4898  0.0  0.0 123260  3520 ?        S    00:47   0:00 nginx: worker process
nginx     4899  0.0  0.0 123260  3536 ?        S    00:47   0:00 nginx: worker process
root      4901  0.0  0.0 112708   976 pts/2    S+   00:47   0:00 grep --color=auto nginx
[root@localhost: ~]# systemctl start keepalived.service
[root@localhost: ~]# ps aux | grep keep
root      4909  0.0  0.0 118652  1400 ?        Ss   00:48   0:00 /usr/sbin/keepalived -D
root      4913  0.0  0.0 112708   980 pts/2    R+   00:48   0:00 grep --color=auto keep

停掉nginx服务，然后在查看进程

[root@localhost: ~]# ps aux | grep nginx
root      5347  0.0  0.0 120792  2236 ?        Ss   01:07   0:00 nginx: master process /usr/sbin/nginx
nginx     5348  0.0  0.0 123260  3552 ?        S    01:07   0:00 nginx: worker process
nginx     5349  0.0  0.0 123260  3552 ?        S    01:07   0:00 nginx: worker process
nginx     5350  0.0  0.0 123260  3784 ?        S    01:07   0:00 nginx: worker process
nginx     5351  0.0  0.0 123260  3552 ?        S    01:07   0:00 nginx: worker process
root      5983  0.0  0.0 112712   972 pts/2    S+   01:22   0:00 grep --color=auto nginx
[root@localhost: ~]# systemctl stop nginx
[root@localhost: ~]# ps aux | grep nginx
root      6026  0.0  0.0 120792  2236 ?        Ss   01:22   0:00 nginx: master process /usr/sbin/nginx
nginx     6027  0.0  0.0 123260  3552 ?        S    01:22   0:00 nginx: worker process
nginx     6028  0.0  0.0 123260  3552 ?        S    01:22   0:00 nginx: worker process
nginx     6029  0.0  0.0 123260  3552 ?        S    01:22   0:00 nginx: worker process
nginx     6030  0.0  0.0 123260  3552 ?        S    01:22   0:00 nginx: worker process
root      6035  0.0  0.0 112708   976 pts/2    S+   01:22   0:00 grep --color=auto nginx

可以看到服务启动时间，我们的确关闭了服务，它又自己重新启动了。

之前一直不成功，查看日志发现是网卡配置错误，我101本机上的网卡是ens37，更改后没有问题了。

[root@localhost: ~]# vim /var/log/messages


Sep  6 01:19:17 localhost Keepalived[5812]: Keepalived_vrrp exited with permanent error CONFIG. Terminating
Sep  6 01:19:17 localhost Keepalived[5812]: Stopping

查看vip是否已经成功配置

[root@localhost: ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
    link/ether 00:0c:29:18:28:6e brd ff:ff:ff:ff:ff:ff
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:18:28:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.127.101/24 brd 192.168.127.255 scope global ens37
       valid_lft forever preferred_lft forever
    inet 192.168.127.100/32 scope global ens37
       valid_lft forever preferred_lft forever

之后就是从上配置keepalived

global_defs {
   notification_email {
     aming@aminglinux.com
   }
   notification_email_from root@aminglinux.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
}

vrrp_script chk_nginx {
    script "/usr/local/sbin/check_ng.sh"
    interval 3
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass aminglinux>com
    }
    virtual_ipaddress {
        192.168.127.100
    }

    track_script {
        chk_nginx
    }

}

区别仅仅在于state、priority和vip。

监控检测脚本如下

#时间变量，用于记录日志
d=`date --date today +%Y%m%d_%H:%M:%S`
#计算nginx进程数量
n=`ps -C nginx --no-heading|wc -l`
#如果进程为0，则启动nginx，并且再次检测nginx进程数量，
#如果还为0，说明nginx无法启动，此时需要关闭keepalived
if [ $n -eq "0" ]; then
        systemctl start nginx
        n2=`ps -C nginx --no-heading|wc -l`
        if [ $n2 -eq "0"  ]; then
                echo "$d nginx down,keepalived will stop" >> /var/log/check_ng.log
                systemctl stop keepalived
        fi
fi

启动nginx的一行命令取决于你是如何安装的nginx。然后启动keepalived和nginx。

我们来测试一下。

由于我们两个nginx都是yum安装的，修改/usr/share/nginx/html/index.html用以区分master和backup。

测试1：关闭master上的nginx服务

nginx并不能关闭，因为keepalived脚本中检测到nginx没有之后会尝试重启。
测试2：在master上增加iptabls规则

[root@localhost: ~]# iptables -I OUTPUT -p vrrp -j DROP

在主上封掉vrrp协议，并不能达到切换资源的目的。
测试3：关闭master上的keepalived服务

[root@localhost: ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
    link/ether 00:0c:29:18:28:6e brd ff:ff:ff:ff:ff:ff
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:18:28:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.127.101/24 brd 192.168.127.255 scope global ens37
       valid_lft forever preferred_lft forever
    inet 192.168.127.100/32 scope global ens37
       valid_lft forever preferred_lft forever
[root@localhost: ~]# systemctl stop keepalived.service
[root@localhost: ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
    link/ether 00:0c:29:18:28:6e brd ff:ff:ff:ff:ff:ff
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:18:28:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.127.101/24 brd 192.168.127.255 scope global ens37
       valid_lft forever preferred_lft forever

此时master上的vip解绑。

[root@localhost: ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
    link/ether 00:0c:29:af:9d:b8 brd ff:ff:ff:ff:ff:ff
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:af:9d:c2 brd ff:ff:ff:ff:ff:ff
    inet 192.168.127.102/24 brd 192.168.127.255 scope global ens37
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:feaf:9dc2/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost: ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
    link/ether 00:0c:29:af:9d:b8 brd ff:ff:ff:ff:ff:ff
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:af:9d:c2 brd ff:ff:ff:ff:ff:ff
    inet 192.168.127.102/24 brd 192.168.127.255 scope global ens37
       valid_lft forever preferred_lft forever
    inet 192.168.127.100/32 scope global ens37
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:feaf:9dc2/64 scope link
       valid_lft forever preferred_lft forever

backup端增加vip，日志如下

Sep  6 10:00:01 localhost systemd: Started Session 69 of user root.
Sep  6 10:00:01 localhost systemd: Starting Session 69 of user root.
Sep  6 10:00:47 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) Transition to MASTER STATE
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) Entering MASTER STATE
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) setting protocol VIPs.
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on ens37 for 192.168.127.100
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:48 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:53 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:53 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on ens37 for 192.168.127.100
Sep  6 10:00:53 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:53 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:53 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:00:53 localhost Keepalived_vrrp[6794]: Sending gratuitous ARP on ens37 for 192.168.127.100
Sep  6 10:01:01 localhost systemd: Started Session 70 of user root.
Sep  6 10:01:01 localhost systemd: Starting Session 70 of user root.

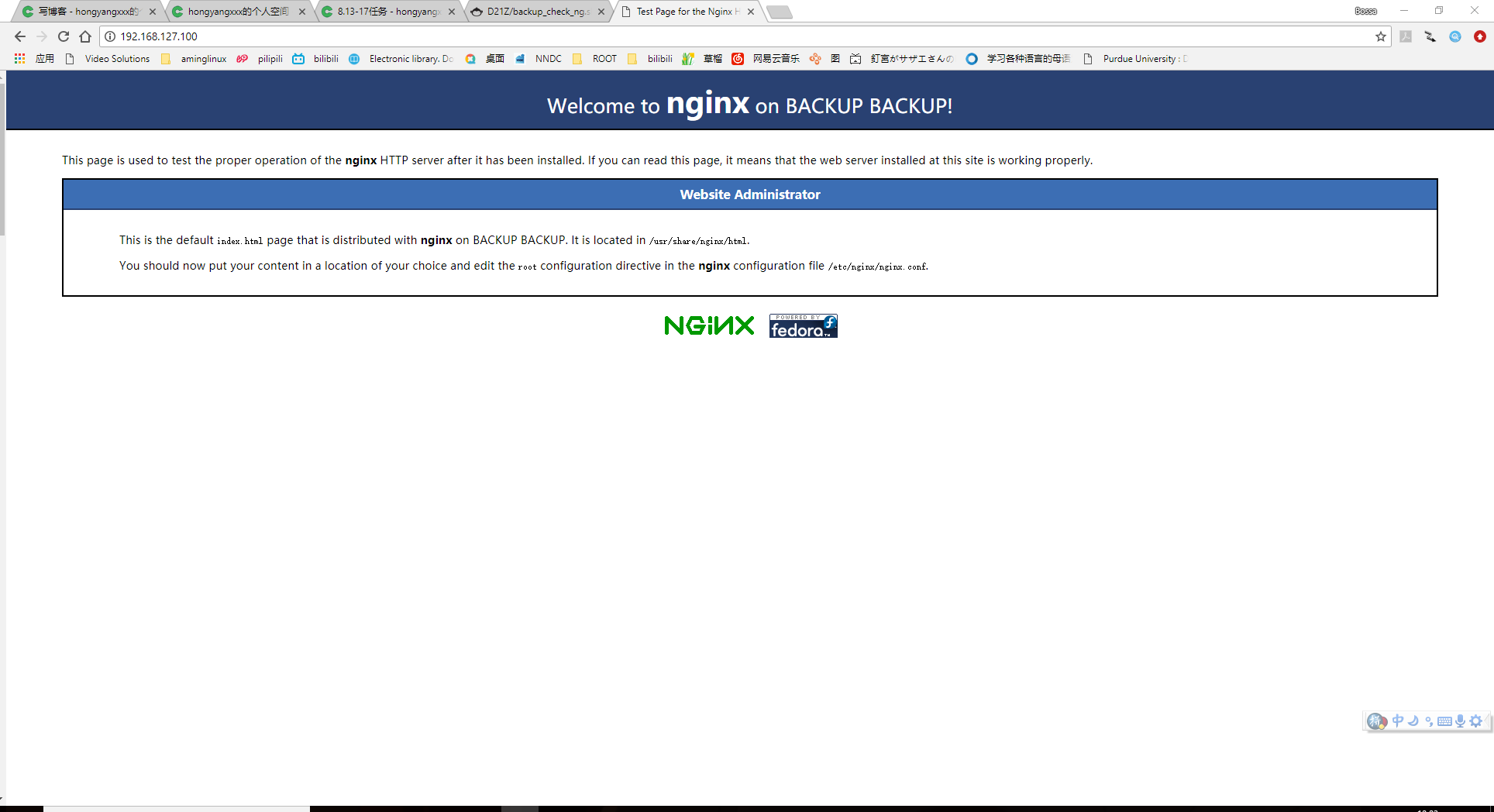

可以看到已经进入master状态


测试4：启动master上的keepalived服务

backup机器立马恢复backup状态。

Sep  6 10:05:50 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) Received advert with higher priority 100, ours 90
Sep  6 10:05:50 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) Entering BACKUP STATE
Sep  6 10:05:50 localhost Keepalived_vrrp[6794]: VRRP_Instance(VI_1) removing protocol VIPs.



扩展



heartbeat和keepalived比较

DRBD工作原理和配置

mysql+keepalived

标签
CentOS
keepalived
drbd
heartbeat
virtual router
易学教程内所有资源均来自网络或用户发布的内容，如有违反法律规定的内容欢迎反馈！
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
