静态路由实验

1. 全网所有网段全部基于192.168.1.0/24划分所得
2. R1-R4每台设备均有两个环回
3. 全网可达
4. 尽量减少路由条目，且防止环路
5. R5的环回5.5.5.5/24不能出现在其他设备的路由表中

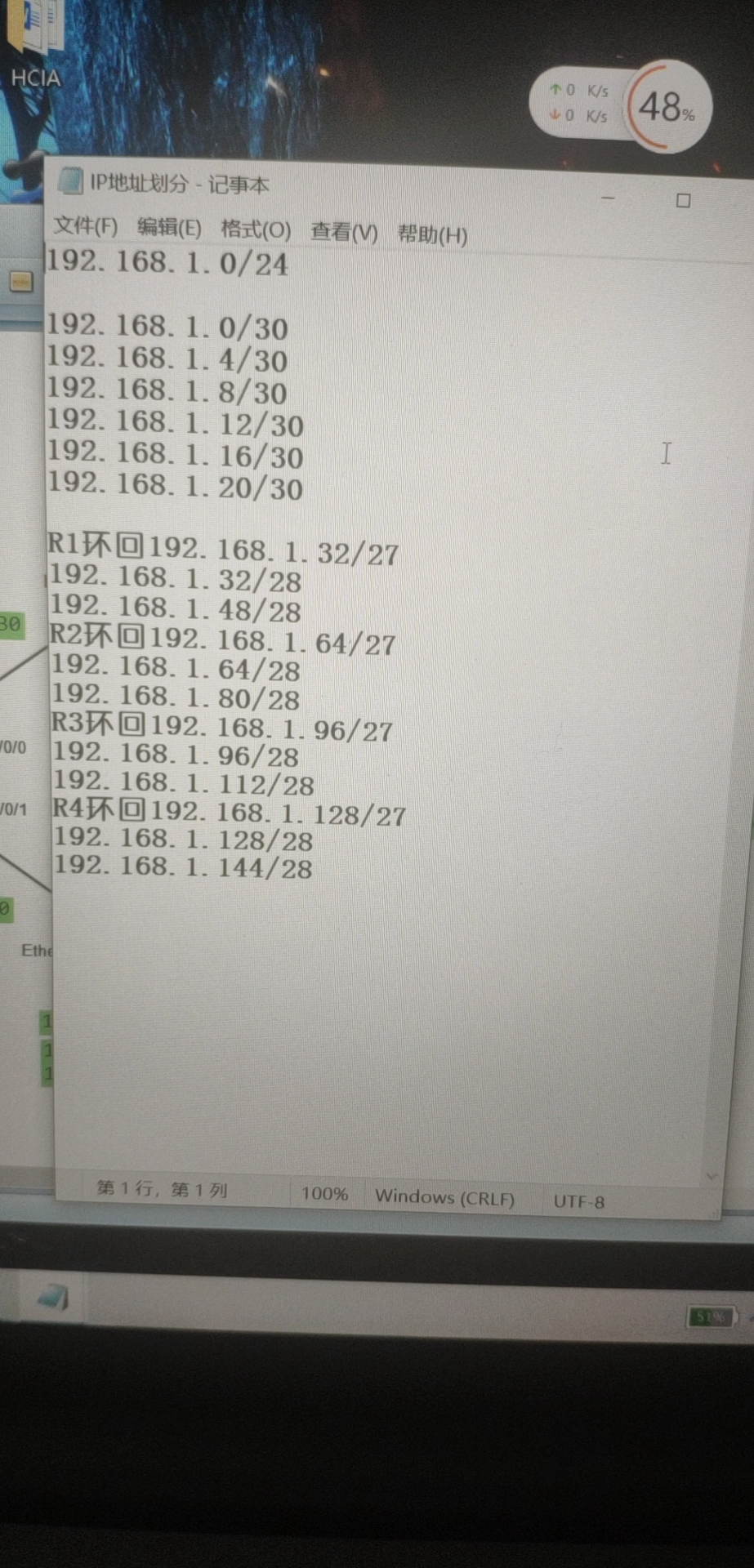

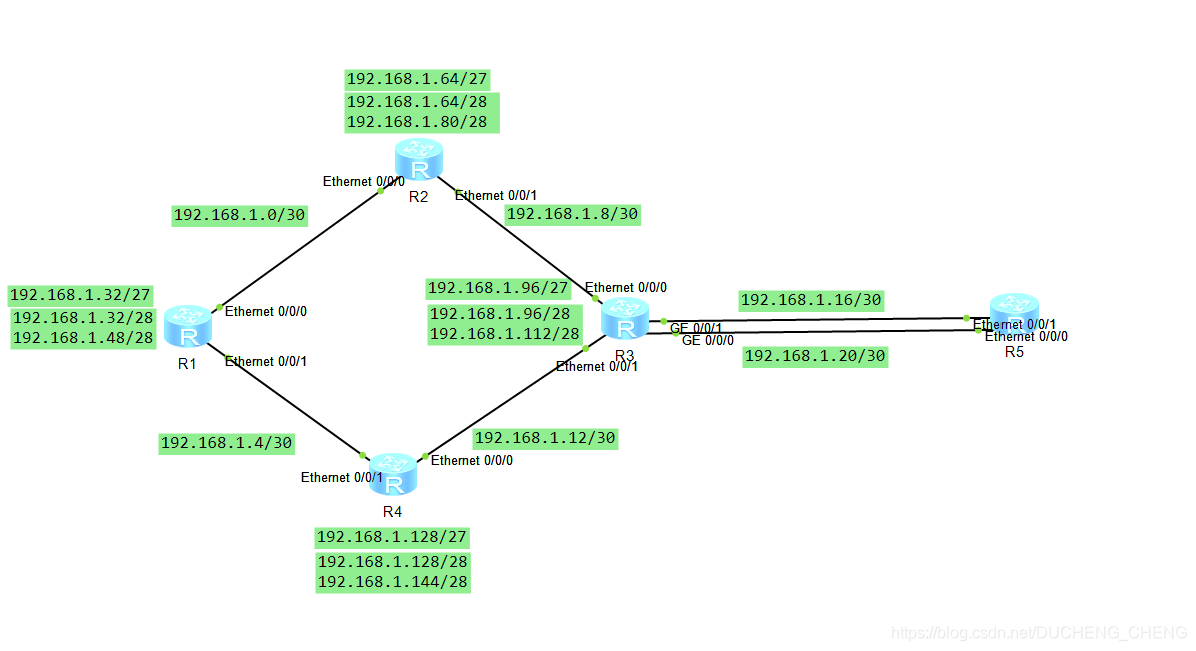

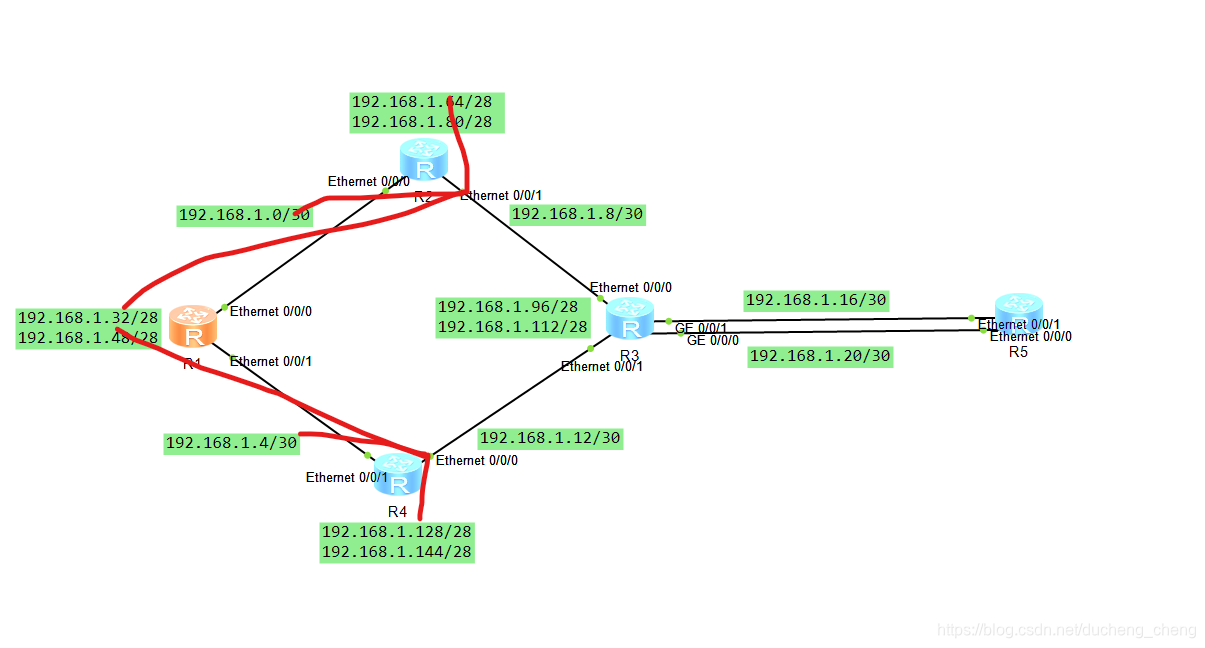

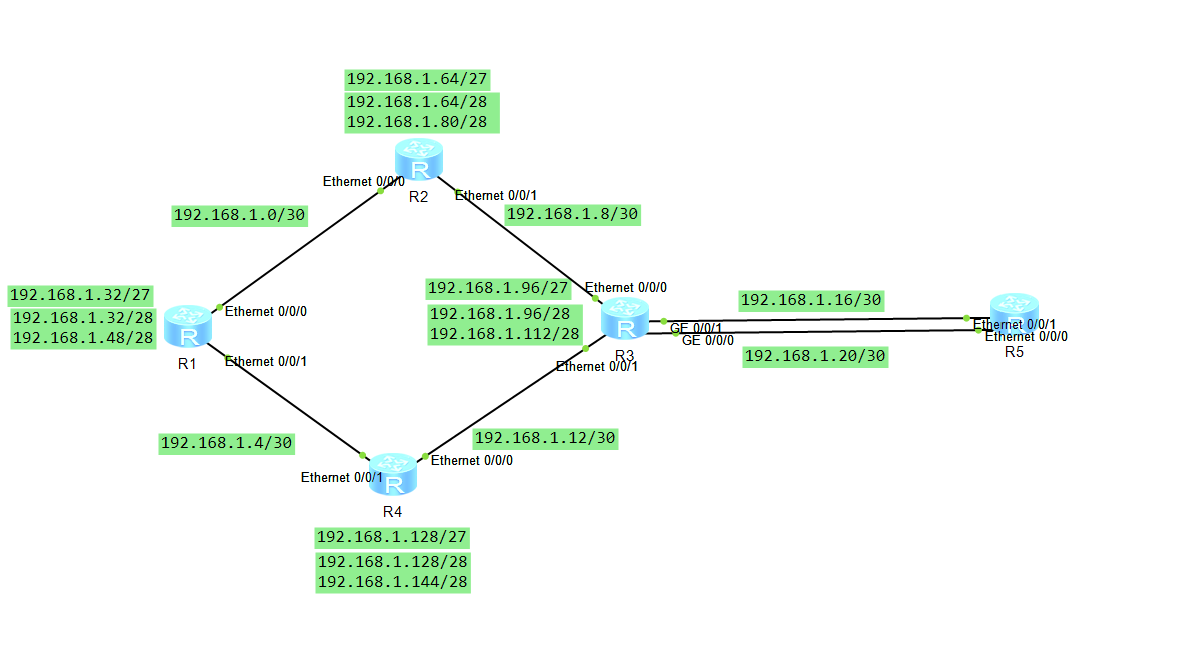

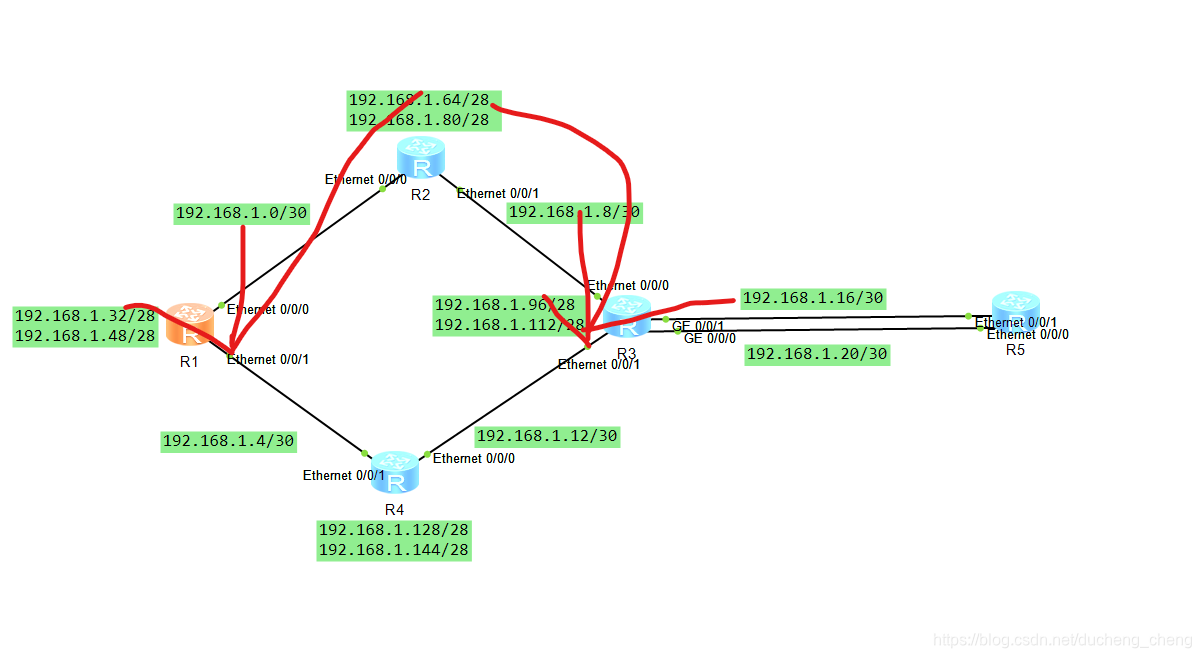

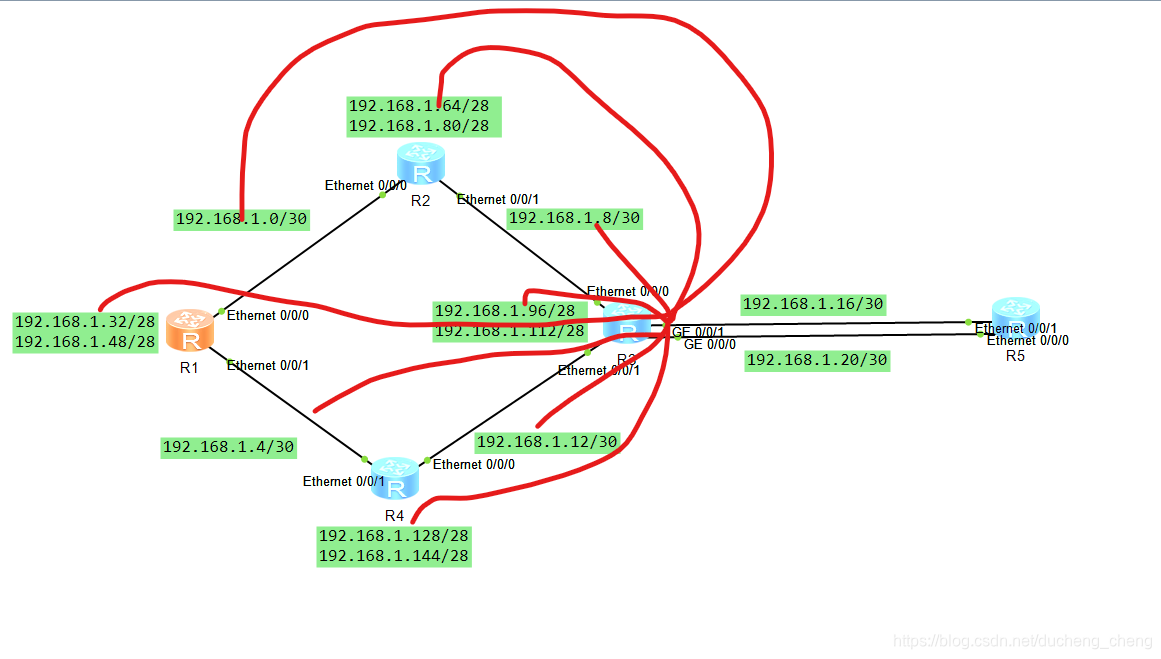

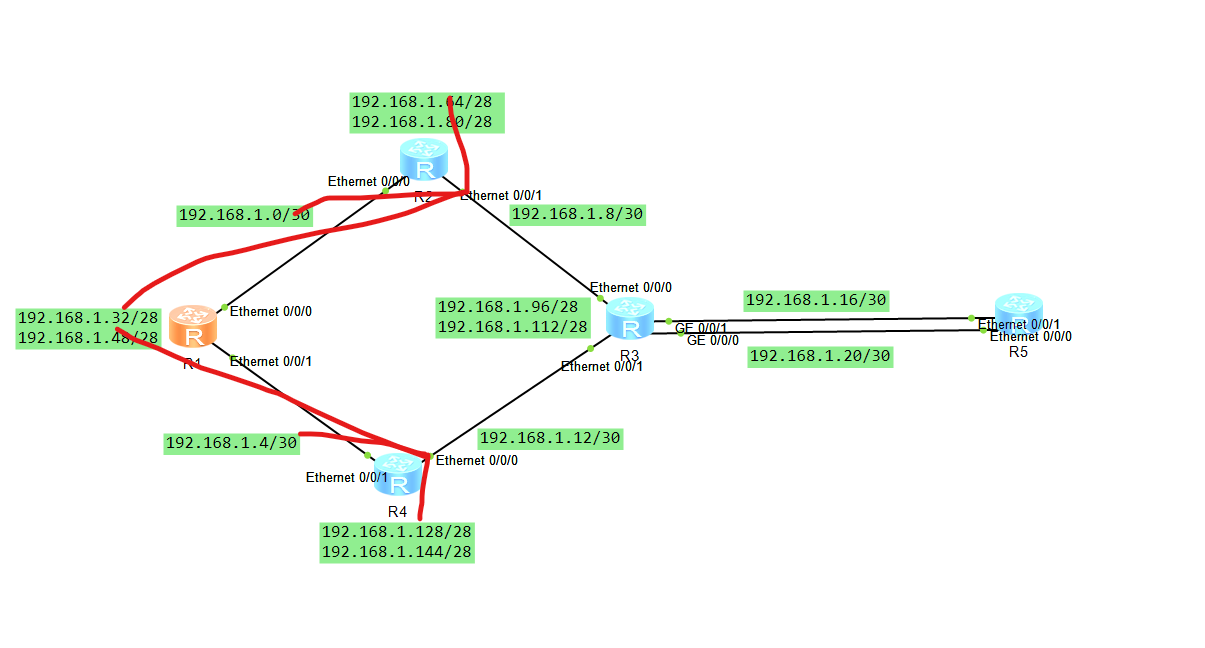

一、ip地址的划分

二、配置端口IP与环回IP地址

R1： Ethernet0/0/0 ip address 192.168.1.1 255.255.255.252
Ethernet0/0/1 ip address 192.168.1.5 255.255.255.252

interface LoopBack1 ip address 192.168.1.33 255.255.255.240
interface LoopBack2 ip address 192.168.1.49 255.255.255.240

R2： Ethernet0/0/0 ip address 192.168.1.2 255.255.255.252#
Ethernet0/0/1 ip address 192.168.1.9 255.255.255.252

interface LoopBack1 ip address 192.168.1.65 255.255.255.240
interface LoopBack2 ip address 192.168.1.81 255.255.255.240

R3： Ethernet0/0/0 ip ddress 192.168.1.10 255.255.255.252
Ethernet0/0/1 ip address 192.168.1.14 255.255.255.252
GigabitEthernet0/0/0 ip address 192.168.1.21 255.255.255.252
GigabitEthernet0/0/1 ip address 192.168.1.17 255.255.255.252

interface LoopBack1 ip address 192.168.1.97 255.255.255.240
interface LoopBack2 ip address 192.168.1.113 255.255.255.240

R4： Ethernet0/0/0 ip address 192.168.1.13 255.255.255.252
Ethernet0/0/1 ip address 192.168.1.6 255.255.255.252

interface LoopBack1 ip address 192.168.1.129 255.255.255.240
interface LoopBack2 ip address 192.168.1.145 255.255.255.240

R5： Ethernet0/0/0 ip address 192.168.1.22 255.255.255.252
Ethernet0/0/1 ip address 192.168.1.18 255.255.255.252

interface LoopBack1 ip address 5.5.5.5 255.255.255.0

三、配置静态路由，添加缺省路由

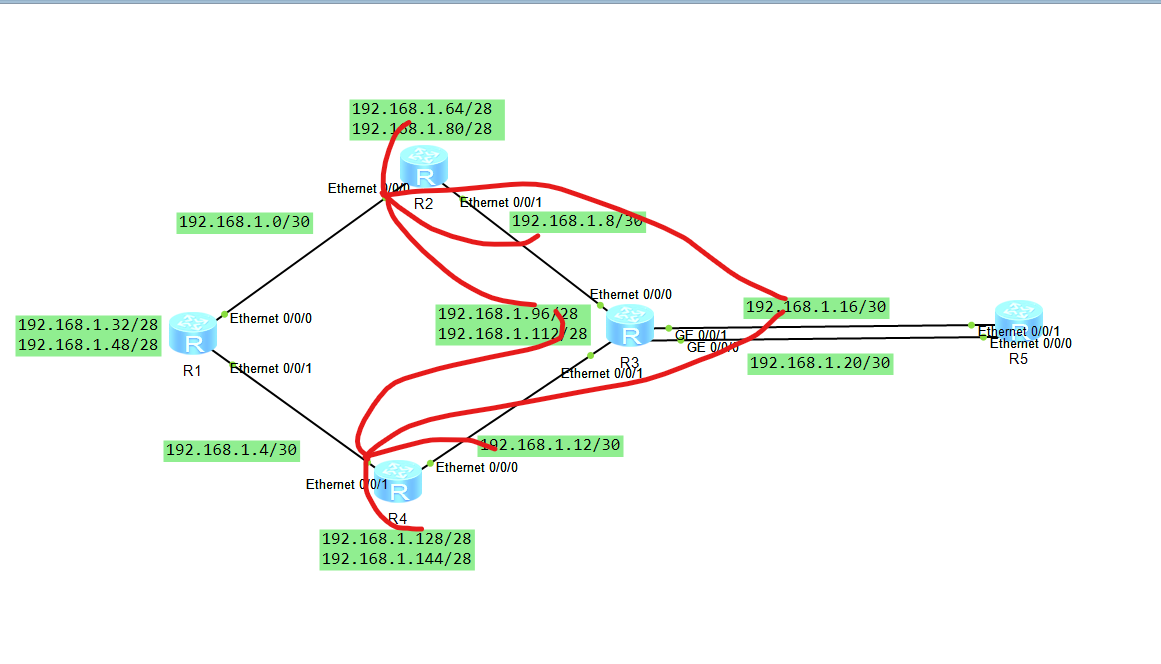

R1：
ip route-static 0.0.0.0 0.0.0.0 192.168.1.2
ip route-static 0.0.0.0 0.0.0.0 192.168.1.6
ip route-static 192.168.1.8 255.255.255.252 192.168.1.2
ip route-static 192.168.1.12 255.255.255.252 192.168.1.6
ip route-static 192.168.1.16 255.255.255.252 192.168.1.2
ip route-static 192.168.1.16 255.255.255.252 192.168.1.6
ip route-static 192.168.1.64 255.255.255.224 192.168.1.2
ip route-static 192.168.1.96 255.255.255.224 192.168.1.2
ip route-static 192.168.1.96 255.255.255.224 192.168.1.6
ip route-static 192.168.1.128 255.255.255.224 192.168.1.6

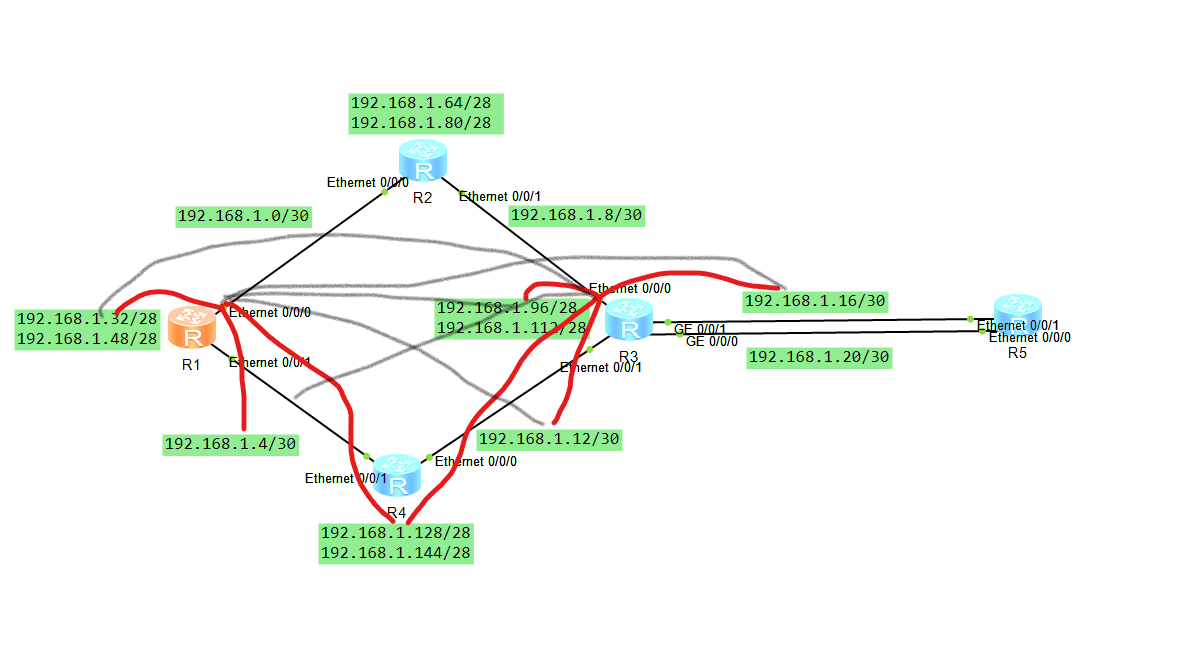

R2：

ip route-static 0.0.0.0 0.0.0.0 192.168.1.10
ip route-static 192.168.1.4 255.255.255.252 192.168.1.1
ip route-static 192.168.1.12 255.255.255.252 192.168.1.10
ip route-static 192.168.1.16 255.255.255.252 192.168.1.10
ip route-static 192.168.1.32 255.255.255.224 192.168.1.1
ip route-static 192.168.1.96 255.255.255.224 192.168.1.10
ip route-static 192.168.1.128 255.255.255.224 192.168.1.1
ip route-static 192.168.1.128 255.255.255.224 192.168.1.10

R3：

ip route-static 0.0.0.0 0.0.0.0 192.168.1.18
ip route-static 192.168.1.0 255.255.255.252 192.168.1.9
ip route-static 192.168.1.4 255.255.255.252 192.168.1.13
ip route-static 192.168.1.32 255.255.255.224 192.168.1.9
ip route-static 192.168.1.32 255.255.255.224 192.168.1.13
ip route-static 192.168.1.64 255.255.255.224 192.168.1.9
ip route-static 192.168.1.128 255.255.255.224 192.168.1.13

R4：

ip route-static 0.0.0.0 0.0.0.0 192.168.1.14
ip route-static 192.168.1.0 255.255.255.252 192.168.1.5
ip route-static 192.168.1.8 255.255.255.252 192.168.1.14
ip route-static 192.168.1.16 255.255.255.252 192.168.1.14
ip route-static 192.168.1.32 255.255.255.224 192.168.1.5
ip route-static 192.168.1.64 255.255.255.224 192.168.1.5
ip route-static 192.168.1.64 255.255.255.224 192.168.1.14
ip route-static 192.168.1.96 255.255.255.224 192.168.1.14

R5：
ip route-static 192.168.1.0 255.255.255.252 192.168.1.17
ip route-static 192.168.1.4 255.255.255.252 192.168.1.17
ip route-static 192.168.1.8 255.255.255.252 192.168.1.17
ip route-static 192.168.1.12 255.255.255.252 192.168.1.17
ip route-static 192.168.1.32 255.255.255.224 192.168.1.17
ip route-static 192.168.1.64 255.255.255.224 192.168.1.17
ip route-static 192.168.1.96 255.255.255.224 192.168.1.17
ip route-static 192.168.1.128 255.255.255.224 192.168.1.17

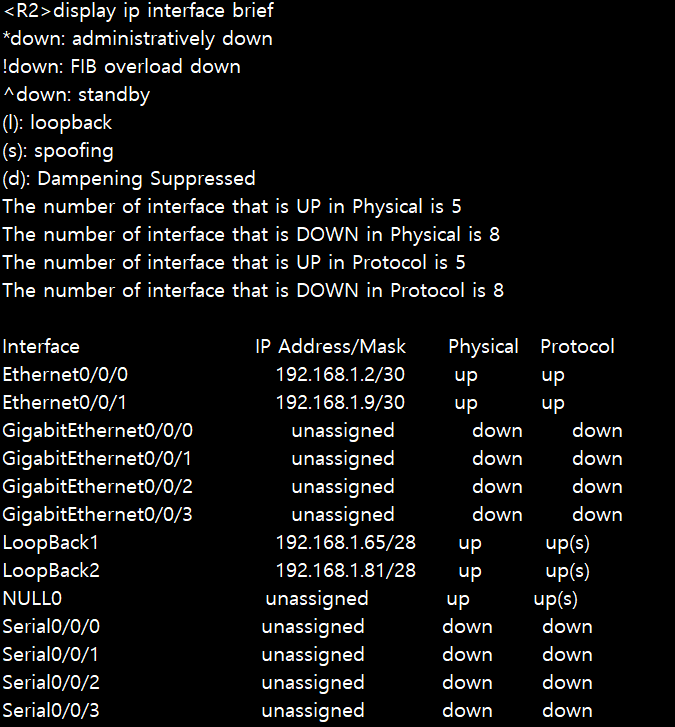

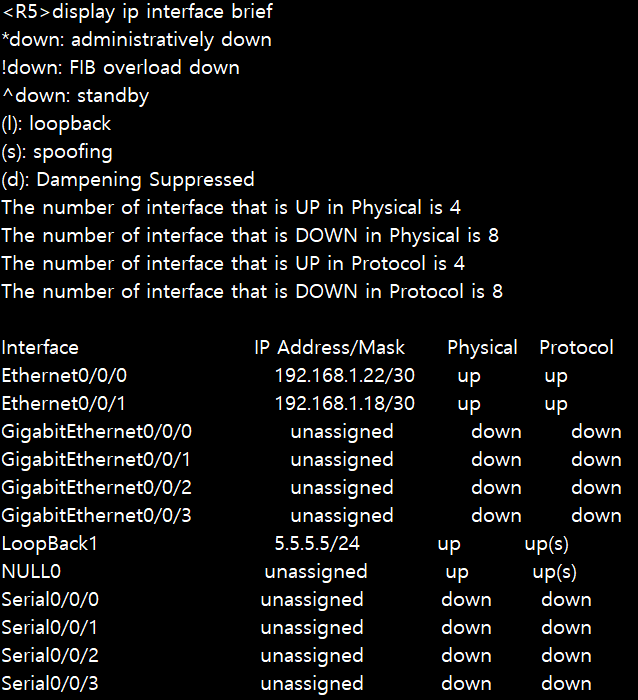

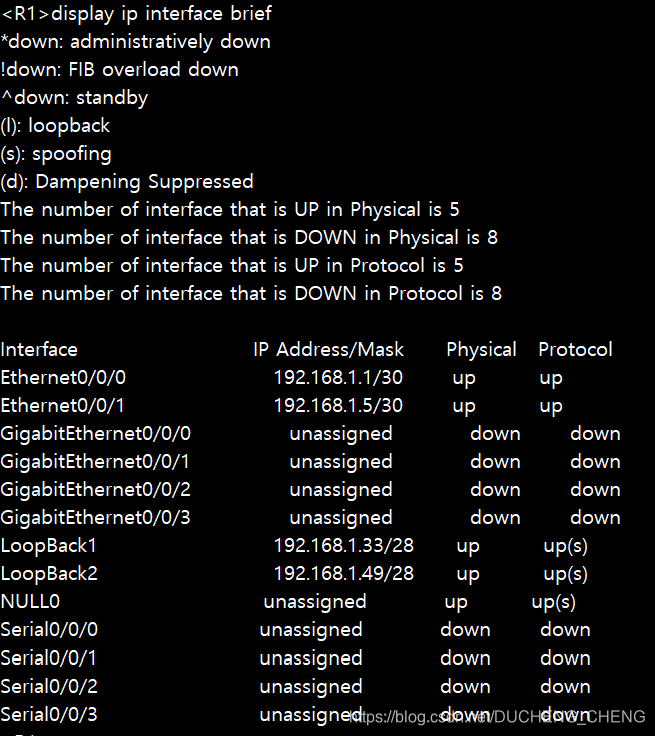

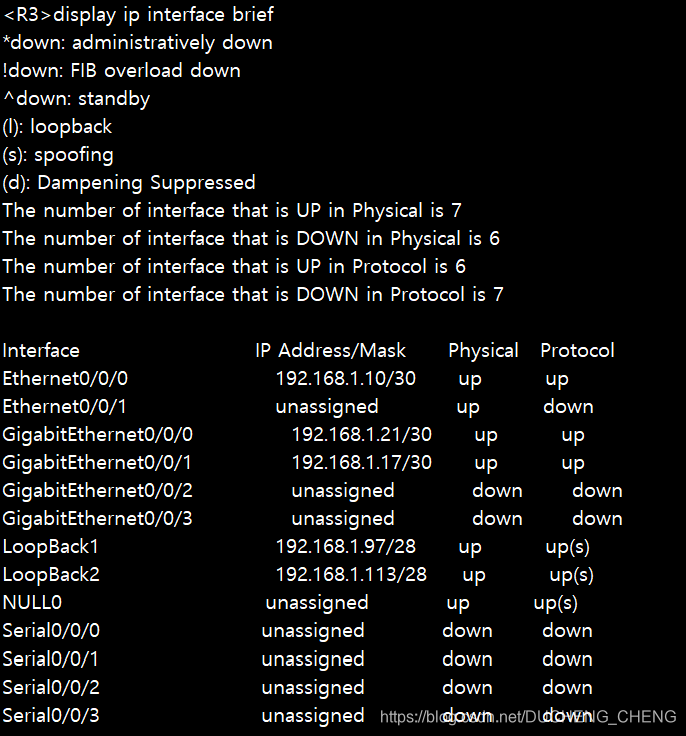

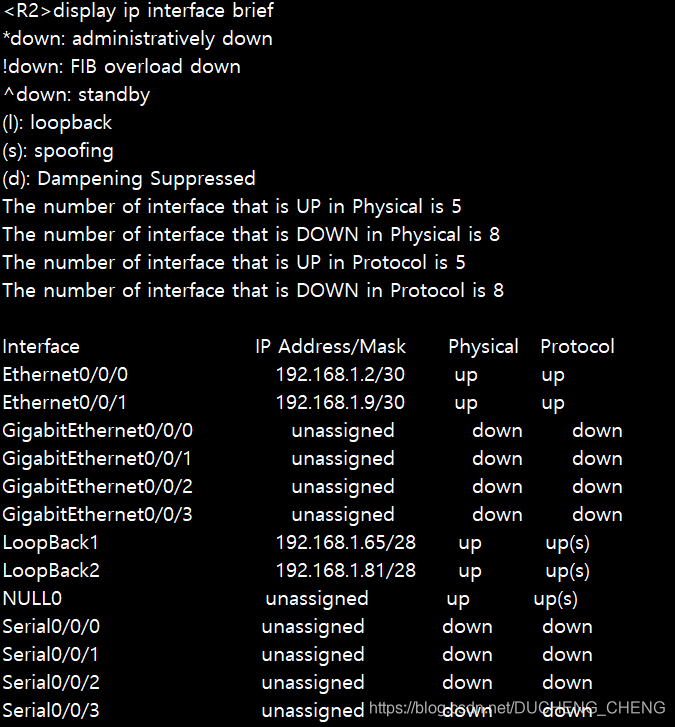

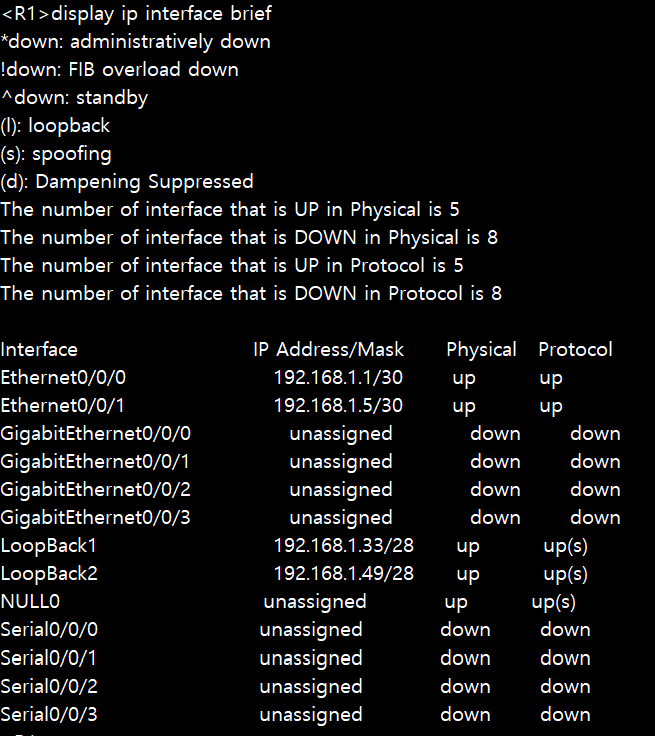

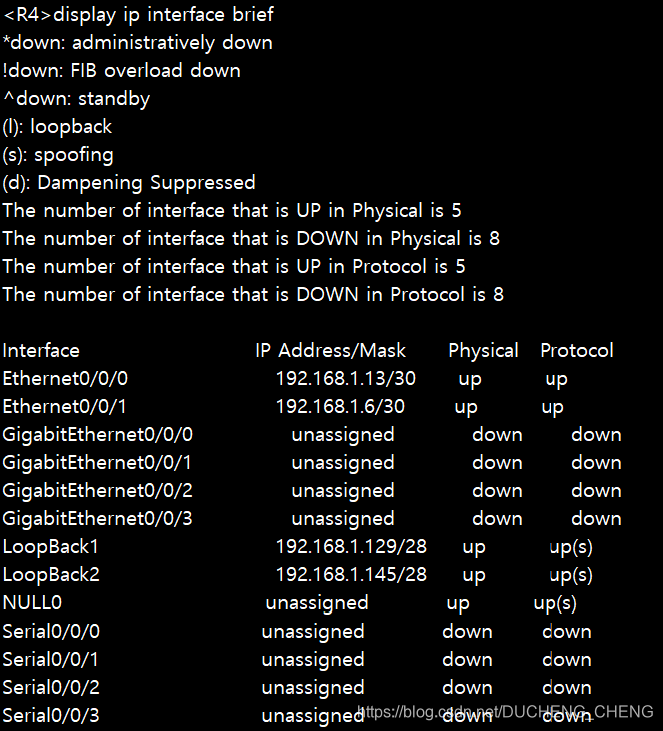

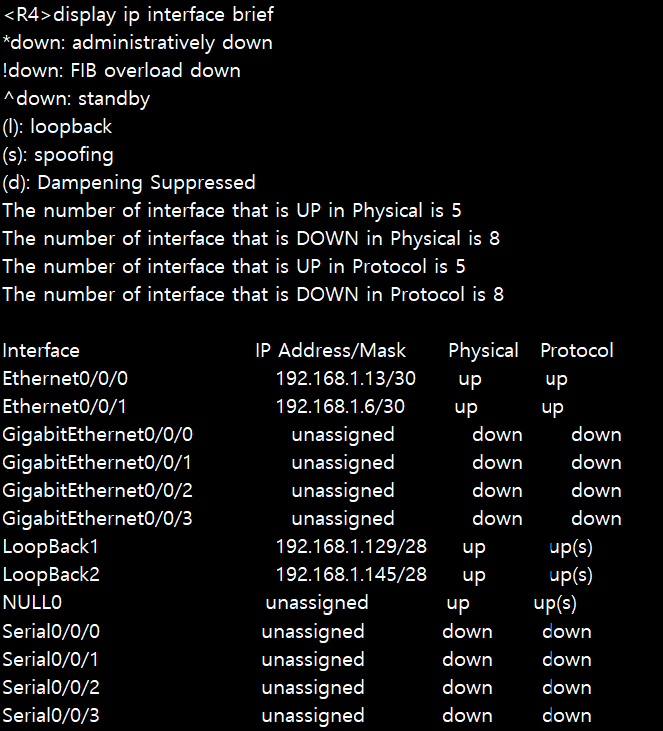

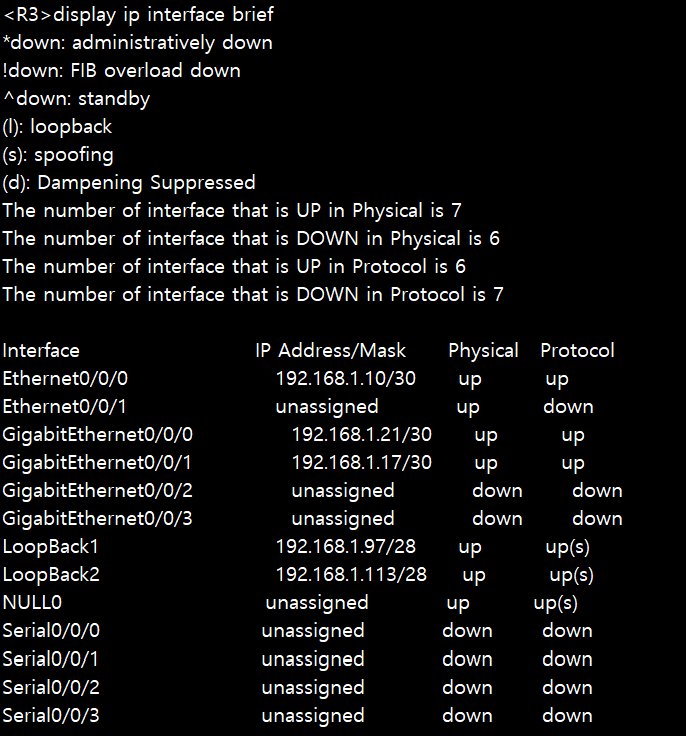

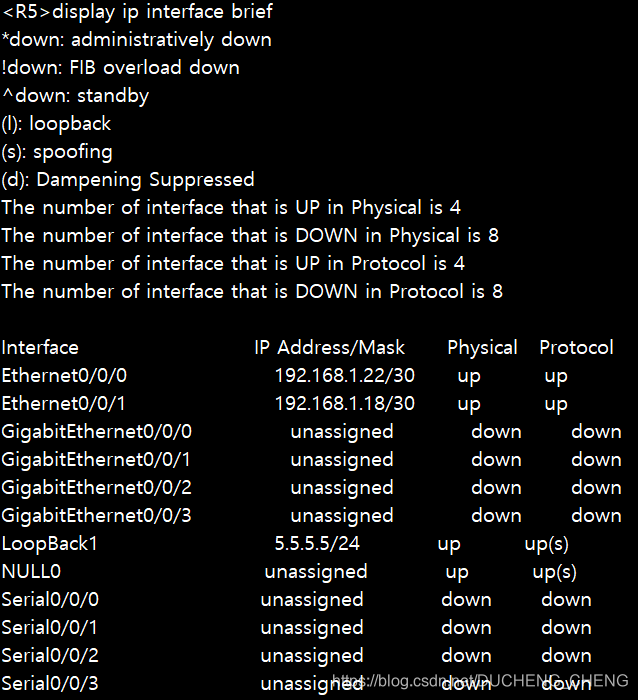

查看已配置的端口IP

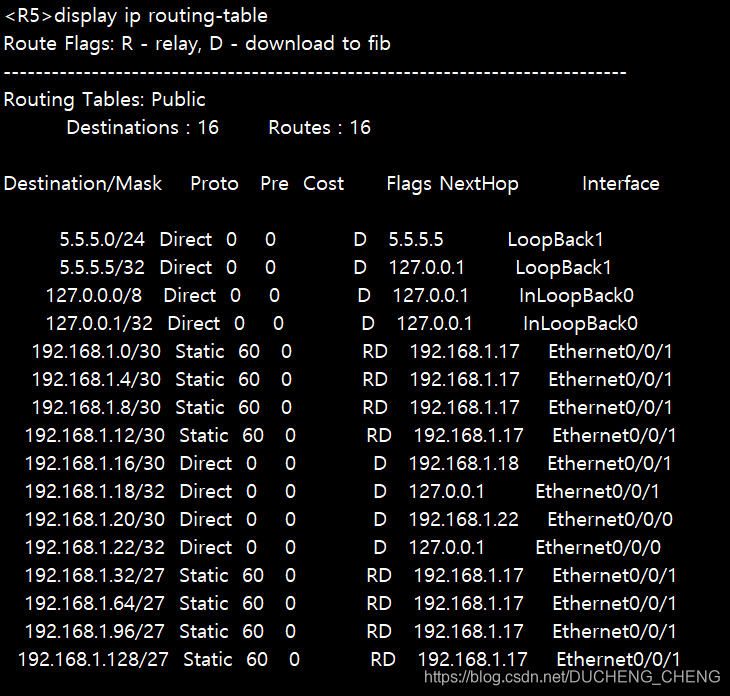

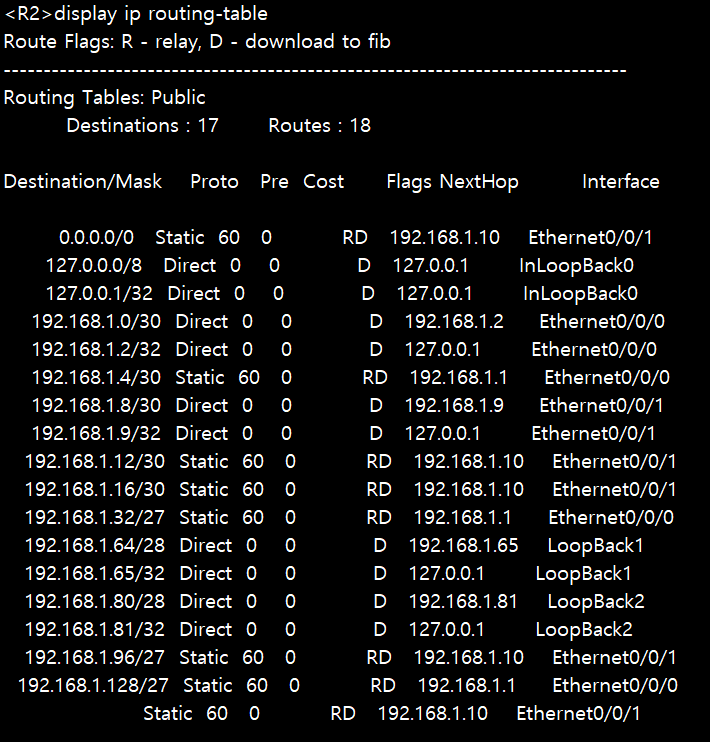

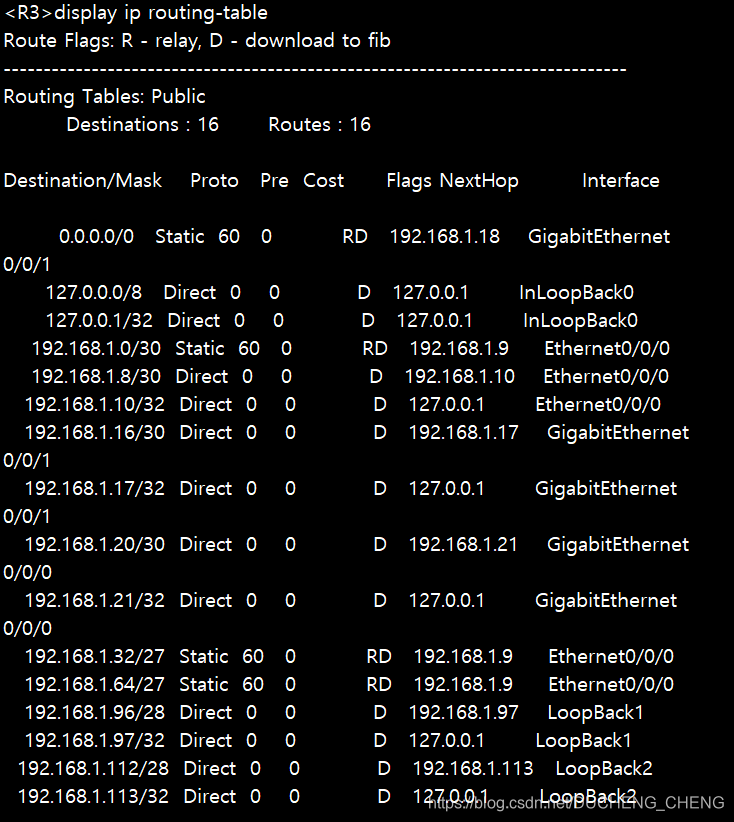

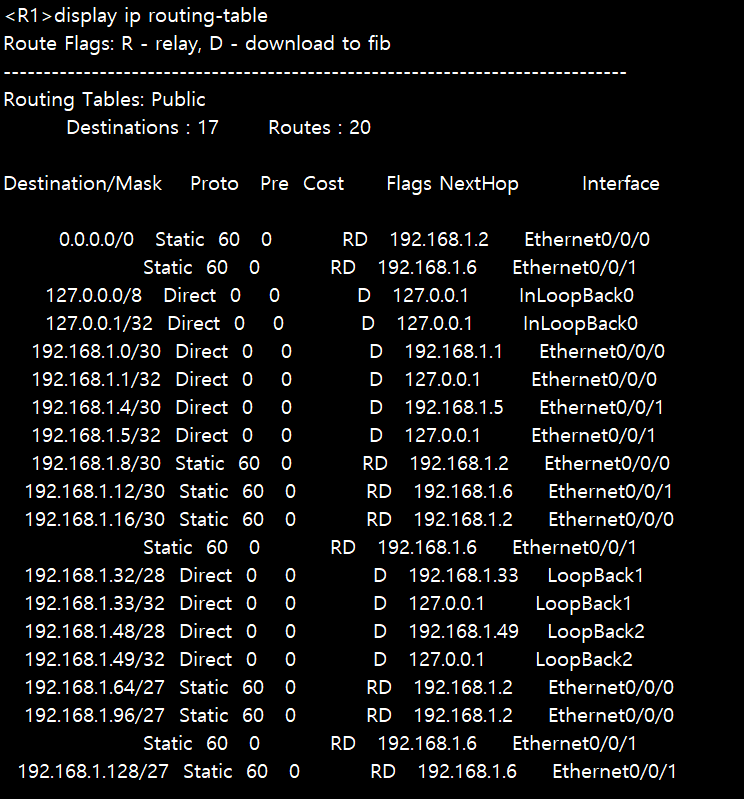

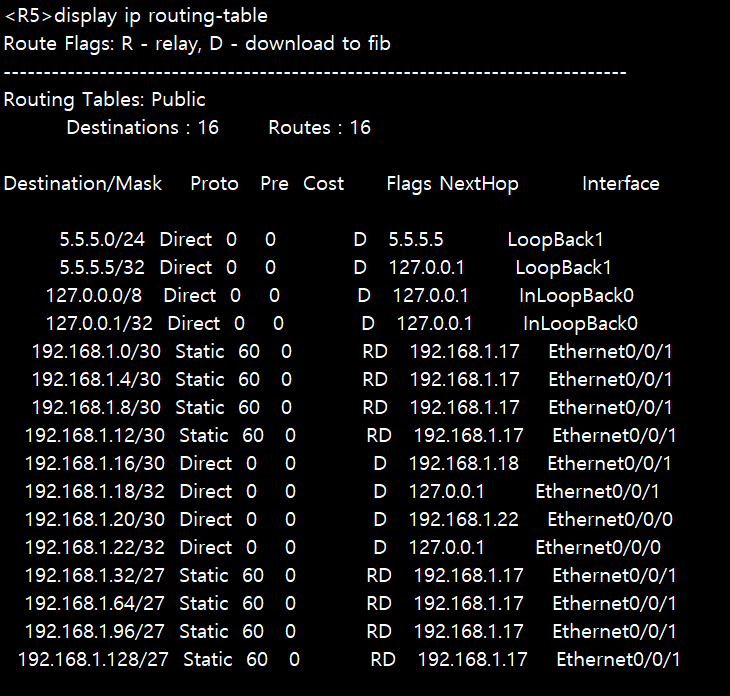

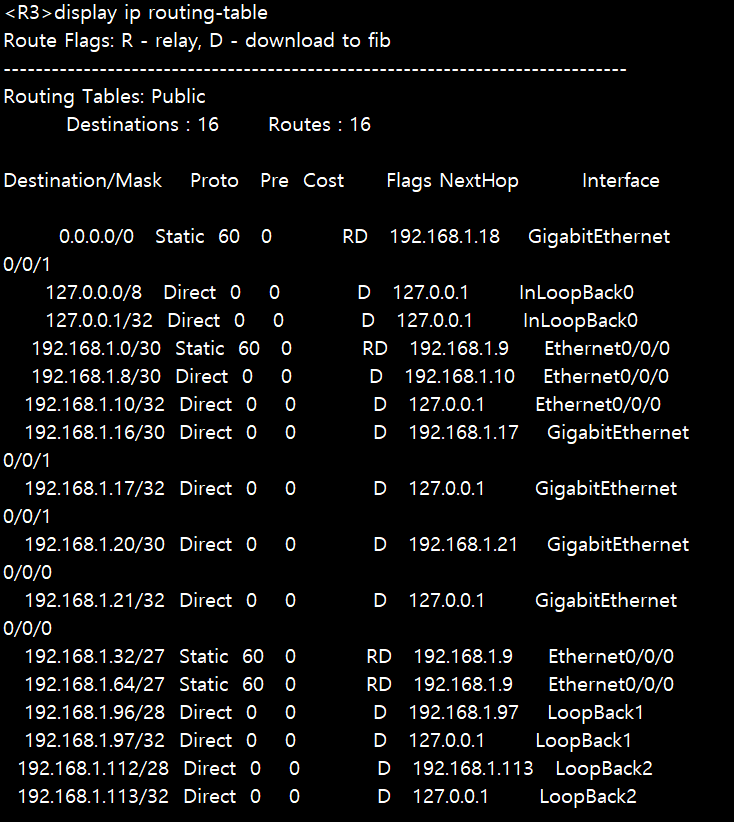

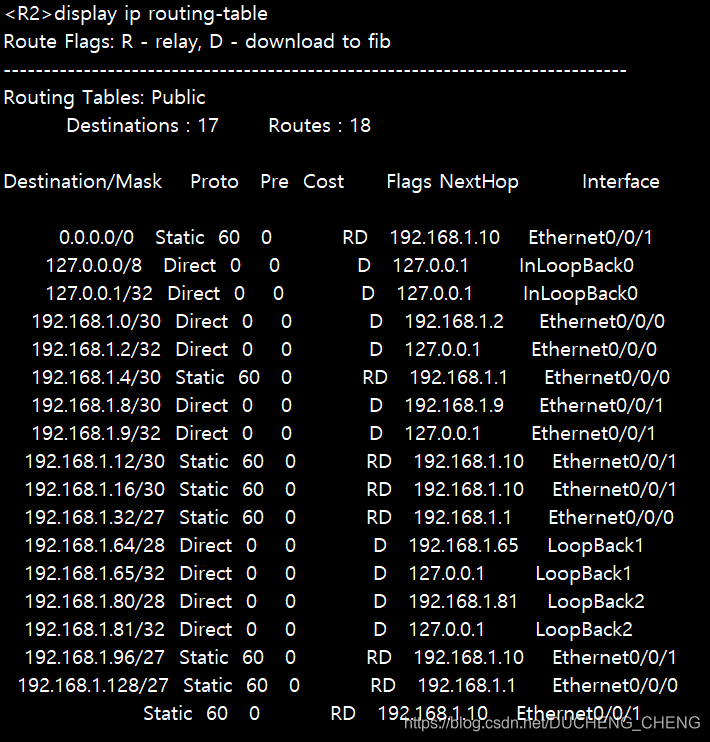

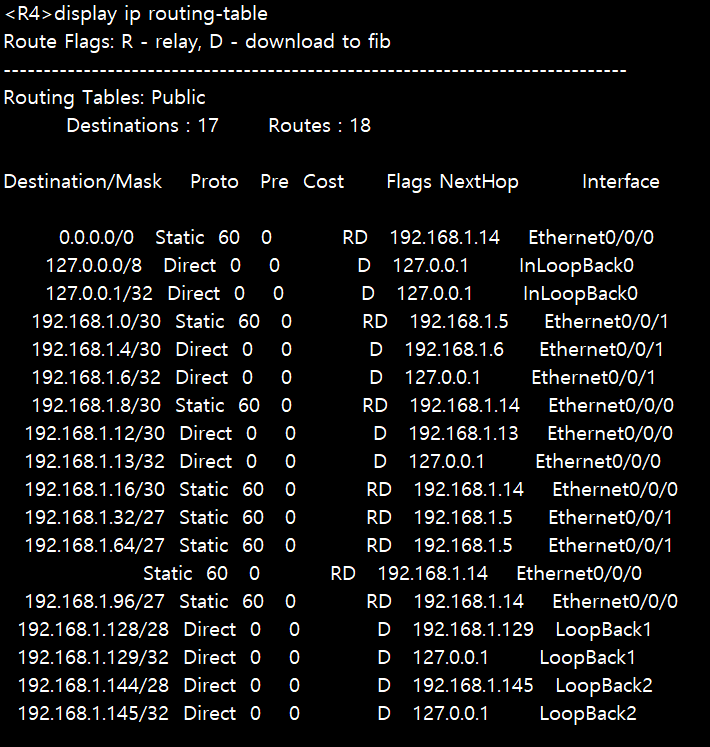

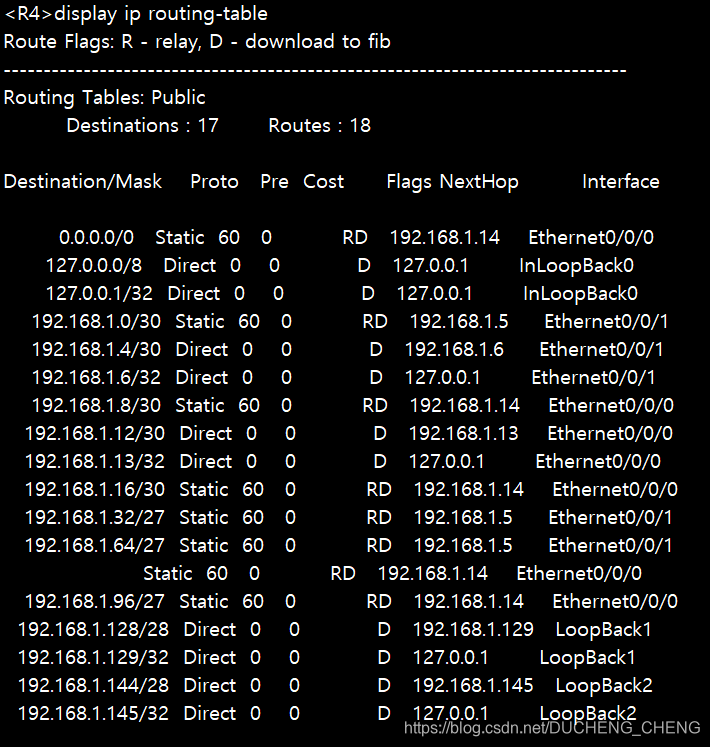

查看已配置的静态路由

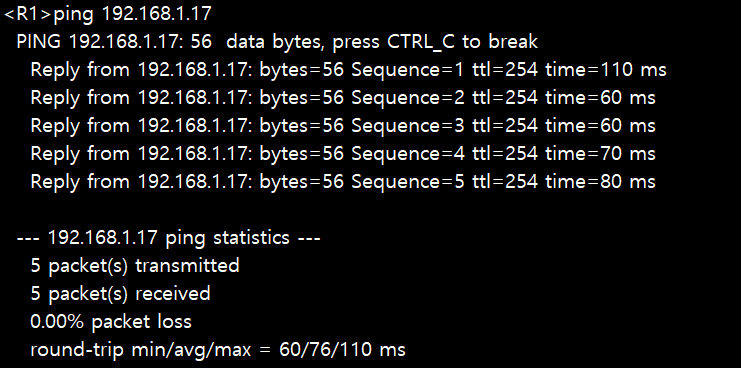

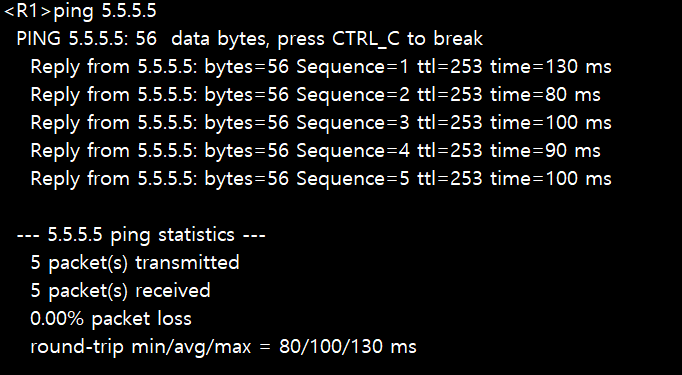

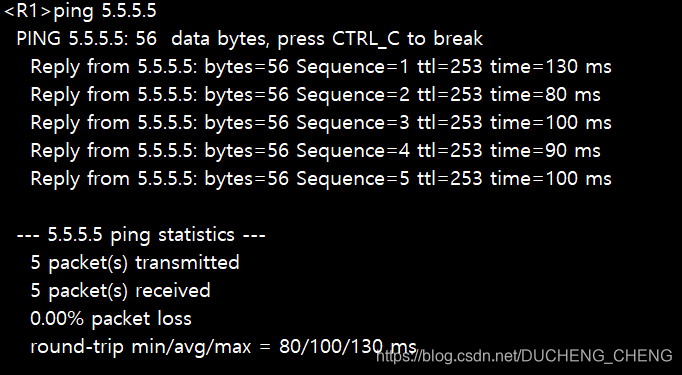

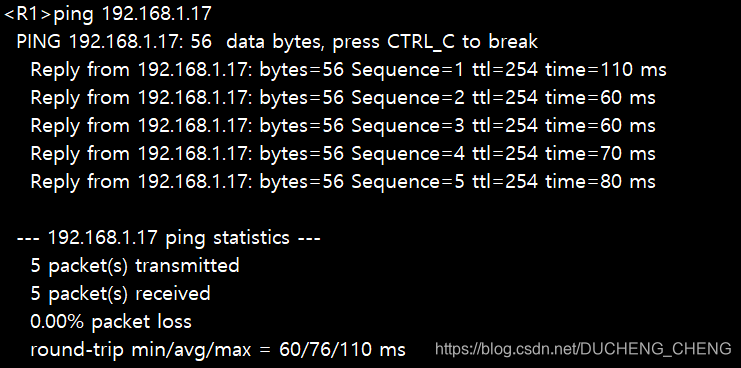

测试直连

目前全网可达

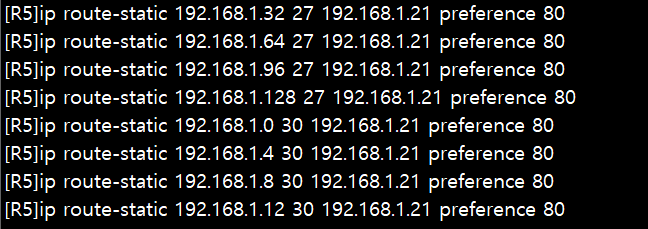

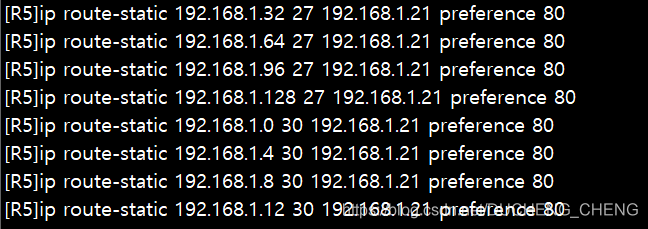

三，备份

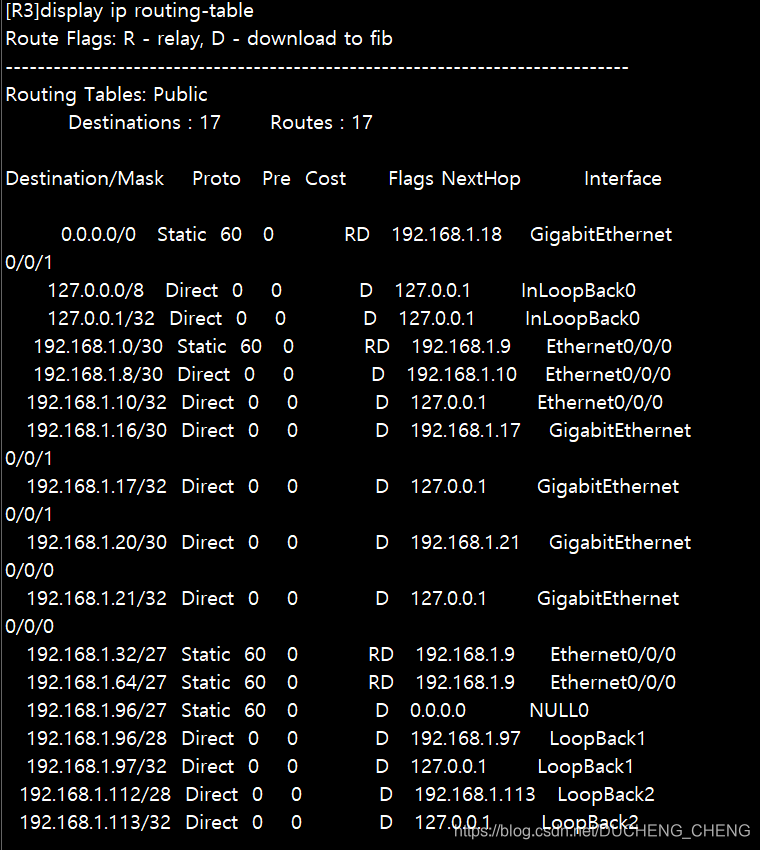

空接口防环路由

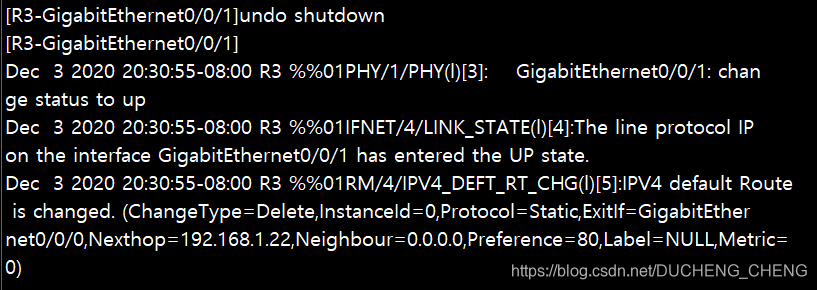

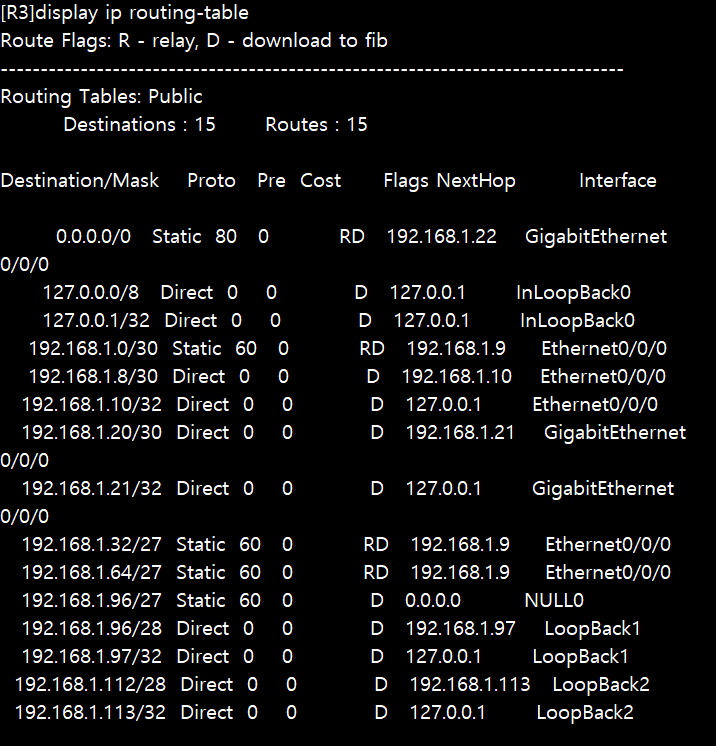

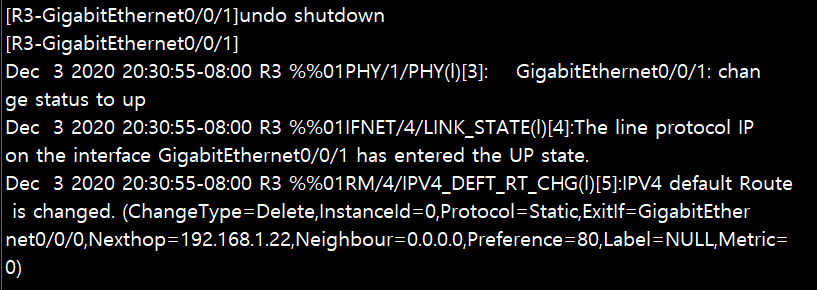

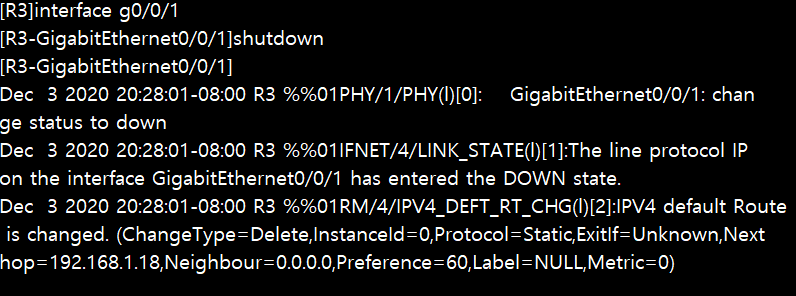

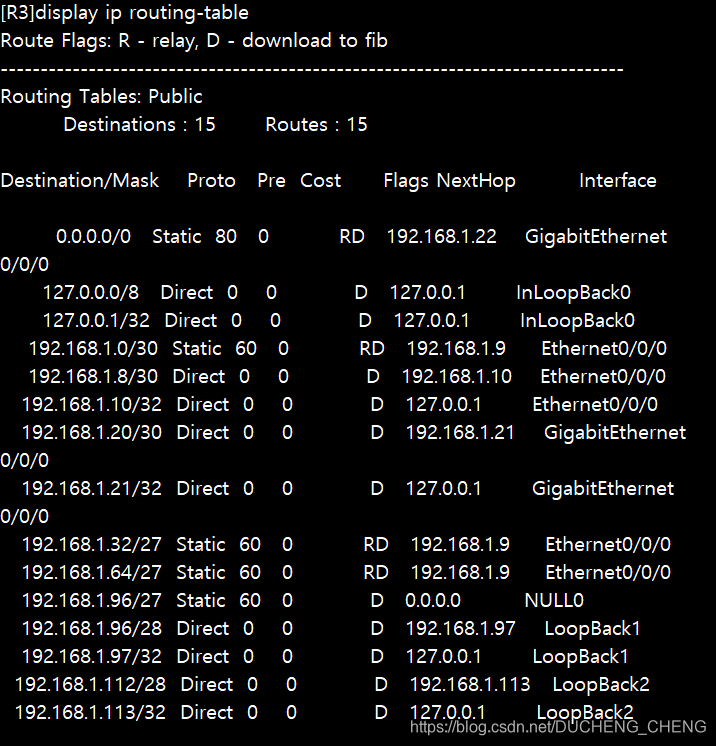

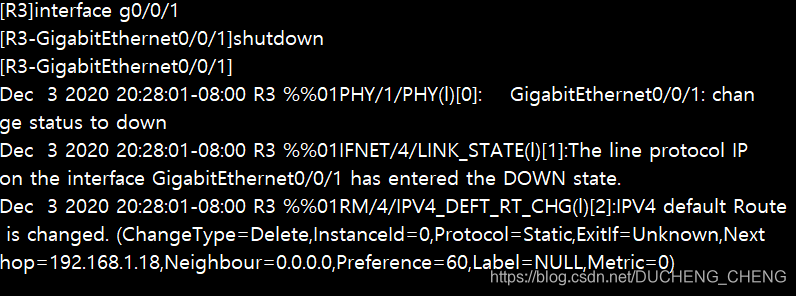

关闭R3 g0/0/1 端口，使其走千兆路线

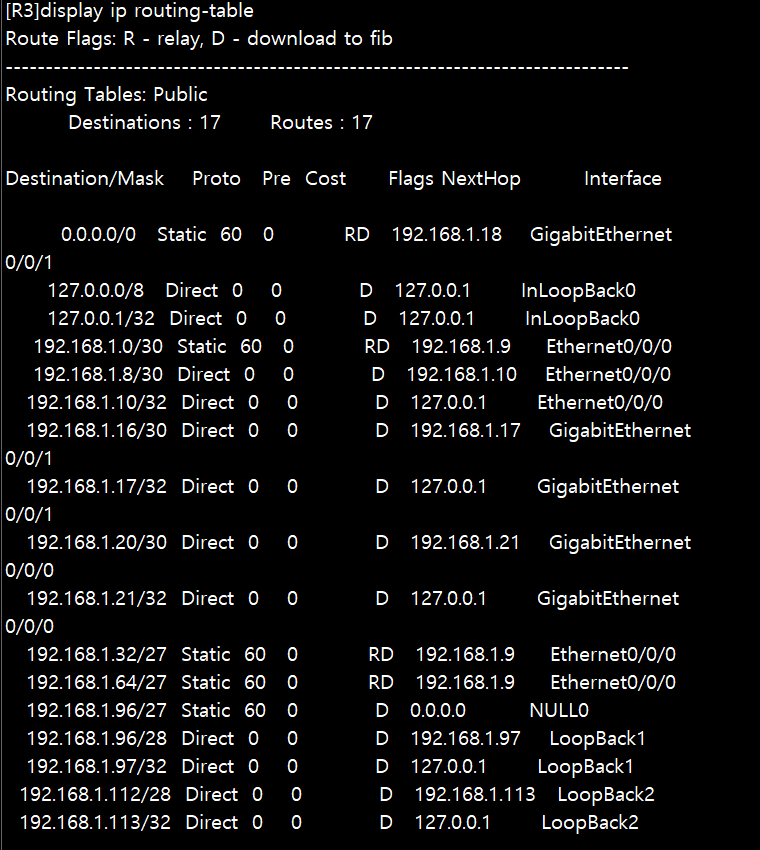

打开则又走百兆
