今天记录一下、一些用GAN来做异常检测的论文！

---

异常检测(Anomaly detection)，一个很常见的问题。

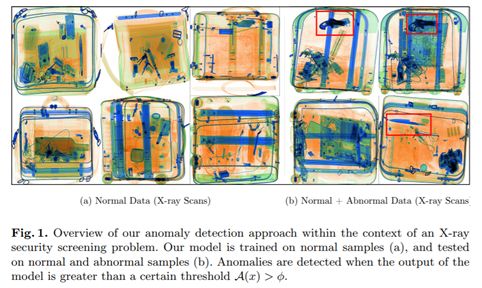

在图像方面，比如每天出入地铁安检，常常看到小姐姐小哥哥们坐在那盯着你的行李过检图像，类似如下（图来自GANomaly论文）：

又比如在一些医学图像分析上，源自健康人的影像也许是比较容易获取的，并且图像的“模式”往往固定或者不多变的，而病变的图像数量是很少、很难获取，或者病变区域多变、甚至未知的，此时异常检测就面临着正样本/异常图像很少，而相对地，正常图像更容易获得的情况。这种情况其实在很多场景下有所体现，比如工业视觉检测等等。

对于已知类别、数量较多情况下，不管异常与否，我们也许可以通过训练一个分类模型就能解决。但面对也许未知、多变的情况，要想用一个多分类模型分辨出来似乎很难。如果是想仅仅分辨出是不是异常，那也许可以做一个单分类器即可。

我们尽可能地去让模型充分学习正常数据的分布长什么样子，一旦来了异常图像，它即便不知道这是啥新的分布，但依旧可以自信地告诉你：这玩意儿没见过，此乃异类也！

用GAN一些网络怎么做呢？大体思想是：

在仅有负样本（正常数据）或者少量正样本情况下：

训练阶段：

      可以通过网络仅仅学习负样本（正常数据）的数据分布，得到的模型G只能生成或者重建正常数据。

测试阶段：

      使用测试样本输入训练好的模型G，如果G经过重建后输出和输入一样或者接近，表明测试的是正常数据，否则是异常数据。

模型G的选择：

      一个重建能力或者学习数据分布能力较好的生成模型，例如GAN或者VAE，甚至encoder-decoder。

下面速览几篇论文、看看GAN是如何做异常检测的（数据主要为图像形式）：

---

1. IPMI 2017 AnoGAN ( Unsupervised Anomaly Detection with Generative Adversarial Networks to Guide Marker Discovery )

思路：通过一个GAN的生成器G来学习正常数据的分布，测试时图像通过学习到的G找到它应该的正常图的样子，再通过对比来找到异常与否的情况。

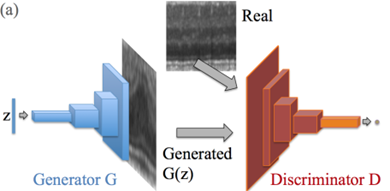

如上图所示，AnoGAN论文中采用的是DCGAN，一种较简单的GAN架构。

训练阶段：

      对抗训练，从一个噪声向量Z通过几层反卷积搭建的生成器G学习生成正常数据图像。

测试阶段：

      随机采样一个高斯噪声向量z，想要通过已经训练好的G生成一幅和测试图像x对应的正常图像G(z)。G的参数是固定的，它只能生成落在正常数据分布的图像。但此时仍需进行训练，把z看成待更新的参数，通过比较G(z)和x的差异去更新，从而生成一个与x尽可能相似、理想对应的正常图像。

如果x是正常的图像，那么x和G(z)应该是一样的。

如果x异常，通过更新z，可以认为重建出了异常区域的理想的正常情况，这样两图一对比不仅仅可以认定异常情况，同时还可以找到异常区域。

为了比较G(z)和x差异去更新z：

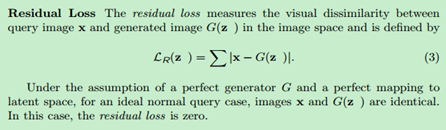

一是通过计算G(z)和x的图像层面的L1 loss：

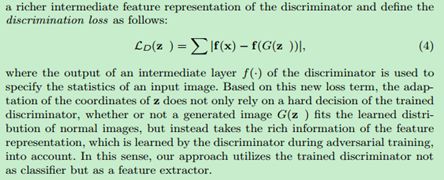

二是利用到训练好的判别器D，取G(z)和x在判别器D的中间层的特征层面的loss：

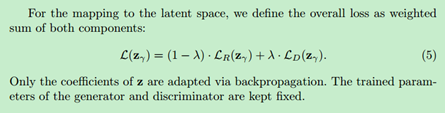

两者综合：

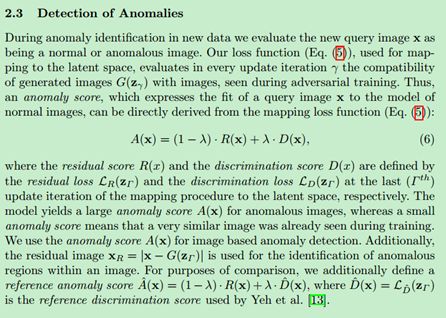

另外，异常分数计算方法：

2. 2018-02 EFFICIENT GAN-BASED ANOMALY DETECTION

针对AnoGAN测试阶段仍然需要更新参数的缺陷，此方法提出一种基于BiGAN可快百倍的方法。

训练时，同时学习将输入样本x映射到潜在表示z的编码器E，以及生成器G和判别器D:

如此可避免测试仍需要“找到z”那个耗时的步骤。与常规GAN中的D仅考虑输入（实际的或生成的）图像不同，而还考虑了潜在表示z(作为输入)。

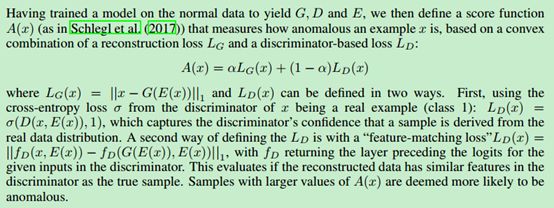

测试时，判断图像的异常与否的分值计算方法，可选择可AnoGAN基本一样的方法。

3. 2018-12 Adversarially Learned Anomaly Detection

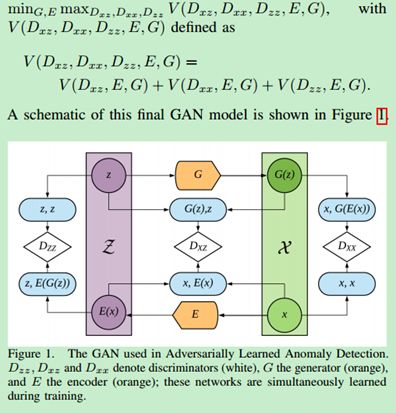

第二种方法的加强版，也是基于BiGAN,并且在稳定训练上做了些功夫。如下所示，（乖乖，搞了三个判别器 =_=

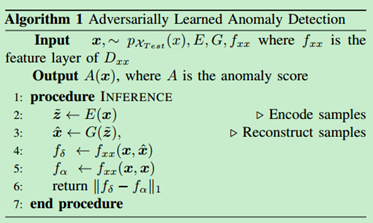

检测时的计算方法：

4. 2018-11-13 GANomaly: Semi-Supervised Anomaly Detection via Adversarial Training

原理：

训练时，约束正常的数据编码得到潜在空间表示z1，和对z1解码、再编码得到的z2，差距不会特别大，理想应该是一样的。

所以训练好后，用正常样本训练好的 G只能重建正常数据分布，一旦用于从未见过的异常样本编码、解码、再经历编码得到的潜在空间Z差距是大的。

当两次编码得到的潜在空间差距大于一定阈值的时候，就判定样本是异常样本。

5. 2019-01-25 Skip-GANomaly: Skip Connected and Adversarially Trained Encoder-Decoder Anomaly Detection

6. PRICAI 2018 A Surface Defect Detection Method Based on Positive Samples

原理：

C（x~|x）是人工缺陷制造模块。X~是模拟缺陷的样本，经过EN-DE编码解码器后重建正常样本Y。

测试阶段，X输入EN-DE后得到理想正常样本y，使用LBP对Y和X逐像素特征比较，相差大则有缺陷。

7. MIDL 2018  Unsupervised Detection of Lesions in Brain MRI using constrained adversarial auto-encoders

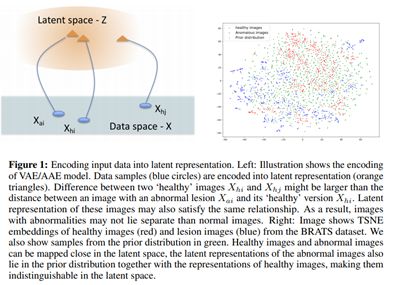

使用的是AAE来学习建模正常数据分布。有时，对于在正常分布的的两个数据之间的距离，比一个正常和一个异常之间的距离还大，所以提出在隐空间也加一个约束。

暂时先写到这吧。
