原文：华为官网技术支持：EVPN配置举例
组网需求
如下图的组网图所示，Router1为企业分支网关，Router2为企业总部网关，由于分支与总部之间用户的业务需求不同，则将其规划为不同网段。企业分支的PC_1与总部的PC_2终端用户所属VLAN ID分别为VLAN 10、VLAN 20。现企业希望通过分支与总部之间通过BGP EVPN方式动态建立VXLAN隧道实现用户间互通

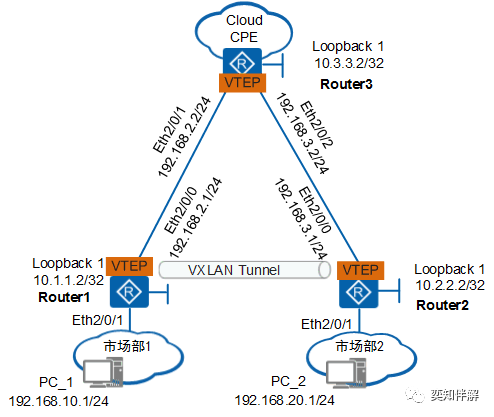

通过VXLAN三层网关通信组网图
配置思路
采用如下思路配置不同网段用户通过BGP EVPN方式动态建立VXLAN隧道实现互通：
分别在Router1、Router2、Router3上配置路由协议，保证网络三层互通。
分别在Router1、Router2上配置VXLAN接入业务选择部署方式。
配置BGP EVPN对等体关系。
在Router1和Router2上配置源端VTEP的IP地址。
在Router1和Router2上配置VPN实例。
在Router1和Router2上配置三层网关。
在Router1与Router2之间配置BGP对邻居发布IP前缀类型的路由。
操作步骤
配置路由协议。
配置Router1。Router2和Router3的配置与Router1类似，这里不再赘述。配置OSPF时，需要发布设备上的32位Loopback接口地址。
<Huawei> system-view
[Huawei] sysname Router1
[Router1] interface loopback 1
[Router1-LoopBack1] ip address 10.1.1.2 32
[Router1-LoopBack1] quit
[Router1] interface ethernet 2/0/0
[Router1-Ethernet2/0/0] undo portswitch
[Router1-Ethernet2/0/0] ip address 192.168.2.1 24
[Router1-Ethernet2/0/0] quit
[Router1] ospf
[Router1-ospf-1] area 0
[Router1-ospf-1-area-0.0.0.0] network 10.1.1.2 0.0.0.0
[Router1-ospf-1-area-0.0.0.0] network 192.168.2.0 0.0.0.255
[Router1-ospf-1-area-0.0.0.0] quit
[Router1-ospf-1] quit
OSPF成功配置后，Router之间可通过OSPF协议发现对方的Loopback接口的IP地址，并能互相ping通。以Router1 ping Router2的显示为例。
[Router1] ping 10.2.2.2
PING 10.2.2.2: 56 data bytes, press CTRL_C to break
Reply from 10.2.2.2: bytes=56 Sequence=1 ttl=255 time=1 ms
Reply from 10.2.2.2: bytes=56 Sequence=2 ttl=255 time=5 ms
Reply from 10.2.2.2: bytes=56 Sequence=3 ttl=255 time=5 ms
Reply from 10.2.2.2: bytes=56 Sequence=4 ttl=255 time=2 ms
Reply from 10.2.2.2: bytes=56 Sequence=5 ttl=255 time=2 ms
--- 10.2.2.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/3/5 ms
分别在Router1、Router2上配置业务接入点。
配置Router1。Router2的配置与Router1类似，这里不再赘述。
[Router1] bridge-domain 10
[Router1-bd10] quit
[Router1] interface ethernet 2/0/1.1 mode l2
[Router1-Ethernet2/0/1.1] encapsulation dot1q vid 10
[Router1-Ethernet2/0/1.1] bridge-domain 10
[Router1-Ethernet2/0/1.1] quit
配置BGP EVPN对等体关系。
在Router1配置BGP EVPN对等体关系。Router2的配置与Router1类似，这里不再赘述。
[Router1] bgp 100
[Router1-bgp] peer 10.3.3.2 as-number 100
[Router1-bgp] peer 10.3.3.2 connect-interface LoopBack1
[Router1-bgp] l2vpn-family evpn
[Router1-bgp-af-evpn] peer 10.3.3.2 enable
[Router1-bgp-af-evpn] quit
[Router1-bgp] quit
[Router1] interface nve 1
[Router1-Nve1] source 10.1.1.2
[Router1-Nve1] quit
在Router1和Router2上配置VPN实例。
配置Router1。Router2的配置与Router1类似，这里不再赘述。
[Router1] ip vpn-instance vpn1
[Router1-vpn-instance-vpn1] ipv4-family
[Router1-vpn-instance-vpn1-af-ipv4] route-distinguisher 100:1
[Router1-vpn-instance-vpn1-af-ipv4] vpn-target 1:1 evpn
[Router1-vpn-instance-vpn1-af-ipv4] quit
[Router1-vpn-instance-vpn1] vxlan vni 5010
[Router1-vpn-instance-vpn1] quit
[Router1] bridge-domain 10
[Router1-bd10] vxlan vni 2010
[Router1-bd10] quit
在Router1和Router2上配置VXLAN三层网关并绑定VPN实例。
配置Router1。Router2的配置与Router1类似，这里不再赘述。
[Router1] interface vbdif 10
[Router1-Vbdif10] ip binding vpn-instance vpn1
[Router1-Vbdif10] ip address 192.168.10.10 24
[Router1-Vbdif10] quit
在Router1与Router2之间配置BGP对邻居发布IP前缀类型的路由。
配置Router1。Router2的配置与Router1类似，这里不再赘述。
[Router1] bgp 100
[Router1-bgp] ipv4-family vpn-instance vpn1
[Router1-bgp-vpn1] import-route direct
[Router1-bgp-vpn1] advertise l2vpn evpn
[Router1-bgp-vpn1] quit
[Router1-bgp] quit
验证配置结果。
上述配置成功后，在Router1、Router2上执行命令display vxlan tunnel可查看到VXLAN隧道的信息。以Router1的显示为例。
[Router3] display vxlan tunnel
Tunnel ID Source Destination State Type
----------------------------------------------------------------------------
4026531842 10.1.1.2 10.2.2.2 up dynamic
----------------------------------------------------------------------------
Number of vxlan tunnel : 2
配置文件
Router1的配置文件
#
sysname Router1
#
ip vpn-instance vpn1
ipv4-family
route-distinguisher 100:1
vpn-target 1:1 export-extcommunity evpn
vpn-target 1:1 import-extcommunity evpn
vxlan vni 5010
#
bridge-domain 10
vxlan vni 2010
#
interface Ethernet2/0/0
undo portswitch
ip address 192.168.2.1 255.255.255.0
#
interface Ethernet2/0/1.1 mode l2
encapsulation dot1q vid 10
bridge-domain 10
#
interface LoopBack1
ip address 10.1.1.2 255.255.255.255
#
interface Vbdif10
ip binding vpn-instance vpn1
ip address 192.168.10.10 255.255.255.0
#
interface Nve1
source 10.1.1.2
#
bgp 100
peer 10.2.2.2 as-number 100
peer 10.2.2.2 connect-interface LoopBack1
#
ipv4-family unicast
undo synchronization
peer 10.2.2.2 enable
#
l2vpn-family evpn
policy vpn-target
peer 10.2.2.2 enable
#
ipv4-family vpn-instance vpn1
import-route direct
advertise l2vpn evpn
#
ospf 1
area 0.0.0.0
network 10.1.1.2 0.0.0.0
network 192.168.2.0 0.0.0.255
#
return
Router2的配置文件
#
sysname Router2
#
ip vpn-instance vpn1
ipv4-family
route-distinguisher 100:1
vpn-target 1:1 export-extcommunity evpn
vpn-target 1:1 import-extcommunity evpn
vxlan vni 5020
#
bridge-domain 20
vxlan vni 2020
#
interface Ethernet2/0/0
undo portswitch
ip address 192.168.3.1 255.255.255.0
#
interface Ethernet2/0/1.1 mode l2
encapsulation dot1q vid 20
bridge-domain 20
#
interface LoopBack1
ip address 10.2.2.2 255.255.255.255
#
interface Vbdif20
ip binding vpn-instance vpn1
ip address 192.168.20.10 255.255.255.0
#
interface Nve1
source 10.2.2.2
#
bgp 100
peer 10.1.1.2 as-number 100
peer 10.1.1.2 connect-interface LoopBack1
#
ipv4-family unicast
undo synchronization
peer 10.1.1.2 enable
#
l2vpn-family evpn
policy vpn-target
peer 10.1.1.2 enable
#
ipv4-family vpn-instance vpn1
import-route direct
advertise l2vpn evpn
#
ospf 1
area 0.0.0.0
network 10.2.2.2 0.0.0.0
network 192.168.3.0 0.0.0.255
#
return
Router3的配置文件
#
sysname Router3
#
interface Ethernet2/0/1
undo portswitch
ip address 192.168.2.2 255.255.255.0
#
interface Ethernet2/0/2
undo portswitch
ip address 192.168.3.2 255.255.255.0
#
interface LoopBack1
ip address 10.3.3.2 255.255.255.255
#
ospf 1
area 0.0.0.0
network 10.3.3.2 0.0.0.0
network 192.168.2.0 0.0.0.255
network 192.168.3.0 0.0.0.255
#
return
