Framework系列-Binder通信流程(一)

戏子无情 提交于 2020-11-02 08:14:10

Binder是Android进程通信过程的机制,也是非常复杂的,整个通信过程涉及到用户态和内核态,从java层到Framework层,到驱动层,以前断断续续的看了不少文章,总是不能看到本质,所以不能表达出原理思想。最近看了几篇文章,写得挺好的,所以趁此将整个过程记录下来,方便后续复习。当然也有理解不到位的,不过大致方向应该没错,想了解更多的可以看后面的链接文章。

分析的源码8.0,驱动源码kernel_3.18

一、涉及源码

\frameworks\base\core\java\android\content\ContextWrapper.java
\frameworks\base\core\java\android\app\ContextImpl.java
\frameworks\base\core\java\android\app\ActivityManager.java
\frameworks\base\core\java\android\os\ServiceManagerNative.java
\frameworks\base\core\java\android\app\IActivityManager.aidl

\frameworks\base\core\jni\android_util_Binder.cpp
\frameworks\native\libs\binder\BpBinder.cpp
\frameworks\base\core\jni\AndroidRuntime.cpp
\frameworks\base\cmds\app_process\app_main.cpp

\frameworks\native\libs\binder\IPCThreadState.cpp
\frameworks\native\libs\binder\ProcessState.cpp

\drivers\staging\android\binder.c

二、分层架构

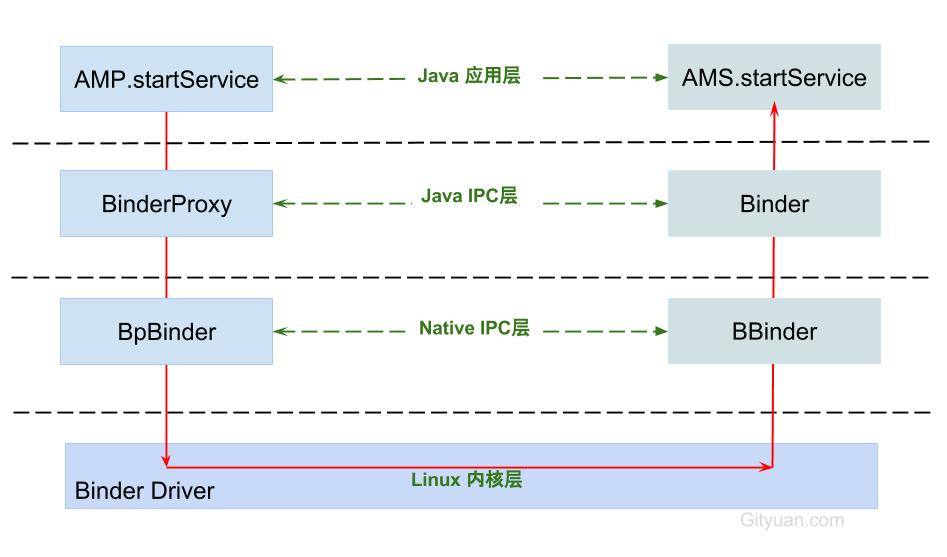

和TCP/IP协议一样,Binder也有类似分层架构,每一层都有其不同功能,已startService为例,下面图都是直接用的参考文章里面的
在这里插入图片描述
Java应用层:对于上层只需要通过调用AMP.startService,而不需要关心底层,经过层层调用到AMS.startService

Java IPC层:Binder通信是采用C/S架构,Android系统的基础架构便已设计好Binder在Java framework层的Binder客户类BinderProxy和服务类Binder。

Native IPC:对于Native层,使用的是BpBinder和BBinder,对于上一层Java IPC的通信也是基于这个层面

Kernel物理层:这里是Binder Driver,前面3层都是用户空间,对于用户空间的内存资源是不共享的,每个Android的进程只能运行在自己进程所拥有的虚拟地址空间,而内核空间却是可以共享的,真正的核心环节是在Binder Driver。

三、ContextWrapper.startService

@Override
//ContextWrapper
public ComponentName startService(Intent service) {


    return mBase.startService(service);
}
//ContextImpl
@Override
public ComponentName startService(Intent service) {


    warnIfCallingFromSystemProcess();
    return startServiceCommon(service, false, mUser);
}
private ComponentName startServiceCommon(Intent service, boolean requireForeground,
        UserHandle user) {


    try {


        ...
        ComponentName cn = ActivityManager.getService().startService(
            mMainThread.getApplicationThread(), service, service.resolveTypeIfNeeded(
                        getContentResolver()), requireForeground,
                        getOpPackageName(), user.getIdentifier());
        ...
    } catch (RemoteException e) {


        throw e.rethrowFromSystemServer();
    }
}

四、ActivityManager.getService()

到这里调用到ActivityManager.getService(),看下返回的是什么

public static IActivityManager getService() {


    return IActivityManagerSingleton.get();
}
private static final Singleton<IActivityManager> IActivityManagerSingleton =
        new Singleton<IActivityManager>() {


            @Override
            protected IActivityManager create() {


                final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE); //1
                final IActivityManager am = IActivityManager.Stub.asInterface(b); //2
                return am;
            }
        };

4.1、ServiceManager.getService(Context.ACTIVITY_SERVICE)

IActivityManagerSingleton.get最终会调用Singleton的create方法,看下里面的实现细节,注释1处,

public static IBinder getService(String name) {


    try {


        IBinder service = sCache.get(name);   //先从缓存获取
        if (service != null) {


            return service;
        } else {


            return Binder.allowBlocking(getIServiceManager().getService(name));
        }
    } catch (RemoteException e) {


        Log.e(TAG, "error in getService", e);
    }
    return null;
}

4.2、getIServiceManager()

private static IServiceManager getIServiceManager() {


    if (sServiceManager != null) {


        return sServiceManager;
    }

    // Find the service manager
    sServiceManager = ServiceManagerNative
           .asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
    return sServiceManager;
}

4.2.1、BinderInternal.getContextObject()

getContextObject是一个native方法

//android_util_binder.cpp
static jobject android_os_BinderInternal_getContextObject(JNIEnv* env, jobject clazz)
{
    sp<IBinder> b = ProcessState::self()->getContextObject(NULL);
    return javaObjectForIBinder(env, b);
}

这篇文章 获取ServiceManager , ProcessState::self()->getContextObject()等价于 new BpBinder(0)

4.2.2、javaObjectForIBinder

//android_util_binder.cpp
jobject javaObjectForIBinder(JNIEnv* env, const sp<IBinder>& val)
{
    if (val == NULL) return NULL;

    if (val->checkSubclass(&gBinderOffsets)) {
        // One of our own!
        jobject object = static_cast<JavaBBinder*>(val.get())->object();
        LOGDEATH("objectForBinder %p: it's our own %p!\n", val.get(), object);
        return object;
    }

    // For the rest of the function we will hold this lock, to serialize
    // looking/creation/destruction of Java proxies for native Binder proxies.
    AutoMutex _l(mProxyLock);

    // Someone else's...  do we know about it?
    jobject object = (jobject)val->findObject(&gBinderProxyOffsets);
    if (object != NULL) {
        jobject res = jniGetReferent(env, object);
        if (res != NULL) {
            ALOGV("objectForBinder %p: found existing %p!\n", val.get(), res);
            return res;
        }
        LOGDEATH("Proxy object %p of IBinder %p no longer in working set!!!", object, val.get());
        android_atomic_dec(&gNumProxyRefs);
        val->detachObject(&gBinderProxyOffsets);
        env->DeleteGlobalRef(object);
    }

    //创建BinderProxy对象
    object = env->NewObject(gBinderProxyOffsets.mClass, gBinderProxyOffsets.mConstructor);
    if (object != NULL) {
        LOGDEATH("objectForBinder %p: created new proxy %p !\n", val.get(), object);
        //BinderProxy.mObject成员变量记录BpBinder对象
        env->SetLongField(object, gBinderProxyOffsets.mObject, (jlong)val.get());
        val->incStrong((void*)javaObjectForIBinder);

        // The native object needs to hold a weak reference back to the
        // proxy, so we can retrieve the same proxy if it is still active.
        jobject refObject = env->NewGlobalRef(
                env->GetObjectField(object, gBinderProxyOffsets.mSelf));
        val->attachObject(&gBinderProxyOffsets, refObject,
                jnienv_to_javavm(env), proxy_cleanup);

        // Also remember the death recipients registered on this proxy
        sp<DeathRecipientList> drl = new DeathRecipientList;
        drl->incStrong((void*)javaObjectForIBinder);
        env->SetLongField(object, gBinderProxyOffsets.mOrgue, reinterpret_cast<jlong>(drl.get()));

        // Note that a new object reference has been created.
        android_atomic_inc(&gNumProxyRefs);
        incRefsCreated(env);
    }

    return object;
}

根据BpBinder(C++)生成BinderProxy(Java)对象. 主要工作是创建BinderProxy对象,并把BpBinder对象地址保存到BinderProxy.mObject成员变量. 到此,可知ServiceManagerNative.asInterface(BinderInternal.getContextObject()) 等价于

ServiceManagerNative.asInterface(new BinderProxy())

而Binder.allowBlocking里面的操作不影响下面要分析的流程,跳过

BinderProxy在Binder.java里面

4.3、SMN.asInterface

//ServiceManagerNative.java
static public IServiceManager asInterface(IBinder obj)
{


    if (obj == null) {


        return null;
    }
    IServiceManager in =
        (IServiceManager)obj.queryLocalInterface(descriptor);
    if (in != null) {


        return in;
    }

    return new ServiceManagerProxy(obj);
}

可知最后返回了ServiceManagerProxy对象,简称SMP

ServiceManagerNative.asInterface(Binder.allowBlocking(BinderInternal.getContextObject()))最后等价于new ServiceManagerProxy(new BinderProxy()),这里传入了一个BinderProxy对象,而里面有一个BpBinder(0),这里是客户端的一个代理端,这里的0是,指向native层的servicemanager.

看下ServiceManagerProxy的构造方法

//ServiceManagerProxy
public ServiceManagerProxy(IBinder remote) {


 	//这里的remote就是BinderProxy
    mRemote = remote;
}

所以到这里就可以知道ServiceManager.getService调用了ServiceManagerProxy的getService

public IBinder getService(String name) throws RemoteException {


    Parcel data = Parcel.obtain();
    Parcel reply = Parcel.obtain();
    data.writeInterfaceToken(IServiceManager.descriptor);
    data.writeString(name);
    mRemote.transact(GET_SERVICE_TRANSACTION, data, reply, 0);
    IBinder binder = reply.readStrongBinder();
    reply.recycle();
    data.recycle();
    return binder;
}

这里到native端的servicemanager去获取AMS代理对象,获取到的对象已BinderProxy对象返回给客户端,而BinderProxy通过BpBinder与底层交互,具体的实现过程参考这篇文章Binder系列7—framework层分析

回到ActivityManager.getService()方法注释2处

4.4、IActivityManager.Stub.asInterface(b)

IActivityManager是一个AIDL对象,Android 8.0 去除了ActivityManagerNative的内部类ActivityManagerProxy,而是使用了AIDL来实现,这里asInterface也是返回一个Proxy代理对象,然后通过代理对象去startService。 服务端也就是AMS只需要继承IActivityManager.Stub类并实现相应的方法就可以了。

类似启动代码如下

public ComponentName startService(IApplicationThread caller, Intent service, String resolvedType, String callingPackage, int userId) throws RemoteException {


    Parcel data = Parcel.obtain();
    Parcel reply = Parcel.obtain();
    data.writeInterfaceToken(IActivityManager.descriptor);
    data.writeStrongBinder(caller != null ? caller.asBinder() : null);
    service.writeToParcel(data, 0);
    data.writeString(resolvedType);
    data.writeString(callingPackage);
    data.writeInt(userId);
    //通过Binder 传递数据
    mRemote.transact(START_SERVICE_TRANSACTION, data, reply, 0);
    reply.readException();
    ComponentName res = ComponentName.readFromParcel(reply);
    data.recycle();
    reply.recycle();
    return res;
}

五、BinderProxy.transact

这里的mRemote就是BinderProxy,调用它的transact方法

//BinderProxy
public boolean transact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {


....
    try {


        return transactNative(code, data, reply, flags);
    } finally {


    ...
    }
}
//调用到native层
public native boolean transactNative(int code, Parcel data, Parcel reply,
        int flags) throws RemoteException;
//android_util_Binder.cpp
static jboolean android_os_BinderProxy_transact(JNIEnv* env, jobject obj,
        jint code, jobject dataObj, jobject replyObj, jint flags) // throws RemoteException
{


...
//将java Parcel转为c++ Parcel
    Parcel* data = parcelForJavaObject(env, dataObj);
    Parcel* reply = parcelForJavaObject(env, replyObj);
   ...
//gBinderProxyOffsets.mObject中保存的是new BpBinder(handle)对象
    IBinder* target = (IBinder*)
        env->GetLongField(obj, gBinderProxyOffsets.mObject);
  ...
    //printf("Transact from Java code to %p sending: ", target); data->print();
    status_t err = target->transact(code, *data, reply, flags);
    //if (reply) printf("Transact from Java code to %p received: ", target); reply->print();

...
    signalExceptionForError(env, obj, err, true /*canThrowRemoteException*/, data->dataSize());
    return JNI_FALSE;
}

这里先将java的Parce转化位c++ Parcel,然后获取保存的BpBinder对象,调用它的transact

六、BpBinder.transact

//BpBinder.cpp
status_t BpBinder::transact(
    uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{


    // Once a binder has died, it will never come back to life.
    if (mAlive) {


        status_t status = IPCThreadState::self()->transact(
            mHandle, code, data, reply, flags);
        if (status == DEAD_OBJECT) mAlive = 0;
        return status;
    }

    return DEAD_OBJECT;
}

IPCThreadState::self()获取的是一个单例对象,保证每个线程只有一个实例对象,看下IPCThreadState的构造方法

IPCThreadState::IPCThreadState()
    : mProcess(ProcessState::self()),
      mStrictModePolicy(0),
      mLastTransactionBinderFlags(0)
{
    pthread_setspecific(gTLS, this);
    clearCaller();
    mIn.setDataCapacity(256);
    mOut.setDataCapacity(256);
}

IPCThreadState就是和Binder驱动交互的类,写数据和读数据都是通过mOut和mIn

七、IPCThreadState::self()->transact

//IPCThreadState
status_t IPCThreadState::transact(int32_t handle,
                                  uint32_t code, const Parcel& data,
                                  Parcel* reply, uint32_t flags)
{
    ...
    if (err == NO_ERROR) {
        err = writeTransactionData(BC_TRANSACTION_SG, flags, handle, code, data, NULL);  //1
    }

    ...
    //默认情况下都是非ONE_WAY,也就是需要等待服务端的返回结果
    if ((flags & TF_ONE_WAY) == 0) {
        ...
        if (reply) {
        //reply对象不为空
            err = waitForResponse(reply);    //2
        } else {
            Parcel fakeReply;
            err = waitForResponse(&fakeReply);
        }
        ...
    } else {
        err = waitForResponse(NULL, NULL);
    }

    return err;
}

在注释1处,writeTransactionData向Parcel数据类型的mOut写入数据,此时mIn还没有数据。

7.1、writeTransactionData

status_t IPCThreadState::writeTransactionData(int32_t cmd, uint32_t binderFlags,
    int32_t handle, uint32_t code, const Parcel& data, status_t* statusBuffer)
{


    binder_transaction_data tr;

    tr.target.ptr = 0; /* Don't pass uninitialized stack data to a remote process */
    tr.target.handle = handle; //handle指向AMS
    tr.code = code;
    tr.flags = binderFlags;
    tr.cookie = 0;
    tr.sender_pid = 0;
    tr.sender_euid = 0;

    const status_t err = data.errorCheck();
    if (err == NO_ERROR) {


        tr.data_size = data.ipcDataSize();
        tr.data.ptr.buffer = data.ipcData();
        tr.offsets_size = data.ipcObjectsCount()*sizeof(binder_size_t);
        tr.data.ptr.offsets = data.ipcObjects();
    } else if (statusBuffer) {


        tr.flags |= TF_STATUS_CODE;
        *statusBuffer = err;
        tr.data_size = sizeof(status_t);
        tr.data.ptr.buffer = reinterpret_cast<uintptr_t>(statusBuffer);
        tr.offsets_size = 0;
        tr.data.ptr.offsets = 0;
    } else {


        return (mLastError = err);
    }

    mOut.writeInt32(cmd); //cmd = BC_TRANSACTION
    mOut.write(&tr, sizeof(tr));  //写入binder_transaction_data数据

    return NO_ERROR;
}

在这里将数据写入mOut,回到transact方法,看注释2

7.2、waitForResponse

status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{


    uint32_t cmd;
    int32_t err;

    while (1) {


        if ((err=talkWithDriver()) < NO_ERROR) break;  //talkWithDriver
        err = mIn.errorCheck();
        if (err < NO_ERROR) break;
        if (mIn.dataAvail() == 0) continue;

//每当跟Driver交互一次,若mIn收到数据则往下执行一次BR命令
        cmd = (uint32_t)mIn.readInt32();

        IF_LOG_COMMANDS() {


            alog << "Processing waitForResponse Command: "
                << getReturnString(cmd) << endl;
        }

        switch (cmd) {


        case BR_TRANSACTION_COMPLETE:
            if (!reply && !acquireResult) goto finish;
            break;

        case BR_DEAD_REPLY:
            err = DEAD_OBJECT;
            goto finish;

        case BR_FAILED_REPLY:
            err = FAILED_TRANSACTION;
            goto finish;

        case BR_ACQUIRE_RESULT:
           ...
            goto finish;

        case BR_REPLY:
            {


            ...
            goto finish;

        default:
            err = executeCommand(cmd);
            if (err != NO_ERROR) goto finish;
            break;
        }
    }

...
}

在这个过程中,首先通过talkWithDriver跟驱动交互,收到应答消息,便会写入mIn,则根据收到的不同响应吗,执行相应的操作。对于非oneway transaction时,当收到BR_REPLY消息,则完整地完成本次Binder通信;

7.8、talkWithDriver

//mOut有数据,mIn还没有数据。doReceive默认值为true
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
    if (mProcess->mDriverFD <= 0) {
        return -EBADF;
    }

    binder_write_read bwr;

    // Is the read buffer empty?
    //这个值为true
    const bool needRead = mIn.dataPosition() >= mIn.dataSize();

    // We don't want to write anything if we are still reading
    // from data left in the input buffer and the caller
    // has requested to read the next data.
    const size_t outAvail = (!doReceive || needRead) ? mOut.dataSize() : 0;

    bwr.write_size = outAvail;
    //写数据的buffer
    bwr.write_buffer = (uintptr_t)mOut.data();

    // This is what we'll read.
    if (doReceive && needRead) {
        bwr.read_size = mIn.dataCapacity();
        //从驱动读取的数据放入mIn
        bwr.read_buffer = (uintptr_t)mIn.data();
    } else {
        bwr.read_size = 0;
        bwr.read_buffer = 0;
    }

    ...
    // Return immediately if there is nothing to do.
    if ((bwr.write_size == 0) && (bwr.read_size == 0)) return NO_ERROR;

    bwr.write_consumed = 0;
    bwr.read_consumed = 0;
    status_t err;
    do {
       ....
        if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)  //1
            err = NO_ERROR;
        else
            err = -errno;
...
    } while (err == -EINTR);

...

    if (err >= NO_ERROR) {
        if (bwr.write_consumed > 0) {
            if (bwr.write_consumed < mOut.dataSize())
                mOut.remove(0, bwr.write_consumed);
            else
                mOut.setDataSize(0);
        }
        if (bwr.read_consumed > 0) {
            mIn.setDataSize(bwr.read_consumed);
            mIn.setDataPosition(0);
        }
      ...
        return NO_ERROR;
    }

    return err;
}

binder_write_read结构体用来与Binder驱动交换数据的结构,通过ioctl与mDriverFD通信,是真正与Binder驱动进行数据读写交互的过程。

八、Binder Driver

ioctl()方法经过syscall最终调用到Binder_ioctl()方法。

8.1、binder_ioctl

//\drivers\staging\android\binder.c
static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{


	int ret;
	//获取binder_pro
	struct binder_proc *proc = filp->private_data;
	struct binder_thread *thread;
...
  //查找或创建binder_thread结构体
	thread = binder_get_thread(proc);
	if (thread == NULL) {


		ret = -ENOMEM;
		goto err;
	}
//cmd为BINDER_WRITE_READ
	switch (cmd) {


	case BINDER_WRITE_READ:
		ret = binder_ioctl_write_read(filp, cmd, arg, thread);
		if (ret)
			goto err;
		break;
...
	}
	default:
		ret = -EINVAL;
		goto err;
	}
	ret = 0;
...
	return ret;
}

调用到了binder_ioctl_write_read方法

8.2、binder_ioctl_write_read

//\drivers\staging\android\binder.c
static int binder_ioctl_write_read(struct file *filp,
				unsigned int cmd, unsigned long arg,
				struct binder_thread *thread)
{


	int ret = 0;
	struct binder_proc *proc = filp->private_data;
	unsigned int size = _IOC_SIZE(cmd);
	void __user *ubuf = (void __user *)arg;
	struct binder_write_read bwr;

//从用户空间拷贝数据到bwr结构体
	if (copy_from_user(&bwr, ubuf, sizeof(bwr))) {


		ret = -EFAULT;
		goto out;
	}
//先执行写操作
	if (bwr.write_size > 0) {


	//将数据放入目标进程
		ret = binder_thread_write(proc, thread,
					  bwr.write_buffer,
					  bwr.write_size,
					  &bwr.write_consumed);
		trace_binder_write_done(ret);
		if (ret < 0) {


			bwr.read_consumed = 0;
			if (copy_to_user(ubuf, &bwr, sizeof(bwr)))
				ret = -EFAULT;
			goto out;
		}
	}
	//再执行读操作
	if (bwr.read_size > 0) {


		ret = binder_thread_read(proc, thread, bwr.read_buffer,
					 bwr.read_size,
					 &bwr.read_consumed,
					 filp->f_flags & O_NONBLOCK);
		trace_binder_read_done(ret);
		if (!list_empty(&proc->todo))
			wake_up_interruptible(&proc->wait);
		if (ret < 0) {


			if (copy_to_user(ubuf, &bwr, sizeof(bwr)))
				ret = -EFAULT;
			goto out;
		}
	}
	binder_debug(BINDER_DEBUG_READ_WRITE,
		     "%d:%d wrote %lld of %lld, read return %lld of %lld\n",
		     proc->pid, thread->pid,
		     (u64)bwr.write_consumed, (u64)bwr.write_size,
		     (u64)bwr.read_consumed, (u64)bwr.read_size);
	if (copy_to_user(ubuf, &bwr, sizeof(bwr))) {


		ret = -EFAULT;
		goto out;
	}
out:
	return ret;
}

先从用户空间拷贝数据到bwr结构体,然后写将数据放入目标进程,再读数据

8.3、binder_thread_write

static int binder_thread_write(struct binder_proc *proc,
			struct binder_thread *thread,
			binder_uintptr_t binder_buffer, size_t size,
			binder_size_t *consumed)
{


	uint32_t cmd;
	void __user *buffer = (void __user *)(uintptr_t)binder_buffer;
	void __user *ptr = buffer + *consumed;
	void __user *end = buffer + size;

	while (ptr < end && thread->return_error == BR_OK) {


	//拷贝用户空间的cmd命令,此时为BC_TRANSACTION
		if (get_user(cmd, (uint32_t __user *)ptr))
			return -EFAULT;
		...
		switch (cmd) {


...

		case BC_TRANSACTION:
		case BC_REPLY: {


			struct binder_transaction_data tr;

			if (copy_from_user(&tr, ptr, sizeof(tr)))
				return -EFAULT;
			ptr += sizeof(tr);
			binder_transaction(proc, thread, &tr, cmd == BC_REPLY);
			break;
		}

		...
	}
	return 0;
}

不断从binder_buffer所指向的地址获取cmd, 当只有BC_TRANSACTION或者BC_REPLY时, 则调用binder_transaction()来处理事务。

8.3.1、binder_transaction

最核心的方法

//此时reply为0
static void binder_transaction(struct binder_proc *proc,
			       struct binder_thread *thread,
			       struct binder_transaction_data *tr, int reply)
{


	struct binder_transaction *t;
	struct binder_work *tcomplete;
	binder_size_t *offp, *off_end;
	binder_size_t off_min;
	struct binder_proc *target_proc;
	struct binder_thread *target_thread = NULL;
	struct binder_node *target_node = NULL;
	struct list_head *target_list;
	wait_queue_head_t *target_wait;
	struct binder_transaction *in_reply_to = NULL;
	struct binder_transaction_log_entry *e;
	uint32_t return_error;

	e = binder_transaction_log_add(&binder_transaction_log);
	e->call_type = reply ? 2 : !!(tr->flags & TF_ONE_WAY);
	e->from_proc = proc->pid;
	e->from_thread = thread->pid;
	e->target_handle = tr->target.handle;
	e->data_size = tr->data_size;
	e->offsets_size = tr->offsets_size;

	if (reply) {


...
	} else {


		if (tr->target.handle) {


			struct binder_ref *ref;

//由handle找到相应binde_ref,由binder_ref 找到相应 binder_node
			ref = binder_get_ref(proc, tr->target.handle);
			target_node = ref->node;
		} else {


			target_node = binder_context_mgr_node;
		}
		e->to_node = target_node->debug_id;
		// 由binder_node 找到相应 binder_proc
		target_proc = target_node->proc;
		...
	}
	if (target_thread) {


		e->to_thread = target_thread->pid;
		target_list = &target_thread->todo;
		target_wait = &target_thread->wait;
	} else {


	//首次执行target_thread为空
		target_list = &target_proc->todo;
		target_wait = &target_proc->wait;
	}
	e->to_proc = target_proc->pid;

	/* TODO: reuse incoming transaction for reply */
	//创建binder_transaction
	t = kzalloc(sizeof(*t), GFP_KERNEL);
	if (t == NULL) {


		return_error = BR_FAILED_REPLY;
		goto err_alloc_t_failed;
	}
	binder_stats_created(BINDER_STAT_TRANSACTION);

	tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);
	if (tcomplete == NULL) {


		return_error = BR_FAILED_REPLY;
		goto err_alloc_tcomplete_failed;
	}
	binder_stats_created(BINDER_STAT_TRANSACTION_COMPLETE);

	t->debug_id = ++binder_last_id;
	e->debug_id = t->debug_id;
...
//非oneway的通信方式,把当前thread保存到transaction的from字段
	if (!reply && !(tr->flags & TF_ONE_WAY))
		t->from = thread;
	else
		t->from = NULL;
	t->sender_euid = task_euid(proc->tsk);
	t->to_proc = target_proc;  //此次通信目标进程为system_server
	t->to_thread = target_thread;
	t->code = tr->code;
	t->flags = tr->flags;
	t->priority = task_nice(current);

	trace_binder_transaction(reply, t, target_node);

	t->buffer = binder_alloc_buf(target_proc, tr->data_size,
		tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));
	if (t->buffer == NULL) {


		return_error = BR_FAILED_REPLY;
		goto err_binder_alloc_buf_failed;
	}
	t->buffer->allow_user_free = 0;
	t->buffer->debug_id = t->debug_id;
	t->buffer->transaction = t;
	t->buffer->target_node = target_node;
	trace_binder_transaction_alloc_buf(t->buffer);
	if (target_node)
		binder_inc_node(target_node, 1, 0, NULL);

	offp = (binder_size_t *)(t->buffer->data +
				 ALIGN(tr->data_size, sizeof(void *)));

//分别拷贝用户空间的binder_transaction_data中ptr.buffer和ptr.offsets到目标进程的binder_buffer
	if (copy_from_user(t->buffer->data, (const void __user *)(uintptr_t)
			   tr->data.ptr.buffer, tr->data_size)) {


		return_error = BR_FAILED_REPLY;
		goto err_copy_data_failed;
	}
	if (copy_from_user(offp, (const void __user *)(uintptr_t)
			   tr->data.ptr.offsets, tr->offsets_size)) {


		return_error = BR_FAILED_REPLY;
		goto err_copy_data_failed;
	}
...
	off_end = (void *)offp + tr->offsets_size;
	off_min = 0;
	for (; offp < off_end; offp++) {


		struct flat_binder_object *fp;

		if (*offp > t->buffer->data_size - sizeof(*fp) ||
		    *offp < off_min ||
		    t->buffer->data_size < sizeof(*fp) ||
		    !IS_ALIGNED(*offp, sizeof(u32))) {


			return_error = BR_FAILED_REPLY;
			goto err_bad_offset;
		}
		fp = (struct flat_binder_object *)(t->buffer->data + *offp);
		off_min = *offp + sizeof(struct flat_binder_object);
		switch (fp->type) {


		//...
		case BINDER_TYPE_HANDLE:
		case BINDER_TYPE_WEAK_HANDLE: {


			struct binder_ref *ref = binder_get_ref(proc, fp->handle);

			if (ref == NULL) {


				return_error = BR_FAILED_REPLY;
				goto err_binder_get_ref_failed;
			}
			if (security_binder_transfer_binder(proc->tsk, target_proc->tsk)) {


				return_error = BR_FAILED_REPLY;
				goto err_binder_get_ref_failed;
			}
			if (ref->node->proc == target_proc) {


				if (fp->type == BINDER_TYPE_HANDLE)
					fp->type = BINDER_TYPE_BINDER;
				else
					fp->type = BINDER_TYPE_WEAK_BINDER;
				fp->binder = ref->node->ptr;
				fp->cookie = ref->node->cookie;
				binder_inc_node(ref->node, fp->type == BINDER_TYPE_BINDER, 0, NULL);
				trace_binder_transaction_ref_to_node(t, ref);
			} else {


				struct binder_ref *new_ref;

				new_ref = binder_get_ref_for_node(target_proc, ref->node);
				if (new_ref == NULL) {


					return_error = BR_FAILED_REPLY;
					goto err_binder_get_ref_for_node_failed;
				}
				fp->handle = new_ref->desc;
				binder_inc_ref(new_ref, fp->type == BINDER_TYPE_HANDLE, NULL);
				trace_binder_transaction_ref_to_ref(t, ref,
								    new_ref);
			}
		} break;

        //...

		default:

				proc->pid, thread->pid, fp->type);
			return_error = BR_FAILED_REPLY;
			goto err_bad_object_type;
		}
	}
	if (reply) {


		binder_pop_transaction(target_thread, in_reply_to);
	} else if (!(t->flags & TF_ONE_WAY)) {


	//BC_TRANSACTION 且 非oneway,则设置事务栈信息
		t->need_reply = 1;
		t->from_parent = thread->transaction_stack;
		thread->transaction_stack = t;
	} else {


		if (target_node->has_async_transaction) {


			target_list = &target_node->async_todo;
			target_wait = NULL;
		} else
			target_node->has_async_transaction = 1;
	}
//将BINDER_WORK_TRANSACTION添加到目标队列,即target_proc->todo
	t->work.type = BINDER_WORK_TRANSACTION;
	list_add_tail(&t->work.entry, target_list);
//将BINDER_WORK_TRANSACTION_COMPLETE添加到当前线程队列,即thread->todo
	tcomplete->type = BINDER_WORK_TRANSACTION_COMPLETE;
	list_add_tail(&tcomplete->entry, &thread->todo);
 //唤醒等待队列,本次通信的目标队列为target_proc->wait
	if (target_wait)
		wake_up_interruptible(target_wait);
	return;

//...
}

主要功能:

1.查询目标进程的过程: handle -> binder_ref -> binder_node -> binder_proc
2.将BINDER_WORK_TRANSACTION添加到目标队列target_list:
3.数据拷贝
将用户空间binder_transaction_data中ptr.buffer和ptr.offsets拷贝到目标进程的binder_buffer->data;
这就是只拷贝一次的真理所在;
4.设置事务栈信息
BC_TRANSACTION且非oneway, 则将当前事务添加到thread->transaction_stack;
5.事务分发过程:
将BINDER_WORK_TRANSACTION添加到目标队列(此时为target_proc->todo队列);
将BINDER_WORK_TRANSACTION_COMPLETE添加到当前线程thread->todo队列;
6.唤醒目标进程target_proc开始执行事务。









下面就进入binder_thread_read读取数据

8.4、binder_thread_read

static int binder_thread_read(struct binder_proc *proc,
			      struct binder_thread *thread,
			      binder_uintptr_t binder_buffer, size_t size,
			      binder_size_t *consumed, int non_block)
{


	void __user *buffer = (void __user *)(uintptr_t)binder_buffer;
	void __user *ptr = buffer + *consumed;
	void __user *end = buffer + size;

	int ret = 0;
	int wait_for_proc_work;

	if (*consumed == 0) {


		if (put_user(BR_NOOP, (uint32_t __user *)ptr))
			return -EFAULT;
		ptr += sizeof(uint32_t);
	}

retry:
//binder_transaction()已设置transaction_stack不为空,则wait_for_proc_work为false.
	wait_for_proc_work = thread->transaction_stack == NULL &&
				list_empty(&thread->todo);

	//...

	thread->looper |= BINDER_LOOPER_STATE_WAITING;
	if (wait_for_proc_work)
		proc->ready_threads++;

	if (wait_for_proc_work) {


		if (non_block) {


			...
		} else
		//当进程todo队列没有数据,则进入休眠等待状态
			ret = wait_event_freezable_exclusive(proc->wait, binder_has_proc_work(proc, thread));
	} else {


		if (non_block) {


			...
		} else
		//当线程todo队列有数据则执行往下执行;当线程todo队列没有数据,则进入休眠等待状态
			ret = wait_event_freezable(thread->wait, binder_has_thread_work(thread));  //1
	}

	if (wait_for_proc_work)
		proc->ready_threads--;
	thread->looper &= ~BINDER_LOOPER_STATE_WAITING;

	if (ret)
		return ret;

	while (1) {


		uint32_t cmd;
		struct binder_transaction_data tr;
		struct binder_work *w;
		struct binder_transaction *t = NULL;
//先从线程todo队列获取事务数据
		if (!list_empty(&thread->todo)) {


			w = list_first_entry(&thread->todo, struct binder_work,
					     entry);
// 线程todo队列没有数据, 则从进程todo对获取事务数据
		} else if (!list_empty(&proc->todo) && wait_for_proc_work) {


			w = list_first_entry(&proc->todo, struct binder_work,
					     entry);
		} else {


			/* no data added */
			//没有数据,则返回retry
			if (ptr - buffer == 4 &&
			    !(thread->looper & BINDER_LOOPER_STATE_NEED_RETURN))
				goto retry;
			break;
		}

		if (end - ptr < sizeof(tr) + 4)
			break;

		switch (w->type) {


		case BINDER_WORK_TRANSACTION: {


		//获取transaction数据
			t = container_of(w, struct binder_transaction, work);
		} break;
		case BINDER_WORK_TRANSACTION_COMPLETE: {


			cmd = BR_TRANSACTION_COMPLETE;
			//将BR_TRANSACTION_COMPLETE写入*ptr,并跳出循环。
			if (put_user(cmd, (uint32_t __user *)ptr))
				return -EFAULT;
			ptr += sizeof(uint32_t);

			binder_stat_br(proc, thread, cmd);
			...

			list_del(&w->entry);
			kfree(w);
			binder_stats_deleted(BINDER_STAT_TRANSACTION_COMPLETE);
		} break;
		case BINDER_WORK_NODE: ... break;
		case BINDER_WORK_DEAD_BINDER:
		case BINDER_WORK_DEAD_BINDER_AND_CLEAR:
		case BINDER_WORK_CLEAR_DEATH_NOTIFICATION: ...break;
	}
	//只有BINDER_WORK_TRANSACTION命令才能继续往下执行
	if (!t)
		continue;

	if (t->buffer->target_node) {


	//获取目标node
		struct binder_node *target_node = t->buffer->target_node;

		tr.target.ptr = target_node->ptr;
		tr.cookie =  target_node->cookie;
		t->saved_priority = task_nice(current);
	...
		cmd = BR_TRANSACTION;//设置命令为BR_TRANSACTION
	} else {


		tr.target.ptr = 0;
		tr.cookie = 0;
		cmd = BR_REPLY;//设置命令为BR_REPLY
	}
	tr.code = t->code;
	tr.flags = t->flags;
	tr.sender_euid = from_kuid(current_user_ns(), t->sender_euid);

	if (t->from) {


		struct task_struct *sender = t->from->proc->tsk;

		tr.sender_pid = task_tgid_nr_ns(sender,
						task_active_pid_ns(current));
	} else {


		tr.sender_pid = 0;
	}

	tr.data_size = t->buffer->data_size;
	tr.offsets_size = t->buffer->offsets_size;
	tr.data.ptr.buffer = (binder_uintptr_t)(
				(uintptr_t)t->buffer->data +
				proc->user_buffer_offset);
	tr.data.ptr.offsets = tr.data.ptr.buffer +
				ALIGN(t->buffer->data_size,
				    sizeof(void *));
	//将cmd和数据写回用户空间
	if (put_user(cmd, (uint32_t __user *)ptr))
		return -EFAULT;
	ptr += sizeof(uint32_t);
	if (copy_to_user(ptr, &tr, sizeof(tr)))
		return -EFAULT;
	ptr += sizeof(tr);

	trace_binder_transaction_received(t);
	binder_stat_br(proc, thread, cmd);
//...

	list_del(&t->work.entry);
	t->buffer->allow_user_free = 1;
	if (cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)) {


		t->to_parent = thread->transaction_stack;
		t->to_thread = thread;
		thread->transaction_stack = t;
	} else {


		t->buffer->transaction = NULL;
		kfree(t);
		binder_stats_deleted(BINDER_STAT_TRANSACTION);
	}
	break;
	}
done:

	*consumed = ptr - buffer;
	if (proc->requested_threads + proc->ready_threads == 0 &&
	    proc->requested_threads_started < proc->max_threads &&
	    (thread->looper & (BINDER_LOOPER_STATE_REGISTERED |
	     BINDER_LOOPER_STATE_ENTERED)) /* the user-space code fails to */
	     /*spawn a new thread if we leave this out */) {


		proc->requested_threads++;
		binder_debug(BINDER_DEBUG_THREADS,
			     "%d:%d BR_SPAWN_LOOPER\n",
			     proc->pid, thread->pid);
			     // 生成BR_SPAWN_LOOPER命令,用于创建新的线程
		if (put_user(BR_SPAWN_LOOPER, (uint32_t __user *)buffer))
			return -EFAULT;
		binder_stat_br(proc, thread, BR_SPAWN_LOOPER);
	}
	return 0;
}

在前面知道写入目标进程的同时,写入了BINDER_WORK_TRANSACTION_COMPLETE到当前用户进程空间

复习下waitForResponse方法

status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
    uint32_t cmd;
    int32_t err;

    while (1) {
       if ((err=talkWithDriver()) < NO_ERROR) break;  //talkWithDriver
//...
        cmd = (uint32_t)mIn.readInt32();
        switch (cmd) {
        case BR_TRANSACTION_COMPLETE:
            if (!reply && !acquireResult) goto finish;
            break;

        case BR_DEAD_REPLY:
            err = DEAD_OBJECT;
            goto finish;

        case BR_FAILED_REPLY:
            err = FAILED_TRANSACTION;
            goto finish;

        case BR_ACQUIRE_RESULT:
           ...
            goto finish;

        case BR_REPLY:
            {
            ...
            goto finish;

        default:
            err = executeCommand(cmd);
            if (err != NO_ERROR) goto finish;
            break;
        }
    }

...
}

对于非oneway的需要服务端返回才会结束通信过程,接收到驱动写回的BR_TRANSACTION_COMPLETE命令,不会结束通信过程,继续走talkWithDriver方法,此时mOut没数据,走binder_thread_read方法,在该方法注释1处等待服务端reply数据。

九、参考文章

Binder系列—开篇

彻底理解Android Binder通信架构

Android应用启动的实质(二)

Binder机制之一次响应的故事

Binder——从发起通信到talkWithDriver()

听说你Binder机制学的不错,来面试下这几个问题(一)

ZygoteInit从c到java

易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
