实验目的
一般情况下，k8s集群中只有一台master和多台node，当master故障时，引发的事故后果可想而知。
故本文目的在于体现集群的高可用，即当集群中的一台master宕机后，k8s集群通过vip的转移，又会有新的节点被选举为集群的master，并保持集群的正常运作。
因本文体现的是master节点的高可用，为了实现效果，同时因资源条件限制，故总共采用4台服务器完成本次实验，3台master，1台node。
看到这也需有人有疑惑，总共有4台机器的资源，为啥不能2台master呢？这是因为通过kubeadm部署的集群，当中的etcd集群默认部署在master节点上，3节点方式最多能容忍1台服务器宕机。如果是2台master，当中1台宕机了，直接导致etcd集群故障，以至于k8s集群异常，这些基础环境都over了，vip漂移等高可用也就在白瞎。
环境说明
基本信息
# 主机列表
10.2.2.137 master1
10.2.2.166 master2
10.2.2.96 master3
10.2.3.27 node0
# 软件版本
docker version：18.09.9
k8s version：v1.16.4
架构信息

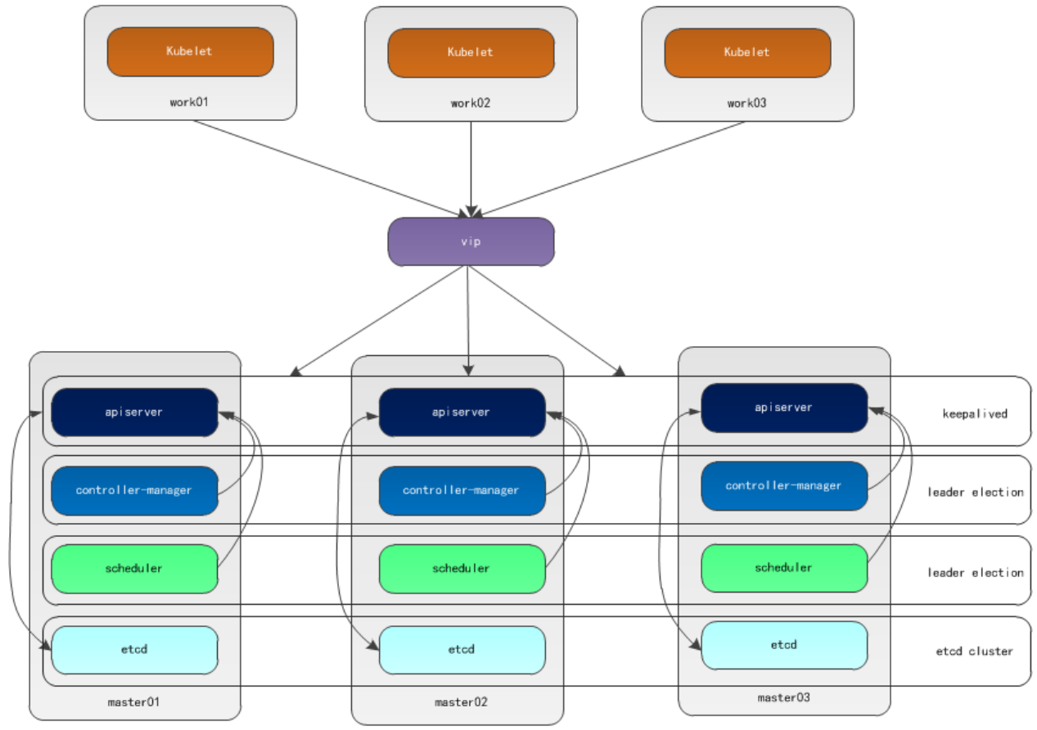

本文采用kubeadm方式搭建集群，通过keepalived的vip策略实现高可用，架构图如下：

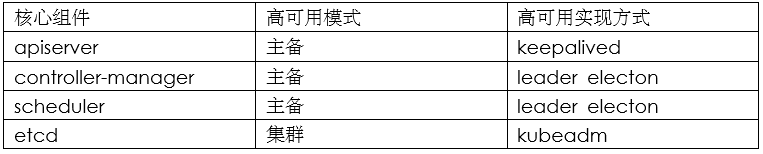

# 主备模式高可用架构说明
a）apiserver通过keepalived实现高可用，当某个节点故障时触发vip转移；
b）controller-manager和scheduler在k8s内容通过选举方式产生领导者（由leader-elect选型控制，默认为true），同一时刻集群内只有一个scheduler组件运行；
c）etcd在kubeadm方式实现集群时，其在master节点会自动创建etcd集群，来实现高可用，部署的节点为奇数，3节点方式最多容忍一台机器宕机。
环境准备
说明
1、大多数文章都是一步步写命令写步骤，而对于有部署经验的人来说觉得繁琐化了，故本文大部分服务器shell命令操作都将集成到脚本；
2、本文相关shell脚本地址： https://gitee.com/kazihuo/k8s-install-shell
3、所有要加入到k8s集群的机器都执行本部分操作。
操作
a）将所有服务器修改成对应的主机名，master1示例如下；
# hostnamectl set-hostname master1 #重新登录后显示新设置的主机名
b）配置master1到master2、master3免密登录，本步骤只在master1上执行；
[root@master1 ~]# ssh-keygen -t rsa # 一路回车
[root@master1 ~]# ssh-copy-id -i /root/.ssh/id_rsa.pub root@10.2.2.166
[root@master1 ~]# ssh-copy-id -i /root/.ssh/id_rsa.pub root@10.2.2.96
c）脚本实现环境需求配置；
# sh set-prenv.sh
#!/bin/bash
#====================================================
# Author: LuoMuRui
# Blog: https://www.cnblogs.com/kazihuo
# Create Date: 2020-04-02
# Description: System environment configuration.
#====================================================
# Stop firewalld
firewall-cmd --state #查看防火墙状态
systemctl stop firewalld.service #停止firewall
systemctl disable firewalld.service #禁止firewall开机启动
# Close selinux
getenforce #查看selinux状态
setenforce 0 #临时关闭selinux
sed -i 's/^ *SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config #永久关闭（需重启系统）
# Set localhost's dns
cat >> /etc/hosts << EOF
10.2.2.137 master1
10.2.2.166 master2
10.2.2.96 master3
10.2.3.27 node0
EOF
# Disable swap
swapoff -a #临时禁用
sed -i.bak '/swap/s/^/#/' /etc/fstab #永久禁用
# Kernel parameter modification
# k8s网络使用flannel，该网络需要设置内核参数bridge-nf-call-iptables=1，修改这个参数需要系统有br_netfilter模块
lsmod |grep br_netfilter # 查看模块
modprobe br_netfilter # 临时新增
# 永久新增模块
cat > /etc/rc.sysinit << EOF
#!/bin/bash
for file in /etc/sysconfig/modules/*.modules ; do
[ -x $file ] && $file
done
EOF
cat > /etc/sysconfig/modules/br_netfilter.modules << EOF
modprobe br_netfilter
EOF
chmod 755 /etc/sysconfig/modules/br_netfilter.modules
cat <<EOF > /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl -p /etc/sysctl.d/k8s.conf
# Set the yum of k8s
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
yum clean all && yum -y makecache软件安装
docker安装
说明：所有节点都执行本部分操作！
# sh install-docker.sh
#!/bin/bash
#====================================================
# Author: LuoMuRui
# Blog: https://www.cnblogs.com/kazihuo
# Create Date: 2020-04-02
# Description: Install docker.
#====================================================
# Install dependency package
yum install -y yum-utils device-mapper-persistent-data lvm2
# Add repo
yum-config-manager \
--add-repo \
https://download.docker.com/linux/centos/docker-ce.repo
# Looking the version of docker
yum list docker-ce --showduplicates | sort -r
# Install docker
yum install docker-ce-18.09.9 docker-ce-cli-18.09.9 containerd.io -y
# Mirror acceleration & change Cgroup Driver
# 修改cgroupdriver是为了消除告警：[WARNING IsDockerSystemdCheck]: detected “cgroupfs” as the Docker cgroup driver. The recommended driver is “systemd”. Please follow the guide at https://kubernetes.io/docs/setup/cri/
cat > daemon.json <<EOF
{
"registry-mirrors": ["https://registry.docker-cn.com"],
"exec-opts": ["native.cgroupdriver=systemd"]
}
EOF
# Start && enable
systemctl daemon-reload
systemctl start docker
systemctl enable docker
docker --version
# Others
yum -y install bash-completion
source /etc/profile.d/bash_completion.shkeepalived安装
说明：三台master节点执行本部分操作！
# 安装
# yum -y install keepalived
# 配置
# master1上keepalived配置
[root@master1 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
router_id master1
}
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 51
priority 150
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.2.2.6
}
}# master2上keepalived配置
[root@master2 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
router_id master2
}
vrrp_instance VI_1 {
state BACKUP
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.2.2.6
}
}# master3上keepalived配置
[root@master3 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
router_id master3
}
vrrp_instance VI_1 {
state BACKUP
interface eth0
virtual_router_id 51
priority 50
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.2.2.6
}
}# 启动
# service keepalived start
# systemctl enable keepalived

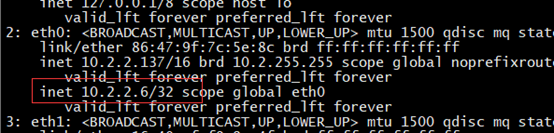

# vip查看
[root@master1 ~]# ip a
# 功能功验
将master1上的keepalived服务器停止或者master1服务器关机后，master2上接管vip，同时master2也关机后，master3接管vip。
k8s安装
说明：所有节点都执行本部分操作！
组件:
kubelet
运行在集群所有节点上，用于启动Pod和容器等对象的工具
kubeadm
用于初始化集群，启动集群的命令工具
kubectl
用于和集群通信的命令行，通过kubectl可以部署和管理应用，查看各种资源，创建、删除和更新各种组件
# sh install-k8s.sh
#!/bin/bash
#====================================================
# Author: LuoMuRui
# Blog: https://www.cnblogs.com/kazihuo
# Create Date: 2020-04-02
# Description: Install the soft of k8s.
#====================================================
# Looking the version
yum list kubelet --showduplicates | sort -r
# Install
yum install -y kubelet-1.16.4 kubeadm-1.16.4 kubectl-1.16.4
# Start && enable
systemctl enable kubelet && systemctl start kubelet
# Bash env
echo "source <(kubectl completion bash)" >> ~/.bash_profile
source /root/.bash_profile镜像下载
说明：所有节点都执行本部分操作！
因国内网络的限制，故从阿里云镜像仓库下载镜像后本地打回默认标签名的方式，让kubeadm在部署集群时能正常使用镜像。
# sh download-images.sh
#!/bin/bash
#====================================================
# Author: LuoMuRui
# Blog: https://www.cnblogs.com/kazihuo
# Create Date: 2020-04-02
# Description: Download images.
#====================================================
url=registry.cn-hangzhou.aliyuncs.com/loong576
version=v1.16.4
images=(`kubeadm config images list --kubernetes-version=$version|awk -F '/' '{print $2}'`)
for imagename in ${images[@]} ; do
docker pull $url/$imagename
docker tag $url/$imagename k8s.gcr.io/$imagename
docker rmi -f $url/$imagename
donemaster初始化
初始化操作
[root@master1 ~]# cat kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterConfiguration
kubernetesVersion: v1.16.4
apiServer:
certSANs:
- 10.2.2.6
controlPlaneEndpoint: "10.2.2.6:6443"
networking:
podSubnet: "10.244.0.0/16"[root@master01 ~]# kubeadm init --config=kubeadm-config.yaml
# 初始化成功后末尾显示kubeadm join的信息，记录下来；
You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:
kubeadm join 10.2.2.6:6443 --token 2ccecd.v72vziyzdfnbr46u \
--discovery-token-ca-cert-hash sha256:eb92768acb748d722ef7d97bc60751a375b67b12a46c7a7232c54cdb378d2e61 \
--control-plane
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 10.2.2.6:6443 --token 2ccecd.v72vziyzdfnbr46u \
--discovery-token-ca-cert-hash sha256:eb92768acb748d722ef7d97bc60751a375b67b12a46c7a7232c54cdb378d2e61# 初始化失败后可重新初始化
# kubeadm reset
# rm -rf $HOME/.kube/config
添加环境变量
echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
source ~/.bash_profile
安装flannel插件
# wget https://raw.githubusercontent.com/coreos/flannel/2140ac876ef134e0ed5af15c65e414cf26827915/Documentation/kube-flannel.yml
# kubectl apply -f kube-flannel.yml
control plane节点加入
证书分发
# master1将认证文件同步到其他master节点
[root@master1 ~]# sh cert-others-master.sh
USER=root
CONTROL_PLANE_IPS="master2 master3"
#CONTROL_PLANE_IPS="master2 master3"
for host in ${CONTROL_PLANE_IPS}; do
scp /etc/kubernetes/pki/ca.crt "${USER}"@$host:
scp /etc/kubernetes/pki/ca.key "${USER}"@$host:
scp /etc/kubernetes/pki/sa.key "${USER}"@$host:
scp /etc/kubernetes/pki/sa.pub "${USER}"@$host:
scp /etc/kubernetes/pki/front-proxy-ca.crt "${USER}"@$host:
scp /etc/kubernetes/pki/front-proxy-ca.key "${USER}"@$host:
scp /etc/kubernetes/pki/etcd/ca.crt "${USER}"@$host:etcd-ca.crt
# Quote this line if you are using external etcd
scp /etc/kubernetes/pki/etcd/ca.key "${USER}"@$host:etcd-ca.key
done# master2和master3节点配置证书
[root@master2 ~]# sh cert-set.sh
[root@master3 ~]# sh cert-set.sh
mv /${USER}/ca.crt /etc/kubernetes/pki/
mv /${USER}/ca.key /etc/kubernetes/pki/
mv /${USER}/sa.pub /etc/kubernetes/pki/
mv /${USER}/sa.key /etc/kubernetes/pki/
mv /${USER}/front-proxy-ca.crt /etc/kubernetes/pki/
mv /${USER}/front-proxy-ca.key /etc/kubernetes/pki/
mv /${USER}/etcd-ca.crt /etc/kubernetes/pki/etcd/ca.crt
# Quote this line if you are using external etcd
mv /${USER}/etcd-ca.key /etc/kubernetes/pki/etcd/ca.keyothers master加入集群
# master2和master3加入集群，下文以master2为示例，master3按部就班即可；
[root@master2 ~]# kubeadm join 10.2.2.6:6443 --token 2ccecd.v72vziyzdfnbr46u \
--discovery-token-ca-cert-hash sha256:eb92768acb748d722ef7d97bc60751a375b67b12a46c7a7232c54cdb378d2e61 \
--control-plane
[root@master2 ~]# scp master1:/etc/kubernetes/admin.conf /etc/kubernetes/
[root@master2 ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile && source .bash_profile
集群节点查看
# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master1 Ready master 20h v1.16.4
master2 Ready master 20h v1.16.4
master3 Ready master 19h v1.16.4node节点加入
加入操作
[root@node0 ~]# kubeadm join 10.2.2.6:6443 --token 2ccecd.v72vziyzdfnbr46u \
--discovery-token-ca-cert-hash sha256:eb92768acb748d722ef7d97bc60751a375b67b12a46c7a7232c54cdb378d2e61
节点查看
# kubectl get nodes
NAME STATUS ROLES AGE VERSION
node0 Ready <none> 18h v1.16.4
master1 Ready master 20h v1.16.4
master2 Ready master 20h v1.16.4
master3 Ready master 19h v1.16.4集群功能验证
操作
# 关机master1，模拟宕机
[root@master1 ~]# init 0
# vip飘到master2
[root@master2 ~]# ip a |grep '2.6'
inet 10.2.2.6/32 scope global eth0# 组件controller-manager和scheduler发生迁移
# kubectl get endpoints kube-controller-manager -n kube-system -o yaml |grep holderIdentity
control-plane.alpha.kubernetes.io/leader: '{"holderIdentity":"master3_885468ec-f9ce-4cc6-93d6-235508b5a130","leaseDurationSeconds":15,"acquireTime":"2020-04-01T10:15:28Z","renewTime":"2020-04-02T06:02:46Z","leaderTransitions":8}'# kubectl get endpoints kube-scheduler -n kube-system -o yaml |grep holderIdentity
control-plane.alpha.kubernetes.io/leader: '{"holderIdentity":"master2_cf16fd61-0202-4610-9a27-3cd9d26b4141","leaseDurationSeconds":15,"acquireTime":"2020-04-01T10:15:25Z","renewTime":"2020-04-02T06:03:09Z","leaderTransitions":9}'# 集群创建pod，依旧正常使用
# cat nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-test
spec:
selector:
matchLabels:
app: nginx
replicas: 3
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:latest# kubectl apply -f nginx.yaml
# kubectl get pods
结论
1、集群中3个master节点，无论哪个节点宕机，都不影响集群的正常使用；
2、当集群中3个master节点有2个故障，则造成etcd集群故障，直接影响集群，导致异常！
