mybatis环境配置与入门例子

余生长醉 提交于 2020-10-28 19:22:40

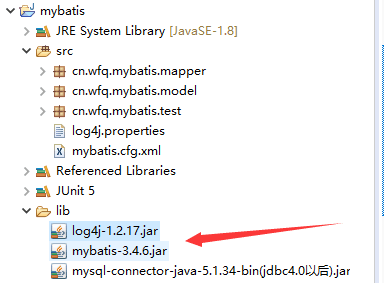

1、jar包的导入

  • mybatis需要jar包:mybatis-3.4.6.jar
  • mysql驱动jar包:mysql-connector-java-5.1.34.-bin.jar
  • 日志记录jar包:log4j-1.2.17.jar

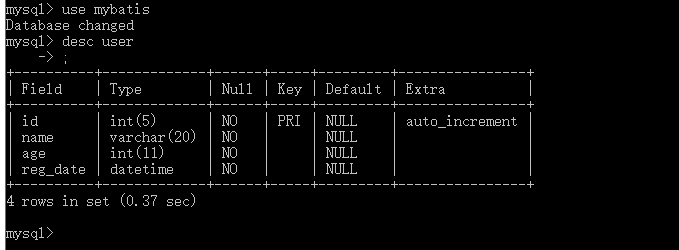

2、创建数据库并创建表(mysql)

  • 注意数据库表字段命名的规范

3、添加日志配置文件(log4j.properties)

# Configure logging for testing: optionally with log file
log4j.rootLogger=WARN, stdout
# log4j.rootLogger=WARN, stdout, logfile

log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d %p [%c] - %m%n

log4j.appender.logfile=org.apache.log4j.FileAppender
log4j.appender.logfile.File=target/spring.log
log4j.appender.logfile.layout=org.apache.log4j.PatternLayout
log4j.appender.logfile.layout.ConversionPattern=%d %p [%c] - %m%n

4、添加mybatis配置文件(mybatis.cfg.xml)

除数据库驱动,url,用户名,密码用自己实际的参数,其他的默认就可以

<configuration>
    	<environments default="development">
    		<environment id="development">
    			<transactionManager type="JDBC" />
    			<dataSource type="POOLED">
    			    <!--数据库驱动-->
    				<property name="driver" value="com.mysql.jdbc.Driver" />
    				<!--数据库url-->
    				<property name="url"
    					value="jdbc:mysql://localhost:3306/mybatis"></property>
    				<!--数据库用户名-->
    				<property name="username" value="root" />
    				<!--数据库密码-->
    				<property name="password" value="root" />
    			</dataSource>
    		</environment>
    	</environments>
    </configuration>

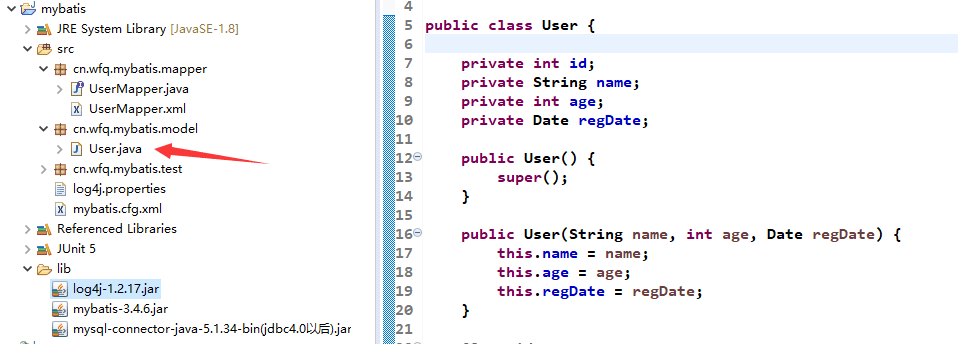

5、创建与数据库中表相关的实体类(POJO类)

  • 注意使用驼峰命名法

6、创建操作数据库的接口方法

    package cn.wfq.mybatis.mapper;

    import java.util.List;

    import cn.wfq.mybatis.model.User;

    public interface UserMapper {
	/**
	 * 保存一条用户数据
	 * @param user
	 */
	public void saveUser(User user);

	/**
	 * 通过用户id获取一条记录
	 * @param id
	 * @return
	 */
	public User getOneUserById(int id);

	/**
	 * 修改用户数据
	 * @param user
	 */
	public void updateUser(User user);

	/**
	 * 根据id删除用户数据
	 * @param id
	 */
	public void deleteUser(int id);

	/**
	 * 获取所有用户数据
	 * @return
	 */
	public List<User> getAllUser();
}

7、添加操作数据表user的映射文件(userMapper.xml),并在mybatis.cfg.xml中注册

1、添加操作数据表user的映射文件(userMapper.xml)

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!--<mapper>标签用来使该xml文件与接口对应,'namespace'属性的参数应该是与xml文件相对应的接口的类路径,本例中就是我们第5步所写的'userMapper'接口-->
<mapper namespace="cn.wfq.mybatis.mapper.UserMapper">

    <!--insert、select、update、delete四个标签即代表这增删改查,这里就不解释了 -->

    <!--4个标签中的id值要与接口的方法名一一对应,这样执行方法时,就会执行与方法名相同的id中的sql语句,在标签中写入sql语句 -->
    <!--#{}这个符号表示要传入的参数,在`{}`中填入参数名 -->
	<insert id="saveUser" useGeneratedKeys="true" keyProperty="id">
		insert into user(name,age,reg_date) values
		(#{name},#{age},#{regDate})
	</insert>
	<!--resutlType这个属性的参数是返回值类型的全类名 -->
	<select id="getOneUserById" resultType="cn.wfq.mybatis.model.User">
		select * from user where id = #{id}
	</select>
	<select id="getAllUser" resultType="cn.wfq.mybatis.model.User">
		select * from user
	</select>
	<update id="updateUser">
		update user set
		name=#{name},age=#{age},reg_date=#{regDate} where id=#{id}
	</update>
	<delete id="deleteUser">
		delete from user where id = #{id}
	</delete>
</mapper>

2、在mybatis.cfg.xml中注册userMapper.xml

<mappers>
		<!-- 告知映射文件方式1,一个一个的配置
		<mapper resource="cn/wfq/mybatis/mapper/UserMapper.xml" /> -->
		<!-- 告知映射文件方式2,自动扫描包内的Mapper接口与配置文件 -->
		<package name="cn/wfq/mybatis/mapper" />
	</mappers>

8、编写junit测试类

package cn.wfq.mybatis.test;



import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.jupiter.api.Test;

import cn.wfq.mybatis.mapper.UserMapper;
import cn.wfq.mybatis.model.User;

class UserTest {

	/**
	 *  插入数据库测设
	 * @throws IOException
	 */
	@Test
	void testInsertUser() throws IOException {

		//获取配置文件 mybatis.cfg.xml 的输入流
		InputStream inputStream = Resources.getResourceAsStream("mybatis.cfg.xml");

		//构建 sqlSessionFactory 实例
		SqlSessionFactory sqlSessionFactory= new SqlSessionFactoryBuilder().build(inputStream);

		//获取操作数据库的会话
		SqlSession session = sqlSessionFactory.openSession();

		UserMapper userMapper = session.getMapper(UserMapper.class);
		User user = new User("晓东",18,new Date());

		try {
			userMapper.saveUser(user);
			System.out.println(user.toString());
			session.commit();
		}finally {
			session.close();
		}
	}

	/**
	 * 根据id获取一条数据测试
	 * @throws IOException
	 */
	@Test
	void testGetOneUserById() throws IOException {

		InputStream inputStream = Resources.getResourceAsStream("mybatis.cfg.xml");
		SqlSessionFactory sqlSessionFactory= new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession session = sqlSessionFactory.openSession();

		UserMapper userMapper = session.getMapper(UserMapper.class);
		User user = new User();

		try {
			user = userMapper.getOneUserById(10004);
			System.out.println(user.toString());
			session.commit();
		}finally {
			session.close();
		}
	}

	/**
	 * 获取所有数据
	 * @throws IOException
	 */
	@Test
	void testGetAllUser() throws IOException {

		InputStream inputStream = Resources.getResourceAsStream("mybatis.cfg.xml");
		SqlSessionFactory sqlSessionFactory= new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession session = sqlSessionFactory.openSession();

		UserMapper userMapper = session.getMapper(UserMapper.class);
		List<User> list = new ArrayList<User>();

		try {
			list = userMapper.getAllUser();
			for (User user : list) {
				System.out.println(user.toString());
			}
			session.commit();
		}finally {
			session.close();
		}
	}

	/**
	 * 修改数据
	 * @throws IOException
	 */
	@Test
	void testUpdateUser() throws IOException {

		InputStream inputStream = Resources.getResourceAsStream("mybatis.cfg.xml");
		SqlSessionFactory sqlSessionFactory= new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession session = sqlSessionFactory.openSession();

		UserMapper userMapper = session.getMapper(UserMapper.class);
		User user = new User("晓东",10,new Date());
		user.setId(10003);
		try {
			userMapper.updateUser(user);
			System.out.println(user.toString());
			session.commit();
		}finally {
			session.close();
		}
	}

	/**
	 * 删除数据
	 * @throws IOException
	 */
	@Test
	void testDeleteUser() throws IOException {

		InputStream inputStream = Resources.getResourceAsStream("mybatis.cfg.xml");
		SqlSessionFactory sqlSessionFactory= new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession session = sqlSessionFactory.openSession();

		UserMapper userMapper = session.getMapper(UserMapper.class);;
		try {
			userMapper.deleteUser(10003);
			session.commit();
		}finally {
			session.close();
		}
	}
}
