1. 准备工作

第一步去海关注册备案拿到ukey
去中华人民共和国海关总署下载179号文档
添加丁鑫微信说明情况会邀请你入群，进群先看公告

2. 接收海关请求

post方式（x-www-form-urlencoded）
从请求中获取openReq参数的值，该参数值是一个符合json标准的字符串，由于海关提交的请求是post方式（x-www-form-urlencoded），所以在url中是没有参数的，必须要从表单中获取该参数

海关数据示例

{

   "orderNo":"202009231454212140210352","sessionID":"032C3F56-0EE6-4558-B548-6C7A3451F07D","serviceTime":"1600852846372"}

接收完后需企业返回响应json格式数据 必须是json格式 10000表示成功 20000失败

{

    "code":"10000","message":"","serviceTime":1533271903898}

3. 组装数据和上传报文

使用接收到的sessionID就可以进行加签（前期可以自己模拟请求）
使用ukey进行加签获取签名（使用操作员ukey）
按照179号文档进行数据拼装

获取签名

1. 使用官方js请求时需按以下格式来请求

数据格式

"sessionID":"032C3F56-0EE6-4558-B548-6C7A3451F07D"||"payExchangeInfoHead":"{"guid":"E4766021-21AC-1AA2-21DD-E974DF93C11D","initalRequest":"<xml><appid><![CDATA[]]></appid><mch_id></mch_id><body><![CDATA[]]></body><nonce_str><![CDATA[]]></nonce_str><out_trade_no>202009231454212140210352</out_trade_no><total_fee>500</total_fee><spbill_create_ip><![CDATA[]]></spbill_create_ip><notify_url><![CDATA[]]></notify_url><openid><![CDATA[]]></openid><trade_type><![CDATA[JSAPI]]></trade_type><sign><![CDATA[]]></sign></xml>","initalResponse":"<xml><appid><![CDATA[]]></appid><bank_type><![CDATA[OTHERS]]></bank_type><cash_fee>500</cash_fee><fee_type><![CDATA[CNY]]></fee_type><is_subscribe><![CDATA[N]]></is_subscribe><mch_id></mch_id><nonce_str><![CDATA[]]></nonce_str><openid><![CDATA[]]></openid><out_trade_no></out_trade_no><result_code><![CDATA[SUCCESS]]></result_code><return_code><![CDATA[SUCCESS]]></return_code><sign><![CDATA[]]></sign><time_end>20200923145426</time_end><total_fee>500</total_fee><trade_type><![CDATA[JSAPI]]></trade_type><transaction_id>4200000681202009235085032319</transaction_id></xml>","ebpCode":"11111111","payCode":"4403169D3W","payTransactionId":"4200000681202009235085032319","totalAmount":5,"currency":"142","verDept":"3","payType":"4","tradingTime":"20200923145426","note":""}"||"payExchangeInfoLists":"[{"orderNo":"202009231454218421271832","goodsInfo":[{"gname":"济州花梨精华面膜","itemLink":"https://填写自己的商品地址"}],"recpAccount":"111111111","recpCode":"22222222222","recpName":"填写在海关注册的公司"}]"||"serviceTime":"1601282210417"

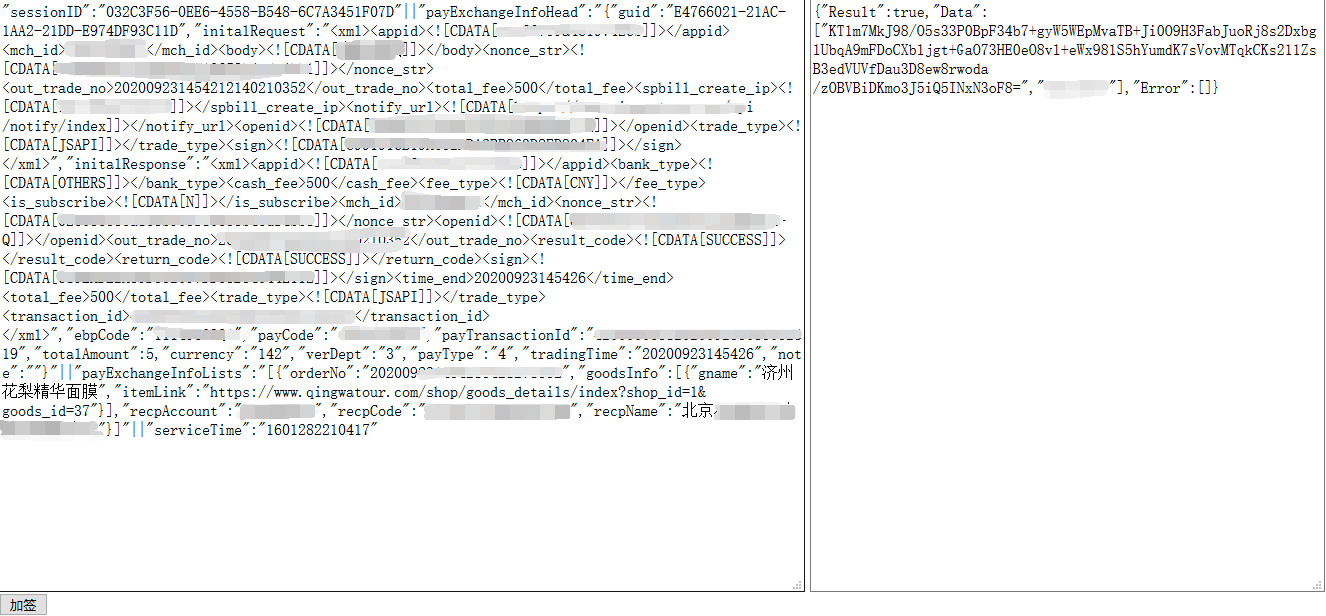

js请求示例
在这里插入图片描述

2. WebSocket请求

请求地址：
ws://127.0.0.1:61232
wss://wss.singlewindow.cn:61231

数据格式

{

   "_id":"1","_method":"cus-sec_SpcSignDataAsPEM","args":{

   "inData":"\"sessionID\":\"032C3F56-0EE6-4558-B548-6C7A3451F07D\"||\"payExchangeInfoHead\":\"{\"guid\":\"E4766021-21AC-1AA2-21DD-E974DF93C11D\",\"initalRequest\":\"<xml><appid><![CDATA[]]><\/appid><mch_id><\/mch_id><body><![CDATA[]]><\/body><nonce_str><![CDATA[]]><\/nonce_str><out_trade_no>202009231454212140210352<\/out_trade_no><total_fee>500<\/total_fee><spbill_create_ip><![CDATA[]]><\/spbill_create_ip><notify_url><![CDATA[https:\/\/www.qingwatour.com\/api\/notify\/index]]><\/notify_url><openid><![CDATA[]]><\/openid><trade_type><![CDATA[JSAPI]]><\/trade_type><sign><![CDATA[]]><\/sign><\/xml>\",\"initalResponse\":\"<xml><appid><![CDATA[]]><\/appid><bank_type><![CDATA[OTHERS]]><\/bank_type><cash_fee>500<\/cash_fee><fee_type><![CDATA[CNY]]><\/fee_type><is_subscribe><![CDATA[N]]><\/is_subscribe><mch_id><\/mch_id><nonce_str><![CDATA[]]><\/nonce_str><openid><![CDATA[]]><\/openid><out_trade_no>202009231454212140210352<\/out_trade_no><result_code><![CDATA[SUCCESS]]><\/result_code><return_code><![CDATA[SUCCESS]]><\/return_code><sign><![CDATA[]]><\/sign><time_end>20200923145426<\/time_end><total_fee>500<\/total_fee><trade_type><![CDATA[JSAPI]]><\/trade_type><transaction_id>4200000681202009235085032319<\/transaction_id><\/xml>\",\"ebpCode\":\"111111\",\"payCode\":\"4403169D3W\",\"payTransactionId\":\"4200000681202009235085032319\",\"totalAmount\":5,\"currency\":\"142\",\"verDept\":\"3\",\"payType\":\"4\",\"tradingTime\":\"20200923145426\",\"note\":\"\"}\"||\"payExchangeInfoLists\":\"[{\"orderNo\":\"202009231454218421271832\",\"goodsInfo\":[{\"gname\":\"\u6d4e\u5dde\u82b1\u68a8\u7cbe\u534e\u9762\u819c\",\"itemLink\":\"商品链接地址"}],\"recpAccount\":\"111111\",\"recpCode\":\"222222\",\"recpName\":\"测试测试"}]\"||\"serviceTime\":\"1601282210417\"","passwd":"88888888"}}

把加签数据替换成你自己的信息

获取到签名格式

{

   "Result":true,"Data":["KT1m7MkJ98/O5s33P0BpF34b7+gyW5WEpMvaTB+Ji0O9H3FabJuoRj8s2DxbglUbqA9mFDoCXbljgt+GaO73HE0eO8vl+eWx981S5hYumdK7sVovMTqkCKs211ZsB3edVUVfDau3D8ew8rwoda/zOBVBiDKmo3J5iQ5INxN3oF8=","证书"],"Error":[]}

上传报文

请求地址：https://customs.chinaport.gov.cn/ceb2grab/grab/realTimeDataUpload
方式：POST
参数名：payExInfoStr
参数类型: JSON

{

   "sessionID":"032C3F56-0EE6-4558-B548-6C7A3451F07D","payExchangeInfoHead":{

   "guid":"E4766021-21AC-1AA2-21DD-E974DF93C11D","initalRequest":"<xml><appid><![CDATA[xwxwxwxwx112121]]></appid><mch_id>11111111</mch_id><body><![CDATA[测试测试]]></body><nonce_str><![CDATA[ashdgahgdhaghgliqwueyqu1]]></nonce_str><out_trade_no>202009231454212140210352</out_trade_no><total_fee>500</total_fee><spbill_create_ip><![CDATA[192.168.0.1]]></spbill_create_ip><notify_url><![CDATA[https://www.baidu.com]]></notify_url><openid><![CDATA[adasyduiyasdhjxzycua-Q]]></openid><trade_type><![CDATA[JSAPI]]></trade_type><sign><![CDATA[asd1sa56d4545wqe44wq5]]></sign></xml>","initalResponse":"<xml><appid><![CDATA[xwxwxwxwx112121]]></appid><bank_type><![CDATA[OTHERS]]></bank_type><cash_fee>500</cash_fee><fee_type><![CDATA[CNY]]></fee_type><is_subscribe><![CDATA[N]]></is_subscribe><mch_id>11111111</mch_id><nonce_str><![CDATA[ashdgahgdhaghgliqwueyqu1]]></nonce_str><openid><![CDATA[adasyduiyasdhjxzycua-Q]]></openid><out_trade_no>202009231454212140210352</out_trade_no><result_code><![CDATA[SUCCESS]]></result_code><return_code><![CDATA[SUCCESS]]></return_code><sign><![CDATA[asgdhasgdhasgdhgasgdhasgdh]]></sign><time_end>20200923145426</time_end><total_fee>500</total_fee><trade_type><![CDATA[JSAPI]]></trade_type><transaction_id>4200000681202009235085032319</transaction_id></xml>","ebpCode":"请替换","payCode":"4403169D3W","payTransactionId":"4200000681202009235085032319","totalAmount":5,"currency":"142","verDept":"3","payType":"4","tradingTime":"20200923145426","note":""},"payExchangeInfoLists":[{

   "orderNo":"202009231454218421271832","goodsInfo":[{

   "gname":"济州花梨精华面膜","itemLink":"请替换"}],"recpAccount":"请替换","recpCode":"请替换","recpName":"请替换"}],"serviceTime":"1601282210417","certNo":"证书号要小写","signValue":"KT1m7MkJ98/O5s33P0BpF34b7+gyW5WEpMvaTB+Ji0O9H3FabJuoRj8s2DxbglUbqA9mFDoCXbljgt+GaO73HE0eO8vl+eWx981S5hYumdK7sVovMTqkCKs211ZsB3edVUVfDau3D8ew8rwoda/zOBVBiDKmo3J5iQ5INxN3oF8="}

4. 返回信息

{

   "code":"20006","message":"上传失败,入库失败 java.sql.SQLException: ORA-00001: 违反唯一约束条件 (sessionID重复)","total":0,"serviceTime":1603684304670}

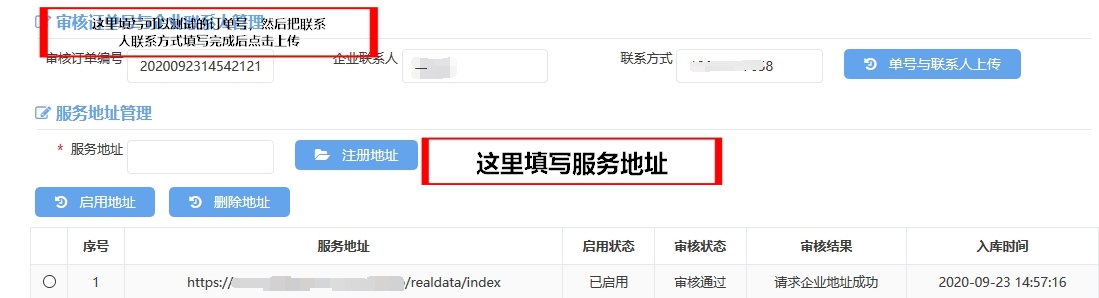

返回以上json如上就基本完成，因为这里sessionID是自己生成的或者第二次上传，才会返回sessionID重复。可以去海关http://ceb1.chinaport.gov.cn/填写测试订单号进行线上模拟测试

 {

   "code":"20004","message":"企业实时数据获取验签证书未在服务系统注册","total":0,"serviceTime":1603693566761}

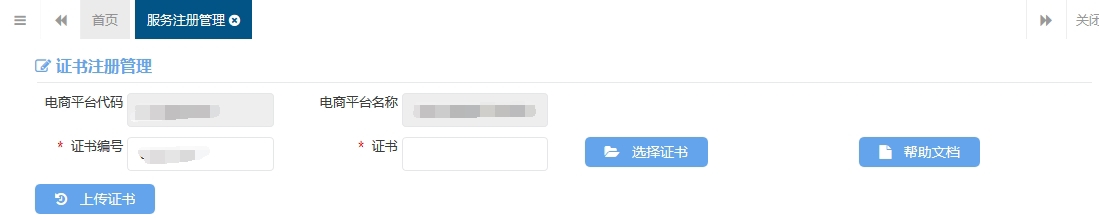

未上传证书编号和证书，这里需要注意的事项！！！证书编号需要小写，并且页面上传的和上传支付数据的证书编号保持一致！！！ 如果已上传请检查证书是否一致

{

   "code":"20005","message":"验签失败","total":0,"serviceTime":1603696878548}

查看数据格式是否出现问题，查看证书是否一致
有一些坑需要注意
文档中的payExchangeInfoList应该是payExchangeInfoLists
serviceTime必须是字符串类型
totalAmoun不是string类型

{

   "code":"10000","message":"上传成功","total":0,"serviceTime":1603696878548}

测试完成

第一次写这么长的文档可能有点乱，大佬勿喷，小弟十分感谢！
