MySQL的七种join



建表

在这里呢我们先来建立两张有外键关联的张表。

CREATE DATABASE db0206; USE db0206; CREATE TABLE `db0206`.`tbl_dept`( `id` INT(11) NOT NULL AUTO_INCREMENT, `deptName` VARCHAR(30), `locAdd` VARCHAR(40), PRIMARY KEY (`id`) ) ENGINE=INNODB CHARSET=utf8; CREATE TABLE `db0206`.`tbl_emp`( `id` INT(11) NOT NULL AUTO_INCREMENT, `name` VARCHAR(20), `deptId` INT(11), PRIMARY KEY (`id`), FOREIGN KEY (`deptId`) REFERENCES `db0206`.`tb_dept`(`id`) ) ENGINE=INNODB CHARSET=utf8; /*插入数据*/ INSERT INTO tbl_dept(deptName,locAdd) VALUES('RD',11); INSERT INTO tbl_dept(deptName,locAdd) VALUES('HR',12); INSERT INTO tbl_dept(deptName,locAdd) VALUES('MK',13); INSERT INTO tbl_dept(deptName,locAdd) VALUES('MIS',14); INSERT INTO tbl_dept(deptName,locAdd) VALUES('FD',15); INSERT INTO tbl_emp(NAME,deptId) VALUES('z3',1); INSERT INTO tbl_emp(NAME,deptId) VALUES('z4',1); INSERT INTO tbl_emp(NAME,deptId) VALUES('z5',1); INSERT INTO tbl_emp(NAME,deptId) VALUES('w5',2); INSERT INTO tbl_emp(NAME,deptId) VALUES('w6',2); INSERT INTO tbl_emp(NAME,deptId) VALUES('s7',3); INSERT INTO tbl_emp(NAME,deptId) VALUES('s8',4);

文氏图与SQL语句的编写以及查询结果

内连接

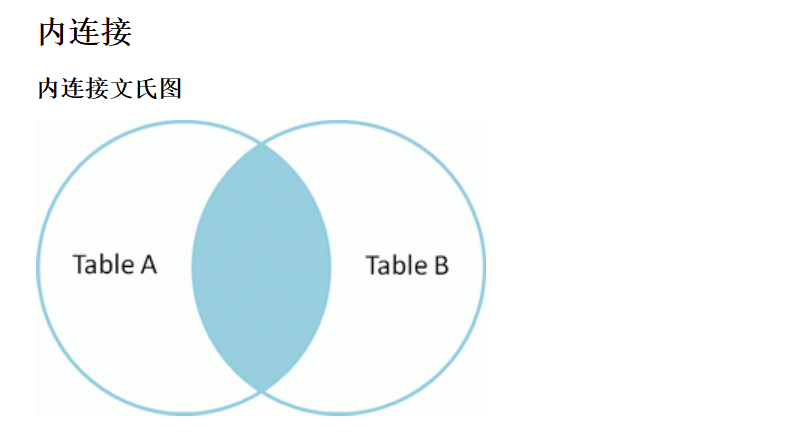

内连接文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

select * from tbl_dept a inner join tbl_emp b on a.id=b.deptId;

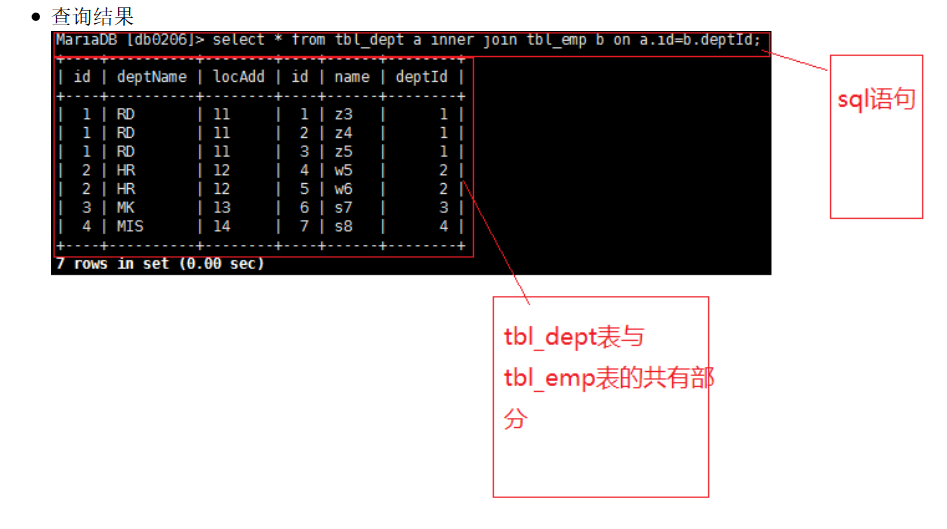

• 查询结果

左外连接

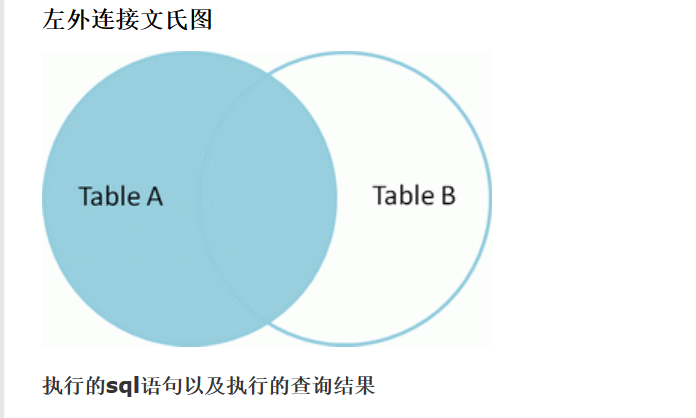

左外连接文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

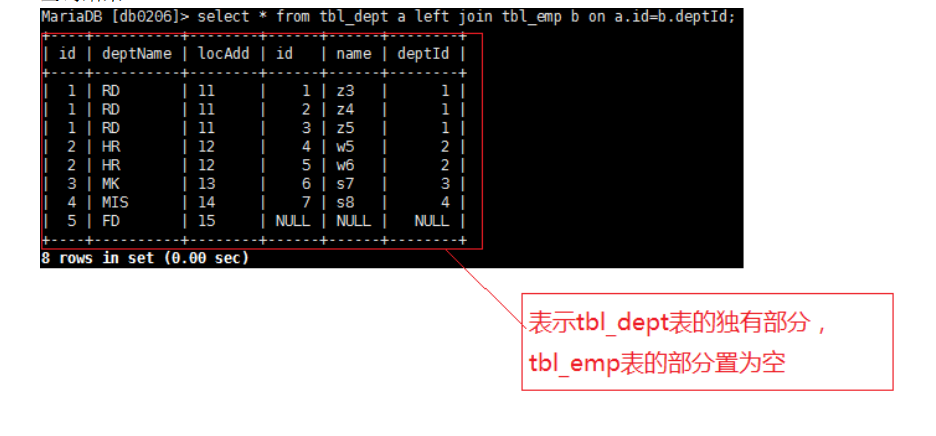

select * from tbl_dept a left join tbl_emp b on a.id=b.deptId;

• 查询结果


右外连接

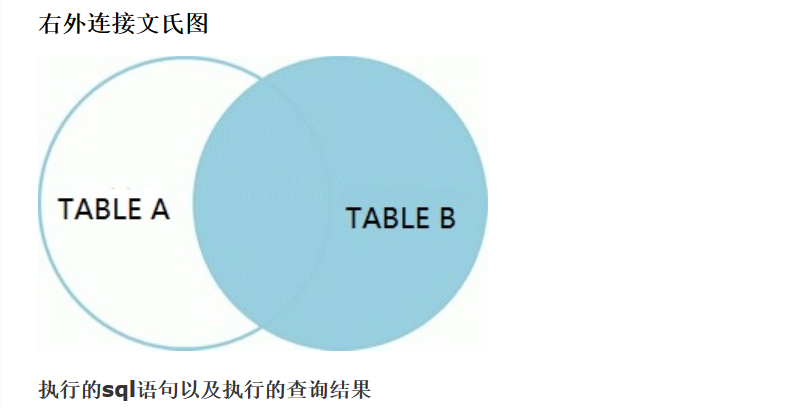

右外连接文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

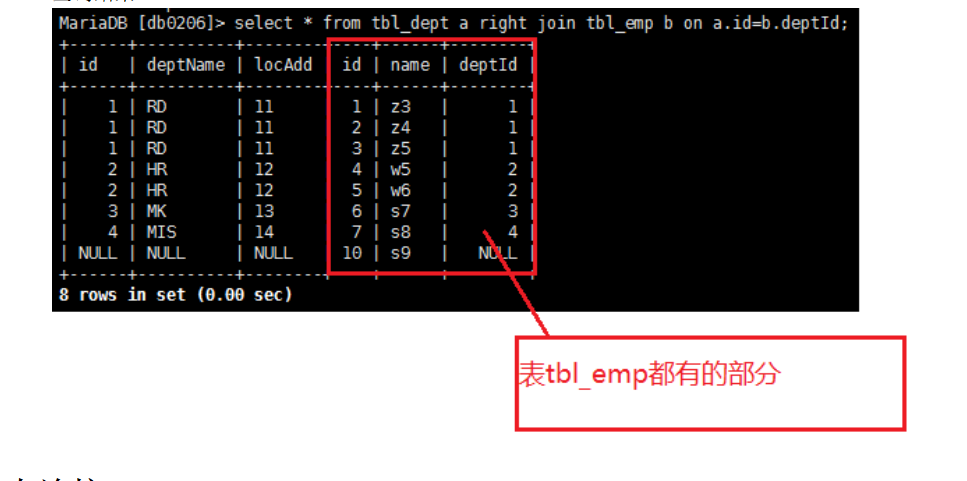

select * from tbl_dept a right join tbl_emp b on a.id=b.deptId;

• 查询结果

左连接

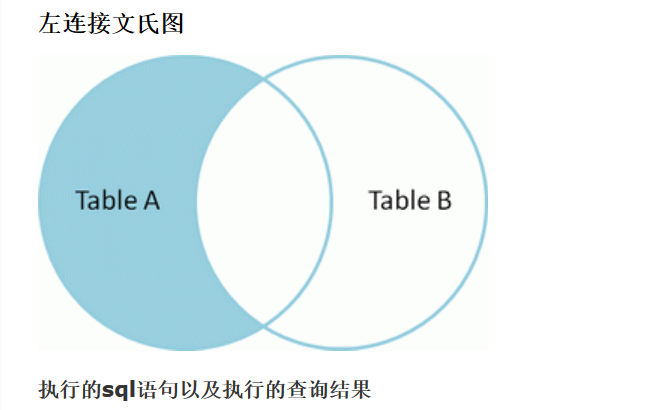

左连接文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

elect * from tbl_dept a left join tbl_emp b on a.id=b.deptId where b.deptId is null;

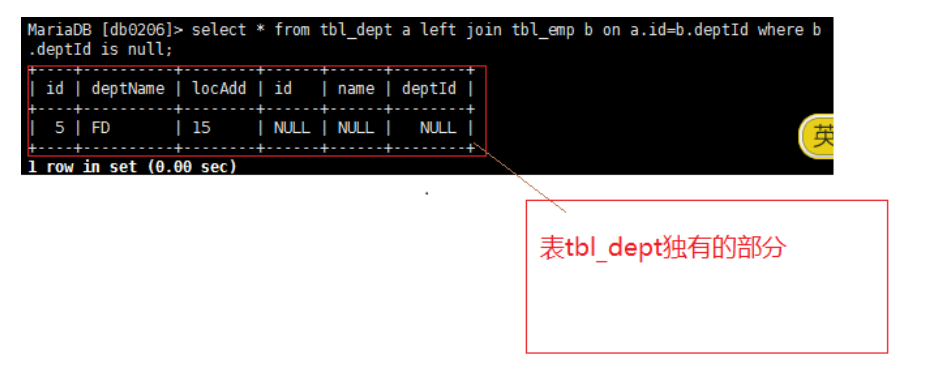

• 查询结果

右连接

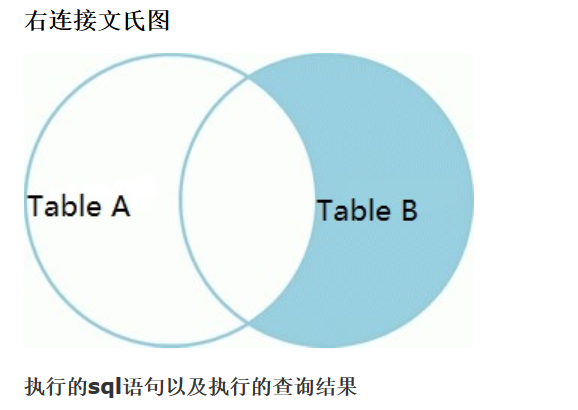

右连接文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

select * from tbl_dept a right join tbl_emp b on a.id=b.deptId where a.id is null;

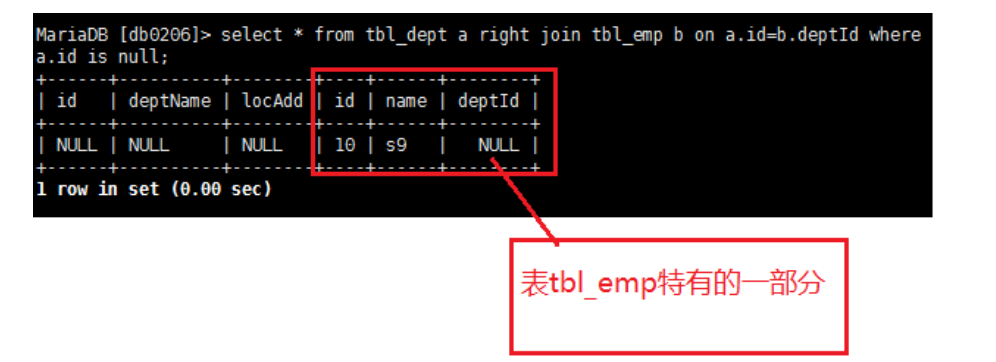

• 查询结果

全连接

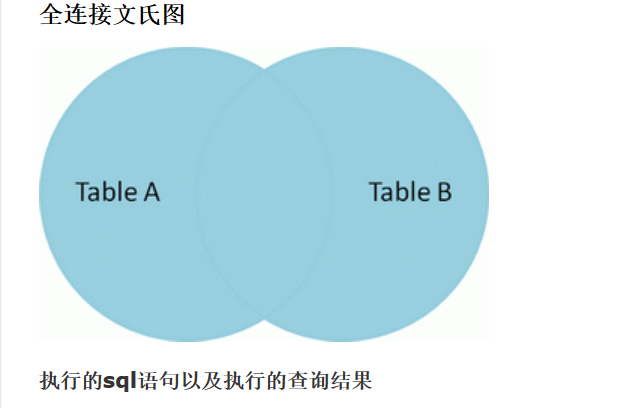

全连接文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

select * from tbl_dept a right join tbl_emp b on a.id=b.deptId union select * from tbl_dept a left join tbl_emp b on a.id=b.deptId;

• 查询结果



两张表中都没有出现的数据集

文氏图

执行的sql语句以及执行的查询结果

• 执行的sql语句

select * from tbl_dept a right join tbl_emp b on a.id=b.deptId where a.id is null union select * from tbl_dept a left join tbl_emp b on a.id=b.deptId where b.deptId is null;

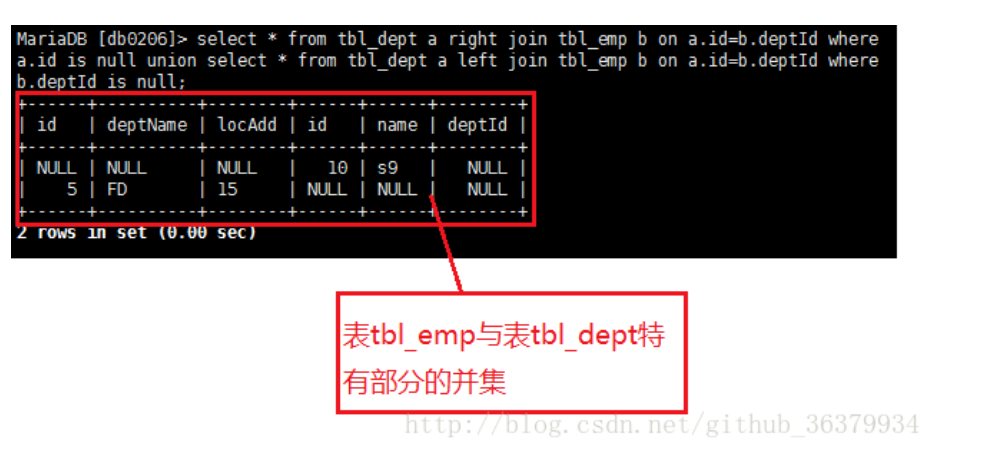

• 查询结果
