概述

权限是大部分的后台管理系统都需要实现的功能，用户控制不同的角色能够进行的不同的操作。Spring Security的可以进行用户的角色权限控制，也可以进行用户的操作权限控制。在之前的代码实现上，我们仅仅只是实现用户的登录，在用户信息验证的时候使用UserDetailsService，但是却一直忽略了用户的权限。

一. 启动类配置

/**
 * 开启方法的注解安全校验。
 *  securedEnabled  @Secured("ROLE_abc")  该注解是Spring security提供的
 *  jsr250Enabled  @RolesAllowed("admin")  该注解是 JSR250 支持的注解形式
 *  prePostEnabled @PreAuthorize("hasAuthority('user:add')
 */
@SpringBootApplication
@EnableGlobalMethodSecurity(securedEnabled = true, jsr250Enabled = true, prePostEnabled = true)
public class SecurityApplication {

    public static void main(String[] args) {
        SpringApplication.run(SecurityApplication.class, args);
    }
}

二. 基于角色的权限控制

2.1 自定义认证信息类, 查询用户的密码和权限

@Component
public class UserSecurityService implements UserDetailsService {


    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {

        /**
         * 调用形式有两种：
         *   1. 此时构建的 SimpleGrantedAuthority 必须是以 ROLE_ 开头, 例如 ROLE_admin, ROLE_manager.
         *      实现全权限控制的时候使用 @RolesAllowed("ROLE_admin")  或者 @RolesAllowed("admin") 都可以
         *   2. 此时构建的 SimpleGrantedAuthority 必须是以 ROLE_ 开头, 例如 ROLE_admin, ROLE_manager.
         *     实现全权限控制的时候使用 @Secured("ROLE_admin") ROLE_是不能省略的。
         */
        return new User(username, sysUser.getPassword(),
                Arrays.asList(new SimpleGrantedAuthority("ROLE_admin")));
    }
}

注意: 我们在构建SimpleGrantedAuthority对象的时候，用户的角色必须是以 ROLE_ 开头，例如 ROLE_admin、ROLE_manager

2.2 角色权限控制使用

在控制器上进行用户访问控制的时候，基于角色有两种书写方式：

方式一：@RolesAllowed

/**
 *  @RolesAllowed 中的值可以写成 "admin", 例如 @RolesAllowed("admin")
 *  推荐: @RolesAllowed 中的值还可以写成 "ROLE_admin"，例如 @RolesAllowed("ROLE_admin")
 */
@RequestMapping
@RolesAllowed("admin")
public Object getAll() {
    return Arrays.asList(new User(10, "张"), new User(20, "李四"));
}

方式二：@Secured

/**
 *  @Secured 中的值必须为 "ROLE_admin"，例如 @Secured("ROLE_admin")，ROLE_不能省略
 */
@RequestMapping
@Secured("ROLE_admin")
public Object getAll() {
    return Arrays.asList(new User(10, "张"), new User(20, "李四"));
}

三. 基于操作的权限控制

当然我们也可以使用基于操作的权限控制，这个功能稍显得有点累赘，因为在实际的项目开发过程中我们都是基于角色的权限控制。

3.1 自定义认证信息类, 查询用户的密码和权限

@Component
public class UserSecurityService implements UserDetailsService {

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
         /**
         *  A. new SimpleGrantedAuthority("user:delete")   @PreAuthorize("hasAnyAuthority('user:add', 'user:list')") 无法访问。
         *  B. new SimpleGrantedAuthority("user:add")     @PreAuthorize("hasAnyAuthority('user:add', 'user:list')") 可以访问。
         *  C. Arrays.asList(new SimpleGrantedAuthority("user:add"), new SimpleGrantedAuthority("user:list"))
         *     @PreAuthorize("hasAuthority('user:add') and hasAuthority('user:list')") 可以访问
         *  D. new SimpleGrantedAuthority("ROLE_admin") 定义角色
         *    @PreAuthorize("hasRole('admin')")  可以访问
         */
        return new User(username, sysUser.getPassword(),
                Arrays.asList(new SimpleGrantedAuthority("user:list"),
                new SimpleGrantedAuthority("user:add")
                ));
    }
}

3.2 控制器访问控制(针对角色)

/**
 *  @PreAuthorize 中的值可以为 "ROLE_admin", "admin"，
 *  例如 @PreAuthorize("hasRole('admin')") 或者为
 *      @PreAuthorize("hasRole('ROLE_admin')")
 */
@RequestMapping
@PreAuthorize("hasRole('admin')")
public Object getAll() {
    return Arrays.asList(new User(10, "张"), new User(20, "李四"));
}

3.3 控制器访问控制(针对操作)

@RequestMapping
// @PreAuthorize("hasAuthority('user:add') and hasAuthority('user:list')")
// @PreAuthorize("hasAuthority('user:add') or hasAuthority('user:list')")
@PreAuthorize("hasAnyAuthority('user:add', 'user:list')")
public Object getAll() {
    return Arrays.asList(new User(10, "张"), new User(20, "李四"));
}

3.4 访问无权限处理

.and()
.exceptionHandling()
.accessDeniedHandler(customizeAccessDeniedHandler)  //无权限访问处理, customizeAccessDeniedHandler为无权限处理操作类
.and()

四 .示例

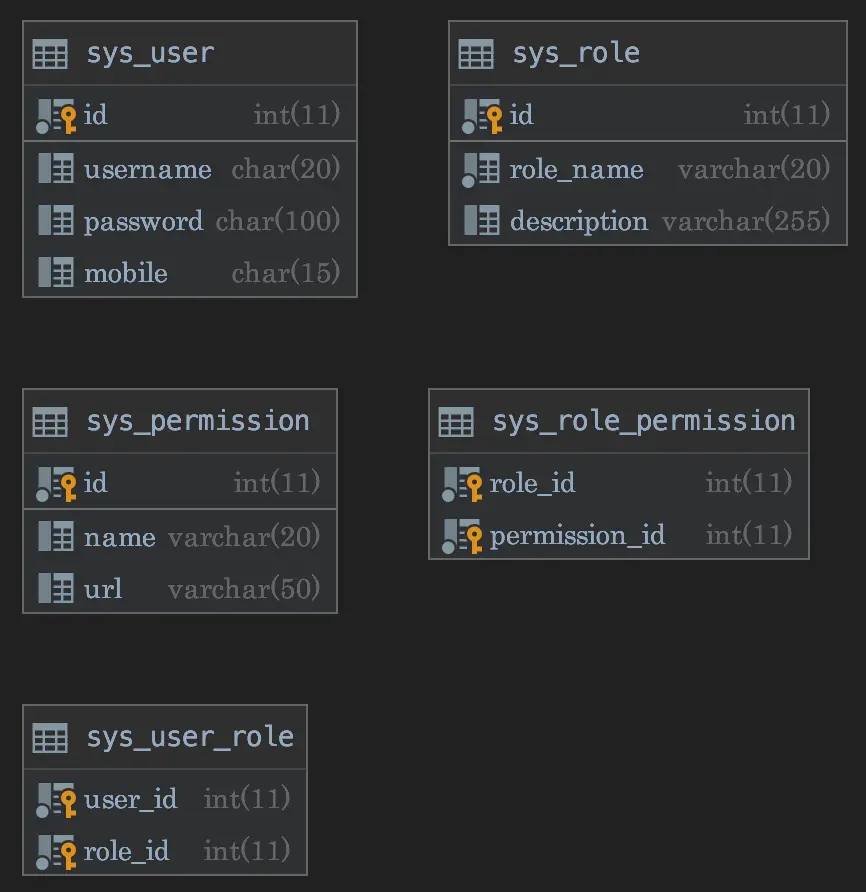

4.1 用户权限表设计

sql脚本

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for sys_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_permission`;
CREATE TABLE `sys_permission` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(20) DEFAULT NULL,
  `permmit` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC;

-- ----------------------------
-- Records of sys_permission
-- ----------------------------
BEGIN;
INSERT INTO `sys_permission` VALUES (1, '删除用户', 'user:delete');
INSERT INTO `sys_permission` VALUES (2, '展示用户', 'user');
INSERT INTO `sys_permission` VALUES (3, '添加用户', 'user:add');
INSERT INTO `sys_permission` VALUES (4, '编辑用户', 'user:edit');
INSERT INTO `sys_permission` VALUES (5, '导出用户', 'user:export');
INSERT INTO `sys_permission` VALUES (6, '部门展示', 'dept');
INSERT INTO `sys_permission` VALUES (7, '删除部门', 'dept:delete');
COMMIT;

-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `role_name` varchar(20) NOT NULL,
  `description` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC;

-- ----------------------------
-- Records of sys_role
-- ----------------------------
BEGIN;
INSERT INTO `sys_role` VALUES (1, 'admin', '系统管理员');
INSERT INTO `sys_role` VALUES (2, 'finance', '财务管理');
INSERT INTO `sys_role` VALUES (3, 'administration ', '行政管理');
COMMIT;

-- ----------------------------
-- Table structure for sys_role_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_role_permission`;
CREATE TABLE `sys_role_permission` (
  `role_id` int(11) NOT NULL,
  `permission_id` int(11) NOT NULL,
  PRIMARY KEY (`role_id`,`permission_id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC;

-- ----------------------------
-- Records of sys_role_permission
-- ----------------------------
BEGIN;
INSERT INTO `sys_role_permission` VALUES (1, 1);
INSERT INTO `sys_role_permission` VALUES (1, 2);
INSERT INTO `sys_role_permission` VALUES (1, 3);
INSERT INTO `sys_role_permission` VALUES (1, 4);
INSERT INTO `sys_role_permission` VALUES (1, 5);
INSERT INTO `sys_role_permission` VALUES (1, 6);
INSERT INTO `sys_role_permission` VALUES (1, 7);
INSERT INTO `sys_role_permission` VALUES (2, 2);
INSERT INTO `sys_role_permission` VALUES (2, 5);
INSERT INTO `sys_role_permission` VALUES (2, 6);
INSERT INTO `sys_role_permission` VALUES (3, 2);
INSERT INTO `sys_role_permission` VALUES (3, 6);
COMMIT;

-- ----------------------------
-- Table structure for sys_user
-- ----------------------------
DROP TABLE IF EXISTS `sys_user`;
CREATE TABLE `sys_user` (
  `id` int(11) NOT NULL,
  `username` char(20) DEFAULT NULL,
  `password` char(100) DEFAULT NULL,
  `mobile` char(15) DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=MyISAM DEFAULT CHARSET=utf8 ROW_FORMAT=FIXED;

-- ----------------------------
-- Records of sys_user
-- ----------------------------
BEGIN;
INSERT INTO `sys_user` VALUES (1, 'jack', '$2a$10$GqJuJhe7zmtwwThIed7smu9zMJBgSQzFMP47eEDL.g9tg8Y82.A7m', '13268050688');
INSERT INTO `sys_user` VALUES (2, 'rose', '$2a$10$GqJuJhe7zmtwwThIed7smu9zMJBgSQzFMP47eEDL.g9tg8Y82.A7m', '13268050688');
COMMIT;

-- ----------------------------
-- Table structure for sys_user_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_role`;
CREATE TABLE `sys_user_role` (
  `user_id` int(11) NOT NULL,
  `role_id` int(11) NOT NULL,
  PRIMARY KEY (`user_id`,`role_id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC;

-- ----------------------------
-- Records of sys_user_role
-- ----------------------------
BEGIN;
INSERT INTO `sys_user_role` VALUES (1, 1);
INSERT INTO `sys_user_role` VALUES (2, 2);
INSERT INTO `sys_user_role` VALUES (2, 3);
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

4.2 service层

@Service
public class SysUserService {
    @Autowired
    private JdbcTemplate jdbcTemplate;
    public SysUser getSysUserByUsenameOrMobile(String usernameOrMobile) throws EmptyResultDataAccessException {
        String sql = "select u.*, r.role_name, p.permmit from sys_user u join sys_user_role ur on u.id = ur.user_id " +
                "             join sys_role r on r.id = ur.role_id " +
                " join sys_role_permission rp on r.id = rp.role_id " +
                " join sys_permission p on rp.permission_id = p.id" +
                " where u.username = ? or u.mobile = ? ";
        List<Map<String, Object>> list = jdbcTemplate.queryForList(sql, usernameOrMobile, usernameOrMobile);
        SysUser sysUser = null;
        if(null != list && list.size() > 0) {
            sysUser = new SysUser();
            Map<String, Object> map = list.get(0);
            sysUser.setId((Integer)map.get("id"));
            sysUser.setUsername((String)map.get("username"));
            sysUser.setPassword((String)map.get("password"));
            sysUser.setMobile((String)map.get("mobile"));

            Set<String> roles = new HashSet<>();
            Set<String> permissions = new HashSet<>();
            // 是设置 角色
            list.forEach(rows -> {
                roles.add((String)rows.get("role_name"));
                permissions.add((String) rows.get("permmit"));
            });
            sysUser.setRoles(roles);
            sysUser.setPermissions(permissions);
        }
        return sysUser;
    }
}

4.3 用户权限的查询

// 该类的作用是处理用户登录名和密码
@Component
public class UserSecurityService implements UserDetailsService {
    private static Logger logger = LoggerFactory.getLogger(UserSecurityService.class);
    @Resource
    private SysUserService sysUserService;
    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        logger.info("用户名或者电话：" + username);
        SysUser sysUser = null;
        try{
            sysUser = sysUserService.getSysUserByUsenameOrMobile(username);
        }catch (EmptyResultDataAccessException exception) {  //没有对应的用户名异常
            throw new UsernameNotFoundException("用户或密码错误");
        }
        if(null == sysUser) {
            throw new UsernameNotFoundException("用户名或密码错误");
        }else {
            /**
             * User第一参数是：用户名
             *     第二个参数是：pssword, 是从数据库查出来的
             *     第三个参数是: 权限
             */
            User user =  null;
            try{
                user = new User(username,
                        sysUser.getPassword(),
//                        getAuthorities(sysUser.getRoles()));
                        getMethodsAuthorities(sysUser.getPermissions()));
            }catch (InternalAuthenticationServiceException exception) {
                throw exception;  // 在此处，将异常接着往外抛，抛给AuthenticationFailureHandler处理
            }
            return user;
        }
    }
    // [new SimpleGrantedAuthority("user:list"), new SimpleGrantedAuthority("user:add")]
    private List<SimpleGrantedAuthority> getMethodsAuthorities(Set<String> permissions) {
        List<SimpleGrantedAuthority> list = new ArrayList<>();
        if(null != permissions && permissions.size() > 0){
            permissions.forEach(permission -> {
                SimpleGrantedAuthority simpleGrantedAuthority = new SimpleGrantedAuthority(permission); // user:list dept:list
                list.add(simpleGrantedAuthority);
            });
        }
        return list;
    }
    // [new SimpleGrantedAuthority("ROLE_admin"), new SimpleGrantedAuthority("ROLE_xxx")]
    // 封装用户角色权限
    private List<SimpleGrantedAuthority> getAuthorities(Set<String> roles) {
        List<SimpleGrantedAuthority> list = new ArrayList<>();
       if(null != roles && roles.size() > 0){
            roles.forEach(role -> {
                SimpleGrantedAuthority simpleGrantedAuthority = new SimpleGrantedAuthority("ROLE_" + role);
                list.add(simpleGrantedAuthority);
            });
        }
        return list;
    }
}

4.4 Controller层

// @RolesAllowed("admin")
@RequestMapping("/user")
@Controller
public class UserController {

    /**
     * This annotation can be specified on a class or on method(s). Specifying it
     *  at a class level means that it applies to all the methods in the class.
     *  Specifying it on a method means that it is applicable to that method only.
     *
     * @RolesAllowed  可以写的值 ROLE_admin  admin
     *
     * he <code>Secured</code> annotation is used to define a list of security configuration
     *  attributes for business methods.
     * @Secured  只支持ROLE_admin  尽量用在service中。
     */
    @RequestMapping
    // @RolesAllowed("admin")
    // @Secured({"ROLE_admin", "ROLE_finance"})
    // @PreAuthorize("hasAuthority('user:list')")
    public Object get() {
        return "/index.html";
    }


    @ResponseBody
    @RequestMapping("/list")
    // @PreAuthorize("hasRole('ROLE_admin')")
    //@RolesAllowed({"admin", "finance", "administration "})
    // @PreAuthorize("hasRole('admin') or hasRole('finance')")
    // @PreAuthorize("hasRole('admin') and hasRole('finance')")  //表是同时拥有这两个角色才能访问
    // @PreAuthorize("hasAnyRole('admin', 'finance')")  //与上面的属性形式一样
    // @PreAuthorize("hasAuthority('user:list')") //3个用户都有这个权限
    public Object list() {
        return "list";
    }

    @ResponseBody
    @RequestMapping("/delete")
    // @PreAuthorize("hasAuthority('user:delete')") //只有jack
    public Object delete() {
        return "delete";
    }

    @ResponseBody
    @RequestMapping("/export")
    // @PreAuthorize("hasAuthority('user:export')") // 只有rose, jack
    public Object export() {
        return "export";
    }
}
