一、工具说明
开发工具:idea2019
jdk版本:1.8
数据库: Mysql5.0+
二、项目说明
基于springboot2.0,整合druid, jpa , thymeleaf,layui,mybatis,maven,springsecurity框架实现登入登出的管理系统。
三、项目搭建
1、快速搭建maven项目

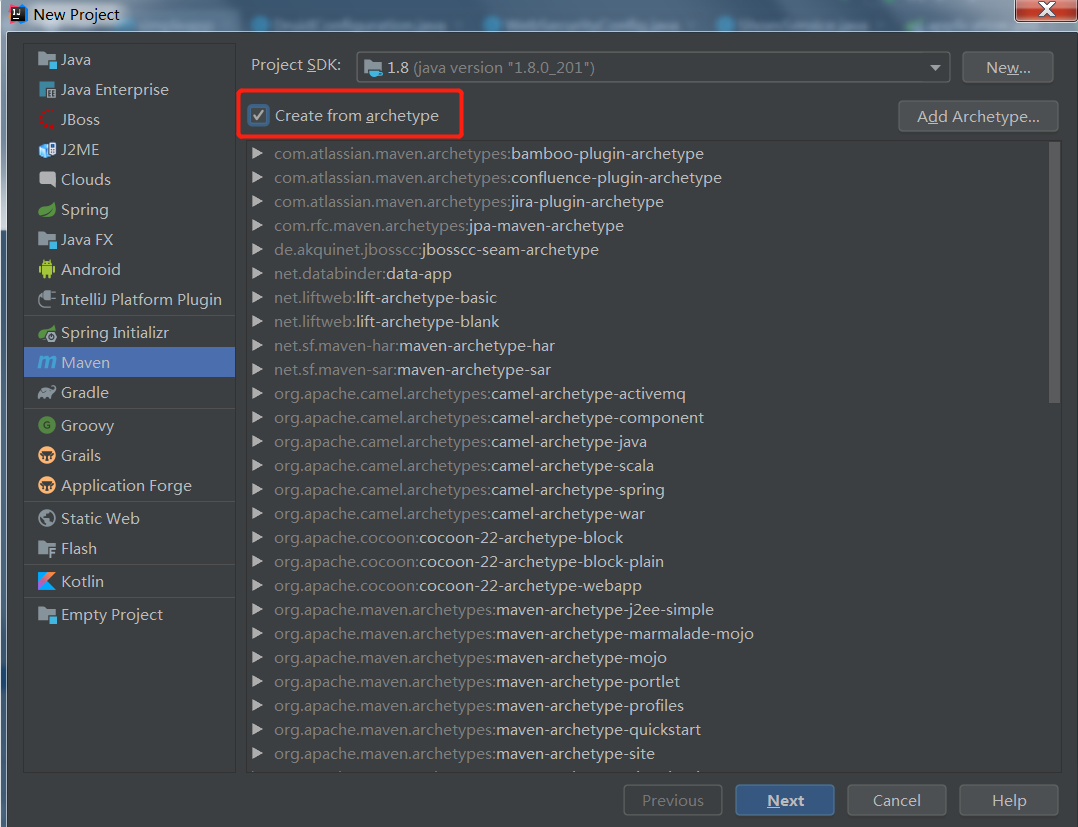

(1)点击左侧Maven,选择Jdk1.8,选中 Create from archetype,点击next。

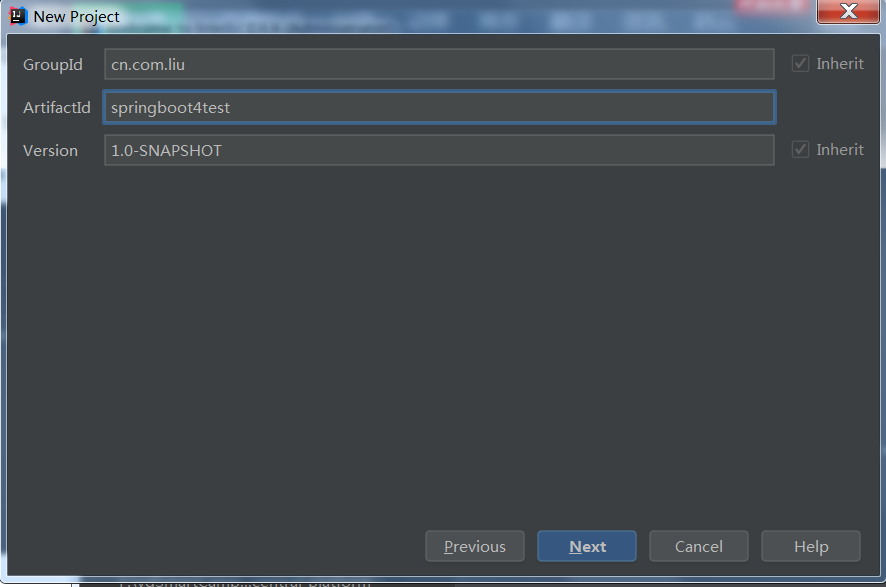

(2)填写项目信息,点击next

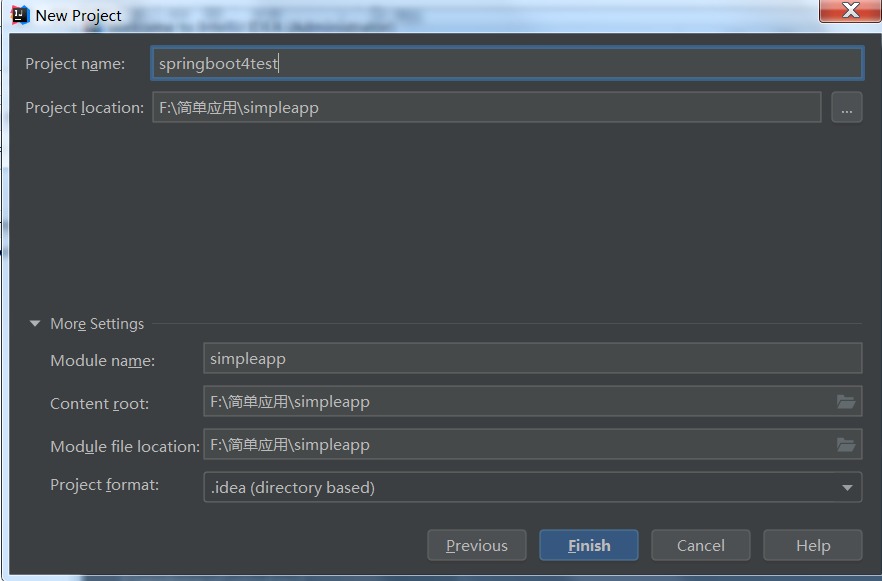

(3)选择项目位置,点击finish。

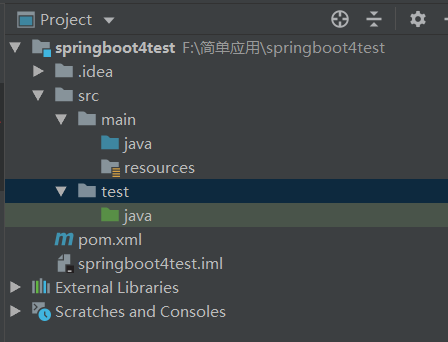

(4)项目结构图如下:
2、引入相关依赖
<!-- springboot 2.0.9 -->
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.9.RELEASE</version>
</parent>
<dependencies>
<!--springboot -web 组件,整合 springmvc,spring -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency>
<!--引入springthymeleaf -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<!-- springboot 整合mybatis-->
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>1.1.1</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.25</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.16.16</version>
</dependency>
<dependency>
<groupId>io.swagger</groupId>
<artifactId>swagger-annotations</artifactId>
<version>1.5.22</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.16</version>
<scope>compile</scope>
</dependency>
<!--alibaba-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.0.24</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.30</version>
</dependency>
<dependency>
<groupId>com.xiaoleilu</groupId>
<artifactId>hutool-all</artifactId>
<version>3.3.0</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.6</version>
</dependency>
<dependency>
<groupId>commons-lang</groupId>
<artifactId>commons-lang</artifactId>
<version>2.6</version>
</dependency>
<dependency>
<groupId>org.codehaus.jackson</groupId>
<artifactId>jackson-mapper-asl</artifactId>
<version>1.9.13</version>
</dependency>
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>1.2.4</version>
</dependency>
</dependencies>
3.配置相关参数
server:
port: 8090
tomcat:
uri-encoding: UTF-8
spring:
http:
encoding:
force: true
### 模板引擎编码为UTF-8
charset: UTF-8
thymeleaf:
prefix: classpath:/templates
suffix: .html
mode: HTML5
encoding: UTF-8
content-type: text/html
# 关闭缓存, 即时刷新, 上线生产环境需要改为true
cache: false
datasource:
# 连接池配置
url: jdbc:mysql://127.0.0.1::3306/test?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&useSSL=false&zeroDateTimeBehavior=convertToNull&serverTimezone=Asia/Shanghai
username: root
password: mysql
driver-class-name: com.mysql.jdbc.Driver
type: com.alibaba.druid.pool.DruidDataSource
# 初始化大小,最小,最大
initial-size: 5
min-idle: 5
max-active: 20
# 配置获取连接等待超时的时间
max-wait: 60000
# 配置间隔多久才进行一次检测,检测需要关闭的空闲连接,单位毫秒
time-between-eviction-runs-millis: 60000
# 配置一个连接在池中最小生存时间
min-evictable-idle-time-millis: 300000
validation-query: SELECT 1 FROM sys_user
test-while-idle: true
test-on-borrow: false
test-on-return: false
# 打开 PSCache,并且指定每个连接上 PSCache 的大小
pool-prepared-statements: true
max-pool-prepared-statement-per-connection-size: 20
#开启页面访问
stat-view-servlet:
enable: true
# 配置监控统计拦截的 Filter,去掉后监控界面 SQL 无法统计,wall 用于防火墙
filters: stat,wall,log4j
# 通过 connection-properties 属性打开 mergeSql 功能;慢 SQL 记录
connection-properties: druid.stat.mergeSql\=true;druid.stat.slowSqlMillis\=5000
# 配置 DruidStatFilter
web-stat-filter:
enabled: true
url-pattern: /*
exclusions: .js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*
# mybatis配置
mybatis:
mapper-locations: classpath:/mapper/**/*.xml
configuration:
jdbc-type-for-null: null
type-aliases-package: cn.com.liu.model
# 日志打印级别,设为 debug可打印出 SQL
logging:
level:
cn:
com:
liu:
mapper: debug
app:
#AOP记录用户操作日志,true开启,false关闭
open-aop-log: false
4、添加配置类
(1)WebMvcConfig 把静态资源文件加载进去。
package cn.com.liu.config;
import com.alibaba.fastjson.serializer.SerializerFeature;
import com.alibaba.fastjson.support.config.FastJsonConfig;
import com.alibaba.fastjson.support.spring.FastJsonHttpMessageConverter;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import java.util.ArrayList;
import java.util.List;
@Configuration
public class WebMvcConfig extends WebMvcConfigurationSupport {
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
registry.addResourceHandler("/static/**").addResourceLocations("classpath:/static/");
}
@Override
public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
super.configureMessageConverters(converters);
// 1.需要先定义一个convert 转换消息的对象
FastJsonHttpMessageConverter fastConverter = new FastJsonHttpMessageConverter();
// 2.添加fastJson的配置信息,比如,是否需要格式化返回的json数据
FastJsonConfig fastJsonConfig = new FastJsonConfig();
// 空值特别处理
// WriteNullListAsEmpty 将Collection类型字段的字段空值输出为[]
// WriteNullStringAsEmpty 将字符串类型字段的空值输出为空字符串 ""
// WriteNullNumberAsZero 将数值类型字段的空值输出为0
// WriteNullBooleanAsFalse 将Boolean类型字段的空值输出为false
fastJsonConfig.setSerializerFeatures(SerializerFeature.WriteNullListAsEmpty,
SerializerFeature.DisableCircularReferenceDetect,
SerializerFeature.WriteNonStringKeyAsString);
// 处理中文乱码问题
List<MediaType> fastMediaTypes = new ArrayList<>();
fastMediaTypes.add(MediaType.APPLICATION_JSON_UTF8);
fastConverter.setSupportedMediaTypes(fastMediaTypes);
// 3.在convert中添加配置信息
fastConverter.setFastJsonConfig(fastJsonConfig);
// 4.将convert添加到converters当中
converters.add(fastConverter);
}
}
(2)WebSecurityConfig 配置springsecurity
package cn.com.liu.config;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.util.matcher.RegexRequestMatcher;
import org.springframework.security.web.util.matcher.RequestMatcher;
import javax.servlet.http.HttpServletRequest;
import java.util.regex.Pattern;
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http.headers().frameOptions().disable();
http.authorizeRequests().antMatchers("/").permitAll()
.antMatchers("/hello").hasRole("USER").and()
//.csrf().disable() //关闭CSRF
.csrf().requireCsrfProtectionMatcher(new RequestMatcher() {
//放行这几种请求
private Pattern allowedMethods = Pattern.compile("^(GET|HEAD|TRACE|OPTIONS)$");
//放行rest请求
private RegexRequestMatcher unprotectedMatcher = new RegexRequestMatcher("^/manage/.*", null);
@Override
public boolean matches(HttpServletRequest request) {
if(allowedMethods.matcher(request.getMethod()).matches()){
return false;
}
String servletPath = request.getServletPath();
if (servletPath.contains("/druid")) {
return false;
}
return !unprotectedMatcher.matches(request);
}
}).and()
.formLogin().loginPage("/login").defaultSuccessUrl("/manage").and()
.logout().logoutUrl("/logout").logoutSuccessUrl("/login");
}
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
auth
.inMemoryAuthentication()
.withUser("user").password("password").roles("USER");
}
}
(3)配置druid监控
package cn.com.liu.config;
import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import javax.sql.DataSource;
@Configuration
public class DruidConfiguration {
@Bean
public ServletRegistrationBean druidServlet() {
ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet(), "/druid/*");
// IP白名单
//servletRegistrationBean.addInitParameter("allow", "192.168.*");
// IP黑名单(共同存在时,deny优先于allow)
//dservletRegistrationBean.addInitParameter("deny", "192.168.1.100");
//控制台管理用户
servletRegistrationBean.addInitParameter("loginUsername", "user");
servletRegistrationBean.addInitParameter("loginPassword", "user");
//是否能够重置数据 禁用HTML页面上的“Reset All”功能
servletRegistrationBean.addInitParameter("resetEnable", "false");
return servletRegistrationBean;
}
@Bean
public FilterRegistrationBean filterRegistrationBean() {
FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean(new WebStatFilter());
filterRegistrationBean.addUrlPatterns("/*");
filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
return filterRegistrationBean;
}
@Bean
@ConfigurationProperties(prefix = "spring.datasource")
public DataSource druidDataSource() {
return new DruidDataSource();
}
}
5、启动项目

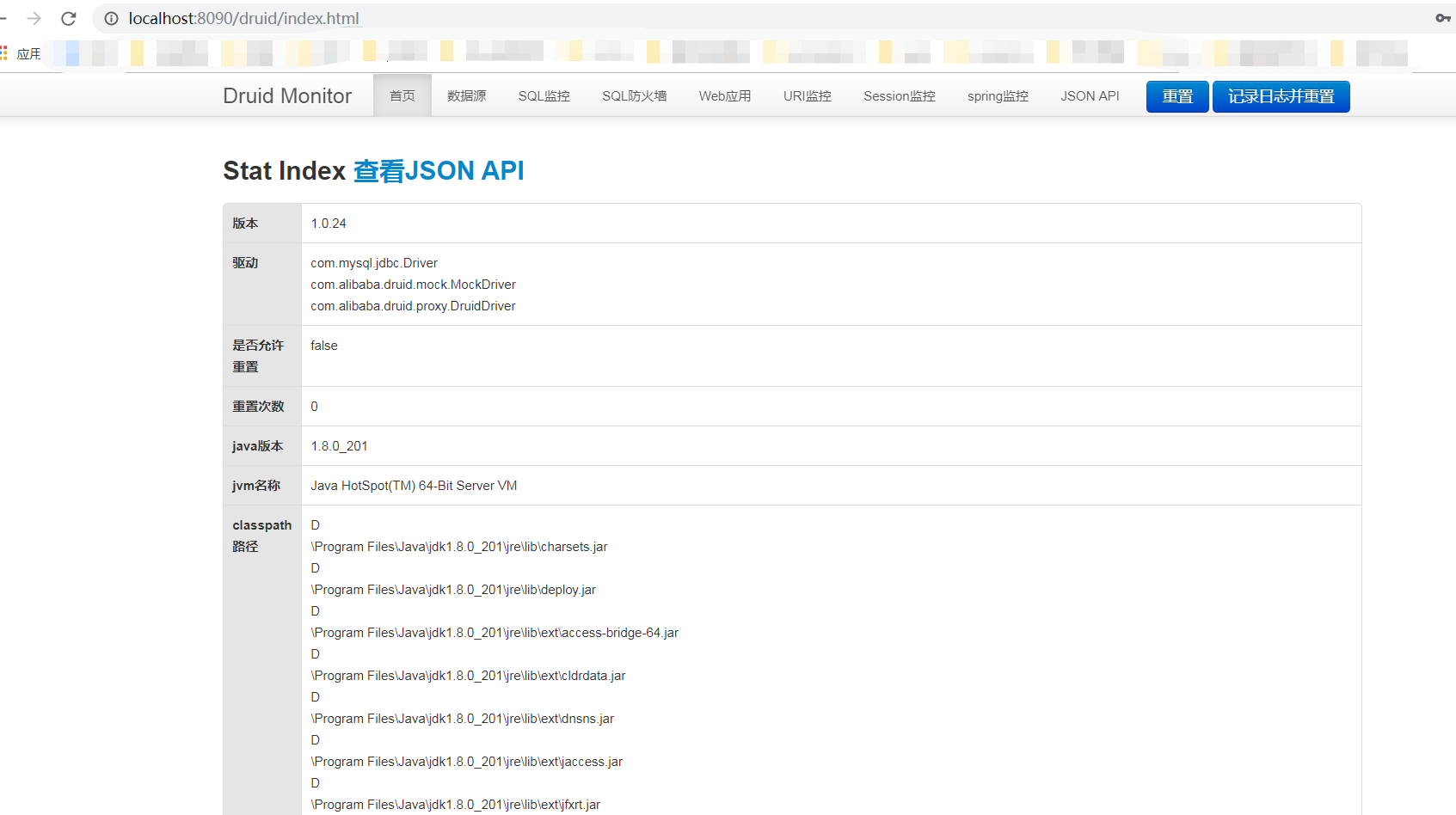

访问 http://localhost:8090/druid/index.html 即可看到监控日志信息, springsecurity登录账号密码为user/ 密码即为上述配置文件中的 user/user
