Docker的基本使用

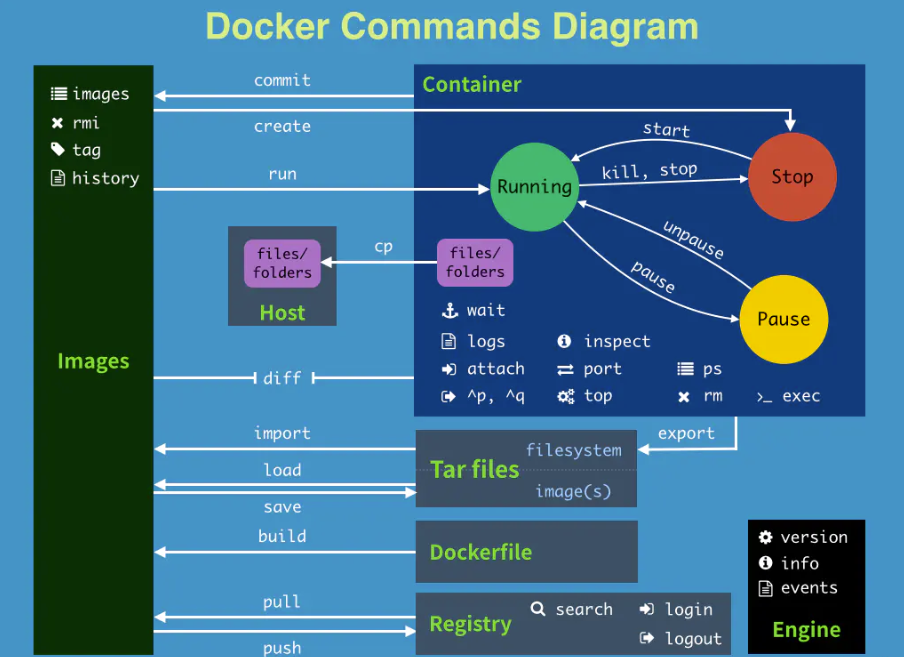

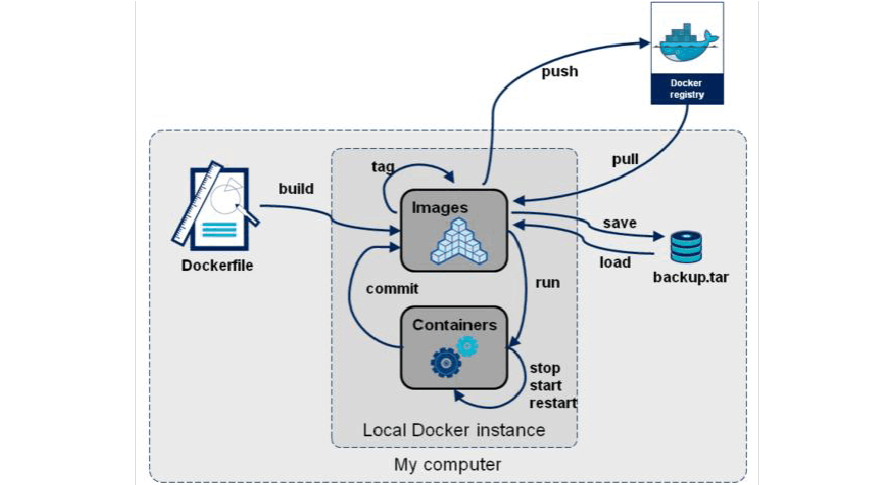

Docker命令示意图:

image-20200605232847592

1.1 准备工作

1.1.1 安装、启动以及卸载

docker install 官方文档

(1)centos安装docker

  • 删除旧版本

    sudo yum remove docker \
                      docker-client \
                      docker-client-latest \
                      docker-common \
                      docker-latest \
                      docker-latest-logrotate \
                      docker-logrotate \
                      docker-engine

  • The contents of /var/lib/docker/, including:

    • images
    • containers
    • volumes
    • networks
  • The Docker Engine package is now called docker-ce.

(2)安装

  • 安装时使用稳定版仓库

    sudo yum install -y yum-utils

    sudo yum-config-manager \
        --add-repo \
        https://download.docker.com/linux/centos/docker-ce.repo

    • 使用其他仓库

      nightly:

      sudo yum-config-manager --enable docker-ce-nightly


      test channel:

      sudo yum-config-manager --enable docker-ce-test

    • 取消使用特定仓库:

      sudo yum-config-manager --disable docker-ce-nightly
      sudo yum-config-manager --disable docker-ce-test

  • 安装Docker引擎(最新版本)

    sudo yum install docker-ce docker-ce-cli containerd.io

    • 安装其他版本

      检查可用版本

      yum list docker-ce --showduplicates | sort -r

      docker-ce.x86_64  3:18.09.1-3.el7                     docker-ce-stable
      docker-ce.x86_64  3:18.09.0-3.el7                     docker-ce-stable
      docker-ce.x86_64  18.06.1.ce-3.el7                    docker-ce-stable
      docker-ce.x86_64  18.06.0.ce-3.el7


      安装特定版本:

      sudo yum install docker-ce-<VERSION_STRING> docker-ce-cli-<VERSION_STRING> containerd.io

    • 脚本安装:

      Warning:Always examine scripts downloaded from the internet before running them locally.

      curl -fsSL https://get.docker.com -o get-docker.sh
      sudo sh get-docker.sh


(3)启动docker

  • 启动

    sudo systemctl start docker

  • 开机启动docker守护进程服务

    sudo systemctl enable docker

  • 重启服务

    sudo systemctl daemon-reload
    sudo systemctl restart docker


(4)卸载

  • 卸载docker

    sudo yum remove docker-ce docker-ce-cli containerd.io

  • 删除容器,卷,自定义配置文件

    sudo rm -rf /var/lib/docker


1.2 常用命令

docker reference

1.2.1 docker镜像基本使用

(1)镜像加速

  • 创建或修改/etc/docker/daemon.json文件,修改为如下形式

    {
      "registry-mirrors": [
        "https://e9cvqj3d.mirror.aliyuncs.com",
        "http://hub-mirror.c.163.com",
        "https://registry.docker-cn.com",
        "https://docker.mirrors.ustc.edu.cn"
      ]
    }


    阿里云镜像加速

  • 重启生效

    sudo systemctl daemon-reload
    sudo systemctl restart docker


(2)使用镜像

  • 搜索镜像

    docker search image_name

  • 使用latest版本镜像

    docker pull image_name

    • 指定版本

      docker pull image_name:tag


docker hub

(3)查看镜像列表

  • 查看下载的镜像

    docker images -h

    Usage:  docker images [OPTIONS] [REPOSITORY[:TAG]]
    List images
    Options:
      -a, --all             Show all images (default hides intermediate
                            images)
          --digests         Show digests
      -f, --filter filter   Filter output based on conditions provided
          --format string   Pretty-print images using a Go template
          --no-trunc        Don't truncate output
      -q, --quiet           Only show numeric IDs


(4)删除镜像

  • 删除镜像

    docker rmi [OPTIONS] IMAGE [IMAGE...]


    选项:

    Options:
      -f, --force      Force removal of the image
          --no-prune   Do not delete untagged parents


1.2.2 容器的使用

(1)创建容器并启动

  • docker run命令以镜像为模板作为容器执行

  • 注意:如果运行的容器没有前台进程运行则该容器会直接自杀

    • 可以使用top,tail命令查看日志文件来制造前台进程防止自杀

    常用选项:

    • -d:后台方式运行

    • -e Command:指定容器应用参数

    • -it:以终端交互方式运行

    • --name=:指定创建的容器的名称(容器都只能使用唯一的名)

    • -rm:使用完后边删除容器

    • -p [主机IP:][docker内应用IP]

    所有命令选项:

    sudo docker run --help

    Usage:  docker run [OPTIONS] IMAGE [COMMAND] [ARG...]

    Run a command in a new container

    Options:
          --add-host list                  Add a custom host-to-IP
                                           mapping (host:ip)
      -a, --attach list                    Attach to STDIN, STDOUT or STDERR
          --blkio-weight uint16            Block IO (relative weight),
                                           between 10 and 1000, or 0 to
                                           disable (default 0)
          --blkio-weight-device list       Block IO weight (relative
                                           device weight) (default [])
          --cap-add list                   Add Linux capabilities
          --cap-drop list                  Drop Linux capabilities
          --cgroup-parent string           Optional parent cgroup for the
                                           container
          --cidfile string                 Write the container ID to the file
          --cpu-period int                 Limit CPU CFS (Completely Fair
                                           Scheduler) period
          --cpu-quota int                  Limit CPU CFS (Completely Fair
                                           Scheduler) quota
          --cpu-rt-period int              Limit CPU real-time period in
                                           microseconds
          --cpu-rt-runtime int             Limit CPU real-time runtime in
                                           microseconds
      -c, --cpu-shares int                 CPU shares (relative weight)
          --cpus decimal                   Number of CPUs
          --cpuset-cpus string             CPUs in which to allow
                                           execution (0-3, 0,1)
          --cpuset-mems string             MEMs in which to allow
                                           execution (0-3, 0,1)
      -d, --detach                         Run container in background
                                           and print container ID
          --detach-keys string             Override the key sequence for
                                           detaching a container
          --device list                    Add a host device to the container
          --device-cgroup-rule list        Add a rule to the cgroup
                                           allowed devices list
          --device-read-bps list           Limit read rate (bytes per
                                           second) from a device (default [])
          --device-read-iops list          Limit read rate (IO per
                                           second) from a device (default [])
          --device-write-bps list          Limit write rate (bytes per
                                           second) to a device (default [])
          --device-write-iops list         Limit write rate (IO per
                                           second) to a device (default [])
          --disable-content-trust          Skip image verification
                                           (default true)
          --dns list                       Set custom DNS servers
          --dns-option list                Set DNS options
          --dns-search list                Set custom DNS search domains
          --domainname string              Container NIS domain name
          --entrypoint string              Overwrite the default
                                           ENTRYPOINT of the image
      -e, --env list                       Set environment variables
          --env-file list                  Read in a file of environment
                                           variables
          --expose list                    Expose a port or a range of ports
          --gpus gpu-request               GPU devices to add to the
                                           container ('all' to pass all GPUs)
          --group-add list                 Add additional groups to join
          --health-cmd string              Command to run to check health
          --health-interval duration       Time between running the check
                                           (ms|s|m|h) (default 0s)
          --health-retries int             Consecutive failures needed to
                                           report unhealthy
          --health-start-period duration   Start period for the container
                                           to initialize before starting
                                           health-retries countdown
                                           (ms|s|m|h) (default 0s)
          --health-timeout duration        Maximum time to allow one
                                           check to run (ms|s|m|h)
                                           (default 0s)
          --help                           Print usage
      -h, --hostname string                Container host name
          --init                           Run an init inside the
                                           container that forwards
                                           signals and reaps processes
      -i, --interactive                    Keep STDIN open even if not
                                           attached
          --ip string                      IPv4 address (e.g., 172.30.100.104)
          --ip6 string                     IPv6 address (e.g., 2001:db8::33)
          --ipc string                     IPC mode to use
          --isolation string               Container isolation technology
          --kernel-memory bytes            Kernel memory limit
      -l, --label list                     Set meta data on a container
          --label-file list                Read in a line delimited file
                                           of labels
          --link list                      Add link to another container
          --link-local-ip list             Container IPv4/IPv6 link-local
                                           addresses
          --log-driver string              Logging driver for the container
          --log-opt list                   Log driver options
          --mac-address string             Container MAC address (e.g.,
                                           92:d0:c6:0a:29:33)
      -m, --memory bytes                   Memory limit
          --memory-reservation bytes       Memory soft limit
          --memory-swap bytes              Swap limit equal to memory
                                           plus swap: '-1' to enable
                                           unlimited swap
          --memory-swappiness int          Tune container memory
                                           swappiness (0 to 100) (default -1)
          --mount mount                    Attach a filesystem mount to
                                           the container
          --name string                    Assign a name to the container
          --network network                Connect a container to a network
          --network-alias list             Add network-scoped alias for
                                           the container
          --no-healthcheck                 Disable any
                                           container-specified HEALTHCHECK
          --oom-kill-disable               Disable OOM Killer
          --oom-score-adj int              Tune host's OOM preferences
                                           (-1000 to 1000)
          --pid string                     PID namespace to use
          --pids-limit int                 Tune container pids limit (set
                                           -1 for unlimited)
          --platform string                Set platform if server is
                                           multi-platform capable
          --privileged                     Give extended privileges to
                                           this container
      -p, --publish list                   Publish a container's port(s)
                                           to the host
      -P, --publish-all                    Publish all exposed ports to
                                           random ports
          --read-only                      Mount the container's root
                                           filesystem as read only
          --restart string                 Restart policy to apply when a
                                           container exits (default "no")
          --rm                             Automatically remove the
                                           container when it exits
          --runtime string                 Runtime to use for this container
          --security-opt list              Security Options
          --shm-size bytes                 Size of /dev/shm
          --sig-proxy                      Proxy received signals to the
                                           process (default true)
          --stop-signal string             Signal to stop a container
                                           (default "SIGTERM")
          --stop-timeout int               Timeout (in seconds) to stop a
                                           container
          --storage-opt list               Storage driver options for the
                                           container
          --sysctl map                     Sysctl options (default map[])
          --tmpfs list                     Mount a tmpfs directory
      -t, --tty                            Allocate a pseudo-TTY
          --ulimit ulimit                  Ulimit options (default [])
      -u, --user string                    Username or UID (format:
                                           <name|uid>[:<group|gid>])
          --userns string                  User namespace to use
          --uts string                     UTS namespace to use
      -v, --volume list                    Bind mount a volume
          --volume-driver string           Optional volume driver for the
                                           container
          --volumes-from list              Mount volumes from the
                                           specified container(s)
      -w, --workdir string                 Working directory inside the
                                           container


(2)docker容器进程查看

  • 查看运行进程

    sudo docker ps

    • 选项

      Usage:  docker ps [OPTIONS]

      List containers

      Options:
        -a, --all             Show all containers (default shows just running)
        -f, --filter filter   Filter output based on conditions provided
            --format string   Pretty-print containers using a Go template
        -n, --last int        Show n last created containers (includes all
                              states) (default -1)
        -l, --latest          Show the latest created container (includes
                              all states)
            --no-trunc        Don't truncate output
        -q, --quiet           Only display numeric IDs
        -s, --size            Display total file sizes


(3)docker容器的启动、终止、进入、退出、暂停、继续

  • 启动已经停止容器

    docker start [OPTIONS] CONTAINER [CONTAINER...]

    • 选项:

      Start one or more stopped containers

      Options:
        -a, --attach                  Attach STDOUT/STDERR and forward signals
            --checkpoint string       Restore from this checkpoint
            --checkpoint-dir string   Use a custom checkpoint storage directory
            --detach-keys string      Override the key sequence for
                                      detaching a container
        -i, --interactive             Attach container's STDIN

  • 通过默认终端来连接正在运行中的容器

    docker attach [OPTIONS] CONTAINER

    • 选项:

      Attach local standard input, output, and error streams to a running container

      Options:
            --detach-keys string   Override the key sequence for detaching
                                   a container
            --no-stdin             Do not attach STDIN
            --sig-proxy            Proxy all received signals to the
                                   process (default true)

  • 通过一个新的终端进入正在运行中的容器

     docker exec [OPTIONS] CONTAINER COMMAND [ARG...]

    • 选项:

      Run a command in a running container

      Options:
        -d, --detach               Detached mode: run command in the background
            --detach-keys string   Override the key sequence for detaching
                                   a container
        -e, --env list             Set environment variables
        -i, --interactive          Keep STDIN open even if not attached
            --privileged           Give extended privileges to the command
        -t, --tty                  Allocate a pseudo-TTY
        -u, --user string          Username or UID (format:
                                   <name|uid>[:<group|gid>])
        -w, --workdir string       Working directory inside the container

  • 暂停容器

    docker pause CONTAINER [CONTAINER...]

  • 恢复暂停

    docker unpause CONTAINER [CONTAINER...]

  • 停止容器

    docker stop [OPTIONS] CONTAINER [CONTAINER...]


    选项:

    • -t, --time int Seconds to wait for stop before killing it (default 10)
  • 强制退出容器

    docker kill [OPTIONS] CONTAINER [CONTAINER...]

    • -s, --signal string Signal to send to the container (default "KILL")

    该方式可能发生数据丢失

(4)文件复制

  • 主机文件复制到容器

    docker cp [OPTIONS] CONTAINER:SRC_PATH DEST_PATH|-

  • 容器文件复制到主机中

    docker cp [OPTIONS] CONTAINER:SRC_PATH DEST_PATH|-

    • 选项:

      Copy files/folders between a container and the local filesystem

      Use '-' as the source to read a tar archive from stdin
      and extract it to a directory destination in a container.
      Use '-' as the destination to stream a tar archive of a
      container source to stdout.

      Options:
        -a, --archive       Archive mode (copy all uid/gid information)
        -L, --follow-link   Always follow symbol link in SRC_PATH


(5)容器的删除

  • docker创建临时使用的容器如果不删除会一直占用空间

    docker rm containerID/name

    • 选项:

      Options:
        -f, --force     Force the removal of a running container (uses SIGKILL)
        -l, --link      Remove the specified link
        -v, --volumes   Remove anonymous volumes associated with the container

  • 删除所有创建的docker容器

    docker rm `docker ps -a -q`


1.3 Docker可视化管理

1.3.1 portainer

(1)安装并启动portainer

  • 运行

    docker run -d -p 7072:9000 --restart=always -v /var/run/docker.sock:/var/run/docker.sock --privileged=true portainer/portainer

    • 搜索时可以搜到中文版但是考虑稳定性与安全性不建议使用。

(2)查看效果

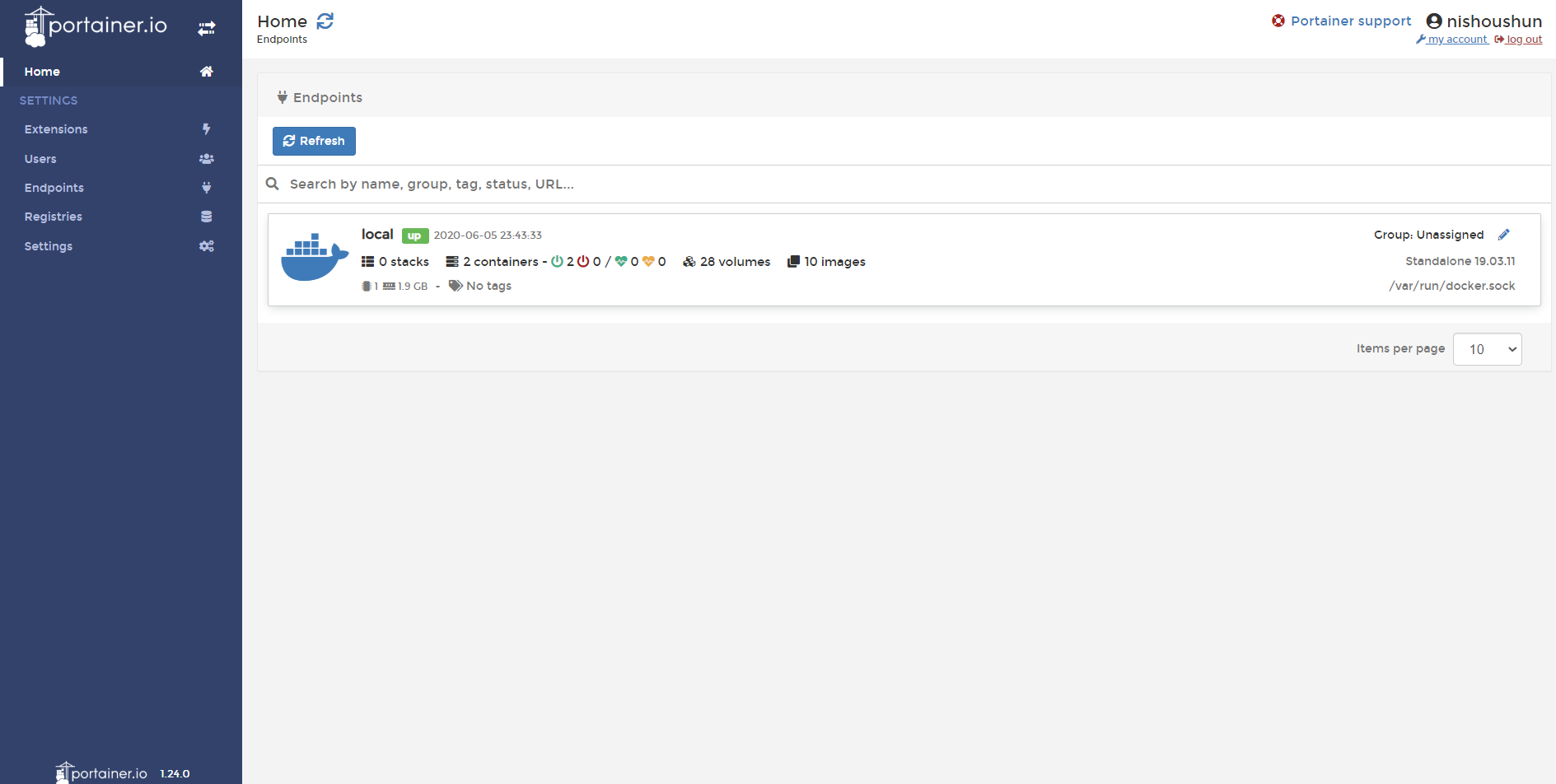

  • 登录网站设置好个人账号密码后,连接localhost:

    image-20200605234424100

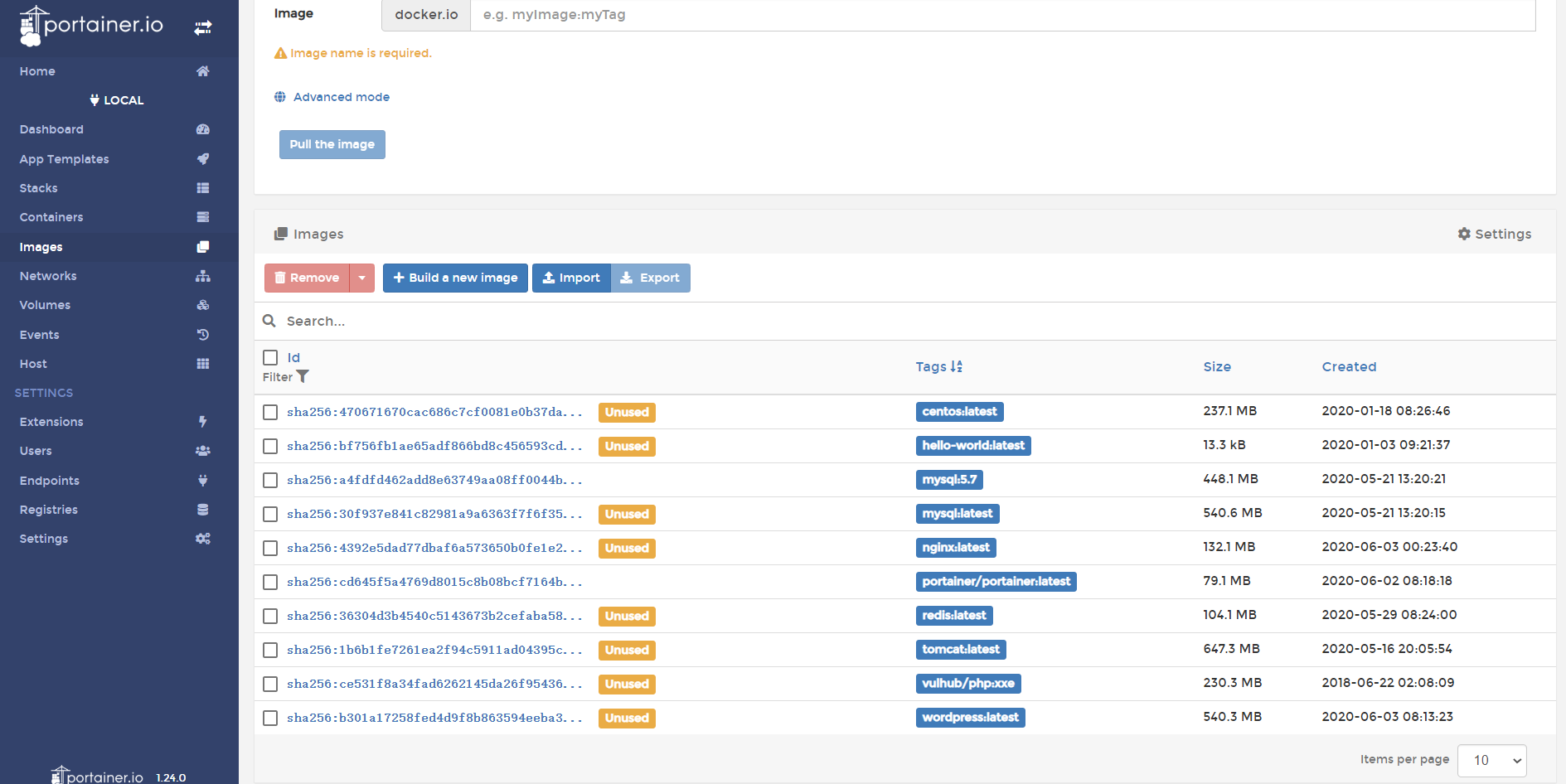

  • 点击local进行操作

    image-20200605234639478


1.4 Docker镜像

点击查看源网页

1.4.1 镜像介绍

镜像是一种轻量级、可执行的独立软件包,用来打包软件运行环境和基于运行环境开发的软件,它包含运行某个软件所需的所有内容,包括代码、运行时、库、环境变量和配置文件

(1)UnionFS(联合文件系统)

  • UnionFS(联合文件系统):Union文件系统是一种分层、轻量级并且高性能的文件系统,它支持对文件系统的修改作为一次提交来一层层的叠加,同时可以将不同目录挂载到同一个虚拟文件系统下,Union文件系统是Dokcer镜像的基础。镜像可以通过分层来进行继承,基于基础镜像(没有父镜像),可以制作各种具体的镜像。

  • 特性:一次同时加载多个文件系统,但从外面看起来,只能看到一个文件系统,联合加载会把各层文件系统加载起来,这样最终的文件系统会包含所有的底层文件和目录

(2)查看镜像信息

  • 查看镜像信息

     docker image inspect [OPTIONS] IMAGE:[tag] [IMAGE:[tag]...]

    • 选项:

      Display detailed information on one or more images

      Options:
        -f, --format string   Format the output using the given Go template


1.4.2 镜像分层

(1)Docker镜像加载原理

  • docker的镜像实际上是由一层一层的文件系统构成,这种层级的文件系统UnionFS。

  • bootfs(boot file system)主要包含bootloaderkernel

    • bootloader主要是引导加载kernel,Linux刚启动时会加载bootfs文件系统,在Docker镜像的最底层是bootfs。这一层与我们典型的linux/unix系统是一样的,包含boot加载器内核。
    • 当boot加载完之后整个内核就都在内存中了,此时内存的使用权已经由bootfs交给内核了,此时系统也会卸载bootfs
  • rootfs(root file system)在bootfs之上包含的是经典Linux系统中的/dev,/proc/bin,/ect等目录与文件,可以将rootfs看作linux发行版;

  • 对以一个精简的OS,rootfs可以很小,只需要包括最基本的命令、工具和程序库就行,因为底层直接用host和kernel,自己只需要提供rootfs就行。由此可见对于不同的Linux发行版,bootfs基本是一致的,rootfs会有差别,因此不同的发行版可以公用bootfs

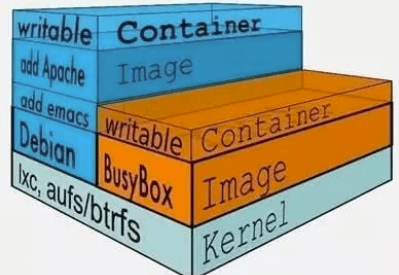

image-20200606001419566

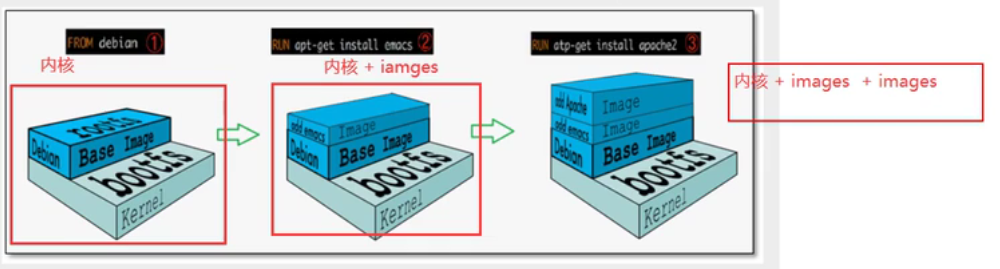

image-20200606001709096

(2)镜像分层介绍

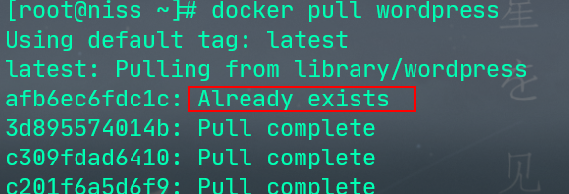

  • 当下载部分文件已有的情况下是可以跳过下载,实际上表示本机内已经存在改层文件。

    image-20200606003828220

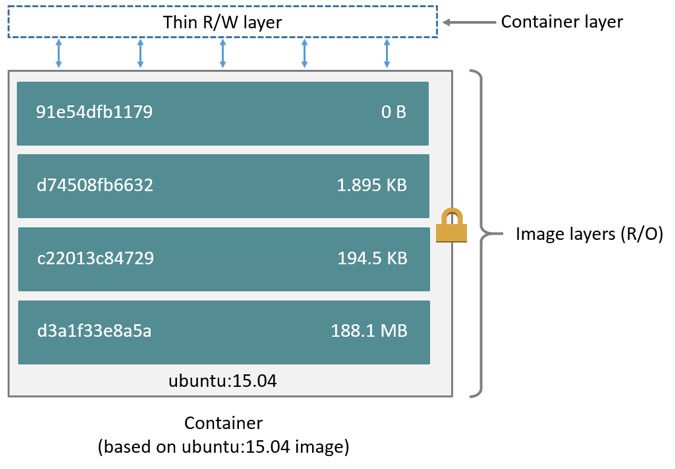

  • 启动镜像时,一个新的可写层会加载到镜像的顶层。这一层通常称为"容器层",之下是"镜像层"。

    容器层可以读写,容器所有发生文件变更写都发生在这一层。镜像层只允许读取,read-only


docker镜像原理 参考

1.4.3 自制镜像

(1)提交自己的镜像

  • 从容器中创建一个新的镜像

     docker commit [OPTIONS] CONTAINER [REPOSITORY[:TAG]]

    • 选项:

      Create a new image from a container's changes

      Options:
        -a, --author string    Author (e.g., "John Hannibal Smith <hannibal@a-team.com>")
        -c, --change list      Apply Dockerfile instruction to the created image
        -m, --message string   Commit message
        -p, --pause            Pause container during commit (default true)

      • 默认情况下,在提交映像时,将暂停提交的容器及其进程。这降低了在创建提交过程中遇到数据损坏的可能性。如果此行为是不需要的,则将选项设置为 false。--pause

    示例:

    • 以运行的容器制造镜像( 96d596566a10 为容器ID)

      docker commit -m="portainer备份" -a="NiShoushun" 96d596566a10 portainer-back:1.0

    • 查看镜像

      [root@niss ~]# docker images
      REPOSITORY            TAG                 IMAGE ID            CREATED             SIZE
      portainer-back        1.0                 27e6310e3582        26 seconds ago      79.1MB
      wordpress             latest              b301a17258fe        2 days ago          540MB
      nginx                 latest              4392e5dad77d        3 days ago          132MB
      portainer/portainer   latest              cd645f5a4769        3 days ago          79.1MB
      redis                 latest              36304d3b4540        7 days ago          104MB
      mysql                 5.7                 a4fdfd462add        2 weeks ago         448MB
      mysql                 latest              30f937e841c8        2 weeks ago         541MB
      tomcat                latest              1b6b1fe7261e        2 weeks ago         647MB
      centos                latest              470671670cac        4 months ago        237MB
      hello-world           latest              bf756fb1ae65        5 months ago        13.3kB
      vulhub/php            xxe                 ce531f8a34fa        23 months ago       230MB

  • 保存镜像

    docker save [OPTIONS] IMAGE [IMAGE...]


    选项:

    Save one or more images to a tar archive (streamed to STDOUT by default)

    Options:
      -o, --output string   Write to a file, instead of STDOUT

  • 从备份中加载镜像

    docker load [OPTIONS


    选项:

    Load an image from a tar archive or STDIN

    Options:
      -i, --input string   Read from tar archive file, instead of STDIN
      -q, --quiet          Suppress the load output


1.4.3 dockerhub 的使用

(1)dockerhub

(2)常用命令

  • 登录:dockerhub:

    docker login
    username:yourusername
    password:yourpassword


    或者:

    docker login --username=yourusername

  • 推送镜像

    首先需要标记镜像:

    docker tag 镜像名 yourusername/仓库名[:标签]


    本地镜像推送到仓库:

    docker push yourusername/仓库名[:标签]

  • 退出docker logout

(3)阿里云镜像仓库


1.5 容器数据卷

1.5.1 容器数据卷介绍

(1)容器数据卷概念以及意义

  • docker容器运行的数据本身全部保存在容器内,倘若容器被删除则数据就全部会丢失,比如MySQL,Tomcat配置文件等等。
  • 在Docker中,要想实现数据的持久化(所谓Docker的数据持久化即数据不随着Container的结束而结束),需要将数据从宿主机挂载到容器中。

1.5.2 数据卷的使用

(1)run命令参数挂载数据卷

  • -v 命令参数挂载数据卷

    docker run -v 主机目录:容器目录:[权限] [-v 主机目录:容器目录:[权限]  [-v 主机目录:容器目录:[权限]]...]

    • 开始时如果宿主机没有该文件或者目录,则会自动创建
    • 可以挂载多个目录
    • 如果表示文件或目录要指定以绝对路径“/”开头,不然会认为是具名挂载;
    • 可以在挂载目录最后设置文件权限(一旦设置,之后就很难去修改了);
      • ro:read-only,即只能由宿主机创建以及修改挂载卷的文件内容;
      • rw:read-write
    • 数据卷不会因容器的删除而被删除;

    示例:

    1. 创建MySQL容器:

      docker run -d -p 3306:3306 \
      -v /home/mysql/conf:/ect/mysql/conf.d \
      -v /home/mysql/data:/var/lib/mysql \
      -e MYSQL_ROOT_PASSWORD=18724787072 --name=mysql mysql:5.7

    2. 查看文件:

      [root@niss mysql]# ls /home/mysql/data
      auto.cnf         client-key.pem  ib_logfile1         private_key.pem  sys
      ca-key.pem       ib_buffer_pool  ibtmp1              public_key.pem
      ca.pem           ibdata1         mysql               server-cert.pem
      client-cert.pem  ib_logfile0     performance_schema  server-key.pem


(2)匿名挂载与具名挂载

  • 匿名挂载:不指定宿主机的文件、目录路径或卷名

    docker run -v /容器内路径:[权限] [-v /容器内路径:[权限]]

    • 该方法挂载的卷会给一个随机的唯一卷名(不建议使用)
  • 具名挂载:指定不指定宿主机的文件路径但是指定卷名

    docker run -v 卷名:/容器内路径:[权限] [-v 卷名:容器内路径:[权限]]

    • 该方法挂载的卷的文件内容保存在:/var/lib/docker/volumes/卷名/_data

    例:

    • 匿名挂载nginx:

      docker run -d --name=nginx01 -v /usr/share/nginx nginx
      328a5f13b8ef03752b5e5fa84ad99dd12c1858c05e2db6d02cae01742f7d2733

      docker run -d --name=nginx02 -v nginxVol:/etc/nginx nginx
      9d1f00d3ee598cbc2e5d2c69d25c0cc7fb5164254e6dd5fff40f3be3351eabb4

    • 查看具名挂载的卷的信息:

      docker volume inspect nginxVol
      [
          {
              "CreatedAt": "2020-06-07T01:28:17+08:00",
              "Driver": "local",
              "Labels": null,
              "Mountpoint": "/var/lib/docker/volumes/nginxVol/_data",
              "Name": "nginxVol",
              "Options": null,
              "Scope": "local"
          }
      ]


1.5.3 dockerfile制作镜像

(1)dockerfile介绍

  • Dockerfile 是一个用来构建镜像的文本文件,文本内容包含了一条条构建镜像所需的指令和说明

  • dockerfile指令基础:

    • 一般将该文件命名为Dockerfile,docker build命令会自动寻找该文件进行构建;

    • 每个关键字都要大写;

    • 从上往下执行

  • # 表示注释;

    • 每个指令都会创建一个新的镜像文件层,并提交;

(2)dockerfile指令

  • FROM:指定基础镜像

  • MAINTAINER:指定维护者信息

  • RUN:镜像构建时要运行的命令

  • COPY:复制指令,从上下文目录中复制文件或者目录到容器里指定路径。

    COPY [--chown=<user>:<group>] <源路径1>...  <目标路径>
    # 或者
    COPY [--chown=<user>:<group>] ["<源路径1>",...  "<目标路径>"]

    • [–chown=:]:可选参数,用户改变复制到容器内文件的拥有者和属组。

    • <源路径>:源文件或者源目录,这里可以是通配符表达式,其通配符规则要满足 Go 的 filepath.Match 规则。

      • 例如:

        COPY hom* /mydir/
        COPY hom?.txt /mydir/

  • ADD:ADD 指令和 COPY 的使用格式一致(同样需求下,官方推荐使用 COPY)。功能也类似,不同之处如下:

    • ADD 的优点:在执行 <源文件> 为 tar 压缩文件的话,压缩格式为 gzip, bzip2 以及 xz 的情况下,会自动复制并解压到 <目标路径>。
    • ADD 的缺点:在不解压的前提下,无法复制 tar 压缩文件。会令镜像构建缓存失效,从而可能会令镜像构建变得比较缓慢。具体是否使用,可以根据是否需要自动解压来决定。
  • WORKDIR:指定工作目录。用 WORKDIR 指定的工作目录,会在构建镜像的每一层中都存在。(WORKDIR 指定的工作目录,必须是提前创建好的)。

    WORKDIR <工作目录路径>

    • docker build 构建镜像过程中的,每一个 RUN 命令都是新建的一层。只有通过 WORKDIR 创建的目录才会一直存在。
  • VOLUME:定义匿名数据卷。在启动容器时忘记挂载数据卷,会自动挂载到匿名卷。

    VOLUME ["<路径1>", "<路径2>"...]
    # 或者
    VOLUME <路径>

    • 避免重要的数据,因容器重启而丢失,这是非常致命的。
    • 避免容器不断变大。
    • 在启动容器 docker run 的时候,我们可以通过 -v 参数修改挂载点。
  • EXPOSE:声明端口

    EXPOSE <端口1> [<端口2>...]

    • 帮助镜像使用者理解这个镜像服务的守护端口,以方便配置映射。
    • 在运行时使用随机端口映射时,也就是 docker run -P 时,会自动随机映射 EXPOSE 的端口。
  • CMD:类似于 RUN 指令,用于运行程序,但二者运行的时间点不同

    CMD <shell 命令>
    CMD ["<可执行文件或命令>","<param1>","<param2>",...]
    CMD ["<param1>","<param2>",...]  # 该写法是为 ENTRYPOINT 指令指定的程序提供默认参数

    • CMD 在docker run 时运行。
    • RUN 是在 docker build。
    • 为启动的容器指定默认要运行的程序,程序运行结束,容器也就结束。CMD 指令指定的程序可被 docker run 命令行参数中指定要运行的程序所覆盖
    • 如果 Dockerfile 中如果存在多个 CMD 指令,仅最后一个生效

    CMD示例

    FROM centos

    # run镜像时输出当前路径
    CMD pwd
    # run镜像时输出根路径文件名
    CMD ["ls","-a"]

    [root@niss]~/dockerf# docker build -f dockerfile-cmd-test -t centos-cmd .
    Sending build context to Docker daemon  3.072kB
    Step 1/3 : FROM centos
     ---> 470671670cac
    Step 2/3 : CMD pwd
     ---> Running in 6a33f855dc76
    Removing intermediate container 6a33f855dc76
     ---> 81c94050b537
    Step 3/3 : CMD ["ls","-a"]
     ---> Running in f3e4302b0484
    Removing intermediate container f3e4302b0484
     ---> f37c82b28bb9
    Successfully built f37c82b28bb9
    Successfully tagged centos-cmd:latest
    [root@niss]~/dockerf# docker run -it centos-cmd
    .   .dockerenv  dev  home  lib64       media  opt   root  sbin  sys  usr
    ..  bin         etc  lib   lost+found  mnt    proc  run   srv   tmp  var

    • 只会执行最后一条CMD命令
    [root@niss]~/dockerf# docker run -it centos-cmd -l
    docker: Error response from daemon: OCI runtime create failed: container_linux.go:349: starting container process caused "exec: \"-l\": executable file not found in $PATH": unknown.

    [root@niss]~/dockerf# docker run -it centos-cmd ls -al
    total 56
    drwxr-xr-x  1 root root 4096 Jun  7 09:19 .
    drwxr-xr-x  1 root root 4096 Jun  7 09:19 ..
    -rwxr-xr-x  1 root root    0 Jun  7 09:19 .dockerenv
    lrwxrwxrwx  1 root root    7 May 11  2019 bin -> usr/bin
    drwxr-xr-x  5 root root  360 Jun  7 09:19 dev
    drwxr-xr-x  1 root root 4096 Jun  7 09:19 etc
    drwxr-xr-x  2 root root 4096 May 11  2019 home
    lrwxrwxrwx  1 root root    7 May 11  2019 lib -> usr/lib
    lrwxrwxrwx  1 root root    9 May 11  2019 lib64 -> usr/lib64
    drwx------  2 root root 4096 Jan 13 21:48 lost+found
    drwxr-xr-x  2 root root 4096 May 11  2019 media
    drwxr-xr-x  2 root root 4096 May 11  2019 mnt
    drwxr-xr-x  2 root root 4096 May 11  2019 opt
    dr-xr-xr-x 92 root root    0 Jun  7 09:19 proc
    dr-xr-x---  2 root root 4096 Jan 13 21:49 root
    drwxr-xr-x 11 root root 4096 Jan 13 21:49 run
    lrwxrwxrwx  1 root root    8 May 11  2019 sbin -> usr/sbin
    drwxr-xr-x  2 root root 4096 May 11  2019 srv
    dr-xr-xr-x 13 root root    0 Jun  7 09:19 sys
    drwxrwxrwt  7 root root 4096 Jan 13 21:49 tmp
    drwxr-xr-x 12 root root 4096 Jan 13 21:49 usr
    drwxr-xr-x 20 root root 4096 Jan 13 21:49 var

    • 当添加附加命令时,-l会替换掉ls -a,已经不是一条命令了,所以会报错
  • ENTRYPOINT类似于 CMD 指令,但其不会被 docker run 的命令行参数指定的指令所覆盖,而且这些命令行参数会被当作参数送给 ENTRYPOINT 指令指定的程序。

    但是, 如果运行 docker run 时使用了 --entrypoint 选项,此选项的参数可当作要运行的程序覆盖 ENTRYPOINT 指令指定的程序。

    ENTRYPOINT ["<executeable>","<param1>","<param2>",...]

    • 优点:在执行 docker run 的时候可以指定 ENTRYPOINT 运行所需的参数。

      注意:如果 Dockerfile 中如果存在多个 ENTRYPOINT 指令,仅最后一个生效。

    ENTRYPOINT示例:

    FROM centos

    ENTRYPOINT ["ls","-a"]

    [root@niss]~/dockerf# docker run -it centos-entry -l
    total 56
    drwxr-xr-x  1 root root 4096 Jun  7 09:25 .
    drwxr-xr-x  1 root root 4096 Jun  7 09:25 ..
    -rwxr-xr-x  1 root root    0 Jun  7 09:25 .dockerenv
    lrwxrwxrwx  1 root root    7 May 11  2019 bin -> usr/bin
    drwxr-xr-x  5 root root  360 Jun  7 09:25 dev
    drwxr-xr-x  1 root root 4096 Jun  7 09:25 etc
    drwxr-xr-x  2 root root 4096 May 11  2019 home
    lrwxrwxrwx  1 root root    7 May 11  2019 lib -> usr/lib
    lrwxrwxrwx  1 root root    9 May 11  2019 lib64 -> usr/lib64
    drwx------  2 root root 4096 Jan 13 21:48 lost+found
    drwxr-xr-x  2 root root 4096 May 11  2019 media
    drwxr-xr-x  2 root root 4096 May 11  2019 mnt
    drwxr-xr-x  2 root root 4096 May 11  2019 opt
    dr-xr-xr-x 92 root root    0 Jun  7 09:25 proc
    dr-xr-x---  2 root root 4096 Jan 13 21:49 root
    drwxr-xr-x 11 root root 4096 Jan 13 21:49 run
    lrwxrwxrwx  1 root root    8 May 11  2019 sbin -> usr/sbin
    drwxr-xr-x  2 root root 4096 May 11  2019 srv
    dr-xr-xr-x 13 root root    0 Jun  7 09:19 sys
    drwxrwxrwt  7 root root 4096 Jan 13 21:49 tmp
    drwxr-xr-x 12 root root 4096 Jan 13 21:49 usr
    drwxr-xr-x 20 root root 4096 Jan 13 21:49 var

    • ENRTRYPOINT会以追加方式添加命令
  • ENV:设置环境变量,定义了环境变量,那么在后续的指令中,就可以使用这个环境变量

    ENV <key> <value>
    ENV <key1>=<value1> <key2>=<value2>...

  • ARG:构建参数,与 ENV 作用一至。不过作用域不一样。ARG 设置的环境变量仅对 Dockerfile 内有效,也就是说只有 docker build 的过程中有效,构建好的镜像内不存在此环境变量。

    ARG <参数名>[=<默认值>]

    • 构建命令 docker build 中可以用 --build-arg <参数名>=<值> 来覆盖。
  • USER:用于指定执行后续命令的用户和用户组,这边只是切换后续命令执行的用户(用户和用户组必须提前已经存在)

    USER <用户名>[:<用户组>]

  • ONBUILD:用于延迟构建命令的执行。

    简单的说,就是 Dockerfile 里用 ONBUILD 指定的命令,在本次构建镜像的过程中不会执行(假设镜像为 test-build)。当有新的 Dockerfile 使用了之前构建的镜像 FROM test-build ,这是执行新镜像的 Dockerfile 构建时候,会执行 test-build 的 Dockerfile 里的 ONBUILD 指定的命令。

    示例:

    • 构建一个带有vim与net-tools的centos镜像

      # centos with vim and net-tools

      # 基础镜像
      FROM centos

      # 维护者信息
      MAINTAINER NiShoushun<1623339719@qq.com>

      # 环境
      ENV MYPATH /usr/local
      WORKDIR $MYPATH

      # 安装工具
      RUN yum -y install vim
      RUN yum -y install net-tools

      # 默认暴露端口
      EXPOSE 80

      # 启动时就执行该程序
      CMD /bin/bas

  • docker build构建镜像

    • -f dockerfile构建文件
    • -t 目标镜像:[tag]
    [root@niss]~/dockerf# docker build -f dockerfile-centos -t centos-plus:0.1 .

    Sending build context to Docker daemon  2.048kB
    Step 1/10 : FROM centos
     ---> 470671670cac
    Step 2/10 : MAINTAINER Nishoushun<1623339719@qq.com>
     ---> Running in 00c8f78d21a5
    Removing intermediate container 00c8f78d21a5
     ---> 0d1447c2897d
    Step 3/10 : ENV MYPATH /usr/local
     ---> Running in 65597ede8cd2
    Removing intermediate container 65597ede8cd2
     ---> 2df7599ad39c
    Step 4/10 : WORKDIR $MYPATH
     ---> Running in 7007d6fc309e
    Removing intermediate container 7007d6fc309e
     ---> bdf84a4fa2f8
    Step 5/10 : RUN yum -y install vim
     ---> Running in 350ffe3558a4
    # 。。。以下省略。。。
    Step 6/10 : RUN yum -y install net-tools
     ---> Running in e0eb62d5632f
    # 。。。以下省略
    Removing intermediate container e0eb62d5632f
     ---> ca1425549ec9
    Step 7/10 : EXPOSE 80
     ---> Running in ff302710bc5d
    Removing intermediate container ff302710bc5d
     ---> c83a68ff9d53
    Step 8/10 : CMD echo $MYPATH
     ---> Running in 7f18df522293
    Removing intermediate container 7f18df522293
     ---> e0c045995ecd
    Step 9/10 : CMD echo "----end----"
     ---> Running in 174d8158d11b
    Removing intermediate container 174d8158d11b
     ---> f3660fc995da
    Step 10/10 : CMD /bin/bash
     ---> Running in 9308f03248c3
    Removing intermediate container 9308f03248c3
     ---> 2ccca68a259c
    Successfully built 2ccca68a259c
    Successfully tagged centos-plus:0.1

    • 查看制作的镜像:

      [root@niss]~/dockerf# docker images
      REPOSITORY              TAG                 IMAGE ID            CREATED             SIZE
      centos-plus             0.1                 2ccca68a259c        27 minutes ago      321MB
      以下省略。。。

    • 使用自制的镜像:

      [root@niss]~/dockerf# docker run -it --name=centos-plus centos-plus:0.1
      [root@4318333c9bb1 local]# pwd
      /usr/local

      # ip-tools测试
      [root@4318333c9bb1 local]# ifconfig
      eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
              inet 172.17.0.4  netmask 255.255.0.0  broadcast 172.17.255.255
              ether 02:42:ac:11:00:04  txqueuelen 0  (Ethernet)
              RX packets 0  bytes 0 (0.0 B)
              RX errors 0  dropped 0  overruns 0  frame 0
              TX packets 0  bytes 0 (0.0 B)
              TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

      lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
              inet 127.0.0.1  netmask 255.0.0.0
              loop  txqueuelen 1000  (Local Loopback)
              RX packets 0  bytes 0 (0.0 B)
              RX errors 0  dropped 0  overruns 0  frame 0
              TX packets 0  bytes 0 (0.0 B)
              TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

      # vim测试
      [root@4318333c9bb1 local]# vim --help
      VIM - Vi IMproved 8.0 (2016 Sep 12, compiled Nov 11 2019 19:08:24)

      usage: vim [arguments] [file ..]       edit specified file(s)
         or: vim [arguments] -               read text from stdin
         or: vim [arguments] -t tag          edit file where tag is defined
         or: vim [arguments] -q [errorfile]  edit file with first error
      # 以下省略

  • docker history 镜像名[:tag]查看镜像的构建过程:

    [root@niss]~/dockerf# docker history centos-plus:0.1
    IMAGE               CREATED             CREATED BY                                      SIZE                COMMENT
    2ccca68a259c        38 minutes ago      /bin/sh -c #(nop)  CMD ["/bin/sh" "-c" "/bin…   0B
    f3660fc995da        38 minutes ago      /bin/sh -c #(nop)  CMD ["/bin/sh" "-c" "echo…   0B
    e0c045995ecd        38 minutes ago      /bin/sh -c #(nop)  CMD ["/bin/sh" "-c" "echo…   0B
    c83a68ff9d53        38 minutes ago      /bin/sh -c #(nop)  EXPOSE 80                    0B
    ca1425549ec9        38 minutes ago      /bin/sh -c yum -y install net-tools             24MB
    a14067222158        38 minutes ago      /bin/sh -c yum -y install vim                   59.8MB
    bdf84a4fa2f8        39 minutes ago      /bin/sh -c #(nop) WORKDIR /usr/local            0B
    2df7599ad39c        39 minutes ago      /bin/sh -c #(nop)  ENV MYPATH=/usr/local        0B
    0d1447c2897d        39 minutes ago      /bin/sh -c #(nop)  MAINTAINER Nishoushun<1623339…      0B
    470671670cac        4 months ago        /bin/sh -c #(nop)  CMD ["/bin/bash"]            0B
    <missing>           4 months ago        /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
    <missing>           4 months ago        /bin/sh -c #(nop) ADD file:aa54047c80ba30064…   237MB


例:构建tomcat+jdk镜像

  • 准备:

    apache-tomcat-9.0.35.tar.gz  jdk-8u251-linux-x64.tar.gz

  • 编写Dockerfiles

    FROM centos

    MAINTAINER nishoushun<ni18724787072@outlook.com>

    COPY readme.md /usr/local/readme.md

    ADD jdk-8u251-linux-x64.tar.gz /usr/local
    ADD apache-tomcat-9.0.35.tar.gz /usr/local

    RUN yum -y install vim

    ENV MYPATH /usr/local
    WORKDIR $MYPATH

    ENV JAVA_HOME /usr/local/jdk1.8.0_251
    ENV CLASSPATH $JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
    ENV CATALINA_HOME /usr/local/apache-tomcat-9.0.35
    ENV CATALINA_BASE /usr/local/apache-tomcat-9.0.35
    ENV PATH $PATH:$JAVA_HOME/bin:$CATALINA_HOME/lib:$CATALINA_HOME/bin

    EXPOSE 8080

    CMD /usr/local/apache-tomcat-9.0.35/bin/startup.sh $$ tail -F  /usr/local/apache-tomcat-9.0.35/logs/catalina.out

  • 构建镜像

    docker build -t tomcat_jdk:1.0 .

    • 构建时如果没有指定dockerfile,会自动寻找Dockerfile文件
  • 启动镜像

    docker run -it -p 7070:8080 --name=tomcat \
    -v /home/web/tomcat/webapps/:/usr/local/apache-tomcat-9.0.35/webapps/ \
    -v /home/web/tomcat/tomcatlogs/:/usr/local/apache-tomcat-9.0.35/logs \
    tomcat-jdk


1.6 docker网络

1.6.1 docker网络介绍

(1)安装并启动了docker服务服务器网络

  • 查看docker网络

    # root @ niss in ~ [10:01:00]
    $ ip addr
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
    2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
        link/ether 00:16:3e:0e:84:10 brd ff:ff:ff:ff:ff:ff
        inet 172.16.121.72/20 brd 172.16.127.255 scope global dynamic eth0
           valid_lft 313982894sec preferred_lft 313982894sec
    3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
        link/ether 02:42:4f:3a:be:9d brd ff:ff:ff:ff:ff:ff
        inet 172.17.0.1/16 scope global docker0
           valid_lft forever preferred_lft forever
    812: veth2c09b5d@if811: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
        link/ether 8e:9a:e4:08:1e:21 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    162: br-58fd6f6d2257: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
        link/ether 02:42:59:73:3d:f0 brd ff:ff:ff:ff:ff:ff
        inet 172.18.0.1/16 brd 172.18.255.255 scope global br-58fd6f6d2257
           valid_lft forever preferred_lft forever

    • 环回地址:127.0.0.1/8
    • 内网地址:172.16.121.72/20
    • docker0:172.17.0.1/16
    • docker地址:172.18.0.1/16
  • 启动tomcat镜像,查看网络信息

    # root @ niss in ~ [10:04:31]
    $ docker run --name=tomcat01 -d tomcat
    c2fe7ba1530d5d685ad6fe63b2cc4ec6858102f27934022804ca24ff6afc7235

    # root @ niss in ~ [10:04:49]
    $ docker exec -it tomcat01 /bin/bash
    root@c2fe7ba1530d:/usr/local/tomcat# ip addr
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
    813: eth0@if814: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
        link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 0
        inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
           valid_lft forever preferred_lft forever

    • 环回地址:127.0.0.1/8
    • eth0@if810:容器启动时,docker为之分配的IP地址:inet 172.17.0.2/16
  • 再次启动一个tomcat:

    # root @ niss in ~ [10:08:35]
    $ docker exec -it tomcat02 /bin/bash
    root@adc336154f86:/usr/local/tomcat# ip addr
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
    815: eth0@if816: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
        link/ether 02:42:ac:11:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 0
        inet 172.17.0.3/16 brd 172.17.255.255 scope global eth0
           valid_lft forever preferred_lft forever

    • 172.17.0.3/16

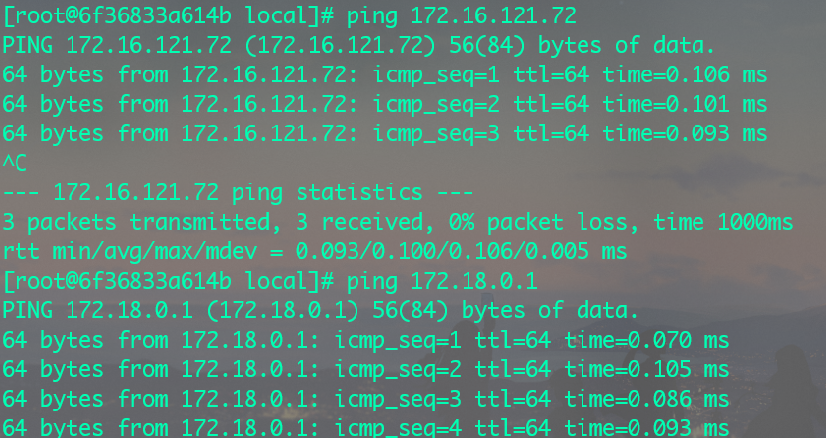

  • 容器与宿主机连通性测试

    image-20200609100246977

    • 可以ping通

1.6.2 容器互联

(1)容器互联问题

  • 当以容器名为连接性测试对象时,无法识别主机

    root@adc336154f86:/usr/local/tomcat# ping tomcat01
    ping: tomcat01: Name or service not known

  • 然而很多情况下需要以主机名作为连接对象(就像浏览网站,只需要记住url,即使IP更改,只要有人维护IP与域名的映射关系,就不会对访问者造成影响)

(2)link

  • 在创建容器时使用--link选项来连接其他容器:

    # root @ niss in ~ [9:08:51] C:130
    $ docker run -d -P --name=tomcat03 --link "tomcat01" --link"tomcat02" tomcat
    unknown flag: --linktomcat02
    See 'docker run --help'.

    # root @ niss in ~ [9:08:57] C:125
    $ docker run -d -P --name=tomcat03 --link "tomcat01" --link "tomcat02" tomcat
    ff37a3e051442bc939dab557a8994ccb67b69e84c67e7d6605e30b608582ac7f


    连通性测试:

    # root @ niss in ~ [9:10:46] C:125
    $ docker exec -it tomcat03 ping tomcat01
    PING tomcat01 (172.17.0.2) 56(84) bytes of data.
    64 bytes from tomcat01 (172.17.0.2): icmp_seq=1 ttl=64 time=0.169 ms
    64 bytes from tomcat01 (172.17.0.2): icmp_seq=2 ttl=64 time=0.104 ms
    ^C
    --- tomcat01 ping statistics ---
    2 packets transmitted, 2 received, 0% packet loss, time 1000ms
    rtt min/avg/max/mdev = 0.104/0.136/0.169/0.034 ms

  • 但是此时tomcat02仍然不能以tomcat03为主机名进行连接性测试

    # root @ niss in ~ [9:10:58]
    $ docker exec -it tomcat01 ping tomcat03
    ping: tomcat03: Name or service not known


(3)docker network命令

  • 使用docker network命令参数:

    Manage networks

    Commands:
      connect     Connect a container to a network
      create      Create a network
      disconnect  Disconnect a container from a network
      inspect     Display detailed information on one or more networks
      ls          List networks
      prune       Remove all unused networks
      rm          Remove one or more networks

  • 查看docker网络详细信息

    # root @ niss in ~ [9:16:20]
    $ docker network ls
    NETWORK ID          NAME                DRIVER              SCOPE
    a0dc6e118c93        bridge              bridge              local
    13fc812121dc        host                host                local
    acb2c6a1d19f        none                null                local
    58fd6f6d2257        phpxxe_default      bridge              local

    # root @ niss in ~ [9:17:31]

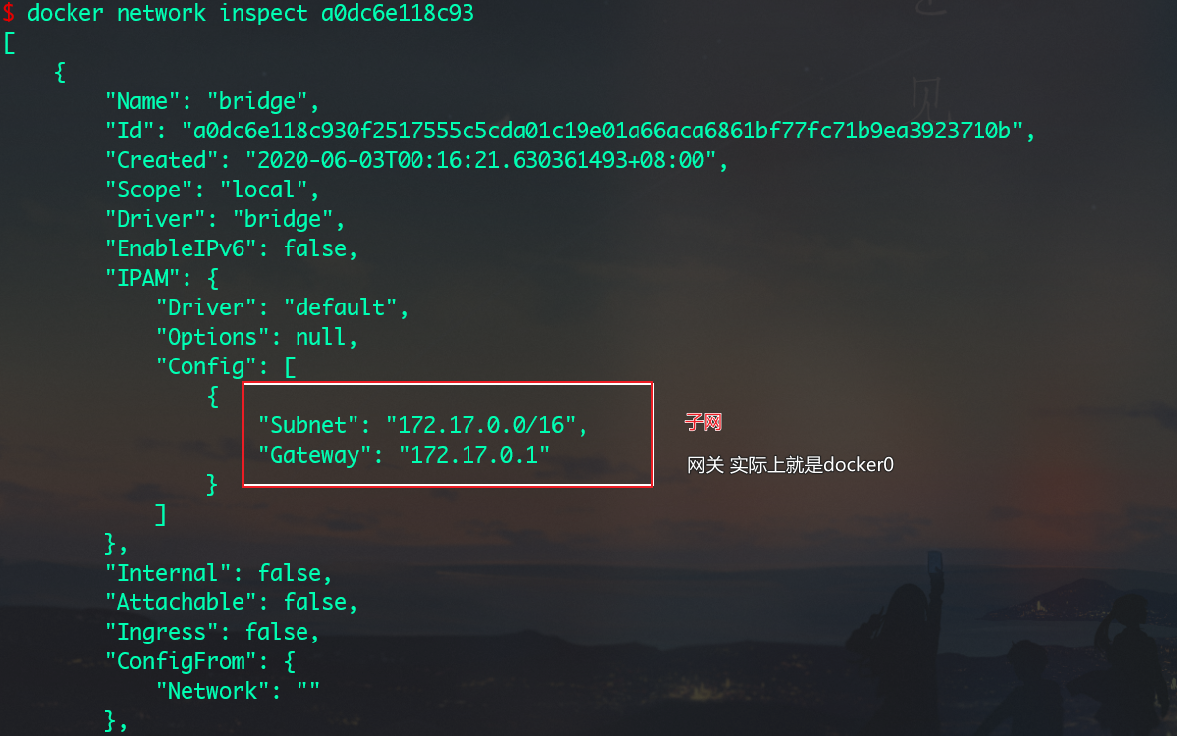

    $ docker network inspect a0dc6e118c93


    image-20200615091912181

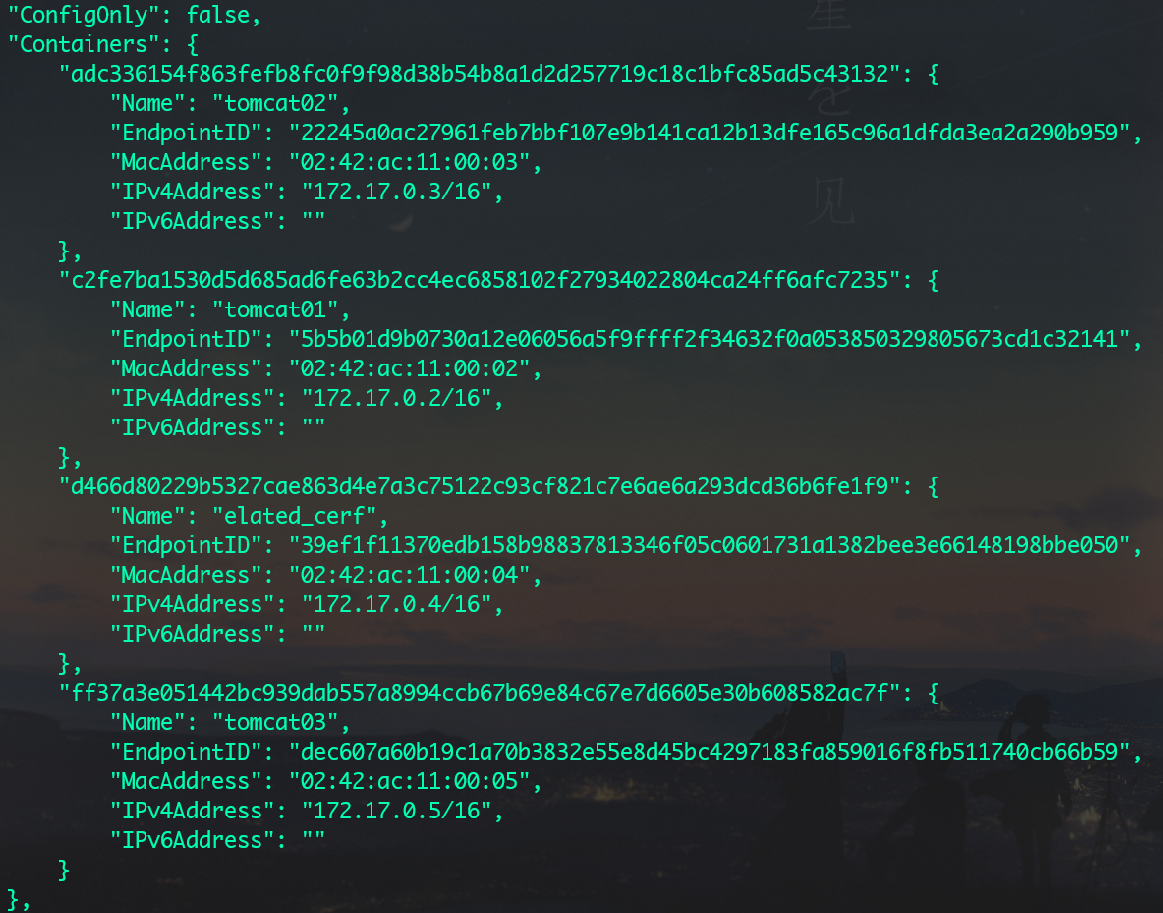

    容器的网络设置:

    image-20200615091939041

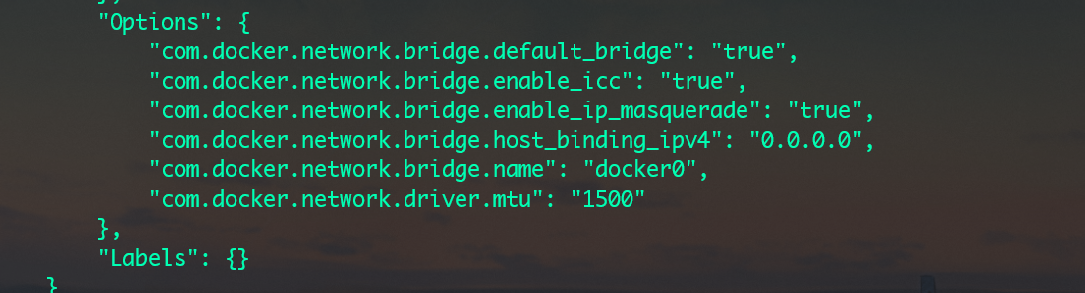

    网络连接选项:

    image-20200615092022303

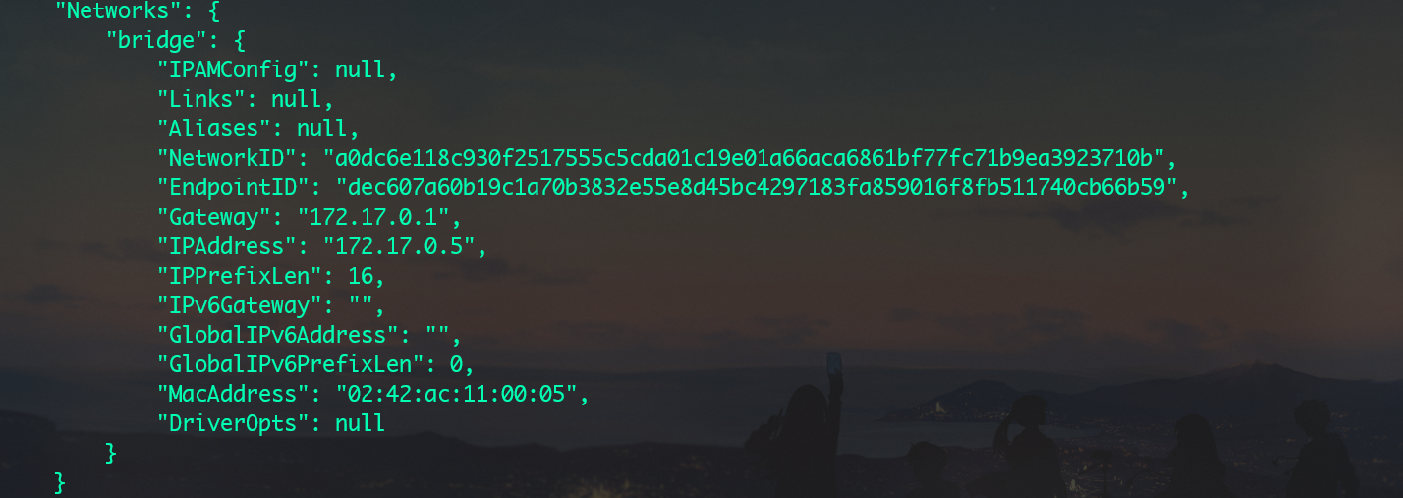

  • 查看tomcat03容器的配置信息:

    在最后:

    image-20200615092256501

    • 可以看到网关为172.17.0.1
  • 查看tomcat03的hosts文件配置信息:

    # root @ niss in ~ [9:26:41] C:1
    $  docker exec -it tomcat03 cat /etc/hosts
    127.0.0.1       localhost
    ::1     localhost ip6-localhost ip6-loopback
    fe00::0 ip6-localnet
    ff00::0 ip6-mcastprefix
    ff02::1 ip6-allnodes
    ff02::2 ip6-allrouters
    172.17.0.2      tomcat01 c2fe7ba1530d
    172.17.0.3      tomcat02 adc336154f86
    172.17.0.5      ff37a3e05144

    • 实际上–link就是在/etc/hosts添加容器名与容器IP的映射

    再比如tomcat01的hosts文件:

    # root @ niss in ~ [9:27:16]
    $  docker exec -it tomcat01 cat /etc/hosts
    127.0.0.1       localhost
    ::1     localhost ip6-localhost ip6-loopback
    fe00::0 ip6-localnet
    ff00::0 ip6-mcastprefix
    ff02::1 ip6-allnodes
    ff02::2 ip6-allrouters
    172.17.0.2      c2fe7ba1530d

    • 此时就没有相应的主机映射;

1.6.3 容器互联-自定义网络

(1)网络模式

  • bridge:桥接docker默认(docker0)
  • none:不配置网络
  • host:与宿主机共享网络
  • container:容器网络联通

(2)查看自定义网络

  • 查看docker网络:

    docker network ls
    NETWORK ID          NAME                DRIVER              SCOPE
    a0dc6e118c93        bridge              bridge              local
    13fc812121dc        host                host                local
    acb2c6a1d19f        none                null                local
    58fd6f6d2257        phpxxe_default      bridge              local

    • brige实际上对应的就是docker0网络,默认;如果未指定,容器不能靠容器名网络连接;

(3)创建自定义网络

  • docker network create:

    Create a network

    Options:
          --attachable           Enable manual container attachment
          --aux-address map      Auxiliary IPv4 or IPv6 addresses used by Network driver (default map[])
          --config-from string   The network from which copying the configuration
          --config-only          Create a configuration only network
      -d, --driver string        Driver to manage the Network (default "bridge")
          --gateway strings      IPv4 or IPv6 Gateway for the master subnet
          --ingress              Create swarm routing-mesh network
          --internal             Restrict external access to the network
          --ip-range strings     Allocate container ip from a sub-range
          --ipam-driver string   IP Address Management Driver (default "default")
          --ipam-opt map         Set IPAM driver specific options (default map[])
          --ipv6                 Enable IPv6 networking
          --label list           Set metadata on a network
      -o, --opt map              Set driver specific options (default map[])
          --scope string         Control the network's scope
          --subnet strings       Subnet in CIDR format that represents a network segment


    例:

    # root @ niss in ~ [9:46:22] C:130
    $ docker network create --driver bridge --subnet 192.168.0.0/16 --gateway 192.168.0.1 mynetwork
    c1c801784c1c58d913eccb2c1b0132763ca5d2aeff641ebf367423f7fa6cc141

    $  docker network inspect mynetwork
    [
        {
            "Name": "mynetwork",
            "Id": "c1c801784c1c58d913eccb2c1b0132763ca5d2aeff641ebf367423f7fa6cc141",
            "Created": "2020-06-15T09:46:26.470339626+08:00",
            "Scope": "local",
            "Driver": "bridge",
            "EnableIPv6": false,
            "IPAM": {
                "Driver": "default",
                "Options": {},
                "Config": [
                    {
                        "Subnet": "192.168.0.0/16",
                        "Gateway": "192.168.0.1"
                    }
                ]
            },
            "Internal": false,
            "Attachable": false,
            "Ingress": false,
            "ConfigFrom": {
                "Network": ""
            },
            "ConfigOnly": false,
            "Containers": {},
            "Options": {},
            "Labels": {}
        }
    ]

    • 桥接模式
    • 子网:192.168.0.0/16
    • 网关:192.168.0.1
    • 网络名:mynetwork

(4)创建容器时使用自定义网络

  • 删除之前的所有容器,创建新的属于自定义网络的容器

    使用--net 网络ID

    # root @ niss in ~ [9:49:52]
    $ docker run --name tomcat01 -P -d --net mynetwork tomcat
    9beabc19bafaa7e842511be8537563023d85df5a4f58b6bffbdef83958055296

    # root @ niss in ~ [9:50:27]
    $ docker run --name tomcat02 -P -d --net mynetwork tomcat
    d42357da832bcd136e057cc79c1e68955cca4b3991c48f20c541bc519b239e89


    此时:

    # root @ niss in ~ [9:50:34]
    $  docker network inspect mynetwork
    [
        {
            "Name": "mynetwork",
            "Id": "c1c801784c1c58d913eccb2c1b0132763ca5d2aeff641ebf367423f7fa6cc141",
            "Created": "2020-06-15T09:46:26.470339626+08:00",
            "Scope": "local",
            "Driver": "bridge",
            "EnableIPv6": false,
            "IPAM": {
                "Driver": "default",
                "Options": {},
                "Config": [
                    {
                        "Subnet": "192.168.0.0/16",
                        "Gateway": "192.168.0.1"
                    }
                ]
            },
            "Internal": false,
            "Attachable": false,
            "Ingress": false,
            "ConfigFrom": {
                "Network": ""
            },
            "ConfigOnly": false,
            "Containers": {
                "9beabc19bafaa7e842511be8537563023d85df5a4f58b6bffbdef83958055296": {
                    "Name": "tomcat01",
                    "EndpointID": "5560fbafc4d6154c247fc52465afe6eb61b33e5c19684177f17bea33942b3e59",
                    "MacAddress": "02:42:c0:a8:00:02",
                    "IPv4Address": "192.168.0.2/16",
                    "IPv6Address": ""
                },
                "d42357da832bcd136e057cc79c1e68955cca4b3991c48f20c541bc519b239e89": {
                    "Name": "tomcat02",
                    "EndpointID": "225ae1e8f4e58bb931f9d89436871342868d692b561c6f8df7c849bb012ba877",
                    "MacAddress": "02:42:c0:a8:00:03",
                    "IPv4Address": "192.168.0.3/16",
                    "IPv6Address": ""
                }
            },
            "Options": {},
            "Labels": {}
        }
    ]


    此时再次进行连通性测试:

    # root @ niss in ~ [9:51:53] C:1
    $ docker exec  tomcat01 ping tomcat02
    PING tomcat02 (192.168.0.3) 56(84) bytes of data.
    64 bytes from tomcat02.mynetwork (192.168.0.3): icmp_seq=1 ttl=64 time=0.136 ms
    64 bytes from tomcat02.mynetwork (192.168.0.3): icmp_seq=2 ttl=64 time=0.099 ms

    • 此时就可以根据容器名正常联通

1.6.4 容器与网络的联通

(1)docker network connect

  • 将容器添加到网络中,使该网络间的容器可以相互连通;

  • 使用方式:

    Usage:  docker network connect [OPTIONS] NETWORK CONTAINER

    Connect a container to a network

    Options:
          --alias strings           Add network-scoped alias for the container
          --driver-opt strings      driver options for the network
          --ip string               IPv4 address (e.g., 172.30.100.104)
          --ip6 string              IPv6 address (e.g., 2001:db8::33)
          --link list               Add link to another container
          --link-local-ip strings   Add a link-local address for the container


    示例:将容器mysql添加到mynwtwork网络中,相互连通;

    # root @ niss in ~ [9:24:24]
    $ docker network connect mynetwork mysql


    检查网络:

    # root @ niss in ~ [9:29:56] C:1
    $ docker network inspect mynetwork
    [
        {
            "Name": "mynetwork",
            "Id": "c1c801784c1c58d913eccb2c1b0132763ca5d2aeff641ebf367423f7fa6cc141",
            "Created": "2020-06-15T09:46:26.470339626+08:00",
            "Scope": "local",
            "Driver": "bridge",
            "EnableIPv6": false,
            "IPAM": {
                "Driver": "default",
                "Options": {},
                "Config": [
                    {
                        "Subnet": "192.168.0.0/16",
                        "Gateway": "192.168.0.1"
                    }
                ]
            },
            "Internal": false,
            "Attachable": false,
            "Ingress": false,
            "ConfigFrom": {
                "Network": ""
            },
            "ConfigOnly": false,
            "Containers": {
                "c3e76d01dbff94ef2499bc10bed8f92b615ecaa803f13083c7821103bc386331": {
                    "Name": "mysql",
                    "EndpointID": "505f679d560d2986b4bc914babd50a6d092db5280d6ef7147e145f2c54725871",
                    "MacAddress": "02:42:c0:a8:00:02",
                    "IPv4Address": "192.168.0.2/16",
                    "IPv6Address": ""
                }
            },
            "Options": {},
            "Labels": {}
        }
    ]


参考


易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
