1. 准备环境
Ubuntu 12.04
Dpdk版本 16.04

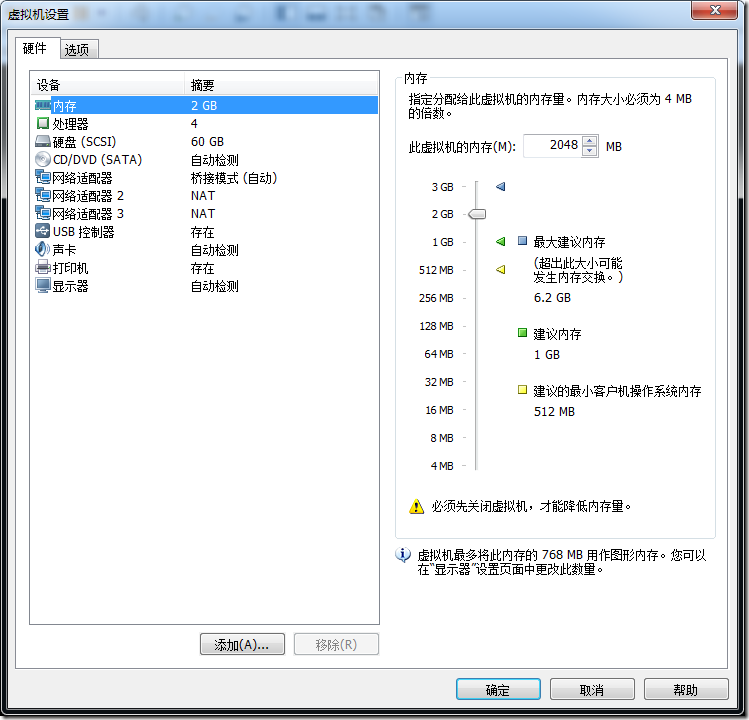

2. Vmware Workstations设置
3. Dpdk环境搭建
3.1. 设置环境变量
export RTE_SDK=/home/username/Downloads/dpdk-16.04 //将RET_SDK的路径设置为dpdk源码路径
export RTE_TARGET=x86_64-native-linuxapp-gcc //64bit系统
3.2. 编译测试
编译测试有两种方案
3.2.1. 脚本方案
./tools/setup.sh
root@ubuntu:/home/zhaojie/Downloads/dpdk-16.04# ./tools/setup.sh
------------------------------------------------------------------------------
RTE_SDK exported as /home/zhaojie/Downloads/dpdk-16.04
------------------------------------------------------------------------------
----------------------------------------------------------
Step 1: Select the DPDK environment to build
----------------------------------------------------------
[1] arm64-armv8a-linuxapp-gcc
[2] arm64-thunderx-linuxapp-gcc
[3] arm64-xgene1-linuxapp-gcc
[4] arm-armv7a-linuxapp-gcc
[5] i686-native-linuxapp-gcc
[6] i686-native-linuxapp-icc
[7] ppc_64-power8-linuxapp-gcc
[8] tile-tilegx-linuxapp-gcc
[9] x86_64-ivshmem-linuxapp-gcc
[10] x86_64-ivshmem-linuxapp-icc
[11] x86_64-native-bsdapp-clang
[12] x86_64-native-bsdapp-gcc
[13] x86_64-native-linuxapp-clang
[14] x86_64-native-linuxapp-gcc
[15] x86_64-native-linuxapp-icc
[16] x86_x32-native-linuxapp-gcc
----------------------------------------------------------
Step 2: Setup linuxapp environment
----------------------------------------------------------
[17] Insert IGB UIO module
[18] Insert VFIO module
[19] Insert KNI module
[20] Setup hugepage mappings for non-NUMA systems
[21] Setup hugepage mappings for NUMA systems
[22] Display current Ethernet device settings
[23] Bind Ethernet device to IGB UIO module
[24] Bind Ethernet device to VFIO module
[25] Setup VFIO permissions
----------------------------------------------------------
Step 3: Run test application for linuxapp environment
----------------------------------------------------------
[26] Run test application ($RTE_TARGET/app/test)
[27] Run testpmd application in interactive mode ($RTE_TARGET/app/testpmd)
----------------------------------------------------------
Step 4: Other tools
----------------------------------------------------------
[28] List hugepage info from /proc/meminfo
----------------------------------------------------------
Step 5: Uninstall and system cleanup
----------------------------------------------------------
[29] Unbind NICs from IGB UIO or VFIO driver
[30] Remove IGB UIO module
[31] Remove VFIO module
[32] Remove KNI module
[33] Remove hugepage mappings
[34] Exit Script
Option:1）第一步先选择编译环境。我的Ubuntu虚拟机是12.04 64位的。所以这里选择x86_64-native-linuxapp-gcc（14）
这里可能会出错，根据错误的提示查找解决方案
2）加载uio模块Insert IGB UIO module (17)
UIO（Userspace I/O）是运行在用户空间的I/O技术，Linux系统中一般的驱动设备都是运行在内核空间，而在用户空间用应用程序调用即可，而UIO则是将驱动的很少一部分运行在内核空间，而在用户空间实现驱动的绝大多数功能！
使用UIO可以避免设备的驱动程序需要随着内核的更新而更新的问题
3）配置大页Setup hugepage mappings for non-NUMA systems（20）
Removing currently reserved hugepages
Unmounting /mnt/huge and removing directory
Input the number of 2048kB hugepages
Example: to have 128MB of hugepages available in a 2MB huge page system,
enter '64' to reserve 64 * 2MB pages
Number of pages:经过多次尝试后选择了512页（配置128会因为太小了不能运行示例程序= =）
配置成功之后可以选择List hugepage info from /proc/meminfo（28）查看大页情况
Option: 28
AnonHugePages: 77824 kB
HugePages_Total: 512
HugePages_Free: 512
HugePages_Rsvd: 0
HugePages_Surp: 0
Hugepagesize: 2048 kB
Press enter to continue ...4）将网卡绑定到uio模块上Bind Ethernet device to IGB UIO module（23）
Network devices using DPDK-compatible driver
============================================
<none>
Network devices using kernel driver
===================================
0000:02:01.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth0 drv=e1000 unused=igb_uio *Active*
0000:02:02.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth1 drv=e1000 unused=igb_uio *Active*
0000:02:03.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth2 drv=e1000 unused=igb_uio *Active*
Other network devices
=====================
<none>
Enter PCI address of device to bind to IGB UIO driver:注意：
需要绑定的接口，在绑定前需要down掉（这里可以看到需要绑定的eth1 eth2都是Active，因此需要手动down掉）
//获取root权限
zhaojie@ubuntu:~$ su
Password:
root@ubuntu:/home/zhaojie# ifconfig eth1 down;ifconfig eth2 down
root@ubuntu:/home/zhaojie#再次尝试绑定：
Network devices using DPDK-compatible driver
============================================
<none>
Network devices using kernel driver
===================================
0000:02:01.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth0 drv=e1000 unused=igb_uio *Active*
0000:02:02.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth1 drv=e1000 unused=igb_uio
0000:02:03.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth2 drv=e1000 unused=igb_uio
Other network devices
=====================
<none>这里直接操作两次，将0000:02:02.0和0000:02:03.0绑定至uio
通过Display current Ethernet device settings（22）常看绑定情况
Network devices using DPDK-compatible driver
============================================
0000:02:02.0 '82545EM Gigabit Ethernet Controller (Copper)' drv=igb_uio unused=e1000
0000:02:03.0 '82545EM Gigabit Ethernet Controller (Copper)' drv=igb_uio unused=e1000
Network devices using kernel driver
===================================
0000:02:01.0 '82545EM Gigabit Ethernet Controller (Copper)' if=eth0 drv=e1000 unused=igb_uio *Active*
Other network devices
=====================
<none>现在就可以运行示例程序了
Run testpmd application in interactive mode ($RTE_TARGET/app/testpmd)（27）
Enter hex bitmask of cores to execute testpmd app on
Example: to execute app on cores 0 to 7, enter 0xff
bitmask:由于我配置vmware的时候配置的4个cpu，也就是跑0-4core，也就是说低四位都是1。因此bitmask选择0x0f
注意：
有可能因为虚拟机的缘故，可能会出现

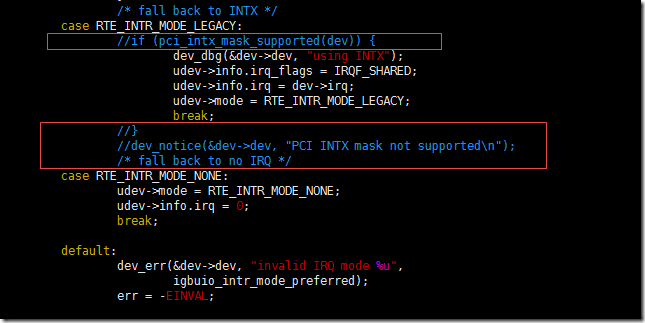

EAL: Error reading from file descriptor需要将lib/librte_eal/linuxapp/igb_uio/igb_uio.c文件中一下几行注释掉
正常运行后的情况如下
Interactive-mode selected
Configuring Port 0 (socket 0)
PMD: eth_em_tx_queue_setup(): sw_ring=0x7f2369190780 hw_ring=0x7f2369192880 dma_addr=0x48f92880
PMD: eth_em_rx_queue_setup(): sw_ring=0x7f2369180240 hw_ring=0x7f2369180740 dma_addr=0x48f80740
PMD: eth_em_start(): <<
Port 0: 00:0C:29:51:25:F5
Configuring Port 1 (socket 0)
PMD: eth_em_tx_queue_setup(): sw_ring=0x7f236916e000 hw_ring=0x7f2369170100 dma_addr=0x48f70100
PMD: eth_em_rx_queue_setup(): sw_ring=0x7f236915dac0 hw_ring=0x7f236915dfc0 dma_addr=0x48f5dfc0
PMD: eth_em_start(): <<
Port 1: 00:0C:29:51:25:FF
Checking link statuses...
Port 0 Link Up - speed 1000 Mbps - full-duplex
Port 1 Link Up - speed 1000 Mbps - full-duplex
Done
testpmd>键入start开始测试
键入stop结束测试
至此环境搭建完毕
3.2.2. 命令行方案
命令行方案的目的主要是为了能够将配置写入开机脚本中，系统启动之后自动执行
操作前需要先获取root权限（su）
//设置环境变量
export RTE_SDK=/home/zhaojie/Downloads/dpdk-16.04
export RET_TARGET=x86_64-native-linuxapp-gcc
//编译
make install T=x86_64-native-linuxapp-gccroot@ubuntu:/home/zhaojie/Downloads/dpdk-16.04# make install T=x86_64-native-linuxapp-gcc
make[5]: Nothing to be done for `depdirs'.
Configuration done
== Build lib
== Build lib/librte_compat
== Build lib/librte_eal
== Build lib/librte_eal/common
== Build lib/librte_eal/linuxapp
//省略一部分
== Build app/test-pipeline
== Build app/test-pmd
== Build app/cmdline_test
== Build app/proc_info
Build complete [x86_64-native-linuxapp-gcc]
Installation cannot run with T defined and DESTDIR undefined
root@ubuntu:/home/zhaojie/Downloads/dpdk-16.04#结尾出现Installation cannot run with T defined and DESTDIR undefined
由于我们只是编译。不安装，所以这里无伤大雅，继续往后走
配置大页
//设置页大小
echo 512 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages
//创建路径用于挂载
mkdir /mnt/huge/
//挂载大页
mount -t hugetlbfs nodev /mnt/huge/
//查看Huge内存情况
cat /proc/meminfo | grep Huge绑定接口
/加载模块/
modprobe uio
insmod x86_64-native-linuxapp-gcc/kmod/igb_uio.ko
//查看接口状态
./tools/dpdk_nic_bind.py --status
//将需要绑定的接口down
ifconfig eth1 down
ifconfig eth2 down
//绑定
./tools/dpdk_nic_bind.py -b igb_uio 0000:02:02.0
./tools/dpdk_nic_bind.py -b igb_uio 0000:02:03.0运行示例程序
//-c:core bitmask -ninterface number
./x86_64-native-linuxapp-gcc/app/testpmd -c 0xf -n 2 -- -i至此,配置环境完成
当调试dpdk的程序,这里以所有程序的开始示例helloworld作例子
该例子是在每个使用的核打印 hello from core xx
在./examples/目录下有许多例子,其中有一个hellowoeld路径
进入helloworld路径直接make
之后会在当前helloworld路径下生成build文件夹
build文件夹中存在helloworld可执行程序
./helloworld -c 0x0f -n 2 -- -iEAL: Detected lcore 0 as core 0 on socket 0
EAL: Detected lcore 1 as core 0 on socket 0
EAL: Detected lcore 2 as core 0 on socket 0
EAL: Detected lcore 3 as core 0 on socket 0
EAL: Support maximum 128 logical core(s) by configuration.
EAL: Detected 4 lcore(s)
EAL: Setting up physically contiguous memory...
EAL: Ask a virtual area of 0x200000 bytes
EAL: Virtual area found at 0x7f64ea200000 (size = 0x200000)
EAL: Ask a virtual area of 0x2e000000 bytes
EAL: Virtual area found at 0x7f64bc000000 (size = 0x2e000000)
EAL: Ask a virtual area of 0x11c00000 bytes
EAL: Virtual area found at 0x7f64aa200000 (size = 0x11c00000)
EAL: Ask a virtual area of 0x200000 bytes
EAL: Virtual area found at 0x7f64a9e00000 (size = 0x200000)
EAL: Requesting 512 pages of size 2MB from socket 0
EAL: TSC frequency is ~2494369 KHz
EAL: Master lcore 0 is ready (tid=eb6e6900;cpuset=[0])
EAL: lcore 3 is ready (tid=a83f6700;cpuset=[3])
EAL: lcore 1 is ready (tid=a93f8700;cpuset=[1])
EAL: lcore 2 is ready (tid=a8bf7700;cpuset=[2])
EAL: PCI device 0000:02:01.0 on NUMA socket -1
EAL: probe driver: 8086:100f rte_em_pmd
EAL: Not managed by a supported kernel driver, skipped
EAL: PCI device 0000:02:02.0 on NUMA socket -1
EAL: probe driver: 8086:100f rte_em_pmd
EAL: PCI memory mapped at 0x7f64ea400000
EAL: PCI memory mapped at 0x7f64ea420000
PMD: eth_em_dev_init(): port_id 0 vendorID=0x8086 deviceID=0x100f
EAL: PCI device 0000:02:03.0 on NUMA socket -1
EAL: probe driver: 8086:100f rte_em_pmd
EAL: PCI memory mapped at 0x7f64ea430000
EAL: PCI memory mapped at 0x7f64ea450000
PMD: eth_em_dev_init(): port_id 1 vendorID=0x8086 deviceID=0x100f
hello from core 1
hello from core 2
hello from core 3
hello from core 0成功打印出每一个核的打印
至此本次dpdk环境搭建的记录结束
