Kubernetes之使用kubeadm部署

　　参考：https://www.cnblogs.com/caoxb/p/11243472.html

　　部署需要的脚本下载

git clone https://gitee.com/liuyueming/k8s-kubeadm.git

　　部署虚拟机规划

192.168.1.11 k8s-master
192.168.1.12 k8s-node1
192.168.1.13 k8s-node2

　　备注：第1步~第8步，所有的节点都要操作，第9、10步Master节点操作，第11步Node节点操作。

           如果第9、10、11步操作失败，可以通过 kubeadm reset 命令来清理环境重新安装。

　　1,关闭防火墙　

systemctl stop firewalld
systemctl disable firewalld

　　2,关闭selinux

setenforce 0

　　修改

/etc/selinux/config

　　修改

SELINUX=disabled

　　3，关闭swapoff

swapoff -a

　　　查看是否关闭

free



 　　4，设置主机名和hosts

　　　修改主机名并修改/etc/hosts

192.168.1.11 k8s-master
192.168.1.12 k8s-node1
192.168.1.13 k8s-node2

　　5,将桥接的IPV4流量传递到iptables的链

#cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
#sysctl --system



 　　6,安装docker

　　设置国内源并且安装

# wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O/etc/yum.repos.d/docker-ce.repo
#yum -y install docker-ce-18.06.1.ce-3.el7

　　启动

#systemctl enable docker
#systemctl start docker

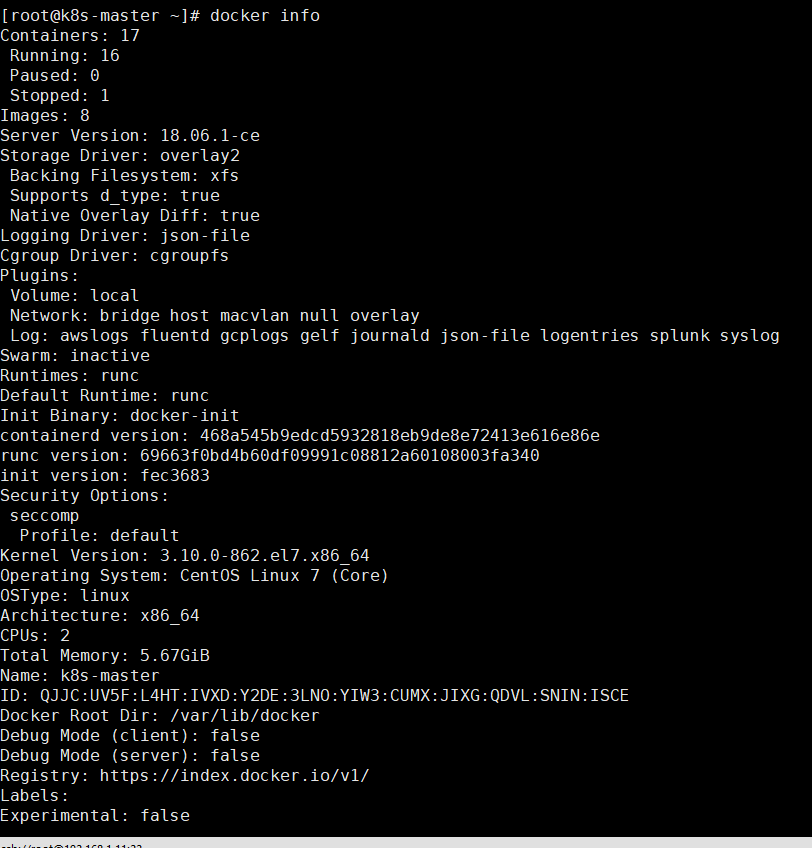

　　查看版本

docker info

　　



 　　7，添加阿里云YUM软件源

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

　　8，安装kubeadm，kubelet和kubectl

　　在部署kubernetes时，要求master node和worker node上的版本保持一致，否则会出现版本不匹配导致奇怪的问题出现。本文将介绍如何在CentOS系统上，使用yum安装指定版本的Kubernetes。

　　本次指定安装1.15.0版本

yum -y install kubelet-1.15.0 kubeadm-1.15.0 kubectl-1.15.0

　　9，部署kubernetes master

　　初始化kubeadm

kubeadm init \
--apiserver-advertise-address=192.168.1.11 \
--image-repository registry.aliyuncs.com/google_containers \
--kubernetes-version v1.15.0 \
--service-cidr=10.1.0.0/16 \
--pod-network-cidr=10.244.0.0/16

　　PS：--apiserver-advertise-address参数指定master主机ip

　　　　--image-repository指定源为阿里云

　　　　--kubernetes-version指定版本号
　　　　--service-cidr#指定proxy的网段

　　　　--pod-network-cidr指定pod的网段

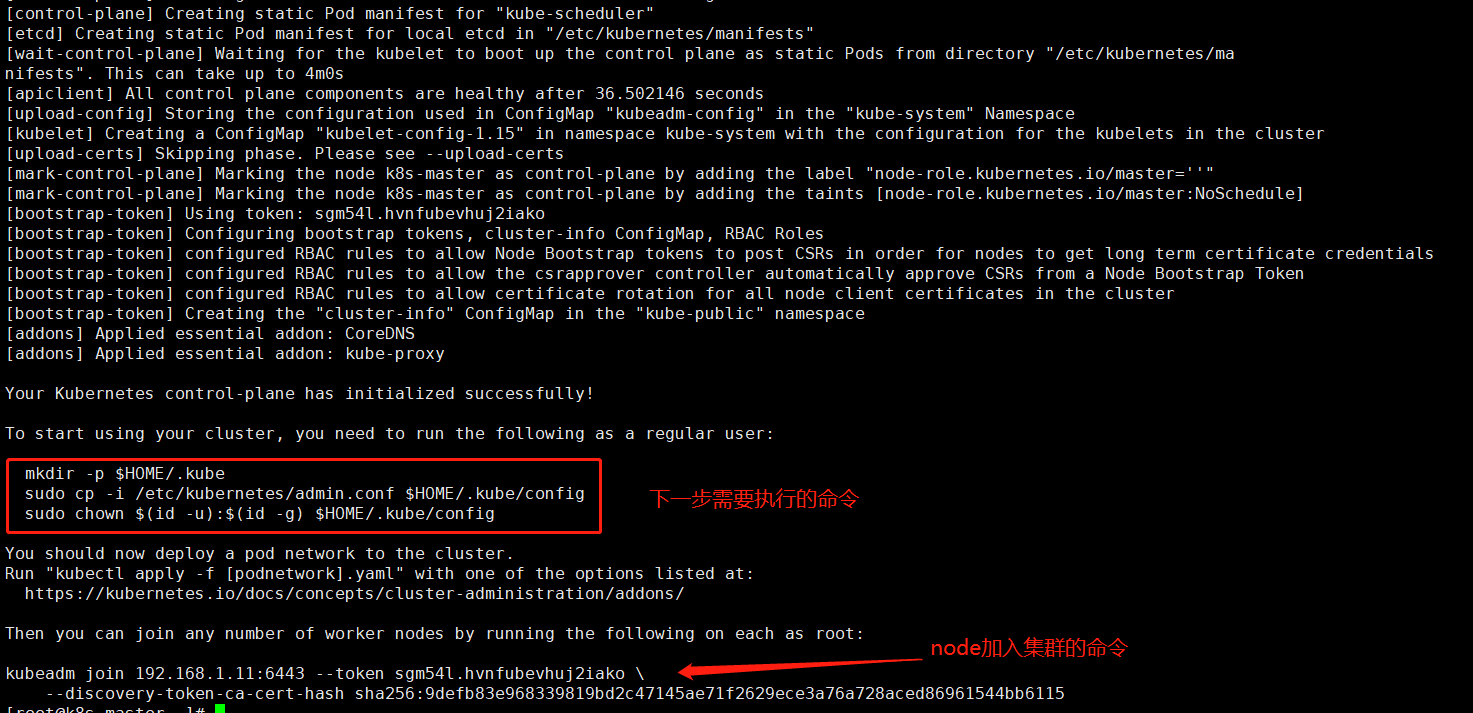

　　出现以下提示表示初始化正确







 　　建议至少2 cpu ,2G

　　查看镜像

docker images

 　　使用kubectl工具，按照提示执行以下命令

mkdir -p $HOME/.kube
 sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
 sudo chown $(id -u):$(id -g) $HOME/.kube/config

　　设置自启动

systemctl status kubelet
systemctl start kubelet

　　PS：kubeadm不是需要开机启动kubelet否则集群不启动

　　下面可以使用kubectl命令了

kubectl get node



 　　是没有准备状态

　　10，安装Pod网络插件

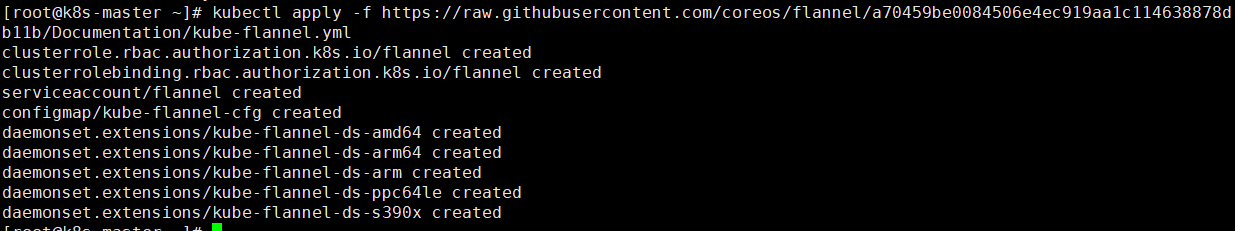

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/a70459be0084506e4ec919aa1c114638878db11b/Documentation/kube-flannel.yml





　　如提示无法无法连接设置host

151.101.72.133 raw.githubusercontent.com

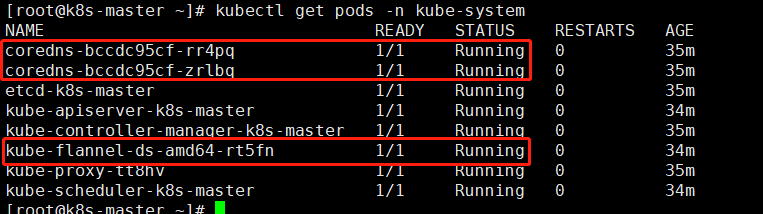

　　查看部署是否成功

kubectl get pods -n kube-system

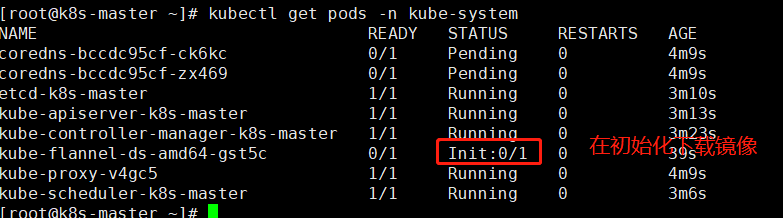

 　　如果下载镜像或者其他原因导致没有正常running可以删除在试一次

kubectl delete -f kube-flannel.yml

　　

 　　等一会再查看



　　master处于准备好状态





 　　如果安装失败了重新清理环境再次安装

kubeadm reset

　　需要输入y确定

　　11，node加入集群

　　在node节点输入

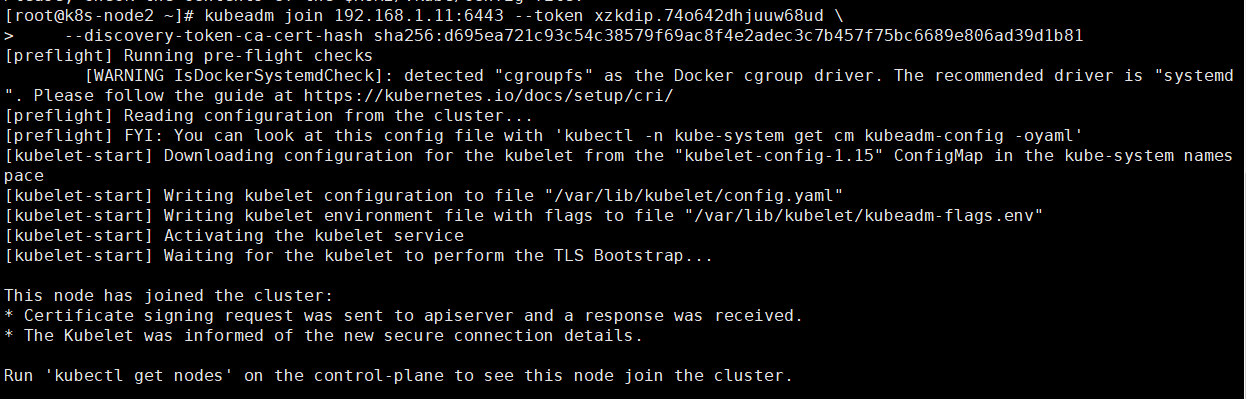

kubeadm join 192.168.1.11:6443 --token xzkdip.74o642dhjuuw68ud \
    --discovery-token-ca-cert-hash sha256:d695ea721c93c54c38579f69ac8f4e2adec3c7b457f75bc6689e806ad39d1b81

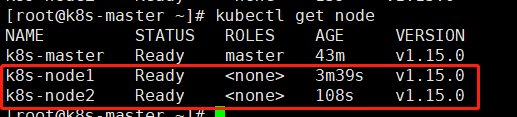

 　　通过master节点查看node发现已经加入集群



 　　如果没有显示Ready状态可以在master查看



 　　两个node节点的flannel需要显示Running状态如果是其他错误状态可能是网络原因导致镜像未下载，需要在node节点重置一下再运行加入集群命令

kubeadm reset

　　

 　　12，测试kubernetes集群

　　在master上面创建运行

#创建一个deployment名称为nginx使用镜像未nginx
kubectl create deployment nginx --image=nginx
#创建一个service对应的deloyment为nginx 集群内部端口为80对外使用NodePort暴露端口
kubectl expose deployment nginx --port=80 --type=NodePort

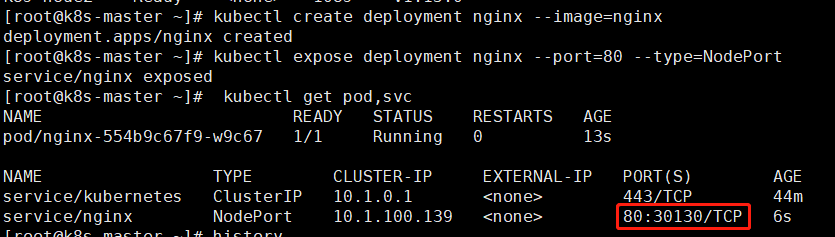

#查看pod和svc
kubectl get pod,svc

　　　如果pod无法启动可以使用以下命令查看日志判断原因，最后参数为pod名称

kubectl describe pod nginx-554b9c67f9-9kv6x

　　

 　　

 　　通过web页面访问

http://192.168.1.11:30130/

　　13，安装dashboard

　　下载dashboard.yaml

wget https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml

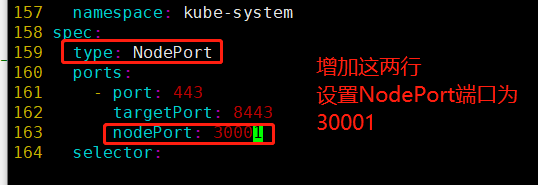

　　修改







　　修改后的文档内容

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# ------------------- Dashboard Secret ------------------- #

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kube-system
type: Opaque

---
# ------------------- Dashboard Service Account ------------------- #

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system

---
# ------------------- Dashboard Role & Role Binding ------------------- #

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: kubernetes-dashboard-minimal
  namespace: kube-system
rules:
  # Allow Dashboard to create 'kubernetes-dashboard-key-holder' secret.
- apiGroups: [""]
  resources: ["secrets"]
  verbs: ["create"]
  # Allow Dashboard to create 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
  resources: ["configmaps"]
  verbs: ["create"]
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
  resources: ["secrets"]
  resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs"]
  verbs: ["get", "update", "delete"]
  # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
  resources: ["configmaps"]
  resourceNames: ["kubernetes-dashboard-settings"]
  verbs: ["get", "update"]
  # Allow Dashboard to get metrics from heapster.
- apiGroups: [""]
  resources: ["services"]
  resourceNames: ["heapster"]
  verbs: ["proxy"]
- apiGroups: [""]
  resources: ["services/proxy"]
  resourceNames: ["heapster", "http:heapster:", "https:heapster:"]
  verbs: ["get"]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: kubernetes-dashboard-minimal
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard-minimal
subjects:
- kind: ServiceAccount
  name: kubernetes-dashboard
  namespace: kube-system

---
# ------------------- Dashboard Deployment ------------------- #

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
      - name: kubernetes-dashboard
        #image: k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1
        image: lizhenliang/kubernetes-dashboard-amd64:v1.10.1
        ports:
        - containerPort: 8443
          protocol: TCP
        args:
          - --auto-generate-certificates
          # Uncomment the following line to manually specify Kubernetes API server Host
          # If not specified, Dashboard will attempt to auto discover the API server and connect
          # to it. Uncomment only if the default does not work.
          # - --apiserver-host=http://my-address:port
        volumeMounts:
        - name: kubernetes-dashboard-certs
          mountPath: /certs
          # Create on-disk volume to store exec logs
        - mountPath: /tmp
          name: tmp-volume
        livenessProbe:
          httpGet:
            scheme: HTTPS
            path: /
            port: 8443
          initialDelaySeconds: 30
          timeoutSeconds: 30
      volumes:
      - name: kubernetes-dashboard-certs
        secret:
          secretName: kubernetes-dashboard-certs
      - name: tmp-volume
        emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule

---
# ------------------- Dashboard Service ------------------- #

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  selector:
    k8s-app: kubernetes-dashboard

　　

 　　修改以后安装

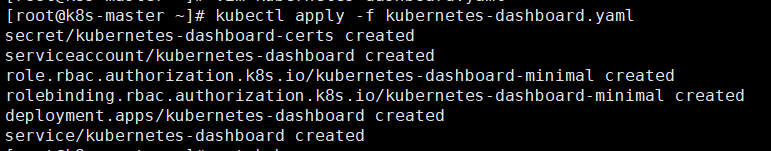

kubectl apply -f kubernetes-dashboard.yaml

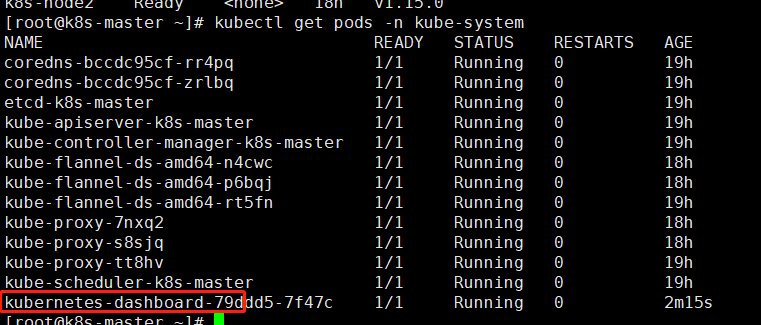

 查看是否运行

kubectl get pods -n kube-system

　　



 　　启动了30001端口



 　　需要使用https访问

https://192.168.1.12:30001/

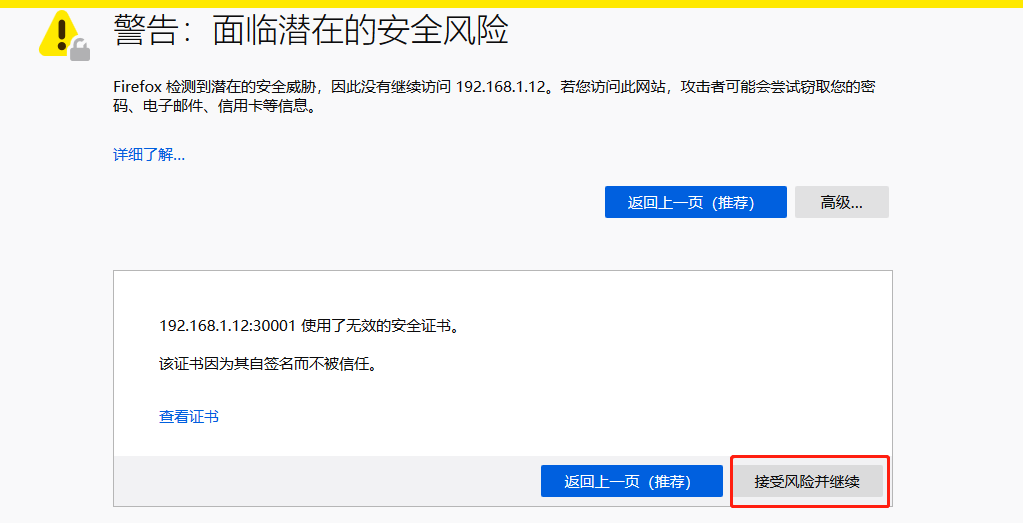

　　页面不信任







 　　使用令牌登录，下面创建用户和生成令牌

　　创建面向应用的用户

kubectl create serviceaccount dashboard-admin -n kube-system

　　集群角色绑定，设置最高的管理员权限

kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

　　获取登录的token令牌

kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')
