SpringBoot学习（二）探究Springboot启动机制

由 試著忘記壹切 提交于 2020-04-28 03:15:13

引言：

　　　　SpringBoot为我们做的自动配置，确实方便快捷，但是对于新手来说，如果不大懂SpringBoot内部启动原理，以后难免会吃亏。所以这次博主就跟你们一起探究一下SpringBoot的启动原理。

目录

　　　　启动流程图

　　　　启动类

　　　　启动分析

　　　　启动总结

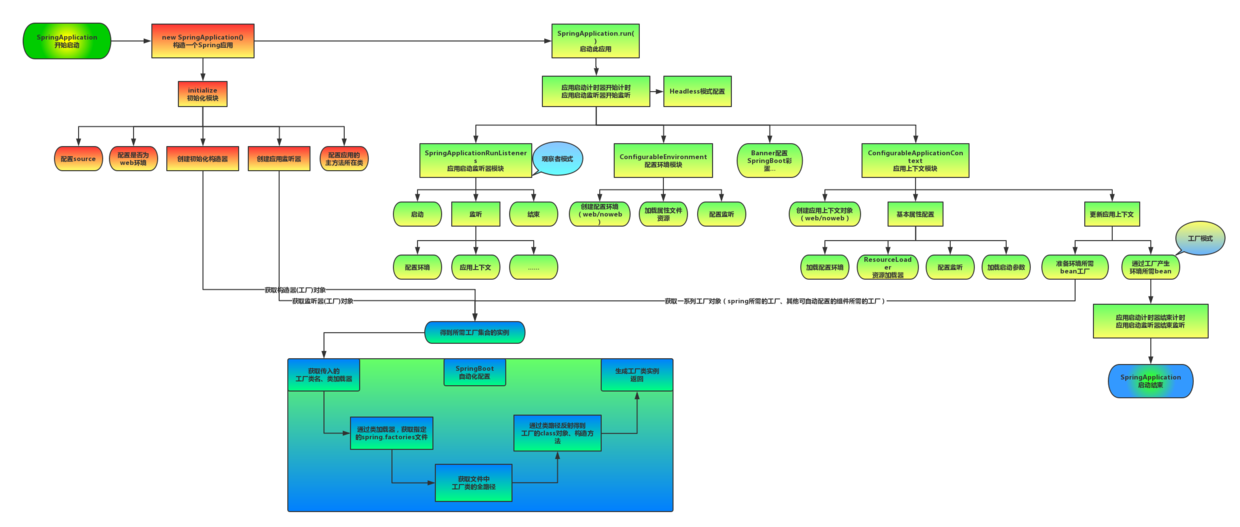

启动流程图

总览：

       上图为SpringBoot启动结构图，我们发现启动流程主要分为三个部分，第一部分进行SpringApplication的初始化模块，配置一些基本的环境变量、资源、构造器、监听器，第二部分实现了应用具体的启动方案，包括启动流程的监听模块、加载配置环境模块、及核心的创建上下文环境模块，第三部分是自动化配置模块，该模块作为springboot自动配置核心，在后面的分析中会详细讨论。在下面的启动程序中我们会串联起结构中的主要功能。(摘自：SpringBoot启动流程解析)

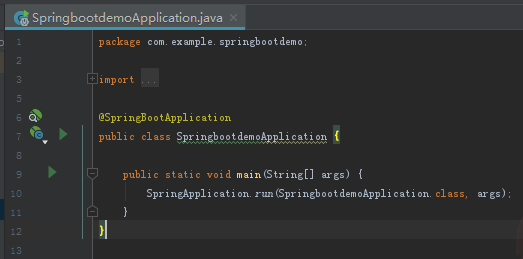

SpringBoot启动类

　　　　从上面代码可以看出，别看它只是定义了 @SpringBootApplication 这个Annotation 和 调用SpringApplication.run方法，但是它们实现的功能可不是一星半点的。



SpringApplication启动分析

　　　　注：我这里是2.0.3版本的可能有些地方不太一样

　　　　参考链接：深入理解SpringBoot之启动探究



SpringaApplication初始化分析

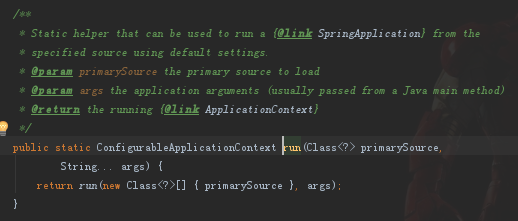

首先进入run方法

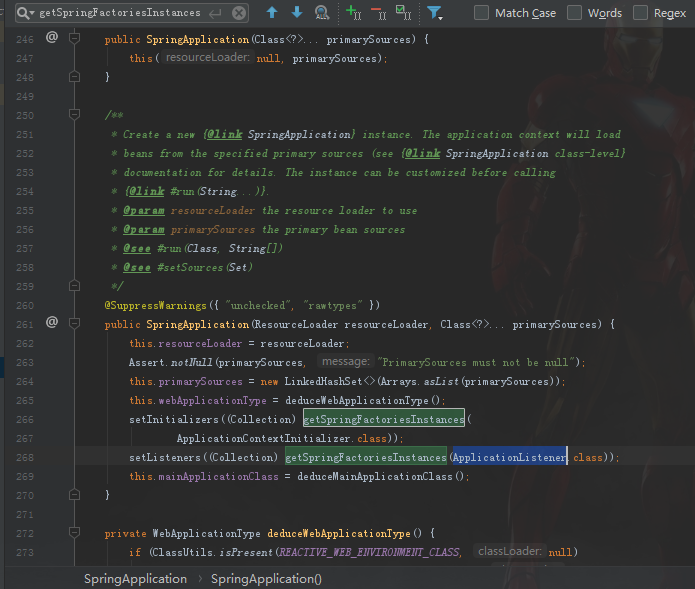

会new一个SpringApplication实例，进入SpringApplication构造方法，它会调用initialize()进行初始化

首先它会去判断运行环境根据运行环境来创建是java得ApplicationContext对象或者是web得ApplicationContext对象。

这里大家重点关注一下源代码中getSpringFacoriesInstances方法, ApplicationListener接口,ApplicationContextInitializer接口，这些接口都是通过SpringFactoriesLoader从META-INF/spring.factories文件里加载的

看一下getSpringFacoriesInstances方法的源码

这里有一个关键类叫做SpringFactoriesLoader 该类的主要作用就是去读取META-INF/spring.factories配置文件里配置的引导对象，我们来看一下代码：

/*
 * Copyright 2002-2018 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.core.io.support;

import java.io.IOException;
import java.net.URL;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collections;
import java.util.Enumeration;
import java.util.List;
import java.util.Map;
import java.util.Properties;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

import org.springframework.core.annotation.AnnotationAwareOrderComparator;
import org.springframework.core.io.UrlResource;
import org.springframework.lang.Nullable;
import org.springframework.util.Assert;
import org.springframework.util.ClassUtils;
import org.springframework.util.ConcurrentReferenceHashMap;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.util.ReflectionUtils;
import org.springframework.util.StringUtils;

/**
 * General purpose factory loading mechanism for internal use within the framework.
 *
 * <p>{@code SpringFactoriesLoader} {@linkplain #loadFactories loads} and instantiates
 * factories of a given type from {@value #FACTORIES_RESOURCE_LOCATION} files which
 * may be present in multiple JAR files in the classpath. The {@code spring.factories}
 * file must be in {@link Properties} format, where the key is the fully qualified
 * name of the interface or abstract class, and the value is a comma-separated list of
 * implementation class names. For example:
 *
 * <pre class="code">example.MyService=example.MyServiceImpl1,example.MyServiceImpl2</pre>
 *
 * where {@code example.MyService} is the name of the interface, and {@code MyServiceImpl1}
 * and {@code MyServiceImpl2} are two implementations.
 *
 * @author Arjen Poutsma
 * @author Juergen Hoeller
 * @author Sam Brannen
 * @since 3.2
 */
public abstract class SpringFactoriesLoader {

    /**
     * The location to look for factories.
     * <p>Can be present in multiple JAR files.
     */
    public static final String FACTORIES_RESOURCE_LOCATION = "META-INF/spring.factories";


    private static final Log logger = LogFactory.getLog(SpringFactoriesLoader.class);

    private static final Map<ClassLoader, MultiValueMap<String, String>> cache = new ConcurrentReferenceHashMap<>();


    /**
     * Load and instantiate the factory implementations of the given type from
     * {@value #FACTORIES_RESOURCE_LOCATION}, using the given class loader.
     * <p>The returned factories are sorted through {@link AnnotationAwareOrderComparator}.
     * <p>If a custom instantiation strategy is required, use {@link #loadFactoryNames}
     * to obtain all registered factory names.
     * @param factoryClass the interface or abstract class representing the factory
     * @param classLoader the ClassLoader to use for loading (can be {@code null} to use the default)
     * @see #loadFactoryNames
     * @throws IllegalArgumentException if any factory implementation class cannot
     * be loaded or if an error occurs while instantiating any factory
     */
    public static <T> List<T> loadFactories(Class<T> factoryClass, @Nullable ClassLoader classLoader) {
        Assert.notNull(factoryClass, "'factoryClass' must not be null");
        ClassLoader classLoaderToUse = classLoader;
        if (classLoaderToUse == null) {
            classLoaderToUse = SpringFactoriesLoader.class.getClassLoader();
        }
        List<String> factoryNames = loadFactoryNames(factoryClass, classLoaderToUse);
        if (logger.isTraceEnabled()) {
            logger.trace("Loaded [" + factoryClass.getName() + "] names: " + factoryNames);
        }
        List<T> result = new ArrayList<>(factoryNames.size());
        for (String factoryName : factoryNames) {
            result.add(instantiateFactory(factoryName, factoryClass, classLoaderToUse));
        }
        AnnotationAwareOrderComparator.sort(result);
        return result;
    }

    /**
     * Load the fully qualified class names of factory implementations of the
     * given type from {@value #FACTORIES_RESOURCE_LOCATION}, using the given
     * class loader.
     * @param factoryClass the interface or abstract class representing the factory
     * @param classLoader the ClassLoader to use for loading resources; can be
     * {@code null} to use the default
     * @see #loadFactories
     * @throws IllegalArgumentException if an error occurs while loading factory names
     */
    public static List<String> loadFactoryNames(Class<?> factoryClass, @Nullable ClassLoader classLoader) {
        String factoryClassName = factoryClass.getName();
        return loadSpringFactories(classLoader).getOrDefault(factoryClassName, Collections.emptyList());
    }

    private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
        MultiValueMap<String, String> result = cache.get(classLoader);
        if (result != null) {
            return result;
        }

        try {
            Enumeration<URL> urls = (classLoader != null ?
                    classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
                    ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
            result = new LinkedMultiValueMap<>();
            while (urls.hasMoreElements()) {
                URL url = urls.nextElement();
                UrlResource resource = new UrlResource(url);
                Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                for (Map.Entry<?, ?> entry : properties.entrySet()) {
                    List<String> factoryClassNames = Arrays.asList(
                            StringUtils.commaDelimitedListToStringArray((String) entry.getValue()));
                    result.addAll((String) entry.getKey(), factoryClassNames);
                }
            }
            cache.put(classLoader, result);
            return result;
        }
        catch (IOException ex) {
            throw new IllegalArgumentException("Unable to load factories from location [" +
                    FACTORIES_RESOURCE_LOCATION + "]", ex);
        }
    }

    @SuppressWarnings("unchecked")
    private static <T> T instantiateFactory(String instanceClassName, Class<T> factoryClass, ClassLoader classLoader) {
        try {
            Class<?> instanceClass = ClassUtils.forName(instanceClassName, classLoader);
            if (!factoryClass.isAssignableFrom(instanceClass)) {
                throw new IllegalArgumentException(
                        "Class [" + instanceClassName + "] is not assignable to [" + factoryClass.getName() + "]");
            }
            return (T) ReflectionUtils.accessibleConstructor(instanceClass).newInstance();
        }
        catch (Throwable ex) {
            throw new IllegalArgumentException("Unable to instantiate factory class: " + factoryClass.getName(), ex);
        }
    }

}
View Code

通过SpringFactoriesLoader找到META-INF/spring.factories下ApplicationContextInitializer的实现类并将其实例化

再看一下ApplicationListener的源码

/*
 * Copyright 2002-2011 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.context;

/**
 * Callback interface for initializing a Spring {@link ConfigurableApplicationContext}
 * prior to being {@linkplain ConfigurableApplicationContext#refresh() refreshed}.
 *
 * <p>Typically used within web applications that require some programmatic initialization
 * of the application context. For example, registering property sources or activating
 * profiles against the {@linkplain ConfigurableApplicationContext#getEnvironment()
 * context's environment}. See {@code ContextLoader} and {@code FrameworkServlet} support
 * for declaring a "contextInitializerClasses" context-param and init-param, respectively.
 *
 * <p>{@code ApplicationContextInitializer} processors are encouraged to detect
 * whether Spring's {@link org.springframework.core.Ordered Ordered} interface has been
 * implemented or if the @{@link org.springframework.core.annotation.Order Order}
 * annotation is present and to sort instances accordingly if so prior to invocation.
 *
 * @author Chris Beams
 * @since 3.1
 * @see org.springframework.web.context.ContextLoader#customizeContext
 * @see org.springframework.web.context.ContextLoader#CONTEXT_INITIALIZER_CLASSES_PARAM
 * @see org.springframework.web.servlet.FrameworkServlet#setContextInitializerClasses
 * @see org.springframework.web.servlet.FrameworkServlet#applyInitializers
 */
public interface ApplicationContextInitializer<C extends ConfigurableApplicationContext> {

    /**
     * Initialize the given application context.
     * @param applicationContext the application to configure
     */
    void initialize(C applicationContext);

}
View Code

该接口在doc文档上描述很清楚了，在调用ConfigurableApplicationContext的refresh()之前进行的初始化操作

SpringApplication run方法

下面开始介绍run方法，先看一下源代码

/**
     * Run the Spring application, creating and refreshing a new
     * {@link ApplicationContext}.
     * @param args the application arguments (usually passed from a Java main method)
     * @return a running {@link ApplicationContext}
     */
    public ConfigurableApplicationContext run(String... args) {
        StopWatch stopWatch = new StopWatch();
        stopWatch.start();
        ConfigurableApplicationContext context = null;
        Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
        configureHeadlessProperty();
        SpringApplicationRunListeners listeners = getRunListeners(args);
        listeners.starting();
        try {
            ApplicationArguments applicationArguments = new DefaultApplicationArguments(
                    args);
            ConfigurableEnvironment environment = prepareEnvironment(listeners,
                    applicationArguments);
            configureIgnoreBeanInfo(environment);
            Banner printedBanner = printBanner(environment);
            context = createApplicationContext();
            exceptionReporters = getSpringFactoriesInstances(
                    SpringBootExceptionReporter.class,
                    new Class[] { ConfigurableApplicationContext.class }, context);
            prepareContext(context, environment, listeners, applicationArguments,
                    printedBanner);
            refreshContext(context);
            afterRefresh(context, applicationArguments);
            stopWatch.stop();
            if (this.logStartupInfo) {
                new StartupInfoLogger(this.mainApplicationClass)
                        .logStarted(getApplicationLog(), stopWatch);
            }
            listeners.started(context);
            callRunners(context, applicationArguments);
        }
        catch (Throwable ex) {
            handleRunFailure(context, ex, exceptionReporters, listeners);
            throw new IllegalStateException(ex);
        }

        try {
            listeners.running(context);
        }
        catch (Throwable ex) {
            handleRunFailure(context, ex, exceptionReporters, null);
            throw new IllegalStateException(ex);
        }
        return context;
    }
View Code

1.启动计时

stopWatch.start();

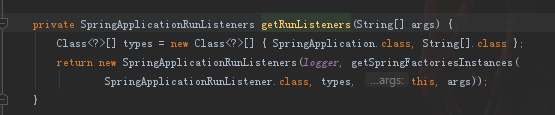

2.创建了应用的监听器SpringApplicationRunListeners并开始监听

 该接口首先从META-INF/spring.factories文件里获取所有配置的SpringApplicationRunner ,那么这个接口时干啥的呢？

我们来看一下源代码：

/*
 * Copyright 2012-2018 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.boot;

import org.springframework.context.ApplicationContext;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.core.env.ConfigurableEnvironment;
import org.springframework.core.io.support.SpringFactoriesLoader;

/**
 * Listener for the {@link SpringApplication} {@code run} method.
 * {@link SpringApplicationRunListener}s are loaded via the {@link SpringFactoriesLoader}
 * and should declare a public constructor that accepts a {@link SpringApplication}
 * instance and a {@code String[]} of arguments. A new
 * {@link SpringApplicationRunListener} instance will be created for each run.
 *
 * @author Phillip Webb
 * @author Dave Syer
 * @author Andy Wilkinson
 */
public interface SpringApplicationRunListener {

    /**
     * Called immediately when the run method has first started. Can be used for very
     * early initialization.
     */
    void starting();

    /**
     * Called once the environment has been prepared, but before the
     * {@link ApplicationContext} has been created.
     * @param environment the environment
     */
    void environmentPrepared(ConfigurableEnvironment environment);

    /**
     * Called once the {@link ApplicationContext} has been created and prepared, but
     * before sources have been loaded.
     * @param context the application context
     */
    void contextPrepared(ConfigurableApplicationContext context);

    /**
     * Called once the application context has been loaded but before it has been
     * refreshed.
     * @param context the application context
     */
    void contextLoaded(ConfigurableApplicationContext context);

    /**
     * The context has been refreshed and the application has started but
     * {@link CommandLineRunner CommandLineRunners} and {@link ApplicationRunner
     * ApplicationRunners} have not been called.
     * @param context the application context.
     * @since 2.0.0
     */
    void started(ConfigurableApplicationContext context);

    /**
     * Called immediately before the run method finishes, when the application context has
     * been refreshed and all {@link CommandLineRunner CommandLineRunners} and
     * {@link ApplicationRunner ApplicationRunners} have been called.
     * @param context the application context.
     * @since 2.0.0
     */
    void running(ConfigurableApplicationContext context);

    /**
     * Called when a failure occurs when running the application.
     * @param context the application context or {@code null} if a failure occurred before
     * the context was created
     * @param exception the failure
     * @since 2.0.0
     */
    void failed(ConfigurableApplicationContext context, Throwable exception);

}
View Code

看出其中包括：程序启动，环境准备，ApplicationContext准备加载，程序启动 运行 完成等。

该接口默认有一个实现类EventPublishingRunListener至关重要大家需要了解一下：

/*
 * Copyright 2012-2018 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.boot.context.event;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.SpringApplicationRunListener;
import org.springframework.context.ApplicationContextAware;
import org.springframework.context.ApplicationListener;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.context.event.ApplicationEventMulticaster;
import org.springframework.context.event.SimpleApplicationEventMulticaster;
import org.springframework.context.support.AbstractApplicationContext;
import org.springframework.core.Ordered;
import org.springframework.core.env.ConfigurableEnvironment;
import org.springframework.util.ErrorHandler;

/**
 * {@link SpringApplicationRunListener} to publish {@link SpringApplicationEvent}s.
 * <p>
 * Uses an internal {@link ApplicationEventMulticaster} for the events that are fired
 * before the context is actually refreshed.
 *
 * @author Phillip Webb
 * @author Stephane Nicoll
 * @author Andy Wilkinson
 */
public class EventPublishingRunListener implements SpringApplicationRunListener, Ordered {

    private final SpringApplication application;

    private final String[] args;

    private final SimpleApplicationEventMulticaster initialMulticaster;

    public EventPublishingRunListener(SpringApplication application, String[] args) {
        this.application = application;
        this.args = args;
        this.initialMulticaster = new SimpleApplicationEventMulticaster();
        for (ApplicationListener<?> listener : application.getListeners()) {
            this.initialMulticaster.addApplicationListener(listener);
        }
    }

    @Override
    public int getOrder() {
        return 0;
    }

    @Override
    public void starting() {
        this.initialMulticaster.multicastEvent(
                new ApplicationStartingEvent(this.application, this.args));
    }

    @Override
    public void environmentPrepared(ConfigurableEnvironment environment) {
        this.initialMulticaster.multicastEvent(new ApplicationEnvironmentPreparedEvent(
                this.application, this.args, environment));
    }

    @Override
    public void contextPrepared(ConfigurableApplicationContext context) {

    }

    @Override
    public void contextLoaded(ConfigurableApplicationContext context) {
        for (ApplicationListener<?> listener : this.application.getListeners()) {
            if (listener instanceof ApplicationContextAware) {
                ((ApplicationContextAware) listener).setApplicationContext(context);
            }
            context.addApplicationListener(listener);
        }
        this.initialMulticaster.multicastEvent(
                new ApplicationPreparedEvent(this.application, this.args, context));
    }

    @Override
    public void started(ConfigurableApplicationContext context) {
        context.publishEvent(
                new ApplicationStartedEvent(this.application, this.args, context));
    }

    @Override
    public void running(ConfigurableApplicationContext context) {
        context.publishEvent(
                new ApplicationReadyEvent(this.application, this.args, context));
    }

    @Override
    public void failed(ConfigurableApplicationContext context, Throwable exception) {
        ApplicationFailedEvent event = new ApplicationFailedEvent(this.application,
                this.args, context, exception);
        if (context != null && context.isActive()) {
            // Listeners have been registered to the application context so we should
            // use it at this point if we can
            context.publishEvent(event);
        }
        else {
            // An inactive context may not have a multicaster so we use our multicaster to
            // call all of the context's listeners instead
            if (context instanceof AbstractApplicationContext) {
                for (ApplicationListener<?> listener : ((AbstractApplicationContext) context)
                        .getApplicationListeners()) {
                    this.initialMulticaster.addApplicationListener(listener);
                }
            }
            this.initialMulticaster.setErrorHandler(new LoggingErrorHandler());
            this.initialMulticaster.multicastEvent(event);
        }
    }

    private static class LoggingErrorHandler implements ErrorHandler {

        private static Log logger = LogFactory.getLog(EventPublishingRunListener.class);

        @Override
        public void handleError(Throwable throwable) {
            logger.warn("Error calling ApplicationEventListener", throwable);
        }

    }

}
View Code

其中SimpleApplicationEventMulticaster这个类很重要

看一下源码

/*
 * Copyright 2002-2018 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.context.event;

import java.util.concurrent.Executor;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

import org.springframework.beans.factory.BeanFactory;
import org.springframework.context.ApplicationEvent;
import org.springframework.context.ApplicationListener;
import org.springframework.core.ResolvableType;
import org.springframework.lang.Nullable;
import org.springframework.util.ErrorHandler;

/**
 * Simple implementation of the {@link ApplicationEventMulticaster} interface.
 *
 * <p>Multicasts all events to all registered listeners, leaving it up to
 * the listeners to ignore events that they are not interested in.
 * Listeners will usually perform corresponding {@code instanceof}
 * checks on the passed-in event object.
 *
 * <p>By default, all listeners are invoked in the calling thread.
 * This allows the danger of a rogue listener blocking the entire application,
 * but adds minimal overhead. Specify an alternative task executor to have
 * listeners executed in different threads, for example from a thread pool.
 *
 * @author Rod Johnson
 * @author Juergen Hoeller
 * @author Stephane Nicoll
 * @see #setTaskExecutor
 */
public class SimpleApplicationEventMulticaster extends AbstractApplicationEventMulticaster {

    @Nullable
    private Executor taskExecutor;

    @Nullable
    private ErrorHandler errorHandler;


    /**
     * Create a new SimpleApplicationEventMulticaster.
     */
    public SimpleApplicationEventMulticaster() {
    }

    /**
     * Create a new SimpleApplicationEventMulticaster for the given BeanFactory.
     */
    public SimpleApplicationEventMulticaster(BeanFactory beanFactory) {
        setBeanFactory(beanFactory);
    }


    /**
     * Set a custom executor (typically a {@link org.springframework.core.task.TaskExecutor})
     * to invoke each listener with.
     * <p>Default is equivalent to {@link org.springframework.core.task.SyncTaskExecutor},
     * executing all listeners synchronously in the calling thread.
     * <p>Consider specifying an asynchronous task executor here to not block the
     * caller until all listeners have been executed. However, note that asynchronous
     * execution will not participate in the caller's thread context (class loader,
     * transaction association) unless the TaskExecutor explicitly supports this.
     * @see org.springframework.core.task.SyncTaskExecutor
     * @see org.springframework.core.task.SimpleAsyncTaskExecutor
     */
    public void setTaskExecutor(@Nullable Executor taskExecutor) {
        this.taskExecutor = taskExecutor;
    }

    /**
     * Return the current task executor for this multicaster.
     */
    @Nullable
    protected Executor getTaskExecutor() {
        return this.taskExecutor;
    }

    /**
     * Set the {@link ErrorHandler} to invoke in case an exception is thrown
     * from a listener.
     * <p>Default is none, with a listener exception stopping the current
     * multicast and getting propagated to the publisher of the current event.
     * If a {@linkplain #setTaskExecutor task executor} is specified, each
     * individual listener exception will get propagated to the executor but
     * won't necessarily stop execution of other listeners.
     * <p>Consider setting an {@link ErrorHandler} implementation that catches
     * and logs exceptions (a la
     * {@link org.springframework.scheduling.support.TaskUtils#LOG_AND_SUPPRESS_ERROR_HANDLER})
     * or an implementation that logs exceptions while nevertheless propagating them
     * (e.g. {@link org.springframework.scheduling.support.TaskUtils#LOG_AND_PROPAGATE_ERROR_HANDLER}).
     * @since 4.1
     */
    public void setErrorHandler(@Nullable ErrorHandler errorHandler) {
        this.errorHandler = errorHandler;
    }

    /**
     * Return the current error handler for this multicaster.
     * @since 4.1
     */
    @Nullable
    protected ErrorHandler getErrorHandler() {
        return this.errorHandler;
    }


    @Override
    public void multicastEvent(ApplicationEvent event) {
        multicastEvent(event, resolveDefaultEventType(event));
    }

    @Override
    public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {
        ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
        for (final ApplicationListener<?> listener : getApplicationListeners(event, type)) {
            Executor executor = getTaskExecutor();
            if (executor != null) {
                executor.execute(() -> invokeListener(listener, event));
            }
            else {
                invokeListener(listener, event);
            }
        }
    }

    private ResolvableType resolveDefaultEventType(ApplicationEvent event) {
        return ResolvableType.forInstance(event);
    }

    /**
     * Invoke the given listener with the given event.
     * @param listener the ApplicationListener to invoke
     * @param event the current event to propagate
     * @since 4.1
     */
    protected void invokeListener(ApplicationListener<?> listener, ApplicationEvent event) {
        ErrorHandler errorHandler = getErrorHandler();
        if (errorHandler != null) {
            try {
                doInvokeListener(listener, event);
            }
            catch (Throwable err) {
                errorHandler.handleError(err);
            }
        }
        else {
            doInvokeListener(listener, event);
        }
    }

    @SuppressWarnings({"unchecked", "rawtypes"})
    private void doInvokeListener(ApplicationListener listener, ApplicationEvent event) {
        try {
            listener.onApplicationEvent(event);
        }
        catch (ClassCastException ex) {
            String msg = ex.getMessage();
            if (msg == null || matchesClassCastMessage(msg, event.getClass().getName())) {
                // Possibly a lambda-defined listener which we could not resolve the generic event type for
                // -> let's suppress the exception and just log a debug message.
                Log logger = LogFactory.getLog(getClass());
                if (logger.isDebugEnabled()) {
                    logger.debug("Non-matching event type for listener: " + listener, ex);
                }
            }
            else {
                throw ex;
            }
        }
    }

    private boolean matchesClassCastMessage(String classCastMessage, String eventClassName) {
        // On Java 8, the message simply starts with the class name: "java.lang.String cannot be cast..."
        if (classCastMessage.startsWith(eventClassName)) {
            return true;
        }
        // On Java 9, the message contains the module name: "java.base/java.lang.String cannot be cast..."
        int moduleSeparatorIndex = classCastMessage.indexOf('/');
        if (moduleSeparatorIndex != -1 && classCastMessage.startsWith(eventClassName, moduleSeparatorIndex + 1)) {
            return true;
        }
        // Assuming an unrelated class cast failure...
        return false;
    }

}
View Code

doInvokeListener方法，该方法用于执行事件的监听方法。该类最主要作用就是通知各个阶段的listener处理对应阶段的事件

3.调用SpringApplicationRunListener的start方法

看一下这个方法

public void starting() {
		for (SpringApplicationRunListener listener : this.listeners) {
			listener.starting();
		}
	}

4.调用prepareEnvironment事件

private ConfigurableEnvironment prepareEnvironment(
            SpringApplicationRunListeners listeners,
            ApplicationArguments applicationArguments) {
        // Create and configure the environment
        ConfigurableEnvironment environment = getOrCreateEnvironment();
        configureEnvironment(environment, applicationArguments.getSourceArgs());
        listeners.environmentPrepared(environment);
        bindToSpringApplication(environment);
        if (this.webApplicationType == WebApplicationType.NONE) {
            environment = new EnvironmentConverter(getClassLoader())
                    .convertToStandardEnvironmentIfNecessary(environment);
        }
        ConfigurationPropertySources.attach(environment);
        return environment;
    }
View Code

5.根据当前environment打印Banner

也就是启动时控制台打印出的Spring标志 启动的Banner就是在这一步打印出来的  也可自定义Banner 链接：Spring Boot实例教程 - 自定义Banner

6.创建的ApplicationContext对象

这里会根据this.webEnvironment的属性值来确定创建的ApplicationContext对象

/**
     * Strategy method used to create the {@link ApplicationContext}. By default this
     * method will respect any explicitly set application context or application context
     * class before falling back to a suitable default.
     * @return the application context (not yet refreshed)
     * @see #setApplicationContextClass(Class)
     */
    protected ConfigurableApplicationContext createApplicationContext() {
        Class<?> contextClass = this.applicationContextClass;
        if (contextClass == null) {
            try {
                switch (this.webApplicationType) {
                case SERVLET:
                    contextClass = Class.forName(DEFAULT_WEB_CONTEXT_CLASS);
                    break;
                case REACTIVE:
                    contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
                    break;
                default:
                    contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
                }
            }
            catch (ClassNotFoundException ex) {
                throw new IllegalStateException(
                        "Unable create a default ApplicationContext, "
                                + "please specify an ApplicationContextClass",
                        ex);
            }
        }
        return (ConfigurableApplicationContext) BeanUtils.instantiateClass(contextClass);
    }
View Code

如果是web环境那就创建org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext

否则就创建org.springframework.context.annotation.AnnotationConfigApplicationContext

7.调用prepareContext方法

private void prepareContext(ConfigurableApplicationContext context,
            ConfigurableEnvironment environment, SpringApplicationRunListeners listeners,
            ApplicationArguments applicationArguments, Banner printedBanner) {
        context.setEnvironment(environment);
        postProcessApplicationContext(context);
        applyInitializers(context);
        listeners.contextPrepared(context);
        if (this.logStartupInfo) {
            logStartupInfo(context.getParent() == null);
            logStartupProfileInfo(context);
        }

        // Add boot specific singleton beans
        context.getBeanFactory().registerSingleton("springApplicationArguments",
                applicationArguments);
        if (printedBanner != null) {
            context.getBeanFactory().registerSingleton("springBootBanner", printedBanner);
        }

        // Load the sources
        Set<Object> sources = getAllSources();
        Assert.notEmpty(sources, "Sources must not be empty");
        load(context, sources.toArray(new Object[0]));
        listeners.contextLoaded(context);
    }
View Code

8.调用refreshContext

该方法最终会执行AbstractApplicationContext的refresh()方法，我在这里贴一下源代码：

    @Override
    public void refresh() throws BeansException, IllegalStateException {
        synchronized (this.startupShutdownMonitor) {
            // Prepare this context for refreshing.
            prepareRefresh();

            // Tell the subclass to refresh the internal bean factory.
            ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

            // Prepare the bean factory for use in this context.
            prepareBeanFactory(beanFactory);

            try {
                // Allows post-processing of the bean factory in context subclasses.
                postProcessBeanFactory(beanFactory);

                // Invoke factory processors registered as beans in the context.
                invokeBeanFactoryPostProcessors(beanFactory);

                // Register bean processors that intercept bean creation.
                registerBeanPostProcessors(beanFactory);

                // Initialize message source for this context.
                initMessageSource();

                // Initialize event multicaster for this context.
                initApplicationEventMulticaster();

                // Initialize other special beans in specific context subclasses.
                onRefresh();

                // Check for listener beans and register them.
                registerListeners();

                // Instantiate all remaining (non-lazy-init) singletons.
                finishBeanFactoryInitialization(beanFactory);

                // Last step: publish corresponding event.
                finishRefresh();
            }

            catch (BeansException ex) {
                if (logger.isWarnEnabled()) {
                    logger.warn("Exception encountered during context initialization - " +
                            "cancelling refresh attempt: " + ex);
                }

                // Destroy already created singletons to avoid dangling resources.
                destroyBeans();

                // Reset 'active' flag.
                cancelRefresh(ex);

                // Propagate exception to caller.
                throw ex;
            }

            finally {
                // Reset common introspection caches in Spring's core, since we
                // might not ever need metadata for singleton beans anymore...
                resetCommonCaches();
            }
        }
    }
View Code

在这个方法里会初始化BeanFactory 初始化BeanFactoryPostProcessor 注册BeanPostProcessor 初始化MessageSource 注册事件监听器等操作。建议大家深入了解Spring的IOC加载原理

9.调用afterRefresh方法

/**
	 * Called after the context has been refreshed.
	 * @param context the application context
	 * @param args the application arguments
	 */
	protected void afterRefresh(ConfigurableApplicationContext context,
			ApplicationArguments args) {
	}

10.启动计时结束

stopWatch.stop();

11.调用started方法

public void started(ConfigurableApplicationContext context) {
		for (SpringApplicationRunListener listener : this.listeners) {
			listener.started(context);
		}
	}

12.调用callRunners方法

private void callRunners(ApplicationContext context, ApplicationArguments args) {
		List<Object> runners = new ArrayList<>();
		runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
		runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
		AnnotationAwareOrderComparator.sort(runners);
		for (Object runner : new LinkedHashSet<>(runners)) {
			if (runner instanceof ApplicationRunner) {
				callRunner((ApplicationRunner) runner, args);
			}
			if (runner instanceof CommandLineRunner) {
				callRunner((CommandLineRunner) runner, args);
			}
		}
	}

该方法会从IOC容器里找到ApplicationRunner或者CommandLineRunner并执行其run方法，当我们需要在SpringBoot程序启动时处理我们自己的逻辑，那么就可以实现上述接口

13.启动异常处理

private void handleRunFailure(ConfigurableApplicationContext context,
            Throwable exception,
            Collection<SpringBootExceptionReporter> exceptionReporters,
            SpringApplicationRunListeners listeners) {
        try {
            try {
                handleExitCode(context, exception);
                if (listeners != null) {
                    listeners.failed(context, exception);
                }
            }
            finally {
                reportFailure(exceptionReporters, exception);
                if (context != null) {
                    context.close();
                }
            }
        }
        catch (Exception ex) {
            logger.warn("Unable to close ApplicationContext", ex);
        }
        ReflectionUtils.rethrowRuntimeException(exception);
    }
View Code

至此run方法就执行完成了

SpringBoot启动总结

1.  SpringBoot启动时SpringApplicationRunListener接口的相关方法至关重要，它定义了启动时的各个“时间点”。

2. SpringBoot可以从spring.factoies文件里读取配置的ApplicationListener

3. META-INF文件夹下的spring.factoies文件是SpringBoot启动的核心文件，SpringFatoriesLoader会读取该文件夹下的相关配置作为引导

4. SpringBoot启动时利用了事件机制，来发送启动时各个周期阶段的事件



标签
java
apache
Spring
stopwatch
易学教程内所有资源均来自网络或用户发布的内容，如有违反法律规定的内容欢迎反馈！
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
