简介:
Multipath:这个多路径软件在Linux平台广泛使用,它的功能就是可以把一个快设备对应的多条路径聚合成一个单一的multipath device。主要目的有如下两点:
多路径冗余(redundancy):当配置在Active/Passive模式下,只有一半的路径会用来做IO,如果IO路径上有任何失败(包括,交换机故障,线路故障,后端存储故障等),可以自动切换的备用路线上,对上层应用做到基本无感知。
提高性能(Performance): 当配置在Active/Active模式下,所以路径都可以用来跑IO(如以round-robin模式),可以提高IO速率或者延时。
multipath不是本文的重点,如有需要,请移步:https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/7/html/dm_multipath/setup_overview
安装及使用:
Multipath:这个多路径软件在Linux平台广泛使用,在Debian/Ubuntu平台可以通过 sudo apt-get install multipath-tools 安装, RedHat/CentOS 平台可以通过 sudo yum install device-mapper-multipath 安装。
multipath.conf: multipath对于主流的存储阵列都有默认的配置,可以支持存储阵列的很多自带特性,如ALUA。当然用户可以在安装好后,手动创建/etc/multipath.conf
以下是VNX/Unity的参考配置(vnx cinder driver):
blacklist {
# Skip the files under /dev that are definitely not FC/iSCSI devices
# Different system may need different customization
devnode "^(ram|raw|loop|fd|md|dm-|sr|scd|st)[0-9]*"
devnode "^hd[a-z][0-9]*"
devnode "^cciss!c[0-9]d[0-9]*[p[0-9]*]"
# Skip LUNZ device from VNX
device {
vendor "DGC"
product "LUNZ"
}
}
defaults {
user_friendly_names no
flush_on_last_del yes
}
devices {
# Device attributed for EMC CLARiiON and VNX series ALUA
device {
vendor "DGC"
product ".*"
product_blacklist "LUNZ"
path_grouping_policy group_by_prio
path_selector "round-robin 0"
path_checker emc_clariion
features "1 queue_if_no_path"
hardware_handler "1 alua"
prio alua
failback immediate
}
}
Multipath在OpenStack中的应用及faulty device的产生:
OpenStack中,multipath可以使用在Nova和Cinder的节点上,提供对后端存储的高可用访问。在很早之前,这部分代码是分别在Nova和Cinder项目里面的,渐渐的为了维护方便,就单独拧出来一个项目:os-brick
os-brick里面很重要的两个interface是:connect_volume-负责链接一个存储上的LUN或者disk,disconnect_volume-辅助断开与存储上一个LUN的链接。
什么是faulty device
当host上multipath软件发现对应的host path不可访问时,就会显示为faulty状态。
关于所有状态的描述,可以参考:https://en.wikipedia.org/wiki/Linux_DM_Multipath
os-brick的代码我选择的是比较早期容易产生faulty device的版本:https://github.com/openstack/os-brick/blob/liberty-eol/os_brick/initiator/connector.py
1. connect_volume的主要逻辑如下:
1 @synchronized('connect_volume')
2 def connect_volume(self, connection_properties):
3 """Attach the volume to instance_name.
4 connection_properties for iSCSI must include:
5 target_portal(s) - ip and optional port
6 target_iqn(s) - iSCSI Qualified Name
7 target_lun(s) - LUN id of the volume
8 Note that plural keys may be used when use_multipath=True
9 """
10
11 device_info = {'type': 'block'}
12
13 if self.use_multipath:
14 # Multipath installed, discovering other targets if available
15 try:
16 ips_iqns = self._discover_iscsi_portals(connection_properties)
17 except Exception:
18 raise exception.TargetPortalNotFound(
19 target_portal=connection_properties['target_portal'])
20
21 if not connection_properties.get('target_iqns'):
22 # There are two types of iSCSI multipath devices. One which
23 # shares the same iqn between multiple portals, and the other
24 # which use different iqns on different portals.
25 # Try to identify the type by checking the iscsiadm output
26 # if the iqn is used by multiple portals. If it is, it's
27 # the former, so use the supplied iqn. Otherwise, it's the
28 # latter, so try the ip,iqn combinations to find the targets
29 # which constitutes the multipath device.
30 main_iqn = connection_properties['target_iqn']
31 all_portals = set([ip for ip, iqn in ips_iqns])
32 match_portals = set([ip for ip, iqn in ips_iqns
33 if iqn == main_iqn])
34 if len(all_portals) == len(match_portals):
35 ips_iqns = zip(all_portals, [main_iqn] * len(all_portals))
36
37 for ip, iqn in ips_iqns:
38 props = copy.deepcopy(connection_properties)
39 props['target_portal'] = ip
40 props['target_iqn'] = iqn
41 self._connect_to_iscsi_portal(props)
42
43 self._rescan_iscsi()
44 host_devices = self._get_device_path(connection_properties)
45 else:
46 target_props = connection_properties
47 for props in self._iterate_all_targets(connection_properties):
48 if self._connect_to_iscsi_portal(props):
49 target_props = props
50 break
51 else:
52 LOG.warning(_LW(
53 'Failed to connect to iSCSI portal %(portal)s.'),
54 {'portal': props['target_portal']})
55
56 host_devices = self._get_device_path(target_props)
57
58 # The /dev/disk/by-path/... node is not always present immediately
59 # TODO(justinsb): This retry-with-delay is a pattern, move to utils?
60 tries = 0
61 # Loop until at least 1 path becomes available
62 while all(map(lambda x: not os.path.exists(x), host_devices)):
63 if tries >= self.device_scan_attempts:
64 raise exception.VolumeDeviceNotFound(device=host_devices)
65
66 LOG.warning(_LW("ISCSI volume not yet found at: %(host_devices)s. "
67 "Will rescan & retry. Try number: %(tries)s."),
68 {'host_devices': host_devices,
69 'tries': tries})
70
71 # The rescan isn't documented as being necessary(?), but it helps
72 if self.use_multipath:
73 self._rescan_iscsi()
74 else:
75 if (tries):
76 host_devices = self._get_device_path(target_props)
77 self._run_iscsiadm(target_props, ("--rescan",))
78
79 tries = tries + 1
80 if all(map(lambda x: not os.path.exists(x), host_devices)):
81 time.sleep(tries ** 2)
82 else:
83 break
84
85 if tries != 0:
86 LOG.debug("Found iSCSI node %(host_devices)s "
87 "(after %(tries)s rescans)",
88 {'host_devices': host_devices, 'tries': tries})
89
90 # Choose an accessible host device
91 host_device = next(dev for dev in host_devices if os.path.exists(dev))
92
93 if self.use_multipath:
94 # We use the multipath device instead of the single path device
95 self._rescan_multipath()
96 multipath_device = self._get_multipath_device_name(host_device)
97 if multipath_device is not None:
98 host_device = multipath_device
99 LOG.debug("Unable to find multipath device name for "
100 "volume. Only using path %(device)s "
101 "for volume.", {'device': host_device})
102
103 device_info['path'] = host_device
104 return device_info
其中重要的逻辑我都用红色标记了,用来发现host上的块设备device
2. disconnect_volume逻辑如下:
1 @synchronized('connect_volume')
2 def disconnect_volume(self, connection_properties, device_info):
3 """Detach the volume from instance_name.
4 connection_properties for iSCSI must include:
5 target_portal(s) - IP and optional port
6 target_iqn(s) - iSCSI Qualified Name
7 target_lun(s) - LUN id of the volume
8 """
9 if self.use_multipath:
10 self._rescan_multipath()
11 host_device = multipath_device = None
12 host_devices = self._get_device_path(connection_properties)
13 # Choose an accessible host device
14 for dev in host_devices:
15 if os.path.exists(dev):
16 host_device = dev
17 multipath_device = self._get_multipath_device_name(dev)
18 if multipath_device:
19 break
20 if not host_device:
21 LOG.error(_LE("No accessible volume device: %(host_devices)s"),
22 {'host_devices': host_devices})
23 raise exception.VolumeDeviceNotFound(device=host_devices)
24
25 if multipath_device:
26 device_realpath = os.path.realpath(host_device)
27 self._linuxscsi.remove_multipath_device(device_realpath)
28 return self._disconnect_volume_multipath_iscsi(
29 connection_properties, multipath_device)
30
31 # When multiple portals/iqns/luns are specified, we need to remove
32 # unused devices created by logging into other LUNs' session.
33 for props in self._iterate_all_targets(connection_properties):
34 self._disconnect_volume_iscsi(props)
上面的红色代码块,会把LUN对应的host path从kernel中,和multipath mapper中删除。
3. 竞态Race Condition分析
注意到,以上两个接口都是用的同一个叫(connect_volume)的锁(其实就是用flock实现的Linux上的文件锁)

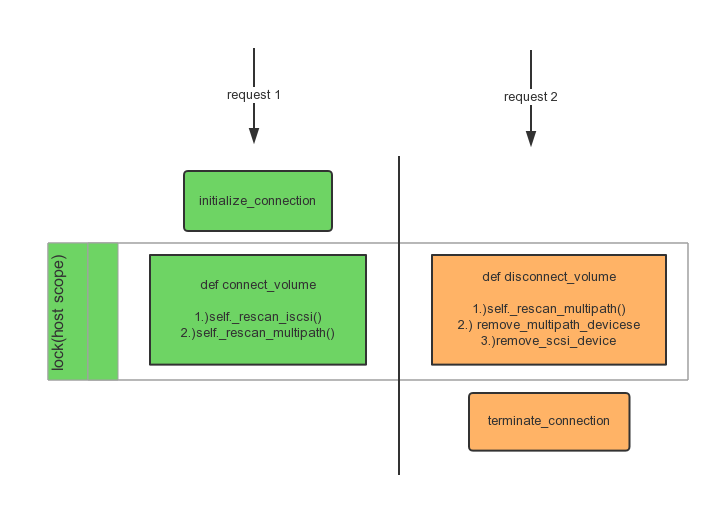

为了方便描述faulty device的产生,我画了如下的图,来表示两个接口的关系
如上的流程在非并发的情况下是表现正常的,host上的device都可以正常连接和清理。
但是,以上逻辑有个实现上的问题,当高并发情况下,会产生faulty device, 考虑一下执行顺序:
- 右边的disconnect_volume执行完毕,存储上LUN对应的device path(在/dev/disk/by-path下可以看到)和multipath descriptor(multipath -l可以看到)。
- 这个时候,connect_volume锁被释放,左边的connect_volume开始执行,而右边的terminate_connection还没有执行,也就是说,存储上还没有移除host访问LUN的权限,任何host上的scsi rescan还是会发现这个LUN的device。
- 接着,connect_volume按正常执行,iscsi rescan 和multipath rescan都相继执行,造成在步骤 1)中已经删除的device有重新被scan出来。
- 然后,右边的terminate_connection在存储上执行完成,移除了host对LUN的访问,最终就形成的所谓的faulty device,看到的multipath 输出如下(两个multipath descriptor都是faulty的):
$ sudo multipath -ll
3600601601290380036a00936cf13e711 dm-30 DGC,VRAID
size=2.0G features='1 retain_attached_hw_handler' hwhandler='1 alua' wp=rw
|-+- policy='round-robin 0' prio=0 status=active
| `- 11:0:0:151 sdef 128:112 failed faulty running
`-+- policy='round-robin 0' prio=0 status=enabled
`- 12:0:0:151 sdeg 128:128 failed faulty running
3600601601bd032007c097518e96ae411 dm-2 DGC,VRAID
size=1.0G features='1 queue_if_no_path' hwhandler='1 alua' wp=rw
|-+- policy='round-robin 0' prio=0 status=active
`- #:#:#:# - #:# active faulty running
一般来说,有#:#:#:#输出的multipath是可以直接用 sudo multipath -f 3600601601bd032007c097518e96ae411 删除的。
作为第一部分,到这里faulty device的产生介绍完了,后面再找机会,介绍下在os-brick中如何尽量避免faulty device的出现。
参考资料:
RedHat官方multipath的介绍:https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/7/html/dm_multipath/mpio_description
EMC VNX driver doc:https://docs.openstack.org/cinder/queens/configuration/block-storage/drivers/dell-emc-vnx-driver.html
Go实现的块设备连接工具:https://github.com/peter-wangxu/goock
iSCSI Faulty Device Cleanup Script for VNX:https://github.com/emc-openstack/vnx-faulty-device-cleanup
