【原创】《从0开始学RocketMQ》—集群搭建

用两台服务器，搭建出一个双master双slave、无单点故障的高可用 RocketMQ 集群。此处假设两台服务器的物理 IP 分别为：192.168.50.1、192.168.50.2。

内容目录

1. 启动 NameServer 集群

2. 启动 Broker 集群

3. RocketMQ 可视化管理控制台：rocketmq-console

4. 集群测试

1. 启动 NameServer 集群

在两台服务器上分别启动 NameServer，可以得到一个无单点故障的 NameServer 服务，服务地址分别为：192.168.50.1:9876、192.168.50.2:9876。

2. 启动 Broker 集群

修改 Broker 配置文件，以使每台服务器上都可以启动一个 Master 角色的 Broker 和一个Slave 角色的 Broker。
首先找到 Broker 配置文件，此处我们搭建一个同步双写模式的集群，所以需要修改 2m-2s-sync 目录下的 broker 配置文件：

[root@157-89 ~]# cd /usr/local/rocketmq-all-4.3.2-bin-release/conf/
[root@157-89 conf]# ls
2m-2s-async  2m-2s-sync  2m-noslave  broker.conf  logback_broker.xml  logback_namesrv.xml  logback_tools.xml
[root@157-89 conf]# cd 2m-2s-sync/
[root@157-89 2m-2s-sync]# ls
broker-a.properties  broker-a-s.properties  broker-b.properties  broker-b-s.properties

1）修改 192.168.50.1 服务器上的 broker-a.properties 为 Master 角色的 Broker：

namesrvAddr=192.168.50.1:9876;192.168.50.2:9876
brokerClusterName=rocketMqCluster
brokerIP1=192.168.50.1
brokerName=broker-a
brokerId=0
deleteWhen=04
fileReservedTime=120
mapedFileSizeConsumeQueue=500000
brokerRole=SYNC_MASTER
flushDiskType=ASYNC_FLUSH
listenPort=10911
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
storePathRootDir=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a
storePathCommitLog=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a/commitlog
storePathConsumeQueue=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a/consumequeue
storePathIndex=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a/index
storeCheckpoint=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a/checkpoint
abortFile=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a/abort

2) 修改 192.168.50.2 服务器上的 broker-b.properties 为 Master 角色的 Broker：

namesrvAddr=192.168.50.1:9876;192.168.50.2:9876
brokerClusterName=rocketMqCluster
brokerIP1=192.168.50.2
brokerName=broker-b
brokerId=0
deleteWhen=04
fileReservedTime=120
mapedFileSizeConsumeQueue=500000
brokerRole=SYNC_MASTER
flushDiskType=ASYNC_FLUSH
listenPort=10911
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
storePathRootDir=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b
storePathCommitLog=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b/commitlog
storePathConsumeQueue=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b/consumequeue
storePathIndex=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b/index
storeCheckpoint=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b/checkpoint
abortFile=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b/abort

3) 修改 192.168.50.1 服务器上的 broker-b-s.properties 为 Slave 角色的 Broker：

namesrvAddr=192.168.50.1:9876;192.168.50.2:9876
brokerClusterName=rocketMqCluster
brokerIP1=192.168.50.1
brokerName=broker-b
brokerId=1
deleteWhen=04
fileReservedTime=120
mapedFileSizeConsumeQueue=500000
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
listenPort=10921
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
storePathRootDir=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b-s
storePathCommitLog=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b-s/commitlog
storePathConsumeQueue=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b-s/consumequeue
storePathIndex=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b-s/index
storeCheckpoint=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b-s/checkpoint
abortFile=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-b-s/abort

4) 修改 192.168.50.2 服务器上的 broker-a-s.properties 为 Slave 角色的 Broker：

namesrvAddr=192.168.50.1:9876;192.168.50.2:9876
brokerClusterName=rocketMqCluster
brokerIP1=192.168.50.2
brokerName=broker-a
brokerId=1
deleteWhen=04
fileReservedTime=48
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
listenPort=10921
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
storePathRootDir=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a-s
storePathCommitLog=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a-s/commitlog
storePathConsumeQueue=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a-s/consumequeue
storePathIndex=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a-s/index
storeCheckpoint=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a-s/checkpoint
abortFile=/usr/local/rocketmq-all-4.3.2-bin-release/data/broker-a-s/abort

一台服务器上启动多个Broker 时，需指定不同的端口号，记得防火墙放开 NameServer 和 Broker 中用到的端口号哦～

分别启动四个 Broker:

nohup sh bin/mqbroker -c broker_config_file &

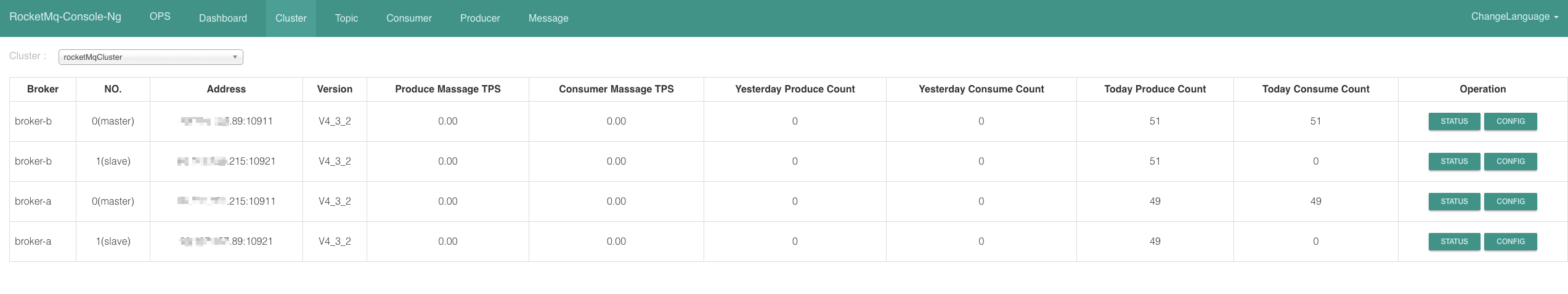

3. RocketMQ 可视化管理控制台：rocketmq-console

在服务器 192.168.50.1 上安装即可，无需集群

[root@153-215 local]# git clone https://github.com/apache/rocketmq-externals.git
Cloning into 'rocketmq-externals'...
remote: Enumerating objects: 10, done.
remote: Counting objects: 100% (10/10), done.
remote: Compressing objects: 100% (10/10), done.
remote: Total 9425 (delta 2), reused 1 (delta 0), pack-reused 9415
Receiving objects: 100% (9425/9425), 11.86 MiB | 232.00 KiB/s, done.
Resolving deltas: 100% (4235/4235), done.
[root@153-215 local]# cd rocketmq-externals/
[root@153-215 rocketmq-externals]# ls
dev  README.md  rocketmq-console  rocketmq-docker  rocketmq-flink  rocketmq-flume  rocketmq-hbase  rocketmq-iot-bridge  rocketmq-jms  rocketmq-mysql  rocketmq-php  rocketmq-redis  rocketmq-sentinel  rocketmq-serializer  rocketmq-spark
[root@153-215 rocketmq-externals]# git branch
* master
[root@153-215 rocketmq-externals]# git fetch origin release-rocketmq-console-1.0.0
From https://github.com/apache/rocketmq-externals
 * branch            release-rocketmq-console-1.0.0 -> FETCH_HEAD
[root@153-215 rocketmq-externals]# git checkout -b release-1.0.0 origin/release-rocketmq-console-1.0.0
Branch 'release-1.0.0' set up to track remote branch 'release-rocketmq-console-1.0.0' from 'origin'.
Switched to a new branch 'release-1.0.0'
[root@153-215 rocketmq-externals]# ls
README.md  rocketmq-console
[root@153-215 rocketmq-externals]# ls rocketmq-console/
doc  LICENSE  NOTICE  pom.xml  README.md  src  style
[root@153-215 rocketmq-externals]# vim rocketmq-console/src/main/resources/application.properties

编辑 application.properties：

server.contextPath=/rocketmq
server.port=8080
#spring.application.index=true
spring.application.name=rocketmq-console
spring.http.encoding.charset=UTF-8
spring.http.encoding.enabled=true
spring.http.encoding.force=true
logging.config=classpath:logback.xml
#if this value is empty,use env value rocketmq.config.namesrvAddr  NAMESRV_ADDR | now, you can set it in ops page.default localhost:9876
rocketmq.config.namesrvAddr=192.168.50.1:9876;192.168.50.2:9876
#if you use rocketmq version < 3.5.8, rocketmq.config.isVIPChannel should be false.default true
rocketmq.config.isVIPChannel=
#rocketmq-console's data path:dashboard/monitor
rocketmq.config.dataPath=/tmp/rocketmq-console/data
#set it false if you don't want use dashboard.default true
rocketmq.config.enableDashBoardCollect=true

移动 rocketmq-console 所在目录，编译并启动 rocketmq-console：

[root@153-215 rocketmq-console]# mv /usr/local/rocketmq-externals/rocketmq-console /usr/local/rocketmq-console
[root@153-215 rocketmq-console]# cd /usr/local/rocketmq-console/
[root@153-215 rocketmq-console]# ls
doc  LICENSE  NOTICE  pom.xml  README.md  src  style
[root@153-215 rocketmq-console]# mvn clean package -Dmaven.test.skip=true
........
[INFO] Building jar: /usr/local/rocketmq-console/target/rocketmq-console-ng-1.0.0-sources.jar
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 02:54 min
[INFO] Finished at: 2019-01-11T17:02:34+08:00
[INFO] ------------------------------------------------------------------------
[root@153-215 rocketmq-console]# ls
doc  LICENSE  NOTICE  pom.xml  README.md  src  style  target
[root@153-215 rocketmq-console]# ls target/
checkstyle-cachefile  checkstyle-checker.xml  checkstyle-result.xml  classes  generated-sources  maven-archiver  maven-status  rocketmq-console-ng-1.0.0.jar  rocketmq-console-ng-1.0.0.jar.original  rocketmq-console-ng-1.0.0-sources.jar
[root@153-215 rocketmq-console]# java -jar target/rocketmq-console-ng-1.0.0.jar
.......
[2019-01-11 17:04:15.980]  INFO Initializing ProtocolHandler ["http-nio-8080"]
[2019-01-11 17:04:15.991]  INFO Starting ProtocolHandler [http-nio-8080]
[2019-01-11 17:04:16.232]  INFO Using a shared selector for servlet write/read
[2019-01-11 17:04:16.251]  INFO Tomcat started on port(s): 8080 (http)
[2019-01-11 17:04:16.257]  INFO Started App in 6.594 seconds (JVM running for 7.239)

4. 集群测试

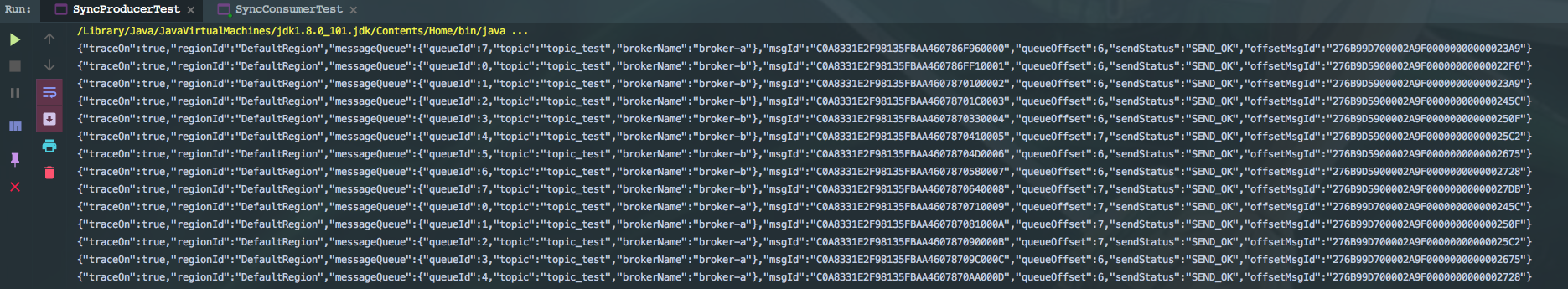

Producer 测试代码：

public class SyncProducerTest {
    public static void main(String[] args) {
        DefaultMQProducer producer = new DefaultMQProducer("producer_test_group");
        producer.setNamesrvAddr("39.107.153.215:9876;39.107.157.89:9876");
        try{
            producer.start();
            for(int i=0;i<100;i++){
                Message message = new Message("topic_test", "tag_test", ("Hello World" + 1).getBytes("UTF-8"));
                SendResult sendResult = producer.send(message);
                System.out.println(JSON.toJSON(sendResult));
            }
            producer.shutdown();
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}

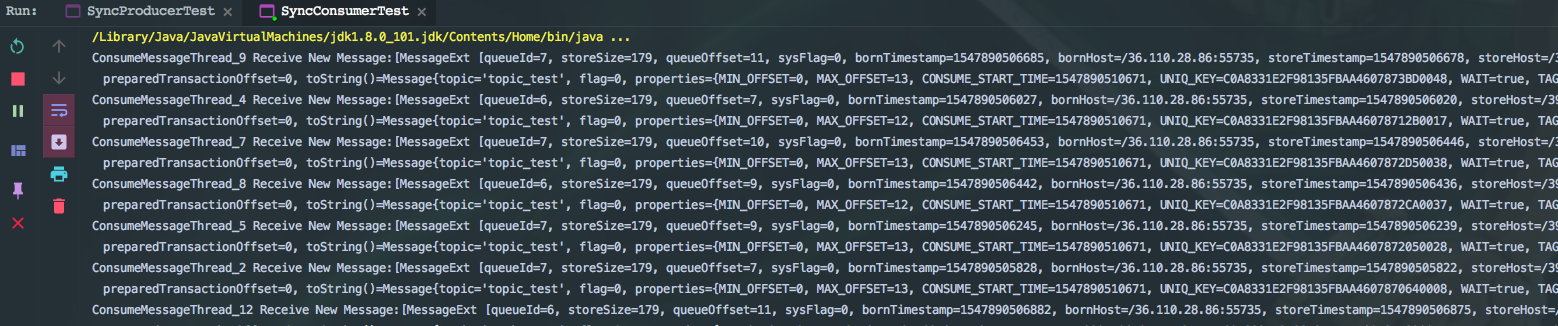

Consumer 测试代码：

public class SyncConsumerTest {
    public static void main(String[] args) {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("consumer_test_group");
        consumer.setNamesrvAddr("39.107.153.215:9876;39.107.157.89:9876");
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);
        try {
            consumer.subscribe("topic_test", "*");
            consumer.registerMessageListener((MessageListenerConcurrently) (messageList, context) -> {
                System.out.println(Thread.currentThread().getName() + " Receive New Message:" + messageList);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            });
            consumer.start();
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}
