CISCO sandbox 介绍

心不动则不痛 提交于 2020-04-18 02:21:30

1. Cisco sandbox

sandbox 提供给我们一个免费的开发平台,可以基于该平台做很多和思科网络设备、软件有关的代码开发、脚本测试、自动化配置等工作:

  • 学习研究网络知识,提升自己
  • 学习研究思科设备、软件提供的 API 接口
  • 全天候支持
  • 提供虚拟机、模拟器、以及真实网络设备等选择
  • 最重要的是,以上全免费

首次进入 sandbox,链接为:https://devnetsandbox.cisco.com/RM/Topology,登录即可使用,支持很多种登录方式:

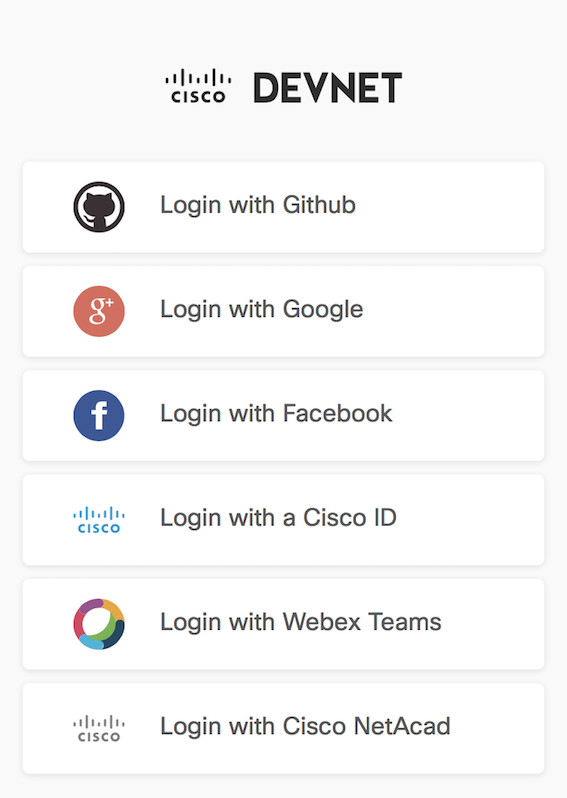

可以通过github、facebook、cco等账号登入

2. Sandbox 提供 2 种模式的 lab

截止至 2018 年底,sandbox 提供了约 68 个 labs,按运行申请模式不同分为:

  • Regular 58 个,需要预留单独使用,个性化配置
  • Always_On 10 个,共享模式,一直在线提供访问,不允许修改配置

2.1. Always_On 特点

该类 lab 比较简单,为了解 cisco sandbox 提供一种快捷的实现方式:

  • 不需要申请和预留,随时可以使用
  • 无需初始化配置
  • 共享访问
  • API 支持

如果需要个性化的设置和复杂的网络拓扑结构,则需要申请使用 regular sandbox。

2.2. 可编程的 NX-OS lab

NX-OS Programmability是其中一个 Always on sandbox,该 lab 提供 nexus 3k/9K 的各种不同的设备访问方式,实现:

  • 测试设备的可重复利用的、可编程的脚本自动化工具
  • 测试 NXAPI 接口,包括 CLI、REST
  • 测试 netconf
  • YANG model
  • restconf(草稿标准)

我们可以通过首页找到该 LAB,详细的信息请访问网页。

2.2.1. 简单的访问方法

由于是共享 lab,访问方式比较简单和固定:

  • Nexus 9000v Host : sbx-nxos-mgmt.cisco.com
  • SSH Port: 8181
  • NETCONF Port: 10000
  • NXAPI Ports: 80 (http) & 443 (HTTPS)
  • RESTCONF Port : 443 (HTTPS)
  • Credentials(demo 账户):
    • Username: admin
    • Password: Admin_1234!

如果需要尝试一下通过 nxapi 访问设备,可以在浏览器中输入地址:http://sbx-nxos-mgmt.cisco.com ,使用上述“demo 账户”的用户名和密码登录,即可以显示 Nexus 9K sandbox。

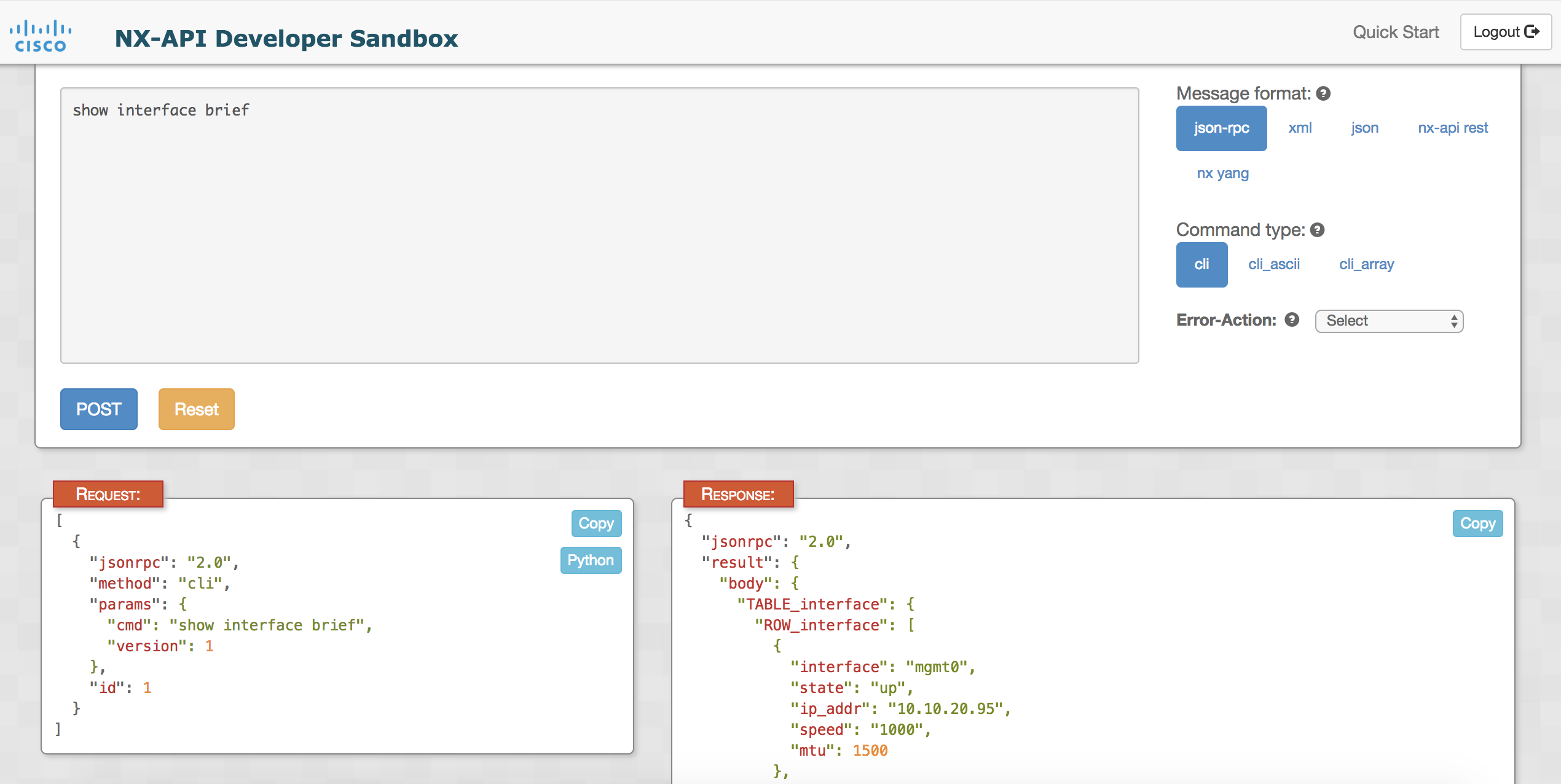

如图显示命令"show interface brief"的输出:

通过NXAPI CLI访问设备,并显示命令show interface brief

我们也可以使用 ssh 登录设备

ssh admin@sbx-nxos-mgmt.cisco.com -p 8181

检查刚刚通过 nxapi 访问设备的细节:

2018 December 30 09:57:55.897 ngx_http_auth_pam_authenticate:381 pid:31473 PAM: client ip len:12
2018 December 30 09:57:55.897 ngx_http_auth_pam_authenticate:389 pid:31473 PAM: remote ip:10.79.98.239
2018 December 30 09:57:55.919 ngx_http_auth_pam_authenticate:414 pid:31473 PAM: Successfully authenticated user '
admin', remote ip:10.79.98.239
2018 December 30 09:57:55.919 ngx_http_cookie_set:651 pid:31473 creating cookie cleanup_cnt:0
2018 December 30 09:57:55.919 ngx_http_ins_api_post_body_handler:550 pid:12186 Input Message [
  {
    "jsonrpc": "2.0",
    "method": "cli",
    "params": {
      "cmd": "show interface brief",
      "version": 1
    },
    "id": 1
  }
]
2018 December 30 09:57:55.919 is_nxapi_jsonrpc_request:298 pid:12186 Found jsonrpc request
2018 December 30 09:57:55.919 nxapi_jsonrpc_input_handler:101 pid:12186 Parsing json rpc request
2018 December 30 09:57:55.919 nxapi_jsonrpc_parse_request:901 pid:12186 JSONRPC Batch request found, starting par
se.

2018 December 30 09:57:55.919 _parse_in_req_msg_jsonrpc_store_nxversion:75 pid:12186 Input request version: 0
2018 December 30 09:57:55.919 _parse_in_req_msg_jsonrpc_username:668 pid:12186 cookie had user ''
2018 December 30 09:57:55.920 _parse_in_req_msg_jsonrpc_username:682 pid:12186 auth header had user 'admin'
2018 December 30 09:57:55.920 nxapi_jsonrpc_input_handler:109 pid:12186 Running jsonrpc commands
2018 December 30 09:57:55.920 nxapi_jsonrpc_run_cmds:453 pid:12186 JSON-RPC method '0'
2018 December 30 09:57:55.920 pterm_idle_vsh_sweep:677 pid:12186 pterm_idle_vsh_sweep
2018 December 30 09:57:55.920 pterm_get_vsh:720 pid:12186 vsh found: child_pid = 12260, fprd = 0x817cfc0, fpwr =
0x817d120, fd = 18, user = admin, vdc id = 1
2018 December 30 09:57:55.920 pterm_write_to_vsh:447 pid:12186 In vsh [18] Writing cmd "configure terminal"
2018 December 30 09:57:55.922 pterm_write_to_vsh:532 pid:12186 Cmd 'configure terminal' returned with '0'
2018 December 30 09:57:55.922 pterm_write_to_vsh:637 pid:12186 Done processing vsh output (ret=0)
2018 December 30 09:57:55.922 pterm_write_to_vsh:447 pid:12186 In vsh [18] Writing cmd "show interface brief | xm
l "
2018 December 30 09:57:56.230 pterm_write_to_vsh:532 pid:12186 Cmd 'show interface brief | xml ' returned with '0
'
2018 December 30 09:57:56.230 pterm_write_to_vsh:637 pid:12186 Done processing vsh output (ret=0)
2018 December 30 09:57:56.230 _jsonrpc_store_vsh_cmd:129 pid:12186 output size 47188
2018 December 30 09:57:56.238 _jsonrpc_store_result_xml:61 pid:12186 Sanitizing output from vsh
2018 December 30 09:57:56.241 _jsonrpc_store_result_xml:82 pid:12186 valid xml, build json for:show interface bri
ef
2018 December 30 09:57:56.244 pterm_write_to_vsh:447 pid:12186 In vsh [18] Writing cmd "end"
2018 December 30 09:57:56.246 pterm_write_to_vsh:532 pid:12186 Cmd 'end' returned with '0'
2018 December 30 09:57:56.246 pterm_write_to_vsh:637 pid:12186 Done processing vsh output (ret=0)
2018 December 30 09:57:56.246 nxapi_jsonrpc_input_handler:113 pid:12186 Formatting jsonrpc output
2018 December 30 09:57:56.246 nxapi_jsonrpc_input_handler:117 pid:12186 gather jsonrpc response
2018 December 30 09:57:56.248 nxapi_jsonrpc_input_handler:123 pid:12186 jsonrpc output ret:0
2018 December 30 09:57:56.248 ngx_http_ins_api_post_body_handler:575 pid:12186 Done processing request
2018 December 30 09:57:56.248 ngx_http_ins_api_post_body_handler:608 pid:12186 sent header
2018 December 30 09:57:56.248 ngx_http_ins_api_post_body_handler:650 pid:12186 Allocate response buffer:32667
2018 December 30 09:57:56.248 ngx_http_ins_api_post_body_handler:680 pid:12186 Sending response len: 32667
2018 December 30 09:57:56.248 ngx_http_ins_api_post_body_handler:681 pid:12186 Sending response now {
        "jsonrpc":      "2.0",
        "result":       {
                "body": {
                        "TABLE_interface":      {
                                "ROW_interface":        [{
                                                "interface":    "mgmt0",
                                                "state":        "up",
                                                "ip_addr":      "10.10.20.95",
                                                "speed":        "1000",
                                                "mtu":  1500
                                        }, {
                                                "i
sbx-n9kv-ao#

-END
