Springboot + RabbitMQ实现消息延迟重试

一：简介

使用场景：调用第三方接口时如果调用失败需要隔几秒再去尝试下一次调用，直到调用N次还失败就停止调用。最常用的场景就是支付成功异步通知第三方支付成功。

1. 为什么要调用多次？

如果调用1次就成功了就停止调用，如果失败可能由于网络原因没有请求到服务器需要再次尝试，第二次很可能就会调用成功了。

2. 为什么要间隔几秒再尝试下次调用？

如果是因为网络原因没有请求到服务器如果再立刻调用，很可能此时网络还是没有好，可能等几秒后网络就恢复了，此时再去调用就好了。

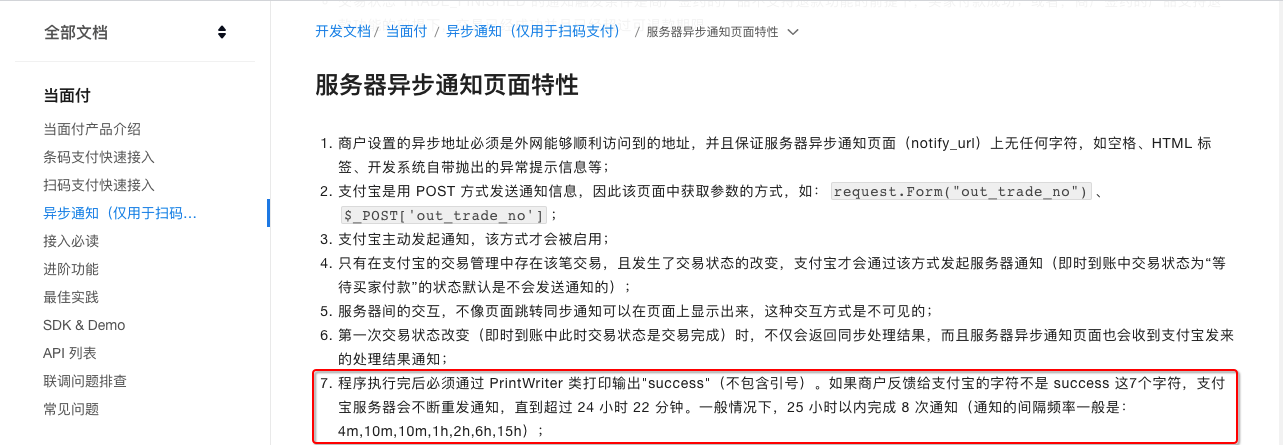

实现效果类似于支付宝中的回调延迟重试：

二：代码示例

功能示例：每隔2秒、4秒、8秒、16秒去重试调用接口，总共调用4次。

1. pom.xml

   <dependency>
     <groupId>org.springframework.boot</groupId>
     <artifactId>spring-boot-starter-amqp</artifactId>
   </dependency>
   <dependency>
     <groupId>org.apache.httpcomponents</groupId>
     <artifactId>httpclient</artifactId>
     <version>4.5.6</version>
   </dependency>
   <dependency>
     <groupId>com.alibaba</groupId>
     <artifactId>fastjson</artifactId>
     <version>1.2.62</version>
   </dependency>
   <dependency>
     <groupId>org.projectlombok</groupId>
     <artifactId>lombok</artifactId>
     <optional>true</optional>
   </dependency>


2. application.yml

   spring:
     rabbitmq:
       host: localhost
       port: 5672
       username: guest
       password: guest

   ## http component
   http:
     maxTotal: 100 #最大连接数
     defaultMaxPerRoute: 20 # 并发数
     connectTimeout: 1000  #创建连接的最长时间
     connectionRequestTimeout: 500 #从连接池中获取到连接的最长时间
     socketTimeout: 10000  #数据传输的最长时间
     validateAfterInactivity: 1000


3. HttpClient

   import org.apache.http.client.config.RequestConfig;
   import org.apache.http.impl.client.CloseableHttpClient;
   import org.apache.http.impl.client.HttpClientBuilder;
   import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
   import org.springframework.beans.factory.annotation.Value;
   import org.springframework.context.annotation.Bean;
   import org.springframework.context.annotation.Configuration;

   @Configuration
   public class HttpClientConfig {

       @Value("${http.maxTotal}")
       private Integer maxTotal;

       @Value("${http.defaultMaxPerRoute}")
       private Integer defaultMaxPerRoute;

       @Value("${http.connectTimeout}")
       private Integer connectTimeout;

       @Value("${http.connectionRequestTimeout}")
       private Integer connectionRequestTimeout;

       @Value("${http.socketTimeout}")
       private Integer socketTimeout;

       @Value("${http.validateAfterInactivity}")
       private Integer validateAfterInactivity;


       @Bean
       public PoolingHttpClientConnectionManager poolingHttpClientConnectionManager(){
           PoolingHttpClientConnectionManager connectionManager = new PoolingHttpClientConnectionManager();
           connectionManager.setMaxTotal(maxTotal);
           connectionManager.setDefaultMaxPerRoute(defaultMaxPerRoute);
           connectionManager.setValidateAfterInactivity(validateAfterInactivity);
           return connectionManager;
       }

       @Bean
       public HttpClientBuilder httpClientBuilder(PoolingHttpClientConnectionManager poolingHttpClientConnectionManager){
           HttpClientBuilder httpClientBuilder = HttpClientBuilder.create();
           httpClientBuilder.setConnectionManager(poolingHttpClientConnectionManager);

           return httpClientBuilder;
       }

       @Bean
       public CloseableHttpClient closeableHttpClient(HttpClientBuilder httpClientBuilder){
           return httpClientBuilder.build();
       }


       @Bean
       public RequestConfig.Builder builder(){
           RequestConfig.Builder builder = RequestConfig.custom();
           return builder.setConnectTimeout(connectTimeout)
                   .setConnectionRequestTimeout(connectionRequestTimeout)
                   .setSocketTimeout(socketTimeout);
       }

       @Bean
       public RequestConfig requestConfig(RequestConfig.Builder builder){
           return builder.build();
       }
   }



   import com.alibaba.fastjson.JSONObject;
   import lombok.extern.slf4j.Slf4j;
   import org.apache.http.HttpHeaders;
   import org.apache.http.HttpStatus;
   import org.apache.http.client.config.RequestConfig;
   import org.apache.http.client.methods.CloseableHttpResponse;
   import org.apache.http.client.methods.HttpGet;
   import org.apache.http.client.methods.HttpPost;
   import org.apache.http.client.utils.URIBuilder;
   import org.apache.http.entity.ContentType;
   import org.apache.http.entity.StringEntity;
   import org.apache.http.impl.client.CloseableHttpClient;
   import org.apache.http.util.EntityUtils;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.stereotype.Component;

   import java.util.Map;


   @Slf4j
   @Component
   public class HttpClient {

       /** 默认字符集 */
       public static final String DEFAULT_CHARSET = "UTF-8";

       @Autowired
       private CloseableHttpClient closeableHttpClient;

       @Autowired
       private RequestConfig config;



       public <T> T doPost(String url, Map<String, Object> requestParameter, Class<T> clazz) throws Exception {
           HttpResponse httpResponse = this.doPost(url, requestParameter);
           if (clazz == String.class) {
               return (T) httpResponse.getBody();
           }
           T response = JSONObject.parseObject(httpResponse.getBody(), clazz);
           return response;
       }

       public HttpResponse doPost(String url, Map<String, Object> requestParameter) throws Exception {
           HttpPost httpPost = new HttpPost(url);
           httpPost.setConfig(config);
           httpPost.addHeader(HttpHeaders.CONTENT_TYPE, ContentType.APPLICATION_JSON.getMimeType());

           if (requestParameter != null) {
               String requestBody = JSONObject.toJSONString(requestParameter);
               StringEntity postEntity = new StringEntity(requestBody, "UTF-8");
               httpPost.setEntity(postEntity);
           }

           CloseableHttpResponse response = this.closeableHttpClient.execute(httpPost);
           // 对请求的响应进行简单的包装成自定义的类型
           return new HttpResponse(response.getStatusLine().getStatusCode(), EntityUtils.toString(
                   response.getEntity(), DEFAULT_CHARSET));
       }



       /**
        * 封装请求的响应码和响应的内容
        */
       public class HttpResponse {
           /** http status */
           private Integer code;
           /** http response content */
           private String body;

           public HttpResponse() { }

           public HttpResponse(Integer code, String body) {
               this.code = code;
               this.body = body;
           }

           public Integer getCode() {
               return code;
           }

           public void setCode(Integer code) {
               this.code = code;
           }

           public String getBody() {
               return body;
           }

           public void setBody(String body) {
               this.body = body;
           }
       }
   }


4. MessagePostProcessor

import org.springframework.amqp.AmqpException;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessagePostProcessor;

/**
 * 设置消息过期时间
 */
public class ExpirationMessagePostProcessor implements MessagePostProcessor{

    private final Long ttl;

    public ExpirationMessagePostProcessor(Long ttl) {
        this.ttl = ttl;
    }

    @Override
    public Message postProcessMessage(Message message) throws AmqpException {
        // 设置失效时间
        message.getMessageProperties().setExpiration(ttl.toString());
        return message;
    }
}

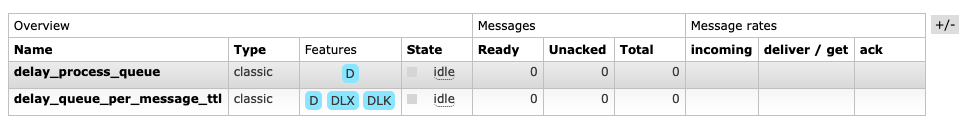

5. 声明队列和交换机

   package com.example.rabbitmq.retry;

   import org.springframework.amqp.core.*;
   import org.springframework.context.annotation.Bean;
   import org.springframework.context.annotation.Configuration;

   /**
    * 延迟队列
    */
   @Configuration
   public class DelayQueueConfig {

       /** 缓冲队列名称：过期时间针对于每个消息 */
       public final static String DELAY_QUEUE_PER_MESSAGE_TTL_NAME = "delay_queue_per_message_ttl";

       /** 死亡交换机：过期消息将通过该死亡交换机放入到实际消费的队列中  */
       public final static String DELAY_EXCHANGE_NAME = "delay_exchange";

       /** 死亡交换机对应的路由键，通过该路由键路由到实际消费的队列 */
       public final static String DELAY_PROCESS_QUEUE_NAME = "delay_process_queue";

       /** 路由到 delay_queue_per_message_ttl（统一失效时间的队列）的exchange（用于队列延迟重试） */
       public final static String PER_MESSAGE_TTL_EXCHANGE_NAME = "per_message_ttl_exchange";


       /**
        * delay_queue_per_message_ttl
        * 每个消息都可以控制自己的失效时间
        * x-dead-letter-exchange声明了队列里的死信转发到的DLX名称
        * x-dead-letter-routing-key声明了这些死信在转发时携带的routing-key名称
        */
       @Bean
       Queue delayQueuePerMessageTTL() {
           return QueueBuilder.durable(DELAY_QUEUE_PER_MESSAGE_TTL_NAME)
                   .withArgument("x-dead-letter-exchange", DELAY_EXCHANGE_NAME)
                   .withArgument("x-dead-letter-routing-key", DELAY_PROCESS_QUEUE_NAME)
                   .build();
       }

       /**
        * 死亡交换机 DLX
        * @return
        */
       @Bean
       DirectExchange delayExchange() {
           return new DirectExchange(DELAY_EXCHANGE_NAME);
       }

       /**
        * 实际消费队列：过期之后会进入到该队列中来
        * @return
        */
       @Bean
       Queue delayProcessQueue() {
           return QueueBuilder.durable(DELAY_PROCESS_QUEUE_NAME).build();
       }


       /**
        * 将死亡交换机delayExchange和实际消费队列delay_process_queue绑定在一起，并携带路由键delay_process_queue
        * @param delayProcessQueue
        * @param delayExchange
        * @return
        */
       @Bean
       Binding dlxBinding(Queue delayProcessQueue, DirectExchange delayExchange) {
           return BindingBuilder.bind(delayProcessQueue)
                   .to(delayExchange)
                   .with(DELAY_PROCESS_QUEUE_NAME);
       }


       /**
        * 重试交换机：消费失败后通过该交换机转发到队列中
        * @return
        */
       @Bean
       DirectExchange perMessageTtlExchange() {
           return new DirectExchange(PER_MESSAGE_TTL_EXCHANGE_NAME);
       }


       /**
        * 重试交换机和缓冲队列绑定
        * @param delayQueuePerMessageTTL 缓冲队列
        * @param perMessageTtlExchange 重试交换机
        * @return
        */
       @Bean
       Binding messageTtlBinding(Queue delayQueuePerMessageTTL, DirectExchange perMessageTtlExchange) {
           return BindingBuilder.bind(delayQueuePerMessageTTL)
                   .to(perMessageTtlExchange)
                   .with(DELAY_QUEUE_PER_MESSAGE_TTL_NAME);
       }
   }


6. 消费消息

   import com.alibaba.fastjson.JSONObject;
   import lombok.extern.slf4j.Slf4j;
   import org.springframework.amqp.core.AmqpTemplate;
   import org.springframework.amqp.rabbit.annotation.RabbitListener;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.stereotype.Component;

   import java.util.Date;
   import java.util.Map;
   import java.util.Objects;

   /**
    * 支付回调重试
    * 2秒、4秒、8秒后分别重试，算上0秒这次总共重试4次
    */
   @Slf4j
   @Component
   public class CallbackConsumer {

       @Autowired
       private AmqpTemplate rabbitTemplate;

       @Autowired
       private HttpClient httpClient;

       /** 最大重试次数 */
       private Integer maxRetryTime = 4;


       @RabbitListener(queues = DelayQueueConfig.DELAY_PROCESS_QUEUE_NAME)
       public void process(String msg) {
           log.info("----------date = {}, msg ={}", new Date(), msg);
           Map<String, Object> callbackRequestMap = JSONObject.parseObject(msg, Map.class);
           // 重试次数
           Integer retryTime = (Integer)callbackRequestMap.get("retryTime");
           String notifyUrl = (String)callbackRequestMap.get("notifyUrl");

           try {
               if (maxRetryTime <= 4) {
                   log.info("################Callback retry time = {}, date = {}################", retryTime, new Date());
                   String response = httpClient.doPost(notifyUrl, callbackRequestMap, String.class);
                   if (Objects.equals("SUCCESS", response)) {
                       log.info("ok");
                   } else {
                       // 下一次重试
                       log.error("error request={} response={}", callbackRequestMap, response);
                       if (retryTime == maxRetryTime) {
                           lastTimeRetryResult(response, null);
                           return;
                       }
                       retryCallback(callbackRequestMap);
                   }
               }
           } catch (Exception e) {
               if (maxRetryTime < maxRetryTime) {
                   retryCallback(callbackRequestMap);
               } else {
                   lastTimeRetryResult(null, e);
               }
           }
       }


       /**
        * 尝试下一次回调
        * @param callbackRequestMap 请求参数
        */
       private void retryCallback(Map<String, Object> callbackRequestMap) {
           // 下次重试，重试次数+1
           Integer retryTime = (Integer)callbackRequestMap.get("retryTime");
           callbackRequestMap.put("retryTime", retryTime + 1);

           // 下一次延迟是上一次延迟的2倍时间
           long expiration = retryTime * 2000;
           String callbackMessage = JSONObject.toJSONString(callbackRequestMap);
           rabbitTemplate.convertAndSend(DelayQueueConfig.DELAY_QUEUE_PER_MESSAGE_TTL_NAME,
                   (Object) callbackMessage,
                   new ExpirationMessagePostProcessor(expiration));
       }

       /**
        * 记录最后一次重试的结果
        * @param response
        * @param e
        */
       private void lastTimeRetryResult(String response, Exception e) {
           log.error("last time retry, response={}", response);
       }
   }

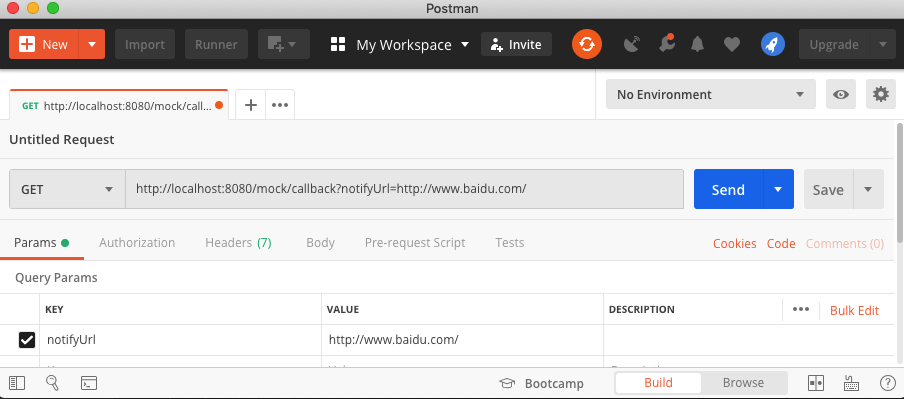

7. 模拟回调

   package com.example.rabbitmq.retry;

   import com.alibaba.fastjson.JSONObject;
   import org.springframework.amqp.core.AmqpTemplate;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.web.bind.annotation.RequestMapping;
   import org.springframework.web.bind.annotation.RestController;

   import java.util.HashMap;
   import java.util.Map;
   import java.util.UUID;

   @RestController
   @RequestMapping("/mock")
   public class MockController {

       @Autowired
       private AmqpTemplate rabbitTemplate;

       @RequestMapping("/callback")
       public void callback(String notifyUrl) {
           Map<String, Object> requestMap = new HashMap<>();
           requestMap.put("retryTime", 1);
           requestMap.put("notifyUrl", notifyUrl);
           requestMap.put("orderCode", UUID.randomUUID().toString());
           Object callbackMessage = JSONObject.toJSONString(requestMap);


           rabbitTemplate.convertAndSend(DelayQueueConfig.DELAY_QUEUE_PER_MESSAGE_TTL_NAME, callbackMessage, new ExpirationMessagePostProcessor(0L));
       }
   }


三：参考文章

• Spring Boot 实现 RabbitMQ 延迟消费和延迟重试队列
• 详细介绍Spring Boot + RabbitMQ实现延迟队列

来源：CSDN

作者：vbirdbest

链接：https://blog.csdn.net/vbirdbest/article/details/104654376
