Fedora 29 添加 惠普打印机 Smart Tank 531

こ雲淡風輕ζ 提交于 2020-02-27 04:16:25

文章目录

环境

系统: Fedora 29 x64
打印机: HP Smart Tank 531 Wireless All in One
打印机WIFI 地址: 192.168.1.13

步骤
  1. 准备 PPD 文件
    使用 ipptool 获得打印机的属性说明
 ipptool -tv ipp://192.168.1.13/ipp/print get-printer-attributes.test > attr.txt

查看 /usr/share/ppd/HP

...
hp-deskjet_935c.ppd.gz                       hp-laserjet_professional_p1107.ppd.gz         hp-smart_tank_350_series.ppd.gz
hp-deskjet_940c.ppd.gz                       hp-laserjet_professional_p1107w.ppd.gz        hp-smart_tank_530_series.ppd.gz
hp-deskjet_948c.ppd.gz                       hp-laserjet_professional_p1108.ppd.gz         hp-smart_tank_wireless_450_series.ppd.gz
hp-deskjet_950c.ppd.gz                       hp-laserjet_professional_p1108w.ppd.gz        hp-tango.ppd.gz
...

有很多 PPD 文件. 这里使用打印机属性文件里的信息,复制 hp-smart_tank_wireless_450_series.ppd.gzhp-smart_tank_530_series.ppd.gz 进行修改. 注意这个文件是个文本文件, 可以直接用 vim 操作.

我主要修改了几个地方, hp-smart_tank_530_series.ppd.gz, 主要是把名字都改成 530.

*PPD-Adobe: "4.3"
*%%%% PPD file for HP Smart Tank 530 Series with CUPS.

...

*PCFileName: "hp-smart_tank_530_series.ppd"
*Product: "(HP Smart Tank 530 Series)"
...

*ModelName: "HP Smart Tank 530 Series"
*ShortNickName: "HP_Smart_Tank_530_series"
*NickName: "HP Smart Tank 530 Series, hpcups 3.18.12"
...

*1284DeviceID: "MFG:HP;MDL:Smart Tank 530 series;DES:我的机器型号编码;"
...

*% End of hp-smart_tank_530_series.ppd, 29028 bytes.
...
  1. 打开 HPLIP Graphical Tools

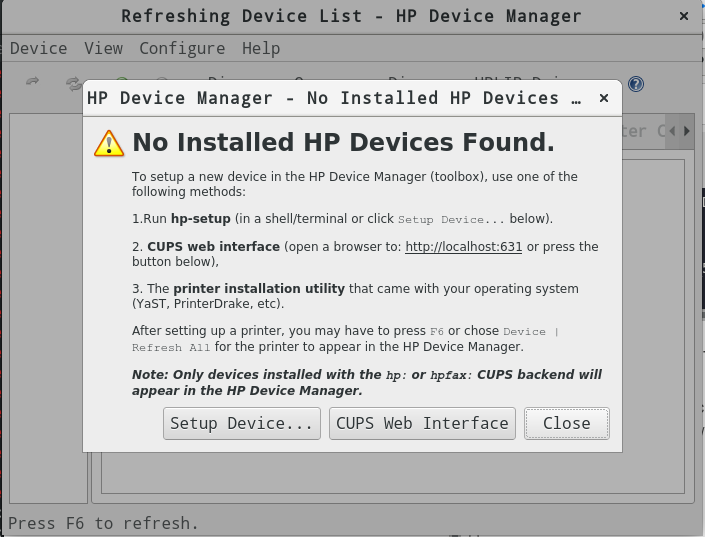

    HP Device Manager
    选择 CUPS Web Interface

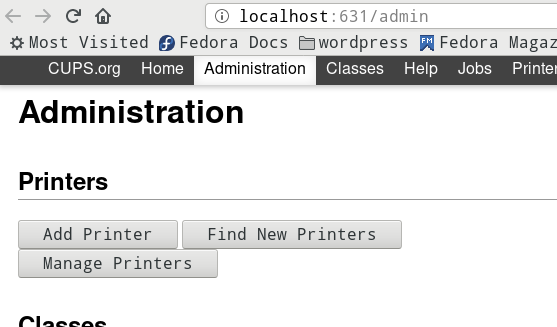

    CUPS Web Interface - Administration

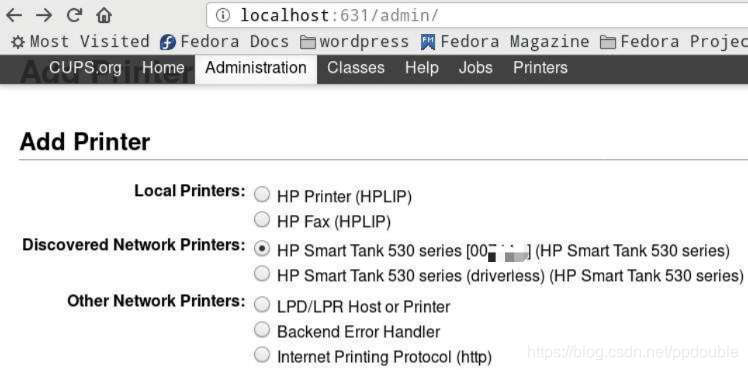

    CUPS Web Interface - Administration -Add Printer

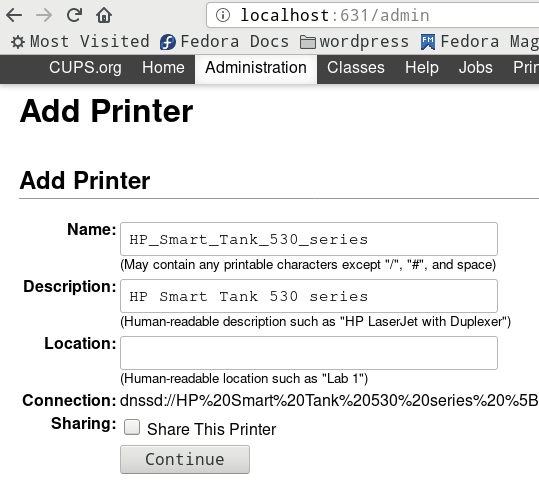

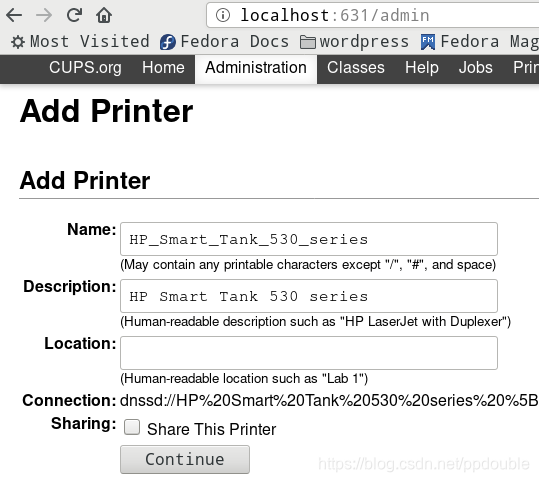

    CUPS Web Interface - Administration - Add Printer - 2

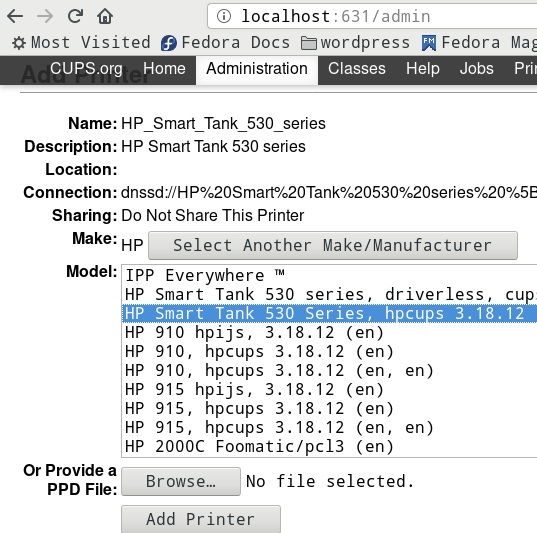

    CUPS Web Interface - Administration - Add Printer - 3
    [1] https://github.com/apple/cups/issues/5238
    [2] https://www.cups.org/doc/man-ipptool.html
    [3] https://developers.hp.com/hp-linux-imaging-and-printing/supported_devices/index
补充
Model Name Min. HPLIP Version Driver Plug-in Support Level Print Mode Scan to PC PC Send Fax Connectivity: USB, Network, Parallel Note
HP Smart Tank 530 series 3.19.6 Yes Full Color Yes No USB,Network
HP Smart Tank 350 3.18.7 yes Full Color yes No USB
HP Smart Tank Wireless 450 3.18.7 yes Full Color yes No USB

我原来的 hplip 版本是

hplip-common-3.18.12-9.fc29.x86_64
hplip-3.18.12-9.fc29.x86_64
hplip-gui-3.18.12-9.fc29.x86_64
hplip-libs-3.18.12-9.fc29.x86_64

只需要更新 hplip 即可获得默认支持, 不需要自己制造 PPD 文件.

[user@localhost hpsmart]$ sudo dnf upgrade hplip*
......
=========================================================================================================================
 Package                        Arch                    Version                           Repository                Size
=========================================================================================================================
Upgrading:
 hplip                          x86_64                  3.19.10-1.fc29                    updates                   17 M
 hplip-common                   x86_64                  3.19.10-1.fc29                    updates                   76 k
 hplip-gui                      x86_64                  3.19.10-1.fc29                    updates                  1.3 M
 hplip-libs                     x86_64                  3.19.10-1.fc29                    updates                  162 k
 libsane-hpaio                  x86_64                  3.19.10-1.fc29                    updates                   88 k

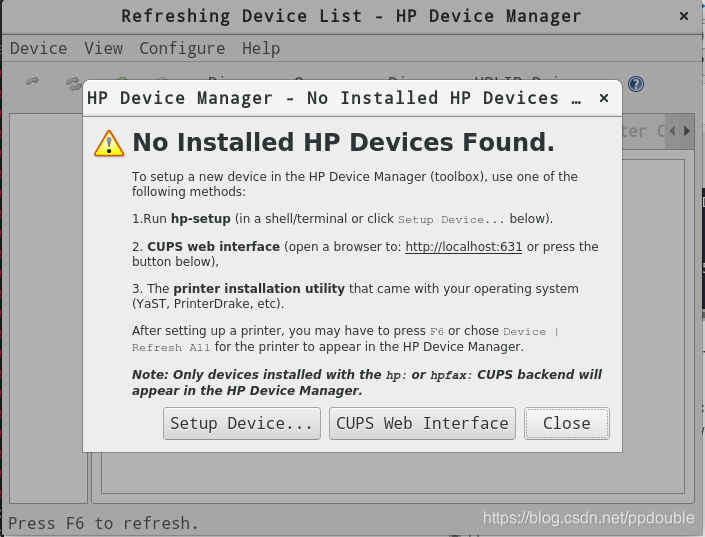

HP Device Manager
选择 Setup Device...

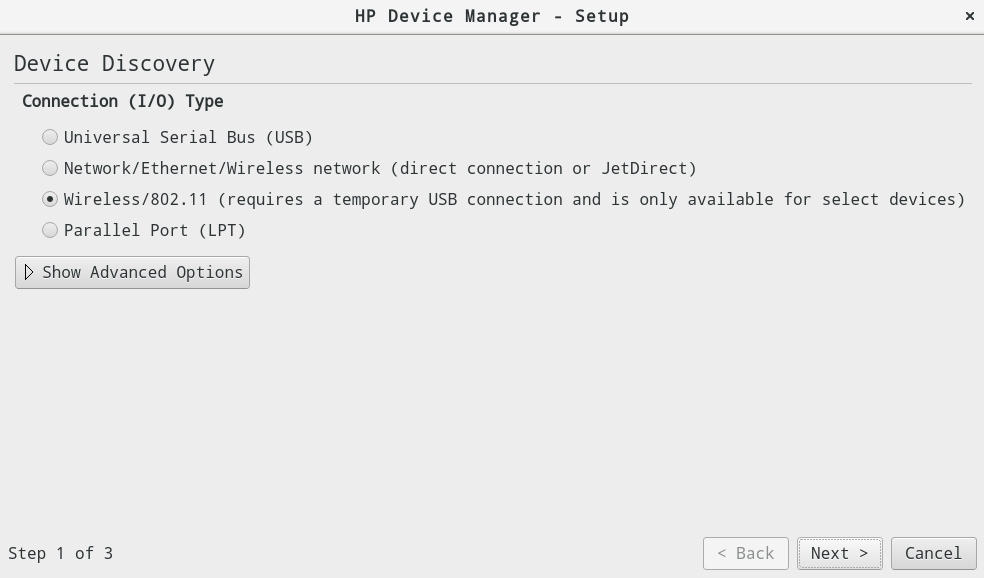

Setting WiFi 1-3
这个选项主要是使用 USB 连接线配置打印机的网络, 让打印机连接WIFI 路由器. 等连接成功后, 会显示打印机的 IP 地址, 并提示使用 hp-setup 添加打印机, 如 hp-setup 192.168.1.13 打开的是图形界面.

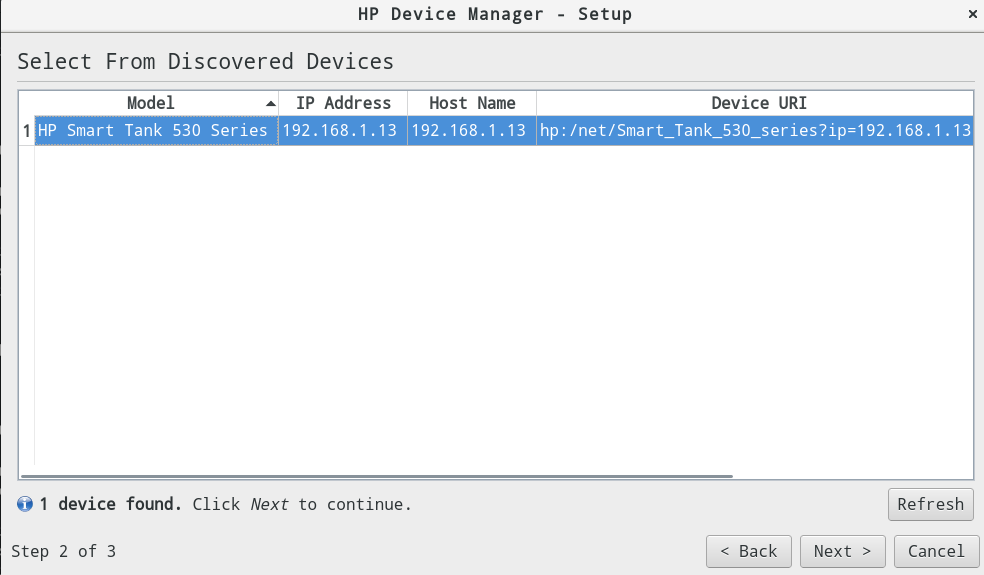

hp-setup Add 2-3
最后选择 Send test page 项可以让打印机打印测试页

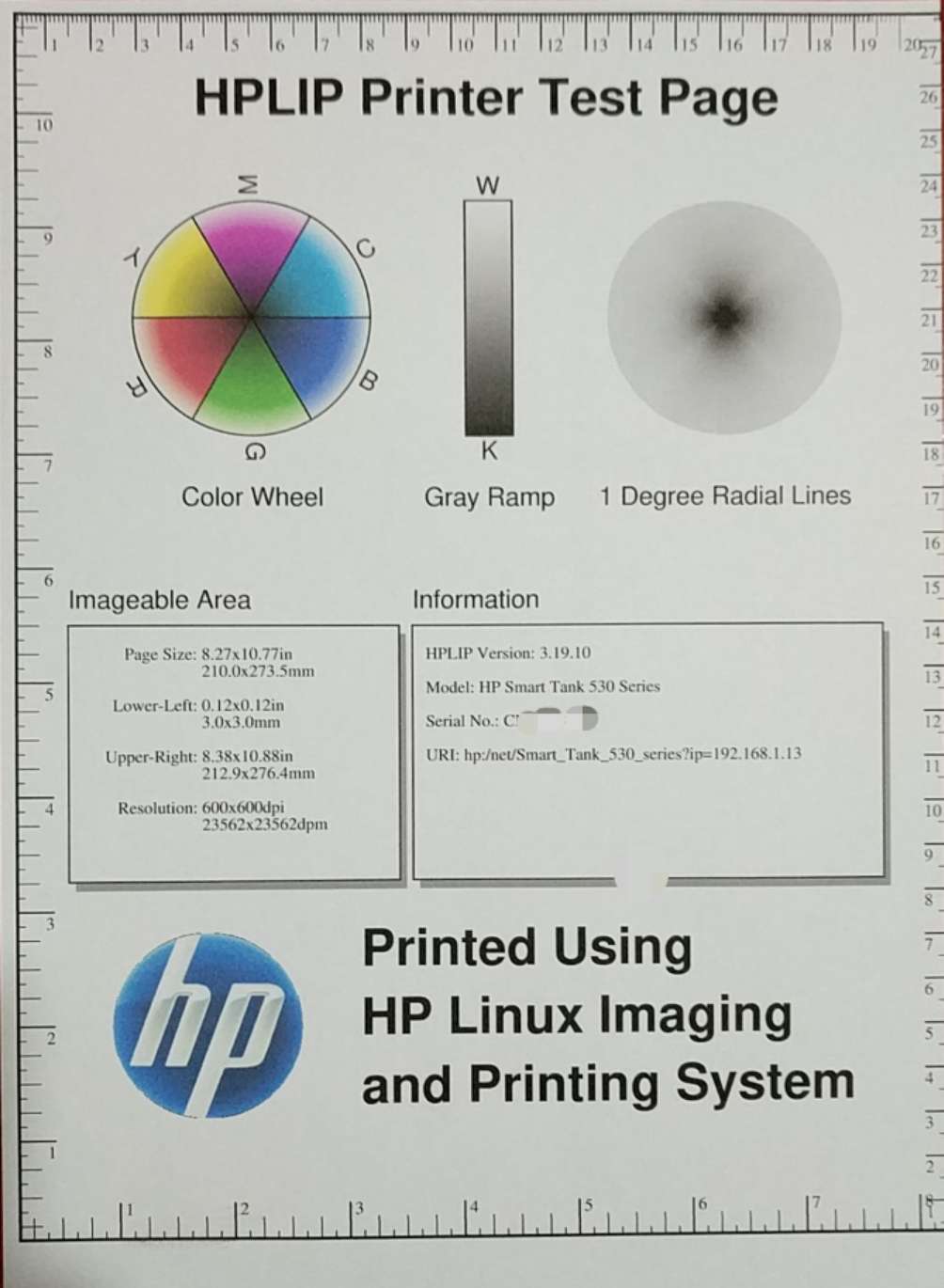

HPLIP Test Page HP Smart Tank 531
HP Device Manager 的图示

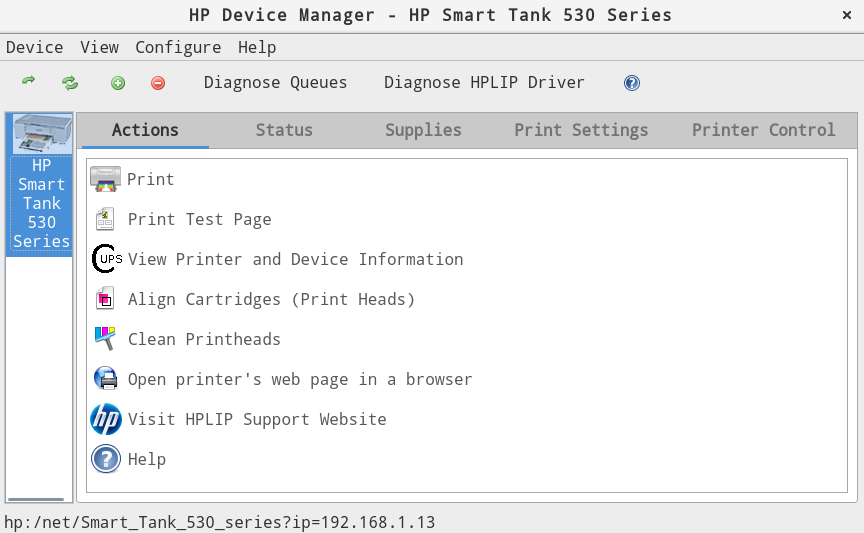

531 in HP Device Manager

[4] https://developers.hp.com/hp-linux-imaging-and-printing
[5] https://docs.fedoraproject.org/en-US/fedora/f29/system-administrators-guide/servers/File_and_Print_Servers/#sec-Printer_Configuration
