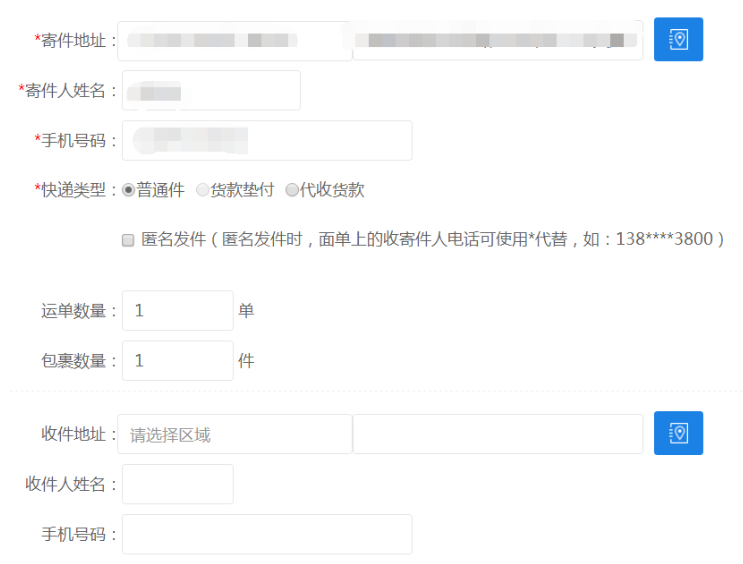

预约取件接口对接后可以在自己的网站系统中实现在线叫快递功能，快递鸟的预约取件接口也是支持了国内主流快递，也就不需要逐家接口对接了，实现样式如图：
接口说明

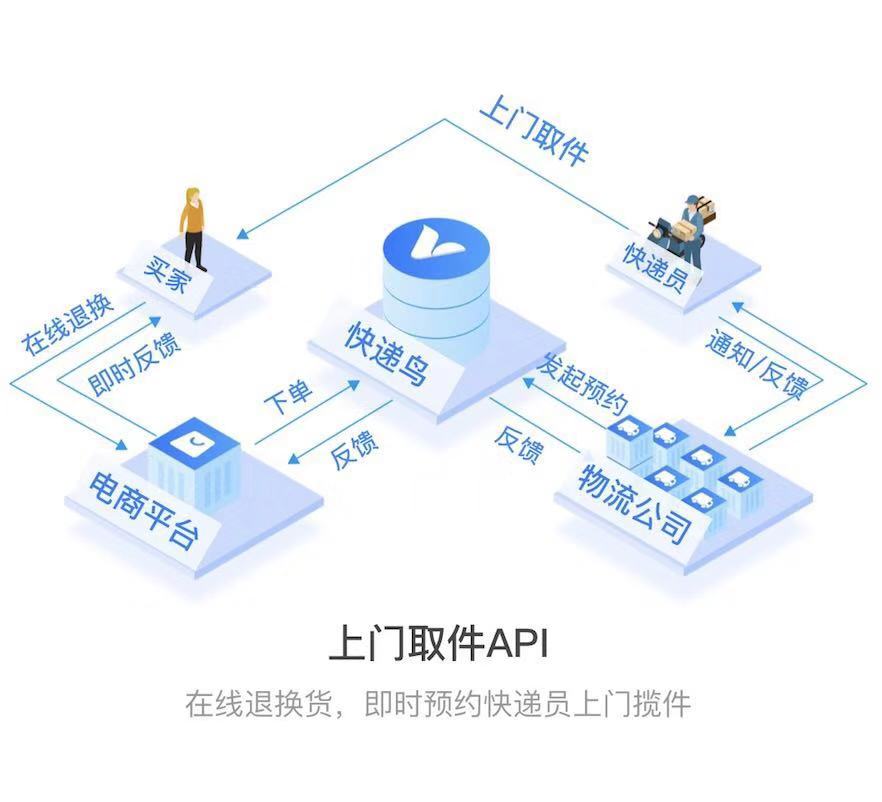

（1）预约取件接口是快递鸟提供给独立电商、仓储管理系统、物流供应链等物流系统平台使用的下单接口。
（2）为客户解决在线发货需求，商户通过网络选择快递公司发送请求通知快递公司有快递要发货。
（3） 客户把数据通过此接口转发到快递鸟，由快递鸟安排快递员上门取件的服务。
（4）订单编号（OrderCode）不可重复提交，重复提交系统会返回具体错误代码。
（5）接口支持的消息接收方式为HTTP POST，请求方法的编码格式(utf-8)："application/x-www-form-urlencoded;charset=utf-8"。
（6）接口地址： API测试地址：http://testapi.kdniao.cc:8081/api/OOrderService
API正式地址：http://api.kdniao.cc/api/OOrderService
接口参数
对接demo
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.io.UnsupportedEncodingException;
import java.net.HttpURLConnection;
import java.net.URL;
import java.net.URLEncoder;
import java.util.HashMap;
import java.util.Map;
import com.sun.org.apache.xerces.internal.impl.dv.util.Base64;
import java.security.MessageDigest;
/**
*
* 快递鸟在线下单接口
*
* @技术QQ: 4009633321
* @技术QQ群: 200121393
* @see: http://www.kdniao.com/api-order
* @copyright: 深圳市快金数据技术服务有限公司
*
* ID和Key请到官网申请：http://www.kdniao.com/ServiceApply.aspx
*/
public class KdGoldAPIDemo {
//电商ID
private String EBusinessID="请到快递鸟官网申请http://www.kdniao.com/ServiceApply.aspx";
//电商加密私钥，快递鸟提供，注意保管，不要泄漏
private String AppKey="请到快递鸟官网申请http://www.kdniao.com/ServiceApply.aspx";
//测试请求url
private string ReqURL = "http://testapi.kdniao.cc:8081/api/oorderservice";
//正式请求url
//private string ReqURL = "http://api.kdniao.cc/api/OOrderService";
/**
* Json方式 在线下单
* @throws Exception
*/
public String orderOnlineByJson() throws Exception{
String requestData= "{'OrderCode': '012657700312'," +
"'ShipperCode':'YTO'," +
"'PayType':1," +
"'ExpType':1," +
"'Cost':1.0," +
"'OtherCost':1.0," +
"'Sender':" +
"{" +
"'Company':'LV','Name':'Taylor','Mobile':'15018442396','ProvinceName':'上海','CityName':'上海','ExpAreaName':'青浦区','Address':'明珠路73号'}," +
"'Receiver':" +
"{" +
"'Company':'GCCUI','Name':'Yann','Mobile':'15018442396','ProvinceName':'北京','CityName':'北京','ExpAreaName':'朝阳区','Address':'三里屯街道雅秀大厦'}," +
"'Commodity':" +
"[{" +
"'GoodsName':'鞋子','Goodsquantity':1,'GoodsWeight':1.0}]," +
"'AddService':" +
"[{" +
"'Name':'COD','Value':'1020'}]," +
"'Weight':1.0," +
"'Quantity':1," +
"'Volume':0.0," +
"'Remark':'小心轻放'," +
"'Commodity':" +
"[{" +
"'GoodsName':'鞋子'," +
"'Goodsquantity':1," +
"'GoodsWeight':1.0}]" +
"}";
Map<String, String> params = new HashMap<String, String>();
params.put("RequestData", urlEncoder(requestData, "UTF-8"));
params.put("EBusinessID", EBusinessID);
params.put("RequestType", "1001");
String dataSign=encrypt(requestData, AppKey, "UTF-8");
params.put("DataSign", urlEncoder(dataSign, "UTF-8"));
params.put("DataType", "2");
String result=sendPost(ReqURL, params);
//根据公司业务处理返回的信息......
return result;
}
/**
* MD5加密
* @param str 内容
* @param charset 编码方式
* @throws Exception
*/
@SuppressWarnings("unused")
private String MD5(String str, String charset) throws Exception {
MessageDigest md = MessageDigest.getInstance("MD5");
md.update(str.getBytes(charset));
byte[] result = md.digest();
StringBuffer sb = new StringBuffer(32);
for (int i = 0; i < result.length; i++) {
int val = result[i] & 0xff;
if (val <= 0xf) {
sb.append("0");
}
sb.append(Integer.toHexString(val));
}
return sb.toString().toLowerCase();
}
/**
* base64编码
* @param str 内容
* @param charset 编码方式
* @throws UnsupportedEncodingException
*/
private String base64(String str, String charset) throws UnsupportedEncodingException{
String encoded = Base64.encode(str.getBytes(charset));
return encoded;
}
@SuppressWarnings("unused")
private String urlEncoder(String str, String charset) throws UnsupportedEncodingException{
String result = URLEncoder.encode(str, charset);
return result;
}
/**
* 电商Sign签名生成
* @param content 内容
* @param keyValue Appkey
* @param charset 编码方式
* @throws UnsupportedEncodingException ,Exception
* @return DataSign签名
*/
@SuppressWarnings("unused")
private String encrypt (String content, String keyValue, String charset) throws UnsupportedEncodingException, Exception
{
if (keyValue != null)
{
return base64(MD5(content + keyValue, charset), charset);
}
return base64(MD5(content, charset), charset);
}
/**
* 向指定 URL 发送POST方法的请求
* @param url 发送请求的 URL
* @param params 请求的参数集合
* @return 远程资源的响应结果
*/
@SuppressWarnings("unused")
private String sendPost(String url, Map<String, String> params) {
OutputStreamWriter out = null;
BufferedReader in = null;
StringBuilder result = new StringBuilder();
try {
URL realUrl = new URL(url);
HttpURLConnection conn =(HttpURLConnection) realUrl.openConnection();
// 发送POST请求必须设置如下两行
conn.setDoOutput(true);
conn.setDoInput(true);
// POST方法
conn.setRequestMethod("POST");
// 设置通用的请求属性
conn.setRequestProperty("accept", "*/*");
conn.setRequestProperty("connection", "Keep-Alive");
conn.setRequestProperty("user-agent",
"Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1;SV1)");
conn.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");
conn.connect();
// 获取URLConnection对象对应的输出流
out = new OutputStreamWriter(conn.getOutputStream(), "UTF-8");
// 发送请求参数
if (params != null) {
StringBuilder param = new StringBuilder();
for (Map.Entry<String, String> entry : params.entrySet()) {
if(param.length()>0){
param.append("&");
}
param.append(entry.getKey());
param.append("=");
param.append(entry.getValue());
System.out.println(entry.getKey()+":"+entry.getValue());
}
System.out.println("param:"+param.toString());
out.write(param.toString());
}
// flush输出流的缓冲
out.flush();
// 定义BufferedReader输入流来读取URL的响应
in = new BufferedReader(
new InputStreamReader(conn.getInputStream(), "UTF-8"));
String line;
while ((line = in.readLine()) != null) {
result.append(line);
}
} catch (Exception e) {
e.printStackTrace();
}
//使用finally块来关闭输出流、输入流
finally{
try{
if(out!=null){
out.close();
}
if(in!=null){
in.close();
}
}
catch(IOException ex){
ex.printStackTrace();
}
}
return result.toString();
}
}来源：oschina
