XML配置 aspectj-autoproxy
注册自定义命名空间Bean定义解析器 AopNamespaceHandler
public class AopNamespaceHandler extends NamespaceHandlerSupport {
public void init() {
// In 2.0 XSD as well as in 2.1 XSD.
registerBeanDefinitionParser("config", new ConfigBeanDefinitionParser());
registerBeanDefinitionParser("aspectj-autoproxy", new AspectJAutoProxyBeanDefinitionParser());
registerBeanDefinitionDecorator("scoped-proxy", new ScopedProxyBeanDefinitionDecorator());
// Only in 2.0 XSD: moved to context namespace as of 2.1
registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
}
}
AspectJAutoProxyBeanDefinitionParser
public BeanDefinition parse(Element element, ParserContext parserContext) {
AopNamespaceUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(parserContext, element);
extendBeanDefinition(element, parserContext);
return null;
}
private void extendBeanDefinition(Element element, ParserContext parserContext) {
BeanDefinition beanDef =
parserContext.getRegistry().getBeanDefinition(AopConfigUtils.AUTO_PROXY_CREATOR_BEAN_NAME);
if (element.hasChildNodes()) {
addIncludePatterns(element, parserContext, beanDef);
}
}
private void addIncludePatterns(Element element, ParserContext parserContext, BeanDefinition beanDef) {
ManagedList<TypedStringValue> includePatterns = new ManagedList<>();
NodeList childNodes = element.getChildNodes();
for (int i = 0; i < childNodes.getLength(); i++) {
Node node = childNodes.item(i);
if (node instanceof Element) {
Element includeElement = (Element) node;
TypedStringValue valueHolder = new TypedStringValue(includeElement.getAttribute("name"));
valueHolder.setSource(parserContext.extractSource(includeElement));
includePatterns.add(valueHolder);
}
}
if (!includePatterns.isEmpty()) {
includePatterns.setSource(parserContext.extractSource(element));
beanDef.getPropertyValues().add("includePatterns", includePatterns);
}
}
注册AnnotationAwareAspectJAutoProxyCreator
AopNamespaceUtils
public static final String AUTO_PROXY_CREATOR_BEAN_NAME =
"org.springframework.aop.config.internalAutoProxyCreator";
注册名称为AUTO_PROXY_CREATOR_BEAN_NAME的BeanBeanDefinition。
public static void registerAspectJAnnotationAutoProxyCreatorIfNecessary(
ParserContext parserContext, Element sourceElement) {
BeanDefinition beanDefinition = AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(
parserContext.getRegistry(), parserContext.extractSource(sourceElement));
useClassProxyingIfNecessary(parserContext.getRegistry(), sourceElement);
registerComponentIfNecessary(beanDefinition, parserContext);
}
基于@AspectJ代理创建流程
(1) 如果存在循环依赖，调用getEarlyBeanReference方法获取提前暴露的Bean，如果有必要会生成代理，并记录下未包装的Bean
(2) Bean实例化前调用postProcessBeforeInstantiation，如果有自定义的TargetSourceCreator，则会创建代理
(3) Bean实例化后调用postProcessAfterInitialization，如果没有循环依赖或者循环依赖后Bean改变了，则需要生成代理

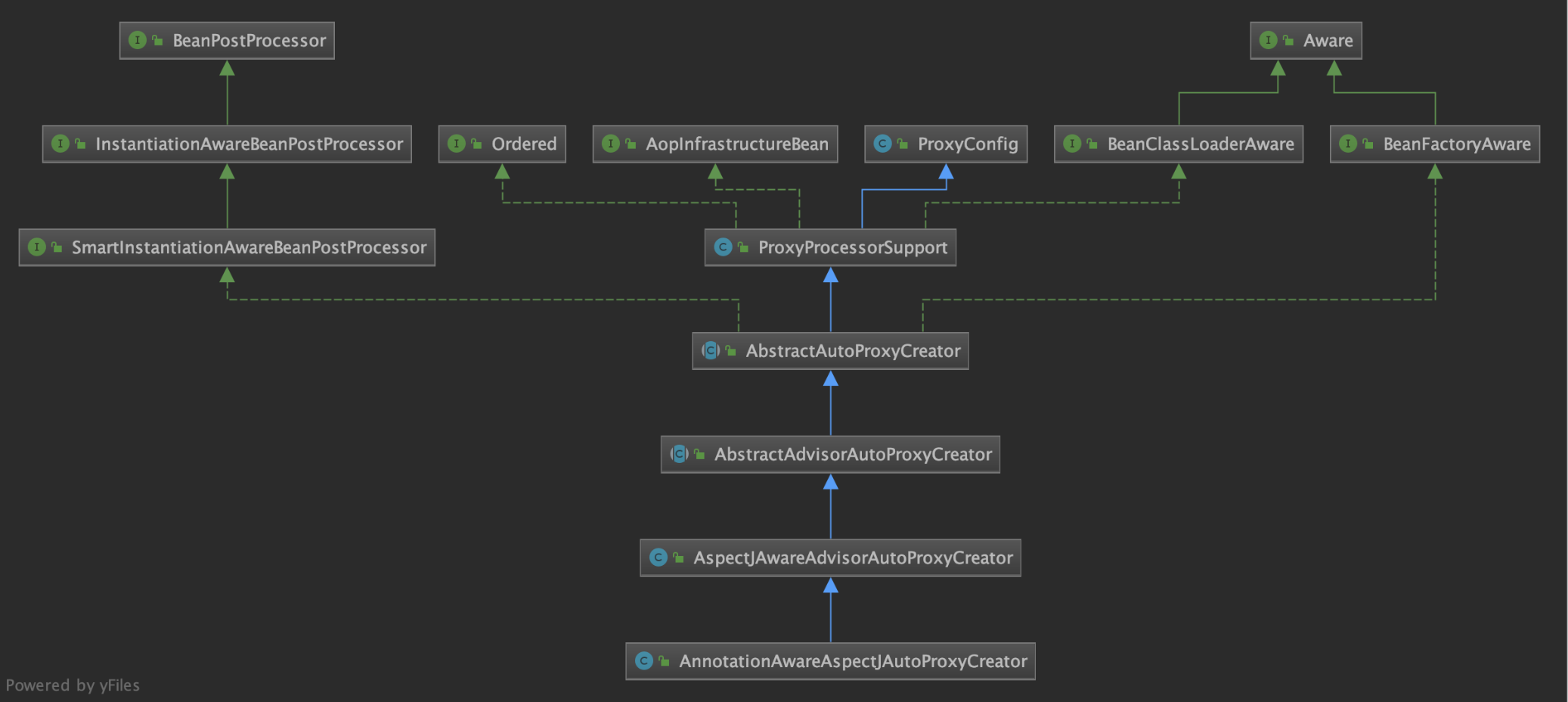

1、AnnotationAwareAspectJAutoProxyCreator类图
1.1 Aop基础设施标记接口-AopInfrastructureBean
标记接口，指示作为Spring AOP基础设施一部分的bean。 特别是，这意味着即使切入点匹配，任何此类bean也不会进行自动代理。
1.2 覆写查找候选Advisor findCandidateAdvisors
protected List<Advisor> findCandidateAdvisors() {
// 调用父类获取所有配置的Advisor
List<Advisor> advisors = super.findCandidateAdvisors();
// BeanFactory中所有AspectJ的Advisor
if (this.aspectJAdvisorsBuilder != null) {
advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
}
return advisors;
}
1.3 覆写判断是否基础设置类 isInfrastructureClass
protected boolean isInfrastructureClass(Class<?> beanClass) {
return (super.isInfrastructureClass(beanClass) ||
(this.aspectJAdvisorFactory != null && this.aspectJAdvisorFactory.isAspect(beanClass)));
}
1.4 覆写判断是否合适Aspect Bean isEligibleAspectBean
// includePatterns指定哪些Aspect Bean符合。检查给定的Aspect bean是否符合自动代理的条件。如果未使用任何<aop：include>元素，则“ includePatterns”将为{@code null}，并且包括所有bean。如果“ includePatterns”非空，则模式之一必须匹配。
protected boolean isEligibleAspectBean(String beanName) {
if (this.includePatterns == null) {
return true;
}
else {
for (Pattern pattern : this.includePatterns) {
if (pattern.matcher(beanName).matches()) {
return true;
}
}
return false;
}
}
1.5 根据@Aspect构造Advisor提取AspectJ Advisor
1.5.1 BeanFactoryAspectJAdvisorsBuilderAdapter
private class BeanFactoryAspectJAdvisorsBuilderAdapter extends BeanFactoryAspectJAdvisorsBuilder {
public BeanFactoryAspectJAdvisorsBuilderAdapter(
ListableBeanFactory beanFactory, AspectJAdvisorFactory advisorFactory) {
super(beanFactory, advisorFactory);
}
@Override
protected boolean isEligibleBean(String beanName) {
return AnnotationAwareAspectJAutoProxyCreator.this.isEligibleAspectBean(beanName);
}
}
1.5.2 根据@Aspect构造Advisor BeanFactoryAspectJAdvisorsBuilder
// 根据@Aspect构造Advisor
public List<Advisor> buildAspectJAdvisors() {
List<String> aspectNames = this.aspectBeanNames;
if (aspectNames == null) {
synchronized (this) {
aspectNames = this.aspectBeanNames;
if (aspectNames == null) {
List<Advisor> advisors = new ArrayList<>();
aspectNames = new ArrayList<>();
// 获取所有注册Bean名称
String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this.beanFactory, Object.class, true, false);
for (String beanName : beanNames) {
// 如果不是匹配的Aspect Bean忽略不处理
if (!isEligibleBean(beanName)) {
continue;
}
// 我们必须小心，不要急于实例化bean，因为在这种情况下，它们将被spring容器缓存，但不会被编织。
Class<?> beanType = this.beanFactory.getType(beanName);
if (beanType == null) {
continue;
}
// 是否有@Aspect注解以且未被织入即属性名称不是以ajc$开头
if (this.advisorFactory.isAspect(beanType)) {
aspectNames.add(beanName);
AspectMetadata amd = new AspectMetadata(beanType, beanName);
// Aspect实例化模型是单例
if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
MetadataAwareAspectInstanceFactory factory =
new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
// 获取@Aspect注解类中定义的Advisor，ReflectiveAspectJAdvisorFactory
List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
if (this.beanFactory.isSingleton(beanName)) {
// 名称为beanName的Bean是单例，且Aspect实例化模型是单例，Advisor缓存起来
this.advisorsCache.put(beanName, classAdvisors);
}
else {
// 名称为beanName的Bean不是单例，但Aspect实例化模型是单例，工厂缓存起来
this.aspectFactoryCache.put(beanName, factory);
}
advisors.addAll(classAdvisors);
}
else {
// 名称为beanName的Bean是单例，但Aspect实例化模型不是单例，抛异常
if (this.beanFactory.isSingleton(beanName)) {
throw new IllegalArgumentException("Bean with name '" + beanName +
"' is a singleton, but aspect instantiation model is not singleton");
}
// 名称为beanName的Bean不是单例，且Aspect实例化模型不是单例，工厂缓存起来
MetadataAwareAspectInstanceFactory factory =
new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
this.aspectFactoryCache.put(beanName, factory);
advisors.addAll(this.advisorFactory.getAdvisors(factory));
}
}
}
this.aspectBeanNames = aspectNames;
return advisors;
}
}
}
if (aspectNames.isEmpty()) {
return Collections.emptyList();
}
List<Advisor> advisors = new ArrayList<>();
for (String aspectName : aspectNames) {
// Aspect实例化模型是单例，且名称为beanName的Bean是单例
List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
if (cachedAdvisors != null) {
advisors.addAll(cachedAdvisors);
}
else {
// Aspect实例化模型不是单例且名称为beanName的Bean不是单例，或者Aspect实例化模型是单例，但名称为beanName的Bean不是单例
MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
advisors.addAll(this.advisorFactory.getAdvisors(factory));
}
}
return advisors;
}
2、AspectJAwareAdvisorAutoProxyCreator
覆写了父类AbstractAdvisorAutoProxyCreator的sortAdvisors、extendAdvisors、shouldSkip方法。
2.1 Advisor排序sortAdvisors
protected List<Advisor> sortAdvisors(List<Advisor> advisors) {
List<PartiallyComparableAdvisorHolder> partiallyComparableAdvisors = new ArrayList<>(advisors.size());
for (Advisor element : advisors) {
partiallyComparableAdvisors.add(
new PartiallyComparableAdvisorHolder(element, DEFAULT_PRECEDENCE_COMPARATOR));
}
List<PartiallyComparableAdvisorHolder> sorted = PartialOrder.sort(partiallyComparableAdvisors);
if (sorted != null) {
List<Advisor> result = new ArrayList<>(advisors.size());
for (PartiallyComparableAdvisorHolder pcAdvisor : sorted) {
result.add(pcAdvisor.getAdvisor());
}
return result;
}
else {
return super.sortAdvisors(advisors);
}
}
2.2 extendAdvisors
// 获取到使用指定Bean的Advisor后进行扩展
protected void extendAdvisors(List<Advisor> candidateAdvisors) {
// 如果是AspectJ advice则会额外添加ExposeInvocationInterceptor.ADVISOR
AspectJProxyUtils.makeAdvisorChainAspectJCapableIfNecessary(candidateAdvisors);
}
2.2.1 AspectJProxyUtils
// 添加ExposeInvocationInterceptor.ADVISOR
public static boolean makeAdvisorChainAspectJCapableIfNecessary(List<Advisor> advisors) {
// Don't add advisors to an empty list; may indicate that proxying is just not required
if (!advisors.isEmpty()) {
boolean foundAspectJAdvice = false;
for (Advisor advisor : advisors) {
if (isAspectJAdvice(advisor)) {
foundAspectJAdvice = true;
break;
}
}
if (foundAspectJAdvice && !advisors.contains(ExposeInvocationInterceptor.ADVISOR)) {
advisors.add(0, ExposeInvocationInterceptor.ADVISOR);
return true;
}
}
return false;
}
// 确定给定的Advisor是否包含AspectJ advice
private static boolean isAspectJAdvice(Advisor advisor) {
return (advisor instanceof InstantiationModelAwarePointcutAdvisor ||
advisor.getAdvice() instanceof AbstractAspectJAdvice ||
(advisor instanceof PointcutAdvisor &&
((PointcutAdvisor) advisor).getPointcut() instanceof AspectJExpressionPointcut));
}
2.3 shouldSkip
// 如果是AspectJPointcutAdvisor实例且Bean名称和AspectName相同则忽略
protected boolean shouldSkip(Class<?> beanClass, String beanName) {
List<Advisor> candidateAdvisors = findCandidateAdvisors();
for (Advisor advisor : candidateAdvisors) {
if (advisor instanceof AspectJPointcutAdvisor &&
((AspectJPointcutAdvisor) advisor).getAspectName().equals(beanName)) {
return true;
}
}
return super.shouldSkip(beanClass, beanName);
}
3、AbstractAdvisorAutoProxyCreator
3.1 isEligibleAdvisorBean
// 给定名称的Advisor Bean是否是合格的Advisor。
protected boolean isEligibleAdvisorBean(String beanName) {
return true;
}
3.2 自定义BeanFactoryAdvisorRetrievalHelper提取Advisor
private class BeanFactoryAdvisorRetrievalHelperAdapter extends BeanFactoryAdvisorRetrievalHelper {
public BeanFactoryAdvisorRetrievalHelperAdapter(ConfigurableListableBeanFactory beanFactory) {
super(beanFactory);
}
@Override
protected boolean isEligibleBean(String beanName) {
return AbstractAdvisorAutoProxyCreator.this.isEligibleAdvisorBean(beanName);
}
}
3.3 获取AdvicesAndAdvisors
protected Object[] getAdvicesAndAdvisorsForBean(
Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
if (advisors.isEmpty()) {
return DO_NOT_PROXY;
}
return advisors.toArray();
}
// 查找所有合格的Advisor，自动代理使用
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
List<Advisor> candidateAdvisors = findCandidateAdvisors();
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
// 留给子类扩展
extendAdvisors(eligibleAdvisors);
if (!eligibleAdvisors.isEmpty()) {
// 留给子类扩展排序
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
}
return eligibleAdvisors;
}
// 查找要在自动代理中使用的所有候选Advisor
protected List<Advisor> findCandidateAdvisors() {
Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");
return this.advisorRetrievalHelper.findAdvisorBeans();
}
// 搜索给定的候选Advisor，以查找可以应用于指定bean的所有Advisor
protected List<Advisor> findAdvisorsThatCanApply(
List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {
ProxyCreationContext.setCurrentProxiedBeanName(beanName);
try {
return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
}
finally {
ProxyCreationContext.setCurrentProxiedBeanName(null);
}
}
4、AbstractAutoProxyCreator
AbstractAutoProxyCreator实现了SmartInstantiationAwareBeanPostProcessor。
4.1 Bean实例化前创建代理实例 postProcessBeforeInstantiation
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
Object cacheKey = getCacheKey(beanClass, beanName);
// beanName为空或者targetSourcedBeans不包含beanName
if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
// Bean已经增强
if (this.advisedBeans.containsKey(cacheKey)) {
return null;
}
// 基础设施类或者需要忽略的类
if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
}
}
// 如果我们有自定义的TargetSource，请在此处创建代理。禁止目标Bean的不必要的默认实例化：TargetSource将以自定义方式处理目标实例。
TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
if (targetSource != null) {
if (StringUtils.hasLength(beanName)) {
this.targetSourcedBeans.add(beanName);
}
// 获取适用于Bean的Advisor
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
// 创建代理
Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
// 缓存代理类型
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
return null;
}
4.2 Bean初始化后进行包装 postProcessAfterInitialization
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
// 没有循环依赖或者有循环依赖且被其它BeanPostProcessor代理了
if (this.earlyProxyReferences.remove(cacheKey) != bean) {
return wrapIfNecessary(bean, beanName, cacheKey);
}
}
return bean;
}
4.3 获取提早暴露的Bean getEarlyBeanReference
public Object getEarlyBeanReference(Object bean, String beanName) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
// 循环依赖记录下包装前的Bean
this.earlyProxyReferences.put(cacheKey, bean);
return wrapIfNecessary(bean, beanName, cacheKey);
}
4.4 包装Bean wrapIfNecessary
// 必要时包装给定的bean，即是否有资格被代理。
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
// 当前已经生成代理对象，不用再次创建代理
if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
// 忽略的或者没有适用Advisor的Bean
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
// 基础设施类或者需要忽略的类
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
// 获取适用于Bean的Advisor
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
// 创建代理
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
// 缓存代理类型
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
4.5 创建代理实例 createProxy
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
@Nullable Object[] specificInterceptors, TargetSource targetSource) {
if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
// 公开指定bean的targetClass，BeanDefinition添加属性
AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
}
ProxyFactory proxyFactory = new ProxyFactory();
proxyFactory.copyFrom(this);
if (!proxyFactory.isProxyTargetClass()) {
// 确定给定的bean是否应使用其目标类而不是其接口进行代理。检查相应bean定义的 {@link PRESERVE_TARGET_CLASS_ATTRIBUTE“ preserveTargetClass”属性} 。
if (shouldProxyTargetClass(beanClass, beanName)) {
proxyFactory.setProxyTargetClass(true);
}
else {
// 检查给定bean类上的接口，是否基于接口代理。
evaluateProxyInterfaces(beanClass, proxyFactory);
}
}
// 构造Advisor
Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
proxyFactory.addAdvisors(advisors);
proxyFactory.setTargetSource(targetSource);
customizeProxyFactory(proxyFactory);
proxyFactory.setFrozen(this.freezeProxy);
if (advisorsPreFiltered()) {
proxyFactory.setPreFiltered(true);
}
return proxyFactory.getProxy(getProxyClassLoader());
}
4.6 构造Advisor buildAdvisors
// 确定给定bean的Advisor，包括适用于Advisor接口的特定拦截器和公共拦截器。
protected Advisor[] buildAdvisors(@Nullable String beanName, @Nullable Object[] specificInterceptors) {
// 配置的拦截器包装成Advisor
Advisor[] commonInterceptors = resolveInterceptorNames();
List<Object> allInterceptors = new ArrayList<>();
if (specificInterceptors != null) {
allInterceptors.addAll(Arrays.asList(specificInterceptors));
if (commonInterceptors.length > 0) {
// 是否首先应用通用拦截器，决定集合中插入位置
if (this.applyCommonInterceptorsFirst) {
allInterceptors.addAll(0, Arrays.asList(commonInterceptors));
}
else {
allInterceptors.addAll(Arrays.asList(commonInterceptors));
}
}
}
if (logger.isTraceEnabled()) {
int nrOfCommonInterceptors = commonInterceptors.length;
int nrOfSpecificInterceptors = (specificInterceptors != null ? specificInterceptors.length : 0);
logger.trace("Creating implicit proxy for bean '" + beanName + "' with " + nrOfCommonInterceptors +
" common interceptors and " + nrOfSpecificInterceptors + " specific interceptors");
}
Advisor[] advisors = new Advisor[allInterceptors.size()];
for (int i = 0; i < allInterceptors.size(); i++) {
// 拦截器包装，将不是Advisor的包装成Advisor
advisors[i] = this.advisorAdapterRegistry.wrap(allInterceptors.get(i));
}
return advisors;
}
4.7 拦截器解析为Advisor resolveInterceptorNames
private Advisor[] resolveInterceptorNames() {
BeanFactory bf = this.beanFactory;
ConfigurableBeanFactory cbf = (bf instanceof ConfigurableBeanFactory ? (ConfigurableBeanFactory) bf : null);
List<Advisor> advisors = new ArrayList<>();
for (String beanName : this.interceptorNames) {
// 配置的拦截器没有在创建中，包装成Advisor
if (cbf == null || !cbf.isCurrentlyInCreation(beanName)) {
Assert.state(bf != null, "BeanFactory required for resolving interceptor names");
Object next = bf.getBean(beanName);
advisors.add(this.advisorAdapterRegistry.wrap(next));
}
}
return advisors.toArray(new Advisor[0]);
}
4.8 判断是否基础设置类 isInfrastructureClass
protected boolean isInfrastructureClass(Class<?> beanClass) {
boolean retVal = Advice.class.isAssignableFrom(beanClass) ||
Pointcut.class.isAssignableFrom(beanClass) ||
Advisor.class.isAssignableFrom(beanClass) ||
AopInfrastructureBean.class.isAssignableFrom(beanClass);
if (retVal && logger.isTraceEnabled()) {
logger.trace("Did not attempt to auto-proxy infrastructure class [" + beanClass.getName() + "]");
}
return retVal;
}
4.9 判断是否跳过 shouldSkip
protected boolean shouldSkip(Class<?> beanClass, String beanName) {
return AutoProxyUtils.isOriginalInstance(beanName, beanClass);
}
5、通用功能基类 ProxyProcessorSupport
具有代理处理器通用功能的基类，尤其是ClassLoader管理和{@link #evaluateProxyInterfaces}算法。
// 检查给定bean类上的接口，并在适当时将它们应用于{@link ProxyFactory}。调用{@link #isConfigurationCallbackInterface}和{@link #isInternalLanguageInterface}筛选合理的代理接口，否则返回目标类代理。
protected void evaluateProxyInterfaces(Class<?> beanClass, ProxyFactory proxyFactory) {
Class<?>[] targetInterfaces = ClassUtils.getAllInterfacesForClass(beanClass, getProxyClassLoader());
boolean hasReasonableProxyInterface = false;
for (Class<?> ifc : targetInterfaces) {
if (!isConfigurationCallbackInterface(ifc) && !isInternalLanguageInterface(ifc) &&
ifc.getMethods().length > 0) {
hasReasonableProxyInterface = true;
break;
}
}
if (hasReasonableProxyInterface) {
// Must allow for introductions; can't just set interfaces to the target's interfaces only.
for (Class<?> ifc : targetInterfaces) {
proxyFactory.addInterface(ifc);
}
}
else {
proxyFactory.setProxyTargetClass(true);
}
}
// 确定给定的接口是否只是Spring容器定义的接口，因此不被视为合理的代理接口。如果没有为给定的bean找到合理的代理接口，则将其完整的目标类作为代理，假设这是用户的意图。
protected boolean isConfigurationCallbackInterface(Class<?> ifc) {
return (InitializingBean.class == ifc || DisposableBean.class == ifc || Closeable.class == ifc ||
AutoCloseable.class == ifc || ObjectUtils.containsElement(ifc.getInterfaces(), Aware.class));
}
// 确定给定的接口是否是众所周知的内部语言接口，因此不被视为合理的代理接口。如果没有为给定的bean找到合理的代理接口，则将其完整的目标类作为代理，假设这是用户的意图。
protected boolean isInternalLanguageInterface(Class<?> ifc) {
return (ifc.getName().equals("groovy.lang.GroovyObject") ||
ifc.getName().endsWith(".cglib.proxy.Factory") ||
ifc.getName().endsWith(".bytebuddy.MockAccess"));
}
6、Advisor检索BeanFactoryAdvisorRetrievalHelper
// 在当前bean工厂中查找所有合格的Advisor bean，忽略FactoryBeans并排除当前正在创建的bean。
public List<Advisor> findAdvisorBeans() {
// 缓存的Advisor Bean名称列表
String[] advisorNames = this.cachedAdvisorBeanNames;
if (advisorNames == null) {
// 获取所有Advisor定义的Bean名称。不要在这里初始化FactoryBean：我们需要保留所有未初始化的常规bean，以使自动代理创建者对其应用！
advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this.beanFactory, Advisor.class, true, false);
this.cachedAdvisorBeanNames = advisorNames;
}
if (advisorNames.length == 0) {
return new ArrayList<>();
}
List<Advisor> advisors = new ArrayList<>();
for (String name : advisorNames) {
// 判断是否是合格的Advisor
if (isEligibleBean(name)) {
// 忽略正在创建中的Advisor
if (this.beanFactory.isCurrentlyInCreation(name)) {
if (logger.isTraceEnabled()) {
logger.trace("Skipping currently created advisor '" + name + "'");
}
}
else {
try {
// 获取Advisor实例
advisors.add(this.beanFactory.getBean(name, Advisor.class));
}
catch (BeanCreationException ex) {
Throwable rootCause = ex.getMostSpecificCause();
if (rootCause instanceof BeanCurrentlyInCreationException) {
BeanCreationException bce = (BeanCreationException) rootCause;
String bceBeanName = bce.getBeanName();
if (bceBeanName != null && this.beanFactory.isCurrentlyInCreation(bceBeanName)) {
if (logger.isTraceEnabled()) {
logger.trace("Skipping advisor '" + name +
"' with dependency on currently created bean: " + ex.getMessage());
}
// Ignore: indicates a reference back to the bean we're trying to advise.
// We want to find advisors other than the currently created bean itself.
continue;
}
}
throw ex;
}
}
}
}
return advisors;
}
7、AOP支持工具类 AopUtils
7.1 查找适用于Bean的Advisor findAdvisorsThatCanApply
// 确定适用于给定类的{@code advisoryAdvisors}列表的子列表。
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
}
List<Advisor> eligibleAdvisors = new ArrayList<>();
// 找出适用于Bean的IntroductionAdvisor
for (Advisor candidate : candidateAdvisors) {
// IntroductionAdvisor是否适用于Bean
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
eligibleAdvisors.add(candidate);
}
}
// 是否有适用于Bean的IntroductionAdvisor
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
for (Advisor candidate : candidateAdvisors) {
// 如果是IntroductionAdvisor忽律，前面已经处理过
if (candidate instanceof IntroductionAdvisor) {
continue;
}
if (canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
}
}
return eligibleAdvisors;
}
7.2 检测Advisor是否适用于Bean
public static boolean canApply(Advisor advisor, Class<?> targetClass) {
return canApply(advisor, targetClass, false);
}
public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
if (advisor instanceof IntroductionAdvisor) {
return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
}
else if (advisor instanceof PointcutAdvisor) {
PointcutAdvisor pca = (PointcutAdvisor) advisor;
return canApply(pca.getPointcut(), targetClass, hasIntroductions);
}
else {
// It doesn't have a pointcut so we assume it applies.
return true;
}
}
public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
Assert.notNull(pc, "Pointcut must not be null");
// Advisor的Pointcut是否匹配目指定类
if (!pc.getClassFilter().matches(targetClass)) {
return false;
}
MethodMatcher methodMatcher = pc.getMethodMatcher();
// 方法是否动态匹配即根据参数判断
if (methodMatcher == MethodMatcher.TRUE) {
return true;
}
IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
}
Set<Class<?>> classes = new LinkedHashSet<>();
if (!Proxy.isProxyClass(targetClass)) {
// 返回给定类的用户定义类：通常只是给定类，但对于CGLIB生成的子类，则返回原始类。
classes.add(ClassUtils.getUserClass(targetClass));
}
// 获取所有的接口
classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
// 所有接口所有方法进行匹配
for (Class<?> clazz : classes) {
Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
for (Method method : methods) {
if (introductionAwareMethodMatcher != null ?
introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
methodMatcher.matches(method, targetClass)) {
return true;
}
}
}
return false;
}
8、生成Advisor ReflectiveAspectJAdvisorFactory
8.1 生成getAdvisors
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
validate(aspectClass);
// 我们需要用装饰器包装MetadataAwareAspectInstanceFactory，使其仅实例化一次。
MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);
List<Advisor> advisors = new ArrayList<>();
for (Method method : getAdvisorMethods(aspectClass)) {
Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName);
if (advisor != null) {
advisors.add(advisor);
}
}
// If it's a per target aspect, emit the dummy instantiating aspect.
if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
advisors.add(0, instantiationAdvisor);
}
// Find introduction fields.
for (Field field : aspectClass.getDeclaredFields()) {
Advisor advisor = getDeclareParentsAdvisor(field);
if (advisor != null) {
advisors.add(advisor);
}
}
return advisors;
}
8.2 获取Aspect类中非@Pointcut标准的方法 getAdvisorMethods
private List<Method> getAdvisorMethods(Class<?> aspectClass) {
final List<Method> methods = new ArrayList<>();
ReflectionUtils.doWithMethods(aspectClass, method -> {
// Exclude pointcuts
if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
methods.add(method);
}
});
methods.sort(METHOD_COMPARATOR);
return methods;
}
8.3 创建Advisor
public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
int declarationOrderInAspect, String aspectName) {
validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
// 获取AspectJ表达式
AspectJExpressionPointcut expressionPointcut = getPointcut(
candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
if (expressionPointcut == null) {
return null;
}
return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}
8.4 获取AspectJ表达式
private AspectJExpressionPointcut getPointcut(Method candidateAdviceMethod, Class<?> candidateAspectClass) {
// 查找并返回给定方法的第一个AspectJ注解
AspectJAnnotation<?> aspectJAnnotation =
AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
if (aspectJAnnotation == null) {
return null;
}
AspectJExpressionPointcut ajexp =
new AspectJExpressionPointcut(candidateAspectClass, new String[0], new Class<?>[0]);
ajexp.setExpression(aspectJAnnotation.getPointcutExpression());
if (this.beanFactory != null) {
ajexp.setBeanFactory(this.beanFactory);
}
return ajexp;
}
8.5 根据不同AspectJ注解生成Advice
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
validate(candidateAspectClass);
AspectJAnnotation<?> aspectJAnnotation =
AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
if (aspectJAnnotation == null) {
return null;
}
// If we get here, we know we have an AspectJ method.
// Check that it's an AspectJ-annotated class
if (!isAspect(candidateAspectClass)) {
throw new AopConfigException("Advice must be declared inside an aspect type: " +
"Offending method '" + candidateAdviceMethod + "' in class [" +
candidateAspectClass.getName() + "]");
}
if (logger.isDebugEnabled()) {
logger.debug("Found AspectJ method: " + candidateAdviceMethod);
}
AbstractAspectJAdvice springAdvice;
switch (aspectJAnnotation.getAnnotationType()) {
case AtPointcut:
if (logger.isDebugEnabled()) {
logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
}
return null;
case AtAround:
springAdvice = new AspectJAroundAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtBefore:
springAdvice = new AspectJMethodBeforeAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtAfter:
springAdvice = new AspectJAfterAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtAfterReturning:
springAdvice = new AspectJAfterReturningAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();
if (StringUtils.hasText(afterReturningAnnotation.returning())) {
springAdvice.setReturningName(afterReturningAnnotation.returning());
}
break;
case AtAfterThrowing:
springAdvice = new AspectJAfterThrowingAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();
if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
springAdvice.setThrowingName(afterThrowingAnnotation.throwing());
}
break;
default:
throw new UnsupportedOperationException(
"Unsupported advice type on method: " + candidateAdviceMethod);
}
// Now to configure the advice...
springAdvice.setAspectName(aspectName);
springAdvice.setDeclarationOrder(declarationOrder);
String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
if (argNames != null) {
springAdvice.setArgumentNamesFromStringArray(argNames);
}
springAdvice.calculateArgumentBindings();
return springAdvice;
}
9 InstantiationModelAwarePointcutAdvisorImpl
public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut,
Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory,
MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
this.declaredPointcut = declaredPointcut;
this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
this.methodName = aspectJAdviceMethod.getName();
this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
this.aspectJAdviceMethod = aspectJAdviceMethod;
this.aspectJAdvisorFactory = aspectJAdvisorFactory;
this.aspectInstanceFactory = aspectInstanceFactory;
this.declarationOrder = declarationOrder;
this.aspectName = aspectName;
if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
// Static part of the pointcut is a lazy type.
Pointcut preInstantiationPointcut = Pointcuts.union(
aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);
// Make it dynamic: must mutate from pre-instantiation to post-instantiation state.
// If it's not a dynamic pointcut, it may be optimized out
// by the Spring AOP infrastructure after the first evaluation.
this.pointcut = new PerTargetInstantiationModelPointcut(
this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);
this.lazy = true;
}
else {
// A singleton aspect.
this.pointcut = this.declaredPointcut;
this.lazy = false;
this.instantiatedAdvice = instantiateAdvice(this.declaredPointcut);
}
}
private Advice instantiateAdvice(AspectJExpressionPointcut pointcut) {
// 调用8.5
Advice advice = this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pointcut,
this.aspectInstanceFactory, this.declarationOrder, this.aspectName);
return (advice != null ? advice : EMPTY_ADVICE);
}
来源：CSDN
作者：只道当时是寻常
链接：https://blog.csdn.net/hjtlovelife/article/details/104515061
