高德地图二次开发提供了很多接口,功能强大。

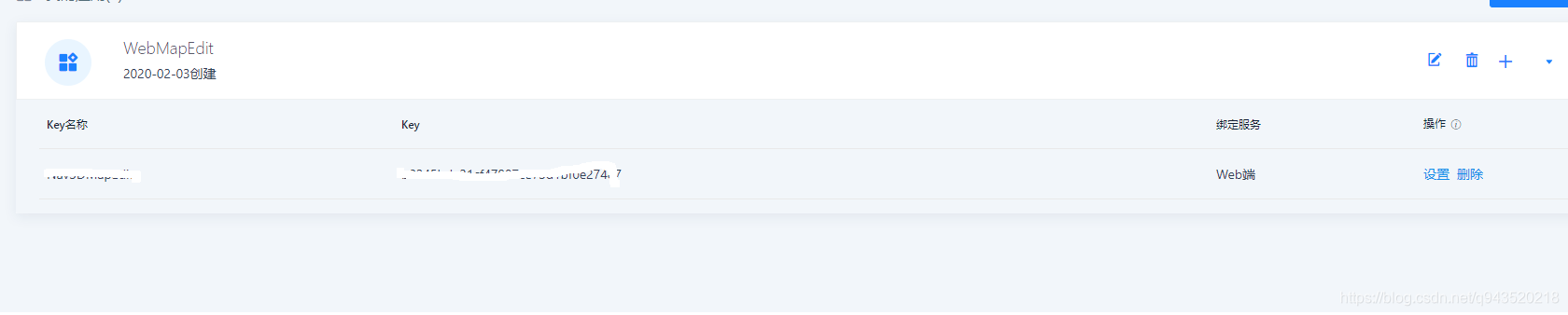

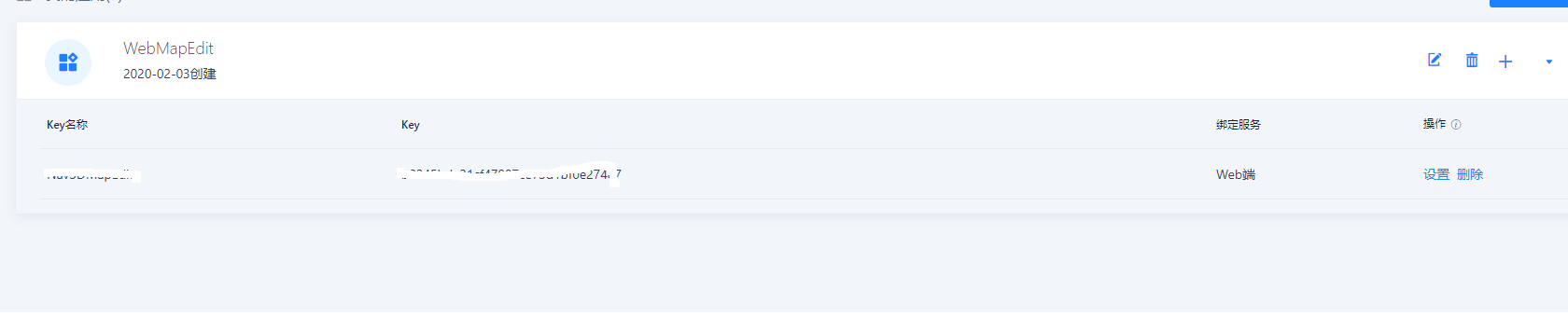

首先需要申请一个KEY教程如下:链接
通过这个key替换
<script src="https://webapi.amap.com/maps?v=1.4.15&key=自己的KEY&plugin=AMap.Autocomplete"></script>
其中plugin=AMap.Autocomplete为需要加载的组件类型,例如还有plugin=AMap.Driving等
实现功能如下功能:
可以在轨迹上查点,然后通过查询API导航轨迹:
代码实现如下:
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
<title>轨迹编辑</title>
<link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css" />
<script type="text/javascript" src="./TrackEdit.js"></script>
<script type="text/javascript" src="https://cache.amap.com/lbs/static/addToolbar.js"></script>
</head>
<style type="text/css">
html,body{
width: 100%;
height: 100%;
margin: 0px;
}
.map{
height: 100%;
width: 100%;
float: left;
}
</style>
<body>
<div id="container" class="map"></div>
<div class="input-card">
<h4>左击获取经纬度:</h4>
<div class="input-item">
<input type="text" readonly="true" id="lnglat">
</div>
<div>
<button class="btn" id="add-node">新增节点</button>
<button class="btn" id="remove-all">清除</button>
</div>
<div id="panel"></div>
</div>
<script src="https://webapi.amap.com/maps?v=1.4.15&key=自定义KEY&plugin=AMap.Autocomplete"></script>
<script type="text/javascript" src="https://webapi.amap.com/maps?v=1.4.15&key=自定义KEY&plugin=AMap.Driving"></script>
<script type="text/javascript">
// 创建AMap对象
var map = new AMap.Map("container", {
resizeEnable: true,
conter:[112.881898, 28.227956],
rotateEnable:true,
pitchEnable:true,
zoom: 17,
pitch:80,
// rotation:-15,
// viewMode:'3D',//开启3D视图,默认为关闭
buildingAnimation:true,//楼块出现是否带动画
expandZoomRange:true,
zooms:[3,20],
});
map.setMapStyle("amap://styles/graffiti");
//构造路线导航类
var driving = new AMap.Driving({
map: map,
hideMarkers: true
});
//为地图注册click事件获取鼠标点击出的经纬度坐标
var create = false;
map.on('click', function(e) {
document.getElementById("lnglat").value = e.lnglat.getLng() + ',' + e.lnglat.getLat();
if (create)
{
addNode(e.lnglat.getLng(), e.lnglat.getLat());
}
});
var array_nodes = new Array();
var array_line = new Array();
var array_pos = new Array();
// 增加一个节点
function addNode(lng, lat)
{
var marker = new AMap.Marker({
icon: "./rick.png",
position: [lng, lat],
draggable: true
});
var id = marker.getId();
marker.on('dragging', moveNode);
marker.on('mouseup', clickUP);
array_nodes.push(marker);
array_pos.push([lng, lat]);
map.add(marker);
if (array_nodes.length > 1)
{
drawLine(
array_pos[array_pos.length - 1][0],
array_pos[array_pos.length - 1][1],
lng,
lat
);
}
}
// 画线
function drawLine(start_ln, start_lg, end_ln, end_lg)
{
// array_line.push( new AMap.Polyline({
// path:[[start_ln, start_lg],[end_ln, end_lg]],
// strokeColor:'purple',
// lineCap:'round',
// isOutline:true,
// outlineColor:'',
// showDir:true,
// map:map,
// strokeWeight:5,
// borderWeight:2,
// strokeOpacity:0.5
// }));
queryPlain();
}
// 更新线
function updateLine(index)
{
var i = index - 1;
var lat = array_nodes[index].Ke.position.getLat();
var lng = array_nodes[index].Ke.position.getLng();
if (i >= 0 && i < array_line.length)
{
var c = array_line[i].Ke;
var start_ln = c.path[0].lat;
var start_lg = c.path[0].lng;
var line = [[start_ln, start_lg],[lat, lng]];
map.remove(array_line[i]);
array_line[i] = new AMap.Polyline({
path:[[start_ln, start_lg],[lat, lng]],
strokeColor:'purple',
lineCap:'round',
isOutline:true,
outlineColor:'',
showDir:true,
map:map,
strokeWeight:5,
borderWeight:2,
strokeOpacity:0.5
})
map.add(line);
// array_line[i].setPath([[start_ln, start_lg],[lat, lng]]);
}
i = index;
if (i < array_line.length)
{
var c = array_line[i].Ke;
var end_lat = c.path[1].lat;
var end_lng = c.path[1].lng;
array_line[i].path = [[lat, lng],[end_lat, end_lng]];
//array_line[i].setPath([[lat, lng],[end_lat, end_lng]]);
}
}
// 移动
function moveNode(e)
{
}
function clickUP(e)
{
var exist = false;
for (var i = 0; i < array_nodes.length; i++)
{
if (e.target.xga == array_nodes[i].getId())
{
exist = true;
break;
}
}
// 如果查找到,更新前后节点
if (exist)
{
updateLine(i);
}
}
document.querySelector("#remove-all").onclick = function()
{
for (var i = 0; i < array_nodes.length; i++) {
map.remove(array_nodes[i]);
}
array_nodes.length = 0;
for (var i = 0; i < array_line.length; i++)
{
map.remove(array_line[i]);
}
array_line.length = 0;
map.setFitView();
create = false;
}
document.querySelector("#add-node").onclick = function()
{
create = true;
}
// 查询规划路线
function queryPlain()
{
// 根据起终点经纬度规划驾车导航路线
var array_way_pos = new Array();
for (var i = 1; i < array_pos.length - 1; i++)
{
array_way_pos.push(new AMap.LngLat(array_pos[i][0], array_pos[i][1]));
}
var res = driving.search(new AMap.LngLat(array_pos[0][0], array_pos[0][1]),
new AMap.LngLat(array_pos[array_pos.length - 1][0], array_pos[array_pos.length - 1][1]),{
waypoints: array_way_pos
}, function(status, result) {
// result 即是对应的驾车导航信息,相关数据结构文档请参考 https://lbs.amap.com/api/javascript-api/reference/route-search#m_DrivingResult
if (status === 'complete') {
//log.success('绘制驾车路线完成')
} else {
//log.error('获取驾车数据失败:' + result)
}
});
}
//创建右键菜单
var contextMenu = new AMap.ContextMenu();
//右键放大
contextMenu.addItem("放大一级", function () {
map.zoomIn();
}, 0);
//右键缩小
contextMenu.addItem("缩小一级", function () {
map.zoomOut();
}, 1);
//右键显示全国范围
contextMenu.addItem("缩放至全国范围", function (e) {
map.setZoomAndCenter(4, [108.946609, 34.262324]);
}, 2);
//右键添加Marker标记
contextMenu.addItem("添加标记", function (e) {
var marker = new AMap.Marker({
map: map,
position: contextMenuPositon //基点位置
});
}, 3);
//地图绑定鼠标右击事件——弹出右键菜单
map.on('rightclick', function (e) {
contextMenu.open(map, e.lnglat);
contextMenuPositon = e.lnglat;
});
// 创建纯文本标记
var text = new AMap.Text({
text:'文本标记',
anchor:'center', // 设置文本标记锚点
// draggable:true,
cursor:'pointer',
angle:0,
style:{
'padding': '.75rem 1.25rem',
'margin-bottom': '1rem',
'border-radius': '.25rem',
'background-color': 'white',
'width': '15rem',
'border-width': 0,
'box-shadow': '0 2px 6px 0 rgba(114, 124, 245, .5)',
'text-align': 'center',
'font-size': '20px',
'color': 'blue'
},
position: [112.881898, 28.227956]
});
text.setMap(map);
</script>
</body>
</html>
效果如下:
