Haproxy+Keepalived+MariaDB(Galera集群)

1. 环境

1.1 操作系统：CentOS 7.*
1.2 机器：
  1. 192.16.16.108 haproxy01（haproxy+keepalived）
  2. 192.16.16.109 haproxy02（haproxy+keepalived）
  3. 192.16.16.100 mysql01（mariadb）
  4. 192.16.16.101 mysql02（mariadb）

2. 准备工作

2.1 关闭防火墙（所有服务器）

>> systemctl stop firewalld.service
>> systemctl disable firewalld.service
>> setenforce 0
>> sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

2.2 修改/etc/hosts文件

>> cat <<END >>/etc/hosts
192.16.16.108  haproxy01
192.16.16.109  haproxy02
192.16.16.100  mysql01
192.16.16.101  mysql02
END

3. 配置MariaDB(Galera集群)

3.1 运行在mysql01和mysql02

>> yum install epel-release -y
>> yum install centos-release-openstack-newton -y
>> yum makecache
>> yum install mariadb mariadb-server-galera galera rsync -y
>> cd  /etc/my.cnf.d
>> cp galera.cnf galera.cnf.bak
>> cp mariadb-server.cnf mariadb-server.cnf.bak
>> cat <<END >mariadb-server.cnf
[mysqld]
###默认配置###
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
log-error=/var/log/mariadb/mariadb.log
pid-file=/var/run/mariadb/mariadb.pid

###新增配置###
bind-address = 192.16.16.100 or 192.16.16.101
default-storage-engine = innodb
innodb_file_per_table
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
END

>> cat <<END >galera.cnf
[mysqld]
###新增配置###
wsrep_on=ON
binlog_format=ROW
default-storage-engine=innodb
bind-address=192.16.16.100 or 192.16.16.101
wsrep_provider=/usr/lib64/galera/libgalera_smm.so
wsrep_cluster_name="my_wsrep_cluster"
wsrep_cluster_address="gcomm://mysql01,mysql02"
wsrep_node_name=mysql01 or mysql02
wsrep_node_address=192.16.16.100 or 192.16.16.101
wsrep_sst_method=rsync
wsrep_sst_auth=root:

###默认配置###
wsrep_slave_threads=1
innodb_autoinc_lock_mode=2
wsrep_certify_nonPK=1
wsrep_max_ws_rows=131072
wsrep_max_ws_size=1073741824
wsrep_debug=0
wsrep_convert_LOCK_to_trx=0
wsrep_retry_autocommit=1
wsrep_auto_increment_control=1
wsrep_drupal_282555_workaround=0
wsrep_causal_reads=0
wsrep_notify_cmd=
END

3.2 运行在mysql01上

>> galera_new_cluster
>> mysql_secure_installation

3.3 运行在mysql02上

>> systemctl start mariadb.service
>> mysql_secure_installation

3.4 验证Galera集群

  • 登录mysql01
  • 创建数据库test_galera
  • 登录mysql02，查看是否存在test_galera数据库
  • 如果存在，则创建成功
  • 如果不存在，则检查日志/var/log/mariadb/mariadb.log

4. 安装配置keepalived

4.1 运行在haproxy01和haproxy02上

>> yum install keepalived -y
>> cd /etc/keepalived
>> cp keepalived.conf keepalived.conf.bak
>> cat <<END >notify.sh
#!/bin/bash

case "$1" in
    master)
        systemctl start haproxy.service
        exit 0
    ;;
    backup)
        systemctl stop haproxy.service
        exit 0
    ;;
    fault)
        systemctl stop haproxy.service
        exit 0
    ;;
    *)
        echo "Usage: `basename $0` {master|backup|fault}"
        exit 1
    ;;
esac
END

4.2 运行在haproxy01上

>> cat <<END >keepalived.conf
global_defs {
    router_id haproxy01
}

vrrp_instance VI_1 {
    state MASTER
    virtual_router_id 51
    interface ens33
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass e6895c34dc6b711d
    }

    virtual_ipaddress {
        192.16.16.10/24
    }

    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"

}
END
>> systemctl restart keepalived.service

4.3 运行在haproxy02上

>> cat <<END >keepalived.conf
global_defs {
    router_id haproxy02
}

vrrp_instance VI_1 {
    state BACKUP
    virtual_router_id 51
    interface ens33
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass e6895c34dc6b711d
    }

    virtual_ipaddress {
        192.16.16.10/24
    }

    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"

}
END
>> systemctl restart keepalived.service

4.4 查看VIP

  • 可以在haproxy01上查看到secondary ip（VIP）
  • 在haproxy01上，执行# systemctl stop keepalived.service，可以查看到haproxy01上VIP消失
  • 登录haproxy02上，可以查看到secondary ip（VIP）
  • 重新启动haproxy01上的keepalived服务，VIP回到haproxy01上

5. 安装配置HAproxy

5.1 运行在haproxy01和haproxy02上

>> yum install haproxy -y
>> cd /etc/haproxy
>> cp haproxy.cfg haproxy.cfg.bak

5.2 运行在haproxy01上

>> cat <<END >haproxy.cfg
global
    log         127.0.0.1 local2

    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon

    stats socket /var/lib/haproxy/stats

defaults
    mode                    http
    log                     global
    # option                  httplog
    option                  dontlognull
    option http-server-close
    # option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000

listen stats
    bind 192.16.16.10:1080
    mode http
    option httplog
    maxconn 10
    stats refresh 30s
    stats uri /stats
    stats realm XingCloud\ Haproxy
    stats auth admin:admin
    stats hide-version
    stats admin if TRUE

#listen webserver
#    bind 192.16.16.10:8080
#    balance roundrobin
#    mode http
#    option httplog
#    server mysql01 192.16.16.100:80 check inter 1500 rise 3 fall 3 weight 1
#    server mysql02 192.16.16.101:80 check inter 1500 rise 3 fall 3 weight 1

listen mysqldb
    bind 192.16.16.10:3307
    balance roundrobin
    mode tcp
    option tcpka
    option httpchk
    server mysql01 192.16.16.100:3306 weight 1
    server mysql02 192.16.16.101:3306 weight 1
END
>> systemctl restart haproxy.service

5.6 运行在haproxy02上

>> cat <<END >haproxy.cfg
global
    log         127.0.0.1 local2

    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon

    stats socket /var/lib/haproxy/stats

defaults
    mode                    http
    log                     global
    # option                  httplog
    option                  dontlognull
    option http-server-close
    # option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000

listen stats
    bind 192.16.16.10:1080
    mode http
    option httplog
    maxconn 10
    stats refresh 30s
    stats uri /stats
    stats realm XingCloud\ Haproxy
    stats auth admin:admin
    stats hide-version
    stats admin if TRUE

#listen webserver
#    bind 192.16.16.10:8080
#    balance roundrobin
#    mode http
#    option httplog
#    server mysql01 192.16.16.100:80 check inter 1500 rise 3 fall 3 weight 1
#    server mysql02 192.16.16.101:80 check inter 1500 rise 3 fall 3 weight 1

listen mysqldb
    bind 192.16.16.10:3307
    balance roundrobin
    mode tcp
    option tcpka
    option httpchk
    server mysql01 192.16.16.100:3306 weight 1
    server mysql02 192.16.16.101:3306 weight 1
END

6. 验证haproxy是否生效

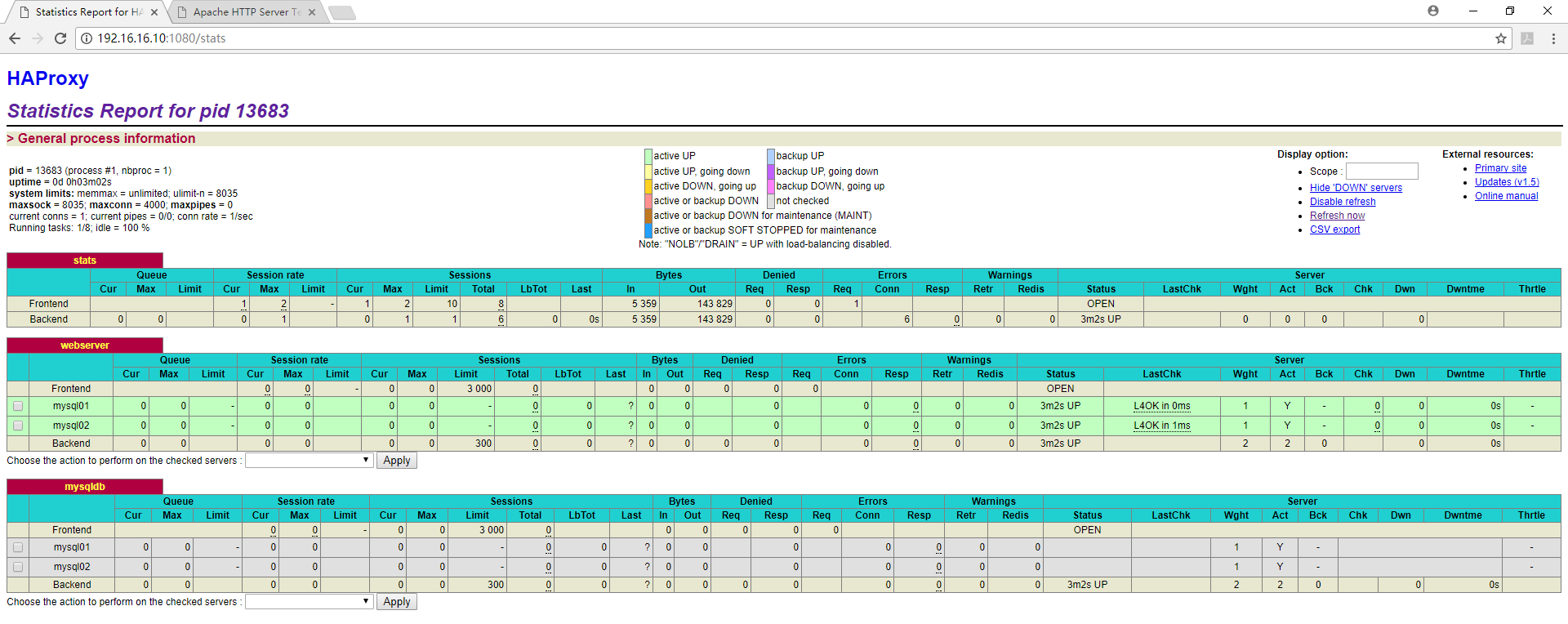

  • 首先访问192.16.16.10::1080/stats，admin/admin认证
  • 可以看到mysqldb中的session处，两个都为0
  • 现在通过客户端，访问192.16.16.10:3307，root/123456，访问4次
  • 此时，可以看到mysql01和mysql02都有2个session，总共是4次，即表示两个节点都访问了2次，符合haproxy的roundrobin策略

7. 验证keepalived是否生效

  • 在上个验证的基础上，在haproxy01上执行systemctl stop keepalived.service命令
  • 再次访问192.16.16.10:1080/stats，admin/admin认证，能成功访问
