本文使用到的相关源码路径：Android9.0 APP启动源码
1、启动简介
1.1、启动流程：
- 点击桌面App图标，Launcher进程采用Binder IPC向system_server进程发起startActivity请求；
- system_server进程接收到请求后，向Zygote进程发送创建进程的请求；
- Zygote进程fork出新的子进程，即App进程；
- App进程，通过Binder IPC向sytem_server进程发起attachApplication请求；
- system_server进程在收到请求后，进行一系列准备工作后，再通过binder IPC向App进程发送创建Activity请求；
- App进程的binder线程（ApplicationThread）在收到请求后，通过handler向主线程发送消息执行创建事务；
- 主线程在收到Message后，通过反射机制创建目标Activity，并回调Activity.onCreate()等方法；
- 到此，App便正式启动，开始进入Activity生命周期，执行完onCreate/onStart/onResume方法，UI渲染结束后便可以看到App的主界面；

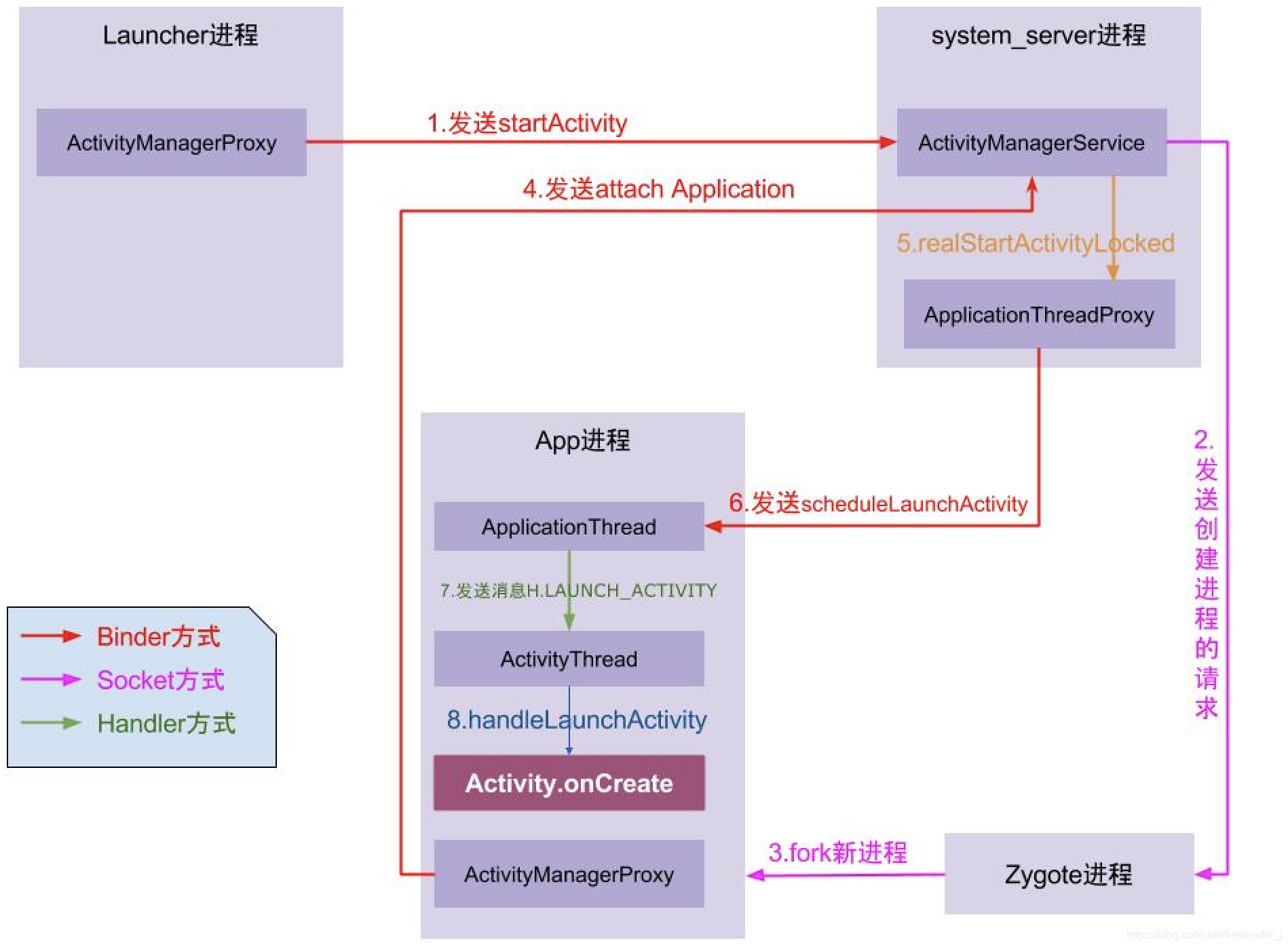

1.2、Activity启动流程图
1.3、其中涉及到的进程交互方式
- Launcher进程与AMS所在的System_Server进程为AIDL方式；
- AMS所在的System_Server进程与Zygote进程为Socket通讯；
- Zygote进程与新建的APP进程为Binder IPC方式；
2、Activity启动源码
2.1、Launcher进程阶段
Android中桌面也属于一个APP，也就是LauncherApp，其中桌面图标是以BubbleTextView的控件展示的，并且在Launcher中为其设置有点击事件，具体点击事件为ItemClickHandler类的INSTANCE对象；
public View createShortcut(ViewGroup parent, ShortcutInfo info) {
BubbleTextView favorite = (BubbleTextView) LayoutInflater.from(parent.getContext()).inflate(R.layout.app_icon, parent, false);
favorite.applyFromShortcutInfo(info);
// 桌面图标设置点击事件
favorite.setOnClickListener(ItemClickHandler.INSTANCE);
favorite.setOnFocusChangeListener(mFocusHandler);
return favorite;
}
2.1.1、点击桌面图标
点击桌面图标，解析图标信息，桌面图标属于AppInfo类型，所以调用startAppShortcutOrInfoActivity()方法；
public static final OnClickListener INSTANCE = ItemClickHandler::onClick;
private static void onClick(View v) {
// 略...
Launcher launcher = Launcher.getLauncher(v.getContext());
// 略...
Object tag = v.getTag();
if (tag instanceof ShortcutInfo) {
onClickAppShortcut(v, (ShortcutInfo) tag, launcher);
} else if (tag instanceof FolderInfo) {
// 略...
} else if (tag instanceof AppInfo) {
// 桌面图标类型为App，进入该分支
startAppShortcutOrInfoActivity(v, (AppInfo) tag, launcher);
} else if (tag instanceof LauncherAppWidgetInfo) {
// 略...
}
}
在startAppShortcutOrInfoActivity()方法中，新建Intent对象，并设置包名为null，进一步调用Launcher类的startActivitySafely()方法；
private static void startAppShortcutOrInfoActivity(View v, ItemInfo item, Launcher launcher) {
Intent intent;
// ...
if (item instanceof ShortcutInfo) {
ShortcutInfo si = (ShortcutInfo) item;
if (si.hasStatusFlag(ShortcutInfo.FLAG_SUPPORTS_WEB_UI) && intent.getAction() == Intent.ACTION_VIEW) {
// make a copy of the intent that has the package set to null
// we do this because the platform sometimes disables instant
// apps temporarily (triggered by the user) and fallbacks to the
// web ui. This only works though if the package isn't set
intent = new Intent(intent);
intent.setPackage(null);
}
}
launcher.startActivitySafely(v, intent, item);
}
在Launcher类的startActivitySafely()方法中，会调用其父类BaseDraggingActivity的startActivitySafely()，在该方法中进行一系列判断，最终调用了startActivity()方法；
public boolean startActivitySafely(View v, Intent intent, ItemInfo item) {
// 略...
UserHandle user = item == null ? null : item.user;
// 设置开启新栈的标识位
// Prepare intent
intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
// 略...
try {
boolean isShortcut =
Utilities.ATLEAST_MARSHMALLOW // SDK版本是否大于M
&& (item instanceof ShortcutInfo) // item类型，此处为AppInfo，所以为false
&& (item.itemType == Favorites.ITEM_TYPE_SHORTCUT || item.itemType == Favorites.ITEM_TYPE_DEEP_SHORTCUT) && !((ShortcutInfo) item).isPromise();
if (isShortcut) {
// Shortcuts need some special checks due to legacy reasons.
startShortcutIntentSafely(intent, optsBundle, item);
} else if (user == null || user.equals(Process.myUserHandle())) {
// 系统进程
// Could be launching some bookkeeping activity
startActivity(intent, optsBundle);
} else {
// ...
}
BaseDraggingActivity类继承自BaseActivity()，BaseActivity又继承自Activity类，在BaseDraggingActivity和BaseActivity中没有实现startActivity()方法，所以最终调用到了父类Activity类的startActivity()方法，然后继续调用startActivityForResult()方法；
public void startActivity(Intent intent, @Nullable Bundle options) {
if (options != null) {
startActivityForResult(intent, -1, options);
} else {
// Note we want to go through this call for compatibility with
// applications that may have overridden the method.
startActivityForResult(intent, -1);
}
}
public void startActivityForResult(@RequiresPermission Intent intent, int requestCode, @Nullable Bundle options) {
if (mParent == null) {
options = transferSpringboardActivityOptions(options);
Instrumentation.ActivityResult ar = mInstrumentation.execStartActivity(this, mMainThread.getApplicationThread(), mToken, this, intent, requestCode, options);
// ...
} else {
// ...
}
}
在startActivityForResult()方法中执行Instrumentation类的execStartActivity()方法；
public ActivityResult execStartActivity(Context who, IBinder contextThread, IBinder token, Activity target, Intent intent, int requestCode, Bundle options) {
IApplicationThread whoThread = (IApplicationThread) contextThread;
// ...
try {
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess(who);
int result = ActivityManager.getService().startActivity(whoThread, who.getBasePackageName(), intent, intent.resolveTypeIfNeeded(who.getContentResolver()), token, target != null ? target.mEmbeddedID : null, requestCode, 0, null, options);
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
throw new RuntimeException("Failure from system", e);
}
return null;
}
2.1.2、Launcher进程拿到AMS的代理
这里通过ActivityManager.getService()来调用startActivity()；
public static IActivityManager getService() {
return IActivityManagerSingleton.get();
}
private static final Singleton<IActivityManager> IActivityManagerSingleton = new Singleton<IActivityManager>() {
@Override
protected IActivityManager create() {
final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
final IActivityManager am = IActivityManager.Stub.asInterface(b);
return am;
}
};
以上可知，Launcher进程与AMS所在的system_server进程的IPC方式为AIDL通信，即Binder IPC方式；
对比旧版本中的ActivityManagerNative中，已经标注该类已过时；
/**
* {@hide}
* @deprecated will be removed soon. See individual methods for alternatives.
*/
@Deprecated
public abstract class ActivityManagerNative {
/**
* Cast a Binder object into an activity manager interface, generating
* a proxy if needed.
*
* @deprecated use IActivityManager.Stub.asInterface instead.
*/
static public IActivityManager asInterface(IBinder obj) {
return IActivityManager.Stub.asInterface(obj);
}
//...
}
2.1.3、向AMS进程发起创建请求
Launcher进程拿到AMS在Launcher进程中的代理之后，通过代理对象调用接口方法，根据aidl通信可知，会调用到AMS的具体实现类，由此进入到system_server进程；
ActivityManager.getService().startActivity
2.2、system_server进程阶段
AMS是所有Activity的管理者，位于Android system_server进程中；
2.2.1、AMS向Zygote发起创建进程请求
ActivityManagerService也实现了IActivityManager.Stub接口，执行其startActivity()方法，经过多次重载函数的调用；
public class ActivityManagerService extends IActivityManager.Stub implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback {
@Override
public final int startActivity(IApplicationThread caller, String callingPackage, Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode, int startFlags, ProfilerInfo profilerInfo, Bundle bOptions) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo, resultWho, requestCode, startFlags, profilerInfo, bOptions, UserHandle.getCallingUserId());
}
@Override
public final int startActivityAsUser(IApplicationThread caller, String callingPackage, Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode, int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo, resultWho, requestCode, startFlags, profilerInfo, bOptions, userId, true /*validateIncomingUser*/);
}
public final int startActivityAsUser(IApplicationThread caller, String callingPackage, Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode, int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId, boolean validateIncomingUser) {
enforceNotIsolatedCaller("startActivity");
userId = mActivityStartController.checkTargetUser(userId, validateIncomingUser, Binder.getCallingPid(), Binder.getCallingUid(), "startActivityAsUser");
// TODO: Switch to user app stacks here.
return mActivityStartController.obtainStarter(intent, "startActivityAsUser")
.setCaller(caller)
.setCallingPackage(callingPackage)
.setResolvedType(resolvedType)
.setResultTo(resultTo)
.setResultWho(resultWho)
.setRequestCode(requestCode)
.setStartFlags(startFlags)
.setProfilerInfo(profilerInfo)
.setActivityOptions(bOptions)
.setMayWait(userId)
.execute();
}
// ...
}
最后执行mActivityStartController.obtainStarter().execute()，mActivityStartController是ActivityStartController类对象，查看其obtainStarter()方法；
/**
* @return A starter to configure and execute starting an activity. It is valid until after
* {@link ActivityStarter#execute} is invoked. At that point, the starter should be
* considered invalid and no longer modified or used.
*/
ActivityStarter obtainStarter(Intent intent, String reason) {
return mFactory.obtain().setIntent(intent).setReason(reason);
}
返回一个ActivityStarter对象，并将Intent对象设置进去，已经reason，即调用方传的“startActivityAsUser”参数；
ActivityStarter类中查看对应方法，这里需要注意setMayWait()方法；
ActivityStarter setMayWait(int userId) {
mRequest.mayWait = true;
mRequest.userId = userId;
return this;
}
该方法中将mRequest的mayWait属性设置为true，并设置userId，继续执行execute()方法，判断mRequest.mayWait是否为ture，进入对应的分支；
/**
* Starts an activity based on the request parameters provided earlier.
* @return The starter result.
*/
int execute() {
try {
// TODO(b/64750076): Look into passing request directly to these methods to allow
// for transactional diffs and preprocessing.
if (mRequest.mayWait) {
return startActivityMayWait(mRequest.caller, mRequest.callingUid,
mRequest.callingPackage, mRequest.intent,
mRequest.resolvedType, mRequest.voiceSession,
mRequest.voiceInteractor, mRequest.resultTo,
mRequest.resultWho, mRequest.requestCode,
mRequest.startFlags, mRequest.profilerInfo,
mRequest.waitResult, mRequest.globalConfig,
mRequest.activityOptions, mRequest.ignoreTargetSecurity,
mRequest.userId, mRequest.inTask, mRequest.reason,
mRequest.allowPendingRemoteAnimationRegistryLookup,
mRequest.originatingPendingIntent);
} else {
// ...
} finally {
onExecutionComplete();
}
}
这里继续调用该类的startActivityMayWait()方法；
private int startActivityMayWait(IApplicationThread caller, int callingUid,
String callingPackage, Intent intent, String resolvedType,
IVoiceInteractionSession voiceSession,
IVoiceInteractor voiceInteractor, IBinder resultTo,
String resultWho, int requestCode, int startFlags,
ProfilerInfo profilerInfo, WaitResult outResult,
Configuration globalConfig, SafeActivityOptions options,
boolean ignoreTargetSecurity, int userId, TaskRecord inTask,
String reason,
boolean allowPendingRemoteAnimationRegistryLookup,
PendingIntentRecord originatingPendingIntent) {
// ...
// Save a copy in case ephemeral needs it
final Intent ephemeralIntent = new Intent(intent);
// Don't modify the client's object!
intent = new Intent(intent);
// ...
// 解析Intent
ResolveInfo rInfo = mSupervisor.resolveIntent(intent, resolvedType, userId, 0 /* matchFlags */, computeResolveFilterUid(callingUid, realCallingUid, mRequest.filterCallingUid));
// ...
// Collect information about the target of the Intent.
ActivityInfo aInfo = mSupervisor.resolveActivity(intent, rInfo, startFlags, profilerInfo);
// ...
// 用于记录Activity的数据
final ActivityRecord[] outRecord = new ActivityRecord[1];
int res = startActivity(caller, intent, ephemeralIntent, resolvedType, aInfo, rInfo,
voiceSession, voiceInteractor, resultTo, resultWho, requestCode,
callingPid, callingUid, callingPackage, realCallingPid,
realCallingUid, startFlags, options, ignoreTargetSecurity,
componentSpecified, outRecord, inTask, reason,
allowPendingRemoteAnimationRegistryLookup,
originatingPendingIntent);
}
这里继续调用该类的startActivity()方法；
private int startActivity(IApplicationThread caller, Intent intent, Intent ephemeralIntent,
String resolvedType, ActivityInfo aInfo, ResolveInfo rInfo,
IVoiceInteractionSession voiceSession,
IVoiceInteractor voiceInteractor, IBinder resultTo, String resultWho,
int requestCode, int callingPid, int callingUid,
String callingPackage, int realCallingPid, int realCallingUid,
int startFlags, SafeActivityOptions options,
boolean ignoreTargetSecurity, boolean componentSpecified,
ActivityRecord[] outActivity, TaskRecord inTask, String reason,
boolean allowPendingRemoteAnimationRegistryLookup,
PendingIntentRecord originatingPendingIntent) {
// ...
mLastStartActivityResult = startActivity(caller, intent, ephemeralIntent, resolvedType,
aInfo, rInfo, voiceSession, voiceInteractor,
resultTo, resultWho, requestCode, callingPid,
callingUid, callingPackage, realCallingPid,
realCallingUid, startFlags, options,
ignoreTargetSecurity, componentSpecified,
mLastStartActivityRecord, inTask,
allowPendingRemoteAnimationRegistryLookup,
originatingPendingIntent);
// ...
return getExternalResult(mLastStartActivityResult);
}
继续多次调用startActivity()重载函数；
private int startActivity(final ActivityRecord r, ActivityRecord sourceRecord,
IVoiceInteractionSession voiceSession,
IVoiceInteractor voiceInteractor, int startFlags, boolean doResume,
ActivityOptions options, TaskRecord inTask,
ActivityRecord[] outActivity) {
int result = START_CANCELED;
try {
mService.mWindowManager.deferSurfaceLayout();
result = startActivityUnchecked(r, sourceRecord, voiceSession, voiceInteractor, startFlags, doResume, options, inTask, outActivity);
} finally {
// ...
}
return result;
}
该方法中调用startActivityUnchecked()方法，计算启动的Flags，例如是否有NEW_TASK，并设置给intent，计算该Activity是否要插入到当前现有的任务栈中，判断栈顶Activity是否相同，是否需要复用；
private int startActivityUnchecked(final ActivityRecord r, ActivityRecord sourceRecord,
IVoiceInteractionSession voiceSession,
IVoiceInteractor voiceInteractor, int startFlags,
boolean doResume, ActivityOptions options,
TaskRecord inTask, ActivityRecord[] outActivity) {
...
// 计算Activity启动的Flags
computeLaunchingTaskFlags();
mIntent.setFlags(mLaunchFlags);
// 计算Activity是否要插入现有的任务栈中
ActivityRecord reusedActivity = getReusableIntentActivity();
...
mTargetStack.startActivityLocked(mStartActivity, topFocused, newTask, mKeepCurTransition, mOptions);
if (mDoResume) {
...
mSupervisor.resumeFocusedStackTopActivityLocked(mTargetStack, mStartActivity, mOptions);
...
}
...
}
执行ActivitStackSupervisor的resumeFocusedStackTopActivityLocked()方法；
boolean resumeFocusedStackTopActivityLocked(ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {
...
final ActivityRecord r = mFocusedStack.topRunningActivityLocked();
if (r == null || !r.isState(RESUMED)) {
mFocusedStack.resumeTopActivityUncheckedLocked(null, null);
} else if (r.isState(RESUMED)) {
// Kick off any lingering app transitions form the MoveTaskToFront operation.
mFocusedStack.executeAppTransition(targetOptions);
}
return false;
}
继续执行ActivityStack的resumeTopActivityUncheckedLocked()方法；
@GuardedBy("mService")
boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
...
try {
// Protect against recursion.
mStackSupervisor.inResumeTopActivity = true;
result = resumeTopActivityInnerLocked(prev, options);
...
} finally {
mStackSupervisor.inResumeTopActivity = false;
}
return result;
}
2.2.2、封装暂停Activity事务
继续执行该类的resumeTopActivityInnerLocked()方法，该方法中通过ClientTransaction事务来处理，先通过事务来处理当前Activity的暂停，即LauncherApp，然后再去启动新的APP；
@GuardedBy("mService")
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
...
if (next.app != null && next.app.thread != null) {
...
synchronized(mWindowManager.getWindowManagerLock()) {
try {
final ClientTransaction transaction = ClientTransaction.obtain(next.app.thread, next.appToken);
...
if (next.newIntents != null) {
transaction.addCallback(NewIntentItem.obtain(next.newIntents, false /* andPause */));
}
...
transaction.setLifecycleStateRequest(ResumeActivityItem.obtain(next.app.repProcState, mService.isNextTransitionForward()));
...
transaction.setLifecycleStateRequest(ResumeActivityItem.obtain(next.app.repProcState, mService.isNextTransitionForward()));
mService.getLifecycleManager().scheduleTransaction(transaction);
...
}
}
...
// 执行启动新的Activity
mStackSupervisor.startSpecificActivityLocked(next, true, true);
}
...
return true;
}
2.2.3、暂停当前Activity
先让当前的Activity停止，进入onPause状态，在执行startSpecificActivityLocked()方法启动新的Activity；
这里通过AMS获取到ClientLifecycleManager对象，执行其scheduleTransaction()方法，去暂停当前Activity；
public class ActivityManagerService extends IActivityManager.Stub implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback {
private final ClientLifecycleManager mLifecycleManager;
ClientLifecycleManager getLifecycleManager() {
return mLifecycleManager;
}
}
执行ClientLifecycleManager类的scheduleTransaction()方法，在该方法中执行ClientTransaction对象的schedule()方法；
class ClientLifecycleManager {
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
transaction.schedule();
if (!(client instanceof Binder)) {
// the transaction is executed on client in ActivityThread.
transaction.recycle();
}
}
}
ClientTransaction类的schedule()方法中，利用传过来的IApplicationThread对象去执行scheduleTransaction()，该IApplicationThread对象就是当前App的ApplicationThread对象，即LauncherApp的；
public class ClientTransaction implements Parcelable, ObjectPoolItem {
public void schedule() throws RemoteException {
mClient.scheduleTransaction(this);
}
}
mClient对象是IApplicationTread对象，IApplicationThread为aidl文件，对应ActivityThread类的内部类ApplicationThread对象；
public final class ActivityThread extends ClientTransactionHandler {
private class ApplicationThread extends IApplicationThread.Stub {
@Override
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}
}
}
2.2.4、向主线程发消息暂停Activity
ActivityThread继承自ClientTransactionHandler类，所以执行该类的scheduleTransaction()方法；
public abstract class ClientTransactionHandler {
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
}
该类的sendMessage()为抽象方法，由具体实现类实现，即ActivityThread，消息的what为ActivityThread.H.EXECUTE_TRANSACTION；
void sendMessage(int what, Object obj) {
sendMessage(what, obj, 0, 0, false);
}
private void sendMessage(int what, Object obj, int arg1, int arg2, boolean async) {
Message msg = Message.obtain();
msg.what = what;
msg.obj = obj;
msg.arg1 = arg1;
msg.arg2 = arg2;
if (async) {
msg.setAsynchronous(true);
}
mH.sendMessage(msg);
}
mH为ActivityThread的H类，继承自Handler，收到消息之后在主线程执行TransactionExecutor对象的execute()方法，执行的逻辑封装在ClientTransaction事务中；
class H extends Handler {
public void handleMessage(Message msg) {
switch (msg.what) {
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
mTransactionExecutor.execute(transaction);
if (isSystem()) {
// Client transactions inside system process are recycled on the client side
// instead of ClientLifecycleManager to avoid being cleared before this
// message is handled.
transaction.recycle();
}
// TODO(lifecycler): Recycle locally scheduled transactions.
break;
}
}
}
在TransactionExecutor的execute()方法中，执行ClientTransaction事务中封装的callback对象和LifecycleState对象；
public class TransactionExecutor {
public void execute(ClientTransaction transaction) {
final IBinder token = transaction.getActivityToken();
...
executeCallbacks(transaction);
executeLifecycleState(transaction);
mPendingActions.clear();
log("End resolving transaction");
}
}
事务对象是在2.2.2的ActivityStack类的resumeTopActivityInnerLocked()方法中封装的，这里callback对象为空，直接执行executeLifecycleState()方法，其中的transaction对象是在ActivityStack类的resumeTopActivityInnerLocked()方法中添加的；
取出transaction对象中添加的ActivityLifecycleItem对象，其中ActivityLifecycleItem对象实际是NewIntentItem对象；
private void executeLifecycleState(ClientTransaction transaction) {
final ActivityLifecycleItem lifecycleItem = transaction.getLifecycleStateRequest();
...
final IBinder token = transaction.getActivityToken();
final ActivityClientRecord r = mTransactionHandler.getActivityClient(token);
...
// Cycle to the state right before the final requested state.
cycleToPath(r, lifecycleItem.getTargetState(), true /* excludeLastState */);
// Execute the final transition with proper parameters.
lifecycleItem.execute(mTransactionHandler, token, mPendingActions);
lifecycleItem.postExecute(mTransactionHandler, token, mPendingActions);
}
继续执行NewIntentItem类的execute()方法；
public class NewIntentItem extends ClientTransactionItem {
@Override
public void execute(ClientTransactionHandler client, IBinder token, PendingTransactionActions pendingActions) {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityNewIntent");
client.handleNewIntent(token, mIntents, mPause);
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
}
}
2.2.5、主线程暂停Activity
其中，client对象为ClientTransactionHandler对象，ActivityThread继承自ClientTransactionHandler类，在ActivityThread类中通过ClientTransactionHandler的构造方法，传入ActivityThread自身构建；
@Override
public void handleNewIntent(IBinder token, List<ReferrerIntent> intents, boolean andPause) {
performNewIntents(token, intents, andPause);
}
void performNewIntents(IBinder token, List<ReferrerIntent> intents, boolean andPause) {
final ActivityClientRecord r = mActivities.get(token);
...
final boolean resumed = !r.paused;
if (resumed) {
r.activity.mTemporaryPause = true;
mInstrumentation.callActivityOnPause(r.activity);
}
checkAndBlockForNetworkAccess();
deliverNewIntents(r, intents);
if (resumed) {
r.activity.performResume(false, "performNewIntents");
r.activity.mTemporaryPause = false;
}
// andPause == false，在传入NewIntentItem时定义
if (r.paused && andPause) {
// In this case the activity was in the paused state when we delivered the intent,
// to guarantee onResume gets called after onNewIntent we temporarily resume the
// activity and pause again as the caller wanted.
performResumeActivity(token, false, "performNewIntents");
performPauseActivityIfNeeded(r, "performNewIntents");
}
}
执行Instrumentation类的callActivityOnPause()方法，
public void callActivityOnPause(Activity activity) {
activity.performPause();
}
继续调用Activity的performPause()方法
final void performPause() {
mDoReportFullyDrawn = false;
mFragments.dispatchPause();
mCalled = false;
onPause();
...
}
继续执行onPause()方法，暂停，这里进入到了具体Activity的onPause()生命周期方法中，在onPause()方法返回前，新的Activity不会创建，所以在onPause()方法里不要做耗时操作，可以在这里保存状态，关闭动画、耗时操作等；
2.2.6、启动新Activity
然后继续执行ActivityStack类的resumeTopActivityInnerLocked()方法中的启动新的Activity流程，ActivityStack的resumeTopActivityInnerLocked()方法，通过AMS去执行启动新进程方法；
void startSpecificActivityLocked(ActivityRecord r, boolean andResume, boolean checkConfig) {
...
mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0, "activity", r.intent.getComponent(), false, false, true);
}
AMS调用两次重载方法；
@GuardedBy("this")
final ProcessRecord startProcessLocked(String processName, ApplicationInfo info,
boolean knownToBeDead, int intentFlags,
String hostingType, ComponentName hostingName,
boolean allowWhileBooting, boolean isolated,
int isolatedUid, boolean keepIfLarge,
String abiOverride, String entryPoint,
String[] entryPointArgs, Runnable crashHandler) {
...
final boolean success = startProcessLocked(app, hostingType, hostingNameStr, abiOverride);
...
return success ? app : null;
}
继续调用startProcessLocked重载方法；
@GuardedBy("this")
private final boolean startProcessLocked(ProcessRecord app, String hostingType,
String hostingNameStr, boolean disableHiddenApiChecks,
String abiOverride) {
...
// 这个参数重要，后文会用到，传入ActivityThread类名
final String entryPoint = "android.app.ActivityThread";
return startProcessLocked(hostingType, hostingNameStr, entryPoint, app, uid, gids,
runtimeFlags, mountExternal, seInfo, requiredAbi, instructionSet,
invokeWith, startTime);
...
}
@GuardedBy("this")
private boolean startProcessLocked(String hostingType, String hostingNameStr,
String entryPoint, ProcessRecord app, int uid, int[] gids,
int runtimeFlags, int mountExternal, String seInfo,
String requiredAbi, String instructionSet,
String invokeWith, long startTime) {
...
if (mConstants.FLAG_PROCESS_START_ASYNC) {
...
final ProcessStartResult startResult = startProcess(app.hostingType, entryPoint, app,
app.startUid, gids, runtimeFlags,
mountExternal, app.seInfo, requiredAbi,
instructionSet, invokeWith,
app.startTime);
...
}
}
在该方法中执行startProcess()方法；
private ProcessStartResult startProcess(String hostingType, String entryPoint,
ProcessRecord app, int uid, int[] gids,
int runtimeFlags, int mountExternal, String seInfo,
String requiredAbi, String instructionSet,
String invokeWith, long startTime) {
try {
...
if (hostingType.equals("webview_service")) {
...
} else {
startResult = Process.start(entryPoint, app.processName, uid, uid, gids, runtimeFlags,
mountExternal, app.info.targetSdkVersion, seInfo,
requiredAbi, instructionSet, app.info.dataDir, invokeWith,
new String[] {PROC_START_SEQ_IDENT + app.startSeq});
}
...
}
}
2.2.7、与Zygote进程建立Socket通信
执行Process类的start()方法，调用ZygoteProcess类的start()方法，ZygoteProcess类对象是Process类的一个静态对象，其中参数传入ZYGOTE_SOCKET，即socket通信时连接的地址；
public static final String ZYGOTE_SOCKET = "zygote";
public static final String SECONDARY_ZYGOTE_SOCKET = "zygote_secondary";
public static final ZygoteProcess zygoteProcess = new ZygoteProcess(ZYGOTE_SOCKET, SECONDARY_ZYGOTE_SOCKET);
public static final ProcessStartResult start(final String processClass, final String niceName,
int uid, int gid, int[] gids, int runtimeFlags,
int mountExternal, int targetSdkVersion,
String seInfo, String abi, String instructionSet,
String appDataDir, String invokeWith,
String[] zygoteArgs) {
return zygoteProcess.start(processClass, niceName, uid, gid, gids, runtimeFlags,
mountExternal, targetSdkVersion, seInfo, abi, instructionSet,
appDataDir, invokeWith, zygoteArgs);
}
ZygoteProcess类的start()方法里面又执行startViaZygote()方法，这里倒数第二个参数固定传入false，表示不是启动子Zygote进程，而是启动一个新的进程；
public final Process.ProcessStartResult start(final String processClass, final String niceName,
int uid, int gid, int[] gids, int runtimeFlags,
int mountExternal, int targetSdkVersion,
String seInfo, String abi, String instructionSet,
String appDataDir, String invokeWith,
String[] zygoteArgs) {
try {
return startViaZygote(processClass, niceName, uid, gid, gids, runtimeFlags, mountExternal,
targetSdkVersion, seInfo, abi, instructionSet, appDataDir,
invokeWith, false /* startChildZygote */, zygoteArgs);
} catch (ZygoteStartFailedEx ex) {
...
}
}
在startViaZygote()方法中，主要是new出一个String类型的List集合，用于保存启动新进程的相关参数，例如进程名，uid等信息，然后调用zygoteSendArgsAndGetResult()方法；
private Process.ProcessStartResult startViaZygote(final String processClass,
final String niceName, final int uid,
final int gid, final int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion, String seInfo,
String abi, String instructionSet,
String appDataDir, String invokeWith,
boolean startChildZygote, String[] extraArgs) throws ZygoteStartFailedEx {
ArrayList<String> argsForZygote = new ArrayList<String>();
...
if (niceName != null) {
argsForZygote.add("--nice-name=" + niceName);
}
...
argsForZygote.add(processClass);
synchronized(mLock) {
return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi), argsForZygote);
}
}
在zygoteSendArgsAndGetResult()方法中会传入一个参数，第一个参数为一个ZygoteState对象，通过openZygoteSocketIfNeeded()方法获得，通过注释可知这个方法用来向Zygote进程开启socket，这里也说明了system_server进程和Zygote进程之间的IPC方式为socket通信；
方法中会去判断socket是否已经打开，有32位和64位zygote进程，并通过abi参数去匹配32位还是64位，其中在连接时，参数mSocket就是连接的地址，这个在Process中的静态对象ZygoteProcess中初始化，即zygote进程；
Zygote进程在启动时，Init.rc脚本中ro.zygote有四种支持的属性，由硬件决定，这里会获取主模式和第二种模式，即64位和32位，去匹配是否支持；
/**
* Tries to open socket to Zygote process if not already open. If
* already open, does nothing. May block and retry. Requires that mLock be held.
*/
@GuardedBy("mLock")
private ZygoteState openZygoteSocketIfNeeded(String abi) throws ZygoteStartFailedEx {
Preconditions.checkState(Thread.holdsLock(mLock), "ZygoteProcess lock not held");
if (primaryZygoteState == null || primaryZygoteState.isClosed()) {
...
try {
primaryZygoteState = ZygoteState.connect(mSocket);
}
}
if (primaryZygoteState.matches(abi)) {
return primaryZygoteState;
}
// The primary zygote didn't match. Try the secondary.
if (secondaryZygoteState == null || secondaryZygoteState.isClosed()) {
...
try {
secondaryZygoteState = ZygoteState.connect(mSecondarySocket);
}
}
if (secondaryZygoteState.matches(abi)) {
return secondaryZygoteState;
}
throw new ZygoteStartFailedEx("Unsupported zygote ABI: " + abi);
}
此时已经与Zygote进程通过socket建立了通讯；
2.2.8、向Zygote进程发起创建进程请求
在zygoteSendArgsAndGetResult()方法中，将相关参数通过socket传入Zygote进程，
然后新建ProcessStartResult对象，通过流将Zygote执行的结果存入到该对象中，pid等；
@GuardedBy("mLock")
private static Process.ProcessStartResult zygoteSendArgsAndGetResult(ZygoteState zygoteState, ArrayList<String> args) throws ZygoteStartFailedEx {
try {
...
final BufferedWriter writer = zygoteState.writer;
final DataInputStream inputStream = zygoteState.inputStream;
writer.write(Integer.toString(args.size()));
writer.newLine();
for (int i = 0; i < sz; i++) {
String arg = args.get(i);
writer.write(arg);
writer.newLine();
}
writer.flush();
// Should there be a timeout on this?
Process.ProcessStartResult result = new Process.ProcessStartResult();
result.pid = inputStream.readInt();
result.usingWrapper = inputStream.readBoolean();
...
return result;
} catch (IOException ex) {
zygoteState.close();
throw new ZygoteStartFailedEx(ex);
}
}
2.3、Zygote进程阶段
在Zygote进程启动时，会建立Socket的Server端，进入轮询等待客户端接入，此时AMS作为Socket的客户端与Zygote进程建立连接并发送请求，Zygote进程收到客户端的新建进程请求去执行；
执行fork进程请求，详见“Zygote进程启动”；
此时进入到Zygote进程中去执行创建新的APP进程操作；
2.3.1、Zygote进程fork新的子进程
此时进入到Zygote进程中去执行fork新进程操作，Zygote进程收到AMS的fork子进程请求，会执行ZygoteConnection类的processOneCommand()方法，其中执行Zygote类的forkAndSpecialize()方法fork出子进程，然后调用handleChildProc()方法，其中forkAndSpecialize()方法中调用了native方法nativeForkAndSpecialize()去执行；
先看forkAndSpecialize()方法；
该native方法的实现是在com_android_internal_os_Zygote.cpp类中实现的，实现方法如下：
static jint com_android_internal_os_Zygote_nativeForkSystemServer( JNIEnv* env, jclass,
uid_t uid, gid_t gid,
jintArray gids,
jint runtime_flags,
jobjectArray rlimits,
jlong permittedCapabilities,
jlong effectiveCapabilities) {
pid_t pid = ForkAndSpecializeCommon(env, uid, gid, gids, runtime_flags, rlimits,
permittedCapabilities, effectiveCapabilities,
MOUNT_EXTERNAL_DEFAULT, NULL, NULL, true, NULL, NULL,
false, NULL, NULL);
继续执行该类的ForkAndSpecializeCommon()方法，执行fork()方法，fork出新进程即APP进程，返回pid，pid等于0时表示子进程，此时在APP进程中执行PreApplicationInit()方法，通过JNI去调用Zygote类的CallStaticVoidMethod()方法；
// Utility routine to fork zygote and specialize the child process.
static pid_t ForkAndSpecializeCommon(JNIEnv* env, uid_t uid, gid_t gid, jintArray javaGids,
jint runtime_flags, jobjectArray javaRlimits,
jlong permittedCapabilities, jlong effectiveCapabilities,
jint mount_external, jstring java_se_info,
jstring java_se_name, bool is_system_server,
jintArray fdsToClose, jintArray fdsToIgnore,
bool is_child_zygote, jstring instructionSet,
jstring dataDir) {
...
pid_t pid = fork();
if (pid == 0) {
// 子进程，即fork出来的app进程
PreApplicationInit();
...
// 反射调用Zygote类的callPostForkChildHooks()方法
env->CallStaticVoidMethod(gZygoteClass, gCallPostForkChildHooks, runtime_flags,
is_system_server, is_child_zygote, instructionSet);
} else {
// 父进程
}
}
进入子进程分支，在PreApplicationInit()方法中，子进程设置标识自己不是zygote进程；
static void PreApplicationInit() {
// The child process sets this to indicate it's not the zygote.
gMallocLeakZygoteChild = 1;
// Set the jemalloc decay time to 1.
mallopt(M_DECAY_TIME, 1);
}
继续通过JNI调用Zygote类的CallStaticVoidMethod()方法做一些初始化操作；
2.3.2、向APP进程发起创建Application
接下来继续走fork完子进程之后的操作，即ZygoteConnection类的handleChildProc()方法；
private Runnable handleChildProc(Arguments parsedArgs, FileDescriptor[] descriptors, FileDescriptor pipeFd, boolean isZygote) {
...
if (!isZygote) {
return ZygoteInit.zygoteInit(parsedArgs.targetSdkVersion, parsedArgs.remainingArgs, null /* classLoader */);
} else {
...
}
}
继续执行ZygoteInit的childZygoteInit()方法，最后调用RuntimeInit类的applicationInit()方法去创建APP进程的Application；
public static final Runnable zygoteInit(int targetSdkVersion, String[] argv, ClassLoader classLoader) {
...
RuntimeInit.commonInit();
ZygoteInit.nativeZygoteInit();
return RuntimeInit.applicationInit(targetSdkVersion, argv, classLoader);
}
执行RuntimeInit的applicationInit()方法，解析参数，调用findStaticMain()方法；
protected static Runnable applicationInit(int targetSdkVersion, String[] argv, ClassLoader classLoader) {
...
final Arguments args = new Arguments(argv);
...
return findStaticMain(args.startClass, args.startArgs, classLoader);
}
在findStaticMain()方法中，反射找到对应的类、方法，并将参数等信息统一交给MethodAndArgsCaller类对象去处理，类名为前面2.2.6中startProcessLocked方法中，AMS与Zygote进程交互的时候传入的ActivityThread类名，找对对应的方法为main()方法，MethodAndArgsCaller类是一个Runnable对象，其run()方法中执行了反射找到的方法，即ActivityThread的main()方法，由此进入到ActivityThread类，即进入了新进程APP的主线程；
protected static Runnable findStaticMain(String className, String[] argv, ClassLoader classLoader) {
Class<?> cl;
try {
cl = Class.forName(className, true, classLoader);
}
...
Method m;
try {
m = cl.getMethod("main", new Class[] { String[].class });
}
...
int modifiers = m.getModifiers();
return new MethodAndArgsCaller(m, argv);
}
2.4、APP进程阶段
Zygote进程fork出APP进程之后，进入到APP进程中，即ActivityThread，执行其main()方法，创建主线程的Looper，并轮询等待消息，这里的Looper由系统创建，所以平时在主线程中使用Handler时不需要手动创建Looper；
public static void main(String[] args) {
...
// 为当前用户初始化环境
Environment.initForCurrentUser();
...
Process.setArgV0("<pre-initialized>");
// 初始化主线程，UI线程
Looper.prepareMainLooper();
...
// 创建ActivityThread对象，并调用其attach()方法，第二个参数为false，表示非系统进程
ActivityThread thread = new ActivityThread();
thread.attach(false, startSeq);
if (sMainThreadHandler == null) {
sMainThreadHandler = thread.getHandler();
}
...
// 进入主线程looper轮询
Looper.loop();
throw new RuntimeException("Main thread loop unexpectedly exited");
}
2.4.1、向AMS发起attachApplication请求
在ActivityThread的main()方法中，创建ActivityTread对象，并调用其attach()方法，第一个参数传入false，表示该进程非系统进程；
在attach()方法中通过ActivityManager.getService()获取到系统进程中AMS在APP进程中的代理对象，通过AMS的代理对象，向系统进程（即AMS所在的system_server进程）发起attachApplication请求；
private void attach(boolean system, long startSeq) {
sCurrentActivityThread = this;
mSystemThread = system;
if (!system) {
... // dalvik虚拟机相关设置
android.ddm.DdmHandleAppName.setAppName("<pre-initialized>", UserHandle.myUserId());
RuntimeInit.setApplicationObject(mAppThread.asBinder());
// 获取ActivityManager的Binder对象，即系统进程在APP进程中的AMS代理
final IActivityManager mgr = ActivityManager.getService();
try {
// 通过AMS代理对象向系统进程发起attachApplication请求
mgr.attachApplication(mAppThread, startSeq);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
...
} else {
... // 系统进程分支
}
...
}
2.5、system_server进程阶段
此时APP进程挂起，进入到AMS所在的系统进程system_server进程，执行AMS的attachApplication()方法；
2.5.1、创建APP进程的Application
获取到当前调用的进程Pid和Uid，然后重置当前进程上的IPC标识，调用attachApplicationLocked()方法，之后再回复调用该方法之前的进程上的IPC标识；
@Override
public final void attachApplication(IApplicationThread thread, long startSeq) {
synchronized (this) {
int callingPid = Binder.getCallingPid();
final int callingUid = Binder.getCallingUid();
final long origId = Binder.clearCallingIdentity();
attachApplicationLocked(thread, callingPid, callingUid, startSeq);
Binder.restoreCallingIdentity(origId);
}
}
继续执行AMS中的attachApplicationLocked()方法，在该方法中先去创建Application，并回调其生命周期方法onCreate()方法，接着会去调用StackSupervisor类的attachApplicationLocked()方法启动新的Activity，先看创建Application；
@GuardedBy("this")
private final boolean attachApplicationLocked(IApplicationThread thread, int pid, int callingUid, long startSeq) {
try {
if (app.isolatedEntryPoint != null) {
// This is an isolated process which should just call an entry point instead of
// being bound to an application.
thread.runIsolatedEntryPoint(app.isolatedEntryPoint, app.isolatedEntryPointArgs);
} else if (app.instr != null) {
thread.bindApplication(processName, appInfo, providers, app.instr.mClass,
profilerInfo, app.instr.mArguments, app.instr.mWatcher,
app.instr.mUiAutomationConnection, testMode,
mBinderTransactionTrackingEnabled, enableTrackAllocation,
isRestrictedBackupMode || !normalMode, app.persistent,
new Configuration(getGlobalConfiguration()), app.compat,
getCommonServicesLocked(app.isolated),
mCoreSettingsObserver.getCoreSettingsLocked(), buildSerial,
isAutofillCompatEnabled);
} else {
thread.bindApplication(processName, appInfo, providers, null, profilerInfo, null, null,
null, testMode, mBinderTransactionTrackingEnabled,
enableTrackAllocation, isRestrictedBackupMode || !normalMode,
app.persistent, new Configuration(getGlobalConfiguration()),
app.compat, getCommonServicesLocked(app.isolated),
mCoreSettingsObserver.getCoreSettingsLocked(), buildSerial,
isAutofillCompatEnabled);
}
} catch (Exception e) {
...
}
// See if the top visible activity is waiting to run in this process...
if (normalMode) {
try {
if (mStackSupervisor.attachApplicationLocked(app)) {
didSomething = true;
}
} catch (Exception e) {
...
}
}
}
2.5.2、向主线程发送消息
继续执行ActivityThread的bindApplication()方法，保存AppBindData信息，向主线程发送消息，由于AMS的创建Application操作在Binder池中执行，所以通过Handler消息机制向AMS的主线程发送消息；
public final void bindApplication(String processName, ApplicationInfo appInfo,
List<ProviderInfo> providers,
ComponentName instrumentationName, ProfilerInfo profilerInfo,
Bundle instrumentationArgs,
IInstrumentationWatcher instrumentationWatcher,
IUiAutomationConnection instrumentationUiConnection,
int debugMode, boolean enableBinderTracking,
boolean trackAllocation, boolean isRestrictedBackupMode,
boolean persistent, Configuration config,
CompatibilityInfo compatInfo, Map services,
Bundle coreSettings, String buildSerial,
boolean autofillCompatibilityEnabled) {
...
AppBindData data = new AppBindData();
data.processName = processName;
data.appInfo = appInfo;
...
sendMessage(H.BIND_APPLICATION, data);
}
主线程收到消息，在主线程中的Handler即H类去处理该消息，执行handleBindApplication()方法；
class H extends Handler {
public void handleMessage(Message msg) {
case BIND_APPLICATION:
...
AppBindData data = (AppBindData)msg.obj;
handleBindApplication(data);
...
break;
}
...
}
2.5.3、执行Application的生命周期方法
执行handleBindApplication()方法，在该方法中通过Instrumention类去执行Application的onCreate()方法；
private void handleBindApplication(AppBindData data) {
// Register the UI Thread as a sensitive thread to the runtime.
VMRuntime.registerSensitiveThread();
...
VMRuntime.setProcessPackageName(data.appInfo.packageName);
...
final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);
updateLocaleListFromAppContext(appContext, mResourcesManager.getConfiguration().getLocales());
...
Application app;
try {
app = data.info.makeApplication(data.restrictedBackupMode, null);
...
try {
// 在Instrumention类中onCreate()方法为空实现
mInstrumentation.onCreate(data.instrumentationArgs);
}
try {
// 执行Application的onCreate()方法
mInstrumentation.callApplicationOnCreate(app);
}
...
}
...
}
Instrumentation类的callApplicationOnCreate()方法，在该方法中去调用Application类的onCreate()方法，此时已经执行到新建APP的Application的onCreate()方法中；
public void callApplicationOnCreate(Application app) {
app.onCreate();
}
2.5.4、启动Activity
Application创建完成，接着继续走2.5.1之后的启动Activity的流程，执行AMS中的attachApplicationLocked()方法，获取相关Task、Stack、包信息等，调用realStartActivityLocked()方法来启动Activity；
boolean attachApplicationLocked(ProcessRecord app) throws RemoteException {
final String processName = app.processName;
boolean didSomething = false;
// 遍历所有的stack，找到处于前台的ActivityStack
for (int displayNdx = mActivityDisplays.size() - 1; displayNdx >= 0; --displayNdx) {
final ActivityDisplay display = mActivityDisplays.valueAt(displayNdx);
for (int stackNdx = display.getChildCount() - 1; stackNdx >= 0; --stackNdx) {
final ActivityStack stack = display.getChildAt(stackNdx);
if (!isFocusedStack(stack)) {
continue;
}
// 找到处于栈顶的ActivityRecord
final ActivityRecord top = stack.topRunningActivityLocked();
for (int i = 0; i < size; i++) {
final ActivityRecord activity = mTmpActivityList.get(i);
if (activity.app == null && app.uid == activity.info.applicationInfo.uid && processName.equals(activity.processName)) {
try {
// 调用realstartActivityLocked方法来启动目标Activity
if (realStartActivityLocked(activity, app, top == activity /* andResume */, true /* checkConfig */)) {
didSomething = true;
}
}
}
}
}
}
}
继续执行realStartActivityLocked()方法创建Activity，将新APP进程信息保存到app变量，获取对应的栈信息等，将创建Activity的逻辑封装到ClientTransaction事务中，并添加callback和LifecycleCallback回调，通过AMS获取LifecycleManager来执行；
final boolean realStartActivityLocked(ActivityRecord r, ProcessRecord app, boolean andResume, boolean checkConfig) throws RemoteException {
try {
// 将新进程的信息保存到ActivityRecord的app变量中
r.setProcess(app);
// 获取对应的栈信息等
...
try {
final ClientTransaction clientTransaction = ClientTransaction.obtain(app.thread, r.appToken);
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat, r.launchedFromPackage,
task.voiceInteractor, app.repProcState, r.icicle, r.persistentState, results,
newIntents, mService.isNextTransitionForward(), profilerInfo));
// Set desired final state.
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
lifecycleItem = ResumeActivityItem.obtain(mService.isNextTransitionForward());
}
clientTransaction.setLifecycleStateRequest(lifecycleItem);
// Schedule transaction.
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
}
}
}
2.5.5、通知APP进程创建Activity
这里通过ClientTransaction事务来执行，AMS的getLifecycleManager()获取ClientLifecycleManager对象，去执行其scheduleTransaction()方法；
public class ActivityManagerService {
ClientLifecycleManager getLifecycleManager() {
return mLifecycleManager;
}
}
ClientLifecycleManager的scheduleTransaction()方法；
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
transaction.schedule();
...
}
ClientTransaction类的schedule()方法，其中mClient对象为传过来的ApplicationThread对象，即通过Binder机制进入到APP进程所在进程去执行；
public void schedule() throws RemoteException {
mClient.scheduleTransaction(this);
}
2.6、APP进程阶段
此时进入到APP进程的ApplicationThread中去执行；
private class ApplicationThread extends IApplicationThread.Stub {
@Override
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}
}
2.6.1、向主线程发消息执行创建Activity
ActivityThread继承自ClientTransactionHandler类，向ActivityThread发送消息，执行TransactionExecutor类的execute()方法；
public void execute(ClientTransaction transaction) {
final IBinder token = transaction.getActivityToken();
executeCallbacks(transaction);
executeLifecycleState(transaction);
}
其中Callback为LaunchActivityItem对象，在executeCallbacks()方法中执行其execute()方法；
public class LaunchActivityItem extends ClientTransactionItem {
@Override
public void execute(ClientTransactionHandler client, IBinder token, PendingTransactionActions pendingActions) {
ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,
mOverrideConfig, mCompatInfo, mReferrer,
mVoiceInteractor, mState,
mPersistentState, mPendingResults,
mPendingNewIntents, mIsForward,
mProfilerInfo, client);
client.handleLaunchActivity(r, pendingActions, null /* customIntent */);
}
}
2.6.2、主线程通过反射创建Activity
其中client对象为当前的ActivityThread对象，所以执行其handleLaunchActivity()方法；
@Override
public Activity handleLaunchActivity(ActivityClientRecord r, PendingTransactionActions pendingActions, Intent customIntent) {
...
final Activity a = performLaunchActivity(r, customIntent);
...
return a;
}
performLaunchActivity，在该方法中，获取packageInfo信息、Comment信息等，然后执行Instrumentation类的newActivity()方法来创建一个Activity，然后执行Activity的attach()方法，创建完成后再通过Instrumentation类来执行activity的onCreate()方法；
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// 获取packageInfo信息
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo, Context.CONTEXT_INCLUDE_CODE);
}
...
ContextImpl appContext = createBaseContextForActivity(r);
Activity activity = null;
try {
// 调用Instrumentation类来创建一个根据Activity的信息Activity对象
java.lang.ClassLoader cl = appContext.getClassLoader();
activity = mInstrumentation.newActivity(cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
}
try {
...
// 创建完成后，调用Activity的attach方法来初始化Activity
if (activity != null) {
activity.attach(appContext, this, getInstrumentation(), r.token, r.ident, app, r.intent,
r.activityInfo, title, r.parent, r.embeddedID,
r.lastNonConfigurationInstances, config, r.referrer, r.voiceInteractor,
window, r.configCallback);
...
// 调用Activity的onCreate方法
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
}
}
}
创建Activity完成之后，调用其attach()方法；
public Activity newActivity(Class<?> clazz, Context context, IBinder token,
Application application, Intent intent, ActivityInfo info,
CharSequence title, Activity parent, String id,
Object lastNonConfigurationInstance) throws InstantiationException, IllegalAccessException {
Activity activity = (Activity)clazz.newInstance();
ActivityThread aThread = null;
// Activity.attach expects a non-null Application Object.
if (application == null) {
application = new Application();
}
activity.attach(context, aThread, this, token, 0 /* ident */, application, intent, info,
title, parent, id,
(Activity.NonConfigurationInstances)lastNonConfigurationInstance,
new Configuration(), null /* referrer */, null /* voiceInteractor */,
null /* window */, null /* activityConfigCallback */);
return activity;
}
2.6.3、执行Activity生命周期方法
执行Activity的attach()方法，然后通过Instrumentation类来执行activity的onCreate()方法；
public void callActivityOnCreate(Activity activity, Bundle icicle) {
prePerformCreate(activity);
activity.performCreate(icicle);
postPerformCreate(activity);
}
执行activity的perform()方法，在该方法中执行了Activity的onCreate()方法，由此进入了Activity的onCreate()方法，去创建布局等，然后新的APP就展示在用户眼前了，继续执行其onResume()等方法；
final void performCreate(Bundle icicle) {
performCreate(icicle, null);
}
final void performCreate(Bundle icicle, PersistableBundle persistentState) {
mCanEnterPictureInPicture = true;
restoreHasCurrentPermissionRequest(icicle);
if (persistentState != null) {
onCreate(icicle, persistentState);
} else {
onCreate(icicle);
}
writeEventLog(LOG_AM_ON_CREATE_CALLED, "performCreate");
mActivityTransitionState.readState(icicle);
mVisibleFromClient = !mWindow.getWindowStyle().getBoolean(com.android.internal.R.styleable.Window_windowNoDisplay, false);
mFragments.dispatchActivityCreated();
mActivityTransitionState.setEnterActivityOptions(this, getActivityOptions());
}
来源：CSDN
作者：若邪〃
链接：https://blog.csdn.net/freelander_j/article/details/104137290
