本篇博客讲解表示CMS老年代的ConcurrentMarkSweepGeneration的相关基础类的实现。

一、CardGeneration

    CardGeneration表示一个使用卡表来标记对象修改，使用BlockOffsetArray来记录内存块的起始位置的generation，继承自Generation，定义也在generation.hpp中，新增了如下属性：

• GenRemSet* _rs; //与其他Generation实例共享的卡表实现实例
• BlockOffsetSharedArray* _bts; //当前Generation独享的BlockOffsetArray实现
• size_t _shrink_factor; //老年代内存缩容的百分比，第一次是0，第二次是10，第三次是40，第四次是100，中间有一次扩容了则被重置为0，重新开始累加，避免频繁的缩容与扩容。
• size_t _min_heap_delta_bytes; //老年代内存扩展或者缩容时的最低内存值
• size_t _capacity_at_prologue; //GC开始时的内存容量
• size_t _used_at_prologue; //GC开始时的内存使用量

重点关注以下方法的实现。

1、 构造函数

CardGeneration::CardGeneration(ReservedSpace rs, size_t initial_byte_size,
                               int level,
                               GenRemSet* remset) :
  Generation(rs, initial_byte_size, level), _rs(remset),
  _shrink_factor(0), _min_heap_delta_bytes(), _capacity_at_prologue(),
  _used_at_prologue()
{
  HeapWord* start = (HeapWord*)rs.base();
  size_t reserved_byte_size = rs.size();
  //start地址和reserved_byte_size必须是4的整数倍
  assert((uintptr_t(start) & 3) == 0, "bad alignment");
  assert((reserved_byte_size & 3) == 0, "bad alignment");
  MemRegion reserved_mr(start, heap_word_size(reserved_byte_size));
  //初始化bts
  _bts = new BlockOffsetSharedArray(reserved_mr,
                                    heap_word_size(initial_byte_size));
  MemRegion committed_mr(start, heap_word_size(initial_byte_size));
  //重置卡表对应的内存区域
  _rs->resize_covered_region(committed_mr);
  if (_bts == NULL)
    vm_exit_during_initialization("Could not allocate a BlockOffsetArray");

  //校验start地址和end地址都对应某个卡表项的起始地址
  guarantee(_rs->is_aligned(reserved_mr.start()), "generation must be card aligned");
  if (reserved_mr.end() != Universe::heap()->reserved_region().end()) {
    guarantee(_rs->is_aligned(reserved_mr.end()), "generation must be card aligned");
  }
  //MinHeapDeltaBytes的取值是128k，表示扩展时的最低内存
  _min_heap_delta_bytes = MinHeapDeltaBytes;
  _capacity_at_prologue = initial_byte_size;
  _used_at_prologue = 0;
}

2、expand

      expand用于将内存扩展，第一个参数表示期望扩展的内存空间，第二个参数表示期望扩展的最低内存空间，如果扩展了一部分内存空间，即使小于最低内存空间，则返回true，底层会调用grow_by完成扩展，如果扩展失败则尝试grow_to_reserved。其实现如下：

//第一个参数bytes表示期望扩展的内存大小，第二个表示期望扩展的最低内存大小
bool CardGeneration::expand(size_t bytes, size_t expand_bytes) {
  assert_locked_or_safepoint(Heap_lock);
  if (bytes == 0) {
    return true;  // That's what grow_by(0) would return
  }
  //做内存对齐
  size_t aligned_bytes  = ReservedSpace::page_align_size_up(bytes);
  if (aligned_bytes == 0){
    aligned_bytes = ReservedSpace::page_align_size_down(bytes);
  }
  size_t aligned_expand_bytes = ReservedSpace::page_align_size_up(expand_bytes);
  bool success = false;
  if (aligned_expand_bytes > aligned_bytes) {
    //扩展内存空间，正常来说aligned_bytes大于aligned_expand_bytes
    success = grow_by(aligned_expand_bytes);
  }
  if (!success) {
    success = grow_by(aligned_bytes);
  }
  if (!success) {
    //依然扩展失败，则尝试扩展至最大内存
    success = grow_to_reserved();
  }
  if (PrintGC && Verbose) {
    if (success && GC_locker::is_active_and_needs_gc()) {
      gclog_or_tty->print_cr("Garbage collection disabled, expanded heap instead");
    }
  }

  return success;
}

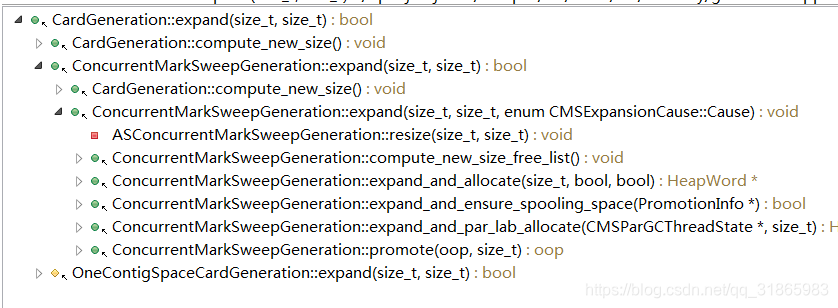

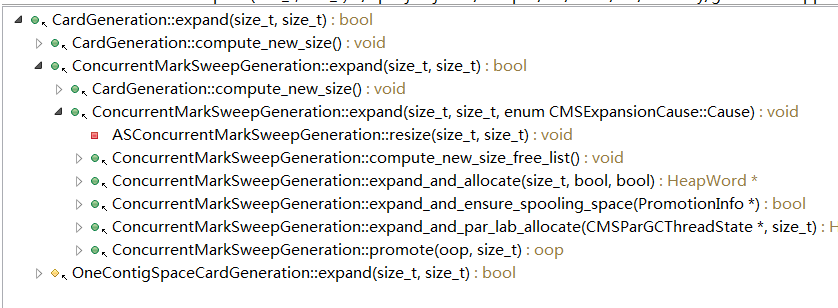

调用链如下：

3、compute_new_size

      该方法是在GC结束后根据参数MinHeapFreeRatio和MaxHeapFreeRatio以及当前内存的使用量来重新计算期望的容量，并做适当的扩容或者缩容处理，其实现如下：

void CardGeneration::compute_new_size() {
  assert(_shrink_factor <= 100, "invalid shrink factor");
  size_t current_shrink_factor = _shrink_factor;
  //将_shrink_factor置为0，后面缩容时会重新赋值
  _shrink_factor = 0;

  //MinHeapFreeRatio表示老年代空闲内存占总内存的最低百分比，默认值是80
  //计算最低的空闲百分比和最大的已使用百分比
  const double minimum_free_percentage = MinHeapFreeRatio / 100.0;
  const double maximum_used_percentage = 1.0 - minimum_free_percentage;

  //获取GC后的容量和已使用量
  const size_t used_after_gc = used();
  const size_t capacity_after_gc = capacity();

  //计算期望的最低容量，必须大于初始值
  const double min_tmp = used_after_gc / maximum_used_percentage;
  size_t minimum_desired_capacity = (size_t)MIN2(min_tmp, double(max_uintx));
  minimum_desired_capacity = MAX2(minimum_desired_capacity,
                                  spec()->init_size());
  assert(used_after_gc <= minimum_desired_capacity, "sanity check");

  if (PrintGC && Verbose) {
    const size_t free_after_gc = free();
    const double free_percentage = ((double)free_after_gc) / capacity_after_gc;
    gclog_or_tty->print_cr("TenuredGeneration::compute_new_size: ");
    gclog_or_tty->print_cr("  "
                  "  minimum_free_percentage: %6.2f"
                  "  maximum_used_percentage: %6.2f",
                  minimum_free_percentage,
                  maximum_used_percentage);
    gclog_or_tty->print_cr("  "
                  "   free_after_gc   : %6.1fK"
                  "   used_after_gc   : %6.1fK"
                  "   capacity_after_gc   : %6.1fK",
                  free_after_gc / (double) K,
                  used_after_gc / (double) K,
                  capacity_after_gc / (double) K);
    gclog_or_tty->print_cr("  "
                  "   free_percentage: %6.2f",
                  free_percentage);
  }

  if (capacity_after_gc < minimum_desired_capacity) {
    //当前容量小于期望的容量，需要扩容
    //计算期望扩容的量
    size_t expand_bytes = minimum_desired_capacity - capacity_after_gc;
    if (expand_bytes >= _min_heap_delta_bytes) {
      //必须大于最低扩容量才执行扩容
      expand(expand_bytes, 0); // safe if expansion fails
    }
    if (PrintGC && Verbose) {
      gclog_or_tty->print_cr("    expanding:"
                    "  minimum_desired_capacity: %6.1fK"
                    "  expand_bytes: %6.1fK"
                    "  _min_heap_delta_bytes: %6.1fK",
                    minimum_desired_capacity / (double) K,
                    expand_bytes / (double) K,
                    _min_heap_delta_bytes / (double) K);
    }
    return;
  }

  //当前容量大于期望的容量，需要缩容
  size_t shrink_bytes = 0;
  //计算缩容的容量
  size_t max_shrink_bytes = capacity_after_gc - minimum_desired_capacity;

  //MaxHeapFreeRatio表示空闲堆内存的最大百分比，默认是70%，用来避免缩容，通常用于老年代，但是G1和ParallelGC下应用于整个堆
  if (MaxHeapFreeRatio < 100) {
    //根据MaxHeapFreeRatio和used_after_gc计算期望的最大内存容量
    const double maximum_free_percentage = MaxHeapFreeRatio / 100.0;
    const double minimum_used_percentage = 1.0 - maximum_free_percentage;
    const double max_tmp = used_after_gc / minimum_used_percentage;
    size_t maximum_desired_capacity = (size_t)MIN2(max_tmp, double(max_uintx));
    maximum_desired_capacity = MAX2(maximum_desired_capacity,
                                    spec()->init_size());
    if (PrintGC && Verbose) {
      gclog_or_tty->print_cr("  "
                             "  maximum_free_percentage: %6.2f"
                             "  minimum_used_percentage: %6.2f",
                             maximum_free_percentage,
                             minimum_used_percentage);
      gclog_or_tty->print_cr("  "
                             "  _capacity_at_prologue: %6.1fK"
                             "  minimum_desired_capacity: %6.1fK"
                             "  maximum_desired_capacity: %6.1fK",
                             _capacity_at_prologue / (double) K,
                             minimum_desired_capacity / (double) K,
                             maximum_desired_capacity / (double) K);
    }
    assert(minimum_desired_capacity <= maximum_desired_capacity,
           "sanity check");

    if (capacity_after_gc > maximum_desired_capacity) {
      //计算需要缩容的内存容量
      shrink_bytes = capacity_after_gc - maximum_desired_capacity;
      //为了避免一次调用就缩容到初始大小，所以设置了_shrink_factor，第一次调用实际不缩容，第二次缩容10%，第三次40%，第四次100%，如果中间有一次扩容，则被重置为0
      shrink_bytes = shrink_bytes / 100 * current_shrink_factor;
      assert(shrink_bytes <= max_shrink_bytes, "invalid shrink size");
      if (current_shrink_factor == 0) {
        _shrink_factor = 10;
      } else {
        _shrink_factor = MIN2(current_shrink_factor * 4, (size_t) 100);
      }
      if (PrintGC && Verbose) {
        gclog_or_tty->print_cr("  "
                      "  shrinking:"
                      "  initSize: %.1fK"
                      "  maximum_desired_capacity: %.1fK",
                      spec()->init_size() / (double) K,
                      maximum_desired_capacity / (double) K);
        gclog_or_tty->print_cr("  "
                      "  shrink_bytes: %.1fK"
                      "  current_shrink_factor: %d"
                      "  new shrink factor: %d"
                      "  _min_heap_delta_bytes: %.1fK",
                      shrink_bytes / (double) K,
                      current_shrink_factor,
                      _shrink_factor,
                      _min_heap_delta_bytes / (double) K);
      }
    }
  }

  if (capacity_after_gc > _capacity_at_prologue) {

    //执行GC后老年代的容量变大了，这可能是因为在promote的过程中扩展了，缩容时候需要考虑这一部分内存
    size_t expansion_for_promotion = capacity_after_gc - _capacity_at_prologue;
    expansion_for_promotion = MIN2(expansion_for_promotion, max_shrink_bytes);
    shrink_bytes = MAX2(shrink_bytes, expansion_for_promotion);
    assert(shrink_bytes <= max_shrink_bytes, "invalid shrink size");
    if (PrintGC && Verbose) {
      gclog_or_tty->print_cr("  "
                             "  aggressive shrinking:"
                             "  _capacity_at_prologue: %.1fK"
                             "  capacity_after_gc: %.1fK"
                             "  expansion_for_promotion: %.1fK"
                             "  shrink_bytes: %.1fK",
                             capacity_after_gc / (double) K,
                             _capacity_at_prologue / (double) K,
                             expansion_for_promotion / (double) K,
                             shrink_bytes / (double) K);
    }
  }
  //需要缩容的内存大于最低要求，则执行缩容
  if (shrink_bytes >= _min_heap_delta_bytes) {
    shrink(shrink_bytes);
  }
}

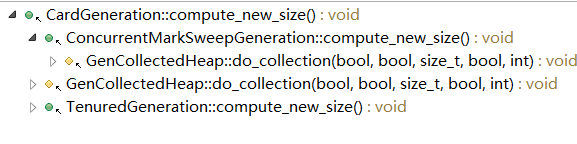

其调用链如下：

二、CMSBitMap

     CMSBitMap的定义在hotspot\src\share\vm\gc_implementation\concurrentMarkSweep\concurrentMarkSweepGeneration.hpp中，表示一个通用的CMS下的BitMap，可以用于CMS的标记BitMap和mod union table，两种场景都是使用其中的一部分方法，这个类的实现是基于BitMap类的，两种场景下的shifter属性不同。其包含的属性如下：

•   HeapWord* _bmStartWord;   //所对应的内存区域的起始地址
•   size_t    _bmWordSize;    //所对应的内存区域的大小，单位是字宽
•   const int _shifter;       // shifts to convert HeapWord to bit position
•   VirtualSpace _virtual_space; // bitMap本身使用的一段连续地址空间
•   BitMap    _bm;            // 依赖的BitMap    实例
•   Mutex* const _lock;       // 操作bm需要的锁

重点关注以下方法的实现。

1、构造方法 / allocate

      构造方法主要是初始化lock和shifter属性，其他属性都是在allocate方法中完成初始化的，其实现如下：

CMSBitMap::CMSBitMap(int shifter, int mutex_rank, const char* mutex_name):
  _bm(),
  _shifter(shifter),
  _lock(mutex_rank >= 0 ? new Mutex(mutex_rank, mutex_name, true) : NULL)
{
  _bmStartWord = 0;
  _bmWordSize  = 0;
}

bool CMSBitMap::allocate(MemRegion mr) {
  _bmStartWord = mr.start();
  _bmWordSize  = mr.word_size();
  //为bitMap申请指定大小的一段连续地址段
  ReservedSpace brs(ReservedSpace::allocation_align_size_up(
                     (_bmWordSize >> (_shifter + LogBitsPerByte)) + 1));
  if (!brs.is_reserved()) {
    //分配失败
    warning("CMS bit map allocation failure");
    return false;
  }
  //初始化_virtual_space
  if (!_virtual_space.initialize(brs, brs.size())) {
    warning("CMS bit map backing store failure");
    return false;
  }
  assert(_virtual_space.committed_size() == brs.size(),
         "didn't reserve backing store for all of CMS bit map?");
  //设置bitMap的映射起始地址
  _bm.set_map((BitMap::bm_word_t*)_virtual_space.low());
  assert(_virtual_space.committed_size() << (_shifter + LogBitsPerByte) >=
         _bmWordSize, "inconsistency in bit map sizing");
  //设置大小
  _bm.set_size(_bmWordSize >> _shifter);

  // bm.clear(); // can we rely on getting zero'd memory? verify below
  assert(isAllClear(),
         "Expected zero'd memory from ReservedSpace constructor");
  assert(_bm.size() == heapWordDiffToOffsetDiff(sizeInWords()),
         "consistency check");
  return true;
}

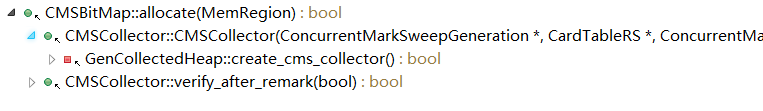

其调用链如下：



2、mark / par_mark / mark_range / par_mark_range / mark_large_range / par_mark_large_range

     mark和par_mark是将某个地址在BitMap中对应的位打标，mark_range和par_mark_range是将某个小范围的地址区间在BitMap中对应的位打标，mark_large_range 和 par_mark_large_range将某个大范围的地址区间在BitMap中对应的位打标，通常起始地址大于32位，其实现如下：

inline void CMSBitMap::mark(HeapWord* addr) {
  //校验已经获取了锁
  assert_locked();
  //校验addr在CMSBitMap对应的地址范围内
  assert(_bmStartWord <= addr && addr < (_bmStartWord + _bmWordSize),
         "outside underlying space?");
  _bm.set_bit(heapWordToOffset(addr));
}

inline bool CMSBitMap::par_mark(HeapWord* addr) {
  assert_locked();
  assert(_bmStartWord <= addr && addr < (_bmStartWord + _bmWordSize),
         "outside underlying space?");
  return _bm.par_at_put(heapWordToOffset(addr), true);
}

inline size_t CMSBitMap::heapWordToOffset(HeapWord* addr) const {
  return (pointer_delta(addr, _bmStartWord)) >> _shifter;
}

inline void BitMap::set_bit(idx_t bit) {
  verify_index(bit);
  *word_addr(bit) |= bit_mask(bit);
}

bool BitMap::par_at_put(idx_t bit, bool value) {
  //par_set_bit与set_bit的区别在于使用cmpxchg_ptr改变指定地址的值，返回true表示修改成功，返回false表示其他线程完成了修改
  //底层实现都是将bit映射至bitMap中对应的地址上，然后修改指定的位
  return value ? par_set_bit(bit) : par_clear_bit(bit);
}

inline void CMSBitMap::mark_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  //通过heapWordToOffset算出来的起始地址通常只相差一位
  _bm.set_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                BitMap::small_range);
}

inline void CMSBitMap::par_mark_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  // Range size is usually just 1 bit.
  _bm.par_set_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                    BitMap::small_range);
}

inline void CMSBitMap::mark_large_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  //通过heapWordToOffset算出来的起始地址通常只相差至少32位
  _bm.set_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                BitMap::large_range);
}

inline void CMSBitMap::par_mark_large_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  // Range size must be greater than 32 bytes.
  _bm.par_set_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                    BitMap::large_range);
}

void CMSBitMap::region_invariant(MemRegion mr)
{
  assert_locked();
  // mr = mr.intersection(MemRegion(_bmStartWord, _bmWordSize));
  assert(!mr.is_empty(), "unexpected empty region");
  assert(covers(mr), "mr should be covered by bit map");
  // convert address range into offset range
  size_t start_ofs = heapWordToOffset(mr.start());
  //校验mr的结束地址已经对齐了
  assert(mr.end() == (HeapWord*)round_to((intptr_t)mr.end(),
                        ((intptr_t) 1 << (_shifter+LogHeapWordSize))),
         "Misaligned mr.end()");
  size_t end_ofs   = heapWordToOffset(mr.end());
  //校验结束地址大于起始地址
  assert(end_ofs > start_ofs, "Should mark at least one bit");
}

//判断mr是否在指BitMap对应的内存区域中
bool CMSBitMap::covers(MemRegion mr) const {
  // assert(_bm.map() == _virtual_space.low(), "map inconsistency");
  assert((size_t)_bm.size() == (_bmWordSize >> _shifter),
         "size inconsistency");
  return (mr.start() >= _bmStartWord) &&
         (mr.end()   <= endWord());
}

HeapWord* endWord()     const { return _bmStartWord + _bmWordSize; }

inline void BitMap::set_range(idx_t beg, idx_t end, RangeSizeHint hint) {
  if (hint == small_range && end - beg == 1) {
    set_bit(beg);
  } else {
    if (hint == large_range) {
      set_large_range(beg, end);
    } else {
      set_range(beg, end);
    }
  }
}

3、isMarked / par_isMarked / isUnmarked /isAllClear

      isMarked 和par_isMarked 用于判断某个地址是否已经打标，isUnmarked与之相反，是否未打标，isAllClear用于判断是否所有的标志都被清除了，其实现如下：

inline bool CMSBitMap::isMarked(HeapWord* addr) const {
  assert_locked();
  assert(_bmStartWord <= addr && addr < (_bmStartWord + _bmWordSize),
         "outside underlying space?");
  return _bm.at(heapWordToOffset(addr));
}

inline bool CMSBitMap::par_isMarked(HeapWord* addr) const {
  //与isMarked相比，不需要检查锁
  assert(_bmStartWord <= addr && addr < (_bmStartWord + _bmWordSize),
         "outside underlying space?");
  return _bm.at(heapWordToOffset(addr));
}


inline bool CMSBitMap::isUnmarked(HeapWord* addr) const {
  assert_locked();
  assert(_bmStartWord <= addr && addr < (_bmStartWord + _bmWordSize),
         "outside underlying space?");
  return !_bm.at(heapWordToOffset(addr));
}

bool at(idx_t index) const {
    verify_index(index);
    //判断BitMap中对应的映射地址的对应位是否是1，如果是1,1!=0返回true，表示已经被标记了
    return (*word_addr(index) & bit_mask(index)) != 0;
  }

//返回在BitMap中对应的映射地址，64位下一个地址有8字节，64位，类似于HashMap中的一个槽位
bm_word_t* word_addr(idx_t bit) const { return map() + word_index(bit); }

//将偏移量进一步右移6位，LogBitsPerByte在64位下都是3，LogBitsPerWord是6
//右移6位丢失的精度通过bit_mask补回来
static idx_t word_index(idx_t bit)  { return bit >> LogBitsPerWord; }

//返回的值实际是2的整数倍，就64位中只有1位是1，其他的都是0
static bm_word_t bit_mask(idx_t bit) { return (bm_word_t)1 << bit_in_word(bit); }

//BitsPerWord在64位下是64，这里实际是bit对64取余
static idx_t bit_in_word(idx_t bit) { return bit & (BitsPerWord - 1); }

inline size_t CMSBitMap::heapWordToOffset(HeapWord* addr) const {
  //pointer_delta算出addr相对于起始地址的偏移量，单位是字节
  return (pointer_delta(addr, _bmStartWord)) >> _shifter;
}

inline bool CMSBitMap::isAllClear() const {
  assert_locked();
  //获取下一个被标记的地址，如果该地址大于等于结束地址，则认为所有的打标都清空了
  return getNextMarkedWordAddress(startWord()) >= endWord();
}

 结合上面打标方法的分析可知，BitMap的实现是基于对象地址都是按照8字节，即一个字宽大小对齐的，所谓打标就是将某个对象地址映射成BitMap内存的某个地址上的某个位，某个地址类似于HashMap中的一个槽，然后将这个位上的值置为1。

4、par_clear / clear_range / par_clear_range / clear_large_range / par_clear_large_range /clear_all

    par_clear用于清除某个地址在BitMap中对应的标志，clear_range和par_clear_range用于清除某个小范围的地址区间在BitMap中对应的位的标志，clear_large_range和par_clear_large_range用于清除某个大范围的地址区间在BitMap中对应的位的标志，clear_all用于清空BitMap中所有的标志，其实现如下：

inline void CMSBitMap::par_clear(HeapWord* addr) {
  assert_locked();
  assert(_bmStartWord <= addr && addr < (_bmStartWord + _bmWordSize),
         "outside underlying space?");
  _bm.par_at_put(heapWordToOffset(addr), false);
}

inline void CMSBitMap::clear_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  // Range size is usually just 1 bit.
  _bm.clear_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                  BitMap::small_range);
}

inline void CMSBitMap::par_clear_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  // Range size is usually just 1 bit.
  _bm.par_clear_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                      BitMap::small_range);
}

inline void CMSBitMap::clear_large_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  // Range size must be greater than 32 bytes.
  _bm.clear_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                  BitMap::large_range);
}

inline void CMSBitMap::par_clear_large_range(MemRegion mr) {
  NOT_PRODUCT(region_invariant(mr));
  // Range size must be greater than 32 bytes.
  _bm.par_clear_range(heapWordToOffset(mr.start()), heapWordToOffset(mr.end()),
                      BitMap::large_range);
}

inline void BitMap::clear_range(idx_t beg, idx_t end, RangeSizeHint hint) {
  if (hint == small_range && end - beg == 1) {
    clear_bit(beg);
  } else {
    if (hint == large_range) {
      clear_large_range(beg, end);
    } else {
      clear_range(beg, end);
    }
  }
}

inline void CMSBitMap::clear_all() {
  assert_locked();
  // CMS bitmaps are usually cover large memory regions
  _bm.clear_large();
  return;
}

5、getNextMarkedWordAddress / getNextUnmarkedWordAddress / getAndClearMarkedRegion

     三个方法都有两个重载版本，指定起止地址和只指定起始地址，结束地址默认BitMap的结束地址。getNextMarkedWordAddress返回指定地址范围的第一个位等于1的地址，getNextUnmarkedWordAddress返回指定地址范围的第一个位等于0的地址，getAndClearMarkedRegion用于清除指定地址范围内第一个被连续打标的区域的标志，其实现如下：

inline HeapWord* CMSBitMap::getNextMarkedWordAddress(HeapWord* addr) const {
  return getNextMarkedWordAddress(addr, endWord());
}

inline HeapWord* CMSBitMap::getNextMarkedWordAddress(
  HeapWord* start_addr, HeapWord* end_addr) const {
  assert_locked();
  //找到在指定地址范围内位下一个等于1的地址
  size_t nextOffset = _bm.get_next_one_offset(
                        heapWordToOffset(start_addr),
                        heapWordToOffset(end_addr));
  //将BitMap中的地址转换成实际地址
  HeapWord* nextAddr = offsetToHeapWord(nextOffset);
  assert(nextAddr >= start_addr &&
         nextAddr <= end_addr, "get_next_one postcondition");
  assert((nextAddr == end_addr) ||
         isMarked(nextAddr), "get_next_one postcondition");
  return nextAddr;
}

inline HeapWord* CMSBitMap::offsetToHeapWord(size_t offset) const {
  return _bmStartWord + (offset << _shifter);
}

inline HeapWord* CMSBitMap::getNextUnmarkedWordAddress(HeapWord* addr) const {
  return getNextUnmarkedWordAddress(addr, endWord());
}

inline HeapWord* CMSBitMap::getNextUnmarkedWordAddress(
  HeapWord* start_addr, HeapWord* end_addr) const {
  assert_locked();
   //找到在指定地址范围内位下一个等于0的地址
  size_t nextOffset = _bm.get_next_zero_offset(
                        heapWordToOffset(start_addr),
                        heapWordToOffset(end_addr));
  //将BitMap中的地址转换成实际地址
  HeapWord* nextAddr = offsetToHeapWord(nextOffset);
  assert(nextAddr >= start_addr &&
         nextAddr <= end_addr, "get_next_zero postcondition");
  assert((nextAddr == end_addr) ||
          isUnmarked(nextAddr), "get_next_zero postcondition");
  return nextAddr;
}

inline MemRegion CMSBitMap::getAndClearMarkedRegion(HeapWord* addr) {
  return getAndClearMarkedRegion(addr, endWord());
}

inline MemRegion CMSBitMap::getAndClearMarkedRegion(HeapWord* start_addr,
                                                    HeapWord* end_addr) {
  HeapWord *start, *end;
  assert_locked();
  //找到start_addr后第一个打标的地址
  start = getNextMarkedWordAddress  (start_addr, end_addr);
  //找到start之后的第一个没有打标的地址，start和end之间的区域就是一段连续打标的区域
  end   = getNextUnmarkedWordAddress(start,      end_addr);
  assert(start <= end, "Consistency check");
  MemRegion mr(start, end);
  if (!mr.is_empty()) {
    //将start和end之间的标志去掉
    clear_range(mr);
  }
  return mr;
}

 6、iterate / dirty_range_iterate_clear

      这两个方法都有两个重载版本，一个指定起止地址范围里，一个在整个BitMap对应的地址范围内，都是用来遍历指定地址范围内打标的位，会将这些位转换成真实地址，然后再对真实地址做必要的处理，其实现如下：

inline void CMSBitMap::iterate(BitMapClosure* cl, HeapWord* left,
                            HeapWord* right) {
  assert_locked();
  left = MAX2(_bmStartWord, left);
  right = MIN2(_bmStartWord + _bmWordSize, right);
  if (right > left) {
    //遍历逻辑封装在bm里面，BitMapClosure会自动将BitMap的映射地址转换成真实地址
    _bm.iterate(cl, heapWordToOffset(left), heapWordToOffset(right));
  }
}

void iterate(BitMapClosure* cl) {
    _bm.iterate(cl);
  }

void CMSBitMap::dirty_range_iterate_clear(MemRegion mr, MemRegionClosure* cl) {
  HeapWord *next_addr, *end_addr, *last_addr;
  assert_locked();
  assert(covers(mr), "out-of-range error");
  for (next_addr = mr.start(), end_addr = mr.end();
       next_addr < end_addr; next_addr = last_addr) {
    //找到BitMap中下一个连续的被打标的区域
    MemRegion dirty_region = getAndClearMarkedRegion(next_addr, end_addr);
    last_addr = dirty_region.end();
    if (!dirty_region.is_empty()) {
      //执行遍历
      cl->do_MemRegion(dirty_region);
    } else {
      assert(last_addr == end_addr, "program logic");
      return;
    }
  }
}

三、CMSMarkStack

     CMSMarkStack是一个基于可扩容数组实现的保存oop的栈，其定义同样在concurrentMarkSweepGeneration.hpp中，包含的属性如下：

•   VirtualSpace _virtual_space;  // 对应的内存区域
•   oop*   _base;      // oop数组的基地址
•   size_t _index;     //Stack中元素的个数
•   size_t _capacity;  // 允许的最大容量
•   Mutex  _par_lock;  // 并发操作base的锁
•   size_t _hit_limit;      // 记录MarkStack的容量达到最大值的次数
•   size_t _failed_double;  // 记录MarkStack扩容失败的次数

重点关注以下方法的实现。

1、构造方法和allocate

     这两个都是用来初始化CMSMarkStack的，其实现如下：

CMSMarkStack():
    _par_lock(Mutex::event, "CMSMarkStack._par_lock", true),
    _hit_limit(0),
    _failed_double(0) {}


bool CMSMarkStack::allocate(size_t size) {
  //按照size个oop大小申请内存，oop实际是oopDesc*的别名
  ReservedSpace rs(ReservedSpace::allocation_align_size_up(
                   size * sizeof(oop)));
  if (!rs.is_reserved()) {
    //申请内存失败
    warning("CMSMarkStack allocation failure");
    return false;
  }
  //初始化_virtual_space
  if (!_virtual_space.initialize(rs, rs.size())) {
    warning("CMSMarkStack backing store failure");
    return false;
  }
  assert(_virtual_space.committed_size() == rs.size(),
         "didn't reserve backing store for all of CMS stack?");
  //将申请内存的基地址作为base数组的起始地址
  _base = (oop*)(_virtual_space.low());
  _index = 0;
  _capacity = size;
  NOT_PRODUCT(_max_depth = 0);
  return true;
}

其调用链如下：



2、pop / push / par_pop / par_push

     pop就是弹出栈顶oop，push就是把oop压入栈顶，par版本就是多了一步获取锁的动作，其实现如下：

oop pop() {
    if (!isEmpty()) {
      //index先减1，在返回减一后的index对应的oop
      return _base[--_index] ;
    }
    return NULL;
  }

bool isEmpty() const { return _index == 0; }

bool push(oop ptr) {
    if (isFull()) {
      return false;
    } else {
      //先将index处的元素置为ptr，再将index加1
      _base[_index++] = ptr;
      NOT_PRODUCT(_max_depth = MAX2(_max_depth, _index));
      return true;
    }
  }

bool isFull()  const {
    assert(_index <= _capacity, "buffer overflow");
    return _index == _capacity;
  }

oop par_pop() {
    MutexLockerEx x(&_par_lock, Mutex::_no_safepoint_check_flag);
    return pop();
  }

bool par_push(oop ptr) {
    MutexLockerEx x(&_par_lock, Mutex::_no_safepoint_check_flag);
    return push(ptr);
  }

 3、expand

      expand方法用于扩容，不同于同样基于数组实现的ArrayList的扩容，这里只是重新申请了两倍MarkStack原来对应的内存区域，原来的内存区域直接释放了，其实现如下：

void CMSMarkStack::expand() {
  //MarkStackSizeMax表示MarkStack的最大大小，64位下默认是512M
  assert(_capacity <= MarkStackSizeMax, "stack bigger than permitted");
  if (_capacity == MarkStackSizeMax) {
    //如果达到最大容量了
    if (_hit_limit++ == 0 && !CMSConcurrentMTEnabled && PrintGCDetails) {
      gclog_or_tty->print_cr(" (benign) Hit CMSMarkStack max size limit");
    }
    return;
  }
  //扩容一倍
  size_t new_capacity = MIN2(_capacity*2, MarkStackSizeMax);
  //申请内存
  ReservedSpace rs(ReservedSpace::allocation_align_size_up(
                   new_capacity * sizeof(oop)));
  if (rs.is_reserved()) {
    //释放原来的内存
    _virtual_space.release();
    //重试初始化
    if (!_virtual_space.initialize(rs, rs.size())) {
      fatal("Not enough swap for expanded marking stack");
    }
    //重置属性
    _base = (oop*)(_virtual_space.low());
    _index = 0;
    _capacity = new_capacity;
  } else if (_failed_double++ == 0 && !CMSConcurrentMTEnabled && PrintGCDetails) {
    //申请内存失败
    gclog_or_tty->print(" (benign) Failed to expand marking stack from " SIZE_FORMAT "K to "
            SIZE_FORMAT "K",
            _capacity / K, new_capacity / K);
  }
}

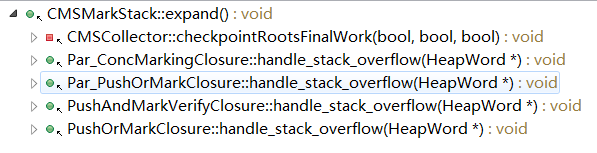

其调用链如下：

四、ChunkArray

      ChunkArray表示一个保存Chunk地址的数组，其定义同样在在concurrentMarkSweepGeneration.hpp中，包含如下属性：

•  size_t _index; //ChunkArray中包含的Chunk地址的个数
•   size_t _capacity; //ChunkArray的最大容量
•   size_t _overflows; //达到ChunkArray容量的次数
•   HeapWord** _array;   // 保存Chunk地址的数组基地址

重点关注以下方法的实现：

ChunkArray(HeapWord** a, size_t c):
    _index(0), _capacity(c), _overflows(0), _array(a) {}

HeapWord* nth(size_t n) {
    //返回索引为n的地址
    assert(n < end(), "Out of bounds access");
    return _array[n];
  }

void record_sample(HeapWord* p, size_t sz) {
    //将Chunk地址p保存到数组中
    if (_index < _capacity) {
      _array[_index++] = p;
    } else {
      ++_overflows;
      assert(_index == _capacity,
             err_msg("_index (" SIZE_FORMAT ") > _capacity (" SIZE_FORMAT
                     "): out of bounds at overflow#" SIZE_FORMAT,
                     _index, _capacity, _overflows));
    }
  }



来源：CSDN

作者：孙大圣666

链接：https://blog.csdn.net/qq_31865983/article/details/104099460
