Android屏幕录制

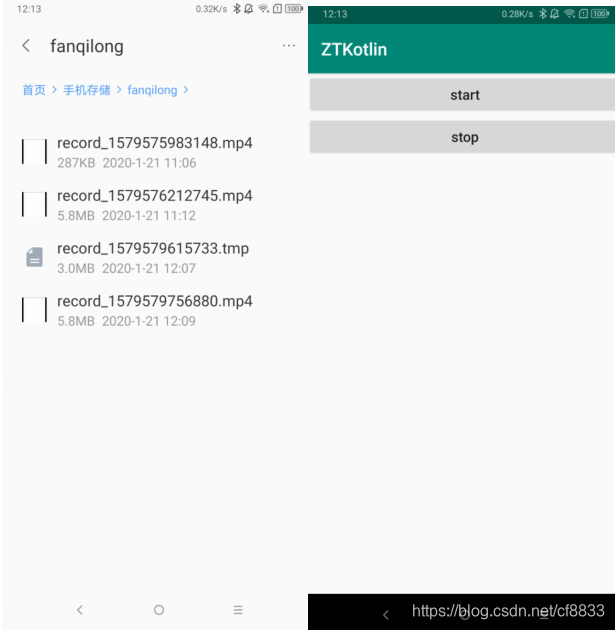

1.效果图：

2.添加依赖

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation"org.jetbrains.kotlin:kotlin-stdlib-jdk7:$kotlin_version"
    implementation 'androidx.appcompat:appcompat:1.1.0'
    implementation 'androidx.core:core-ktx:1.0.2'
    implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test.ext:junit:1.1.1'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.2.0'
    api 'com.blankj:utilcode:1.24.4'
}

repositories {
    mavenCentral()
}

3.注册权限：

    <uses-permission android:name="android.permission.RECORD_AUDIO" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

4.主界面，

test.aac是录屏的时候配的音乐，可以随便找另外一个放到assets文件夹里面进行替换

package com.ufi.pdioms.ztkotlin


import android.content.Intent
import android.content.res.AssetFileDescriptor
import android.media.MediaPlayer
import android.os.Build
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.util.Log
import android.widget.Toast
import com.blankj.utilcode.util.PathUtils
import kotlinx.android.synthetic.main.activity_main.*

class MainActivity : AppCompatActivity() {
    // https://github.com/fanqilongmoli/AndroidScreenRecord
    private var screenRecordHelper: ScreenRecordHelper? = null
    private val afdd:AssetFileDescriptor by lazy { assets.openFd("test.aac") }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        btnStart.setOnClickListener {
            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
                if (screenRecordHelper == null) {
                    screenRecordHelper = ScreenRecordHelper(this, object : ScreenRecordHelper.OnVideoRecordListener {
                        override fun onBeforeRecord() {
                        }

                        override fun onStartRecord() {
                            play()
                        }

                        override fun onCancelRecord() {
                            releasePlayer()
                        }

                        override fun onEndRecord() {
                            releasePlayer()
                        }

                    }, PathUtils.getExternalStoragePath() + "/fanqilong")
                }
                screenRecordHelper?.apply {
                    if (!isRecording) {
                        // 如果你想录制音频（一定会有环境音量），你可以打开下面这个限制,并且使用不带参数的 stopRecord()
//                        recordAudio = true
                        startRecord()
                    }
                }
            } else {
                Toast.makeText(this@MainActivity.applicationContext, "sorry,your phone does not support recording screen", Toast.LENGTH_LONG).show()
            }
        }

        btnStop.setOnClickListener {
            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
                screenRecordHelper?.apply {
                    if (isRecording) {
                        if (mediaPlayer != null) {
                            // 如果选择带参数的 stop 方法，则录制音频无效
                            stopRecord(mediaPlayer!!.duration.toLong(), 15 * 1000, afdd)
                        } else {
                            stopRecord()
                        }
                    }
                }
            }
        }
    }

    private fun play() {
        mediaPlayer = MediaPlayer()
        try {
            mediaPlayer?.apply {
                this.reset()
                this.setDataSource(afdd.fileDescriptor, afdd.startOffset, afdd.length)
                this.isLooping = true
                this.prepare()
                this.start()
            }
        } catch (e: Exception) {
            Log.d("fanqilong", "播放音乐失败")
        } finally {

        }
    }

    // 音频播放
    private var mediaPlayer: MediaPlayer? = null

    private fun releasePlayer() {
        mediaPlayer?.apply {
            stop()
            release()
        }
        mediaPlayer = null
    }

    override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
        super.onActivityResult(requestCode, resultCode, data)
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP && data != null) {
            screenRecordHelper?.onActivityResult(requestCode, resultCode, data)
        }
    }

    override fun onDestroy() {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            screenRecordHelper?.clearAll()
        }
        afdd.close()
        super.onDestroy()
    }
}

5.录屏代码

package com.ufi.pdioms.ztkotlin



import android.app.Activity
import android.content.Context
import android.content.Intent
import android.content.pm.PackageManager
import android.content.res.AssetFileDescriptor
import android.hardware.display.DisplayManager
import android.hardware.display.VirtualDisplay
import android.media.*
import android.media.projection.MediaProjection
import android.media.projection.MediaProjectionManager
import android.net.Uri
import android.os.Build
import android.os.Environment
import android.os.Handler
import android.util.DisplayMetrics
import android.util.Log
import android.widget.Toast
import androidx.annotation.RequiresApi
import com.blankj.utilcode.constant.PermissionConstants
import com.blankj.utilcode.util.PermissionUtils
import java.io.File
import java.lang.Exception
import java.nio.ByteBuffer

@RequiresApi(Build.VERSION_CODES.LOLLIPOP)
class ScreenRecordHelper @JvmOverloads constructor(
    private var activity: Activity,
    private val listener: OnVideoRecordListener?,
    private var savePath: String = Environment.getExternalStorageDirectory().absolutePath + File.separator
            + "DCIM" + File.separator + "Camera",
    private val saveName: String = "record_${System.currentTimeMillis()}"
) {

    private val mediaProjectionManager by lazy { activity.getSystemService(Context.MEDIA_PROJECTION_SERVICE) as? MediaProjectionManager }
    private var mediaRecorder: MediaRecorder? = null
    private var mediaProjection: MediaProjection? = null
    private var virtualDisplay: VirtualDisplay? = null
    private val displayMetrics by lazy { DisplayMetrics() }
    private var saveFile: File? = null
    var isRecording = false
    var recordAudio = false

    init {
        activity.windowManager.defaultDisplay.getMetrics(displayMetrics)
    }

    companion object {
        private const val VIDEO_FRAME_RATE = 30
        private const val REQUEST_CODE = 1024
        private const val TAG = "ScreenRecordHelper"
    }

    fun startRecord() {
        if (mediaProjectionManager == null) {
            Log.d(TAG, "mediaProjectionManager == null，当前手机暂不支持录屏")
            showToast(R.string.phone_not_support_screen_record)
            return
        }

        PermissionUtils.permission(PermissionConstants.STORAGE, PermissionConstants.MICROPHONE)
            .callback(object : PermissionUtils.SimpleCallback {
                override fun onGranted() {
                    mediaProjectionManager?.apply {
                        listener?.onBeforeRecord()
                        val intent = this.createScreenCaptureIntent()
                        if (activity.packageManager.resolveActivity(
                                intent,
                                PackageManager.MATCH_DEFAULT_ONLY
                            ) != null
                        ) {
                            activity.startActivityForResult(intent, REQUEST_CODE)
                        } else {
                            showToast(R.string.phone_not_support_screen_record)
                        }
                    }
                }

                override fun onDenied() {
                    showToast(R.string.permission_denied)
                }

            }).request()
    }

    @RequiresApi(Build.VERSION_CODES.N)
    fun resume() {
        mediaRecorder?.resume()
    }

    @RequiresApi(Build.VERSION_CODES.N)
    fun pause() {
        mediaRecorder?.pause()
    }

    fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent) {
        if (requestCode == REQUEST_CODE) {
            if (resultCode == Activity.RESULT_OK) {
                mediaProjection = mediaProjectionManager!!.getMediaProjection(resultCode, data)

                // 部分手机录制视频的时候 会出现弹框
                Handler().postDelayed({
                    if (initRecorder()) {
                        isRecording = true
                        mediaRecorder?.start()
                        listener?.onStartRecord()
                    } else {
                        showToast(R.string.phone_not_support_screen_record)
                    }
                }, 150)
            } else {
                showToast(R.string.phone_not_support_screen_record)
            }
        }
    }

    fun cancelRecord(){
        stopRecord()
        saveFile?.delete()
        saveFile = null
        listener?.onCancelRecord()
    }


    fun stopRecord(videoDuration: Long = 0, audioDuration: Long = 0, afdd: AssetFileDescriptor? = null){
        stop()
        if (audioDuration != 0L && afdd != null) {
            syntheticAudio(videoDuration, audioDuration, afdd)
        } else {
            // saveFile
            if (saveFile != null) {
                val newFile = File(savePath, "$saveName.mp4")
                // 录制结束后修改后缀为 mp4
                saveFile!!.renameTo(newFile)
                refreshVideo(newFile)
            }
            saveFile = null
        }
    }


    private fun refreshVideo(newFile: File) {
        Log.d(TAG, "screen record end,file length:${newFile.length()}.")
        if (newFile.length() > 5000) {
            val intent = Intent(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE)
            intent.data = Uri.fromFile(newFile)
            activity.sendBroadcast(intent)
            Log.e("TAG","refreshVideo: "+savePath)
            showToast(R.string.save_to_album_success)
        } else {
            newFile.delete()
            showToast(R.string.phone_not_support_screen_record)
            Log.d(TAG, activity.getString(R.string.record_faild))
        }
    }

    private fun stop() {
        if (isRecording) {
            isRecording = false
            try {
                mediaRecorder?.apply {
                    setOnErrorListener(null)
                    setOnInfoListener(null)
                    setPreviewDisplay(null)
                    stop()
                    Log.d(TAG, "stop success")
                }
            } catch (e: Exception) {
                Log.e(TAG, "stopRecorder() error！${e.message}")
            } finally {
                mediaRecorder?.reset()
                virtualDisplay?.release()
                mediaProjection?.stop()
                listener?.onEndRecord()
            }


        }
    }

    private fun initRecorder(): Boolean {
        var result = true
        val f = File(savePath)
        if (!f.exists()) {
            f.mkdir()
        }
        saveFile = File(savePath, "$saveName.tmp")
        saveFile?.apply {
            if (exists()) {
                delete()
            }
        }
        mediaRecorder = MediaRecorder()
        val width = Math.min(displayMetrics.widthPixels, 1080)
        val height = Math.min(displayMetrics.heightPixels, 1920)
        mediaRecorder?.apply {
            if (recordAudio) {
                setAudioSource(MediaRecorder.AudioSource.MIC)
            }
            setVideoSource(MediaRecorder.VideoSource.SURFACE)
            setOutputFormat(MediaRecorder.OutputFormat.MPEG_4)
            setVideoEncoder(MediaRecorder.VideoEncoder.H264)
            if (recordAudio) {
                setAudioEncoder(MediaRecorder.AudioEncoder.AMR_NB)
            }
            setOutputFile(saveFile!!.absolutePath)
            setVideoSize(width, height)
            setVideoEncodingBitRate(8388608)
            setVideoFrameRate(VIDEO_FRAME_RATE)

            try {

                prepare()
                virtualDisplay = mediaProjection?.createVirtualDisplay(
                    "MainScreen", width, height, displayMetrics.densityDpi,
                    DisplayManager.VIRTUAL_DISPLAY_FLAG_AUTO_MIRROR, surface, null, null
                )
                Log.d(TAG, "initRecorder 成功")
            } catch (e: Exception) {
                Log.e(TAG, "IllegalStateException preparing MediaRecorder: ${e.message}")
                e.printStackTrace()
                result = false
            }
        }

        return result
    }


    private fun showToast(resId: Int) {
        Toast.makeText(activity.applicationContext, activity.applicationContext.getString(resId), Toast.LENGTH_SHORT)
            .show()
    }

    fun clearAll() {
        mediaRecorder?.release()
        mediaRecorder = null
        virtualDisplay?.release()
        virtualDisplay = null
        mediaProjection?.stop()
        mediaProjection = null
    }

    /**
     * https://stackoverflow.com/questions/31572067/android-how-to-mux-audio-file-and-video-file
     */
    private fun syntheticAudio(audioDuration: Long, videoDuration: Long, afdd: AssetFileDescriptor) {
        Log.d(TAG, "start syntheticAudio")
        val newFile = File(savePath, "$saveName.mp4")
        if (newFile.exists()) {
            newFile.delete()
        }
        try {
            newFile.createNewFile()
            val videoExtractor = MediaExtractor()
            videoExtractor.setDataSource(saveFile!!.absolutePath)
            val audioExtractor = MediaExtractor()
            afdd.apply {
                audioExtractor.setDataSource(fileDescriptor, startOffset, length * videoDuration / audioDuration)
            }
            val muxer = MediaMuxer(newFile.absolutePath, MediaMuxer.OutputFormat.MUXER_OUTPUT_MPEG_4)
            videoExtractor.selectTrack(0)
            val videoFormat = videoExtractor.getTrackFormat(0)
            val videoTrack = muxer.addTrack(videoFormat)

            audioExtractor.selectTrack(0)
            val audioFormat = audioExtractor.getTrackFormat(0)
            val audioTrack = muxer.addTrack(audioFormat)

            var sawEOS = false
            var frameCount = 0
            val offset = 100
            val sampleSize = 1000 * 1024
            val videoBuf = ByteBuffer.allocate(sampleSize)
            val audioBuf = ByteBuffer.allocate(sampleSize)
            val videoBufferInfo = MediaCodec.BufferInfo()
            val audioBufferInfo = MediaCodec.BufferInfo()

            videoExtractor.seekTo(0, MediaExtractor.SEEK_TO_CLOSEST_SYNC)
            audioExtractor.seekTo(0, MediaExtractor.SEEK_TO_CLOSEST_SYNC)

            muxer.start()

            // 每秒多少帧
            // 实测 OPPO R9em 垃圾手机，拿出来的没有 MediaFormat.KEY_FRAME_RATE
            val frameRate = if (videoFormat.containsKey(MediaFormat.KEY_FRAME_RATE)) {
                videoFormat.getInteger(MediaFormat.KEY_FRAME_RATE)
            } else {
                31
            }
            // 得出平均每一帧间隔多少微妙
            val videoSampleTime = 1000 * 1000 / frameRate
            while (!sawEOS) {
                videoBufferInfo.offset = offset
                videoBufferInfo.size = videoExtractor.readSampleData(videoBuf, offset)
                if (videoBufferInfo.size < 0) {
                    sawEOS = true
                    videoBufferInfo.size = 0
                } else {
                    videoBufferInfo.presentationTimeUs += videoSampleTime
                    videoBufferInfo.flags = videoExtractor.sampleFlags
                    muxer.writeSampleData(videoTrack, videoBuf, videoBufferInfo)
                    videoExtractor.advance()
                    frameCount++
                }
            }
            var sawEOS2 = false
            var frameCount2 = 0
            while (!sawEOS2) {
                frameCount2++
                audioBufferInfo.offset = offset
                audioBufferInfo.size = audioExtractor.readSampleData(audioBuf, offset)

                if (audioBufferInfo.size < 0) {
                    sawEOS2 = true
                    audioBufferInfo.size = 0
                } else {
                    audioBufferInfo.presentationTimeUs = audioExtractor.sampleTime
                    audioBufferInfo.flags = audioExtractor.sampleFlags
                    muxer.writeSampleData(audioTrack, audioBuf, audioBufferInfo)
                    audioExtractor.advance()
                }
            }
            muxer.stop()
            muxer.release()
            videoExtractor.release()
            audioExtractor.release()

            // 删除无声视频文件
            saveFile?.delete()
        } catch (e: Exception) {
            Log.e(TAG, "Mixer Error:${e.message}")
            // 视频添加音频合成失败，直接保存视频
            saveFile?.renameTo(newFile)

        } finally {
            afdd.close()
            Handler().post {
                refreshVideo(newFile)
                saveFile = null
            }
        }
    }


    interface OnVideoRecordListener {

        /**
         * 录制开始时隐藏不必要的UI
         */
        fun onBeforeRecord()

        /**
         * 开始录制
         */
        fun onStartRecord()

        /**
         * 取消录制
         */
        fun onCancelRecord()

        /**
         * 结束录制
         */
        fun onEndRecord()
    }
}

6.布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <Button android:id="@+id/btnStart"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textAllCaps="false"
        android:text="start"/>

    <Button android:id="@+id/btnStop"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textAllCaps="false"
        android:text="stop"/>


</LinearLayout>

end

来源：CSDN

作者：cf8833

链接：https://blog.csdn.net/cf8833/article/details/104060655
