Spring整合Quartz
1、quartz调度框架是有内置表的
进入quartz的官网http://www.quartz-scheduler.org/，点击Downloads
下载quartz-2.2.3-distribution.tar
下载后在目录\docs\dbTables下有常用数据库创建quartz表的脚本
例如：“tables_mysql.sql”
table_mysql.sql
table_mysql_innodb.sql
上述两者所有的数据库引擎不一样

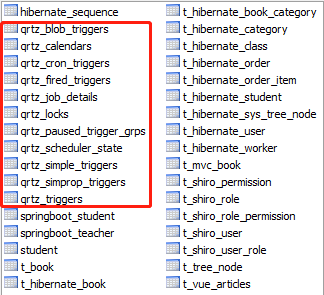

在数据库里导入table_mysql.sql内置表
2、创建工程
导入pom依赖和逆向生成插件
<dependency>
<groupId>org.quartz-scheduler</groupId>
<artifactId>quartz-jobs</artifactId>
<version>2.2.1</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-quartz</artifactId>
</dependency>
<!--quartz需要使用C3P0连接池将数据持久化到数据库-->
<!--Quartz各版本数据库连接池技术更新情况-->
<!--Quartz 2.0 以前 DBCP-->
<!--Quartz 2.0 以后 C3P0（包含2.0）-->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.5.2</version>
</dependency>
更换成Druid连接池
A、 引入依赖
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>1.1.10</version>
</dependency>
B、 导入DruidConnectionProvider.java
C、修改quartz.properties配置
#配置数据库源
org.quartz.dataSource.qzDS.connectionProvider.class:
com.xwt.项目名.util.DruidConnectionProvider
<build>
<resources>
<!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/*.xml</include>
</includes>
</resource>
<!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
<resource>
<directory>src/main/resources</directory>
<includes>
<include>*.properties</include>
<include>*.xml</include>
<include>*.yml</include>
</includes>
</resource>
</resources>
<plugins>
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.2</version>
<dependencies>
<!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
</dependencies>
<configuration>
<overwrite>true</overwrite>
</configuration>
</plugin>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>

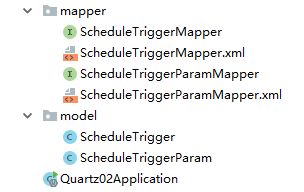

generatorConfig.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
<!-- 引入配置文件 -->
<properties resource="jdbc.properties"/>
<!--指定数据库jdbc驱动jar包的位置-->
<classPathEntry location="D:\\tools\\mvn\\mysql\\mysql-connector-java\\5.1.44\\mysql-connector-java-5.1.44.jar"/>
<!-- 一个数据库一个context -->
<context id="infoGuardian">
<!-- 注释 -->
<commentGenerator>
<property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
<property name="suppressDate" value="true"/> <!-- 是否生成注释代时间戳 -->
</commentGenerator>
<!-- jdbc连接 -->
<jdbcConnection driverClass="${jdbc.driver}"
connectionURL="${jdbc.url}" userId="${jdbc.username}" password="${jdbc.password}"/>
<!-- 类型转换 -->
<javaTypeResolver>
<!-- 是否使用bigDecimal， false可自动转化以下类型（Long, Integer, Short, etc.） -->
<property name="forceBigDecimals" value="false"/>
</javaTypeResolver>
<!-- 01 指定javaBean生成的位置 -->
<!-- targetPackage：指定生成的model生成所在的包名 -->
<!-- targetProject：指定在该项目下所在的路径 -->
<javaModelGenerator targetPackage="com.xwt.quartz02.model"
targetProject="src/main/java">
<!-- 是否允许子包，即targetPackage.schemaName.tableName -->
<property name="enableSubPackages" value="false"/>
<!-- 是否对model添加构造函数 -->
<property name="constructorBased" value="true"/>
<!-- 是否针对string类型的字段在set的时候进行trim调用 -->
<property name="trimStrings" value="false"/>
<!-- 建立的Model对象是否 不可改变 即生成的Model对象不会有 setter方法，只有构造方法 -->
<property name="immutable" value="false"/>
</javaModelGenerator>
<!-- 02 指定sql映射文件生成的位置 -->
<sqlMapGenerator targetPackage="com.xwt.quartz02.mapper"
targetProject="src/main/java">
<!-- 是否允许子包，即targetPackage.schemaName.tableName -->
<property name="enableSubPackages" value="false"/>
</sqlMapGenerator>
<!-- 03 生成XxxMapper接口 -->
<!-- type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象 -->
<!-- type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象 -->
<!-- type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口 -->
<javaClientGenerator targetPackage="com.xwt.quartz02.mapper"
targetProject="src/main/java" type="XMLMAPPER">
<!-- 是否在当前路径下新加一层schema,false路径com.oop.eksp.user.model， true:com.oop.eksp.user.model.[schemaName] -->
<property name="enableSubPackages" value="false"/>
</javaClientGenerator>
<!-- 配置表信息 -->

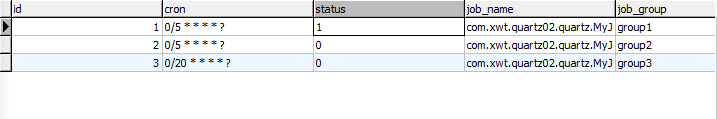

<table schema="" tableName="t_schedule_trigger" domainObjectName="ScheduleTrigger"
enableCountByExample="false" enableDeleteByExample="false"
enableSelectByExample="false" enableUpdateByExample="false">
<property name="useActualColumnNames" value="true" />
</table>

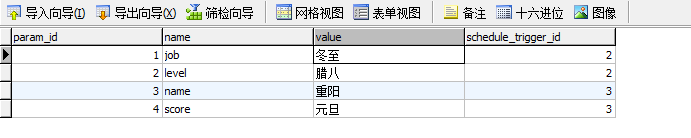

<table schema="" tableName="t_schedule_trigger_param" domainObjectName="ScheduleTriggerParam"
enableCountByExample="false" enableDeleteByExample="false"
enableSelectByExample="false" enableUpdateByExample="false">
<property name="useActualColumnNames" value="true" />
</table>
</context>
</generatorConfiguration>
jdbc.properties
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=UTF-8
jdbc.username=root
jdbc.password=123

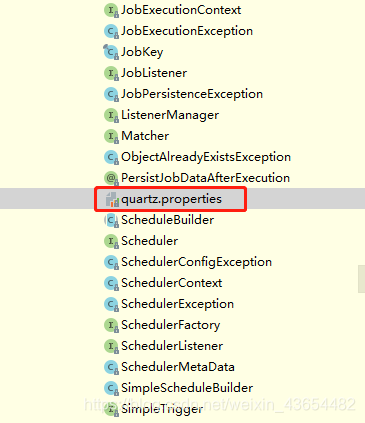

3、在项目中添加quartz.properties文件(这样就不会加载自带的properties文件)
此文件的内容主要分为：scheduler，ThreadPool，JobStore，plugin，Datasources等部分
覆盖properties文件的目的是覆盖默认的数据源，更换为druid的数据配置
quartz.properties
#
#============================================================================
# Configure Main Scheduler Properties 调度器属性
#============================================================================
org.quartz.scheduler.instanceName: DefaultQuartzScheduler
org.quartz.scheduler.instanceId = AUTO
org.quartz.scheduler.rmi.export: false
org.quartz.scheduler.rmi.proxy: false
org.quartz.scheduler.wrapJobExecutionInUserTransaction: false
org.quartz.threadPool.class: org.quartz.simpl.SimpleThreadPool
org.quartz.threadPool.threadCount= 10
org.quartz.threadPool.threadPriority: 5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread: true
org.quartz.jobStore.misfireThreshold: 60000
#============================================================================
# Configure JobStore
#============================================================================
#存储方式使用JobStoreTX，也就是数据库
org.quartz.jobStore.class: org.quartz.impl.jdbcjobstore.JobStoreTX
org.quartz.jobStore.driverDelegateClass:org.quartz.impl.jdbcjobstore.StdJDBCDelegate
#使用自己的配置文件
org.quartz.jobStore.useProperties:true
#数据库中quartz表的表名前缀
org.quartz.jobStore.tablePrefix:qrtz_
org.quartz.jobStore.dataSource:qzDS
#是否使用集群（如果项目只部署到 一台服务器，就不用了）
org.quartz.jobStore.isClustered = true
#============================================================================
# Configure Datasources
#============================================================================
#配置数据库源（org.quartz.dataSource.qzDS.maxConnections: c3p0配置的是有s的，druid数据源没有s）
org.quartz.dataSource.qzDS.connectionProvider.class:com.xwt.quartz02.util.DruidConnectionProvider
org.quartz.dataSource.qzDS.driver: com.mysql.jdbc.Driver
org.quartz.dataSource.qzDS.URL: jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf8
org.quartz.dataSource.qzDS.user: root
org.quartz.dataSource.qzDS.password: 123
org.quartz.dataSource.qzDS.maxConnection: 10
重写数据源的连接去更换
DruidConnectionProvider.java
package com.xwt.quartz02.util;
import com.alibaba.druid.pool.DruidDataSource;
import org.quartz.SchedulerException;
import org.quartz.utils.ConnectionProvider;
import java.sql.Connection;
import java.sql.SQLException;
public class DruidConnectionProvider implements ConnectionProvider {
/*
* ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
*
* 常量配置，与quartz.properties文件的key保持一致(去掉前缀)，同时提供set方法，Quartz框架自动注入值。
*
* ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
*/
//JDBC驱动
public String driver;
//JDBC连接串
public String URL;
//数据库用户名
public String user;
//数据库用户密码
public String password;
//数据库最大连接数
public int maxConnection;
//数据库SQL查询每次连接返回执行到连接池，以确保它仍然是有效的。
public String validationQuery;
private boolean validateOnCheckout;
private int idleConnectionValidationSeconds;
public String maxCachedStatementsPerConnection;
private String discardIdleConnectionsSeconds;
public static final int DEFAULT_DB_MAX_CONNECTIONS = 10;
public static final int DEFAULT_DB_MAX_CACHED_STATEMENTS_PER_CONNECTION = 120;
//Druid连接池
private DruidDataSource datasource;
/*
* ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
*
* 接口实现
*
* ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
*/
public Connection getConnection() throws SQLException {
return datasource.getConnection();
}
public void shutdown() throws SQLException {
datasource.close();
}
public void initialize() throws SQLException{
if (this.URL == null) {
throw new SQLException("DBPool could not be created: DB URL cannot be null");
}
if (this.driver == null) {
throw new SQLException("DBPool driver could not be created: DB driver class name cannot be null!");
}
if (this.maxConnection < 0) {
throw new SQLException("DBPool maxConnectins could not be created: Max connections must be greater than zero!");
}
datasource = new DruidDataSource();
try{
datasource.setDriverClassName(this.driver);
} catch (Exception e) {
try {
throw new SchedulerException("Problem setting driver class name on datasource: " + e.getMessage(), e);
} catch (SchedulerException e1) {
}
}
datasource.setUrl(this.URL);
datasource.setUsername(this.user);
datasource.setPassword(this.password);
datasource.setMaxActive(this.maxConnection);
datasource.setMinIdle(1);
datasource.setMaxWait(0);
datasource.setMaxPoolPreparedStatementPerConnectionSize(this.DEFAULT_DB_MAX_CACHED_STATEMENTS_PER_CONNECTION);
if (this.validationQuery != null) {
datasource.setValidationQuery(this.validationQuery);
if(!this.validateOnCheckout)
datasource.setTestOnReturn(true);
else
datasource.setTestOnBorrow(true);
datasource.setValidationQueryTimeout(this.idleConnectionValidationSeconds);
}
}
/*
* ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
*
* 提供get set方法
*
* ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
*/
public String getDriver() {
return driver;
}
public void setDriver(String driver) {
this.driver = driver;
}
public String getURL() {
return URL;
}
public void setURL(String URL) {
this.URL = URL;
}
public String getUser() {
return user;
}
public void setUser(String user) {
this.user = user;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
public int getMaxConnection() {
return maxConnection;
}
public void setMaxConnection(int maxConnection) {
this.maxConnection = maxConnection;
}
public String getValidationQuery() {
return validationQuery;
}
public void setValidationQuery(String validationQuery) {
this.validationQuery = validationQuery;
}
public boolean isValidateOnCheckout() {
return validateOnCheckout;
}
public void setValidateOnCheckout(boolean validateOnCheckout) {
this.validateOnCheckout = validateOnCheckout;
}
public int getIdleConnectionValidationSeconds() {
return idleConnectionValidationSeconds;
}
public void setIdleConnectionValidationSeconds(int idleConnectionValidationSeconds) {
this.idleConnectionValidationSeconds = idleConnectionValidationSeconds;
}
public DruidDataSource getDatasource() {
return datasource;
}
public void setDatasource(DruidDataSource datasource) {
this.datasource = datasource;
}
}
4、自定义MyJobFactory 解决spring不能在quartz中注入bean的问题
package com.xwt.quartz02.quartz;
import lombok.extern.slf4j.Slf4j;
import org.quartz.spi.TriggerFiredBundle;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.config.AutowireCapableBeanFactory;
import org.springframework.scheduling.quartz.AdaptableJobFactory;
import org.springframework.stereotype.Component;
@Component
@Slf4j
public class MyJobFactory extends AdaptableJobFactory {
//这个由Spring自动注入
@Autowired
private AutowireCapableBeanFactory autowireCapableBeanFactory;
//重写Job任务对象的创建实例方法
@Override
protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception {
Object jobInstance = super.createJobInstance(bundle);
//通过以下方式 解决Job任务无法使用Spring中的Bean问题
autowireCapableBeanFactory.autowireBean(jobInstance);
return jobInstance;
}
}
5、创建调度器schedule 交给spring进行管理
QuartzConfiguration.java（quartz调度框架与spring框架整合的配置类 主要是要将org.quartz.Scheduler交给spring进行管理）
package com.xwt.quartz02.quartz;
import org.quartz.Scheduler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.config.PropertiesFactoryBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.scheduling.quartz.SchedulerFactoryBean;
import java.io.IOException;
import java.util.Properties;
@Configuration
public class QuartzConfiguration {
@Autowired
private MyJobFactory myJobFactory;
//创建调度器工厂
@Bean
public SchedulerFactoryBean schedulerFactoryBean(){
//1.创建SchedulerFactoryBean
//2.加载自定义的quartz.properties配置文件
//3.设置MyJobFactory
SchedulerFactoryBean factoryBean=new SchedulerFactoryBean();
try {
factoryBean.setQuartzProperties(quartzProperties());
factoryBean.setJobFactory(myJobFactory);
return factoryBean;
} catch (IOException e) {
throw new RuntimeException(e);
}
}
@Bean
public Properties quartzProperties() throws IOException {
PropertiesFactoryBean propertiesFactoryBean=new PropertiesFactoryBean();
propertiesFactoryBean.setLocation(new ClassPathResource("/quartz.properties"));
propertiesFactoryBean.afterPropertiesSet();
return propertiesFactoryBean.getObject();
}
@Bean(name="scheduler")
public Scheduler scheduler(){
return schedulerFactoryBean().getScheduler();
}
}
配置application.yml
server:
servlet:
context-path: /
port: 80
spring:
datasource:
#1.JDBC
type: com.alibaba.druid.pool.DruidDataSource
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf8
username: root
password: 123
druid:
#2.连接池配置
#初始化连接池的连接数量 大小，最小，最大
initial-size: 5
min-idle: 5
max-active: 20
#配置获取连接等待超时的时间
max-wait: 60000
#配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
time-between-eviction-runs-millis: 60000
# 配置一个连接在池中最小生存的时间，单位是毫秒
min-evictable-idle-time-millis: 30000
validation-query: SELECT 1 FROM DUAL
test-while-idle: true
test-on-borrow: true
test-on-return: false
# 是否缓存preparedStatement，也就是PSCache 官方建议MySQL下建议关闭 个人建议如果想用SQL防火墙 建议打开
pool-prepared-statements: true
max-pool-prepared-statement-per-connection-size: 20
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
filter:
stat:
merge-sql: true
slow-sql-millis: 5000
#3.基础监控配置
web-stat-filter:
enabled: true
url-pattern: /*
#设置不统计哪些URL
exclusions: "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"
session-stat-enable: true
session-stat-max-count: 100
stat-view-servlet:
enabled: true
url-pattern: /druid/*
reset-enable: true
#设置监控页面的登录名和密码
login-username: admin
login-password: admin
allow: 127.0.0.1
#显示日志
logging:
level:
com.xwt.quartz02.mapper: debug
ScheduleTriggerMapper.java
/**
* 查询触发器中包含的所有任务
* @return
*/
List<ScheduleTrigger> queryScheduleTriggerList();
ScheduleTriggerMapper.xml
<select id="queryScheduleTriggerList" resultType="com.xwt.quartz02.model.ScheduleTrigger">
select <include refid="Base_Column_List"/>
from t_schedule_trigger
</select>
ScheduleTriggerParamMapper.java
/**
* 查询出当前任务类对应所需的参数
* @param triggerId
* @return
*/
List<ScheduleTriggerParam> queryScheduleParamList(Integer triggerId);
ScheduleTriggerParamMapper.xml
<select id="queryScheduleParamList" resultType="com.xwt.quartz02.model.ScheduleTriggerParam">
select <include refid="Base_Column_List"/>
from t_schedule_trigger_param where schedule_trigger_id=#{triggerId}
</select>
ScheduleTriggerParamService.java
package com.xwt.quartz02.service;
import com.xwt.quartz02.model.ScheduleTriggerParam;
import java.util.List;
public interface ScheduleTriggerParamService {
public List<ScheduleTriggerParam> queryScheduleParamList(Integer triggerId);
}
ScheduleTriggerParamServiceImpl.java
package com.xwt.quartz02.service.impl;
import com.xwt.quartz02.mapper.ScheduleTriggerParamMapper;
import com.xwt.quartz02.model.ScheduleTriggerParam;
import com.xwt.quartz02.service.ScheduleTriggerParamService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
@Service
public class ScheduleTriggerParamServiceImpl implements ScheduleTriggerParamService {
@Autowired
private ScheduleTriggerParamMapper scheduleTriggerParamMapper;
@Override
public List<ScheduleTriggerParam> queryScheduleParamList(Integer triggerId) {
return scheduleTriggerParamMapper.queryScheduleParamList(triggerId);
}
}
Spring自带定时任务作业类ScheduleTriggerServiceImpl.java
package com.xwt.quartz02.service.impl;
import com.xwt.quartz02.mapper.ScheduleTriggerMapper;
import com.xwt.quartz02.mapper.ScheduleTriggerParamMapper;
import com.xwt.quartz02.model.ScheduleTrigger;
import com.xwt.quartz02.model.ScheduleTriggerParam;
import com.xwt.quartz02.service.ScheduleTriggerService;
import org.quartz.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Service;
import java.util.List;
@Service
public class ScheduleTriggerServiceImpl implements ScheduleTriggerService {
@Autowired
private ScheduleTriggerMapper scheduleTriggerMapper;
@Autowired
private ScheduleTriggerParamMapper scheduleTriggerParamMapper;
@Autowired
private Scheduler scheduler;
@Scheduled(cron = "0/10 * * * * ?")
public void refreshScheduler(){
try {
List<ScheduleTrigger> scheduleTriggers =
scheduleTriggerMapper.queryScheduleTriggerList();
if(null!=scheduleTriggers){
for (ScheduleTrigger scheduleTrigger : scheduleTriggers) {
String cron = scheduleTrigger.getCron(); //表达式
String jobName = scheduleTrigger.getJob_name(); //任务名称
String jobGroup = scheduleTrigger.getJob_group(); //任务分组
String status = scheduleTrigger.getStatus(); //任务状态
//JobName+JobGroup=Primary Key
//根据jobName和jobGroup生成TriggerKey
TriggerKey triggerKey =
TriggerKey.triggerKey(jobName, jobGroup);
//根据TriggerKey到Scheduler调度器中获取触发器
CronTrigger cronTrigger = (CronTrigger)
scheduler.getTrigger(triggerKey);
if(null==cronTrigger){
if(status.equals("0"))
continue;
System.out.println("创建调度器");
//创建任务详情
JobDetail jobDetail=
JobBuilder.newJob((Class<? extends Job>) Class.forName(jobName))
.withIdentity(jobName,jobGroup)
.build();
//往Job任务中传递参数
JobDataMap jobDataMap = jobDetail.getJobDataMap();
List<ScheduleTriggerParam> params =
scheduleTriggerParamMapper.queryScheduleParamList(scheduleTrigger.getId());
for (ScheduleTriggerParam param : params) {
jobDataMap.put(param.getName(),param.getValue());
}
//创建表达式调度器
CronScheduleBuilder cronSchedule =
CronScheduleBuilder.cronSchedule(cron);
//创建Trigger
cronTrigger=TriggerBuilder.newTrigger()
.withIdentity(jobName,jobGroup)
.withSchedule(cronSchedule)
.build();
//将jobDetail和Trigger注入到scheduler调度器中
scheduler.scheduleJob(jobDetail,cronTrigger);
}else{
//System.out.println("Quartz 调度任务中已存在该任务");
if(status.equals("0")){
JobKey jobKey = JobKey.jobKey(jobName, jobGroup);
scheduler.deleteJob(jobKey);
continue;
}
//调度器中的表达式
String cronExpression =
cronTrigger.getCronExpression();
if(!cron.equals(cronExpression)){
//创建表达式调度器
CronScheduleBuilder cronSchedule =
CronScheduleBuilder.cronSchedule(cron);
//重构
cronTrigger=cronTrigger.getTriggerBuilder()
.withIdentity(triggerKey)
.withSchedule(cronSchedule)
.build();
//刷新调度器
scheduler.rescheduleJob(triggerKey,cronTrigger);
}
}
}
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
在Quartz02Application.java中加上注解
package com.xwt.quartz02;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.transaction.annotation.EnableTransactionManagement;
@MapperScan("com.xwt.quartz02.mapper")
@EnableTransactionManagement
@EnableScheduling
@SpringBootApplication
public class Quartz02Application {
public static void main(String[] args) {
SpringApplication.run(Quartz02Application.class, args);
}
}

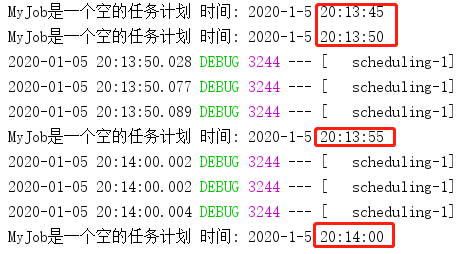

读取数据库中表达式启动定时任务1（每5s执行）
数据库
MyJob.java
package com.xwt.quartz02.quartz;
import lombok.extern.slf4j.Slf4j;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.stereotype.Component;
import java.util.Date;
@Component
@Slf4j
public class MyJob implements Job {
@Override
public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
System.out.println("MyJob是一个空的任务计划 时间: "+new Date().toLocaleString());
}
}

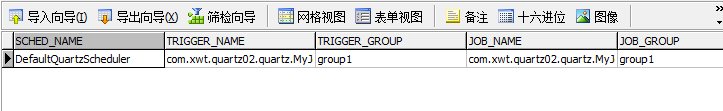

内置表生成了数据

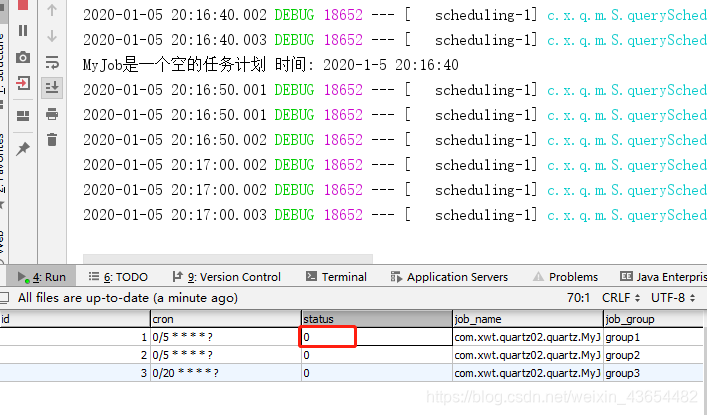

更改定时任务状态（启用/禁用） 定时任务1停止

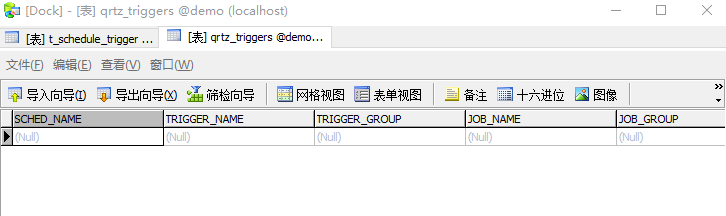

内置表的数据也清空了

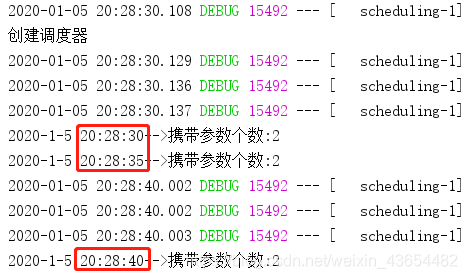

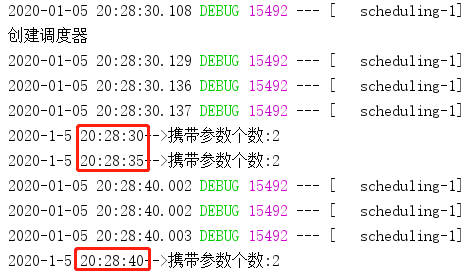

读取数据库中表达式启动定时任务2（每5s执行） 在对应作业类中打印定时任务2携带的参数

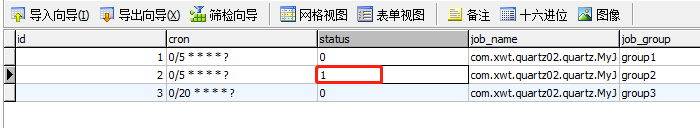

数据库表配置
MyJob1 .java
package com.xwt.quartz02.quartz;
import com.xwt.quartz02.service.ScheduleTriggerParamService;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import java.util.Date;
@Component
@Slf4j
public class MyJob1 implements Job {
@Autowired
private ScheduleTriggerParamService scheduleTriggerParamService;
@Override
public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
JobDetail jobDetail =
jobExecutionContext.getJobDetail();
JobDataMap jobDataMap = jobDetail.getJobDataMap();
System.out.println(new Date().toLocaleString()+"-->携带参数个数:"+jobDataMap.size());
}
}
读取数据库中表达式启动定时任务3（每5s执行改成每10s执行） 更改数据库定时任务表达式 定时任务3对应执行策略相应发生改变
数据表
MyJob2 .java
package com.xwt.quartz02.quartz;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
import org.springframework.stereotype.Component;
import java.util.Date;
@Component
@Slf4j
public class MyJob2 implements Job {
@Override
public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
JobDetail jobDetail =
jobExecutionContext.getJobDetail();
JobDataMap jobDataMap = jobDetail.getJobDataMap();
System.out.println(new Date().toLocaleString()+"-->MyJob2参数传递name="+jobDataMap.get("name")+",score="+
jobDataMap.get("score"));
}
}

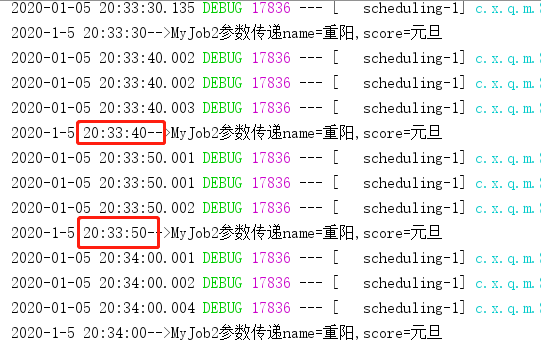

运行改动前

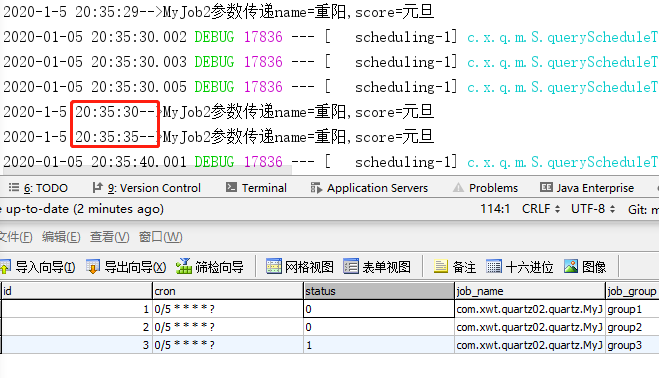

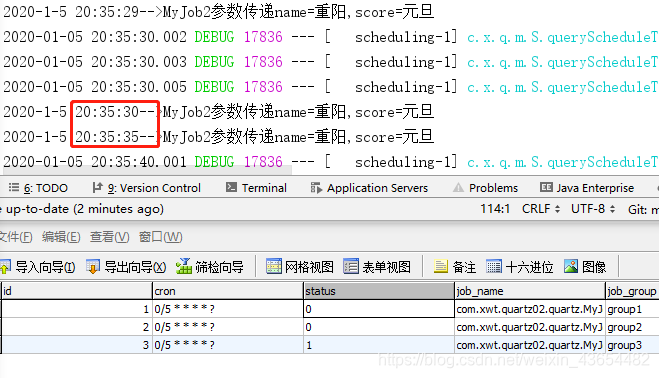

改动后

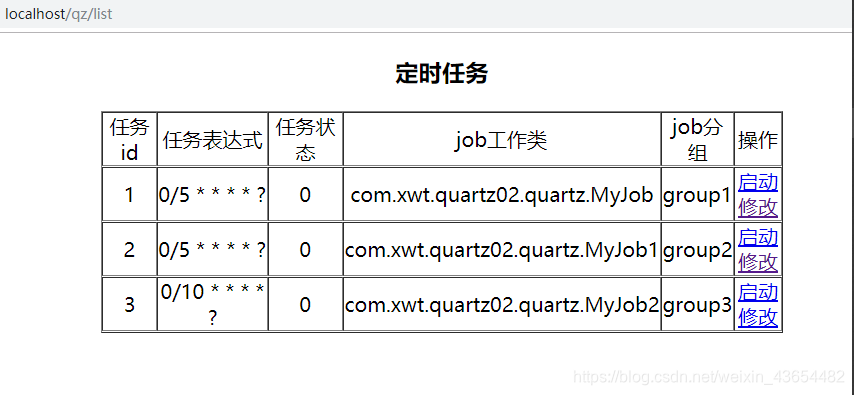

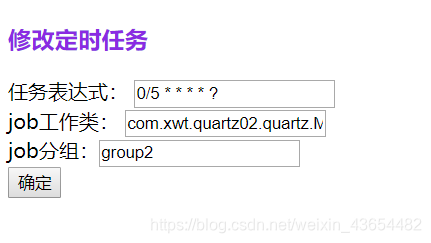

简单界面版实现
ScheduleTriggerService.java
package com.xwt.quartz02.service;
import com.xwt.quartz02.model.ScheduleTrigger;
import java.util.List;
public interface ScheduleTriggerService {
ScheduleTrigger selectByPrimaryKey(Integer id);
int updateByPrimaryKeySelective(ScheduleTrigger record);
/**
* 查询触发器中包含的所有任务
* @return
*/
List<ScheduleTrigger> queryScheduleTriggerList();
}
ScheduleTriggerServiceImpl.java
@Override
public ScheduleTrigger selectByPrimaryKey(Integer id) {
return scheduleTriggerMapper.selectByPrimaryKey(id);
}
@Override
public int updateByPrimaryKeySelective(ScheduleTrigger record) {
return scheduleTriggerMapper.updateByPrimaryKeySelective(record);
}
@Override
public List<ScheduleTrigger> queryScheduleTriggerList() {
return scheduleTriggerMapper.queryScheduleTriggerList();
}
QuartzController.java
package com.xwt.quartz02.controller;
import com.xwt.quartz02.model.ScheduleTrigger;
import com.xwt.quartz02.service.ScheduleTriggerService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;
import java.util.List;
@Controller
@RequestMapping("/qz")
public class QuartzController {
@Autowired
private ScheduleTriggerService scheduleTriggerService;
@RequestMapping("/list")
public ModelAndView getAll(){
ModelAndView mv = new ModelAndView();
List<ScheduleTrigger> list = scheduleTriggerService.queryScheduleTriggerList();
mv.addObject("quartzList",list);
mv.setViewName("list");
return mv;
}
@RequestMapping("/edit")
public String editStatus(ScheduleTrigger scheduleTrigger){
int n = scheduleTriggerService.updateByPrimaryKeySelective(scheduleTrigger);
return "redirect:/qz/list";
}
@RequestMapping("/proSave/{id}")
public ModelAndView proSave(@PathVariable(value = "id") Integer id){
ModelAndView mv=new ModelAndView();
ScheduleTrigger scheduleTrigger = scheduleTriggerService.selectByPrimaryKey(id);
mv.addObject("schedule",scheduleTrigger);
mv.setViewName("edit");
return mv;
}
}
前台代码
list.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title><!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>定时任务主界面</title>
</head>
<body style="text-align: center">
<h3>定时任务</h3>
<table align="center" cellpadding="0" cellspacing="0" border="1" width="60%">
<tr>
<td>任务id</td>
<td>任务表达式</td>
<td>任务状态</td>
<td>job工作类</td>
<td>job分组</td>
<td>操作</td>
</tr>
<tr th:each="qz : ${quartzList}">
<td th:text="${qz.id}"></td>
<td th:text="${qz.cron}"></td>
<td th:text="${qz.status}"></td>
<td th:text="${qz.job_name}"></td>
<td th:text="${qz.job_group}"></td>
<td th:switch ="${qz.status} == 0">
<a th:case="true" th:href="@{/quartz/edit(id=${qz.id},status=1)}">启动</a>
<a th:case="false" th:href="@{/quartz/edit(id=${qz.id},status=0)}">停止</a>
<a th:href="@{'/qz/proSave/'+${qz.id}}">修改</a>
</td>
</tr>
</table>
</body>
</html>
<body>
</body>
</html>
edit.html
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>定时任务修改界面</title>
</head>
<body>
<h3><font color="#8a2be2">修改定时任务</font></h3>
<form th:action="@{/qz/edit}" method="post">
<input type="hidden" name="id" th:value="${schedule.id}" />
任务表达式： <input width="300px" type="text" name="cron" th:value="${schedule.cron}" /></br>
job工作类： <input width="300px" type="text" name="job_name" th:value="${schedule.job_name}" /></br>
job分组：<input width="300px" type="text" name="job_group" th:value="${schedule.job_group}" /></br>
<input type="submit" value="确定"/>
</form>
</body>
</html>
运行如下
来源：CSDN
作者：浪漫2020.
链接：https://blog.csdn.net/weixin_43654482/article/details/103830734
