C# VS2019 调用FFTW FFT计算

 申请空间时，请使用GCHandle.Alloc，这里只是调用DLL，并没有将其静态连接的 .lib 文件

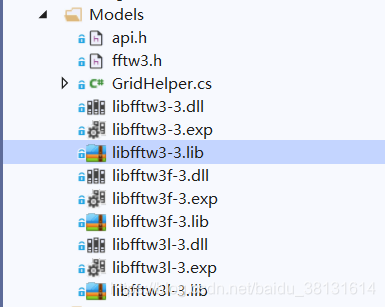

将libfftw3-3.dll 文件放到项目中

 //申请空间
 //IntPtr In_intPtr= FFT.malloc(N_FFT*8);
 //IntPtr  Out_intPtr= FFT.malloc(N_FFT * 8*2);

 GCHandle In_intPtr = GCHandle.Alloc(DataIn_y1, GCHandleType.Pinned);
 GCHandle Out_intPtr = GCHandle.Alloc(fftw_Complex, GCHandleType.Pinned);
 //正变换
 IntPtr plan = FFT.plan_r2c_ld(N_FFT, In_intPtr.AddrOfPinnedObject(), Out_intPtr.AddrOfPinnedObject(), 0);

  //执行变换
  FFT.execute(plan);//可能重复执行，
  FFT.execute(plan);
  //释放输入输出数组
  FFT.destroy_plan(plan);

   //释放空间
   In_intPtr.Free();
   Out_intPtr.Free();

TTF

    public class FFT
    {
        #region FFTW 库调用申明
        /// <summary>
        /// Allocates FFTW-optimized unmanaged memory
        /// </summary>
        /// <param name="length">Amount to allocate, in bytes</param>
        /// <returns>Pointer to allocated memory</returns>
        [DllImport("libfftw3-3.dll", EntryPoint = "fftw_malloc", ExactSpelling = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern IntPtr malloc(int length);

        /// <summary>
        /// 释放内存空间
        /// </summary>
        /// <param name="length">指针</param>
        [DllImport("libfftw3-3.dll", EntryPoint = "fftw_free", ExactSpelling = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern void free(IntPtr length);

        /// <summary>
        /// 一维实数据的DFT，正变换
        /// </summary>
        /// <param name="n">数据个数</param>
        /// <param name="In">double 实数输入</param>
        /// <param name="Out">fftw_complex 复数输出</param>
        /// <param name="flags">FFTW_MEASURE  0</param>
        /// <returns></returns>
        [DllImport("libfftw3-3.dll", EntryPoint = "fftw_plan_dft_r2c_1d", ExactSpelling = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern IntPtr plan_r2c_ld(int n, IntPtr In, IntPtr Out, int flags);

        /// <summary>
        /// 一维实数据的DFT，逆变换
        /// </summary>
        /// <param name="n">数据个数</param>
        /// <param name="In">fftw_complex 复数输入</param>
        /// <param name="Out">double 实数输出</param>
        /// <param name="flags">FFTW_MEASURE  0</param>
        /// <returns></returns>
        [DllImport("libfftw3-3.dll", EntryPoint = "fftw_plan_dft_c2r_1d", ExactSpelling = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern IntPtr plan_c2r_ld(int n, IntPtr In, IntPtr Out, int flags);



        /// <summary>
        /// 执行变换
        /// </summary>
        /// <param name="length"></param>
        [DllImport("libfftw3-3.dll", EntryPoint = "fftw_execute", ExactSpelling = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern void execute(IntPtr plan);

        /// <summary>
        /// 不使用Plan,将其和输入输出数组销毁
        /// </summary>
        /// <param name="length"></param>
        [DllImport("libfftw3-3.dll", EntryPoint = "fftw_destroy_plan", ExactSpelling = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern void destroy_plan(IntPtr plan);


        //这里还涉及到一个代理 GCHandle （using System.Runtime.InteropServices）他可以帮我们在地址和对象之间进行转换
        // IntPtr plan;
        // double[] fin = new double[nx * ny * 2];
        // GCHandle hin = GCHandle.Alloc(fin, GCHandleType.Pinned);
        //// plan = FFT.dft_2d(nx, ny, hin.AddrOfPinnedObject(), hin.AddrOfPinnedObject(), fftw_direction.Forward, fftw_flags.Estimate);

        #endregion

        //-----定义复数结构体-----------------------//
        public struct Compx
        {
            /// <summary>
            /// 实部
            /// </summary>
            public float real;
            /// <summary>
            /// 虚部
            /// </summary>
            public float imag;
        }

    }
