springboot+mybatsi-plus+lombok+swagger-bootstra整合

【推荐】2019 Java 开发者跳槽指南.pdf(吐血整理) >>>

版本要求：jdk1.8以上

框架版本介绍：springboot 2.x

mybatis-plus 3.x

Maven 3.x以上

辅助工具介绍：lombok 简化代码

Swagger-bootstrap-ui 生成接口文档

Yml文件

注意：1、springboot1.x与2.x版本改动较大，具体请阅看官方文档。

官方地址：https://spring.io/projects/spring-boot/

2、mybatis-plus 3.x与2.x 版本改动较大，具体请查阅官方文档。

官网地址：https://mp.baomidou.com/

解释说明：

springboot优点在于简化配置，全家桶自动集成优秀框架，基于注解开发。

综上所有优点，我们选择了lombok,与mybatis-plus ，还有swagger-ui。这三个都是基于注解使用。我认为选择其他的感觉优点鸡肋。

pom.xml文件

<parent>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-parent</artifactId>

<version>2.2.0.RELEASE</version>

<relativePath/> <!-- lookup parent from repository -->

</parent>

<properties>

<java.version>1.8</java.version>

</properties>

<dependencies>

<!-- web项目需要引入此jar -->

<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-web</artifactId>

</dependency>

<!-- springboot 测试jar -->

<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-test</artifactId>

<scope>test</scope>

</dependency>

<!-- 引入Druid依赖，阿里巴巴所提供的数据源 -->

<dependency>

<groupId>com.alibaba</groupId>

<artifactId>druid</artifactId>

<version>1.0.29</version>

</dependency>

<!-- oracle 连接驱动 -->

<dependency>

<groupId>com.oracle</groupId>

<artifactId>ojdbc6</artifactId>

<version>12.1.0.1</version>

</dependency>

<!--简化代码小工具 -->

<dependency>

<groupId>org.projectlombok</groupId>

<artifactId>lombok</artifactId>

<version>1.16.16</version>

</dependency>

<!--mybatis Plus-->

<dependency>

<groupId>com.baomidou</groupId>

<artifactId>mybatis-plus-boot-starter</artifactId>

<version>3.1.0</version>

</dependency>

<!-- Swagger -->

<dependency>

<groupId>com.spring4all</groupId>

<artifactId>swagger-spring-boot-starter</artifactId>

<version>1.8.0.RELEASE</version>

</dependency>

<dependency>

<groupId>io.swagger</groupId>

<artifactId>swagger-models</artifactId>

<version>1.5.21</version>

</dependency>

<dependency>

<groupId>com.github.xiaoymin</groupId>

<artifactId>swagger-bootstrap-ui</artifactId>

<version>1.9.1</version>

</dependency>

</dependencies>

<build>

<plugins>

<plugin>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-maven-plugin</artifactId>

</plugin>

</plugins>

</build>

application.yml 文件内容：

server:

port: 9000

#servlet:

# context-path: /card

spring:

###文件上传 springboot版本2.0.4

servlet:

multipart:

max-file-size: 200MB

max-request-size: 200MB

enabled: true

datasource:

# 使用druid数据源

type: com.alibaba.druid.pool.DruidDataSource

driver-class-name: oracle.jdbc.driver.OracleDriver

url: jdbc:oracle:thin:@ip:1521:orcl

username: root

password: root

validation-query: "SELECT 'X' FROM DUAL"

max-wait: 10000 #最大建立连接等待时间。如果超过此时间将接到异常。设为-1表示无限制

max-idle: 10 #最大空闲数，数据库连接的最大空闲时间。超过空闲时间，数据库连接将被释放。设为0表示无限制

min-idle: 5 ##最小空闲连接:连接池中容许保持空闲状态的最小连接数量,低于这个数量将创建新的连接

max_active: 50 ##连接池的最大数据库连接数。设为0表示无限制

initial-size: 5 #初始化连接:连接池启动时创建的初始化连接数量

test-on-borrow: false

test-while-idle: true

remove_abandoned: true #超过removeAbandonedTimeout时间后，是否进 行没用连接（废弃）的回收（默认为false，调整为true)

remove_abandoned_timeout: 180 #超过时间限制，回收没有用(废弃)的连接（默认为 300秒，调整为180）

time-between-eviction-runs-millis: 18800

pool-prepared-statements: true

#mybatis 配置文件映射

mybatis-plus:

mapper-locations: classpath:/mapper/*Mapper.xml

typeAliasesPackage: com.siyuan.user.model

global-config:

#字段策略 0:"忽略判断",1:"非 NULL 判断可以插入空字符串"),2:"非空判断"

field-strategy: 1

cache-enabled: false

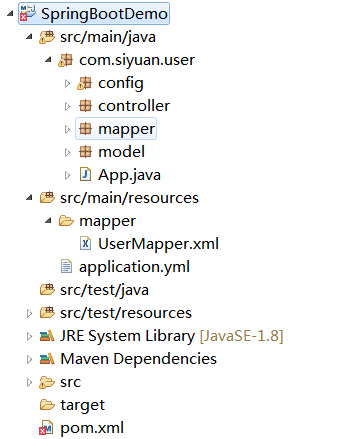

目录结构：

app启动类内容：

import org.mybatis.spring.annotation.MapperScan;

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;



@SpringBootApplication

@MapperScan("com.siyuan.user.mapper")

public class App {

public static void main(String[] args) {

SpringApplication.run(App.class, args);

}

}

loginController控制层类容：


import java.util.List;



import javax.annotation.Resource;



import org.springframework.web.bind.annotation.GetMapping;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RestController;



import com.siyuan.user.mapper.UserMapper;

import com.siyuan.user.model.User;



import io.swagger.annotations.Api;

import io.swagger.annotations.ApiOperation;



@RestController

@RequestMapping("/login")

@Api(value = "/",description="接口文档")

public class LoginController {

@Resource

UserMapper userMapper;

@GetMapping("/index")

@ApiOperation(value = "用户登录", tags = {"返回用户信息"}, notes = "务必提交json格式")

public String index(){

return "hello word!";

}

@GetMapping("/demo01")

@ApiOperation(value = "demo测试2", tags = {"返回用户信息"}, notes = "务必提交json格式")

public String demo01(){

List<User> list = userMapper.selectList(null);

return list.toString();

}

@GetMapping("/demo02")

@ApiOperation(value = "demo测试3", tags = {"返回用户信息"}, notes = "务必提交json格式")

public String demo02(){

int list = userMapper.findOne();

return list+"";

}

}

mapper dao层接口内容：

public interface UserMapper extends BaseMapper<User> {

public int findOne();

}

xml内容：

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"

"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.siyuan.user.mapper.UserMapper">

<select id="findOne" resultType="int">

select 1 from dual

</select>

</mapper>

model层内容：

import com.baomidou.mybatisplus.annotation.TableField;

import com.baomidou.mybatisplus.annotation.TableName;



import lombok.Data;



@Data

@TableName("表明")

public class User {

@TableField("字段名称")

private String name;

}

swagger-ui内容：


import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;

import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;



import springfox.documentation.builders.ApiInfoBuilder;

import springfox.documentation.builders.PathSelectors;

import springfox.documentation.builders.RequestHandlerSelectors;

import springfox.documentation.service.ApiInfo;

import springfox.documentation.spi.DocumentationType;

import springfox.documentation.spring.web.plugins.Docket;

import springfox.documentation.swagger2.annotations.EnableSwagger2;



@Configuration //在springboot里面专门为了加载配置文件的标签

@EnableSwagger2 //自动加载配置文件

public class SwaggerConfig extends WebMvcConfigurerAdapter {





@Bean

public Docket createH5RestApi() {

return new Docket(DocumentationType.SWAGGER_2)

.apiInfo(apiInfo())

.groupName("h5")

.select()

.apis(RequestHandlerSelectors.basePackage("com.siyuan.user.controller"))

.paths(PathSelectors.any())

.build();

}



private ApiInfo apiInfo() {

return new ApiInfoBuilder().title("我的接口文档")

.description("这是我的swaggerui生成的接口文档")

.version("1.0.0.0")

.build();

}

//添加ResourceHandler

@Override

public void addResourceHandlers(ResourceHandlerRegistry registry) {

registry.addResourceHandler("/**").addResourceLocations("classpath:/static/");

registry.addResourceHandler("swagger-ui.html")

.addResourceLocations("classpath:/META-INF/resources/");

registry.addResourceHandler("doc.html")

.addResourceLocations("classpath:/META-INF/resources/");

registry.addResourceHandler("/webjars/**")

.addResourceLocations("classpath:/META-INF/resources/webjars/");

super.addResourceHandlers(registry);

}







}

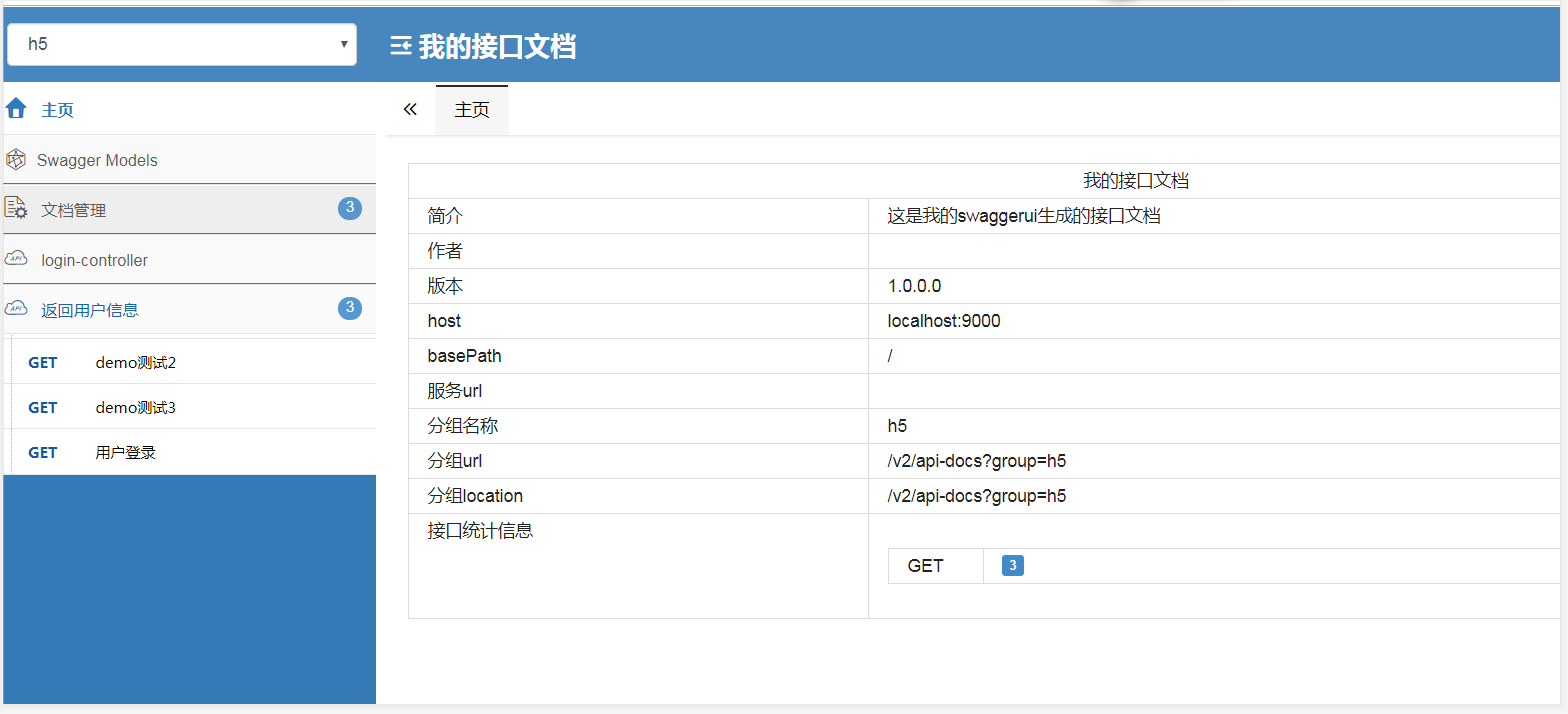

启动App类的main方法，访问：http://localhost:9000/doc.html

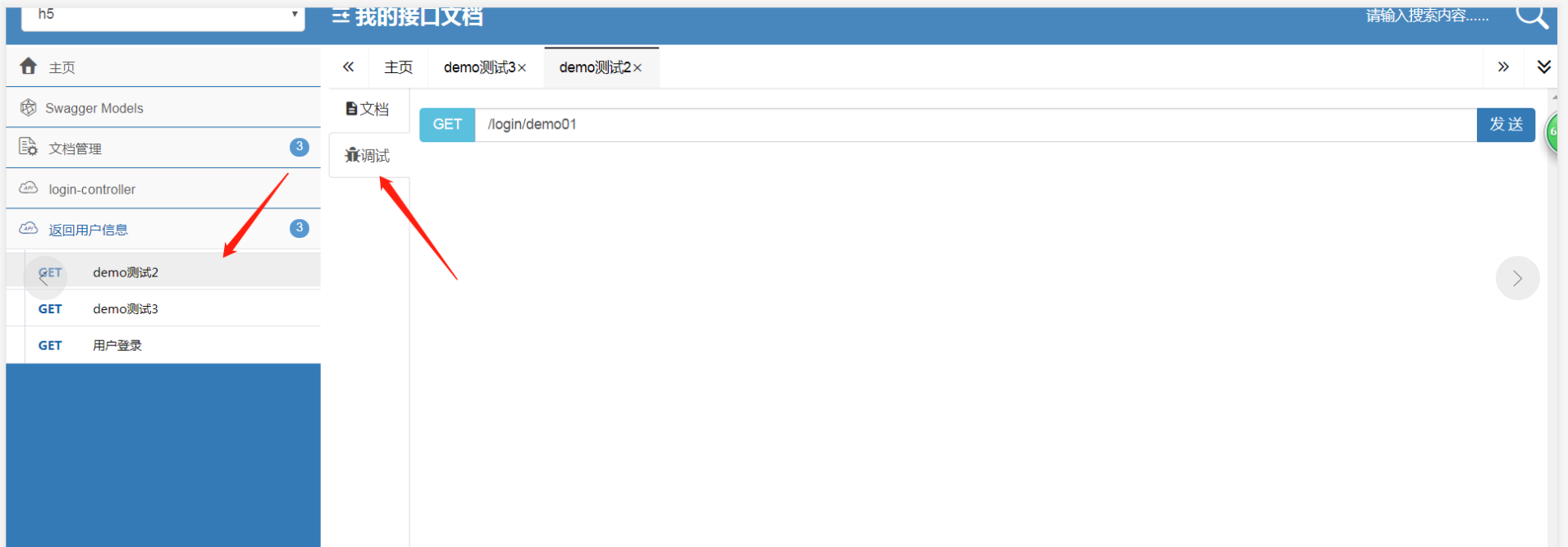

如下图：
