后台权限管理系统（1）

目录

• 1.需求分析
• 2.技术架构
• 3.环境搭建
• 3.1创建父模块
• 3.1.1修改父模块的pom文件，指定整个项目中用到的jar包的依赖及其版本
• 3.2 创建domain层子模块
• 3.3 创建dao层子模块
• 3.3.1 修改pom文件,添加dao层jar包的依赖
• 3.4创建service层子模块
• 3.4.1修改pom文件,添加service层jar包的依赖
• 3.5创建web层子模块
• 3.5.1修改pom文件，添加web层jar包的依赖
• 4.添加配置文件
• 4.1 spring和mybatis的配置文件
• 4.2 SpringMVC的配置文件
• 4.3 配置web.xml

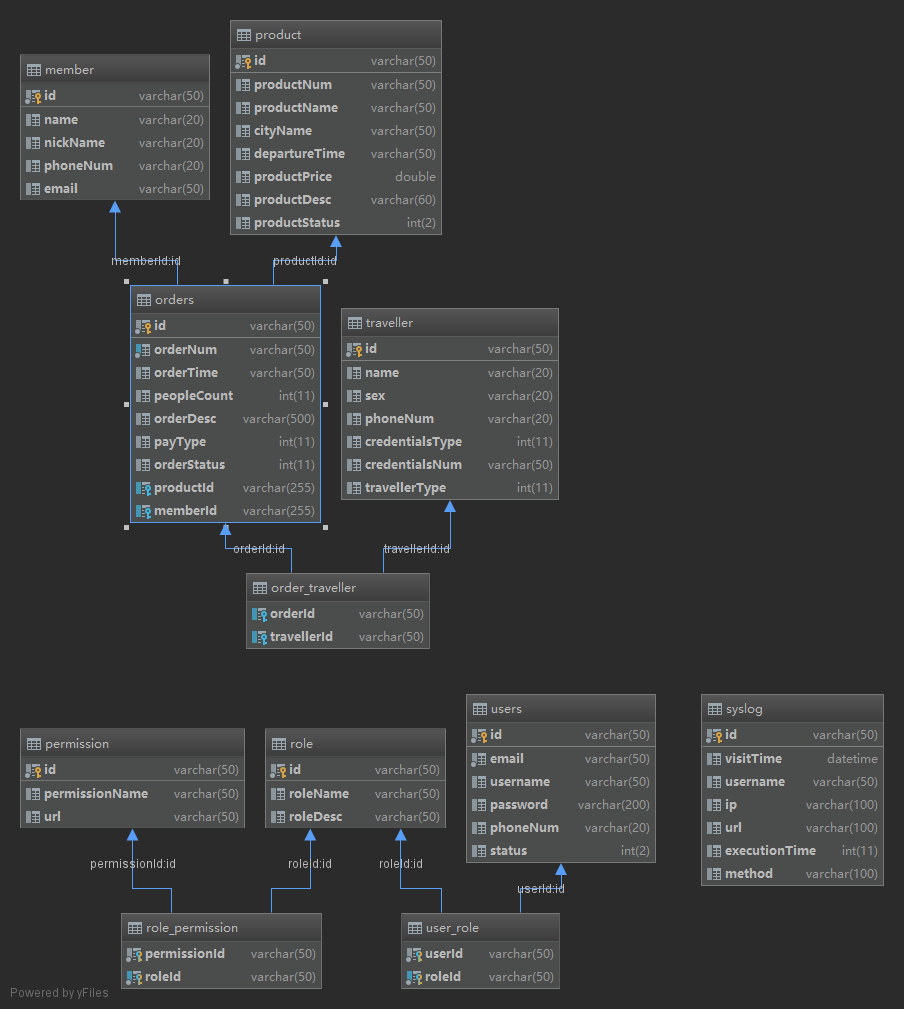

• 4.数据库设计

1.需求分析

这个后台系统是为一个旅游网站设计的，主要业务是旅游产品的管理、订单管理和系统管理，其中系统管理包含用户管理、角色管理、资源权限管理和访问日志四个模块。

2.技术架构

前端使用AdminLTE模板主体工具，后台采用Spring+SpringMVC+Mybatis+SpringSecurity，数据库使用mysql。整个项目为单体架构，且并未考虑到高并发的应用场景。

3.环境搭建

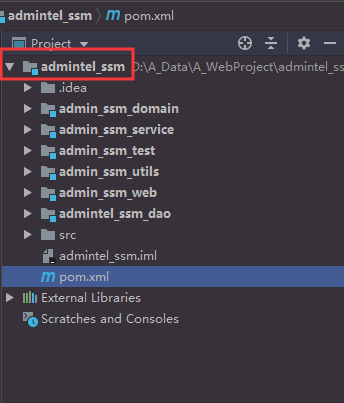

3.1创建父模块

3.1.1修改父模块的pom文件，指定整个项目中用到的jar包的依赖及其版本

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.GTMStudio</groupId>
    <artifactId>admintel_ssm</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>admintel_ssm_dao</module>
        <module>admin_ssm_service</module>
        <module>admin_ssm_domain</module>
        <module>admin_ssm_utils</module>
        <module>admin_ssm_web</module>
        <module>admin_ssm_test</module>
    </modules>


    <!--在父工程的pom.xml中抽取一些重复的配置，比如：锁定jar包版本、设置编译版本-->

    <!--统一管理jar包版本-->
    <properties>
        <spring.version>5.0.2.RELEASE</spring.version>
        <springmvc.version>5.0.4.RELEASE</springmvc.version>
        <slf4j.version>1.6.6</slf4j.version>
        <log4j.version>1.2.12</log4j.version>
        <shiro.version>1.2.3</shiro.version>
        <mysql.version>8.0.17</mysql.version>
        <mybatis.version>3.4.5</mybatis.version>
        <spring.security.version>5.0.1.RELEASE</spring.security.version>
        <mysql.version>8.0.17</mysql.version>
    </properties>

    <!-- 锁定jar包版本 -->
    <dependencyManagement>

        <dependencies>
            <!--Mysql-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!--Mybatis-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>${mybatis.version}</version>
            </dependency>

            <!--springMVC-->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-webmvc</artifactId>
                <version>${springmvc.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <!--spring-->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-core</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-aop</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-web</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-expression</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-beans</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-aspects</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context-support</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-test</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jdbc</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-tx</artifactId>
                <version>${spring.version}</version>
            </dependency>

        </dependencies>
    </dependencyManagement>

    <dependencies>
        <!--pagehelper依赖-->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>5.1.2</version>
        </dependency>

        <!--SpringSecurity依赖-->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>${spring.security.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>${spring.security.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-core</artifactId>
            <version>${spring.security.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
            <version>${spring.security.version}</version>
        </dependency>

        <!--jsr250的依赖-->
        <dependency>
            <groupId>javax.annotation</groupId>
            <artifactId>jsr250-api</artifactId>
            <version>1.0</version>
        </dependency>


        <!--页面端控制权限标签-->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
            <version>5.0.1.RELEASE</version>
        </dependency>

    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.1</version>
                <configuration>
                    <target>1.9</target>
                    <source>1.9</source>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

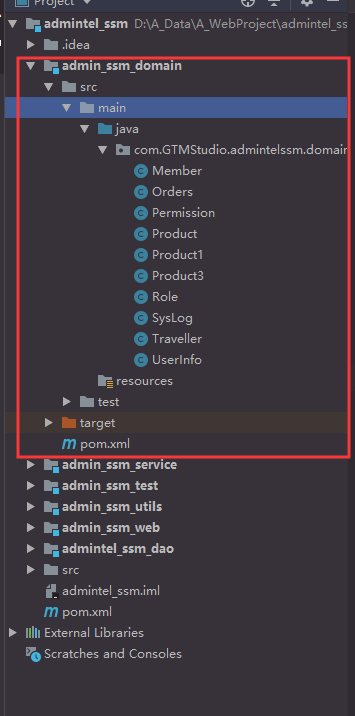

3.2 创建domain层子模块

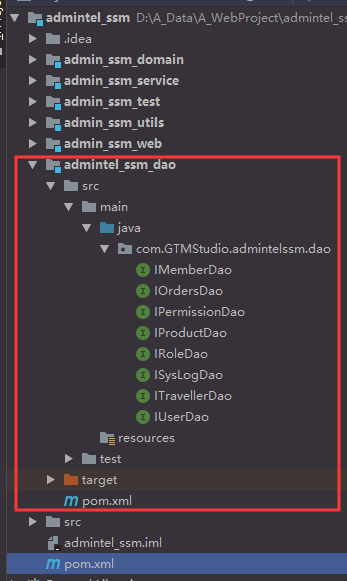

3.3 创建dao层子模块

3.3.1 修改pom文件,添加dao层jar包的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>admintel_ssm</artifactId>
        <groupId>com.GTMStudio</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>admintel_ssm_dao</artifactId>
    <packaging>jar</packaging>
    <dependencies>

        <!--添加domain的依赖-->
        <dependency>
            <groupId>com.GTMStudio</groupId>
            <artifactId>admin_ssm_domain</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

        <!--Mybatis和Mybatis与spring的整合-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>

        <!--Mysql驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.17</version>
        </dependency>

        <!--spring相关-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
        </dependency>

        <!--junit测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>compile</scope>
        </dependency>

        <!--c3p0连接池-->
        <dependency>
            <groupId>c3p0</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.1.2</version>
        </dependency>

    </dependencies>

</project>

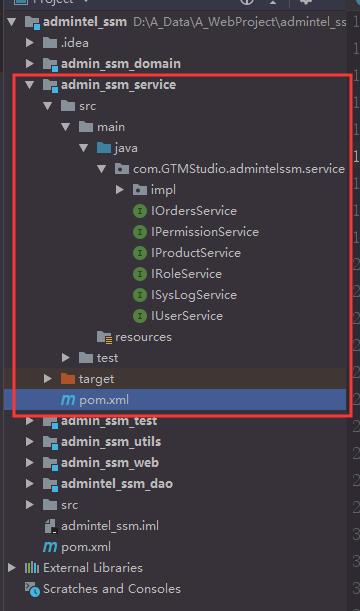

3.4创建service层子模块

3.4.1修改pom文件,添加service层jar包的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>admintel_ssm</artifactId>
        <groupId>com.GTMStudio</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>admin_ssm_service</artifactId>
    <packaging>jar</packaging>
    <dependencies>
        <!--添加domain层的依赖-->
        <dependency>
            <groupId>com.GTMStudio</groupId>
            <artifactId>admin_ssm_domain</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
        <!--添加dao层的依赖-->
        <dependency>
            <groupId>com.GTMStudio</groupId>
            <artifactId>admintel_ssm_dao</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

        <!--spring相关-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
        </dependency>



    </dependencies>


</project>

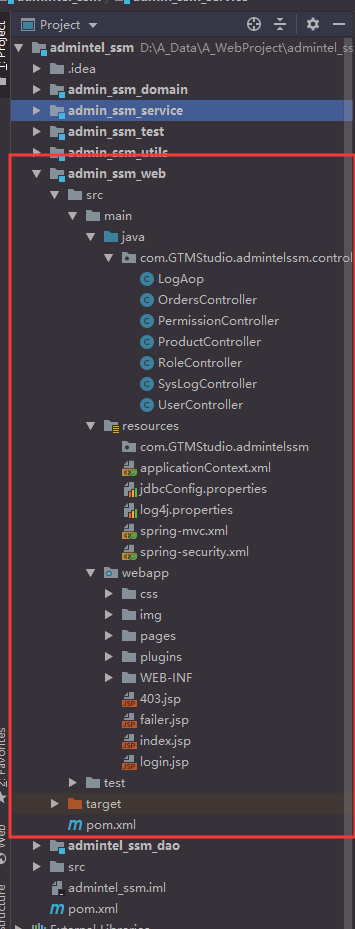

3.5创建web层子模块

3.5.1修改pom文件，添加web层jar包的依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>admintel_ssm</artifactId>
        <groupId>com.GTMStudio</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>admin_ssm_web</artifactId>
    <packaging>war</packaging>
    <dependencies>
        <!--springMVC-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
            <groupId>com.GTMStudio</groupId>
            <artifactId>admin_ssm_service</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.GTMStudio</groupId>
            <artifactId>admin_ssm_service</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

4.添加配置文件

4.1 spring和mybatis的配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--配置mybatis start-->
    <!--数据库连接池-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!--连接数据库的必备信息-->
        <property name="driverClass" value="com.mysql.cj.jdbc.Driver"></property>
        <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/admintel?serverTimezone=Asia/Shanghai"></property>
        <property name="user" value="root"></property>
        <property name="password" value="123456"></property>
    </bean>

    <!--mapper配置-->
    <!--配置生产SqlSessionFactory对象的工厂，让spring管理SqlSessionFactory 使用mybatis和spring整合包中的-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--数据库连接池-->
        <property name="dataSource" ref="dataSource"/>
        <!--扫描pojo包，给包下所有pojo对象起别名-->
        <property name="typeAliasesPackage" value="com.GTMStudio.admintelssm.domain"/>
        <!--传入PageHelper的插件-->
        <property name="plugins">
            <array>
                <!--传入插件的对象-->
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <props>
                            <prop key="helperDialect">mysql</prop>
                            <prop key="reasonable">true</prop>
                        </props>
                    </property>
                </bean>
            </array>
        </property>
    </bean>

    <!--mapper扫描器：用来产生代理对象-->
    <!--扫描接口包路径，生成包下所有接口的代理对象，并且放入spring容器中-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--因为不会被引用，所以就需要写id了-->
        <property name="basePackage" value="com.GTMStudio.admintelssm.dao"/>
    </bean>
    <!--配置mybatis end-->


    <!--service层配置文件开始-->
    <!--组件扫描配置-->
    <context:component-scan base-package="com.GTMStudio.admintelssm.service"/>

    <!--aop面向切面编程，切面就是切入点和通知的组合-->
    <!--配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--配置事务的通知-->
    <tx:advice id="advice">
        <tx:attributes>
            <tx:method name="save*" propagation="REQUIRED"/>
            <tx:method name="update*" propagation="REQUIRED"/>
            <tx:method name="delete*" propagation="REQUIRED"/>
            <tx:method name="find*" read-only="true"/>
            <tx:method name="*" propagation="REQUIRED"/>
        </tx:attributes>
    </tx:advice>
    <!--配置切面-->
    <aop:config>
        <aop:pointcut id="pointcut" expression="execution(* com.GTMStudio.admintelssm.service.impl.*.*(..))"/>
        <aop:advisor advice-ref="advice" pointcut-ref="pointcut"/>
    </aop:config>
    <!--service层配置文件结束-->

</beans>

4.2 SpringMVC的配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
			    http://www.springframework.org/schema/beans/spring-beans.xsd
			    http://www.springframework.org/schema/context
			    http://www.springframework.org/schema/context/spring-context.xsd
			    http://www.springframework.org/schema/aop
			    http://www.springframework.org/schema/aop/spring-aop.xsd
			    http://www.springframework.org/schema/tx
			    http://www.springframework.org/schema/tx/spring-tx.xsd
			    http://www.springframework.org/schema/mvc
			    http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!--扫描controller的注解，别的不扫描-->
    <context:component-scan base-package="com.GTMStudio.admintelssm.controller"/>


    <!--视图解析器-->
    <bean id="internalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--释放静态资源-->
    <mvc:default-servlet-handler/>

    <!--设置静态资源不过滤-->
    <mvc:resources mapping="/css/**" location="/css/"/>
    <mvc:resources mapping="/img/**" location="/img/"/>
    <mvc:resources mapping="/js/**" location="/js/"/>
    <mvc:resources mapping="/plugins/**" location="/plugins/"/>


    <bean id="conversionService" class="org.springframework.format.support.FormattingConversionServiceFactoryBean">
        <property name="converters">
            <list>
                <bean class="com.GTMStudio.admintelssm.utils.StringToDateConverter"/>
            </list>
        </property>
    </bean>
    <!--开启对SpringMVC注解的支持-->
    <mvc:annotation-driven conversion-service="conversionService"/>

    <!--
            支持AOP的注解支持，AOP底层使用代理技术
            JDK动态代理，要求必须有接口
            cglib代理，生成子类对象，proxy-target-class="true" 默认使用cglib的方式
        -->
    <aop:aspectj-autoproxy proxy-target-class="true"/>
</beans>

4.3 配置web.xml

<!DOCTYPE web-app PUBLIC
        "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
        "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">

    <!--报403错误时的指定跳转页面-->
    <error-page>
        <error-code>403</error-code>
        <location>/403.jsp</location>
    </error-page>

    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
        <welcome-file>index.htm</welcome-file>
        <welcome-file>index.jsp</welcome-file>
        <welcome-file>default.html</welcome-file>
        <welcome-file>default.htm</welcome-file>
        <welcome-file>default.jsp</welcome-file>
    </welcome-file-list>


    <!--解决中文乱码过滤器-->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!--解决中文乱码过滤器-->

    <!--springsecurity的过滤器-->
    <filter>
        <filter-name>springSecurityFilterChain</filter-name><!--名字必须是springSecurityFilterChain-->
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>springSecurityFilterChain</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!--springsecurity的过滤器-->

    <!--配置spring核心监听器-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!--重新指定spring配置文件的路径-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath*:applicationContext.xml,classpath*:spring-security.xml</param-value>
    </context-param>

    <!--
    在整合spring容器时使用ContextLoaderListener,它实现了ServletContextListener监听器接口,
    ServletContextListener只负责监听web容器启动和关闭的事件.
    而RequestContextListener实现ServletRequestListener监听器接口,
    该监听器监听HTTP请求事件,web服务器接收的每一次请求都会通知该监听器.
    -->
    <listener>
        <listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>
    </listener>

    <!--springmvc的核心servlet-->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>

    <!--&lt;!&ndash;配置log4j的配置文件位置&ndash;&gt;-->
    <!--<context-param>-->
    <!--<param-name>log4jConfiguration</param-name>-->
    <!--<param-value>log4j.properties</param-value>-->
    <!--</context-param>-->
    <!--&lt;!&ndash;使用监听加载log4j的配置文件&ndash;&gt;-->
    <!--<listener>-->
    <!--<listener-class></listener-class>-->
    <!--</listener>-->
</web-app>

4.数据库设计

来源：CSDN

作者：HenrlyLiu

链接：https://blog.csdn.net/qq_37840807/article/details/103486977
