SSD Keras版源码史上最详细解读系列之模型源码解析
模型源码keras_ssd300.py解析

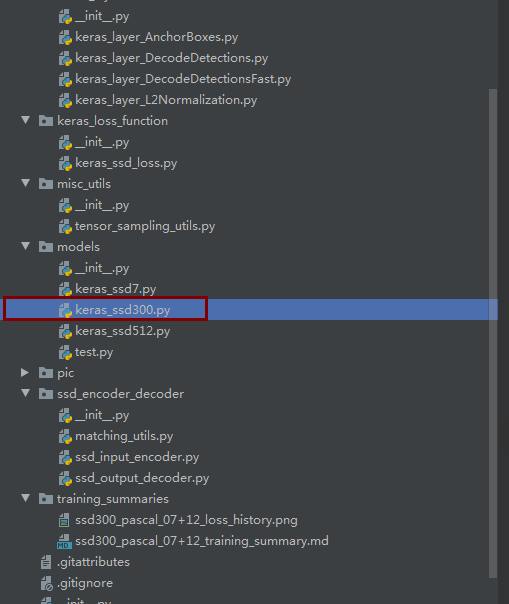

因为前面训练和测试的模型是用ssd300的，所以这次就解析这个模型，至于其他的都是差不多的，原理一样的，我们先来看看这个文件keras_ssd300.py：
其实里面是定义了ssd300的一个方法来获取模型：
def ssd_300(image_size,
n_classes,
mode='training',
l2_regularization=0.0005,
min_scale=None,
max_scale=None,
scales=None,
aspect_ratios_global=None,
# 4 6 6 6 4 4 有1的会增加一个框
aspect_ratios_per_layer=[[1.0, 2.0, 0.5],
[1.0, 2.0, 0.5, 3.0, 1.0/3.0],
[1.0, 2.0, 0.5, 3.0, 1.0/3.0],
[1.0, 2.0, 0.5, 3.0, 1.0/3.0],
[1.0, 2.0, 0.5],
[1.0, 2.0, 0.5]],
two_boxes_for_ar1=True,
steps=[8, 16, 32, 64, 100, 300],
offsets=None,
clip_boxes=False,
variances=[0.1, 0.1, 0.2, 0.2],
coords='centroids',
normalize_coords=True,
subtract_mean=[123, 117, 104],
divide_by_stddev=None,
swap_channels=[2, 1, 0],
confidence_thresh=0.01,
iou_threshold=0.45,
top_k=200,
nms_max_output_size=400,
return_predictor_sizes=False):
先来说下这个方法的参数，虽然注释里也有，但是估计太长了，看了难受，我稍微说下大概意思。
image_size (tuple):：图片形状 (高，宽，通道) 也就是 (height, width, channels)
n_classes (int)：数据集本身的类别数 Pascal 20个 COCO 80个 虽然后面可能还要加一个背景类别
mode (str, optional)：模式，训练或者推理，还有快速推理
l2_regularization (float, optional)：卷积层权重的正则化惩罚项系数
min_scale (float, optional)：锚框缩放的最小倍数，论文里对应是0.1
max_scale (float, optional):锚框缩放的最大倍数，论文里对应是0.9
scales (list, optional)：每一层的锚框的缩放比例，等于是自定义了
aspect_ratios_global (list, optional：全局的锚框的宽高比，没有特别定义就按找个比例来缩放
aspect_ratios_per_layer (list, optional)：每一层锚框的宽高比 总共6层预测层
two_boxes_for_ar1 (bool, optional):当宽高比是1的时候是否外加另外一个特殊的框，总共论文里有提
steps (list, optional)：原始图是与特征图的缩放比例
offsets (list, optional):：锚框中心距离宽高的偏移，默认0.5，也就是中心在框中间
clip_boxes (bool, optional)：是否裁剪掉出边界的锚框
variances (list, optional)：坐标宽高的计算方差，可以理解为为了能灵活调节设置的参数
coords (str, optional)：锚框的坐标形式 默认是(cx,cy,w,h)，即中心坐标，宽高
normalize_coords (bool, optional)：坐标归一化到0-1
subtract_mean (array-like, optional)：图像的归一化要减去的均值，Faster R-CNN也有这个处理
divide_by_stddev (array-like, optional)：图像的归一化要除的标准差
swap_channels (list, optional)：是否要改变通道的维度位置
confidence_thresh (float, optional)：置信度阈值
iou_threshold (float, optional)：交并比阈值
top_k (int, optional)：选最大的前k个样本
nms_max_output_size (int, optional)：非极大抑制留下多少预测框
return_predictor_sizes (bool, optional)：是否需要返回一些模型的层 方便训练用
开始先设置一些参数和进行一些参数的验证：
# 预测的层有6个 多尺度预测
n_predictor_layers = 6 # The number of predictor conv layers in the network is 6 for the original SSD300.
# 类别要加上背景 21类
n_classes += 1 # Account for the background class.
# 正则化系数 0.0005
l2_reg = l2_regularization # Make the internal name shorter.
# 获取宽 高 通道 300 300 3
img_height, img_width, img_channels = image_size[0], image_size[1], image_size[2]
############################################################################
# Get a few exceptions out of the way.
############################################################################
# 一些验证
if aspect_ratios_global is None and aspect_ratios_per_layer is None:
raise ValueError("`aspect_ratios_global` and `aspect_ratios_per_layer` cannot both be None. At least one needs to be specified.")
if aspect_ratios_per_layer:
if len(aspect_ratios_per_layer) != n_predictor_layers:
raise ValueError("It must be either aspect_ratios_per_layer is None or len(aspect_ratios_per_layer) == {}, but len(aspect_ratios_per_layer) == {}.".format(n_predictor_layers, len(aspect_ratios_per_layer)))
if (min_scale is None or max_scale is None) and scales is None:
raise ValueError("Either `min_scale` and `max_scale` or `scales` need to be specified.")
if scales:
if len(scales) != n_predictor_layers+1:
raise ValueError("It must be either scales is None or len(scales) == {}, but len(scales) == {}.".format(n_predictor_layers+1, len(scales)))
else: # If no explicit list of scaling factors was passed, compute the list of scaling factors from `min_scale` and `max_scale`
scales = np.linspace(min_scale, max_scale, n_predictor_layers+1)
if len(variances) != 4:
raise ValueError("4 variance values must be pased, but {} values were received.".format(len(variances)))
variances = np.array(variances)
if np.any(variances <= 0):
raise ValueError("All variances must be >0, but the variances given are {}".format(variances))
if (not (steps is None)) and (len(steps) != n_predictor_layers):
raise ValueError("You must provide at least one step value per predictor layer.")
if (not (offsets is None)) and (len(offsets) != n_predictor_layers):
raise ValueError("You must provide at least one offset value per predictor layer.")
然后要计算一些每一层锚框的参数，个数，宽高比例：
############################################################################
# Compute the anchor box parameters.
############################################################################
# 每一层的框的宽高比
# Set the aspect ratios for each predictor layer. These are only needed for the anchor box layers.
if aspect_ratios_per_layer:
aspect_ratios = aspect_ratios_per_layer
else:
aspect_ratios = [aspect_ratios_global] * n_predictor_layers
# 每一层需要的锚框数量的计算，有宽高比就按宽高比的数量，没有就是全局的数量
# Compute the number of boxes to be predicted per cell for each predictor layer.
# We need this so that we know how many channels the predictor layers need to have.
if aspect_ratios_per_layer:
n_boxes = []
for ar in aspect_ratios_per_layer:
# 如果有需要宽高比为1的 就多一个框
if (1 in ar) & two_boxes_for_ar1:
n_boxes.append(len(ar) + 1) # +1 for the second box for aspect ratio 1
else:
n_boxes.append(len(ar))
else: # If only a global aspect ratio list was passed, then the number of boxes is the same for each predictor layer
if (1 in aspect_ratios_global) & two_boxes_for_ar1:
n_boxes = len(aspect_ratios_global) + 1
else:
n_boxes = len(aspect_ratios_global)
n_boxes = [n_boxes] * n_predictor_layers
# 每一层的大小
if steps is None:
steps = [None] * n_predictor_layers
# 每一层的偏移量
if offsets is None:
offsets = [None] * n_predictor_layers
然后设置一些层，方便后面统一到模型中：
############################################################################
# Define functions for the Lambda layers below.
############################################################################
# 标识层 没什么作用
def identity_layer(tensor):
return tensor
# 减去均值
def input_mean_normalization(tensor):
return tensor - np.array(subtract_mean)
# 除以标准差
def input_stddev_normalization(tensor):
return tensor / np.array(divide_by_stddev)
# 交换的通道竖直堆叠起来 增加了一个维度
def input_channel_swap(tensor):
if len(swap_channels) == 3:
return K.stack([tensor[...,swap_channels[0]], tensor[...,swap_channels[1]], tensor[...,swap_channels[2]]], axis=-1)
elif len(swap_channels) == 4:
return K.stack([tensor[...,swap_channels[0]], tensor[...,swap_channels[1]], tensor[...,swap_channels[2]], tensor[...,swap_channels[3]]], axis=-1)
############################################################################
# Build the network.
############################################################################
#输入层 高 宽 通道 (batch_size 300 300 3)
x = Input(shape=(img_height, img_width, img_channels))
# 作为标识层
# The following identity layer is only needed so that the subsequent lambda layers can be optional.
x1 = Lambda(identity_layer, output_shape=(img_height, img_width, img_channels), name='identity_layer')(x)
# 标准化 减均值 除以标准差
if not (subtract_mean is None):
x1 = Lambda(input_mean_normalization, output_shape=(img_height, img_width, img_channels), name='input_mean_normalization')(x1)
if not (divide_by_stddev is None):
x1 = Lambda(input_stddev_normalization, output_shape=(img_height, img_width, img_channels), name='input_stddev_normalization')(x1)
if swap_channels:
x1 = Lambda(input_channel_swap, output_shape=(img_height, img_width, img_channels), name='input_channel_swap')(x1)

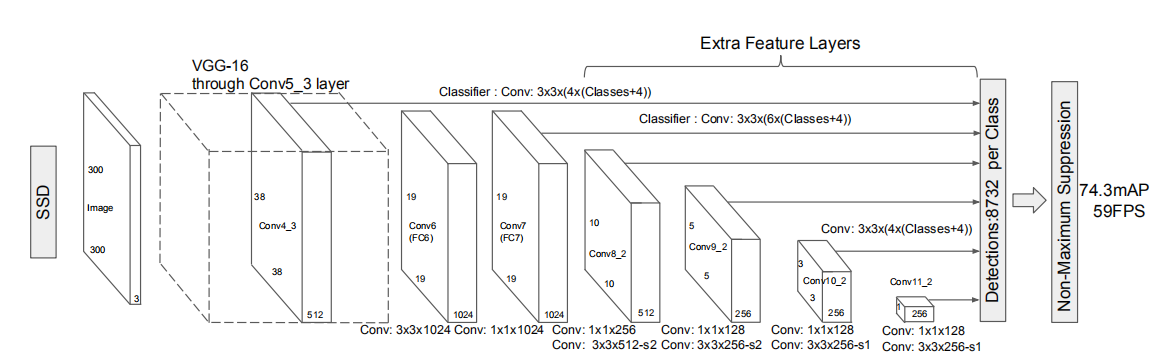

然后是VGG16的前5层：
#VGG16的卷积层 有权重初始化和正则化
conv1_1 = Conv2D(64, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv1_1')(x1)
conv1_2 = Conv2D(64, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv1_2')(conv1_1)
pool1 = MaxPooling2D(pool_size=(2, 2), strides=(2, 2), padding='same', name='pool1')(conv1_2) # 150x150x64
conv2_1 = Conv2D(128, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv2_1')(pool1)
conv2_2 = Conv2D(128, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv2_2')(conv2_1)
pool2 = MaxPooling2D(pool_size=(2, 2), strides=(2, 2), padding='same', name='pool2')(conv2_2) # 75x75x128
conv3_1 = Conv2D(256, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv3_1')(pool2)
conv3_2 = Conv2D(256, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv3_2')(conv3_1)
conv3_3 = Conv2D(256, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv3_3')(conv3_2)
pool3 = MaxPooling2D(pool_size=(2, 2), strides=(2, 2), padding='same', name='pool3')(conv3_3) # 38x38x256
conv4_1 = Conv2D(512, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv4_1')(pool3)
conv4_2 = Conv2D(512, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv4_2')(conv4_1)
# 38x38x512
conv4_3 = Conv2D(512, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv4_3')(conv4_2)
pool4 = MaxPooling2D(pool_size=(2, 2), strides=(2, 2), padding='same', name='pool4')(conv4_3) # 19x19x512
conv5_1 = Conv2D(512, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv5_1')(pool4)
conv5_2 = Conv2D(512, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv5_2')(conv5_1)
conv5_3 = Conv2D(512, (3, 3), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv5_3')(conv5_2)
pool5 = MaxPooling2D(pool_size=(3, 3), strides=(1, 1), padding='same', name='pool5')(conv5_3) # 19x19x512

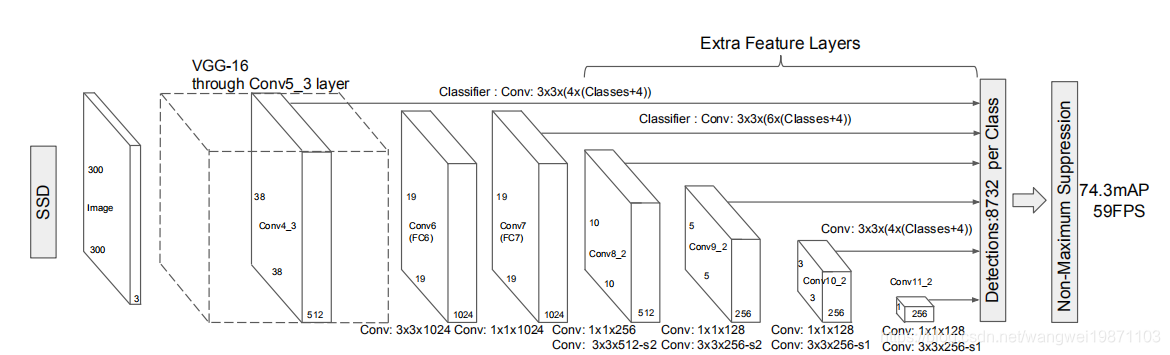

然后使用了空洞卷积，增加感受野，又添加了多尺度预测层：
# 用了空洞卷积 扩大感受野
fc6 = Conv2D(1024, (3, 3), dilation_rate=(6, 6), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='fc6')(pool5) # 19x19x1024
# 1x1 卷积做通道信息的整合 19x19x1024
fc7 = Conv2D(1024, (1, 1), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='fc7')(fc6) # 19x19x1024
conv6_1 = Conv2D(256, (1, 1), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv6_1')(fc7) # 19x19x256
# 增加了一圈0 可能用于卷积 尺寸为19+2=21 刚好卷积完为10 计算的时候卷积向下取整，池化向上取整
conv6_1 = ZeroPadding2D(padding=((1, 1), (1, 1)), name='conv6_padding')(conv6_1) # 21x21x256
# 对应论文Conv8_2
conv6_2 = Conv2D(512, (3, 3), strides=(2, 2), activation='relu', padding='valid', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv6_2')(conv6_1) # 10x10x512
conv7_1 = Conv2D(128, (1, 1), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv7_1')(conv6_2)
conv7_1 = ZeroPadding2D(padding=((1, 1), (1, 1)), name='conv7_padding')(conv7_1) # 12x12x128
# 对应论文Conv9_2
conv7_2 = Conv2D(256, (3, 3), strides=(2, 2), activation='relu', padding='valid', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv7_2')(conv7_1) # 5x5x256
conv8_1 = Conv2D(128, (1, 1), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv8_1')(conv7_2)
# 对应论文Conv10_2
conv8_2 = Conv2D(256, (3, 3), strides=(1, 1), activation='relu', padding='valid', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv8_2')(conv8_1) # 3x3x256
conv9_1 = Conv2D(128, (1, 1), activation='relu', padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv9_1')(conv8_2)
# 对应论文Conv11_2
conv9_2 = Conv2D(256, (3, 3), strides=(1, 1), activation='relu', padding='valid', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv9_2')(conv9_1) # 1x1x256
# 这层要做标准化 是特征图的第一层
# Feed conv4_3 into the L2 normalization layer
conv4_3_norm = L2Normalization(gamma_init=20, name='conv4_3_norm')(conv4_3)
然后进行多尺度的分类预测：
### Build the convolutional predictor layers on top of the base network
# We precidt `n_classes` confidence values for each box, hence the confidence predictors have depth `n_boxes * n_classes`
# Output shape of the confidence layers: `(batch, height, width, n_boxes * n_classes)`
# 每层每个框的每个类别的置信度 总共 8732 x 21 即每个类别有8732个框 每个框有21个类别
# 38x38x4x21
conv4_3_norm_mbox_conf = Conv2D(n_boxes[0] * n_classes, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv4_3_norm_mbox_conf')(conv4_3_norm)
# 19x19x6x21
fc7_mbox_conf = Conv2D(n_boxes[1] * n_classes, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='fc7_mbox_conf')(fc7)
# 10x10x6x21
conv6_2_mbox_conf = Conv2D(n_boxes[2] * n_classes, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv6_2_mbox_conf')(conv6_2)
# 5x5x6x21
conv7_2_mbox_conf = Conv2D(n_boxes[3] * n_classes, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv7_2_mbox_conf')(conv7_2)
# 3x3x4x21
conv8_2_mbox_conf = Conv2D(n_boxes[4] * n_classes, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv8_2_mbox_conf')(conv8_2)
# 1x1x4x21
conv9_2_mbox_conf = Conv2D(n_boxes[5] * n_classes, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv9_2_mbox_conf')(conv9_2)
然后是预测回归梯度，也就是偏移量：
# We predict 4 box coordinates for each box, hence the localization predictors have depth `n_boxes * 4`
# Output shape of the localization layers: `(batch, height, width, n_boxes * 4)`
# 每层每个框4个偏移量，dx,dy,dw,dh 8732 x 4 个偏移量 每个框有4个偏移量
conv4_3_norm_mbox_loc = Conv2D(n_boxes[0] * 4, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv4_3_norm_mbox_loc')(conv4_3_norm)
fc7_mbox_loc = Conv2D(n_boxes[1] * 4, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='fc7_mbox_loc')(fc7)
conv6_2_mbox_loc = Conv2D(n_boxes[2] * 4, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv6_2_mbox_loc')(conv6_2)
conv7_2_mbox_loc = Conv2D(n_boxes[3] * 4, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv7_2_mbox_loc')(conv7_2)
conv8_2_mbox_loc = Conv2D(n_boxes[4] * 4, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv8_2_mbox_loc')(conv8_2)
conv9_2_mbox_loc = Conv2D(n_boxes[5] * 4, (3, 3), padding='same', kernel_initializer='he_normal', kernel_regularizer=l2(l2_reg), name='conv9_2_mbox_loc')(conv9_2)
然后是创建锚框AnchorBoxes，这个类后面会讲：
### Generate the anchor boxes (called "priors" in the original Caffe/C++ implementation, so I'll keep their layer names)
# 计算特征图上每个点的锚框坐标宽高 最后加4个方差 即 (batch, height, width, n_boxes, x,y,w,h,x方差,y方差,w方差,h方差) Output shape of anchors: `(batch, height, width, n_boxes, 8)`
conv4_3_norm_mbox_priorbox = AnchorBoxes(img_height, img_width, this_scale=scales[0], next_scale=scales[1], aspect_ratios=aspect_ratios[0],
two_boxes_for_ar1=two_boxes_for_ar1, this_steps=steps[0], this_offsets=offsets[0], clip_boxes=clip_boxes,
variances=variances, coords=coords, normalize_coords=normalize_coords, name='conv4_3_norm_mbox_priorbox')(conv4_3_norm_mbox_loc)
fc7_mbox_priorbox = AnchorBoxes(img_height, img_width, this_scale=scales[1], next_scale=scales[2], aspect_ratios=aspect_ratios[1],
two_boxes_for_ar1=two_boxes_for_ar1, this_steps=steps[1], this_offsets=offsets[1], clip_boxes=clip_boxes,
variances=variances, coords=coords, normalize_coords=normalize_coords, name='fc7_mbox_priorbox')(fc7_mbox_loc)
conv6_2_mbox_priorbox = AnchorBoxes(img_height, img_width, this_scale=scales[2], next_scale=scales[3], aspect_ratios=aspect_ratios[2],
two_boxes_for_ar1=two_boxes_for_ar1, this_steps=steps[2], this_offsets=offsets[2], clip_boxes=clip_boxes,
variances=variances, coords=coords, normalize_coords=normalize_coords, name='conv6_2_mbox_priorbox')(conv6_2_mbox_loc)
conv7_2_mbox_priorbox = AnchorBoxes(img_height, img_width, this_scale=scales[3], next_scale=scales[4], aspect_ratios=aspect_ratios[3],
two_boxes_for_ar1=two_boxes_for_ar1, this_steps=steps[3], this_offsets=offsets[3], clip_boxes=clip_boxes,
variances=variances, coords=coords, normalize_coords=normalize_coords, name='conv7_2_mbox_priorbox')(conv7_2_mbox_loc)
conv8_2_mbox_priorbox = AnchorBoxes(img_height, img_width, this_scale=scales[4], next_scale=scales[5], aspect_ratios=aspect_ratios[4],
two_boxes_for_ar1=two_boxes_for_ar1, this_steps=steps[4], this_offsets=offsets[4], clip_boxes=clip_boxes,
variances=variances, coords=coords, normalize_coords=normalize_coords, name='conv8_2_mbox_priorbox')(conv8_2_mbox_loc)
conv9_2_mbox_priorbox = AnchorBoxes(img_height, img_width, this_scale=scales[5], next_scale=scales[6], aspect_ratios=aspect_ratios[5],
two_boxes_for_ar1=two_boxes_for_ar1, this_steps=steps[5], this_offsets=offsets[5], clip_boxes=clip_boxes,
variances=variances, coords=coords, normalize_coords=normalize_coords, name='conv9_2_mbox_priorbox')(conv9_2_mbox_loc)
之后为了统一格式，要做形状的改变：
### Reshape
# 重新改变下置信度的形状 方便后面计算 改为 (批量数 总共锚框数 类别数) Reshape the class predictions, yielding 3D tensors of shape `(batch, height * width * n_boxes, n_classes)`
# We want the classes isolated in the last axis to perform softmax on them
conv4_3_norm_mbox_conf_reshape = Reshape((-1, n_classes), name='conv4_3_norm_mbox_conf_reshape')(conv4_3_norm_mbox_conf)
fc7_mbox_conf_reshape = Reshape((-1, n_classes), name='fc7_mbox_conf_reshape')(fc7_mbox_conf)
conv6_2_mbox_conf_reshape = Reshape((-1, n_classes), name='conv6_2_mbox_conf_reshape')(conv6_2_mbox_conf)
conv7_2_mbox_conf_reshape = Reshape((-1, n_classes), name='conv7_2_mbox_conf_reshape')(conv7_2_mbox_conf)
conv8_2_mbox_conf_reshape = Reshape((-1, n_classes), name='conv8_2_mbox_conf_reshape')(conv8_2_mbox_conf)
conv9_2_mbox_conf_reshape = Reshape((-1, n_classes), name='conv9_2_mbox_conf_reshape')(conv9_2_mbox_conf)
# 重新改变下预测框的的形状 方便后面计算 改为 (批量数 总共锚框数 坐标宽高) Reshape the box predictions, yielding 3D tensors of shape `(batch, height * width * n_boxes, 4)`
# We want the four box coordinates isolated in the last axis to compute the smooth L1 loss
conv4_3_norm_mbox_loc_reshape = Reshape((-1, 4), name='conv4_3_norm_mbox_loc_reshape')(conv4_3_norm_mbox_loc)
fc7_mbox_loc_reshape = Reshape((-1, 4), name='fc7_mbox_loc_reshape')(fc7_mbox_loc)
conv6_2_mbox_loc_reshape = Reshape((-1, 4), name='conv6_2_mbox_loc_reshape')(conv6_2_mbox_loc)
conv7_2_mbox_loc_reshape = Reshape((-1, 4), name='conv7_2_mbox_loc_reshape')(conv7_2_mbox_loc)
conv8_2_mbox_loc_reshape = Reshape((-1, 4), name='conv8_2_mbox_loc_reshape')(conv8_2_mbox_loc)
conv9_2_mbox_loc_reshape = Reshape((-1, 4), name='conv9_2_mbox_loc_reshape')(conv9_2_mbox_loc)
# 重新改变下预测框的的形状 方便后面计算 改为 (批量数 总共锚框数 坐标宽高+4个方差) Reshape the anchor box tensors, yielding 3D tensors of shape `(batch, height * width * n_boxes, 8)`
conv4_3_norm_mbox_priorbox_reshape = Reshape((-1, 8), name='conv4_3_norm_mbox_priorbox_reshape')(conv4_3_norm_mbox_priorbox)
fc7_mbox_priorbox_reshape = Reshape((-1, 8), name='fc7_mbox_priorbox_reshape')(fc7_mbox_priorbox)
conv6_2_mbox_priorbox_reshape = Reshape((-1, 8), name='conv6_2_mbox_priorbox_reshape')(conv6_2_mbox_priorbox)
conv7_2_mbox_priorbox_reshape = Reshape((-1, 8), name='conv7_2_mbox_priorbox_reshape')(conv7_2_mbox_priorbox)
conv8_2_mbox_priorbox_reshape = Reshape((-1, 8), name='conv8_2_mbox_priorbox_reshape')(conv8_2_mbox_priorbox)
conv9_2_mbox_priorbox_reshape = Reshape((-1, 8), name='conv9_2_mbox_priorbox_reshape')(conv9_2_mbox_priorbox)
再讲这些预测数据拼起来，变为 (batch, n_boxes_total, n_classes + 4 + 8)：
### 将不同层的预测数据拼接起来 Concatenate the predictions from the different layers
# Axis 0 (batch) and axis 2 (n_classes or 4, respectively) are identical for all layer predictions,
# so we want to concatenate along axis 1, the number of boxes per layer
# 置信度根据锚框数拼接起来 即(批量数, 总共锚框数, 类别数) Output shape of `mbox_conf`: (batch, n_boxes_total, n_classes)
mbox_conf = Concatenate(axis=1, name='mbox_conf')([conv4_3_norm_mbox_conf_reshape,
fc7_mbox_conf_reshape,
conv6_2_mbox_conf_reshape,
conv7_2_mbox_conf_reshape,
conv8_2_mbox_conf_reshape,
conv9_2_mbox_conf_reshape])
# 坐标根据锚框数拼接起来 即(批量数, 总共锚框数, 坐标宽高) Output shape of `mbox_loc`: (batch, n_boxes_total, 4)
mbox_loc = Concatenate(axis=1, name='mbox_loc')([conv4_3_norm_mbox_loc_reshape,
fc7_mbox_loc_reshape,
conv6_2_mbox_loc_reshape,
conv7_2_mbox_loc_reshape,
conv8_2_mbox_loc_reshape,
conv9_2_mbox_loc_reshape])
# 先验框根据锚框数拼接起来 即(批量数, 总共锚框数, 坐标宽高+4个方差) Output shape of `mbox_priorbox`: (batch, n_boxes_total, 8)
mbox_priorbox = Concatenate(axis=1, name='mbox_priorbox')([conv4_3_norm_mbox_priorbox_reshape,
fc7_mbox_priorbox_reshape,
conv6_2_mbox_priorbox_reshape,
conv7_2_mbox_priorbox_reshape,
conv8_2_mbox_priorbox_reshape,
conv9_2_mbox_priorbox_reshape])
# 置信度要softmax作为激活函数 The box coordinate predictions will go into the loss function just the way they are,
# but for the class predictions, we'll apply a softmax activation layer first
mbox_conf_softmax = Activation('softmax', name='mbox_conf_softmax')(mbox_conf)
# 讲置信度 坐标信息 先验框信息 根据最后一维拼接起来 最后一维就是类别数+4坐标信息+8先验信息 Concatenate the class and box predictions and the anchors to one large predictions vector
# Output shape of `predictions`: (batch, n_boxes_total, n_classes + 4 + 8)
predictions = Concatenate(axis=2, name='predictions')([mbox_conf_softmax, mbox_loc, mbox_priorbox])
最后就是返回模型和数据了：
if mode == 'training':
model = Model(inputs=x, outputs=predictions)
elif mode == 'inference':# 预测要解码
decoded_predictions = DecodeDetections(confidence_thresh=confidence_thresh,
iou_threshold=iou_threshold,
top_k=top_k,
nms_max_output_size=nms_max_output_size,
coords=coords,
normalize_coords=normalize_coords,
img_height=img_height,
img_width=img_width,
name='decoded_predictions')(predictions)
model = Model(inputs=x, outputs=decoded_predictions)
elif mode == 'inference_fast':# 预测要解码 为了快速
decoded_predictions = DecodeDetectionsFast(confidence_thresh=confidence_thresh,
iou_threshold=iou_threshold,
top_k=top_k,
nms_max_output_size=nms_max_output_size,
coords=coords,
normalize_coords=normalize_coords,
img_height=img_height,
img_width=img_width,
name='decoded_predictions')(predictions)
model = Model(inputs=x, outputs=decoded_predictions)
else:
raise ValueError("`mode` must be one of 'training', 'inference' or 'inference_fast', but received '{}'.".format(mode))
if return_predictor_sizes:# 要返回一些层信息的话
predictor_sizes = np.array([conv4_3_norm_mbox_conf._keras_shape[1:3],
fc7_mbox_conf._keras_shape[1:3],
conv6_2_mbox_conf._keras_shape[1:3],
conv7_2_mbox_conf._keras_shape[1:3],
conv8_2_mbox_conf._keras_shape[1:3],
conv9_2_mbox_conf._keras_shape[1:3]])
return model, predictor_sizes
else:
return model
其实这些基本都是论文里的思路，搞清楚形状基本就没什么问题，主要还是前面的提取特征，后面的进行多尺度预测，每个尺度中的锚框的大小和长宽比都是不同的，具体论文里有公式，我就不多讲了，后面就是AnchorBoxes里面做的事，后面会讲。
好了，今天就到这里了，希望对学习理解有帮助，大神看见勿喷，仅为自己的学习理解，能力有限，请多包涵，部分图片来自网络，侵删。
来源：CSDN
作者：王伟王胖胖
链接：https://blog.csdn.net/wangwei19871103/article/details/102729415
