一、简介
生产端的可靠性投递：
- 保障消息的成功发出；
- 保障MQ节点的成功接收；
- 发送端收到MQ节点(Broker) 确认应答；
- 完善的消息补偿机制；
在实际项目中某些场景下，必须保证消息不会出现丢失情况，这时候就需要我们对消息可靠性传输解决方法有所认识，才能在各种特殊情况下不会出现消息丢失、消息多发现象等。生产者可靠性传输有两种方案：
- 消息落库，对消息状态进行打标
- 消息的延迟投递，做二次确认，回调检查
本文将使用"消息落库，对消息状态进行打标"方式保证消息可靠性传输。

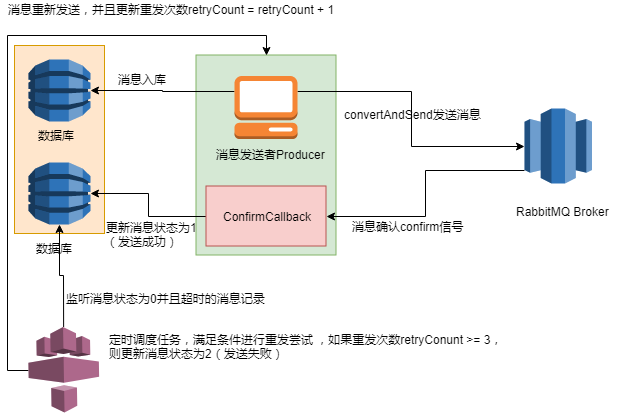

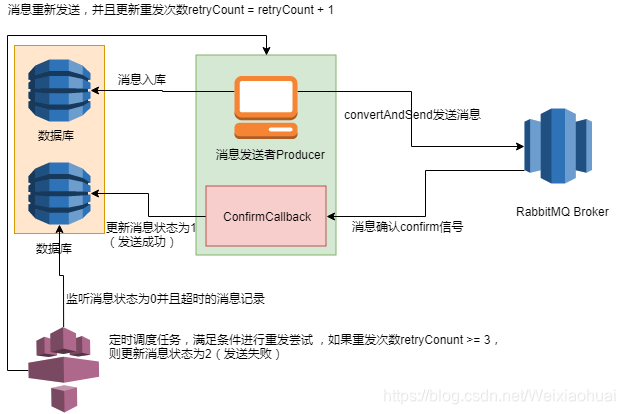

二、原理图
思路：
【1】业务数据以及MQ消息入库处理：首先将业务数据保存到数据库中，然后生成一条消息，也保存到消息记录表中，同时指定消息初始化状态为0(发送中)。
【2】生产者发送消息到MQ服务器，生产者端监听ConfirmCallback回调。
【3】生产者接收到Broker发送的确认应答信号，判断该条消息是否发送成功，如果成功，那么更新该条消息的状态为1(发送成功)，如果发送失败的话，则进行重发尝试。
【4】假设在消息确认的时候由于网络闪断，MQ Broker端异常等原因导致 回送消息失败或者异常，导致生产者未能成功收到确认消息，针对这种情况，我们可以使用定时任务，去定时查询数据库中距离消息创建时间超过5分钟的且状态为0的消息，然后对这些消息进行重试尝试。
【5】当然有些消息可能就是由于一些实际的问题无法路由到Broker，比如routingKey设置不对，对应的队列被误删除了，那么这种消息即使重试多次也仍然无法投递成功，所以需要对重试次数做限制，比如限制3次，如果投递次数大于三次，那么就将消息状态更新为2（发送失败），表示这个消息最终投递失败，可以通过人工去处理这些失败消息。（或者把消息转储到失败消息记录表中）。
下面我们使用springboot + mybatis实现一个消息可靠性传输的案例，具体代码如下：
三、案例
【1】数据库脚本：
/*
SQLyog Ultimate v11.24 (32 bit)
MySQL - 5.5.44 : Database - rabbitmq_reliability
*********************************************************************
*/
/*!40101 SET NAMES utf8 */;
/*!40101 SET SQL_MODE=''*/;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
CREATE DATABASE /*!32312 IF NOT EXISTS*/`rabbitmq_reliability` /*!40100 DEFAULT CHARACTER SET utf8 */;
USE `rabbitmq_reliability`;
/*Table structure for table `broker_message_log` */
DROP TABLE IF EXISTS `broker_message_log`;
CREATE TABLE `broker_message_log` (
`message_id` varchar(128) NOT NULL,
`message` varchar(4000) DEFAULT NULL,
`try_count` int(4) DEFAULT '0',
`status` varchar(10) DEFAULT '',
`next_retry` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
`create_time` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
`update_time` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
PRIMARY KEY (`message_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
/*Table structure for table `t_order` */
DROP TABLE IF EXISTS `t_order`;
CREATE TABLE `t_order` (
`id` varchar(128) NOT NULL,
`name` varchar(128) DEFAULT NULL,
`message_id` varchar(128) NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
【2】pom.xml依赖：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>1.5.21.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.wsh.springboot</groupId>
<artifactId>springboot_rabbotmq_topic_exchange</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>springboot_rabbotmq_topic_exchange</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>1.3.4</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.49</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.3.2</version>
<scope>compile</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
【3】application.yml：主要包括rabbitmq、数据源、mybatis配置等
server:
port: 4444
spring:
application:
name: rabbitmq-message-abilitity-demo
rabbitmq:
host: 127.0.0.1
virtual-host: /vhost
username: wsh
password: wsh
port: 5672
publisher-confirms: true
publisher-returns: true
template:
mandatory: true
listener:
simple:
acknowledge-mode: manual
datasource:
username: root
password: wsh0905
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://127.0.0.1:3306/rabbitmq_reliability?characterEncoding=utf8
http:
encoding:
charset: utf-8
jackson:
time-zone: GMT+8
date-format: yyyy-MM-dd HH:mm:ss
default-property-inclusion: non_null
mybatis:
mapper-locations: classpath:mapping/*Mapper.xml
type-aliases-package: com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity
【4】实体类OrderInfo：
import java.io.Serializable;
/**
* @Description: 订单实体类
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 8:59
*/
public class OrderInfo implements Serializable {
/**
* 订单ID
*/
private String id;
/**
* 订单名称
*/
private String name;
/**
* 消息ID
*/
private String messageId;
public String getId() {
return id;
}
public void setId(String id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getMessageId() {
return messageId;
}
public void setMessageId(String messageId) {
this.messageId = messageId;
}
}
【5】实体类BrokerMessageLog：
import java.util.Date;
/**
* @Description: 消息记录实体类
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 9:00
*/
public class BrokerMessageLog {
/**
* 消息ID
*/
private String messageId;
/**
* 消息内容
*/
private String message;
/**
* 重试次数
*/
private Integer tryCount;
/**
* 消息的状态
*/
private String status;
/**
* 下一次重试时间
*/
private Date nextRetry;
/**
* 创建时间
*/
private Date createTime;
/**
* 更新时间
*/
private Date updateTime;
public String getMessageId() {
return messageId;
}
public void setMessageId(String messageId) {
this.messageId = messageId;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
public Integer getTryCount() {
return tryCount;
}
public void setTryCount(Integer tryCount) {
this.tryCount = tryCount;
}
public String getStatus() {
return status;
}
public void setStatus(String status) {
this.status = status;
}
public Date getNextRetry() {
return nextRetry;
}
public void setNextRetry(Date nextRetry) {
this.nextRetry = nextRetry;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getUpdateTime() {
return updateTime;
}
public void setUpdateTime(Date updateTime) {
this.updateTime = updateTime;
}
}
【6】RabbitMQ配置类：声明队列、交换机、绑定关系等
/**
* @Description: RabbitMQ配置类
* @author: weishihuai
* @Date: 2019/7/28 10:34
*/
@Configuration
public class RabbitMQConfig {
@Bean
public Queue queue() {
return new Queue(Constants.QUEUE_NAME);
}
@Bean
public TopicExchange topicExchange() {
return new TopicExchange(Constants.EXCHANGE_NAME);
}
@Bean
public Binding bindQueue() {
return BindingBuilder.bind(queue()).to(topicExchange()).with(Constants.ROUTE_KEY);
}
}
【7】定时任务配置类
/**
* @Description: 定时任务配置类
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 9:06
*/
@Configuration
@EnableScheduling
public class SchedulerConfiguration implements SchedulingConfigurer {
@Override
public void configureTasks(ScheduledTaskRegistrar scheduledTaskRegistrar) {
scheduledTaskRegistrar.setScheduler(taskScheduler());
}
@Bean
public Executor taskScheduler() {
//创建一个定长的线程池
return Executors.newScheduledThreadPool(10);
}
}
【8】自定义消息发送确认回调配置类： implements RabbitTemplate.ConfirmCallback
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.constant.Constants;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper.BrokerMessageLogMapper;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.support.CorrelationData;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import java.util.Date;
/**
* @Description 自定义消息发送确认的回调
* @Author weishihuai
* @Date 2019/7/28 10:42
*/
@Component
public class CustomConfirmAndReturnCallback implements RabbitTemplate.ConfirmCallback {
private static final Logger logger = LoggerFactory.getLogger(CustomConfirmAndReturnCallback.class);
@Autowired
private RabbitTemplate rabbitTemplate;
@Autowired
private BrokerMessageLogMapper brokerMessageLogMapper;
/**
* PostConstruct: 用于在依赖关系注入完成之后需要执行的方法上，以执行任何初始化.
*/
@PostConstruct
public void init() {
//指定 ConfirmCallback
rabbitTemplate.setConfirmCallback(this);
}
/**
* 如果消息没有到达交换机,则该方法中isSendSuccess = false,error为错误信息;
* 如果消息正确到达交换机,则该方法中isSendSuccess = true;
*/
@Override
public void confirm(CorrelationData correlationData, boolean isSendSuccess, String error) {
String messageId = correlationData.getId();
if (isSendSuccess) {
//如果消息到达MQ Broker，更新消息
brokerMessageLogMapper.changeBrokerMessageLogStatus(messageId, Constants.ORDER_SEND_SUCCESS, new Date());
} else {
logger.error("消息发送异常...");
}
}
}
【9】全局常量类：
/**
* @Description: 常量类
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 9:09
*/
public class Constants {
/**
* 队列名称
*/
public static final String QUEUE_NAME = "order-queue";
/**
* 交换机名称
*/
public static final String EXCHANGE_NAME = "order-exchange";
/**
* 错误交换机名称
*/
public static final String ERROR_EXCHANGE_NAME = "error-order-exchange";
/**
* 路由键
*/
public static final String ROUTE_KEY = "order.#";
/**
* 消息状态(发送中)
*/
public static final String ORDER_SENDING = "0";
/**
* 消息状态(成功)
*/
public static final String ORDER_SEND_SUCCESS = "1";
/**
* 消息状态(失败)
*/
public static final String ORDER_SEND_FAILURE = "2";
/**
* 消息超时时间(一分钟)
*/
public static final int ORDER_TIMEOUT = 1;
}
【10】订单Mapper持久层接口：
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.OrderInfo;
import org.springframework.stereotype.Repository;
/**
* @Description: 订单Mapper
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 15:47
*/
@Repository
public interface OrderMapper {
/**
* 保存订单信息
*
* @param orderInfo 订单信息
*/
void saveOrder(OrderInfo orderInfo);
}
【11】消息记录Mapper持久层接口：
/**
* @Description: 消息发送记录Mapper
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 15:34
*/
@Repository
public interface BrokerMessageLogMapper {
/**
* 查询消息状态为0(发送中) 且已经超时的消息集合
*
* @return 消息集合
*/
List<BrokerMessageLog> queryTimeoutBrokerMessageLog();
/**
* 更新消息重试发送次数
*
* @param messageId 消息ID
* @param updateTime 更新时间
*/
void updateBrokerMessageLogRetryCount(@Param("messageId") String messageId, @Param("updateTime") Date updateTime);
/**
* 更新消息发送状态
*
* @param messageId 消息ID
* @param status 消息的状态
* @param updateTime 更新时间
*/
void changeBrokerMessageLogStatus(@Param("messageId") String messageId, @Param("status") String status, @Param("updateTime") Date updateTime);
/**
* 保存消息发送记录消息
*
* @param brokerMessageLog 消息发送记录
*/
void saveBrokerMessageLog(BrokerMessageLog brokerMessageLog);
}
【12】订单Mapper.xml：
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper.OrderMapper">
<!--保存订单信息-->
<insert id="saveOrder"
parameterType="com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.OrderInfo">
insert into t_order(id,name,message_id) values(#{id},#{name},#{messageId})
</insert>
</mapper>
【13】消息记录Mapper.xml：
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper.BrokerMessageLogMapper">
<!--查询消息状态为0(发送中) 且已经超时的消息集合-->
<select id="queryTimeoutBrokerMessageLog"
resultType="com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.BrokerMessageLog">
SELECT t.`create_time` AS createTime,t.`message` AS message,t.`message_id` AS messageId,t.`next_retry` AS nextRetry, t.`status` AS STATUS,t.`try_count` AS tryCount,t.`update_time` AS updateTime
from broker_message_log t
where status = '0'
and next_retry <![CDATA[ <= ]]> sysdate()
</select>
<!--更新消息重试发送次数-->
<update id="updateBrokerMessageLogRetryCount">
update broker_message_log bml
set bml.try_count = bml.try_count + 1,
bml.update_time = #{updateTime, jdbcType=TIMESTAMP}
where bml.message_id = #{messageId,jdbcType=VARCHAR}
</update>
<!--更新消息发送状态-->
<update id="changeBrokerMessageLogStatus">
update broker_message_log bml
set bml.status = #{status,jdbcType=VARCHAR},
bml.update_time = #{updateTime, jdbcType=TIMESTAMP}
where bml.message_id = #{messageId,jdbcType=VARCHAR}
</update>
<!--保存消息发送记录消息-->
<insert id="saveBrokerMessageLog"
parameterType="com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.BrokerMessageLog">
INSERT INTO `broker_message_log`
(`message_id`,
`message`,
`try_count`,
`status`,
`next_retry`,
`create_time`,
`update_time`)
VALUES (#{messageId},
#{message},
#{tryCount},
#{status},
#{nextRetry},
#{createTime},
#{updateTime})
</insert>
</mapper>
【14】订单服务层接口OrderService：
import com.alibaba.fastjson.JSONObject;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.constant.Constants;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.BrokerMessageLog;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.OrderInfo;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper.BrokerMessageLogMapper;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper.OrderMapper;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.producer.Producer;
import org.apache.commons.lang3.time.DateUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.Date;
/**
* @Description: 订单服务层接口
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 15:36
*/
@Service
public class OrderService {
@Autowired
private OrderMapper orderMapper;
@Autowired
private BrokerMessageLogMapper brokerMessageLogMapper;
@Autowired
private Producer producer;
public void saveOrderInfo(OrderInfo order) throws Exception {
Date nowDate = new Date();
// 1.保存订单信息
orderMapper.saveOrder(order);
// 2.保存消息记录信息
BrokerMessageLog brokerMessageLog = new BrokerMessageLog();
brokerMessageLog.setMessageId(order.getMessageId());
brokerMessageLog.setMessage(JSONObject.toJSONString(order));
// 初始化消息状态为0
brokerMessageLog.setStatus(Constants.ORDER_SENDING);
// 初始化已重试次数为0
brokerMessageLog.setTryCount(0);
// 设置消息超时时间为一分钟
brokerMessageLog.setNextRetry(DateUtils.addMinutes(nowDate, Constants.ORDER_TIMEOUT));
brokerMessageLog.setCreateTime(nowDate);
brokerMessageLog.setUpdateTime(nowDate);
brokerMessageLogMapper.saveBrokerMessageLog(brokerMessageLog);
// 3.消息发送者发送消息到MQ
producer.sendOrder(order);
}
}
【15】消息重发定时器：容器启动后,延迟5秒后执行定时器,以后每10秒再执行一次该定时器
import com.alibaba.fastjson.JSONObject;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.constant.Constants;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.BrokerMessageLog;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.OrderInfo;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper.BrokerMessageLogMapper;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.producer.Producer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import java.util.Date;
import java.util.List;
/**
* @Description: 消息重发定时器
* @Author: weixiaohuai
* @Date: 2019/7/28
* @Time: 15:50
*/
@Component
public class MessageReSendScheduler {
private static final Logger logger = LoggerFactory.getLogger(MessageReSendScheduler.class);
@Autowired
private Producer producer;
@Autowired
private BrokerMessageLogMapper brokerMessageLogMapper;
/**
* 容器启动后,延迟5秒后执行定时器,以后每10秒再执行一次该定时器
*/
@Scheduled(initialDelay = 5000, fixedDelay = 10000)
public void reSend() {
//查询出状态为0以及超时的消息
List<BrokerMessageLog> list = brokerMessageLogMapper.queryTimeoutBrokerMessageLog();
if (null != list && list.size() > 0) {
for (BrokerMessageLog brokerMessageLog : list) {
if (null != brokerMessageLog) {
if (brokerMessageLog.getTryCount() >= 3) {
logger.info("消息【{}】重试三次之后仍失败..", brokerMessageLog.getMessageId());
//重试失败三次，更新消息状态为发送失败
brokerMessageLogMapper.changeBrokerMessageLogStatus(brokerMessageLog.getMessageId(), Constants.ORDER_SEND_FAILURE, new Date());
} else {
// 如果重试次数小于三次，那么进行重发
brokerMessageLogMapper.updateBrokerMessageLogRetryCount(brokerMessageLog.getMessageId(), new Date());
OrderInfo orderInfo = JSONObject.parseObject(brokerMessageLog.getMessage(), OrderInfo.class);
try {
logger.info("消息【{}】即将进行重发尝试..", brokerMessageLog.getMessageId());
producer.sendOrder(orderInfo);
} catch (Exception e) {
e.printStackTrace();
logger.error("消息处理异常..");
}
}
}
}
}
}
}
【16】消息发送者Producer：
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.constant.Constants;
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.entity.OrderInfo;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.support.CorrelationData;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/**
* @Description: 消息发送者
* @author: weishihuai
* @Date: 2019/7/28 10:27
*/
@Component
public class Producer {
@Autowired
private RabbitTemplate rabbitTemplate;
public void sendOrder(OrderInfo order) throws Exception {
//消息唯一ID
CorrelationData correlationData = new CorrelationData(order.getMessageId());
//正常发送消息
rabbitTemplate.convertAndSend(Constants.EXCHANGE_NAME, "order.save", order, correlationData);
//指定一个不存在的交换机，这样触发confirmCallback失败回调，进行重发尝试
// rabbitTemplate.convertAndSend(Constants.ERROR_EXCHANGE_NAME, "order.save", order, correlationData);
}
}
【17】消息消费者Consumer：
import com.wsh.springboot.springboot_rabbotmq_topic_exchange.constant.Constants;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/**
* @Description: 消息消费者
* @author: weishihuai
* @Date: 2019/7/28 11:30
*/
@Component
public class Consumer {
private static final Logger logger = LoggerFactory.getLogger(Consumer.class);
@RabbitListener(queues = {Constants.QUEUE_NAME})
public void receiveMessage(Message message) {
logger.info("【消费者接收到消息：{}】", message);
}
}
【18】应用启动类：
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan("com.wsh.springboot.springboot_rabbotmq_topic_exchange.mapper")
public class SpringbootRabbotmqTopicExchangeApplication {
public static void main(String[] args) {
SpringApplication.run(SpringbootRabbotmqTopicExchangeApplication.class, args);
}
}
【19】测试发送订单：验证订单业务数据以及消息记录是否正确进行入库。
@RunWith(SpringRunner.class)
@SpringBootTest
public class SpringbootRabbotmqTopicExchangeApplicationTests {
@Autowired
private Producer producer;
@Autowired
private OrderService orderService;
@Test
public void testCreateOrder() throws Exception {
OrderInfo order = new OrderInfo();
order.setId(UUID.randomUUID().toString());
order.setName("图书订单");
order.setMessageId(UUID.randomUUID().toString());
orderService.saveOrderInfo(order);
}
}
启动项目，并且运行上面的单元测试，通过sqlyong查询两个表数据：
订单表：
消息记录表：
可见，由于指定的routeKey正确路由，订单数据以及消息记录都成功入库，并且消息记录表中的消息状态为1（发送成功）。

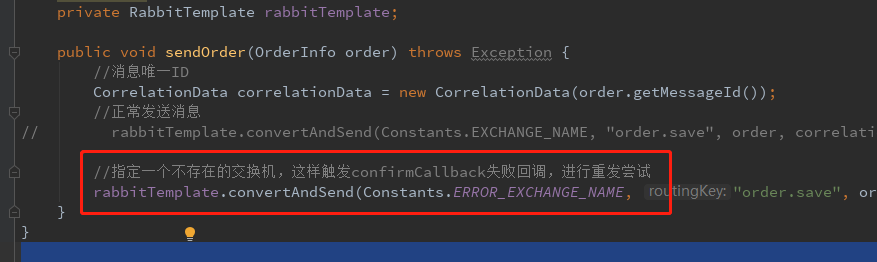

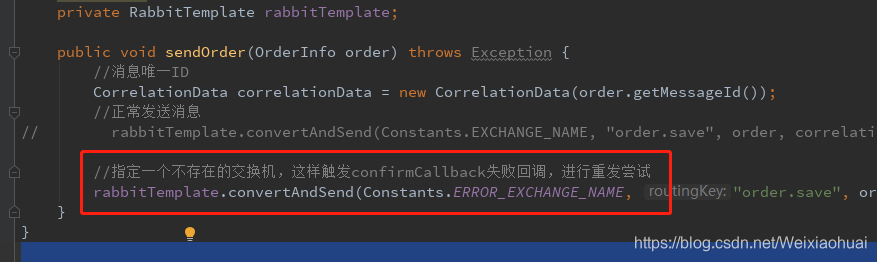

【20】接着，修改一下消息发送的目标交换机，随便指定一个不存在的交换机名称，这时候消息会发生丢失，从而触发confirmCallback的失败回调，所以该条消息的状态为0(发送中)。由于此时存在定时器去定时查询状态为0并且消息已经过时的消息，进行重发尝试，如果重试三次还是未能发送成功，将更新消息状态为2，表示投递失败。
继续运行上面的测试用例，查看结果：
订单表：
消息记录表：

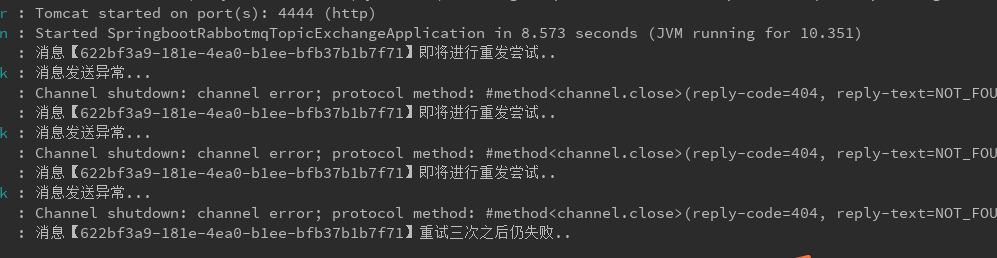

控制台输出：可见，此条消息重复尝试了三次之后依然失败，这时候消息记录表中的消息状态被更新为2(发送失败)。
四、总结
本文通过将消息标识状态方式进行包装消息可靠性传输，该种方式适合于数据量不会特别大的场合，在高并发下，由于需要进行两次数据入库操作，对数据库压力蛮大的，所以还有一种方式解决消息可靠性传输，就是 "消息的延迟投递，做二次确认，回调检查",有空会去研究一下。本文是在笔者看到https://www.imooc.com/article/49814大神这篇博客之后启发自己写的一个示例，也加深了自己对可靠性传输解决方案的认识。
来源：CSDN
作者：人丑就该多读书呀
链接：https://blog.csdn.net/Weixiaohuai/article/details/97619346
