2019 SDN上机第2次作业

1. 利用mininet创建如下拓扑，要求拓扑支持OpenFlow 1.3协议，主机名、交换机名以及端口对应正确，请给出拓扑Mininet执行结果，展示端口连接情况

1.1创建拓扑

1.2Mininet执行结果

1.3展示网络信息

2. 直接在Open vSwitch下发流表，用vlan得到下列虚拟网段，请逐条说明所下发的流表含义

h1 -- h4互通
h2 -- h5互通
h3 -- h6互通
其余主机不通

将主机1，2，3进入s1的包打上vlan tag，转发端口4

sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,in_port=1,actions=push_vlan:0x8100,set_field:4096-\>vlan_vid,output:4
sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,in_port=2,actions=push_vlan:0x8100,set_field:4097-\>vlan_vid,output:4
sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,in_port=3,actions=push_vlan:0x8100,set_field:4098-\>vlan_vid,output:4

将从端口4的包去除vlan tag，并根据tag进行转发

sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,dl_vlan=0,actions=pop_vlan,output:1
sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,dl_vlan=1,actions=pop_vlan,output:2
sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,dl_vlan=2,actions=pop_vlan,output:3

将主机4，5，6进入s2的包打上vlan tag，转发端口4

sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,in_port=1,actions=push_vlan:0x8100,set_field:4096-\>vlan_vid,output:4
sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,in_port=2,actions=push_vlan:0x8100,set_field:4097-\>vlan_vid,output:4
sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,in_port=3,actions=push_vlan:0x8100,set_field:4098-\>vlan_vid,output:4

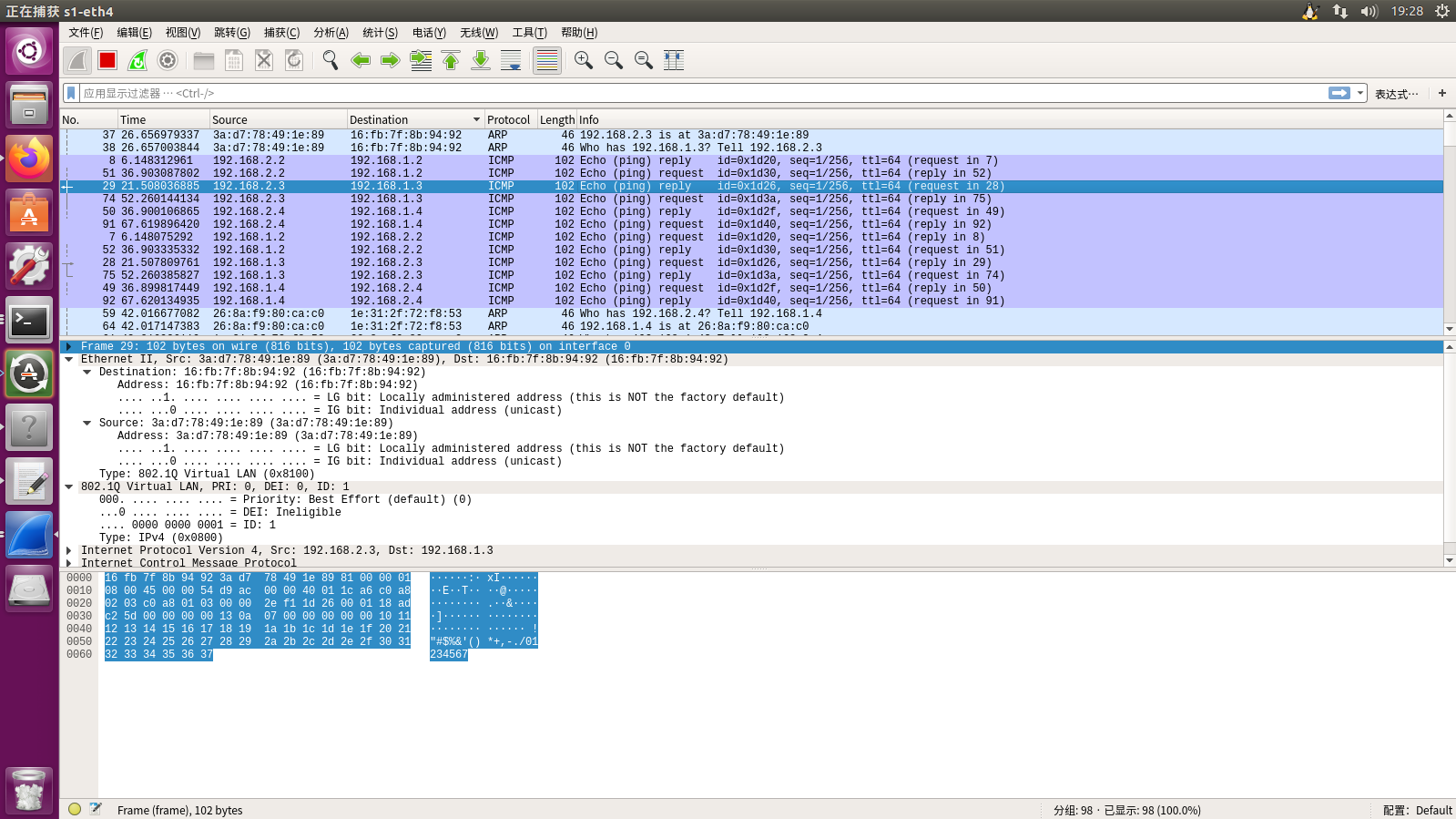

将从端口4的包去除vlan tag，并根据tag进行转发

sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,dl_vlan=0,actions=pop_vlan,output:1
sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,dl_vlan=1,actions=pop_vlan,output:2
sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,dl_vlan=2,actions=pop_vlan,output:3
