遇到的问题，目前的毫米波雷达数据很稀疏，用ｅｘｃｅｌ存储，需要转换过去，测试一下当前的激光雷达算法，并测试。
一. 第一步，用激光雷达数据测试
[转载自：https://blog.csdn.net/fk1174/article/details/52673413】
第二种办法，首先去http://kaspar.informatik.uni-freiburg.de/~slamEvaluation/datasets.php下载数据集，我用的是Intel Research Lab 的数据集，保存为intel.clf。（clf是一种日志存储格式）
怎么下载呢？运行这语句就可以了。
wget http://ais.informatik.uni-freiburg.de/slamevaluation/datasets/aces.clf
编写把clf文件转化为rosbag文件的python脚本：
#!/usr/bin/env python
'''This is a converter for the Intel Research Lab SLAM dataset
( http://kaspar.informatik.uni-freiburg.de/~slamEvaluation/datasets/intel.clf )
to rosbag'''
import rospy
import rosbag
from sensor_msgs.msg import LaserScan
from nav_msgs.msg import Odometry
from math import pi
from tf2_msgs.msg import TFMessage
from geometry_msgs.msg import TransformStamped
import tf
def make_tf_msg(x, y, theta, t,base,base0):
trans = TransformStamped()
trans.header.stamp = t
trans.header.frame_id = base
trans.child_frame_id = base0
trans.transform.translation.x = x
trans.transform.translation.y = y
q = tf.transformations.quaternion_from_euler(0, 0, theta)
trans.transform.rotation.x = q[0]
trans.transform.rotation.y = q[1]
trans.transform.rotation.z = q[2]
trans.transform.rotation.w = q[3]
msg = TFMessage()
msg.transforms.append(trans)
return msg
with open('/home/kylefan/catkin_ws/data/intel/intel.clf') as dataset:
with rosbag.Bag('/home/kylefan/intel.bag', 'w') as bag:
for line in dataset.readlines():
line = line.strip()
tokens = line.split(' ')
if len(tokens) <= 2:
continue
if tokens[0] == 'FLASER':
msg = LaserScan()
num_scans = int(tokens[1])
if num_scans != 180 or len(tokens) < num_scans + 9:
rospy.logwarn("unsupported scan format")
continue
msg.header.frame_id = 'base_link'
t = rospy.Time(float(tokens[(num_scans + 8)]))
msg.header.stamp = t
msg.angle_min = -90.0 / 180.0 * pi
msg.angle_max = 90.0 / 180.0 * pi
msg.angle_increment = pi / num_scans
msg.time_increment = 0.2 / 360.0
msg.scan_time = 0.2
msg.range_min = 0.001
msg.range_max = 50.0
msg.ranges = [float(r) for r in tokens[2:(num_scans + 2)]]
bag.write('scan', msg, t)
odom_x, odom_y, odom_theta = [float(r) for r in tokens[(num_scans + 2):(num_scans + 5)]]
tf_msg = make_tf_msg(odom_x, odom_y, odom_theta, t,'base_link','base_laser_link')
bag.write('tf', tf_msg, t)
elif tokens[0] == 'ODOM':
odom_x, odom_y, odom_theta = [float(t) for t in tokens[1:4]]
t = rospy.Time(float(tokens[7]))
tf_msg = make_tf_msg(odom_x, odom_y, odom_theta, t,'odom','base_link')
bag.write('tf', tf_msg, t)
保存为bag.py，放到ros包beginner_tutorials的scripts文件夹下，然后：
chmod +x bag.py
rosrun beginner_tutorials bag.py
就把激光和odom的数据按照真实的时间点写入到了intel.bag里了。
最后
rosbag play intel.bag
激光的数据就发布到/laser了，这样就实现模拟的作用了。

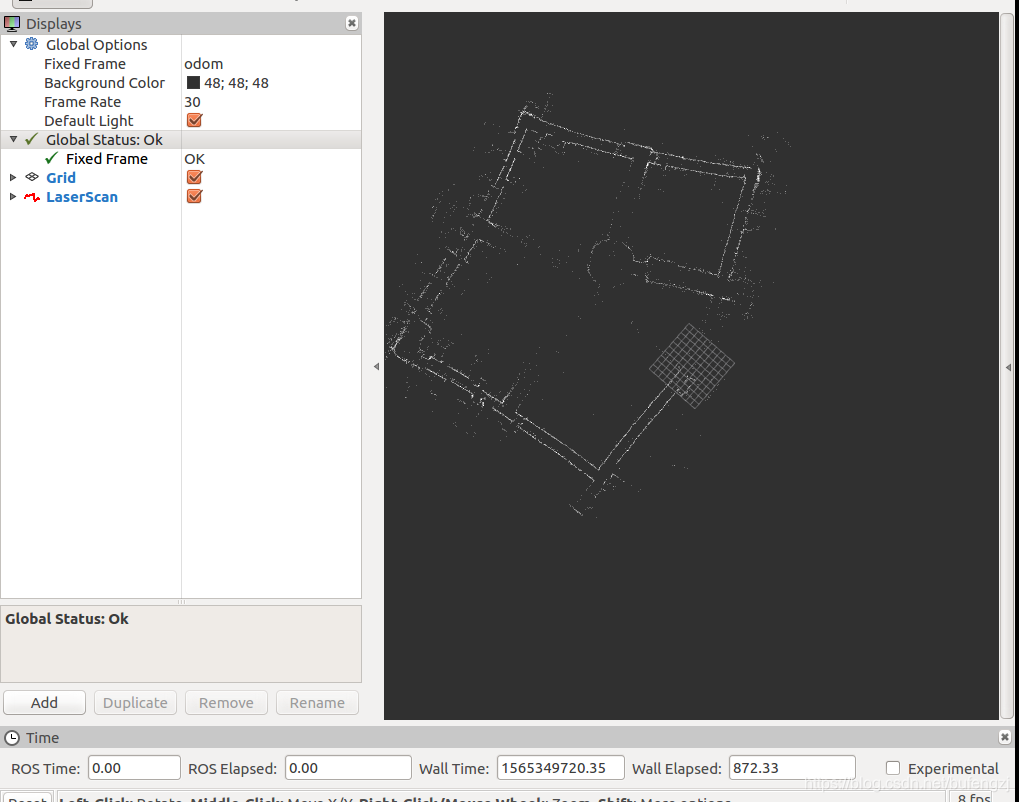

这时候想再rviz里看看，记得要在左上角Global Options里面设置/odom为fixed的：
参考大神：http://answers.ros.org/question/233042/in-ros-gmapping-how-to-use-intel-research-lab-dataset/

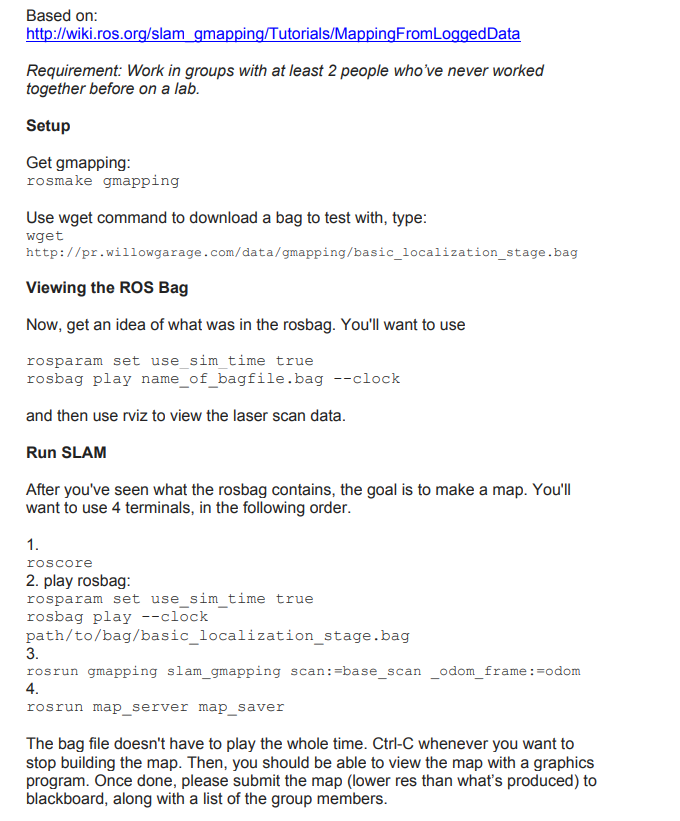

具体怎么运行呢？
- Bring up the master:
roscore - Make sure that use_sim_time is set to true before any nodes are started:
rosparam set use_sim_time true （运行ｒｏｓbag数据就是ｔｒｕｅ,实际数据就是false) -
Bring up slam_gmapping, which will take in laser scans (in this case, on the base_scan topic) and produce a map:
rosrun gmapping slam_gmapping scan:=scan (我们前面bag.write写入的就是ｓｃａｎ)这里，也可以把ｏｄｏｍ里程计数据也加进去,就需要这么写
-
rosrun gmapping slam_gmapping scan:=scan _odom_frame:=odom (我们前面bag.write写入的就是ｓｃａｎ) -
- In a new terminal, start playing back the bag file to feed data to slam_gmapping:
rosbag play --clock <name of the bag that you downloaded / created in step 2>- Wait for rosbag to finish and exit.
-

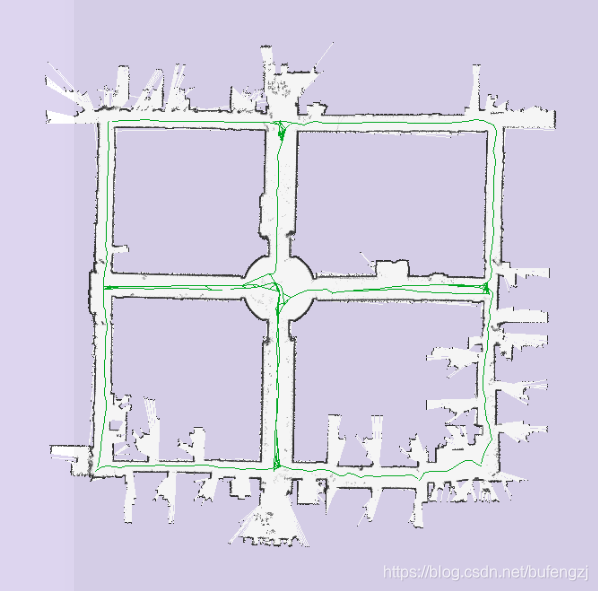

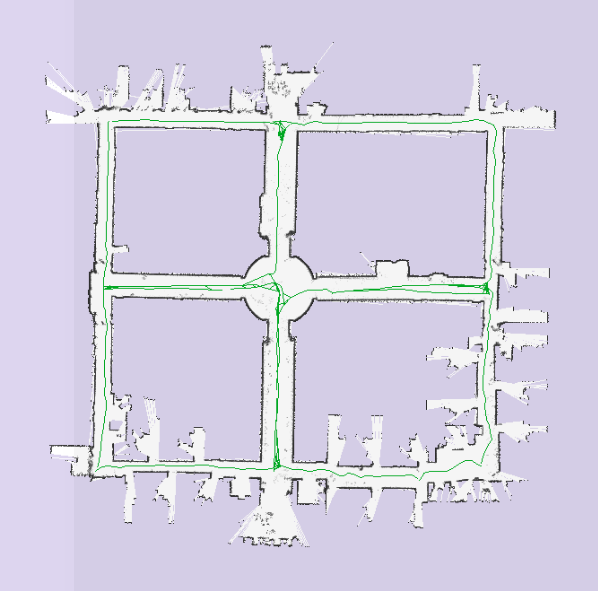

Save your new map to disk using map_saver from the map_server package:
rosrun map_server map_saver -f <map_name>
遇到的一些问题
０． ros 编译 Python 文件
https://blog.csdn.net/light_jiang2016/article/details/55505627
１． 问题与解决
No handlers could be found for logger rosout
解决方法：
在转换文件（.py）的开头加上：
import logging
logging.basicConfig()
其他参考资料
参考网站：http://wiki.ros.org/slam_gmapping/Tutorials/MappingFromLoggedData
https://stackoverflow.com/questions/53642503/how-to-convert-csv-to-rosbag
