在github上看到有人用HTML5 + CSS3 + Javascript实现了jQuery Wheel Menu（旋转菜单），因为本人供职于移动网站的开发，又不是一个专业的前端开发，所以看到这么炫的东东肯定就垂涎三尺，想移植到移动平台，当然最好一句 代码不修改直接移植过来是最省事的，但是最终发现此大牛给出的Demo在移动端上展现是有一定问题的，所以在边看中国好声音的过程中，修改了他的一部分代 码，实现了在移动浏览器上可以自由使用的jQuery Wheel Menu（旋转菜单）。
既然实现了如此绚丽的菜单，那么在移动网站上究竟在怎么样的场景下可以使用呢？其实，淘宝移动主站（m.taobao.com）左下角的“淘” 就是这样一个类似的效果，但是淘宝主站实现的一些绚丽效果有一个让人头疼的问题，就是在移动端没问题，但是在PC端上就是没有任何效果。也许专业的前端能 够接受这件事情，毕竟人家做的移动网站和PC无关的。不过因为本人是一个半路出家的很不专业的假“前端”开发工程师，所以我希望在移动端上实现的一些绚丽 效果当用PC浏览器访问的时候，用鼠标点击代替移动端手指Tap的时候，也同样看到类似的效果。所以，这次玩的jQuery Wheel Menu在移动端和PC端的浏览器上不管你是Click还是Tap都是可以玩的。
那这种旋转式的菜单到底什么场景下使用呢？还不知道吗？我都举例淘宝了，当然你去看一看嘛，哈哈~这种旋转式菜单适合fixed在页面的左下角 或者右下角，将回首页、消息通知、登录、个人中心等此类公共功能放入其中，这样不管你在哪个网页上，想回到这些公共功能的时候，只要点一下左下角或者右下 角的这么个小东西，就可以立刻过去。
在线演示地址：http://sandbox.runjs.cn/show/lmfucabu
你也可以拿出手机扫描下方二维码，直接在手机上进行效果演示：

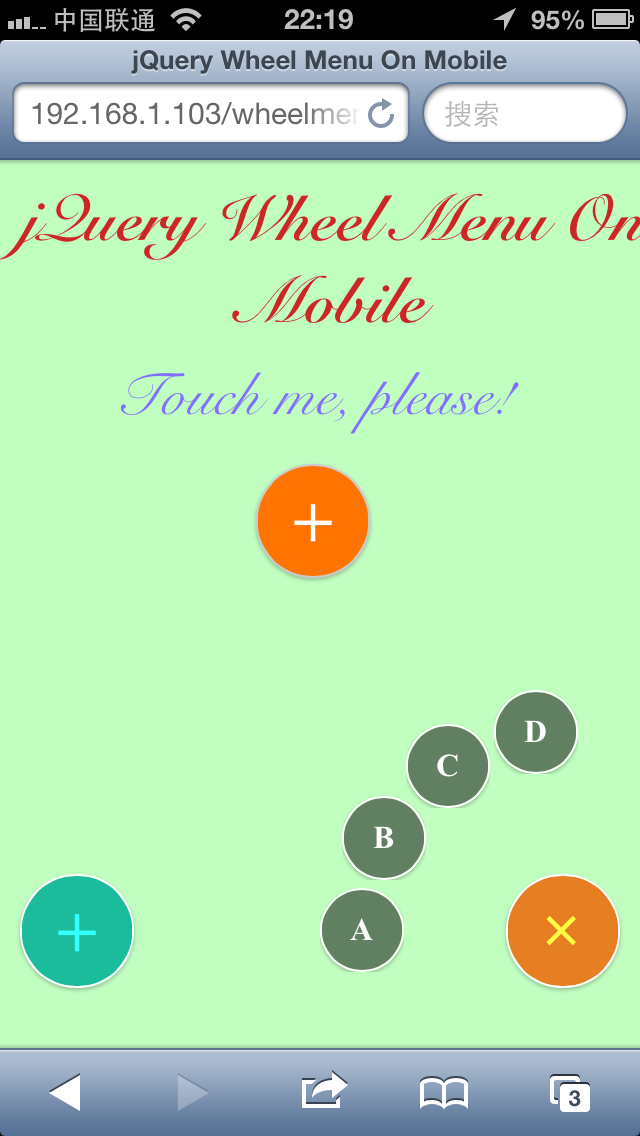

看到代码前，先来几张页面截图吧。
这个控件的实现上主要使用了CSS3的动画实现方式，各位有兴趣的同学，可以借助这个例子来很好地了解一下CSS3的动画实现方式。好了，废话不多说了，直接上代码吧！
Javascript代码：jquery.wheelmenu.js
对Javascript代码没有进行改动，我之所以说自己是个“假”前端就是因为我很不“喜欢”去写Javascript，所以我使用了github上的源码。
!function($){
var defaults = {
trigger: "click",
animation: "fade",
angle: [0,360],
animationSpeed: "medium"
};
$.fn.centerAround = function (button) {
var offset = button.offset(),
width = button.outerWidth(),
height = button.outerHeight(),
buttonX = (offset.left - $(document).scrollLeft() ) + width / 2,
buttonY = (offset.top - $(document).scrollTop() ) + height / 2,
objectOffset = this.offset();
// alert(width);
// alert(height);
// alert(buttonX);
// alert(buttonY);
this.css("position","fixed");
this.css("top", buttonY - (this.outerHeight() / 2) + "px");
this.css("left", buttonX - (this.outerWidth() / 2) + "px");
return this;
}
$.fn.flyIn = function (el, button, width, height, angle, step, radius, settings) {
var d = 0;
this.stop(true,true);
this.each(function(index) {
angle = (settings.angle[0] + (step * index)) * (Math.PI/180);
var x = Math.round(width/2 + radius * Math.cos(angle) - $(this).find("a").outerWidth()/2),
y = Math.round(height/2 + radius * Math.sin(angle) - $(this).find("a").outerHeight()/2);
$(this).animateRotate(360).css({
position: 'absolute',
opacity: 0,
left: "50%",
top: "50%",
marginLeft: "-" + $(this).outerWidth() / 2,
marginTop: "-" + $(this).outerHeight() / 2
}).delay(d).animate({
opacity:1,
left: x + 'px',
top: y + 'px'
}, settings.animationSpeed[1]);
d += settings.animationSpeed[0];
});
}
$.fn.flyOut = function (el, button) {
var d = 0;
this.stop(true,true);
$(this.get().reverse()).each(function() {
$(this).animateRotate(-360).delay(d).animate({
opacity:0,
left: el.outerWidth() / 2 + "px",
top: el.outerHeight() / 2 + "px"
}, 150);
d += 15;
}).promise().done( function() {
el.removeClass("active").css("visibility", "hidden").hide();
button.removeClass("active")
});
}
$.fn.fadeInIcon = function (el, button, width, height, angle, step, radius, settings) {
var d = 0;
this.stop(true,true);
this.each(function(index) {
angle = (settings.angle[0] + (step * index)) * (Math.PI/180);
var x = Math.round(width/2 + radius * Math.cos(angle) - $(this).find("a").outerWidth()/2),
y = Math.round(height/2 + radius * Math.sin(angle) - $(this).find("a").outerHeight()/2);
$(this).css({
position: 'absolute',
left: x + 'px',
top: y + 'px',
opacity: 0
}).delay(d).animate({opacity:1}, settings.animationSpeed[1]);
d += settings.animationSpeed[0];
});
}
$.fn.fadeOutIcon = function (el, button) {
var d = 0;
this.stop(true,true);
$(this.get().reverse()).each(function() {
$(this).delay(d).animate({opacity:0}, 150);
d += 15;
}).promise().done( function() {
el.removeClass("active").css("visibility", "hidden").hide();
button.removeClass("active")
});
}
$.fn.hideIcon = function (button, settings) {
var fields = this.find(".item"),
el = this;
switch (settings.animation) {
case 'fade':
fields.fadeOutIcon(el, button)
break;
case 'fly':
fields.flyOut(el, button)
break;
}
}
$.fn.showIcon = function (button, settings) {
var el = this,
zindex = '6';
if (settings.trigger == "hover") {
var zindex = '3';
}
button.addClass("active").css({
'z-index': zindex
});
el.show().css({
position: 'absolute',
'z-index': '5',
'padding': '30px' // add safe zone for mouseover
}).centerAround(button);
el.addClass("wheel active").css("visibility", "visible").show();
if (el.attr('data-angle')) {
settings.angle = el.attr('data-angle')
}
settings = predefineAngle(settings);
var radius = el.width() / 2,
fields = el.find(".item"),
container = el,
width = container.innerWidth(),
height = container.innerHeight(),
angle = 0,
step = (settings.angle[1] - settings.angle[0]) / fields.length;
switch (settings.animation) {
case 'fade':
fields.fadeInIcon(el, button, width, height, angle, step, radius, settings)
break;
case 'fly':
fields.flyIn(el, button, width, height, angle, step, radius, settings)
break;
}
}
$.fn.animateRotate = function(angle, duration, easing, complete) {
return this.each(function() {
var $elem = $(this);
$({deg: 0}).animate({deg: angle}, {
duration: duration,
easing: easing,
step: function(now) {
$elem.css({
transform: 'rotate(' + now + 'deg)'
});
},
complete: complete || $.noop
});
});
};
function predefineAngle (settings) {
var convert = false
if ($.type(settings.angle) == "string") {
try {
if (eval(settings.angle).length > 1) convert = true
}
catch(err) {
convert = false
}
if (convert == true) {
settings.angle = JSON.parse(settings.angle);
} else {
switch (settings.angle) {
case 'N':
settings.angle = [180,380]
break;
case 'NE':
settings.angle = [270,380]
break;
case 'E':
settings.angle = [270,470]
break;
case 'SE':
settings.angle = [360,470]
break;
case 'S':
settings.angle = [360,560]
break;
case 'SW':
settings.angle = [90,200]
break;
case 'W':
settings.angle = [90,290]
break;
case 'NW':
settings.angle = [180,290]
break;
case 'all':
settings.angle = [0,360]
break;
}
}
}
return settings;
}
function predefineSpeed(settings) {
if ($.type(settings.animationSpeed) == "string") {
switch (settings.animationSpeed) {
case 'slow':
settings.animationSpeed = [75,700]
break;
case 'medium':
settings.animationSpeed = [50,500]
break;
case 'fast':
settings.animationSpeed = [25,250]
break;
case 'instant':
settings.animationSpeed = [0,0]
break;
}
}
return settings;
}
$.fn.wheelmenu = function(options){
var settings = $.extend({}, defaults, options);
settings = predefineSpeed(settings);
return this.each(function(){
var button = $(this)
var el = $($(this).attr("href"));
el.addClass("wheel");
button.css("opacity", 0).animate({
opacity: 1
})
if (settings.trigger == "hover") {
button.bind({
mouseenter: function() {
el.showIcon(button, settings);
}
});
el.bind({
mouseleave: function() {
el.hideIcon(button, settings);
}
});
} else {
button.click( function() {
if (el.css('visibility') == "visible") {
el.hideIcon(button, settings);
} else {
el.showIcon(button, settings);
}
});
}
});
}
}(window.jQuery);CSS代码：wheelmenu.css
我对CSS的代码是比较有兴趣玩的，所以并没有完全使用作者的CSS代码以及代码结构，因为我觉得作者的CSS代码在规范性上还是存在一定问题的 （提供了CSS文件，但是在Demo的html中又写了很大一段代码，这种规范向来都是我鄙视的，鄙视一下大拿作者，来提升一下自己吧，哈哈~）
body {
background: #C1FFC1;
padding: 0;
text-align: center;
position: relative;
margin: 0;
}
a {
text-decoration: none;
}
.main {
width: 100%;
margin: 0 auto;
}
h1 {
font-family: 'Pacifico', cursive;
margin: 10px;
width: 100%;
color: #CD2626;
}
.wheel-button {
position: relative;
line-height: 35px;
font-weight: bold;
font-size: 35px;
background: #FF7300;
padding: 10px;
text-align: center;
border-radius: 50px;
width: 35px;
height: 35px;
color: white;
display: block;
margin: 20px auto 20px;
border: 1px solid #cccccc;
box-shadow: 0 1px 2px rgba(0,0,0,0.25);
-moz-box-shadow: 0 1px 2px rgba(0,0,0,0.25);
-webkit-box-shadow: 0 1px 2px rgba(0,0,0,0.25);
}
.wheel-button span, .wheel span{
position: relative;
-moz-transition: all 1s ease;
-webkit-transition: all 1s ease;
-o-transition: all 1s ease;
transition: all 1s ease;
display: block;
}
.wheel-button.active span{
transform: rotate(135deg);
-ms-transform: rotate(135deg); /* IE 9 */
-webkit-transform: rotate(135deg); /* Safari and Chrome */
}
.pointer {
color: #836FFF;
font-family: 'Pacifico', cursive;
font-size: 30px;
height: 30px;
line-height: 30px;
margin: 10px 0 0px 0;
}
.wheel {
margin: 0;
padding: 0;
list-style: none;
width: 200px; /* this will determine the diameter of the circle */
height: 200px; /* this will determine the diameter of the circle */
visibility: hidden;
position: relative;
display: none;
}
.wheel li {
overflow: hidden;
float:left;
}
.wheel li a {
display: block;
background: rgba(0,0,0,0.5);
border-radius: 50px;
font-weight: bold;
padding: 10px;
text-align: center;
width: 20px;
height: 20px;
border: 1px solid #ffffff;
box-shadow: 0 1px 2px rgba(0,0,0,0.25);
-moz-box-shadow: 0 1px 2px rgba(0,0,0,0.25);
-webkit-box-shadow: 0 1px 2px rgba(0,0,0,0.25);
color: white;
-moz-transition: all 0.25s ease;
-webkit-transition: all 0.25s ease;
-o-transition: all 0.25s ease;
transition: all 0.25s ease;
}
.wheel-button.ne {
border-color: white;
background: #1ABC9C;
color: #34FFFF;
position: fixed;
bottom: 10px;
left: 10px;
}
.wheel-button.nw {
border-color: white;
background-color: #E67E22;
color: #FFFC44;
position: fixed;
bottom: 10px;
right: 10px;
}Demo Html代码：wheelmenu.html
一个简单的移动页面的示例代码结构，我对视觉设计欠缺，所以Demo页面各位注重事先的效果就可以了。
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0, user-scalable=0">
<title>jQuery Wheel Menu On Mobile</title>
<script type="text/javascript" src="http://code.jquery.com/jquery-1.9.1.js"></script>
<script type="text/javascript" src="jquery.wheelmenu.js"></script>
<link rel="stylesheet" type="text/css" href="wheelmenu.css" />
<script>
addEventListener("load", function() { setTimeout(scrollTo, 0, 0, 0); }, false);
$(document).ready(function(){
$(".wheel-button").wheelmenu({
trigger: "click",
animation: "fly",
animationSpeed: "fast"
});
});
</script>
</head>
<body>
<div class="main">
<h1>jQuery Wheel Menu On Mobile</h1>
<div class="pointer">Touch me, please!</div>
<a href="#wheel" class="wheel-button">
<span>+</span>
</a>
<ul id="wheel" data-angle="all">
<li class="item"><a href="#home">A</a></li>
<li class="item"><a href="#home">B</a></li>
<li class="item"><a href="#home">C</a></li>
<li class="item"><a href="#home">D</a></li>
<li class="item"><a href="#home">E</a></li>
<li class="item"><a href="#home">F</a></li>
<li class="item"><a href="#home">G</a></li>
<li class="item"><a href="#home">H</a></li>
<li class="item"><a href="#home">I</a></li>
<li class="item"><a href="#home">J</a></li>
</ul>
<a href="#wheel2" class="wheel-button ne">
<span>+</span>
</a>
<ul id="wheel2" data-angle="NE" class="wheel">
<li class="item"><a href="#home">A</a></li>
<li class="item"><a href="#home">B</a></li>
<li class="item"><a href="#home">C</a></li>
<li class="item"><a href="#home">D</a></li>
</ul>
<a href="#wheel3" class="wheel-button nw">
<span>+</span>
</a>
<ul id="wheel3" data-angle="NW" class="wheel">
<li class="item"><a href="#home">A</a></li>
<li class="item"><a href="#home">B</a></li>
<li class="item"><a href="#home">C</a></li>
<li class="item"><a href="#home">D</a></li>
</ul>
</div>
</body>
</html>来源：oschina
