SpringBoot-集成Quartz

前面一篇文章(SpringBoot-定时任务)中介绍了如何用SpringBoot框架中的注解方式来实现定时任务，这种方式的好处是不使用第三方的依赖，仅凭几个方便的注解，即可编写一个简单的定时任务处理。

实际开发中为了满足复杂的业务场景，比如任务暂停、恢复、删除等操作。上面这种方式就不能满足了，这一节我们来学习SpringBoot集成Quartz框架来实现复杂的任务调度处理。

Quzrtz简介

Quartz是一个由Java语言编写的开源任务调度框架，具有简单高效、容错、支持分布式等优点。

主要API：

Scheduler：与调度器交互的主要API。
Job：需要被调度器调度的任务必须实现的接口。
JobDetail：用于定义任务的实例。
Trigger：用于定义调度器何时调度任务执行的组件。
JobBuilder：用于定义或创建JobDetail的实例。
TriggerBuilder：用于定义或创建触发器实例。

数据库准备

Quertz需要将任务的相关信息保存到数据库中，所以我们需要提前创建好数据库，库名自己定义好后，执行以下SQL语句：

DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
DROP TABLE IF EXISTS QRTZ_LOCKS;
DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
DROP TABLE IF EXISTS QRTZ_CALENDARS;

-- 存储每一个已配置的Job的详细信息
CREATE TABLE QRTZ_JOB_DETAILS(
SCHED_NAME VARCHAR(120) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
JOB_CLASS_NAME VARCHAR(250) NOT NULL,
IS_DURABLE VARCHAR(1) NOT NULL,
IS_NONCONCURRENT VARCHAR(1) NOT NULL,
IS_UPDATE_DATA VARCHAR(1) NOT NULL,
REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB;

-- 存储已配置的Trigger的信息
CREATE TABLE QRTZ_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
NEXT_FIRE_TIME BIGINT(13) NULL,
PREV_FIRE_TIME BIGINT(13) NULL,
PRIORITY INTEGER NULL,
TRIGGER_STATE VARCHAR(16) NOT NULL,
TRIGGER_TYPE VARCHAR(8) NOT NULL,
START_TIME BIGINT(13) NOT NULL,
END_TIME BIGINT(13) NULL,
CALENDAR_NAME VARCHAR(200) NULL,
MISFIRE_INSTR SMALLINT(2) NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB;

-- 存储已配置的Simple Trigger的信息
CREATE TABLE QRTZ_SIMPLE_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
REPEAT_COUNT BIGINT(7) NOT NULL,
REPEAT_INTERVAL BIGINT(12) NOT NULL,
TIMES_TRIGGERED BIGINT(10) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

-- 存储Cron Trigger，包括Cron表达式和时区信息
CREATE TABLE QRTZ_CRON_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
CRON_EXPRESSION VARCHAR(120) NOT NULL,
TIME_ZONE_ID VARCHAR(80),
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPROP_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    STR_PROP_1 VARCHAR(512) NULL,
    STR_PROP_2 VARCHAR(512) NULL,
    STR_PROP_3 VARCHAR(512) NULL,
    INT_PROP_1 INT NULL,
    INT_PROP_2 INT NULL,
    LONG_PROP_1 BIGINT NULL,
    LONG_PROP_2 BIGINT NULL,
    DEC_PROP_1 NUMERIC(13,4) NULL,
    DEC_PROP_2 NUMERIC(13,4) NULL,
    BOOL_PROP_1 VARCHAR(1) NULL,
    BOOL_PROP_2 VARCHAR(1) NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
    REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

-- Trigger作为Blob类型存储(用于Quartz用户用JDBC创建他们自己定制的Trigger类型，JobStore并不知道如何存储实例的时候)
CREATE TABLE QRTZ_BLOB_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
BLOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
INDEX (SCHED_NAME,TRIGGER_NAME, TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

-- 以Blob类型存储Quartz的Calendar日历信息,quartz可配置一个日历来指定一个时间范围
CREATE TABLE QRTZ_CALENDARS (
SCHED_NAME VARCHAR(120) NOT NULL,
CALENDAR_NAME VARCHAR(200) NOT NULL,
CALENDAR BLOB NOT NULL,
PRIMARY KEY (SCHED_NAME,CALENDAR_NAME))
ENGINE=InnoDB;

-- 存储已暂停的Trigger组的信息
CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

-- 存储与已触发的Trigger相关的状态信息，以及相联Job的执行信息
CREATE TABLE QRTZ_FIRED_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
ENTRY_ID VARCHAR(95) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
FIRED_TIME BIGINT(13) NOT NULL,
SCHED_TIME BIGINT(13) NOT NULL,
PRIORITY INTEGER NOT NULL,
STATE VARCHAR(16) NOT NULL,
JOB_NAME VARCHAR(200) NULL,
JOB_GROUP VARCHAR(200) NULL,
IS_NONCONCURRENT VARCHAR(1) NULL,
REQUESTS_RECOVERY VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,ENTRY_ID))
ENGINE=InnoDB;

-- 存储少量的有关 Scheduler的状态信息，和别的 Scheduler 实例(假如是用于一个集群中)
CREATE TABLE QRTZ_SCHEDULER_STATE (
SCHED_NAME VARCHAR(120) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
CHECKIN_INTERVAL BIGINT(13) NOT NULL,
PRIMARY KEY (SCHED_NAME,INSTANCE_NAME))
ENGINE=InnoDB;
-- 存储程序的非观锁的信息(假如使用了悲观锁)
CREATE TABLE QRTZ_LOCKS (
SCHED_NAME VARCHAR(120) NOT NULL,
LOCK_NAME VARCHAR(40) NOT NULL,
PRIMARY KEY (SCHED_NAME,LOCK_NAME))
ENGINE=InnoDB;

CREATE INDEX IDX_QRTZ_J_REQ_RECOVERY ON QRTZ_JOB_DETAILS(SCHED_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_J_GRP ON QRTZ_JOB_DETAILS(SCHED_NAME,JOB_GROUP);

CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME);
CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);

CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME);
CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);

commit;

创建项目结构

快速构建一个SpringBoot项目，添加如下依赖：

<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-quartz</artifactId>
</dependency>
<dependency>
	<groupId>org.projectlombok</groupId>
	<artifactId>lombok</artifactId>
	<optional>true</optional>
</dependency>

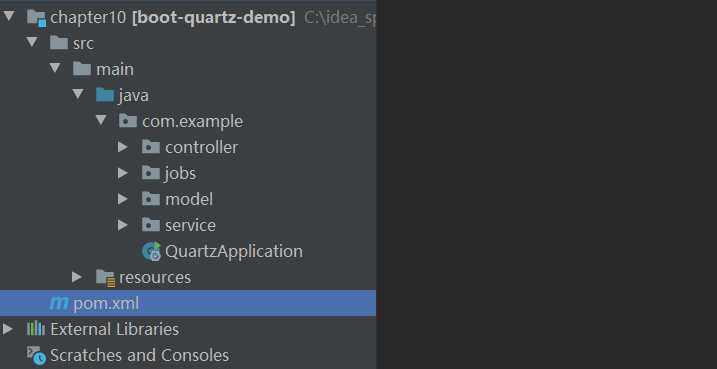

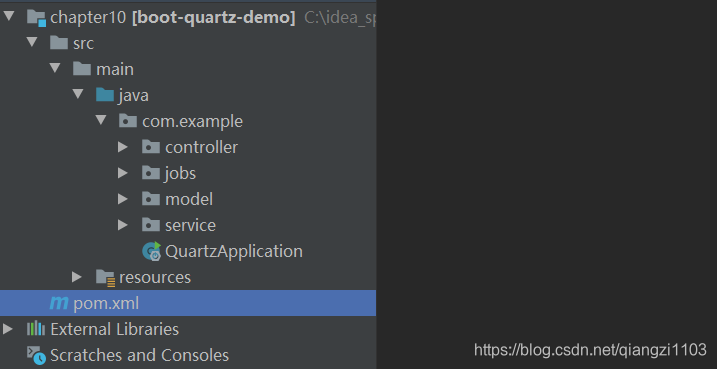

接着我们定义好整个项目的包结构：在这里插入图片描述
在application.yml中添加如下配置文件：

spring:
  application:
    name: boot-quartz-demo
  datasource: #数据库配置
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/quartz?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=true
    username: root
    password: 123456
  jpa: #JPA配置
    database: mysql
    show-sql: true
  quartz:
    #quartz相关属性配置
    properties:
      org:
        quartz:
          scheduler:
            instanceName: clusteredScheduler
            instanceId: AUTO
          jobStore:
            class: org.quartz.impl.jdbcjobstore.JobStoreTX
            driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
            tablePrefix: qrtz_
            isClustered: true
            clusterCheckinInterval: 10000
            useProperties: false
          threadPool:
            class: org.quartz.simpl.SimpleThreadPool
            threadCount: 10 #开启10个线程
            threadPriority: 5
            threadsInheritContextClassLoaderOfInitializingThread: true
    #数据库方式
    job-store-type: jdbc

构建好如上项目结构后，我们开始编写实现代码，首先我们需要封装一个任务执行的类存放与model包下：

/**
 * @ClassName Task
 * @Description 定时任务基本属性
 */
@Data
@Builder
public class Task {

    /**
     * 任务名称
     */
    @NotEmpty(message = "任务名称不能为空")
    private String name;

    /**
     * 任务分组
     */
    @NotEmpty(message = "任务分组不能为空")
    private String goup;

    /**
     * corn表达式
     */
    @NotEmpty(message = "定时任务的表达式不能为空")
    private String cron;

    /**
     * 任务描述
     */
    private String desc;

    /**
     * 执行任务的逻辑类
     */
    @NotNull(message = "执行任务的逻辑类名不能为空")
    private String jobClass;

    /**
     * 元数据
     */
    private Map<?,?> jobDataMap;

    public JobKey getJobKey(){
        return JobKey.jobKey(this.name,this.goup);
    }
}

编写业务类QuartzJobService存放与service包下：

@Slf4j
@Service
public class QuartzJobService {

    //Quartz定时任务核心的功能实现类
    private Scheduler scheduler;

    public QuartzJobService(@Autowired SchedulerFactoryBean schedulerFactoryBean) {
        scheduler = schedulerFactoryBean.getScheduler();
    }

    /**
     * 创建和启动定时任务
     * {@link org.quartz.Scheduler#scheduleJob(JobDetail, Trigger)}
     *
     * @param task 定时任务
     */
    public void scheduleJob(Task task) throws SchedulerException, ClassNotFoundException {
        //定时任务的名字和组名
        JobKey jobKey = task.getJobKey();
        //定时任务的元数据
        JobDataMap jobDataMap = getJobDataMap(task.getJobDataMap());
        //定时任务的描述
        String desc = task.getDesc();
        //定时任务的逻辑实现类
        Class<? extends Job> jobClass = (Class<? extends Job>) Class.forName(task.getJobClass());
        //定时任务的cron表达式
        String cron = task.getCron();

        JobDetail jobDetail = getJobDetail(jobKey, desc, jobDataMap, jobClass);
        Trigger trigger = getTrigger(jobKey, desc, jobDataMap, cron);
        scheduler.scheduleJob(jobDetail, trigger);
    }

    /**
     * 暂停Job
     * {@link org.quartz.Scheduler#pauseJob(JobKey)}
     */
    public void pauseJob(JobKey jobKey) throws SchedulerException {
        scheduler.pauseJob(jobKey);
    }

    /**
     * 恢复Job
     * {@link org.quartz.Scheduler#resumeJob(JobKey)}
     */
    public void resumeJob(JobKey jobKey) throws SchedulerException {
        scheduler.resumeJob(jobKey);
    }

    /**
     * 删除Job
     * {@link org.quartz.Scheduler#deleteJob(JobKey)}
     */
    public void deleteJob(JobKey jobKey) throws SchedulerException {
        scheduler.deleteJob(jobKey);
    }

    /**
     * 修改Job的cron表达式
     */
    public boolean modifyJobCron(Task task) {
        String cron = task.getCron();
        //如果cron表达式的格式不正确,则返回修改失败
        if (!CronExpression.isValidExpression(cron)) return false;
        JobKey jobKey = task.getJobKey();
        TriggerKey triggerKey = new TriggerKey(jobKey.getName(), jobKey.getGroup());
        try {
            CronTrigger cronTrigger = (CronTrigger) scheduler.getTrigger(triggerKey);
            JobDataMap jobDataMap = getJobDataMap(task.getJobDataMap());
            //如果cron发生变化了,则按新cron触发 进行重新启动定时任务
            if (!cronTrigger.getCronExpression().equalsIgnoreCase(cron)) {
                CronTrigger trigger = TriggerBuilder.newTrigger()
                        .withIdentity(triggerKey)
                        .withSchedule(CronScheduleBuilder.cronSchedule(cron))
                        .usingJobData(jobDataMap)
                        .build();
                scheduler.rescheduleJob(triggerKey, trigger);
            }
        } catch (SchedulerException e) {
            log.error("printStackTrace", e);
            return false;
        }
        return true;
    }

    /**
     * 获取定时任务的定义
     * JobDetail是任务的定义,Job是任务的执行逻辑
     *
     * @param jobKey      任务的名称和组名
     * @param desc        任务的描述
     * @param jobDataMap  任务的元数据
     * @param jobClass    {@link org.quartz.Job} 定时任务的 真正执行逻辑定义类
     */
    public JobDetail getJobDetail(JobKey jobKey, String desc, JobDataMap jobDataMap, Class<? extends Job> jobClass) {
        return JobBuilder.newJob(jobClass)
                .withIdentity(jobKey)
                .withDescription(desc)
                .setJobData(jobDataMap)
                .usingJobData(jobDataMap)
                .requestRecovery()
                .storeDurably()
                .build();
    }

    /**
     * 获取Trigger (Job的触发器,执行规则)
     *
     * @param jobKey         任务的名称和组名
     * @param description    任务的描述
     * @param jobDataMap     任务的元数据
     * @param cronExpression 任务的执行cron表达式
     */
    public Trigger getTrigger(JobKey jobKey, String description, JobDataMap jobDataMap, String cronExpression) {
        return TriggerBuilder.newTrigger()
                .withIdentity(jobKey.getName(), jobKey.getGroup())
                .withDescription(description)
                .withSchedule(CronScheduleBuilder.cronSchedule(cronExpression))
                .usingJobData(jobDataMap)
                .build();
    }

    public JobDataMap getJobDataMap(Map<?, ?> map) {
        return map == null ? new JobDataMap() : new JobDataMap(map);
    }

}

编写执行任务的逻辑类JobOne存放与jobs包下：

/**
 * @ClassName JobOne
 * @Description 定时任务的具体执行逻辑类
 */
@Slf4j
@DisallowConcurrentExecution
public class JobOne implements Job {

    @Override

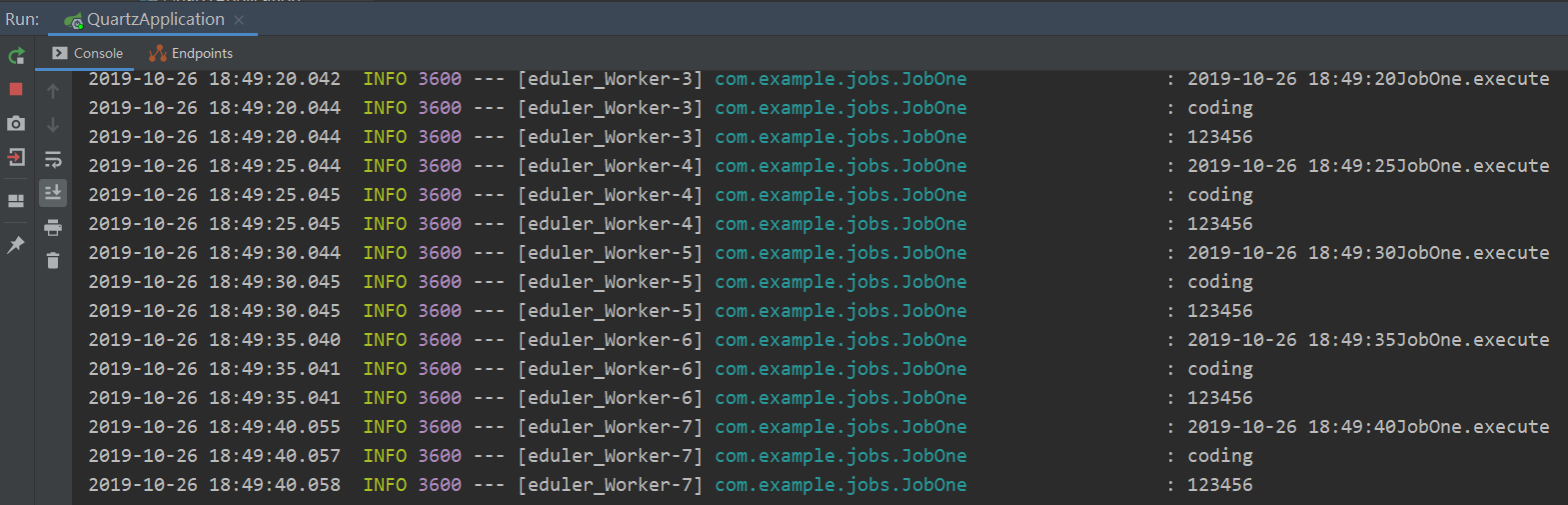

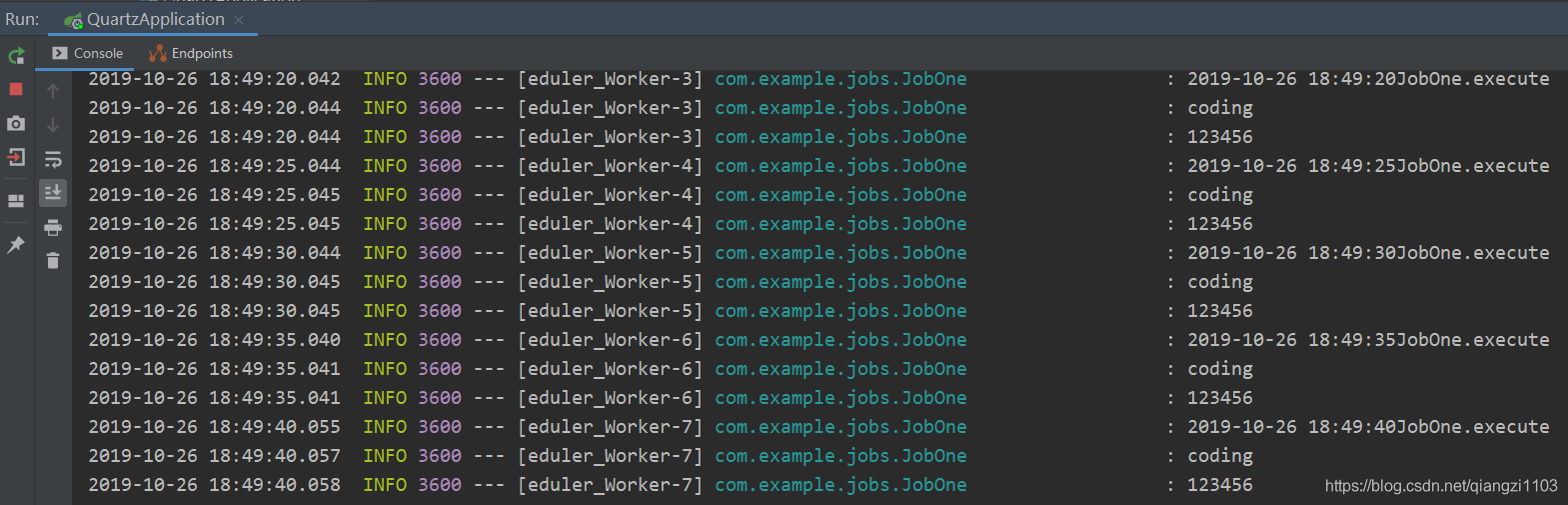

    public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
        String time = LocalDateTime.ofInstant(new Date().toInstant(),
                ZoneId.systemDefault()).
                format(DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss"));
        log.info(time.concat("JobOne.execute"));

        //获取JobDataMap
        JobDataMap jobDataMap =  jobExecutionContext.getJobDetail().getJobDataMap();
        log.info(jobDataMap.getString("userName"));
        log.info(jobDataMap.getString("passWord"));
    }
}

编写JobController存放与controller包下：

/**
 * @ClassName JobController
 * @Description JobController
 */
@RestController
public class JobController {

    @Autowired
    QuartzJobService quartzJobService;

    //创建&启动

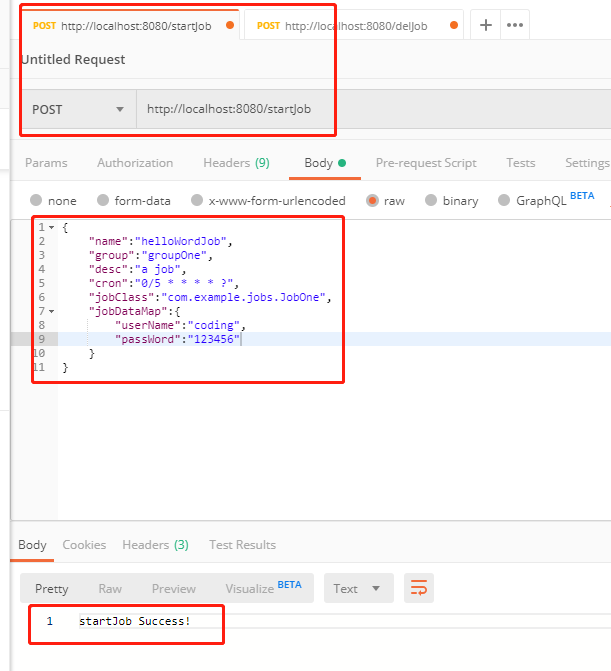

    @PostMapping("startJob")
    public String startJob(@RequestBody Task task) throws SchedulerException, ClassNotFoundException {
        quartzJobService.scheduleJob(task);
        return "startJob Success!";
    }

    //暂停
    @PostMapping("pauseJob")
    public String pauseJob(@RequestBody Task task)throws SchedulerException{
        quartzJobService.pauseJob(task.getJobKey());
        return "pauseJob Success!";
    }

    //恢复
    @PostMapping("resumeJob")
    public String resumeJob(@RequestBody Task task)throws SchedulerException{
        quartzJobService.resumeJob(task.getJobKey());
        return "resumeJob Success!";
    }

    //删除
    @PostMapping("delJob")
    public String delJob(@RequestBody Task task)throws SchedulerException{
        quartzJobService.deleteJob(task.getJobKey());
        return "delJob Success!";
    }

    //修改
    @PostMapping("modifyJob")
    public String modifyJob(@RequestBody Task task){
        if(quartzJobService.modifyJobCron(task)){
            return "modifyJob Success!";
        }else{
            return "modifyJob Fail!";
        }
    }
}
