开源堡垒机Jumpserver

文章目录

开源堡垒机Jumpserver
1 Jumpserver介绍
2 Jumpserver部署

1 Jumpserver介绍

Jumpserver 是全球首款完全开源的堡垒机，使用 GNU GPL v2.0 开源协议，是符合 4A 的运维安全审计系统。

Jumpserver 使用 Python / Django 进行开发，遵循 Web 2.0 规范，配备了业界领先的 Web Terminal 解决方案，交互界面美观、用户体验好。

Jumpserver 采纳分布式架构，支持多机房跨区域部署，支持横向扩展，无资产数量及并发限制。

核心功能列表

身份验证
- 登录认证
  - 资源统一登录和认证
  - LDAP认证
  - 支持OpenID，实现单点登录
- 多因子认证
  - MFA(Google Authenticator)
帐号管理
- 集中帐号管理
  - 管理用户管理
  - 系统用户管理
- 统一密码管理
  - 资产密码托管
  - 自动生成密码
  - 密码自动推送
  - 密码过期设置
- 批量密码变更(X-PACK)
  - 定期批量修改密码
  - 生成随机密码
- 多云环境的资产纳管(X-PACK)
  - 对私有云、公有云资产统一纳管
授权控制
- 资产授权管理
  - 资产树
  - 资产或资产组灵活授权
  - 节点内资产自动继承授权
- RemoteApp(X-PACK)
  - 实现更细粒度的应用级授权
- 组织管理(X-PACK)
  - 实现多租户管理，权限隔离
- 多维度授权
  - 可对用户、用户组或系统角色授权
- 指令限制
  - 限制特权指令使用，支持黑白名单
- 统一文件传输
  - SFTP 文件上传/下载
- 文件管理
  - Web SFTP 文件管理
安全审计
- 会话管理
  - 在线会话管理
  - 历史会话管理
- 录像管理
  - Linux录像支持
  - Windows录像支持
- 指令审计
  - 指令记录
- 文件传输审计
  - 上传/下载记录审计

2 Jumpserver部署

# 关闭防火墙与SELINUX [root@localhost ~]# systemctl stop firewalld [root@localhost ~]# systemctl disable firewalld Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service. Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service. [root@localhost ~]# setenforce 0 [root@localhost ~]# sed -ri 's/^(SELINUX=).*/\1disabled/g' /etc/selinux/config  # 配置网络源 [root@localhost ~]# curl -o /etc/yum.repos.d/CentOS7-Base-163.repo http://mirrors.163.com/.help/CentOS7-Base-163.repo [root@localhost ~]# sed -i 's/\$releasever/7/g' /etc/yum.repos.d/CentOS7-Base-163.repo [root@localhost ~]# sed -i 's/^enabled=.*/enabled=1/g' /etc/yum.repos.d/CentOS7-Base-163.repo

Jumpserver部署环境

[root@localhost ~]# yum clean all [root@localhost ~]# yum makecache [root@localhost ~]# yum -y update  [root@localhost ~]# ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime [root@localhost ~]# yum -y install kde-l10n-Chinese [root@localhost ~]# localedef -c -f UTF-8 -i zh_CN zh_CN.UTF-8 [root@localhost ~]# export LC_ALL=zh_CN.UTF-8 [root@localhost ~]# echo 'LANG="zh_CN.UTF-8"' > /etc/locale.conf   [root@localhost ~]# yum -y install wget gcc epel-release git  [root@localhost ~]# yum install -y yum-utils device-mapper-persistent-data lvm2  [root@localhost ~]# yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo [root@localhost ~]# yum makecache fast [root@localhost ~]# rpm --import https://mirrors.aliyun.com/docker-ce/linux/centos/gpg  [root@localhost ~]# echo -e "[nginx-stable]\nname=nginx stable repo\nbaseurl=http://nginx.org/packages/centos/\$releasever/\$basearch/\ngpgcheck=1\nenabled=1\ngpgkey=https://nginx.org/keys/nginx_signing.key" > /etc/yum.repos.d/nginx.repo  [root@localhost ~]# rpm --import https://nginx.org/keys/nginx_signing.key   [root@localhost ~]# yum -y install redis mariadb mariadb-devel mariadb-server MariaDB-shared nginx docker-ce [root@localhost ~]# systemctl enable redis mariadb nginx docker [root@localhost ~]# systemctl start redis mariadb   [root@localhost ~]# yum -y install python36 python36-devel [root@localhost ~]# python3.6 -m venv /opt/py3

下载组件

[root@localhost ~]# cd /opt/ [root@localhost opt]# git clone --depth=1 https://github.com/jumpserver/jumpserver.git [root@localhost opt]# wget https://demo.jumpserver.org/download/luna/1.5.2/luna.tar.gz [root@localhost opt]# tar xf luna.tar.gz [root@localhost opt]# chown -R root:root luna  [root@localhost opt]# yum -y install $(cat /opt/jumpserver/requirements/rpm_requirements.txt) [root@localhost opt]# echo -e "[easy_install]\nindex_url = https://mirrors.aliyun.com/pypi/simple/" > ~/.pydistutils.cfg  [root@localhost opt]# source /opt/py3/bin/activate (py3) [root@localhost opt]# pip install --upgrade pip setuptools -i https://mirrors.aliyun.com/pypi/simple/ (py3) [root@localhost opt]# pip install -r /opt/jumpserver/requirements/requirements.txt -i https://mirrors.aliyun.com/pypi/simple/ (py3) [root@localhost opt]# curl -sSL https://get.daocloud.io/daotools/set_mirror.sh | sh -s http://f1361db2.m.daocloud.io (py3) [root@localhost opt]# systemctl restart docker (py3) [root@localhost opt]# docker pull jumpserver/jms_koko:1.5.2 (py3) [root@localhost opt]# docker pull jumpserver/jms_guacamole:1.5.2  (py3) [root@localhost opt]# rm -rf /etc/nginx/conf.d/default.conf (py3) [root@localhost opt]# wget -O /etc/nginx/conf.d/jumpserver.conf https://demo.jumpserver.org/download/nginx/conf.d/jumpserver.conf

处理配置文件

(py3) [root@localhost opt]# source ~/.bashrc (py3) [root@localhost opt]# DB_PASSWORD=`cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 24` (py3) [root@localhost opt]# SECRET_KEY=`cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 50` (py3) [root@localhost opt]# echo "SECRET_KEY=$SECRET_KEY" >> ~/.bashrc (py3) [root@localhost opt]# BOOTSTRAP_TOKEN=`cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 16` (py3) [root@localhost opt]# echo "BOOTSTRAP_TOKEN=$BOOTSTRAP_TOKEN" >> ~/.bashrc (py3) [root@localhost opt]# Server_IP=`ip addr | grep inet | egrep -v '(127.0.0.1|inet6|docker)' | awk '{print $2}' | tr -d "addr:" | head -n 1 | cut -d / -f1`  (py3) [root@localhost opt]# mysql -uroot -e "create database jumpserver default charset 'utf8';grant all on jumpserver.* to 'jumpserver'@'127.0.0.1' identified by '$DB_PASSWORD';flush privileges;"  (py3) [root@localhost opt]# cp /opt/jumpserver/config_example.yml /opt/jumpserver/config.yml (py3) [root@localhost opt]# sed -i "s/SECRET_KEY:/SECRET_KEY: $SECRET_KEY/g" /opt/jumpserver/config.yml (py3) [root@localhost opt]# sed -i "s/BOOTSTRAP_TOKEN:/BOOTSTRAP_TOKEN: $BOOTSTRAP_TOKEN/g" /opt/jumpserver/config.yml (py3) [root@localhost opt]# sed -i "s/# DEBUG: true/DEBUG: false/g" /opt/jumpserver/config.yml  (py3) [root@localhost opt]# sed -i "s/# LOG_LEVEL: DEBUG/LOG_LEVEL: ERROR/g" /opt/jumpserver/config.yml (py3) [root@localhost opt]# sed -i "s/# SESSION_EXPIRE_AT_BROWSER_CLOSE: false/SESSION_EXPIRE_AT_BROWSER_CLOSE: true/g" /opt/jumpserver/config.yml (py3) [root@localhost opt]# sed -i "s/DB_PASSWORD: /DB_PASSWORD: $DB_PASSWORD/g" /opt/jumpserver/config.yml

启动Jumpserver

(py3) [root@localhost opt]# systemctl start nginx (py3) [root@localhost opt]# cd /opt/jumpserver (py3) [root@localhost jumpserver]# ./jms start -d  (py3) [root@localhost jumpserver]# docker run --name jms_koko -d -p 2222:2222 -p 127.0.0.1:5000:5000 -e CORE_HOST=http://$Server_IP:8080 -e BOOTSTRAP_TOKEN=$BOOTSTRAP_TOKEN --restart=always jumpserver/jms_koko:1.5.2  (py3) [root@localhost jumpserver]# docker run --name jms_guacamole -d -p 127.0.0.1:8081:8081 -e JUMPSERVER_SERVER=http://$Server_IP:8080 -e BOOTSTRAP_TOKEN=$BOOTSTRAP_TOKEN --restart=always jumpserver/jms_guacamole:1.5.2  (py3) [root@localhost jumpserver]# echo -e "\033[31m 你的数据库密码是 $DB_PASSWORD \033[0m" (py3) [root@localhost jumpserver]# echo -e "\033[31m 你的SECRET_KEY是 $SECRET_KEY \033[0m" (py3) [root@localhost jumpserver]# echo -e "\033[31m 你的BOOTSTRAP_TOKEN是 $BOOTSTRAP_TOKEN \033[0m" (py3) [root@localhost jumpserver]# echo -e "\033[31m 你的服务器IP是 $Server_IP \033[0m" (py3) [root@localhost jumpserver]# echo -e "\033[31m 请打开浏览器访问 http://$Server_IP 用户名:admin 密码:admin \033[0m"

配置开机自启

(py3) [root@localhost ~]# wget -O /usr/lib/systemd/system/jms.service https://demo.jumpserver.org/download/shell/centos/jms.service (py3) [root@localhost ~]# chmod 755 /usr/lib/systemd/system/jms.service (py3) [root@localhost ~]# systemctl enable jms

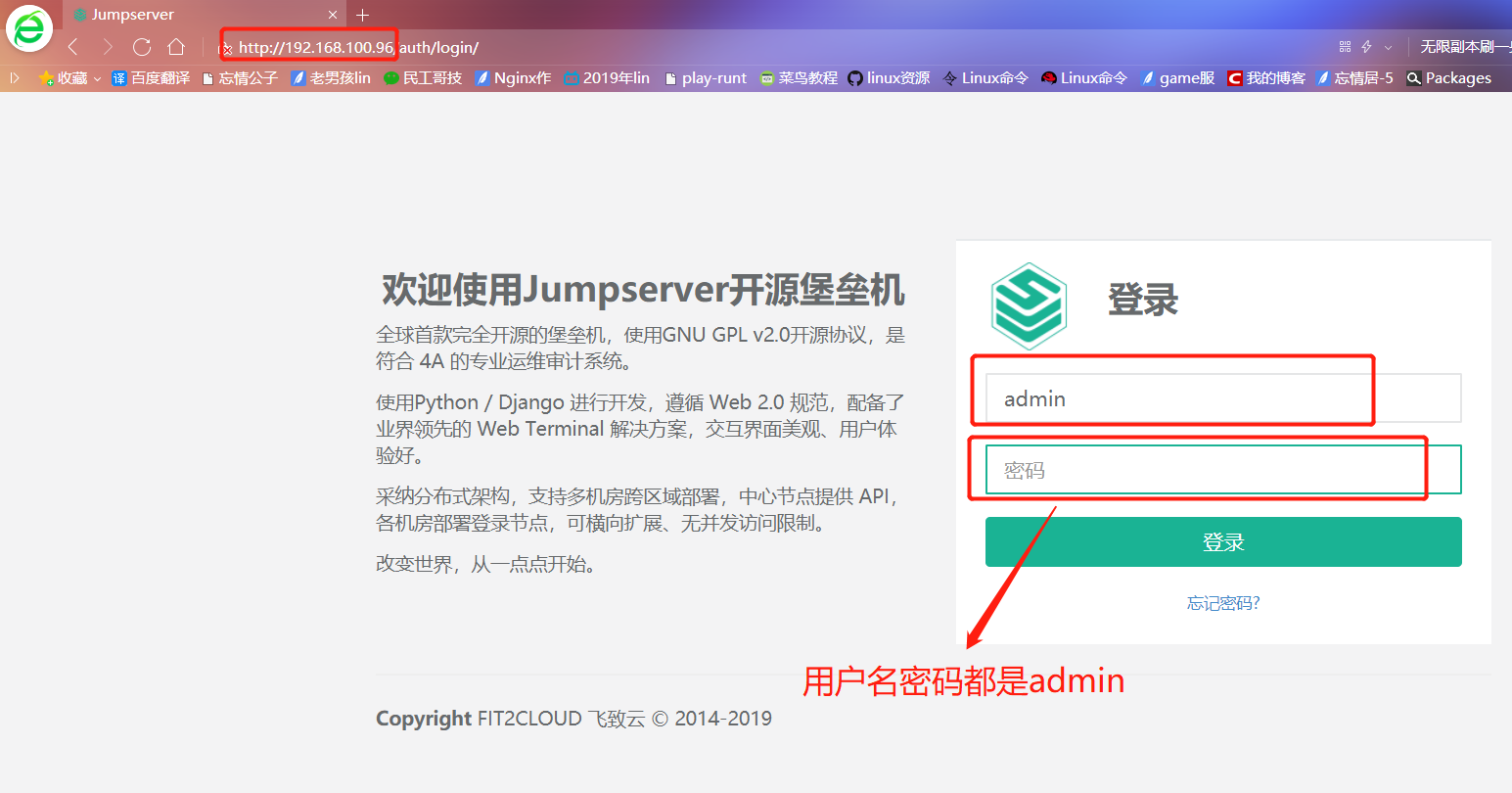

浏览器访问页面如下：

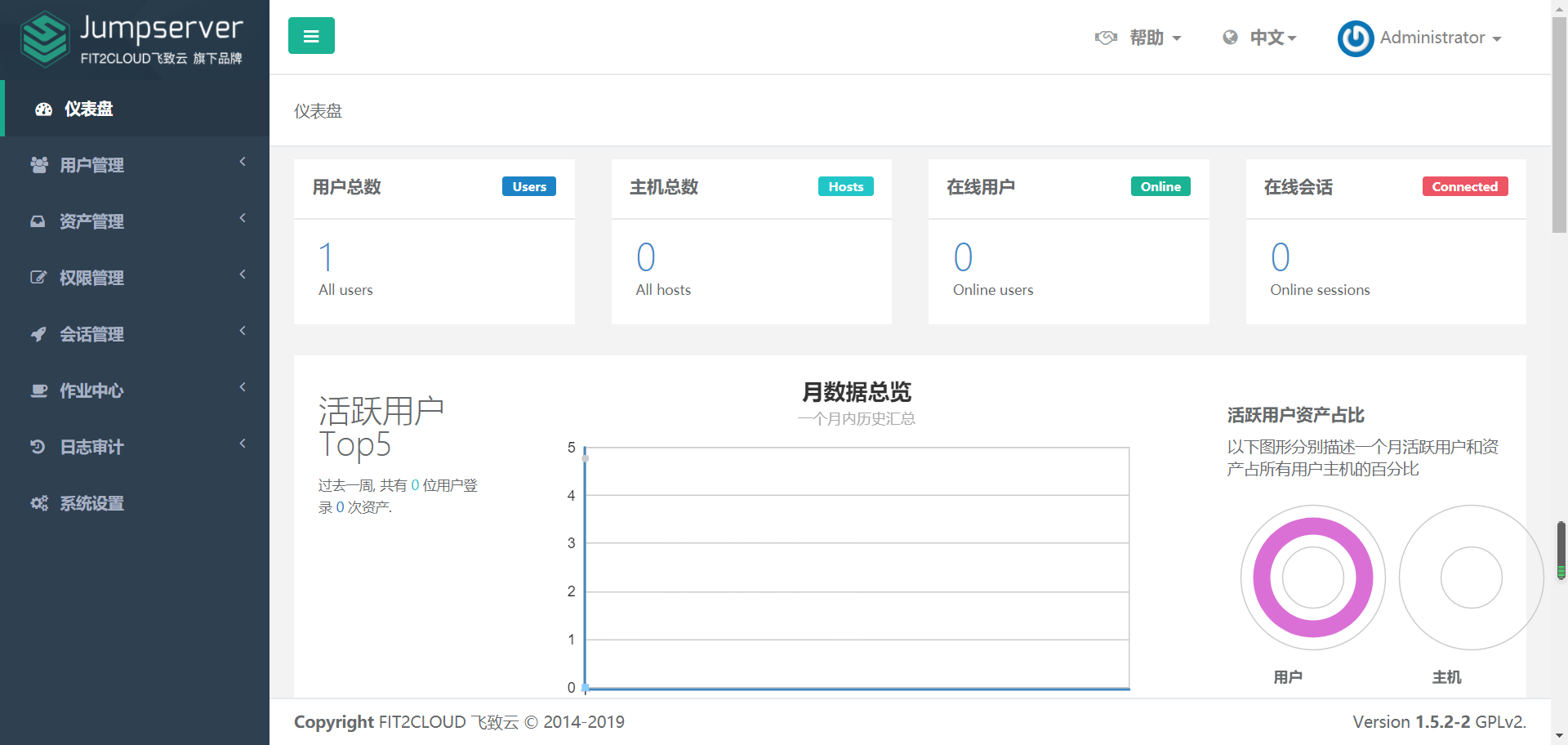

登录后界面如下：
